Automotive Fasteners for OEM Manufacturing: Screws, Bolts, Nuts and Threaded Inserts

Automotive Fasteners for OEM Manufacturing: Screws, Bolts, Nuts and Threaded Inserts

Automotive manufacturing depends on a wide range of precision fastening components to assemble vehicle structures, mechanical equipment, body panels, electronic modules and electric vehicle systems.

From high-strength bolts used in demanding mechanical joints to weld nuts and rivet nuts installed in sheet-metal structures,

each fastener must be compatible with the intended application, assembly process and customer specification.

For automotive OEMs and Tier-1 and Tier-2 suppliers, fastener selection is not limited to nominal dimensions or mechanical strength.

It also affects production efficiency, installation consistency, component traceability, maintenance and total manufacturing cost.

Juxin Fasteners supplies industrial and automotive fastening products, including screws, bolts, nuts, threaded inserts and drawing-specific OEM components.

Product availability, customization, manufacturing methods and qualification requirements are subject to project confirmation.

This guide provides a product-focused framework for engineers, production managers and purchasing teams evaluating

automotive fastening solutions for prototype development, production sourcing and supplier qualification.

Automotive Fastener Product Categories

Automotive assembly uses both threaded and non-threaded fastening components.

Threaded fasteners create connections through engagement between external and internal threads.

Examples include:

• Screws

• Bolts

• Nuts

• Threaded studs

• Weld nuts

• Rivet nuts

• Threaded inserts

Related non-threaded components may include:

• Rivets

• Pins

• Retaining rings

• Selected clips and retaining devices

Important Product Distinction

Rivets, pins and retaining rings are not automatically classified as threaded fasteners.

They may be used alongside threaded components in a complete automotive assembly, but their joining principles and selection requirements differ.

Engineering Recommendation

Define the fastening function and installation method before selecting the product category.

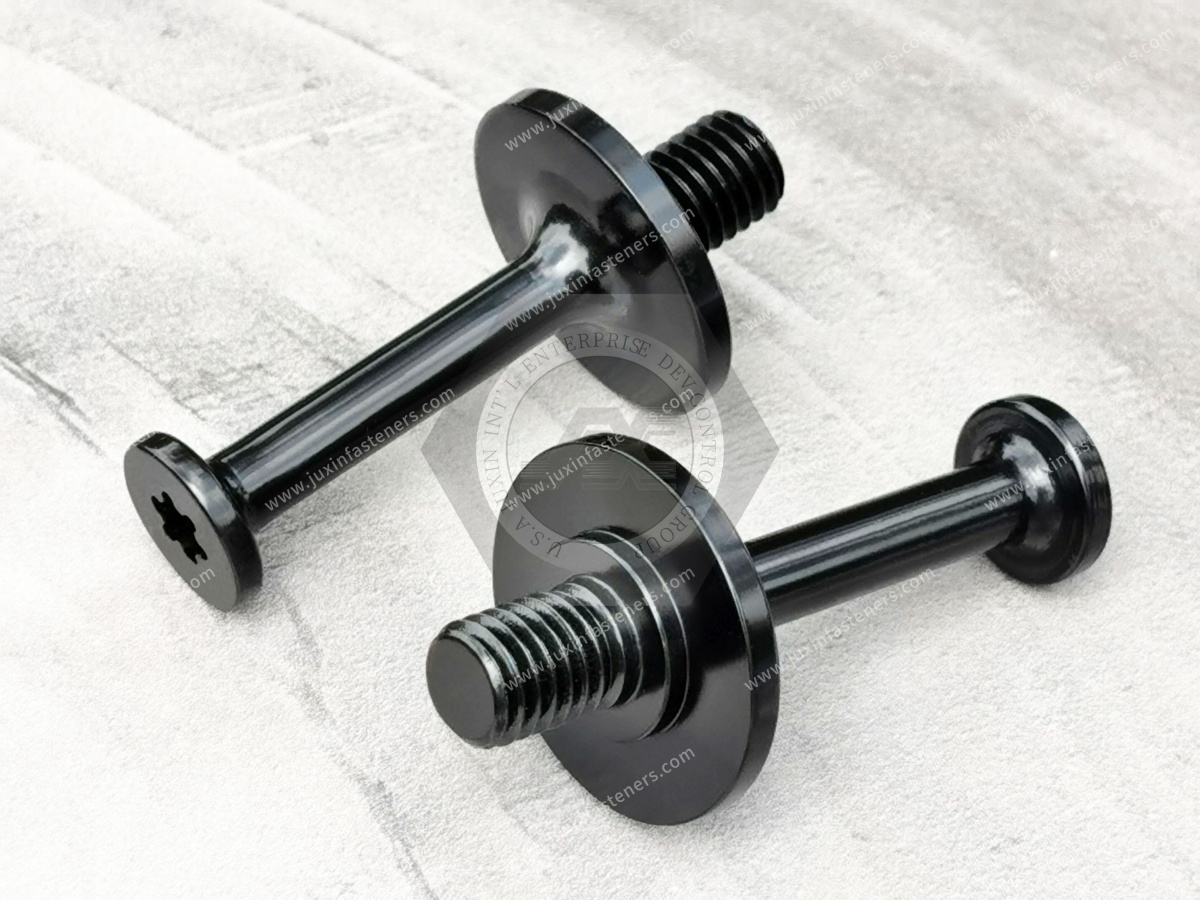

Automotive Screws for Vehicle Assembly

Automotive screws are used across body structures, interior components, electronic housings and mechanical equipment.

Common configurations include:

• Hex head screws

• Hex flange screws

• Socket head cap screws

• Button head screws

• Torx drive screws

• Machine screws

• Self-tapping screws

The appropriate screw depends on joint geometry, installation access, parent material, loading conditions and assembly requirements.

Hex Head Screws

Hex head screws provide external drive access and are used in many mechanical assemblies.

Hex Flange Screws

Hex flange screws incorporate an integrated bearing flange that may reduce separate washer handling in suitable designs.

Socket Head Screws

Socket head screws can be useful where external wrench access is restricted, provided the head geometry and tool access suit the assembly.

Torx Drive Screws

Torx drive screws may support efficient power-tool engagement in selected assembly processes.

Self-Tapping Screws

Self-tapping screws form or cut mating threads in suitable materials, subject to pilot-hole, thickness and installation requirements.

Information Gain: Screw Drive Selection Affects Production Efficiency

A drive system that is appropriate for manual service work may not be the best option for automated high-volume assembly.

Production Recommendation

Evaluate drive engagement, bit life, feeding orientation, installation access and tool compatibility before approving the screw design.

High Strength Automotive Bolts

High-strength steel bolts are used in selected automotive mechanical and structural assemblies.

Applicable metric property classes may include:

• Class 8.8

• Class 10.9

• Class 12.9

These property classes are defined under ISO 898-1 for applicable carbon steel and alloy steel bolts, screws and studs.

Class 8.8 Bolts

May be selected for mechanical assemblies where the approved joint design supports their mechanical properties.

Class 10.9 Bolts

May be selected for higher-load applications requiring defined high-strength mechanical properties.

Class 12.9 Bolts

May be selected for specialized applications where the higher strength is required and compatible with the complete joint design.

Important Engineering Limitation

A higher property class is not automatically a better choice.

Mating-thread strength, preload, fatigue, coating processes and environmental conditions must also be considered.

Engineering Recommendation

Select the property class according to the approved drawing and joint requirements rather than choosing the highest available grade.

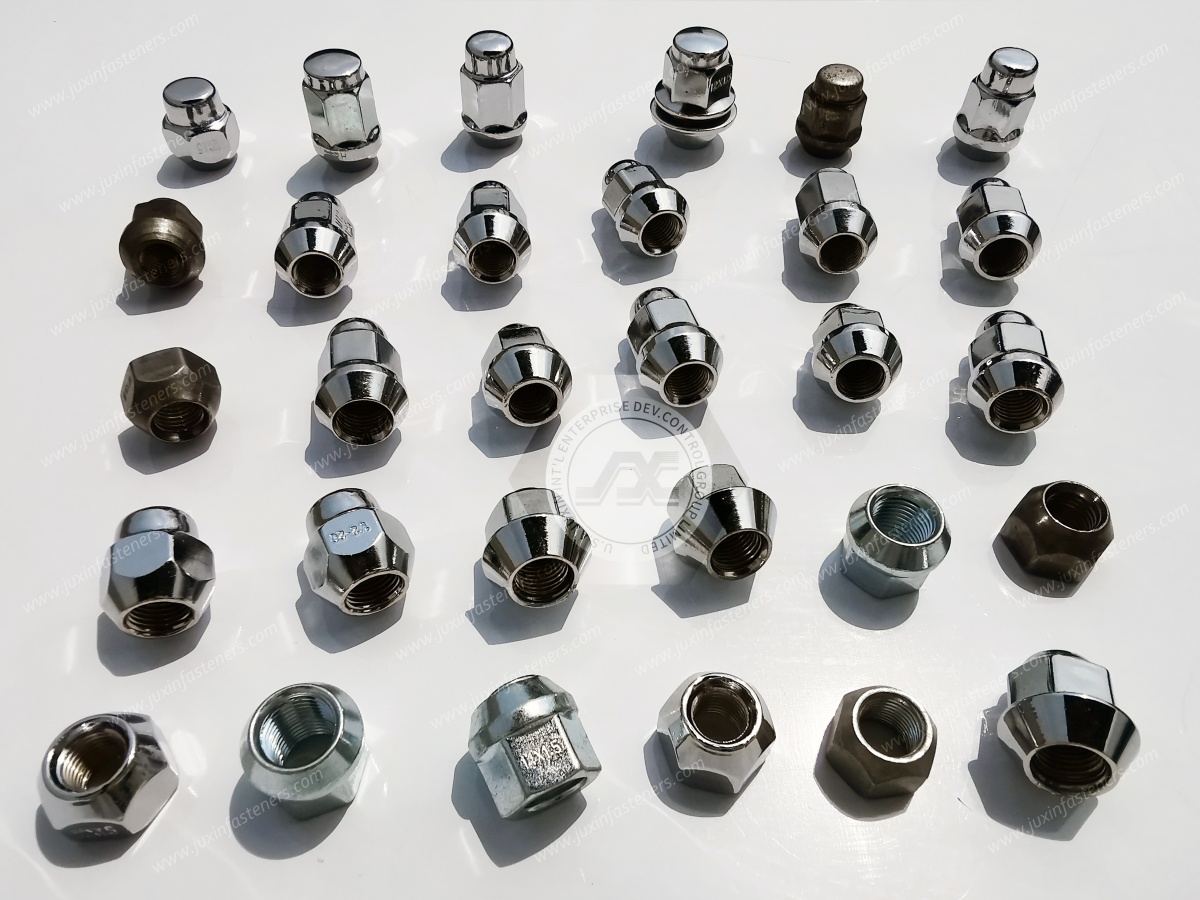

Automotive Nuts and Locking Components

Nuts are used with bolts, screws and studs to create threaded connections.

Common automotive nut categories include:

• Hex nuts

• Flange nuts

• Nylon insert lock nuts

• All-metal prevailing torque nuts

• Weld nuts

• Square nuts

• Custom OEM nuts

Hex Nuts

Used in conventional bolted connections where the joint design permits a separate nut.

Flange Nuts

Provide an integrated bearing flange that may simplify assembly and distribute bearing pressure over a suitable surface.

Nylon Insert Lock Nuts

Use a polymer locking element to create prevailing torque.

All-Metal Prevailing Torque Nuts

Use a mechanical interference feature to resist unintended rotation.

Weld Nuts

Provide an internally threaded attachment point on a suitable weldable component.

Square Nuts

May be used in selected captive-nut arrangements and specialized assemblies.

Important Engineering Limitation

Prevailing torque does not replace the need for correct joint preload.

Locking-nut reuse and temperature suitability must be assessed according to the product specification.

Engineering Recommendation

Specify nut geometry, mechanical-property class, locking characteristics and installation requirements.

Weld Nuts for Automotive Sheet Metal

Weld nuts are used in vehicle structures where an internal thread must be attached to a weldable component.

Potential applications include:

• Body structures

• Equipment brackets

• Seat-related mounting structures

• Door assemblies

• Sheet-metal subassemblies

Engineering Considerations

• Sheet thickness

• Weldability

• Weld-nut geometry

• Position tolerance

• Thread protection

• Welding process

• Joint loading

Production Consideration

Weld-nut location and orientation can influence downstream assembly efficiency.

A correctly manufactured weld nut may still cause production problems if its position does not align with the mating component.

Production Recommendation

Include weld-nut positioning and thread-condition verification in the approved manufacturing process.

Rivet Nuts for Thin-Walled Automotive Components

Rivet nuts, also called blind rivet nuts or threaded rivet inserts, provide internal threads in suitable thin-walled components.

They can be useful when access is available from only one side of the assembly.

Potential applications include:

• Automotive body panels

• Lightweight brackets

• Equipment housings

• Battery-related enclosures

• Industrial vehicle structures

Engineering Considerations

• Parent-material thickness

• Grip range

• Hole diameter

• Hole tolerance

• Installation force

• Pull-out resistance

• Torque-out resistance

Information Gain: Rivet-Nut Performance Depends on Installation Conditions

The same nominal rivet nut may behave differently when installed in steel, aluminum or other materials.

Engineering Recommendation

Validate the selected rivet nut using the actual parent material, thickness and installation equipment.

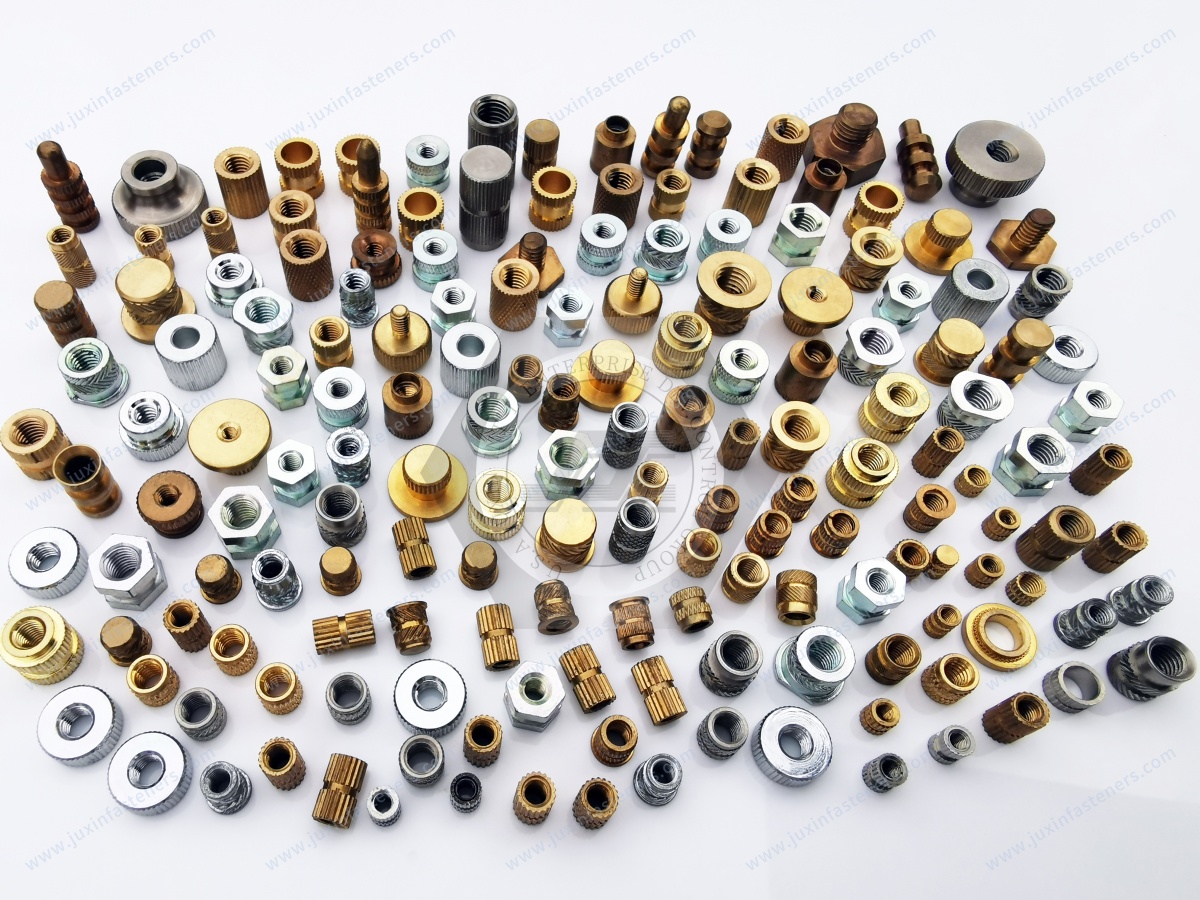

Threaded Inserts for Automotive Lightweight Materials

Threaded inserts can reinforce fastening points in selected lightweight materials.

Potential applications include:

• Plastic housings

• Interior components

• Electronic modules

• Aluminum structures

• Lightweight equipment assemblies

Engineering Considerations

• Parent-material properties

• Insert geometry

• Installation method

• Pull-out resistance

• Torque-out resistance

• Thermal expansion

• Repeated assembly requirements

Important Limitation

Different insert technologies are not directly interchangeable.

Engineering Recommendation

Select the insert according to the parent material and approved assembly process.

Automotive Engine and Mechanical Equipment Applications

Engine-related equipment may require fasteners capable of operating under elevated temperatures, vibration and cyclic loading.

Potential applications include:

• Engine accessories

• Mechanical housings

• Equipment brackets

• Intake-related components

• Transmission-related equipment

Potential Fastener Types

• Hex head bolts

• Flange bolts

• Socket head screws

• Application-specific nuts

• Custom threaded components

Important Limitation

Specialized engine fasteners, including certain cylinder-head bolts, may require dedicated materials, tightening methods and OEM validation.

Engineering Recommendation

Do not substitute general-purpose bolts into specialized powertrain joints without approval.

Automotive Chassis and Suspension Applications

Chassis-related assemblies may use high-strength bolts and specialized nuts.

Potential applications include:

• Subframe-related structures

• Suspension brackets

• Mechanical support assemblies

• Steering-related equipment

• Selected structural joints

Engineering Considerations

• Mechanical loading

• Fatigue

• Preload

• Corrosion

• Joint stiffness

• Service conditions

Critical Safety Requirement

Safety-critical chassis, suspension, steering and braking connections require approved OEM specifications and application-specific validation.

Automotive Body Assembly Applications

Vehicle body assembly often involves thin sheet metal, brackets and access-limited structures.

Potential fastener types include:

• Weld nuts

• Rivet nuts

• Self-tapping screws

• Flange bolts

• Machine screws

• Captive nut arrangements

Information Gain: Fastener Selection Should Follow the Assembly Sequence

A weld nut may be appropriate when welding access is available before final assembly.

A rivet nut may be useful when one-sided installation is required.

A self-tapping screw may simplify selected lower-load assemblies where the mating material supports reliable thread formation.

Production Recommendation

Evaluate fastener selection alongside the body assembly process, tooling and access requirements.

EV Battery Enclosures and Electrical Equipment

Electric vehicle systems may combine steel, aluminum, polymers and other materials.

Potential applications include:

• Battery enclosure brackets

• Mechanical equipment supports

• Electronic control housings

• Electrical cabinets

• Charging-related equipment

• Auxiliary component assemblies

Potential Fastener Types

• Flange bolts

• High-strength screws

• Machine screws

• Weld nuts

• Rivet nuts

• Threaded inserts

Engineering Considerations

• Material compatibility

• Corrosion

• Thermal expansion

• Joint stiffness

• Installation access

• Maintenance requirements

Important Limitation

Mechanical fastening does not automatically establish electrical isolation, grounding or high-voltage safety compliance.

Engineering Recommendation

Coordinate mechanical fastening requirements with the electrical and thermal design.

Automotive Electronics and Interior Components

Electronic and interior assemblies often require compact fastening solutions.

Potential applications include:

• Electronic control units

• Sensor housings

• Interior brackets

• Trim-related structures

• Communication modules

Potential Fastener Types

• Machine screws

• Torx drive screws

• Button head screws

• Self-tapping screws

• Threaded inserts

Production Considerations

• Compact installation space

• Tool access

• Drive engagement

• Component damage prevention

• Assembly speed

• Rework

Engineering Recommendation

Select the screw and drive geometry according to the actual production process.

Automotive Fastener Materials

Material selection affects mechanical properties, corrosion resistance, manufacturability and cost.

Carbon Steel

Commonly used for industrial and automotive fastening components.

Alloy Steel

May be selected where higher mechanical properties are required.

Stainless Steel

May be appropriate for selected corrosion-sensitive applications.

Important Engineering Limitation

Stainless steel is not automatically a substitute for high-strength alloy steel.

Engineering Recommendation

Evaluate strength, corrosion exposure, mating materials and joint requirements before approving material changes.

Automotive Fastener Manufacturing Processes

Different fastener geometries and production quantities may require different manufacturing methods.

Cold Heading

Often used to form suitable screw and bolt head geometries efficiently.

Thread Rolling

Commonly used to form external threads in suitable materials and production processes.

Machining

May be required for specialized geometries, precision features or certain production quantities.

Heat Treatment

Used where the specified material and mechanical-property class require controlled heat treatment.

Surface Coating

Used to achieve defined corrosion, friction or appearance requirements.

Important Manufacturing Distinction

Not every fastener requires every manufacturing process.

Engineering Recommendation

Select the manufacturing route according to product geometry, material, performance requirements and production volume.

Information Gain: Product Geometry Can Influence Manufacturing Cost More Than Nominal Thread Size

Two screws with the same nominal diameter may require different manufacturing processes because of head geometry, drive features, undercuts, thread length or tolerances.

Procurement Recommendation

Provide complete drawings before comparing custom fastener quotations.

Automotive Fastener Surface Treatments

Automotive fasteners may require corrosion protection depending on service conditions.

Potential coating systems include:

• Zinc electroplating

• Zinc-nickel coating

• Zinc-flake coating

• Application-specific black protective finishes

Zinc Electroplating

May be suitable for selected automotive and industrial applications.

Zinc-Nickel Coating

May be specified where defined corrosion performance is required.

Zinc-Flake Coating

May be used in selected automotive fastening applications.

Black Finishes

May be selected for appearance or application-specific surface requirements.

Important Engineering Limitation

A coating name alone does not establish corrosion performance, friction behavior or suitability for a particular application.

Engineering Recommendation

Specify the complete coating system, thickness, friction requirements and acceptance criteria.

Hydrogen Embrittlement Considerations

Susceptible high-strength steel fasteners may be affected by hydrogen introduced during certain manufacturing or coating processes.

Engineering Considerations

• Material strength and hardness

• Surface preparation

• Electroplating process

• Hydrogen control

• Sustained tensile loading

Important Limitation

Hydrogen embrittlement risk depends on the complete material, process and service conditions.

Engineering Recommendation

Review coating-process compatibility when specifying high-strength steel fasteners.

Thread Accuracy and Dimensional Consistency

Automotive production requires consistent thread engagement and predictable installation.

Important dimensions may include:

• Nominal thread diameter

• Thread pitch

• Thread tolerance

• Head geometry

• Drive dimensions

• Length

• Bearing surface

• Special features

Production Risk

Dimensional variation can contribute to cross-threading, poor tool engagement, installation defects and rework.

Production Recommendation

Define the inspection characteristics that directly affect the assembly process.

Metric and Inch-Series Thread Compatibility

Metric threads, UNC threads, UNF threads, BSW threads and BSF threads are different systems.

They are not directly interchangeable.

Approximate inch conversions are reference values only.

Engineering Recommendation

Confirm the full thread designation and mating component specification before approving an alternative.

Automotive Fastener Installation and Assembly Efficiency

Manufacturing engineers and production managers should evaluate fastener performance in the actual production environment.

Important Variables

• Fastener feeding

• Orientation

• Tool access

• Drive engagement

• Tightening strategy

• Joint seating

• Thread engagement

• Installation cycle time

• Inspection

• Rework

Information Gain: Fastener Unit Price Is Only One Part of Assembly Cost

A lower-cost fastener may increase production costs if it causes feeding problems, tool wear or assembly defects.

Production Recommendation

Evaluate total installed cost, including fastening time, tooling, inspection and rework.

Torque Control and Joint Reliability

Tightening torque is commonly used to develop clamp load.

However, torque is not a direct measurement of preload.

The torque-tension relationship depends on:

• Thread friction

• Bearing friction

• Coating

• Lubrication

• Mating materials

• Joint geometry

Important Engineering Limitation

A generic torque value should not replace the approved joint-specific tightening specification.

Production Recommendation

Validate tightening parameters using representative production components.

Common Automotive Fastener Failure Modes

Thread Stripping

May result from insufficient engagement, unsuitable parent material or excessive installation load.

Fastener Fracture

May result from overload, fatigue or other contributing conditions.

Preload Loss

May result from joint settlement, relaxation or incorrect installation.

Vibration Loosening

May occur when joint movement and preload conditions permit rotation.

Corrosion Damage

May affect thread condition and long-term reliability.

Insert Pull-Out or Torque-Out

May result from unsuitable insert selection or installation conditions.

Engineering Recommendation

Investigate the complete joint and production process rather than focusing only on the fastener.

International Standards for Automotive Fasteners

Applicable standards depend on the product type, material and customer requirements.

ISO 898-1

Mechanical properties of applicable carbon steel and alloy steel bolts, screws and studs.

ISO 898-2

Mechanical properties of applicable nuts with specified property classes.

ISO 3506 Series

Mechanical properties of applicable corrosion-resistant stainless steel fasteners.

ISO 965 Series

Tolerances for ISO general-purpose metric screw threads.

ISO 4042

Electroplated coating systems for fasteners within its applicable scope.

ISO 10683

Non-electrolytically applied zinc-flake coating systems for fasteners within its applicable scope.

Important Standards Principle

General fastener standards do not replace application-specific OEM requirements.

Engineering Recommendation

Confirm the applicable standards and drawing revision before production approval.

Automotive Fastener Quality Control

Quality requirements should be defined according to the product and customer specification.

Potential verification activities include:

• Dimensional inspection

• Thread verification

• Mechanical-property testing

• Coating verification

• Functional testing where required

• Material documentation

• Production traceability

• Change control

Important Limitation

Specific testing, inspection documentation and production approval requirements must be confirmed for each project.

Supplier Qualification for Automotive OEM Programs

Procurement and supplier development teams should evaluate technical conformity, production feasibility and supply continuity.

Technical Review

• Approved drawing

• Material specification

• Mechanical-property requirements

• Thread designation

• Geometry and tolerances

• Coating requirements

• Inspection criteria

Production Review

• Manufacturing feasibility

• Prototype quantity

• Batch size

• Annual demand

• Packaging

• Delivery planning

Commercial Review

• MOQ

• Pricing

• Lead time

• Approved alternatives

• Long-term supply requirements

Information Gain: Supplier Substitution Requires More Than Matching Part Numbers

Two fasteners may share nominal dimensions but differ in coating friction, thread tolerance, material properties or manufacturing consistency.

Procurement Recommendation

Approve alternative suppliers against the complete technical specification and customer qualification requirements.

Custom Automotive Fasteners and Drawing-Based Manufacturing

Custom fasteners may be required when standard products cannot meet the design.

Potential customization areas include:

• Head geometry

• Drive configuration

• Thread length

• Special dimensions

• Material selection

• Surface coating

• Application-specific features

Important Limitation

Custom manufacturing feasibility, tooling, inspection documentation, samples, MOQ and production schedules require technical and commercial confirmation.

Engineering Recommendation

Submit a complete drawing and application description for evaluation.

Frequently Asked Questions

What automotive fasteners are commonly used in vehicle manufacturing?

Common products include screws, bolts, nuts, weld nuts, rivet nuts and threaded inserts.

Are rivets considered threaded fasteners?

No. Conventional rivets are non-threaded joining components.

Which fasteners are suitable for automotive sheet metal?

Depending on the design, weld nuts, rivet nuts or suitable self-tapping screws may be considered.

Are Class 10.9 bolts suitable for every automotive joint?

No. The correct property class depends on the approved joint design.

Can stainless steel replace alloy steel automotive bolts?

Not automatically. Mechanical properties and application requirements must be reviewed.

Why are flange bolts used in automotive assembly?

They may simplify assembly and provide an integrated bearing surface in suitable designs.

What affects automotive fastener installation consistency?

Thread geometry, coating friction, tool engagement, mating components and tightening control.

What information is required for a custom automotive fastener quotation?

Provide the drawing, material, thread specification, geometry, coating, inspection requirements and purchasing quantities.

Juxin Fasteners: Automotive Fastener Supply and OEM Manufacturing Support

Juxin Fasteners supplies industrial and automotive fastening components for OEM applications.

Relevant product categories include:

• Automotive screws

• High-strength bolts

• Hex head screws

• Flange bolts

• Socket head screws

• Machine screws

• Self-tapping screws

• Hex nuts

• Flange nuts

• Locking nuts

• Weld nuts

• Rivet nuts

• Threaded inserts

• Custom OEM fasteners

Specific product specifications, manufacturing methods, material grades, coatings, samples, inspection documentation,

MOQ and delivery schedules are subject to technical and commercial confirmation.

Safety-critical automotive applications require customer-approved specifications and application-specific validation before production use.

Request an OEM Automotive Fastener Quotation

Are you sourcing automotive screws, high-strength bolts, locking nuts, weld nuts, rivet nuts or custom threaded components for a new or existing vehicle program?

Juxin Fasteners welcomes inquiries from automotive OEMs, Tier-1 and Tier-2 suppliers, design engineers, manufacturing engineers,

production managers, purchasing managers and supplier development teams.

For technical review and quotation, please provide:

Approved drawing or standard + part number and revision + fastener type + dimensions and thread designation + material specification

+ mechanical-property requirements + coating requirements + mating material + installation method + inspection criteria

+ prototype quantity + annual demand + batch size + packaging + target delivery schedule.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your automotive fastener drawings and OEM RFQ to Juxin Fasteners for product evaluation, technical confirmation and quotation.
