Knob-Grip Retractable Spring Plungers for Precision Positioning and Industrial Adjustment

In modern industrial equipment and automated manufacturing systems, precision positioning and repeatable alignment are critical to maintaining operational efficiency and product quality.

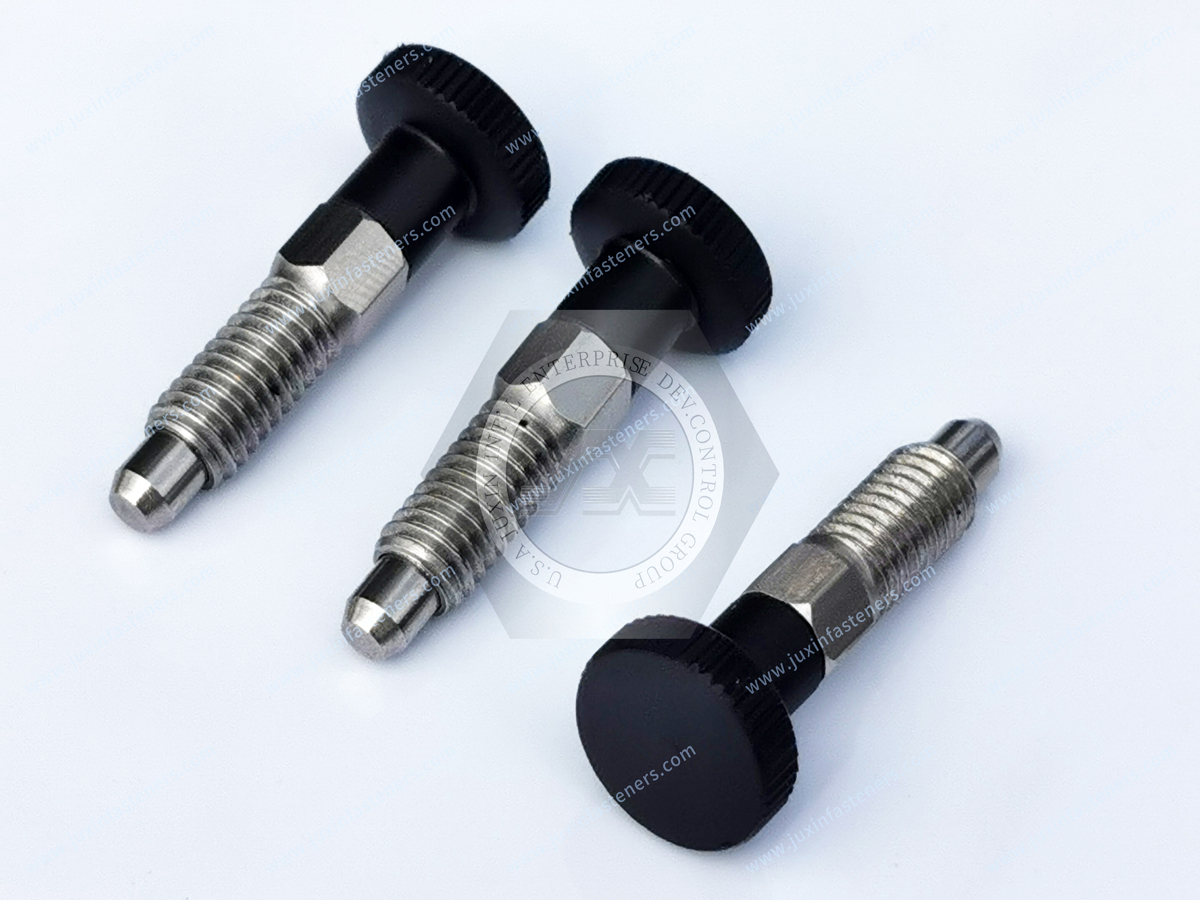

Knob-Grip Retractable Spring Plungers are widely used mechanical positioning components designed to provide fast manual control, accurate positioning, and reliable locking in machinery and automation equipment.

These spring-loaded components integrate a plunger pin, compression spring, threaded body, and ergonomic knob grip, enabling operators to quickly retract and release the plunger for controlled adjustments. Their compact structure makes them ideal for fixtures, molds, workstations, automation equipment, and mechanical assemblies where space is limited.

Because of their high reliability, simple installation, and wide range of materials, retractable spring plungers have become essential components across industries ranging from machinery manufacturing to aerospace engineering.

Key Features of Knob-Grip Retractable Spring Plungers

1. Quick Manual Retraction for Efficient Operation

The knob-grip handle design allows operators to easily retract the plunger pin using one hand. This feature enables fast repositioning of workpieces, adjustable components, and fixture elements during assembly or maintenance.

Compared with traditional fixed plungers, retractable spring plungers offer greater flexibility during dynamic adjustment.

 2. High Precision Positioning and Stability

Spring plungers are manufactured with high dimensional accuracy, ensuring reliable engagement between the plunger nose and the positioning hole.

This ensures:

• High repeatability

• Accurate indexing and alignment

• Stable operation under continuous industrial use

In automated production systems, positioning accuracy can reach micrometer-level repeatability.

 3. Durable Material Options for Different Environments

To meet various industrial requirements, spring plungers are available with multiple material configurations:

Steel Nose
Provides the highest strength and wear resistance, suitable for dry industrial environments and high-load applications.

18-8 Stainless Steel Nose
Offers excellent corrosion resistance for outdoor equipment and humid environments.

316 Stainless Steel Nose
Designed for harsh environments, including saltwater exposure, chemicals, and extreme weather conditions.

Brass Nose
Provides corrosion resistance while minimizing surface damage on delicate materials.

Acetal Nose
A soft polymer option designed to protect aluminum, plastic, or finished surfaces from scratches.

 4. Compact Design for Space-Limited Equipment

The knob-grip retractable mechanism allows installation in tight mechanical spaces while still providing a convenient gripping surface for manual operation.

Short-body versions are typically 30% shorter than standard models, making them ideal for thin plates and compact assemblies.

 5. Secure Locking Mechanism for Hands-Free Adjustment

Some models feature a twist-to-lock mechanism, allowing the plunger to remain retracted.

This enables operators to:

• Adjust fixtures

• Replace parts

• Reposition workpieces

without the plunger interfering with the process.

Functional Advantages in Industrial Control Systems

Knob-Grip Retractable Spring Plungers are commonly used as mechanical positioning elements in precision control systems.

Their functions include:

• Workpiece positioning and indexing

• Height adjustment of platforms or tables

• Limit stop positioning

• Mold demolding assistance

• Safety locking and positioning

The preload force can be adjusted by varying the thread insertion depth, enabling the spring plunger to meet load requirements ranging from 0.01 N to 50 N.

Typical operating conditions range from -30°C to 140°C, making them suitable for both low- and high-temperature industrial environments.

 Typical Applications Across Multiple Industries

Because of their reliability and flexibility, retractable spring plungers are used in a wide range of industrial applications.

Machinery Manufacturing and Automation

Spring plungers are widely used in:

• Assembly fixtures

• Automated production lines

• Robotic positioning systems

• Tooling and molds

They ensure accurate indexing, workpiece positioning, and stable alignment during high-speed manufacturing processes.

 Automotive Manufacturing

In automotive production systems, spring plungers are used for:

• Engine assembly line positioning

• Transmission testing fixtures

• Suspension and brake component alignment

• Precision component assembly

These applications improve assembly consistency and production efficiency.

 Medical Equipment

Medical devices require high precision and reliability. Spring plungers are used in:

• Surgical instruments

• Injection equipment

• Therapeutic devices

They enable precise mechanical positioning and fluid control mechanisms.

 Semiconductor Manufacturing

In semiconductor production environments, spring plungers support nanometer-level positioning accuracy.

Typical uses include:

• Lithography wafer stages

• Gas control valves in etching machines

• Precision positioning modules

Corrosion-resistant materials ensure compatibility with cleanroom and chemical processing environments.

 Aerospace and Energy Equipment

In aerospace and energy systems, spring plungers assist with:

• Hydraulic system positioning

• Aircraft landing gear control components

• Oil and gas pipeline equipment

• Chemical processing machinery

Their durability ensures reliable operation in extreme conditions.

Why Knob-Grip Retractable Spring Plungers Are Essential in Modern Equipment

Modern industrial machinery demands components that combine precision, durability, and ease of use.

Knob-Grip Retractable Spring Plungers provide several critical advantages:

• Fast manual adjustment

• High-precision positioning

• Strong mechanical reliability

• Compact installation design

• Compatibility with automated equipment

Because of these benefits, they are widely recognized as indispensable positioning elements in modern manufacturing systems.

 Juxin Fasteners Industrial Positioning Components

With over 21 years of manufacturing experience, Juxin Fasteners supplies high-quality mechanical fastening and positioning components for global industrial customers.

Our product range includes:

• Spring plungers

• Blind rivet nuts

• Weld studs

• Insert nuts

• Industrial fasteners and CNC parts

We provide custom materials, sizes, and load specifications to meet the requirements of modern manufacturing, automation equipment, and precision engineering industries.
