Expansion Bolt Solutions for Municipal Infrastructure and Transportation

Aug. 15, 2026


Expansion Bolt Solutions for Municipal Infrastructure and Transportation


Engineering Selection, Corrosion Protection, Installation Reliability and OEM Fastening Solutions for Bridges, Tunnels, Road Equipment and Public Facilities

Municipal infrastructure and transportation projects require fastening systems capable of supporting equipment and structural accessories under demanding installation,

loading and environmental conditions.

Road infrastructure, bridges, tunnels, public transportation facilities and municipal utility systems may be exposed to moisture, road salt, temperature variation, vibration,

traffic-related actions and difficult maintenance conditions.

Expansion bolts and other post-installed mechanical anchors are used for suitable steel-to-concrete connections where the substrate, anchor qualification and complete connection design permit their use.

Potential applications include traffic equipment brackets, tunnel service supports, bridge utility attachments, electrical equipment frames, maintenance structures and municipal facility installations.

However, the term heavy-duty expansion bolt does not establish suitability for a particular infrastructure project.

Engineers must evaluate the anchor together with the concrete, fixture geometry, installation method and expected service conditions.

Juxin Fasteners supplies industrial fastening components, including expansion bolts, concrete anchoring hardware, bolts, nuts, washers and drawing-based OEM fasteners.

This guide explains the engineering considerations involved in selecting expansion bolt solutions for municipal infrastructure and transportation applications,

with particular attention to durability, installation consistency and industrial procurement.

What Are Expansion Bolts for Infrastructure Applications?

Expansion bolts are post-installed mechanical anchors that develop engagement with a suitable substrate through an expanding component or mechanism.

Depending on the product design, an expansion anchor may include:

  • A threaded stud or bolt

  • An expansion sleeve or clip

  • A tapered cone or wedge

  • A nut and washer

  • Product-specific setting components

During installation, the expansion mechanism is activated according to the manufacturer's specified procedure.

The expanding component engages the surrounding base material and allows the anchor to transfer forces from the attached fixture into the substrate.

Expansion Bolt Solutions for Municipal Infrastructure and Transportation

Common International Product Terms

Engineers and industrial buyers may search for:

  • Infrastructure expansion bolts

  • Concrete expansion anchors

  • Mechanical expansion anchors

  • Heavy-duty concrete anchors

  • Wedge anchor bolts

  • Sleeve expansion anchors

  • Post-installed concrete anchors

  • Transportation infrastructure fasteners

  • Municipal equipment anchors

  • Steel-to-concrete fixing systems

  • Corrosion-resistant expansion anchors

  • Bridge and tunnel equipment fixings

These terms are commercially related but do not identify technically identical products.

Wedge anchors, sleeve anchors, concrete screw anchors and bonded anchors have different load-transfer mechanisms and installation requirements.

Infrastructure Applications for Expansion Bolts

Potential applications include:

  • Traffic sign equipment

  • Roadside electrical cabinets

  • Street lighting accessories

  • Selected highway equipment brackets

  • Bridge utility supports

  • Tunnel lighting systems

  • Tunnel ventilation equipment

  • Cable tray support systems

  • Public transportation facilities

  • Municipal utility structures

  • Maintenance platforms

  • Equipment foundations

  • Auxiliary steel support frames

The anchor system must be selected according to the actual engineering requirements.

Application Selection Matrix

Infrastructure applicationPotential fastening requirementMain engineering consideration
Traffic sign equipmentBracket-to-concrete connectionWind and fatigue-related actions
Street lighting accessoriesEquipment or bracket fixingExposure and vibration
Bridge utility supportsService attachment to concreteMovement, fatigue and corrosion
Tunnel equipmentLighting, ventilation or cable supportMoisture, overhead installation and fire requirements
Transit facilitiesEquipment and service bracketsPublic safety and maintenance
Municipal utility structuresSteel-to-concrete attachmentSubstrate and loading
Road safety barriersEngineered system anchorageCrashworthiness and system approval

Important Engineering Boundary

Ordinary expansion bolts must not automatically be specified for crash barriers, primary bridge structural connections, high-mast lighting foundations or other safety-critical infrastructure systems.

Such applications may require specially engineered and qualified anchoring arrangements.

Expansion Anchors for Guardrails and Road Safety Barriers

Roadside safety barriers and guardrails are intended to manage vehicle-related impact events.

Their performance cannot be evaluated solely from the static tensile or shear resistance of an individual anchor.

The complete safety system may include:

  • Barrier elements

  • Posts

  • Base plates

  • Connection bolts

  • Anchor assemblies

  • Concrete foundations

  • Transition components

  • Energy-absorbing or deformable components

Crashworthiness

Roadside safety hardware may be subject to system-level crash-testing requirements, including applicable AASHTO MASH criteria in the United States.

Anchor and Base Plate Design

The anchoring arrangement must be consistent with the evaluated system and project design.

Impact-Related Forces

Vehicle impact produces complex, rapidly changing forces.

A conventional static anchor calculation does not independently establish crash performance.

Corrosion Protection

Roadside equipment may be exposed to water, deicing salts and atmospheric pollutants.

Installation Consistency

Changes to anchor geometry, base plate dimensions or installation conditions may affect the system's performance.

Information Gain: A Stronger Anchor Is Not Automatically a Safer Barrier Connection

Some road safety systems depend on controlled deformation or energy absorption.

Replacing a specified component with a stronger-looking fastener may alter the intended response of the complete system.

Safety-barrier hardware substitutions must follow the applicable system approval and engineering requirements.

Expansion Bolts for Street Lighting and Traffic Equipment

Street lighting and traffic infrastructure require secure installation of selected electrical and mechanical components.

Potential applications include:

  • Lighting brackets

  • Electrical equipment cabinets

  • Traffic monitoring equipment

  • Control-system enclosures

  • Cable support brackets

  • Maintenance accessories

  • Auxiliary steel frames

Wind Loading

Outdoor signs and lighting equipment may experience significant wind forces.

The resulting forces depend on the equipment geometry, mounting arrangement and support structure.

Vibration

Traffic, wind and equipment operation may introduce repeated loading.

Corrosion

Outdoor installations may be exposed to rain, humidity, condensation and road salts.

Maintenance

Equipment may require periodic inspection or replacement.

Light Pole Foundations

Primary light-pole anchorage often uses specifically designed foundation bolts or other engineered systems.

Post-installed expansion anchors should not be assumed suitable as direct replacements.

Information Gain: Light Pole Retrofit Anchoring Requires Foundation Geometry Review

An existing light-pole foundation may have restricted edge distances, reinforcement congestion or insufficient available embedment.

A replacement anchor must be evaluated against the actual foundation geometry and loading, not selected solely to match the original bolt diameter.

Bridge Infrastructure and Utility Support Anchoring

Bridges may require attachments for:

  • Cable supports

  • Inspection equipment

  • Lighting

  • Drainage accessories

  • Utility conduits

  • Maintenance brackets

  • Monitoring equipment

  • Auxiliary service structures

These applications may involve demanding environmental and structural conditions.

Structural Movement

Bridges experience movement due to temperature, traffic loading and other actions.

Service attachments must be compatible with the movement of the supporting structure.

Fatigue

Repeated traffic-related loading may influence the design of certain attachments.

Concrete Cracking

The concrete condition must be evaluated when selecting post-installed anchors.

Reinforcement and Prestressing

Drilling into existing bridge elements may risk damaging reinforcement or prestressing components.

Access Constraints

Some installation positions may be difficult to reach or inspect.

Corrosion Exposure

Bridge equipment may experience water, deicing salts and atmospheric pollutants.

Engineering Information Gain: Do Not Treat a Bridge Utility Bracket as an Ordinary Building Bracket

Even when the attached equipment is relatively light, bridge movement, fatigue, drilling restrictions and environmental exposure may control the fastening specification.

For critical bridge applications, the responsible engineer must determine the appropriate anchor type and technical qualification.

Expansion Anchors for Tunnel Equipment

Tunnels contain numerous mechanical, electrical and safety-related systems.

Potential applications include:

  • Lighting equipment

  • Cable tray supports

  • Ventilation equipment

  • Utility brackets

  • Monitoring devices

  • Maintenance structures

  • Signage

  • Electrical service equipment

Moisture and Condensation

Tunnel environments may contain persistent moisture.

Deicing Salt Exposure

Road tunnels may experience chloride exposure from vehicles carrying deicing salts.

Overhead Installation

Some tunnel equipment is installed above traffic or pedestrian areas.

Vibration and Air Movement

Ventilation equipment and traffic-related effects may create repeated loading.

Fire and Emergency Conditions

Certain tunnel systems may have project-specific fire-resistance or emergency-performance requirements.

Inspection Access

Replacement and maintenance may be difficult after the tunnel enters service.

Information Gain: Corrosion and Fire Performance Are Separate Requirements

An anchor selected for corrosion resistance is not automatically suitable for a required fire-exposure condition.

Likewise, a fire-assessed anchor does not automatically provide adequate resistance to chloride-related corrosion.

Both requirements must be reviewed where applicable.

Tunnel Equipment Selection Matrix

ApplicationPotential design issueVerification requirement
Tunnel lightingOverhead safetyApproved orientation and loading
Cable supportRepeated fixing pointsInstallation and inspection
Ventilation equipmentVibration and dynamic loadingAppropriate technical evaluation
Road tunnel servicesChloride exposureCorrosion-resistant configuration
Emergency equipmentFire or safety requirementsProject-specific qualification

Public Transportation and Municipal Facilities

Transportation stations and public infrastructure buildings may require anchoring for:

  • Equipment cabinets

  • Electrical distribution accessories

  • Cable supports

  • Utility frames

  • Maintenance equipment

  • Architectural metalwork

  • Service brackets

  • Signage

  • Mechanical installations

Railway and Transit Facilities

Rail-related applications may involve vibration, operational restrictions and specialized safety requirements.

Public Access Areas

Fixings in passenger areas may be subject to additional safety and maintenance considerations.

Existing Structures

Renovation projects may require verification of existing concrete conditions and embedded services.

Standardized Installations

Repeated equipment installations may benefit from consistent anchor configurations, tools and inspection procedures.

Important Limitation

General-purpose mechanical expansion anchors must not be assumed suitable for railway track fastening or other specialized rail systems.

Such applications require dedicated engineering and product specifications.

Concrete Substrate Conditions for Infrastructure Anchors

The base material is a fundamental part of the anchoring system.

Normal-Weight Concrete

Qualified expansion anchors may be used where the concrete strength and geometry meet the product requirements.

Cracked Concrete

Some mechanical anchors are qualified for cracked concrete.

Other products are limited to uncracked concrete.

Existing Concrete

Older infrastructure may require investigation of:

  • Concrete strength

  • Cracking

  • Deterioration

  • Reinforcement

  • Previous drilled holes

  • Member thickness

  • Environmental damage

Precast Concrete

Precast elements may have restricted thickness and reinforcement layouts.

Masonry

Some products are suitable for specific masonry materials.

A conventional concrete expansion anchor should not automatically be used in hollow masonry or deteriorated brickwork.

Substrate Selection Matrix

Substrate conditionPrimary concernEngineering action
Normal-weight concreteStrength and geometryConfirm product suitability
Cracked concreteCrack-related behaviorVerify cracked-concrete qualification
Existing concreteUnknown propertiesInvestigate substrate
Thin concrete memberLimited embedmentCheck member thickness
Concrete near an edgeBreakout and splittingEvaluate edge distance
Precast concreteReinforcement and thicknessReview element design
MasonryVariable material resistanceUse suitable masonry fixing

Expansion Bolt Solutions for Municipal Infrastructure and Transportation

Expansion Bolt Diameter, Embedment and Anchor Group Design

Anchor dimensions must be coordinated with the fixture and substrate.

Nominal Diameter

The nominal diameter identifies the anchor size but does not independently determine the connection resistance.

Overall Length

Overall length must accommodate the fixture thickness and required installation configuration.

Effective Embedment

Effective embedment is a product-specific design parameter.

It is not necessarily equal to the drilled-hole depth or overall anchor length.

Edge Distance

Anchors near concrete edges may be limited by concrete breakout or splitting.

Anchor Spacing

Adjacent anchors can interact through the surrounding concrete.

Concrete Thickness

The concrete member must satisfy the selected anchor's geometric requirements.

Base Plate Geometry

The stiffness and dimensions of the fixture influence anchor force distribution.

Combined Loading

Anchor groups may experience tension, shear and overturning moments simultaneously.

Information Gain: Anchor Groups Must Be Evaluated as Connections

Adding more anchors does not necessarily increase resistance in direct proportion to anchor quantity.

Concrete breakout regions, fixture stiffness and load distribution can limit the benefit.

Mechanical Expansion Anchor Failure Modes

Depending on the connection, potential failure mechanisms include:

  • Anchor steel failure in tension

  • Anchor steel failure in shear

  • Concrete cone breakout

  • Concrete edge breakout

  • Concrete pryout

  • Anchor pullout

  • Concrete splitting

  • Anchor-group interaction

  • Fixture or base plate failure

Steel Strength vs. Concrete Resistance

A stronger steel stud does not automatically improve the complete connection when concrete failure governs.

Dynamic and Fatigue Loading

Static anchor resistance does not independently establish fatigue performance.

Applications with significant cyclic loading require appropriate engineering assessment and, where necessary, product-specific fatigue qualification.

Seismic Loading

Seismic suitability must be established for the actual anchor and project requirements.

Impact Loading

A general mechanical anchor qualification does not automatically demonstrate suitability for vehicle impact or crash-tested safety systems.

Mechanical Expansion Anchors vs. Chemical Anchors

Infrastructure engineers may compare different anchoring technologies.

SystemLoad-transfer mechanismKey design consideration
Wedge expansion anchorMechanical expansionConcrete qualification and setting
Sleeve expansion anchorExpanding sleeveSubstrate and installation

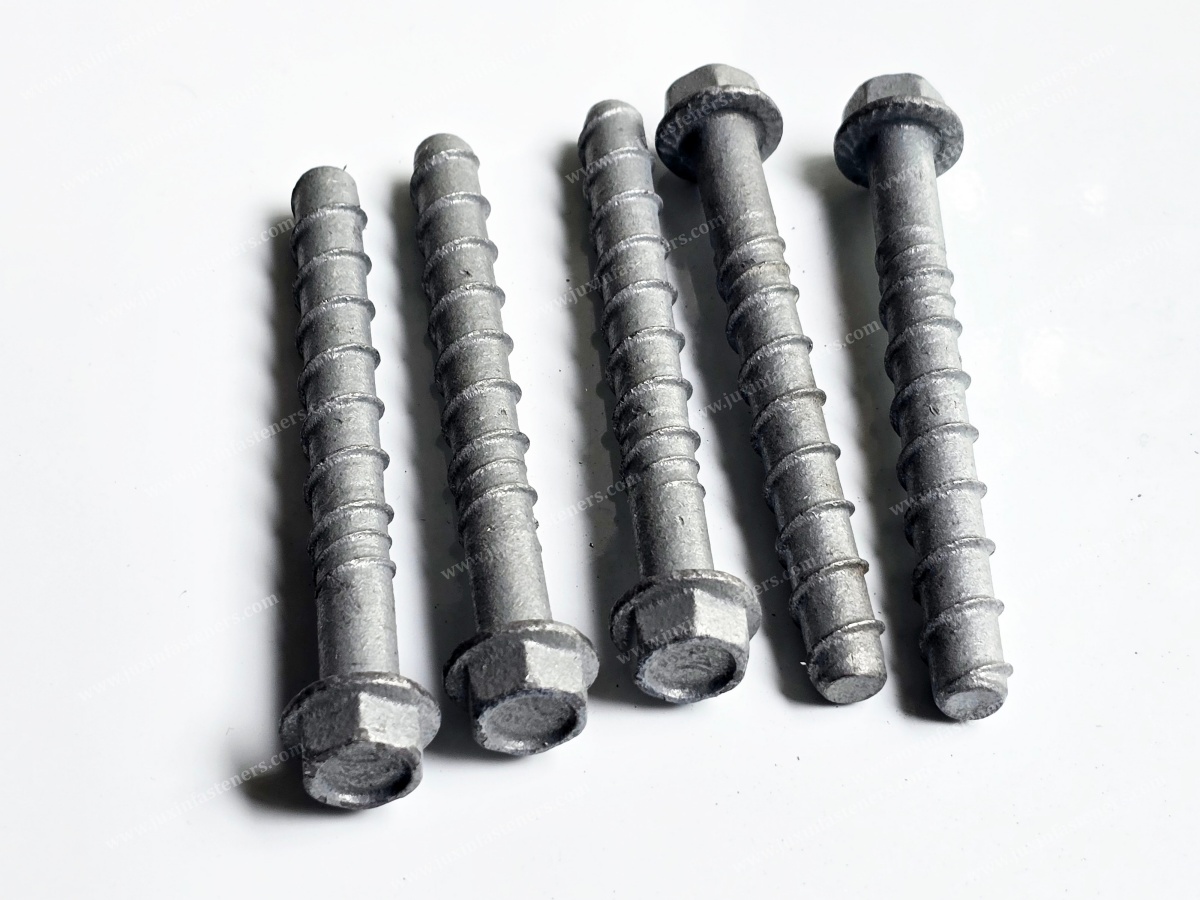

Concrete screw anchorDirect thread engagementPilot hole and thread engagement
Undercut anchorMechanical undercutSpecialized installation
Bonded anchorAdhesive bondingHole preparation, curing and environment
Cast-in anchorEmbedded mechanical connectionFoundation design and construction stage

Mechanical Expansion Anchors

Conventional mechanical expansion anchors do not require adhesive curing.

Their performance depends on the specified expansion and installation procedure.

Bonded Anchors

Bonded anchors require suitable adhesive materials and product-specific installation conditions.

Cast-In Anchors

Cast-in anchors are installed before concrete placement and may be preferred for certain foundations or planned structural connections.

Selection Criteria

The correct solution depends on:

  • Design loads

  • Concrete condition

  • Available embedment

  • Edge distance

  • Anchor spacing

  • Dynamic requirements

  • Environmental exposure

  • Installation access

  • Required qualification

  • Project specification

Information Gain: The Lowest-Cost Anchor Is Not Necessarily the Lowest-Cost Connection

For infrastructure maintenance, installation access, inspection, service interruption and replacement work may cost substantially more than the fastener itself.

Total installed and lifecycle costs should be considered.

Corrosion Protection for Infrastructure Fasteners

Infrastructure fastening systems may be exposed to more aggressive environments than ordinary indoor construction.

Zinc-Plated Carbon Steel

Zinc-based electroplated coatings may be suitable for selected protected environments.

They should not automatically be specified for severe outdoor or chloride exposure.

Hot-Dip Galvanized Expansion Bolts

Certain anchor systems may be available in qualified hot-dip galvanized configurations.

The coating process must be compatible with the product's geometry, threads and expansion mechanism.

Stainless Steel Expansion Anchors

Some stainless steel anchor systems are designed for corrosive environments.

The exact grade, mechanical properties and technical qualification must be confirmed.

304 Stainless Steel

Suitable 304 stainless steel products may be considered for some environmental conditions.

316 Stainless Steel

Suitable 316 stainless steel products may offer improved resistance to certain corrosive exposures.

However, 316 stainless steel is not immune to all forms of chloride-related corrosion.

Specialized Corrosion-Resistant Materials

Highly aggressive environments may require other specifically evaluated materials.

Corrosion Selection Matrix

Exposure conditionMain riskSelection consideration
Protected municipal buildingGeneral atmospheric corrosionSuitable coated steel
Outdoor roadside equipmentRain and pollutantsQualified outdoor protection
Deicing-salt exposureChloride corrosionAppropriate corrosion-resistant system
Road tunnelMoisture and salt depositsTunnel-specific material evaluation
Coastal infrastructureMarine chloridesSuitable stainless or specialized material
Industrial atmosphereChemical pollutantsExposure-specific material
Dissimilar metal assemblyGalvanic corrosionCompatible materials or isolation

Relevant Material and Coating Standards

Depending on the actual product, relevant references may include:

  • ISO 898-1 for applicable carbon and alloy steel fastener mechanical properties

  • ISO 3506 for applicable stainless steel fastener mechanical properties

  • ISO 4042 for electroplated fastener coatings

  • ISO 10684 for applicable hot-dip galvanized fasteners

  • ISO 9227 and ASTM B117 for laboratory salt spray testing

These standards do not independently establish concrete anchor resistance or infrastructure approval.

Hydrogen Embrittlement

Certain high-strength or hardened steel fasteners may be susceptible to hydrogen embrittlement.

Material properties, heat treatment and coating processes should be reviewed where relevant.

Salt Spray Testing Limitations

Laboratory salt spray results should not be treated as direct predictions of outdoor service life.

Information Gain: Corrosion Protection Must Include the Entire Anchor Assembly

The stud, expansion clip, nut, washer and other components may have different materials or coatings.

A corrosion-resistant stud alone does not establish the durability of the complete assembly.

Installation Requirements for Infrastructure Expansion Anchors

Correct installation is essential to anchoring performance.

The exact manufacturer's instructions and project requirements govern.

Confirm the Approved Product

Verify the anchor type, size, material and qualification.

Inspect the Substrate

Check the concrete condition and installation location.

Review Reinforcement and Embedded Services

Avoid damaging reinforcement, prestressing components or concealed utilities.

Verify Anchor Geometry

Confirm:

  • Edge distance

  • Anchor spacing

  • Concrete thickness

  • Fixture thickness

  • Effective embedment

  • Installation access

Drill the Hole

Use the specified drill diameter, depth and method.

Prepare the Hole

Follow the exact product's hole-cleaning requirements.

Install the Anchor

Use the approved installation sequence.

Apply the Specified Setting Procedure

For torque-controlled anchors, use the required setting torque and tools.

Inspect the Connection

Verify the required installation and acceptance criteria.

Important Tool Limitation

Do not assume that impact wrenches are permitted for every expansion anchor.

Some products require controlled torque procedures or prohibit particular tools.

Installation Quality-Control Matrix

CheckpointPurpose
Product identificationPrevent incorrect substitution
Concrete conditionVerify substrate suitability
Anchor locationConfirm approved geometry
Drill diameterSupport correct expansion
Hole depthAchieve installation requirements
Hole preparationFollow product instructions
Setting procedureActivate anchor correctly
Corrosion protectionVerify specified configuration
Inspection recordsSupport traceability
Nonconformance procedureControl rework

Common Installation Problems

Oversized Drilled Hole

May reduce mechanical engagement.

Insufficient Embedment

May reduce the resistance of the connection.

Incorrect Setting Torque

May cause incomplete expansion or damage.

Concrete Edge Damage

May indicate unsuitable geometry or installation conditions.

Unapproved Product Substitution

May invalidate the intended design assumptions.

Coating Damage

May increase corrosion risk.

Uncontrolled Rework

Redrilling or reusing a damaged anchor hole may create additional structural concerns.

Engineering Information Gain: Infrastructure Repairs Require a Controlled Replacement Procedure

Replacing an existing anchor is not always equivalent to installing a new anchor in undamaged concrete.

The condition of the original hole, concrete cracking, corrosion and previous loading should be evaluated before selecting a replacement.

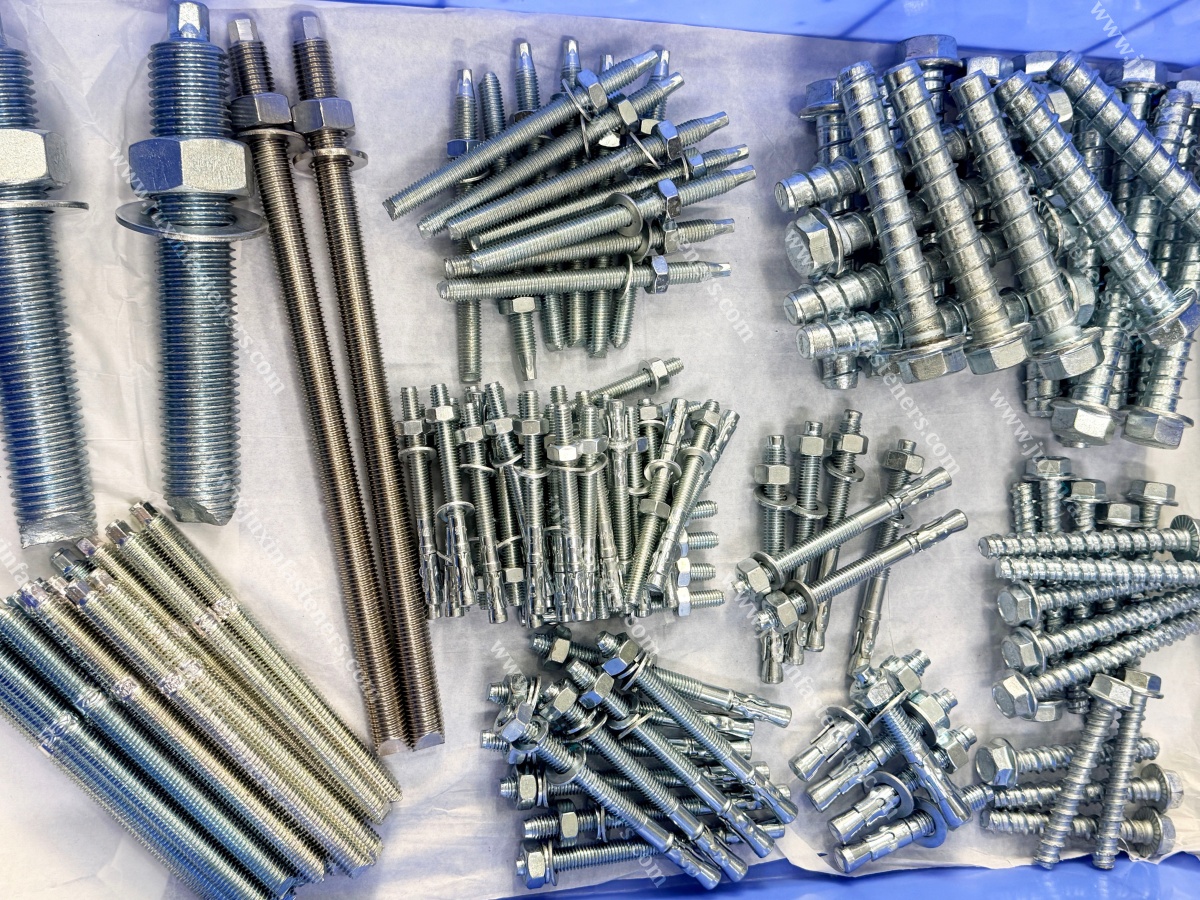

Expansion Bolt Solutions for Municipal Infrastructure and Transportation

International Technical Standards and Product Qualification

EN 1992-4 — Design of Fastenings for Use in Concrete

EN 1992-4 provides European design provisions for applicable concrete fastening systems.

European Technical Assessments

A product-specific ETA may identify:

  • Anchor sizes

  • Intended concrete conditions

  • Effective embedment

  • Characteristic resistance

  • Installation requirements

  • Environmental limitations

  • Seismic performance, where assessed

EAD 330232-02-0601

This European Assessment Document concerns mechanical fasteners for use in concrete.

The applicable assessment basis must be confirmed for the actual product.

ACI CODE-318

ACI 318 includes design requirements for anchoring to concrete.

The applicable edition must follow the project specification and jurisdiction.

ACI CODE-355.2

ACI 355.2 provides qualification requirements for post-installed mechanical anchors in concrete.

ICC-ES Evaluation Reports

An ICC-ES report may provide product-specific evaluation information under stated conditions.

AASHTO MASH

AASHTO MASH addresses crash-testing evaluation for roadside safety hardware.

It is not a general mechanical expansion anchor product standard.

Bridge and Transportation Project Requirements

Additional requirements may apply under the relevant bridge, highway, railway or municipal authority specifications.

Critical Qualification Boundary

A technical approval issued for another manufacturer's anchor cannot be used to establish qualification of a different product.

The supplied anchor must satisfy the actual project requirements.

Metric and Inch-Based Expansion Bolt Specifications

Infrastructure projects may use metric or inch-based threaded components.

The exact thread designation must be specified.

Metric, UNC, UNF, BSW and BSF threads are not directly interchangeable.

Dimensional conversions are reference values only.

Manufacturing Consistency and OEM Fastener Requirements

Industrial infrastructure procurement requires attention to product consistency.

Dimensional Control

Relevant dimensions may include:

  • Anchor diameter

  • Overall length

  • Thread dimensions

  • Expansion component geometry

  • Nut and washer dimensions

Material Control

Material properties must match the specified requirements.

Coating Control

The specified corrosion-protection system must be maintained.

Assembly Compatibility

The expansion mechanism, stud, nut and washer must be compatible.

Traceability

Lot identification may support quality investigations and project records.

Change Control

Changes to geometry, material, heat treatment, coating or expansion components may require technical reassessment.

Packaging

Clear product identification can help prevent mixing of sizes and materials during site installation.

Information Gain: Product Consistency Supports Installation Consistency

Variations in dimensions, threads or expansion components may affect the installation process.

For repeated infrastructure installations, stable product configuration and controlled procurement specifications can reduce installation uncertainty.

Infrastructure Procurement and Supplier Development

Procurement teams should evaluate both technical conformity and supply requirements.

Technical Documentation

Depending on the project, documentation may include:

  • Product drawings

  • Material specifications

  • Dimensional inspection

  • Mechanical testing

  • Coating requirements

  • Installation instructions

  • Product-specific technical evaluations

  • Batch identification

  • Inspection records

Commercial Requirements

  • Initial order quantity

  • Annual purchasing forecast

  • MOQ expectations

  • Packaging

  • Delivery schedule

  • Destination

  • Repeat-order planning

Supplier Qualification Matrix

RequirementProcurement purpose
Product drawingConfirm dimensions
Anchor mechanismPrevent incorrect substitution
Technical qualificationSupport engineering approval
Material documentationVerify specified properties
Corrosion specificationAddress service environment
Installation instructionsSupport field consistency
Inspection criteriaSupport quality control
TraceabilitySupport project documentation
Change controlProtect approved configuration
MOQ and lead timeSupport procurement planning

Information Gain: Separate General Infrastructure Hardware from Qualified Anchoring Systems

Standard industrial bolts, nuts, washers and brackets may be sourced according to applicable component specifications.

Safety-critical concrete anchoring systems may require additional product-specific technical evaluation, engineering approval and installation controls.

The two procurement categories should not be treated as interchangeable.

OEM Customization and Drawing-Based Fastening Components

Technical inquiries may involve:

  • Special dimensions

  • Metric or inch thread requirements

  • Material selection

  • Surface finishes

  • Nut and washer configurations

  • Packaging

  • Drawing-based components

The feasibility of each request must be confirmed.

Important Engineering Limitation

Changing the geometry, material, coating or expansion mechanism of a qualified anchor may affect its evaluated performance.

A customized product must not automatically be represented as retaining an existing ETA, ICC-ES report or other technical approval.

Why Source Industrial Fasteners from Juxin Fasteners?

Juxin Fasteners has more than 20 years of experience in international industrial fastener supply.

Our fastening portfolio includes:

  • Expansion bolts

  • Concrete anchoring hardware

  • Structural fastening components

  • Bolts and screws

  • Nuts and washers

  • Rivet nuts

  • Welding nuts

  • Self-clinching fasteners

  • Custom threaded components

  • Drawing-based OEM fasteners

We welcome technical and commercial inquiries involving:

  • Product drawings

  • Dimensions and tolerances

  • Material requirements

  • Surface finishes

  • Industrial applications

  • Inspection specifications

  • Packaging

  • Bulk procurement

  • Delivery planning

Specific product availability, manufacturing feasibility, technical documentation, MOQ and lead times must be confirmed for each inquiry.

For safety-critical infrastructure anchoring, the required product qualification and engineering approval remain essential.

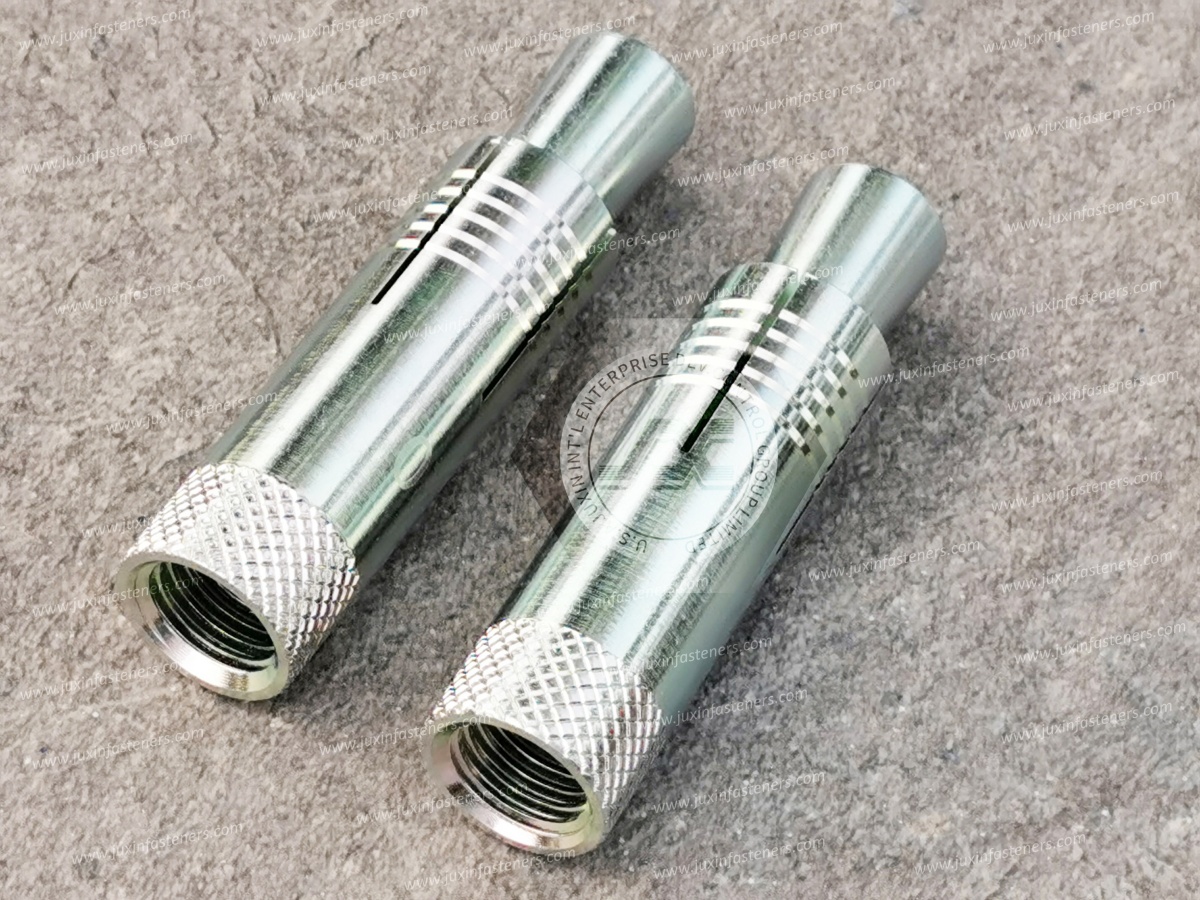

Expansion Bolt Solutions for Municipal Infrastructure and Transportation

Frequently Asked Questions About Infrastructure Expansion Bolts

What are expansion bolts used for in municipal infrastructure?

They may be used for suitable equipment brackets, utility supports and other steel-to-concrete connections where the product and installation conditions meet the project requirements.

Can expansion bolts be used outdoors?

Yes, where the selected anchor system has suitable environmental resistance and technical qualification.

Are expansion bolts suitable for highway guardrails?

They should not be assumed suitable for crash-tested guardrail systems. The complete barrier system and its anchorage must meet the applicable requirements.

Can expansion bolts be used for street lighting?

Suitable mechanical anchors may be used for certain lighting accessories or support brackets. Primary pole foundations require separate engineering evaluation.

What anchors are used for bridge utility supports?

The choice may include qualified mechanical, screw-type, bonded or other engineered anchors, depending on the project.

Are expansion bolts suitable for tunnels?

Some qualified systems may be suitable for tunnel equipment. Overhead loading, corrosion, fire and installation requirements must be considered.

Can expansion anchors resist vibration?

Suitability depends on the product and the actual dynamic-loading conditions.

Does static load qualification establish fatigue resistance?

No. Fatigue-related applications may require separate assessment.

Can expansion anchors be used in cracked concrete?

Some products are specifically qualified for cracked concrete. Others are not.

Are galvanized expansion bolts suitable for infrastructure?

Certain qualified galvanized systems may be suitable for specified outdoor environments.

Are stainless steel anchors corrosion-proof?

No. Stainless steel corrosion resistance depends on grade, exposure and design conditions.

What is effective embedment?

Effective embedment is a product-specific engineering parameter used in anchoring design.

What installation torque should be used?

Use the specified procedure and setting torque for the exact anchor product.

Can a different expansion bolt replace a specified brand?

Only after the required engineering and product documentation review.

Can an existing anchor hole be reused?

Only where the product instructions and engineering conditions permit reuse.

Can Juxin Fasteners review OEM infrastructure fastener requirements?

Yes. Drawing-based industrial fastening inquiries can be reviewed for technical and commercial feasibility.

Infrastructure Expansion Bolt RFQ Checklist

For efficient technical review and quotation, provide the following information where available.

Product Information

  • Expansion anchor type

  • Existing product reference

  • Technical drawing

  • Nominal diameter

  • Overall length

  • Thread designation

  • Material

  • Surface finish

  • Nut and washer configuration

Application Information

  • Infrastructure type

  • Equipment description

  • Installation orientation

  • Environmental exposure

  • Expected service conditions

  • Maintenance requirements

Concrete Information

  • Concrete strength

  • Cracked or uncracked condition

  • Concrete member thickness

  • Edge distance

  • Anchor spacing

  • Reinforcement constraints

  • Existing or new construction

Engineering Requirements

  • Tensile load

  • Shear load

  • Combined loading

  • Dynamic or fatigue loading

  • Seismic requirements, where applicable

  • Effective embedment

  • Required technical qualification

  • Applicable engineering standard

Installation Requirements

  • Drill diameter

  • Hole depth

  • Hole preparation

  • Setting procedure

  • Installation tools

  • Inspection requirements

Commercial Requirements

  • Sample quantity

  • Initial order quantity

  • Annual forecast

  • MOQ expectations

  • Packaging

  • Required lead time

  • Delivery destination

Request Expansion Bolt and Infrastructure Fastening Solutions

Juxin Fasteners welcomes inquiries from municipal infrastructure contractors, transportation equipment manufacturers, bridge and tunnel service suppliers,

industrial OEMs, engineering companies, production managers, manufacturing engineers, supplier development teams and international procurement professionals.

Whether your project requires expansion bolts, concrete anchoring hardware, structural fastening components or drawing-specific OEM fasteners,

 reliable selection begins with understanding the actual connection design, substrate, loading conditions and environmental exposure.

Send us your drawings, product specifications, material requirements, surface treatment details, quantities and delivery requirements for technical and commercial review.

For structural, fatigue-sensitive, seismic or safety-critical infrastructure applications, include the required engineering and product qualification documentation.

Expansion Bolt Solutions for Municipal Infrastructure and Transportation

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Reliable Infrastructure Fastening Requires Appropriate Anchor Selection, Verified Engineering Conditions, Controlled Installation, Corrosion Protection and Consistent Industrial Supply.


Contact Us

Tel.:

+86 020 8621 0320

+86 020 3121 6067

Mobile: +86 136 6007 9809

Technical Support:

SEND INQUIREY

Copyright © Guangzhou Juxin Development Co., Ltd. All Rights Reserved | Sitemap
