Phillips Flat Head Screws: Industrial Applications, Countersunk Design and OEM Manufacturing Guide

Phillips flat head screws are widely used in industrial equipment where a flush mounting surface, compact head geometry and a cross-recessed drive are required.

Also known as Phillips countersunk head screws or cross-recessed countersunk machine screws,

these fasteners combine a conical head with a cross-shaped driver recess.

When installed into a correctly designed countersunk hole, the screw head can sit flush with the surrounding surface,

helping reduce interference with adjacent components and meet specified appearance requirements.

However, reliable fastening depends on more than the screw head style.

Engineers must evaluate the head angle, countersink geometry, thread engagement, material, corrosion protection, joint loading and installation process.

For OEM manufacturers, these decisions affect not only product performance but also assembly time, rework, maintenance and total manufacturing cost.

This guide explains the engineering considerations and industrial applications of Phillips flat head screws,

with particular attention to design for manufacturability, production reliability and OEM sourcing.

JUXIN FASTENERS supplies industrial screws and related fastening components for international OEM projects, including drawing-based custom requirements.

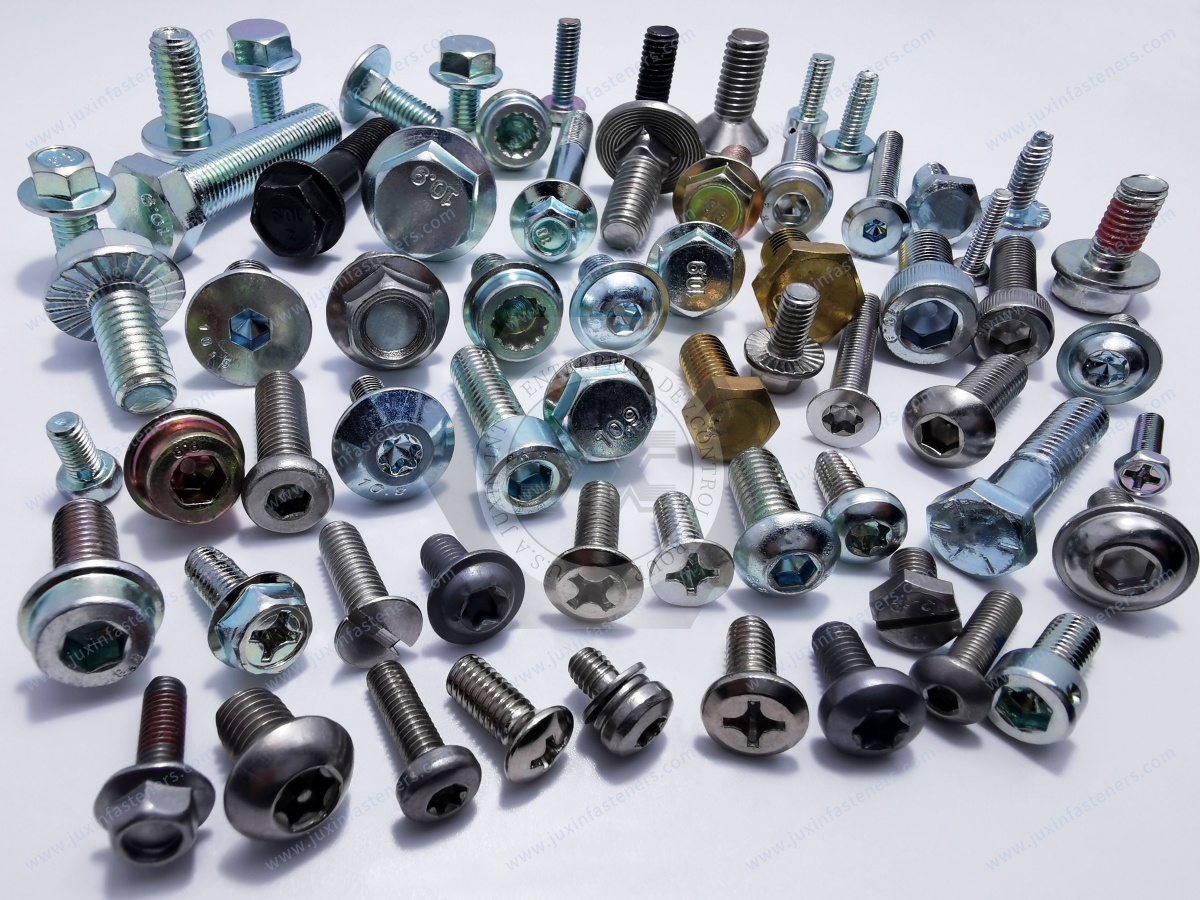

What Are Phillips Flat Head Screws?

Phillips flat head screws have three principal features.

Cross-Recessed Drive

A cross-shaped recess accepts a compatible Phillips screwdriver or driver bit.

Countersunk Head

The conical underside is designed to seat against a matching countersunk surface.

External Thread

The screw engages a compatible tapped hole, nut or other specified internally threaded component.

The combination is useful when a product requires flush mounting and the assembly process supports a Phillips drive.

Phillips Flat Head Screws vs. Other Screw Head Designs

Engineering Principle

A countersunk head is selected primarily to meet geometry and joint requirements.

It should not automatically be assumed stronger than a pan head or other screw head design.

Why Engineers Specify Phillips Flat Head Screws

Phillips countersunk screws may provide advantages in suitable assemblies.

Flush Mounting

The head can sit flush with the surrounding surface when the countersink is correctly designed.

Reduced Interference

A flush head may reduce interference with sliding covers, adjacent panels or other components.

Product Appearance

Visible countersunk fasteners can support a clean, controlled external design.

Tool Compatibility

Phillips drives can be installed with suitable manual, electric or pneumatic tools.

Production Assembly

Cross-recessed drive geometry may support efficient engagement in certain production processes.

However, these benefits depend on the actual screw design, equipment and installation conditions.

International Standards for Phillips Flat Head Screws

The correct standard depends on the screw type and dimensional requirements.

ISO 7046 Series

ISO 7046 covers applicable cross-recessed countersunk flat head screws within its defined scope.

DIN 965

DIN 965 is a widely recognized legacy designation associated with cross-recessed countersunk head screws.

Applicable ASME Standards

Certain inch-series flat head machine screws are covered by relevant ASME dimensional specifications.

The exact standard must be confirmed from the approved drawing or purchasing specification.

Important Compatibility Rule

DIN 965, ISO 7046 and inch-series flat head screw specifications should not automatically be treated as dimensionally interchangeable.

Verify the relevant standard edition, head geometry, recess, thread and material requirements.

Phillips Drive vs. Other Cross-Recess Systems

Not every cross-shaped recess is a Phillips drive.

Different cross-recess systems may have different geometries and driver requirements.

Using an incorrect driver can result in:

• Poor engagement

• Recess damage

• Cam-out

• Driver wear

• Inconsistent installation

Production Recommendation

Specify the actual recess type and compatible driver rather than relying on the general term “cross head.”

Countersunk Head Design: 82°, 90° and Other Angles

The countersink angle is a critical dimensional requirement.

82-Degree Countersunk Heads

An 82° head angle is common in certain North American inch-series flat head screw designs.

90-Degree Countersunk Heads

A 90° head angle is common in metric countersunk screw designs.

Other Angles

Other head angles, including 100°, are used in particular applications and specifications.

Important Engineering Principle

The screw head angle must match the workpiece countersink.

An 82° screw should not be installed as a direct substitute for a 90° screw without evaluating the resulting contact geometry.

Countersink Diameter and Depth

Correct head seating depends on:

• Head diameter

• Countersink diameter

• Countersink depth

• Head angle

• Hole alignment

• Workpiece thickness

If the Countersink Is Too Shallow

The head may protrude above the surface.

If the Countersink Is Too Deep

The head may become excessively recessed, and the remaining material beneath the countersink may be reduced.

If the Countersink Is Oversized

The head may have inadequate support.

If the Hole Is Misaligned

The screw may seat unevenly.

Engineering Decision Matrix

Phillips Flat Head Screws in Thin Sheet Metal

Thin sheet metal requires particular attention.

A countersink removes material around the hole, potentially reducing the support available beneath the screw head.

This can lead to:

• Local deformation

• Poor head seating

• Distortion

• Reduced joint consistency

Engineering Considerations

Before specifying a countersunk screw in thin sheet metal, evaluate:

• Sheet thickness

• Countersink depth

• Remaining material

• Head diameter

• Applied load

• Mating thread design

Alternative Fastening Options

Depending on the assembly, alternatives may include:

• A different screw head style

• A suitable formed countersink

• A reinforced mounting feature

• A self-clinching threaded component

• A threaded insert

JUXIN FASTENERS also supplies self-clinching fasteners and threaded inserts for suitable OEM sheet metal applications.

Important Limitation

A self-clinching component does not automatically solve inadequate countersink support.

The complete joint must be evaluated.

Screw Length and Thread Engagement

For conventional flat head countersunk screws, nominal length is generally measured from the top of the head to the end of the screw.

This differs from many protruding-head screw designs.

Why Length Matters

An incorrect screw length may cause:

• Insufficient thread engagement

• Bottoming in a blind hole

• Interference with internal components

• Incorrect head seating

Thread Engagement

Required engagement depends on:

• Screw material

• Mating material

• Thread size

• Applied load

• Joint design

• Service conditions

There is no universal thread engagement ratio suitable for every material and application.

Blind-Hole Clearance

The screw must not bottom out before the head seats correctly.

Metric and Inch-Series Threads

Metric screws use ISO metric thread designations.

UNC and UNF are different Unified inch-series thread systems.

BSW and BSF are separate thread systems.

These thread forms must not be described as directly interchangeable.

Material Selection for Phillips Flat Head Screws

Material selection affects mechanical performance, corrosion behavior, weight, appearance and cost.

Stainless Steel Phillips Flat Head Screws

Stainless steel may be suitable for equipment exposed to moisture or corrosive environments.

Common material references include:

• 304 stainless steel

• 316 stainless steel

• Other specified stainless steel grades

304 Stainless Steel

304 may be appropriate for many indoor and moderately corrosive environments.

316 Stainless Steel

316 may provide improved resistance to certain chloride-containing environments compared with 304.

However, it can still experience pitting and crevice corrosion.

Engineering Considerations

• Environmental exposure

• Mechanical requirements

• Thread galling

• Surface condition

• Mating material

Important Limitation

Stainless steel is not automatically stronger than carbon steel.

Mechanical properties depend on the specified grade and fastener condition.

Carbon Steel Phillips Flat Head Screws

Carbon steel may be suitable for general industrial applications.

Potential advantages include:

• Economical material options

• Broad manufacturing applicability

• Compatibility with selected protective coatings

Engineering Considerations

• Required strength

• Corrosion protection

• Coating thickness

• Thread fit

• Installation conditions

Alloy Steel Phillips Flat Head Screws

Alloy steel may be considered for selected applications requiring particular mechanical properties.

The actual material grade, heat treatment and mechanical requirements must be specified.

Aluminum Phillips Flat Head Screws

Aluminum screws may be considered for selected lightweight assemblies.

Potential applications include:

• Portable equipment

• Instrument housings

• Certain electronic products

• Weight-sensitive noncritical components

Engineering Considerations

Aluminum screws generally have different strength, wear and thread behavior from steel screws.

Weight reduction alone does not establish suitability.

Brass Phillips Flat Head Screws

Brass may be selected for:

• Electrical equipment

• Decorative hardware

• Instrumentation

• Selected corrosion-related applications

Engineering Considerations

Brass has different mechanical properties from steel and should be evaluated against the actual joint requirements.

Titanium Phillips Flat Head Screws

Titanium alloys may be considered for specialized applications requiring particular combinations of weight, corrosion resistance and mechanical properties.

Engineering Considerations

• Alloy designation

• Mechanical properties

• Thread behavior

• Galling

• Surface treatment

• Qualification requirements

Titanium fasteners should not automatically be described as suitable for aerospace safety-critical structures or medical implants.

These applications require specific engineering approval.

Material Selection Matrix

Surface Finishes and Corrosion Protection

Surface treatments should be selected according to the base material and operating environment.

Zinc Plating

Zinc plating may provide sacrificial corrosion protection for suitable carbon steel screws.

Black Oxide

Black oxide may be used for appearance and selected controlled environments.

It should not be treated as equivalent to a high-performance corrosion coating.

Nickel Plating

Nickel plating may be considered where the drawing requires specific appearance or surface characteristics.

Stainless Steel Passivation

Passivation may be specified for suitable stainless steel components.

Special Coatings

Other surface treatments may be evaluated according to project requirements.

Not every coating is suitable for every screw size or material.

Coating and Thread Fit

Coating thickness can influence:

• Thread engagement

• Recess dimensions

• Head seating

• Friction

• Tightening behavior

Engineering Recommendation

Any change in coating should trigger a review of dimensional compatibility and installation requirements.

Phillips Drive Engagement and Cam-Out Prevention

Phillips drives can be convenient for production assembly, but they require correct tooling.

What Is Cam-Out?

Cam-out occurs when the driver tends to disengage from the recess during torque transmission.

Possible contributing factors include:

• Incorrect bit

• Worn bit

• Poor alignment

• Insufficient axial force

• Excessive torque

• Recess damage

How to Reduce Cam-Out

• Use the specified Phillips bit

• Maintain bit condition

• Align the tool correctly

• Apply suitable axial force

• Control installation speed

• Use the approved tightening procedure

Important Principle

Cam-out is not a reliable substitute for calibrated torque control.

Torque Control and Joint Reliability

A Phillips drive does not determine the correct tightening torque.

Torque requirements depend on:

• Screw dimensions

• Material

• Thread condition

• Surface finish

• Mating material

• Joint stiffness

• Desired preload

Why Torque Alone Is Not Enough

The relationship between applied torque and achieved preload is influenced by friction.

Changing the coating or lubrication can change the resulting preload at the same torque setting.

Engineering Recommendation

Critical joints require a validated tightening procedure.

Vibration and Screw Loosening

Phillips flat head screws are not inherently vibration-proof.

Joint loosening can result from:

• Inadequate preload

• Joint settlement

• Transverse vibration

• Thermal cycling

• Material creep

• Repeated service

Possible Engineering Responses

Depending on the application:

• Review preload

• Improve joint stiffness

• Evaluate suitable locking features

• Review mating thread design

• Validate the assembly under service conditions

Do not assume that the countersunk head or Phillips drive alone prevents loosening.

Phillips Flat Head Screws in Automated Assembly

Manufacturing engineers and production managers must evaluate the entire installation process.

Important Production Factors

• Screw feeding

• Screw orientation

• Driver engagement

• Installation speed

• Torque control

• Axial force

• Bit wear

• Fault detection

• Inspection

Advantages in Suitable Processes

Phillips drives may support efficient engagement with powered screwdrivers.

Potential Limitations

• Cam-out

• Recess damage

• Bit wear

• Tool alignment problems

• Rework

Production Recommendation

Validate screw installation using representative parts and production equipment.

Total Installed Cost

A lower screw purchase price does not necessarily mean a lower assembly cost.

Total installed cost may include:

• Screw price

• Assembly labor

• Tooling

• Bit replacement

• Inspection

• Rework

• Scrap

• Maintenance

Engineering Principle

Fastener selection should consider the complete manufacturing process rather than the screw price alone.

Industrial Application Solutions

Construction and Architectural Hardware

Potential applications include:

• Interior panels

• Decorative fixtures

• Door and window hardware

• Architectural fittings

• Selected mounting components

Engineering Priorities

• Flush seating

• Appearance

• Corrosion protection

• Substrate compatibility

• Installation access

Important Limitation

A countersunk screw does not automatically create a weatherproof seal.

Weather resistance depends on the complete enclosure or joint design.

Furniture Manufacturing

Phillips flat head screws may be used in:

• Office furniture

• Steel cabinets

• Modular furniture

• Storage systems

• Display fixtures

• Selected wooden furniture assemblies

Engineering Priorities

• Flush appearance

• Assembly speed

• Material compatibility

• Repeated assembly

• Production consistency

Design Consideration

Machine screws require compatible internal threads or suitable mating hardware.

They should not be confused with wood screws merely because both may have Phillips countersunk heads.

Automotive and EV Equipment

Potential applications include selected:

• Interior fittings

• Equipment housings

• Instrument panels

• Auxiliary mechanical assemblies

• Production fixtures

Engineering Priorities

• Vibration

• Thermal cycling

• Corrosion

• Assembly efficiency

• Maintenance

Important Limitation

Phillips flat head screws are not automatically suitable for safety-critical automotive joints.

Applications involving structural or safety functions require appropriate engineering approval.

Electronics and Electrical Equipment

Potential applications include:

• Computer enclosures

• Communication equipment

• Industrial control cabinets

• Instrument housings

• Equipment covers

• Power distribution equipment

Engineering Priorities

• Compact geometry

• Flush mounting

• Electrical clearance

• Assembly access

• Thread compatibility

Electrical Equipment Design Consideration

The screw material and location must be evaluated against electrical insulation and clearance requirements.

A metallic screw should not be assumed electrically insulating.

Aerospace-Related Equipment

Potential applications include selected:

• Ground support equipment

• Noncritical equipment housings

• Instrumentation

• Specialized auxiliary assemblies

Engineering Priorities

• Approved material

• Dimensional requirements

• Weight

• Traceability

• Qualification

Important Limitation

General industrial Phillips flat head screws should not be assumed approved for aircraft structures.

Medical and Laboratory Equipment

Potential applications include:

• Diagnostic equipment housings

• Laboratory instruments

• Equipment carts

• Noncritical mechanical covers

Engineering Priorities

• Material compatibility

• Cleaning requirements

• Surface finish

• Maintenance access

Medical device applications may require additional validation.

Renewable Energy Equipment

Potential applications include:

• Solar control equipment

• Battery energy storage enclosures

• Wind turbine control cabinets

• EV charging equipment

• Auxiliary electrical assemblies

Engineering Priorities

• Outdoor corrosion exposure

• Thermal cycling

• Serviceability

• Assembly reliability

Important Limitation

Screw material selection alone does not establish environmental protection or enclosure sealing performance.

Industrial Machinery and Automation

Potential applications include:

• CNC machine covers

• Packaging machinery

• Automation equipment

• Conveyor systems

• Robotics

• Industrial instruments

Engineering Priorities

• Mechanical loading

• Tool access

• Vibration

• Maintenance

• Assembly repeatability

Common Installation Failures and Engineering Responses

Production Quality Control Checklist

For manufacturing engineers and production managers, inspection should focus on the actual assembly requirements.

Incoming Screw Inspection

• Head dimensions

• Thread designation

• Screw length

• Recess condition

• Material requirements

• Surface finish

Workpiece Inspection

• Hole diameter

• Countersink angle

• Countersink depth

• Hole position

• Surface condition

Assembly Inspection

• Head seating

• Drive damage

• Installation consistency

• Thread engagement

• Joint condition

Process Monitoring

• Tool condition

• Tightening settings

• Defect trends

• Rework

• Inspection results

Important Production Principle

A visually flush screw head does not, by itself, prove that the joint has achieved the required preload.

OEM Procurement and Supplier Development

For purchasing teams, a Phillips flat head screw specification should contain enough information to avoid incorrect substitution.

Standard Product Sourcing

Confirm:

• Applicable standard

• Thread designation

• Head dimensions

• Recess type

• Length

• Material

• Surface finish

Custom Product Sourcing

Confirm:

• Approved 2D drawing

• Special geometry

• Material requirements

• Mechanical requirements

• Surface treatment

• Inspection criteria

• Sample quantity

• Production volume

Supplier Evaluation

Relevant considerations include:

• Ability to interpret drawings

• Dimensional requirements

• Material and finish options

• Sample evaluation

• Inspection expectations

• Packaging

• MOQ

• Delivery schedule

Specific capabilities and commercial terms should be confirmed for each project.

Frequently Asked Questions

What are Phillips flat head screws used for?

They are used in suitable industrial assemblies requiring a countersunk head and compatible cross-recessed drive,

 including equipment housings, machinery, electronics and furniture hardware.

What is the difference between a Phillips flat head screw and a Phillips pan head screw?

A flat head screw has a countersunk head, while a pan head screw protrudes above the mounting surface.

Are Phillips flat head screws suitable for automated assembly?

They may be suitable for certain automated processes, but screw feeding, driver engagement, torque control and process validation are required.

Are Phillips screws vibration-resistant?

The Phillips drive alone does not prevent loosening. Vibration resistance depends on the complete joint design.

What causes Phillips screw cam-out?

Possible causes include incorrect bits, poor alignment, insufficient engagement, bit wear and excessive torque.

What is the correct countersink angle?

The angle depends on the applicable screw specification. Common designs include 82° and 90° heads.

Can I replace a metric Phillips flat head screw with an inch-series screw?

Not automatically. The thread system, head geometry and other requirements must be verified.

Is stainless steel always the best material?

No. Material selection depends on mechanical requirements, corrosion exposure, cost and service conditions.

Can Phillips flat head screws be customized?

Custom dimensions, materials, threads, head geometry and finishes may be evaluated according to customer drawings and manufacturing feasibility.

What information is required for an OEM quotation?

Provide the applicable standard or drawing, dimensions, thread designation, material, finish, quantity and delivery requirements.

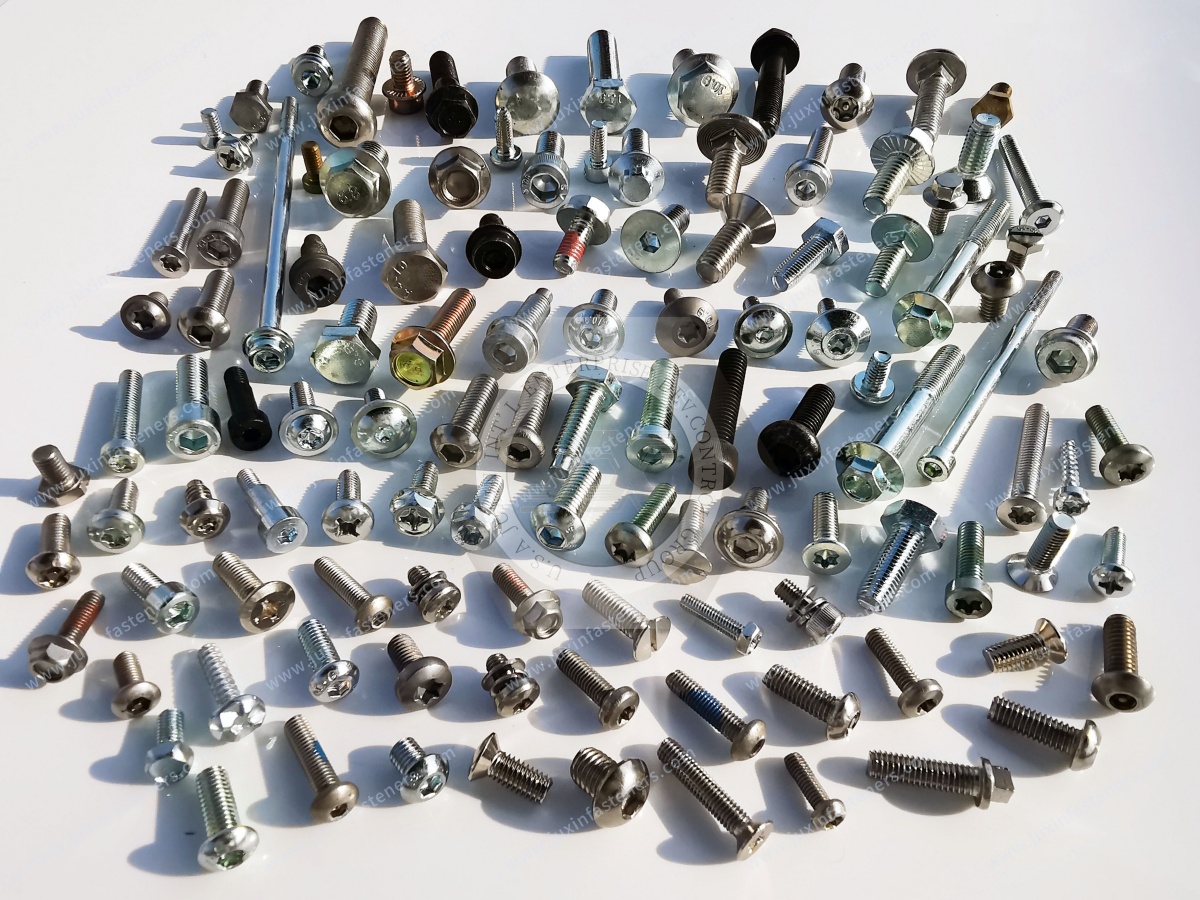

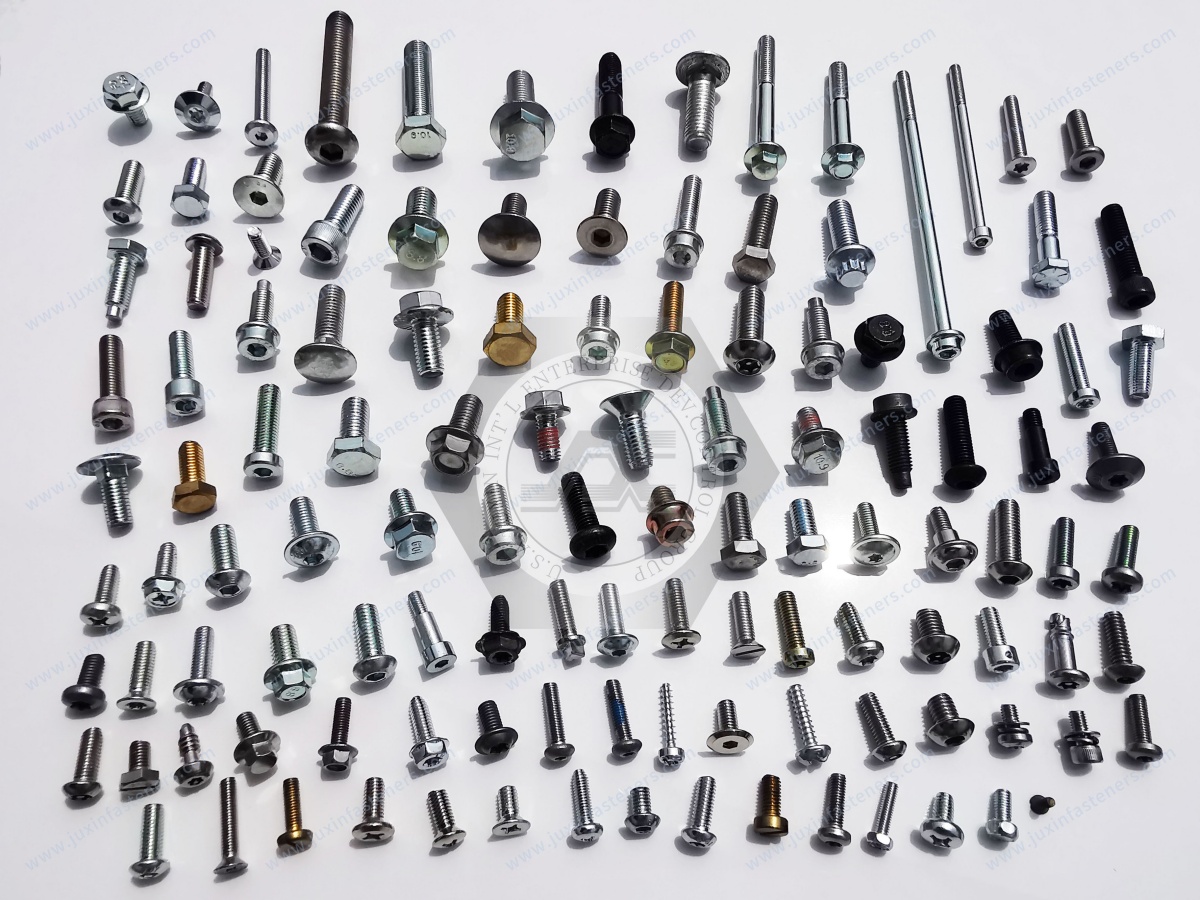

JUXIN FASTENERS: Industrial Phillips Flat Head Screws and Custom OEM Fasteners

JUXIN FASTENERS supplies industrial fastening components for international OEM manufacturers.

Relevant product categories include:

• Phillips flat head screws

• Cross-recessed countersunk screws

• Stainless steel machine screws

• Carbon steel machine screws

• Custom threaded fasteners

• Hex socket screws

• Weld screws

• Self-clinching nuts and studs

• Threaded inserts

• Custom CNC-machined components

Specific dimensions, materials, surface finishes, MOQ, sample requirements and delivery schedules are confirmed according to the project.

Request a Phillips Flat Head Screw OEM Quotation

Are you sourcing Phillips flat head screws for industrial equipment, electrical enclosures, electronics, furniture, machinery or another OEM application?

Do you need a custom countersunk screw based on an existing drawing?

JUXIN FASTENERS welcomes inquiries from design engineers, structural engineers, mechanical engineers, manufacturing engineers,

production managers, procurement specialists, purchasing managers, supplier development teams and supply chain managers.

For technical review and quotation, please provide:

2D drawing or applicable standard + thread size and pitch + head angle + head dimensions + Phillips recess specification + screw length

 + material + surface finish + assembly requirements + inspection criteria + sample quantity + production quantity + target delivery schedule.

For replacement projects, include the existing screw specification and identify any proposed changes.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your Phillips flat head screw drawings and OEM RFQ to JUXIN FASTENERS for technical review and quotation.
