Mar. 06, 2024
Stud welding is an advanced fastening technology that creates a permanent connection between a threaded stud and a metal workpiece through an electrical arc welding process.
Unlike traditional fastening methods that require drilling holes, nuts, or additional assembly components, weld studs can be directly welded onto metal surfaces, providing a strong, reliable, and efficient fastening solution.
Today, stud welding solutions are widely used in:
Automotive manufacturing
Body-in-white assembly
Chassis systems
Electrical equipment
Construction machinery
Sheet metal fabrication
Industrial equipment
At Juxin Fasteners, we specialize in manufacturing OEM weld studs, projection weld studs, and automotive stud welding fasteners for global industrial customers.
Stud welding is a fastening process where one end of a metal stud is welded directly onto a metal base material.
During the welding process:
The stud contacts the workpiece surface.
An electric arc melts the contact area.
The stud is quickly pressed into the molten surface.
The melted materials solidify and form a strong welded joint.
The result is a permanent connection between the stud and the metal component.
This technology provides:
High connection strength
Fast installation
Reduced assembly steps
Excellent reliability
Lower production costs
Stud welding is significantly faster than traditional welding or mechanical fastening methods.
Benefits include:
✔ Short welding cycle time
✔ Reduced labor requirements
✔ Suitable for automated production
✔ Improved manufacturing efficiency
This makes it especially suitable for automotive mass production.
One of the biggest advantages of weld studs is that they can be directly installed onto metal surfaces without drilling.
This helps:
Maintain structural integrity
Reduce processing steps
Prevent material weakening
Improve production efficiency
Applications include:
Vehicle body panels
Chassis components
Interior assemblies
Weld studs provide excellent mechanical performance.
Advantages:
High tensile strength
Strong shear resistance
Stable connection performance
Good vibration resistance
They are suitable for applications where safety and durability are critical.
Different industries require different stud welding methods.

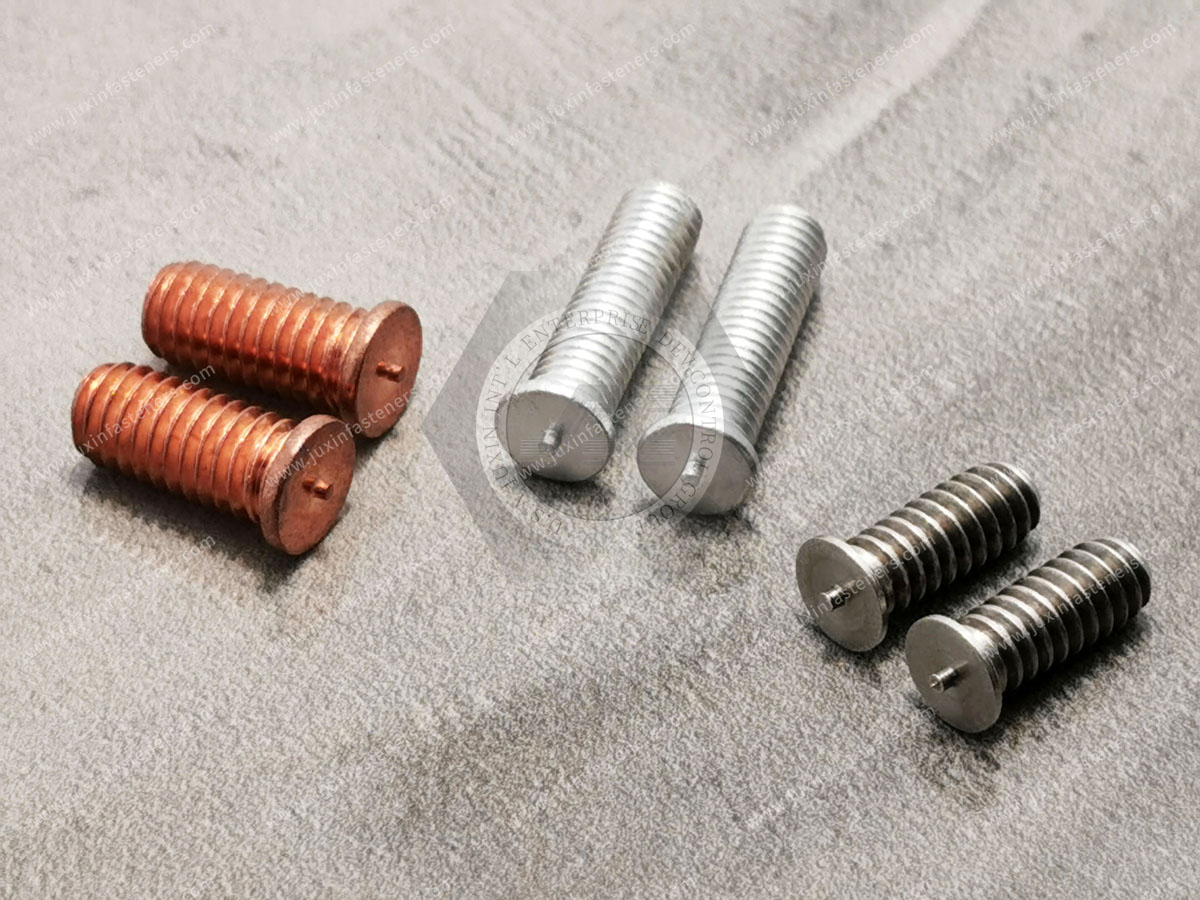

Capacitor discharge stud welding is commonly used for thin sheet metal applications.
Features:
Fast welding speed
Minimal heat input
Low deformation
Clean appearance
Advantages:
No significant damage to the back surface
Small welding marks
Suitable for precision sheet metal components
Applications:
Automotive interiors
Electrical cabinets
Thin metal panels
Decorative structures
Arc stud welding is used for heavier applications requiring higher strength.
Features:
Strong welded joints
Suitable for larger diameter studs
High load capacity
Common applications:
Automotive chassis
Construction machinery
Structural components
Heavy equipment
Typical stud diameter range:
3 mm – 25 mm

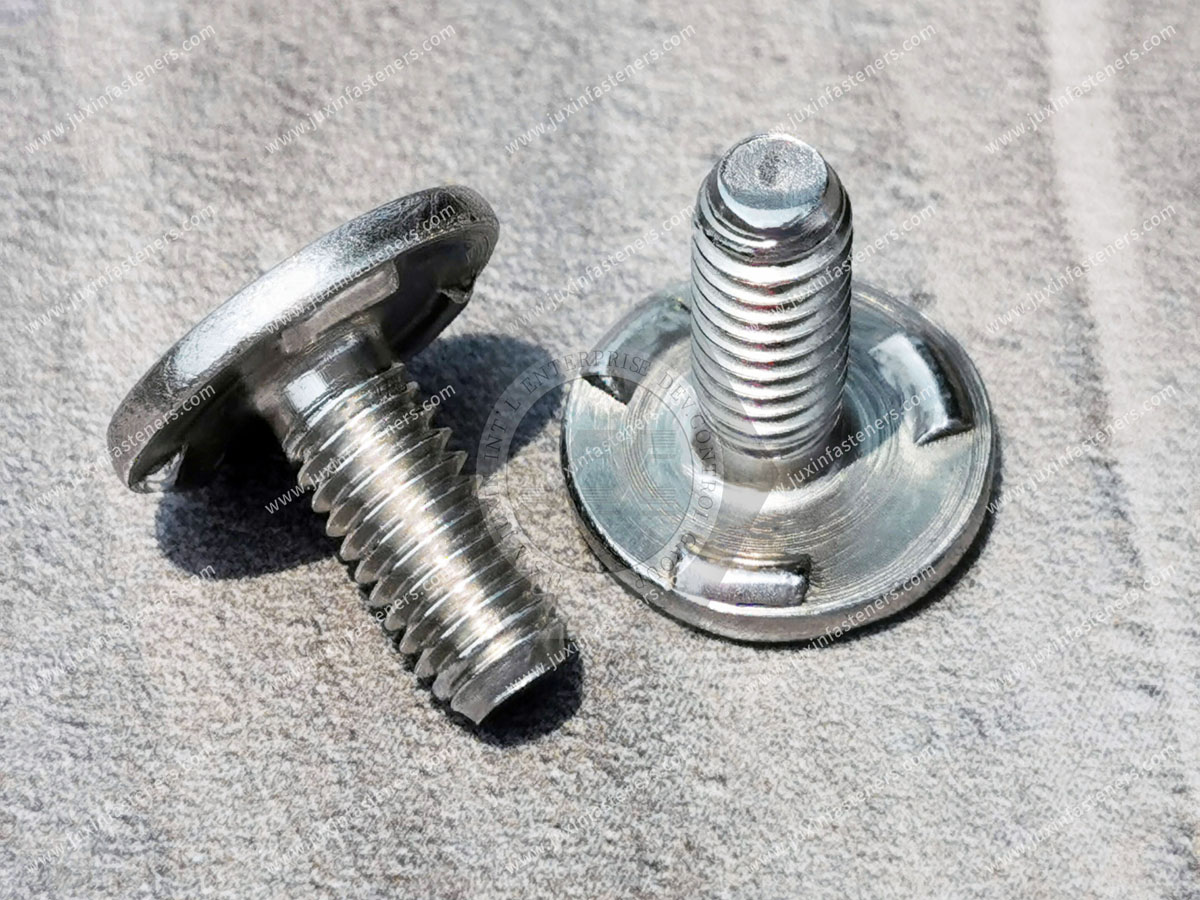

Projection welding uses specially designed projections on the welding surface.
During welding:
The projection contacts the metal surface.
Electrical resistance generates heat.
The projection collapses and forms a welded joint.
Advantages:
Stable welding quality
High production efficiency
Suitable for automated manufacturing
Applications:
Automotive components
Sheet metal assemblies
Electrical equipment
The selection of weld stud material depends on application requirements.
Common materials include:
Advantages:
High strength
Good weldability
Cost-effective
Applications:
Automotive structures
Machinery
Industrial equipment
Advantages:
Excellent corrosion resistance
Long service life
Suitable for harsh environments
Applications:
Marine equipment
Outdoor structures
Food processing machinery
Automotive manufacturing is one of the largest application areas for stud welding technology.
Weld studs are used for:
Wiring harness fixation
Interior component mounting
Carpet attachment
Insulation panel installation
External vehicle applications include:
Fuel line fixation
Brake line mounting
Heat insulation panels
Deflector panel installation
Automotive weld studs provide reliable fastening without adding unnecessary weight.
Juxin Fasteners provides various weld stud specifications according to customer requirements.
Example:
Specification:
Type: UC4 Weld Stud
Size: M10 × 50 mm
Strength Grade:
8.8
10.9
Applications:
Automotive structures
Industrial assemblies
High-strength sheet metal connections
The welding base material should provide good electrical conductivity.
Common considerations:
Surface cleanliness
Material thickness
Coating thickness
Corrosion condition
Heavy surface contamination or excessive coating thickness may affect welding quality.
Different surface coatings influence welding performance.
Common coatings include:
Zinc plating
Zinc-Nickel plating
Special protective coatings
Proper selection ensures:
Stable welding
Corrosion protection
Long-term reliability
Juxin Fasteners provides professional OEM stud welding solutions for global manufacturers.
Our advantages include:
✔ Automotive weld stud manufacturing experience
✔ Custom weld studs according to drawings
✔ High-strength grades available
✔ Support for projection weld studs and arc weld studs
✔ Strict quality inspection
✔ Engineering support for application development
We supply fastening solutions for:
Automotive OEMs
Electric vehicles
Industrial equipment
Electrical cabinets
Construction machinery
Sheet metal manufacturers
Stud welding technology provides manufacturers with a fast, reliable, and cost-effective fastening solution.
Whether you require automotive weld studs, projection weld studs, M10 weld studs, or customized stud welding solutions, Juxin Fasteners can provide professional OEM support.
Contact our engineering team for technical assistance.
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
