Self-Clinching Nuts Solutions for Reliable Threaded Fastening in Thin Sheet Metal Applications

Types S, SS, CLS, CLSS and SP Self-Clinching Nuts for Automotive, Electronics and Industrial Manufacturing

In modern manufacturing, creating strong and reliable threaded connections in thin sheet metal components is a common engineering challenge. Traditional welding nuts, loose nuts, or tapped threads may not provide sufficient strength when the material thickness is limited.

Self-clinching nuts provide an efficient solution by creating permanent load-bearing threads in thin metal sheets through a simple press installation process.

Juxin Fasteners specializes in manufacturing self-clinching nuts, PEM style clinch nuts, panel fasteners, and custom fastening solutions for global OEM customers.

Our self-clinching nuts are widely used in:

• Automotive manufacturing

• Electrical enclosures

• Sheet metal fabrication

• Computer and electronics equipment

• Medical equipment

• Industrial machinery

• Aerospace applications

Available series include:

• JX-S Self-Clinching Nuts

• JX-SS Stainless Steel Self-Clinching Nuts

• JX-CLS Self-Locking Clinch Nuts

• JX-CLSS Stainless Steel Self-Locking Clinch Nuts

• JX-SP Self-Clinching Nuts for Stainless Steel Sheets

What Are Self-Clinching Nuts?

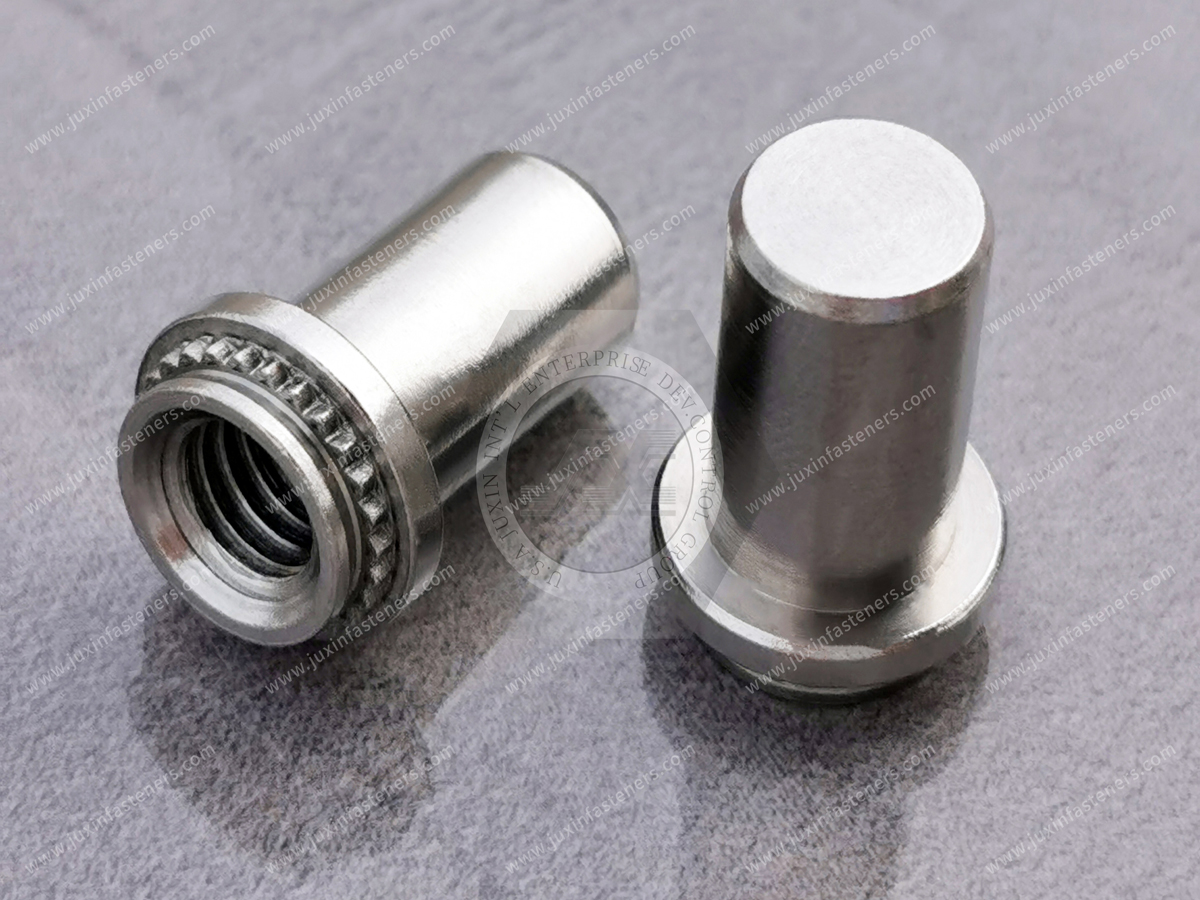

A self-clinching nut is a threaded fastener designed to be permanently installed into sheet metal by applying pressing force.

During installation, the nut is pressed into a prepared hole in the sheet material. The specially designed clinching ring or knurled section displaces the surrounding sheet material, creating a strong mechanical connection.

Unlike conventional nuts, self-clinching nuts become an integrated part of the panel and provide:

• Permanent threaded fastening points

• High push-out resistance

• High torque resistance

• Reduced assembly time

• Clean appearance without welding

This makes self-clinching nuts an ideal solution for applications requiring strong threads in thin materials.

Advantages of Self-Clinching Nuts

1. Strong Threaded Connection in Thin Sheets

One of the biggest challenges in sheet metal assemblies is insufficient material thickness for traditional threading.

Self-clinching nuts solve this problem by providing:

• Strong load-bearing threads

• Improved connection strength

• Reliable screw fastening

• Space-saving installation

They are widely used where sheet thickness is too thin for conventional machining.

2. High Push-Out and Torque Resistance

Juxin self-clinching nuts are designed to withstand mechanical loads after installation.

Key performance advantages:

• High resistance against axial push-out forces

• Strong resistance against rotation

• Stable performance under vibration

These characteristics make them suitable for industrial equipment and automotive applications.

3. Fast and Efficient Installation

Compared with welding nuts, self-clinching nuts provide a faster assembly process.

Benefits include:

• No welding process required

• No heat distortion

• Reduced secondary operations

• Improved production efficiency

They are especially suitable for high-volume OEM manufacturing.

4. Clean and Professional Appearance

Self-clinching nuts are installed flush with the sheet surface, providing:

• Improved product appearance

• Better assembly consistency

• Reduced interference with other components

Self-Clinching Nut Types and Applications

JX-S Self-Clinching Nuts

JX-S self-clinching nuts are designed for installation into steel or aluminum sheets.

Recommended materials:

• Mild steel

• Carbon steel

• Aluminum panels

Material requirements:

• HRB hardness ≤ 80

• HB hardness ≤ 150

Applications:

• Electrical cabinets

• Industrial panels

• Automotive components

• Sheet metal assemblies

JX-SS Stainless Steel Self-Clinching Nuts

Stainless steel self-clinching nuts provide excellent corrosion resistance for demanding environments.

Advantages:

• Corrosion resistance

• Long service life

• Suitable for harsh environments

Common applications:

• Medical equipment

• Food processing machinery

• Outdoor electrical equipment

• Marine applications

JX-CLS Self-Locking Clinch Nuts

CLS self-clinching nuts combine permanent installation with locking performance.

The locking feature helps prevent screw loosening under vibration.

Advantages:

• Vibration resistance

• Reliable threaded connection

• Improved assembly safety

Applications:

• Automotive equipment

• Industrial machinery

• Electronic devices

JX-CLSS Stainless Steel Self-Locking Clinch Nuts

For applications requiring both corrosion resistance and anti-loosening performance, CLSS stainless steel self-locking nuts provide an ideal solution.

Suitable for:

• High humidity environments

• Outdoor equipment

• Precision instruments

JX-SP Self-Clinching Nuts for Stainless Steel Sheets

SP self-clinching nuts are specially designed for stainless steel sheet applications.

Recommended material:

Stainless steel sheets:

• HRB hardness ≤ 90

• HB hardness ≤ 185

Advantages:

• Strong clinching performance

• Excellent stainless steel compatibility

• High mechanical reliability

Applications:

• Stainless steel enclosures

• Industrial equipment

• Medical devices

• Precision machinery

How to Select the Right Self-Clinching Nut?

Choosing the correct self-clinching nut depends on several engineering factors.

1. Consider Sheet Material

Different materials require different clinching designs.

Examples:

2. Match Thread Size and Sheet Thickness

Before selecting a self-clinching nut, engineers should confirm:

• Thread specification

• Sheet thickness

• Hole diameter

• Required load capacity

Common thread options:

• Metric threads

• Inch threads

• Custom thread sizes

3. Evaluate Operating Conditions

Consider:

• Vibration level

• Corrosion environment

• Temperature range

• Assembly requirements

For high vibration applications, self-locking clinch nuts are recommended.

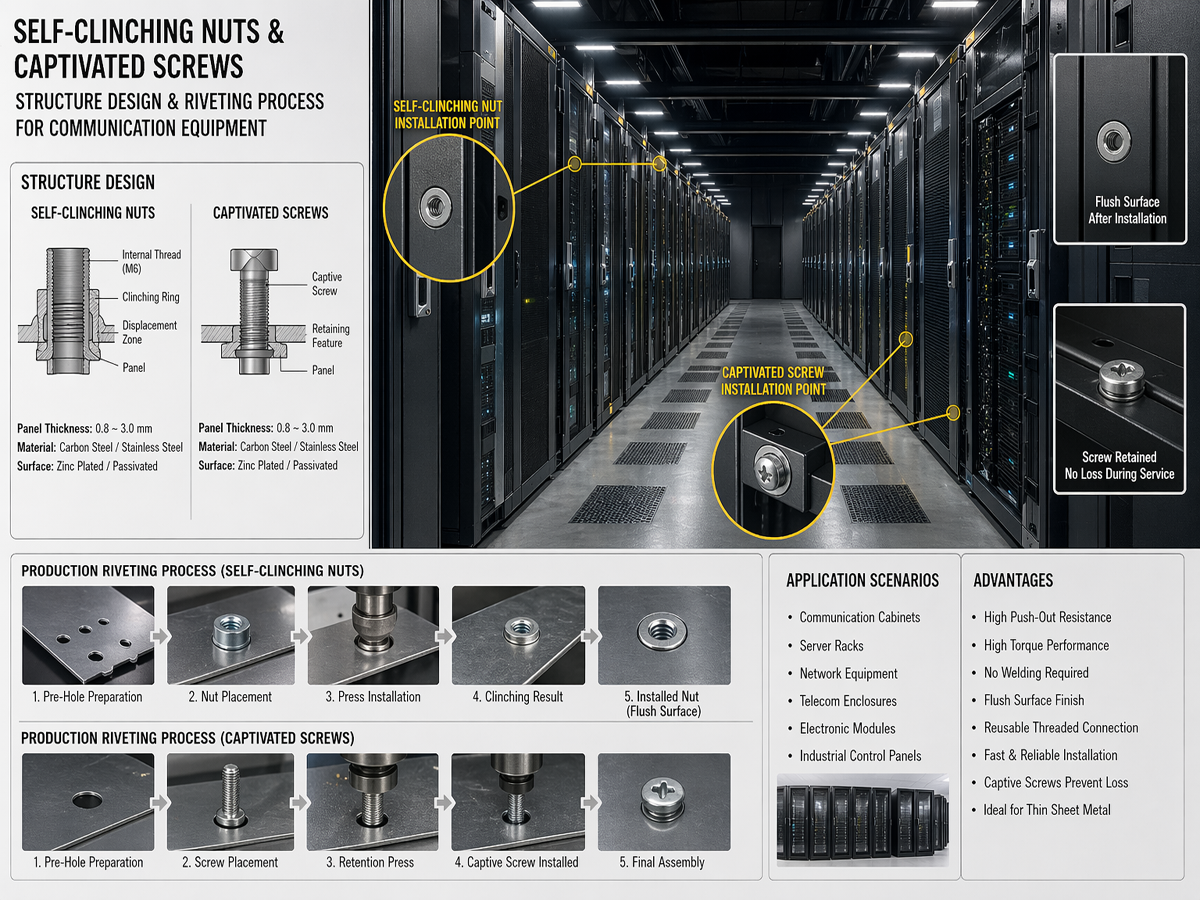

Self-Clinching Nut Installation Process

Proper installation ensures maximum connection performance.

Step 1: Prepare the Workpiece Surface

Before installation:

• Remove oil and contamination

• Ensure the sheet surface is clean

• Confirm correct hole size

Clean preparation improves installation quality.

Step 2: Prepare the Installation Hole

Create the required mounting hole according to the nut specification.

Suitable tools include:

• Punching machines

• Drilling machines

• CNC equipment

• Hand drills

The hole size must match the self-clinching nut requirements.

Step 3: Insert the Self-Clinching Nut

Place the nut into the prepared hole.

Ensure:

• Correct installation direction

• Proper alignment

• Thread protection

Step 4: Apply Press Force

Use professional installation equipment:

• Press riveting machine

• Stamping die

• Punch tools

• Clinching equipment

Apply appropriate pressure until the nut is fully seated.

Step 5: Inspect Installation Quality

After installation, check:

• Nut seating condition

• Thread quality

• Rotation resistance

• Connection strength

A properly installed self-clinching nut should remain securely fixed without movement.

Common Installation Mistakes to Avoid

Incorrect Hole Size

A hole that is too large may reduce:

• Push-out resistance

• Torque resistance

• Overall connection strength

Excessive Press Force

Too much installation force may:

• Damage the sheet material

• Deform the nut

• Affect thread accuracy

Insufficient Press Force

Insufficient pressure may result in:

• Weak clinching

• Nut rotation

• Reduced reliability

Improper Material Selection

Using standard clinch nuts in unsuitable materials may cause poor performance.

Always select the correct type according to:

• Sheet hardness

• Material type

• Application environment

Applications of Self-Clinching Nuts

Automotive Industry

Automotive manufacturers use self-clinching nuts for lightweight structures and efficient assembly.

Applications:

• Vehicle panels

• Battery system components

• Electronic modules

• Interior structures

Electrical Cabinets and Enclosures

Self-clinching nuts provide reliable threaded mounting points for:

• Control cabinets

• Distribution boxes

• Electrical panels

Electronics Manufacturing

Applications include:

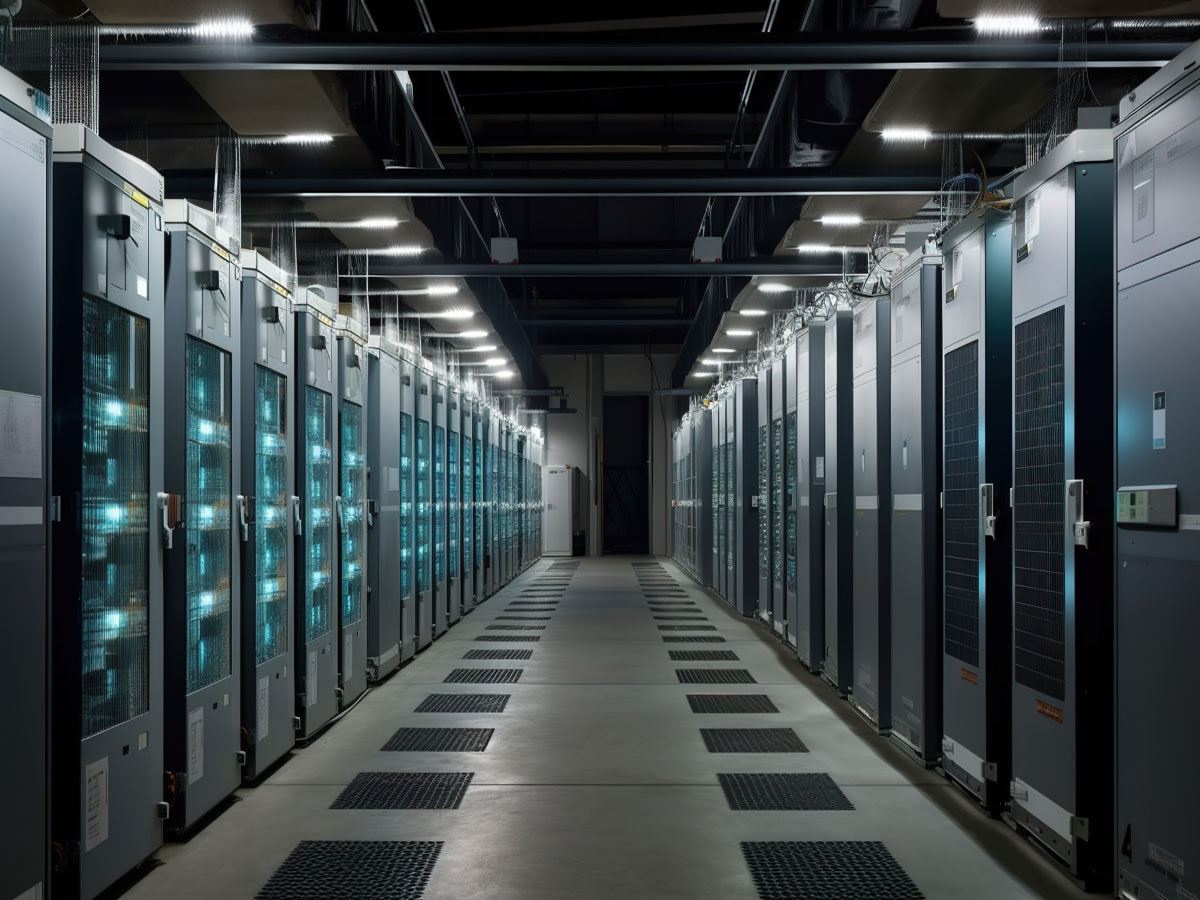

• Computer chassis

• Server racks

• Communication equipment

• Consumer electronics

Aerospace Equipment

Aerospace applications require:

• Lightweight fastening

• High reliability

• Corrosion resistance

Self-clinching nuts provide efficient fastening solutions for aircraft equipment and precision assemblies.

Custom Self-Clinching Nut Manufacturing Solutions

As an experienced self-clinching nuts manufacturer, Juxin Fasteners provides OEM fastening solutions according to customer drawings and application requirements.

Our capabilities include:

✔ Custom thread sizes
✔ Steel and stainless steel materials
✔ Special surface treatments
✔ OEM production
✔ Precision inspection
✔ Customized packaging

Supported standards:

• ISO

• DIN

• ANSI

• Customer specifications

Why Choose Juxin Fasteners?

Juxin Fasteners provides professional fastening solutions for global OEM manufacturers.

Our advantages:

• Experienced fastener manufacturer

• Wide range of clinching fasteners

• Strong customization capability

• Stable quality control

• Engineering application support

From JX-S self-clinching nuts to JX-SP stainless steel clinch nuts, we help engineers create stronger, faster, and more reliable sheet metal assemblies.

Contact Juxin Fasteners for Self-Clinching Nut Solutions

Looking for a reliable self-clinching nuts manufacturer or custom clinch fastening supplier?

Our engineering team can provide technical support and customized fastening solutions for your project.
