F Series Precision Tooth Lock Nuts for High-Accuracy Mechanical Applications

Advanced Precision Locking Solutions for Spindles, Ball Screws, Bearings and Industrial Machinery

In high-precision mechanical systems, maintaining accurate axial positioning and preventing unwanted movement of components are critical requirements. Traditional locking methods may cause shaft deformation, reduced positioning accuracy, and shortened service life due to uneven thread and face alignment.

To solve these challenges, F Series Precision Tooth Lock Nuts provide a high-performance locking solution designed for applications requiring excellent positioning accuracy, high preload stability, and reliable anti-loosening performance.

Juxin Fasteners specializes in manufacturing precision lock nuts, tooth lock nuts, threaded locking nuts, spindle lock nuts, bearing lock nuts, and customized industrial fastening solutions for global OEM customers.

Our precision locking nuts are widely used in:

• CNC machine tools

• Precision machinery

• Ball screw assemblies

• Spindle systems

• Bearings

• Automotive equipment

• Aerospace equipment

• Industrial automation systems

What Are F Series Precision Tooth Lock Nuts?

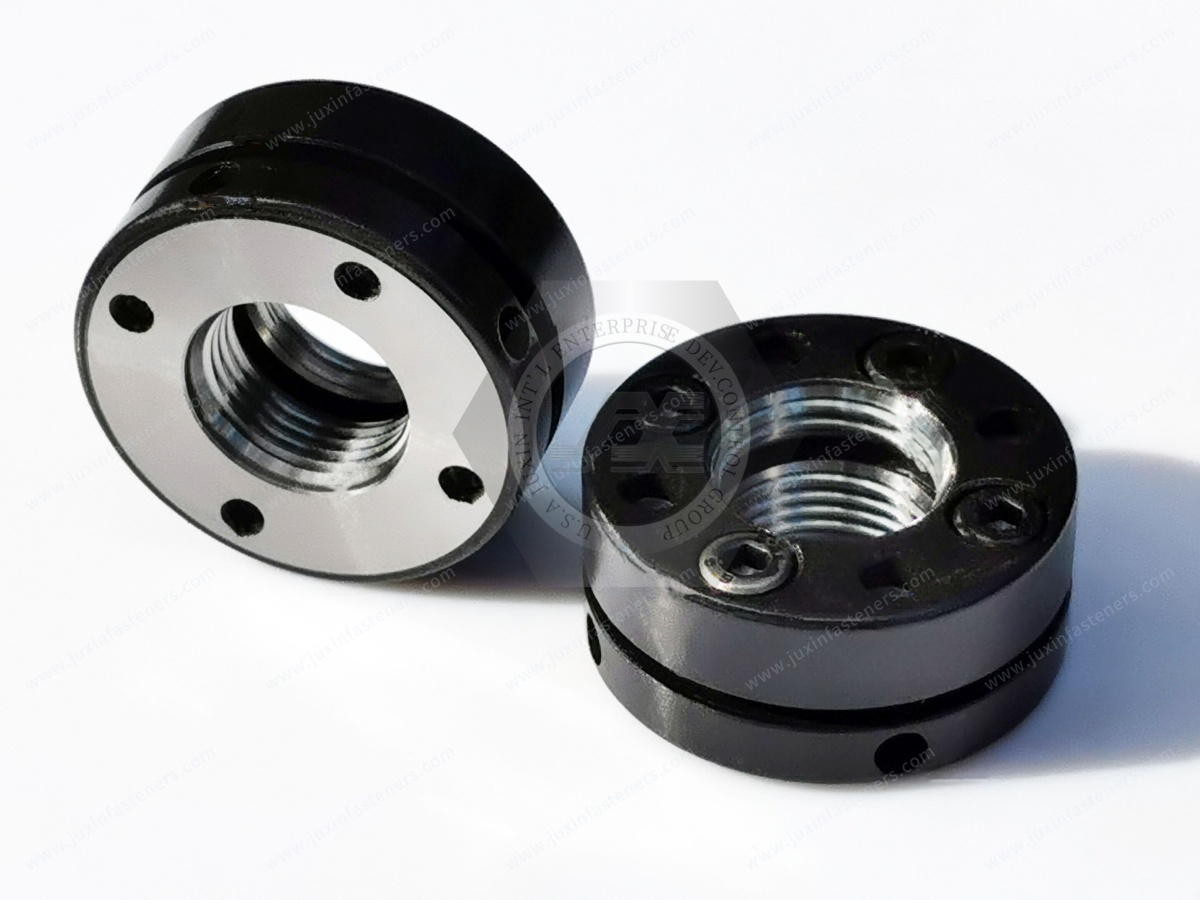

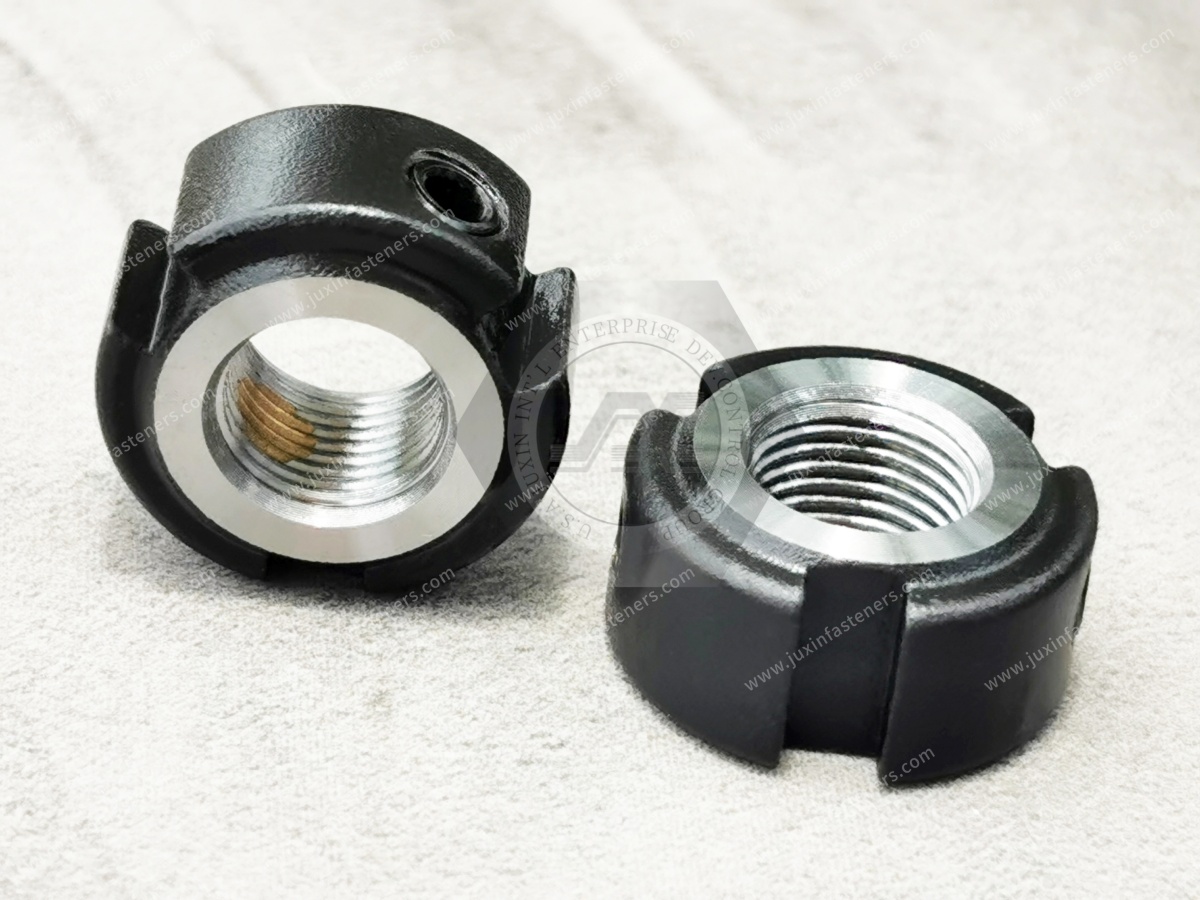

F Series Precision Tooth Lock Nuts, also known as threaded locking nuts or precision shaft lock nuts, are specially designed fastening components used for accurate axial positioning of mechanical parts.

Unlike conventional lock nuts, F Series lock nuts use a unique three-point locking structure with precision locking pins. The locking mechanism creates controlled friction between the nut and shaft thread, preventing rotation while maintaining high positioning accuracy.

The locking system uses precision-machined locking elements positioned at equal intervals around the circumference.

Key features include:

• 30° thread locking design

• Three-point precision locking structure

• Phosphor bronze locking pins

• High repeat positioning accuracy

• No additional lock washers required

• Easy installation and removal

Advanced 30° Thread Locking Technology

The unique locking principle of the F Series tooth belly lock nut is based on a 30° locking angle design.

When the locking screws apply pressure to the internal locking pins, the phosphor bronze elements securely contact the male thread surface.

This creates:

• Increased friction force

• Stable locking performance

• Reduced risk of thread loosening

• Protection against vibration-induced rotation

Because the locking force is distributed through the thread contact area, the locking system avoids excessive axial load on the thread.

This helps prevent:

• Thread deformation

• Shaft damage

• Accuracy loss after repeated assembly

Key Advantages of F Series Precision Lock Nuts

1. High Precision Positioning Performance

Precision mechanical equipment requires accurate component positioning.

F Series precision lock nuts are manufactured with controlled thread and face accuracy to ensure stable installation.

Typical precision specifications:

• Thread grinding accuracy: ISO 4H

• Thread turning accuracy: ISO 6H

• Plane offset accuracy:

• Grinding process: ≤0.002 mm

• Turning process: ≤0.005 mm

These characteristics make them ideal for applications requiring micron-level positioning accuracy.

2. Excellent Anti-Loosening Performance

Equipment such as machine tool spindles and ball screws often operate under:

• High-speed rotation

• Continuous vibration

• Dynamic loading

Standard nuts may gradually loosen under these conditions.

The anti-loosening tooth lock nut design provides:

• Stable locking force

• Reliable vibration resistance

• Long-term fastening performance

3. Maintains Accuracy After Repeated Assembly

One major advantage of precision tooth lock nuts is their ability to maintain performance after multiple installations and removals.

The locking pins are not permanently deformed during operation.

Therefore:

• Original precision can be maintained

• Component replacement becomes easier

• Maintenance efficiency is improved

This makes F Series lock nuts suitable for precision equipment requiring frequent servicing.

4. No Additional Locking Components Required

Compared with traditional locking methods, F Series precision lock nuts simplify assembly.

No need for:

• Lock washers

• Shaft grooves

• Additional locking plates

The integrated locking structure reduces component quantity and improves assembly efficiency.

Precision Lock Nut Materials and Manufacturing Specifications

Juxin Fasteners manufactures high precision lock nuts using carefully selected materials and advanced machining processes.

Material

Standard material:

42CrMo4 Alloy Steel

Advantages:

• High mechanical strength

• Excellent fatigue resistance

• Suitable for heavy-duty applications

Hardness

Typical hardness:

HRC 28°–32°

This provides a balance between:

• Strength

• Wear resistance

• Machining performance

F Series Lock Nut Structure Options

Juxin Fasteners provides different precision locking nut designs according to application requirements.

Web Lock Nuts

Designed for precision shaft positioning applications.

Features:

• High locking stability

• Accurate axial positioning

• Suitable for rotating components

Radial Lock Nuts

Locking force is applied radially through locking elements.

Applications:

• Bearings

• Precision shafts

• Rotating assemblies

Axial Lock Nuts

Designed for applications requiring axial locking performance.

Common applications:

• Machine tools

• Mechanical transmission systems

Compression Lock Nuts

Provide secure fastening through controlled compression locking technology.

Suitable for:

• Precision assemblies

• High-load applications

Left-Hand and Right-Hand Precision Lock Nuts

F Series precision tooth lock nuts are available in both:

Right-Hand Thread Lock Nuts

The most commonly used thread direction in mechanical applications.

Left-Hand Thread Lock Nuts

Used in special applications where rotation direction may cause standard nuts to loosen.

Typical applications:

• Rotating machinery

• Special mechanical assemblies

• Counter-rotation systems

Selection Notes:

When selecting left-hand or right-hand lock nuts:

• Confirm shaft rotation direction

• Match thread direction correctly

• Avoid mixing different thread directions

• Apply proper tightening torque

Incorrect selection may result in thread damage or reduced locking performance.

Applications of Precision Tooth Lock Nuts

CNC Machine Tools

Precision machine tools require highly accurate spindle positioning.

F Series lock nuts are used in:

• CNC spindle assemblies

• Grinding machines

• Machining centers

• Precision rotary systems

Benefits:

• Improved accuracy

• Reduced vibration

• Stable preload

Ball Screw Systems

Ball screws require accurate axial positioning and reliable locking.

Precision lock nuts help ensure:

• Correct bearing preload

• Reduced shaft deformation

• Extended component life

Bearing Applications

Precision bearing assemblies require controlled positioning.

Applications include:

• High-speed bearings

• Precision motors

• Industrial rotating equipment

Automotive and Transportation Equipment

Automotive manufacturing equipment requires durable and vibration-resistant fastening solutions.

Applications:

• Production machinery

• Vehicle assembly equipment

• High-performance mechanical systems

Aerospace and Marine Equipment

High reliability fastening is essential in aerospace and marine applications.

Precision locking nuts provide:

• Secure positioning

• High mechanical stability

• Long service life

F Series Precision Lock Nuts vs Conventional Lock Nuts

Custom Precision Lock Nut Manufacturing Solutions

As a professional precision lock nut manufacturer, Juxin Fasteners provides customized solutions according to customer drawings and engineering requirements.

Our capabilities include:

✔ Precision CNC machining
✔ Thread grinding and precision turning
✔ Custom thread specifications
✔ Left-hand and right-hand threads
✔ Special dimensions
✔ OEM production
✔ Quality inspection reports

Supported standards:

• ISO

• DIN

• ANSI

• Customer-specific specifications

Why Choose Juxin Fasteners?

Juxin Fasteners focuses on providing reliable precision fastening solutions for global industrial customers.

Our advantages include:

• Professional fastener manufacturing experience

• Precision machining capability

• Customized engineering support

• Stable quality control

• OEM project experience

From F Series precision tooth lock nuts to customized industrial locking fasteners, we help engineers achieve higher accuracy, reliability, and service life in demanding mechanical applications.

Contact Juxin Fasteners for Precision Lock Nut Solutions

Looking for a reliable precision lock nut manufacturer, spindle lock nut supplier, or custom threaded locking nut solution?

Our engineering team can provide technical support and customized fastening solutions based on your application requirements.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com
