Electric vehicle battery systems combine lightweight structures, electronic controls, thermal management components and demanding automotive reliability requirements.

Many of these assemblies incorporate engineering plastics, aluminum components, composite structures and thin-wall housings.

These materials help manufacturers reduce weight and integrate complex component geometries.

However, fastening directly into lightweight materials can create challenges involving thread wear, limited engagement strength, material deformation and repeated assembly.

Threaded inserts for EV battery modules provide durable internal metal threads in appropriately designed host components.

They can support removable screw connections for selected battery-related housings, mounting brackets, electronic assemblies and serviceable covers.

For OEM engineers, the critical question is not simply whether an insert fits the component.

It is whether the complete insert–host material–screw joint can withstand its specified mechanical, thermal and environmental conditions.

For manufacturing engineers and production managers, insert installation must also be compatible with production cycle time, process monitoring and repeatable quality.

For procurement and supplier development teams, material consistency, dimensional compliance, approved drawings, inspection requirements and stable supply influence the final sourcing decision.

Juxin Fasteners welcomes inquiries for automotive threaded inserts and custom fastening components for EV-related applications.

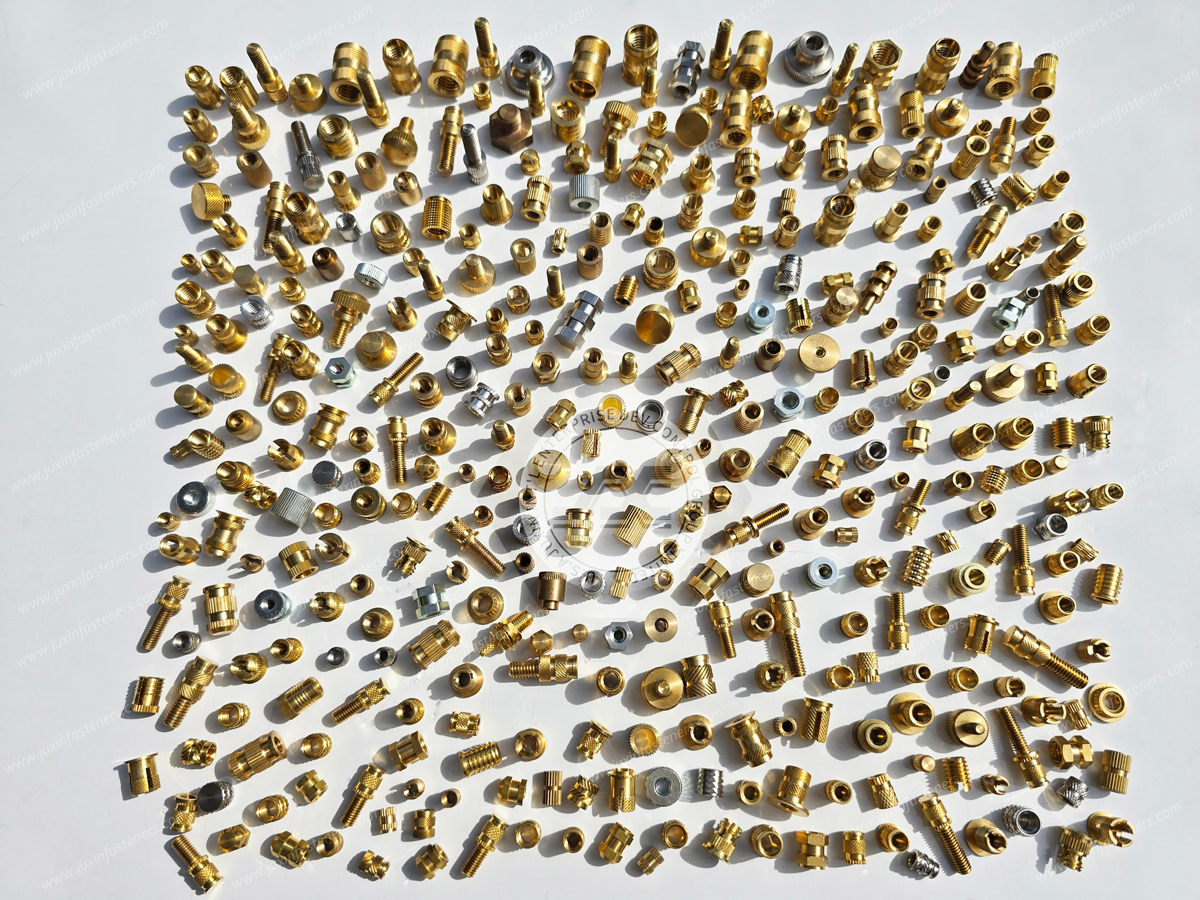

Why Are Threaded Inserts Used in EV Battery Components?

Electric vehicle battery-related components may experience:

• Vehicle vibration and mechanical shock

• Thermal expansion and contraction

• Repeated temperature cycling

• Humidity and environmental exposure

• Assembly and maintenance operations

• Long-term loading of plastic structures

Directly formed threads in certain plastics may not provide adequate durability when a screw is repeatedly installed and removed.

A threaded insert introduces a separate metal female thread into the host component.

Potential Benefits

• Improved resistance to thread wear

• Reusable threaded connections

• Reduced damage to the host material during screw replacement

• Consistent mating thread geometry

• Greater flexibility in selecting screw materials

• Improved suitability for controlled assembly processes

Actual performance depends on insert geometry, host material, installation quality and joint design.

Important Engineering Distinction

A threaded insert does not automatically provide vibration resistance, electrical isolation or environmental sealing.

Those functions must be addressed through the complete assembly design.

Where Are Threaded Inserts Used in EV Battery Systems?

Threaded inserts may be relevant to several different EV battery-related assemblies.

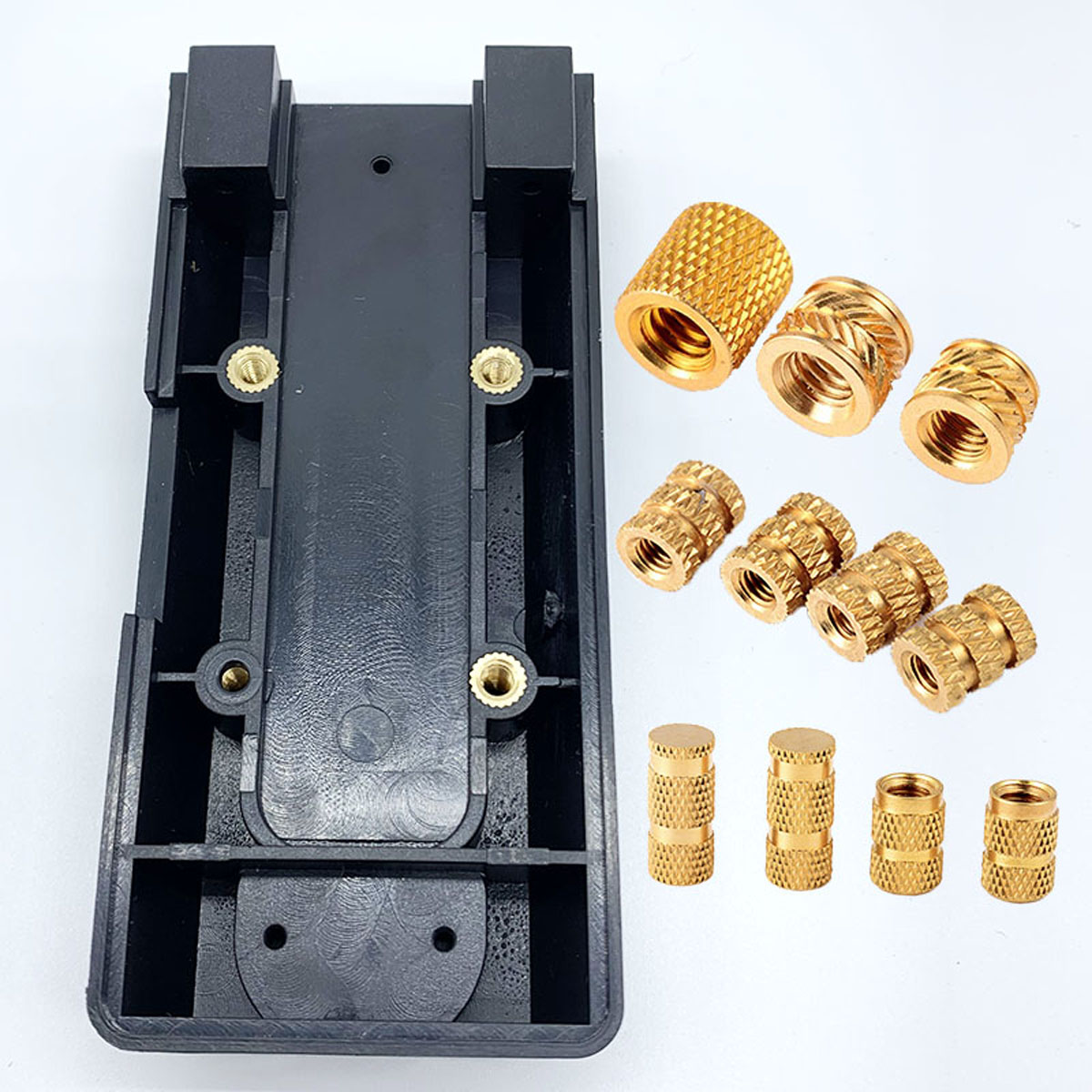

Plastic Battery Module Housings

Engineering plastic housings may require threaded attachment points for:

• Protective covers

• Internal mounting brackets

• Electronic component supports

• Cable management components

• Selected serviceable attachments

The insert must be selected according to the plastic material, boss geometry and expected service loads.

Battery Monitoring and Electronics Housings

Battery management system components and related electronics may use threaded inserts in plastic enclosures.

Potential applications include:

• Electronic control housings

• Sensor mounting structures

• Connector support brackets

• Protective covers

• Electronic module fixtures

Design priorities include dimensional stability, controlled screw tightening and suitable electrical clearance.

Thermal Management Assemblies

EV battery thermal management systems may incorporate plastic brackets, covers and electronic support components.

Threaded inserts can provide fastening points for:

• Cooling system support brackets

• Temperature sensor housings

• Thermal management control components

• Protective panels

• Auxiliary mounting structures

The joint must be evaluated for temperature exposure, differential thermal expansion and vibration.

Battery Covers and Serviceable Components

Threaded inserts can support removable fasteners in selected housing covers.

However, a threaded insert alone does not establish a sealed enclosure.

Where moisture protection is required, the complete joint must include an appropriately designed sealing system.

Important Application Boundary

Primary battery structural connections, crash-load paths, electrical busbar connections and safety-critical joints require dedicated engineering validation.

A plastic threaded insert should not be treated as a universal replacement for structural bolts, weld nuts or other engineered fastening systems.

Threaded Insert Materials for EV Battery Applications

Material selection influences mechanical behavior, corrosion resistance, electrical conductivity, weight and manufacturing cost.

The appropriate choice depends on the host material and operating environment.

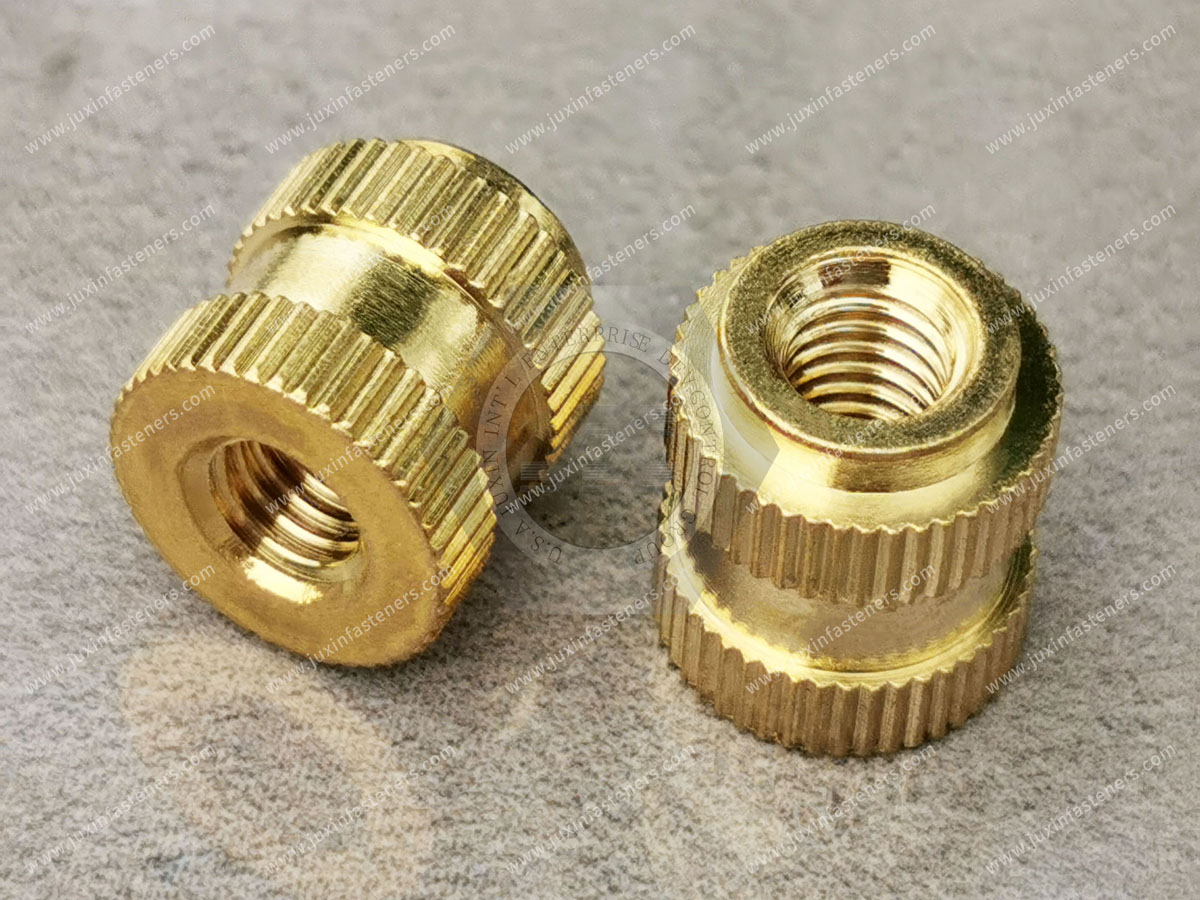

Brass Threaded Inserts

Brass is widely used for threaded inserts in thermoplastic components.

Potential advantages include:

• Good machinability

• Suitable internal thread durability

• Compatibility with many established heat-insertion designs

• Corrosion resistance in appropriate environments

• Good thermal conductivity for heat-assisted installation

Potential EV Applications

• Plastic electronics housings

• Sensor enclosures

• Battery-related protective covers

• Engineering plastic brackets

• Serviceable plastic components

Engineering Considerations

Brass is electrically conductive.

Where an insert is located near energized components, the design must maintain the required electrical clearances and insulation barriers.

Brass also has different thermal expansion characteristics from many engineering plastics.

Retention performance must therefore be evaluated across the specified operating temperature range.

Stainless Steel Threaded Inserts

Stainless steel inserts may be considered when higher mechanical properties or particular corrosion-resistance requirements are important.

Potential applications include:

• Moisture-exposed equipment

• Selected battery enclosure components

• Automotive electronics

• Industrial EV charging-related equipment

• Specialized lightweight assemblies

Engineering Considerations

• Stainless steel grade

• Mechanical properties

• Corrosion exposure

• Installation method

• Thread galling risk

• Host material compatibility

• Cost

A2 and A4 stainless steel designations may be relevant to certain fastener specifications, but the exact material grade and properties must be defined.

Stainless steel is not automatically appropriate for every plastic insert design or installation process.

Aluminum Threaded Inserts

Aluminum inserts may be evaluated for selected weight-sensitive applications.

Potential advantages include:

• Low density

• Reduced component mass

• Compatibility with certain lightweight assembly concepts

However, aluminum also introduces considerations involving:

• Internal thread wear

• Material strength

• Surface treatment

• Galvanic corrosion

• Repeated assembly durability

Engineering Recommendation

Use aluminum inserts only where the selected alloy, geometry and thread performance have been validated for the intended application.

Material Comparison

Important Electrical Design Consideration

All three material groups are electrically conductive.

None should be assumed to provide electrical insulation simply because it is embedded in plastic.

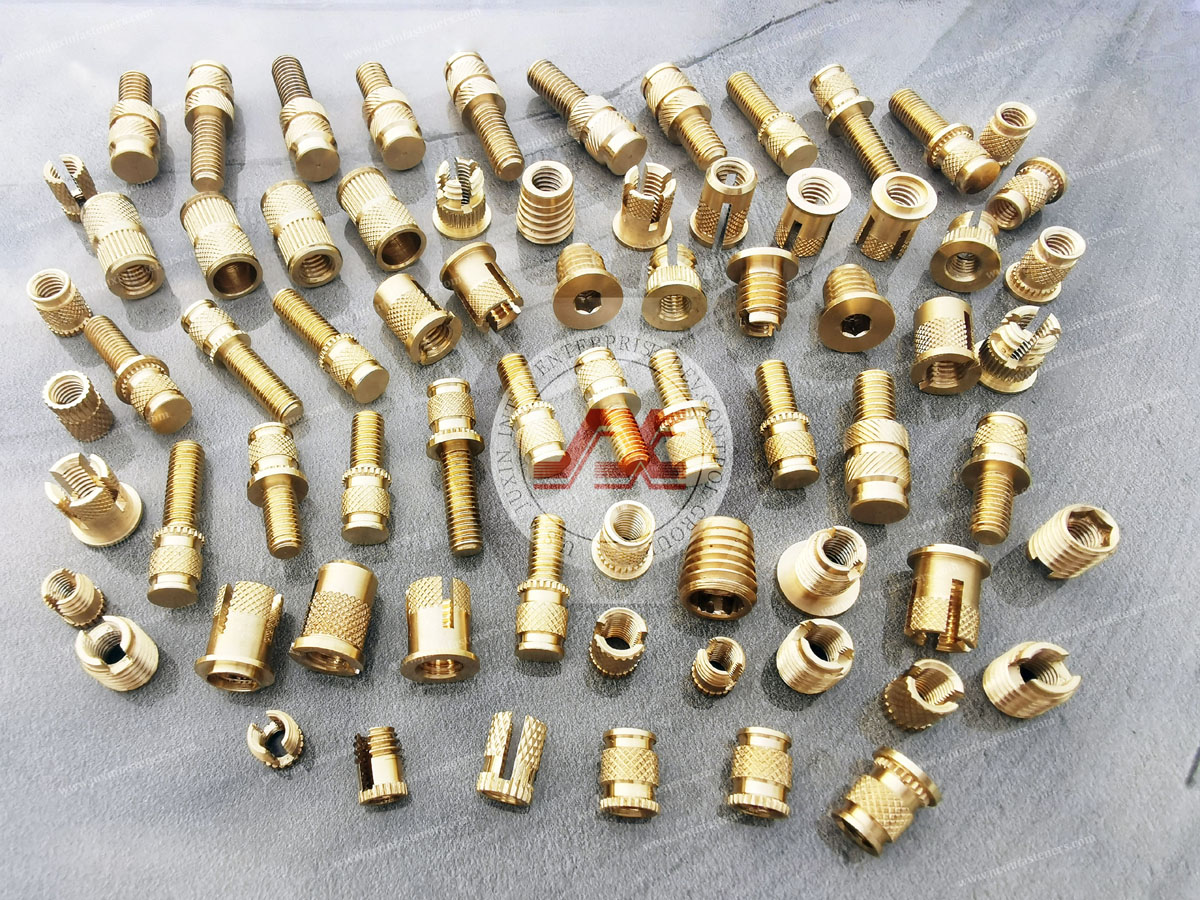

Threaded Insert Types for EV Battery Components

Different host materials and production processes require different installation methods.

Heat-Set Threaded Inserts

Heat-set inserts are commonly installed into suitable thermoplastics after molding.

A controlled heating process softens the surrounding plastic and allows the insert's retention features to become embedded.

Potential Advantages

• Suitable for many thermoplastic components

• Compatible with post-molding installation

• Established installation methods

• Reusable internal metal threads

Engineering Limitations

• Requires appropriate thermoplastic behavior

• Installation temperature must be controlled

• Hole geometry affects retention

• Excessive heat may damage the boss

• Incomplete insertion can cause dimensional problems

Potential EV Applications

• Battery electronics housings

• Plastic module covers

• Sensor housings

• Auxiliary mounting components

Molded-In Threaded Inserts

Molded-in inserts are positioned in the mold before the plastic component is formed.

Plastic flows around the insert during molding.

Potential Advantages

• Integrated insert placement during molding

• No separate post-molding insertion operation

• Suitable for certain high-volume production processes

• Potential for effective mechanical retention

Engineering Limitations

• Insert positioning must be controlled

• Mold loading may influence cycle time

• Plastic flow and knit lines require consideration

• Insert displacement can create defects

• Tooling design may become more complex

Important Clarification

Molded-in inserts do not automatically provide the highest pull-out or torque-out strength.

Performance depends on geometry, plastic material, molding conditions and the complete component design.

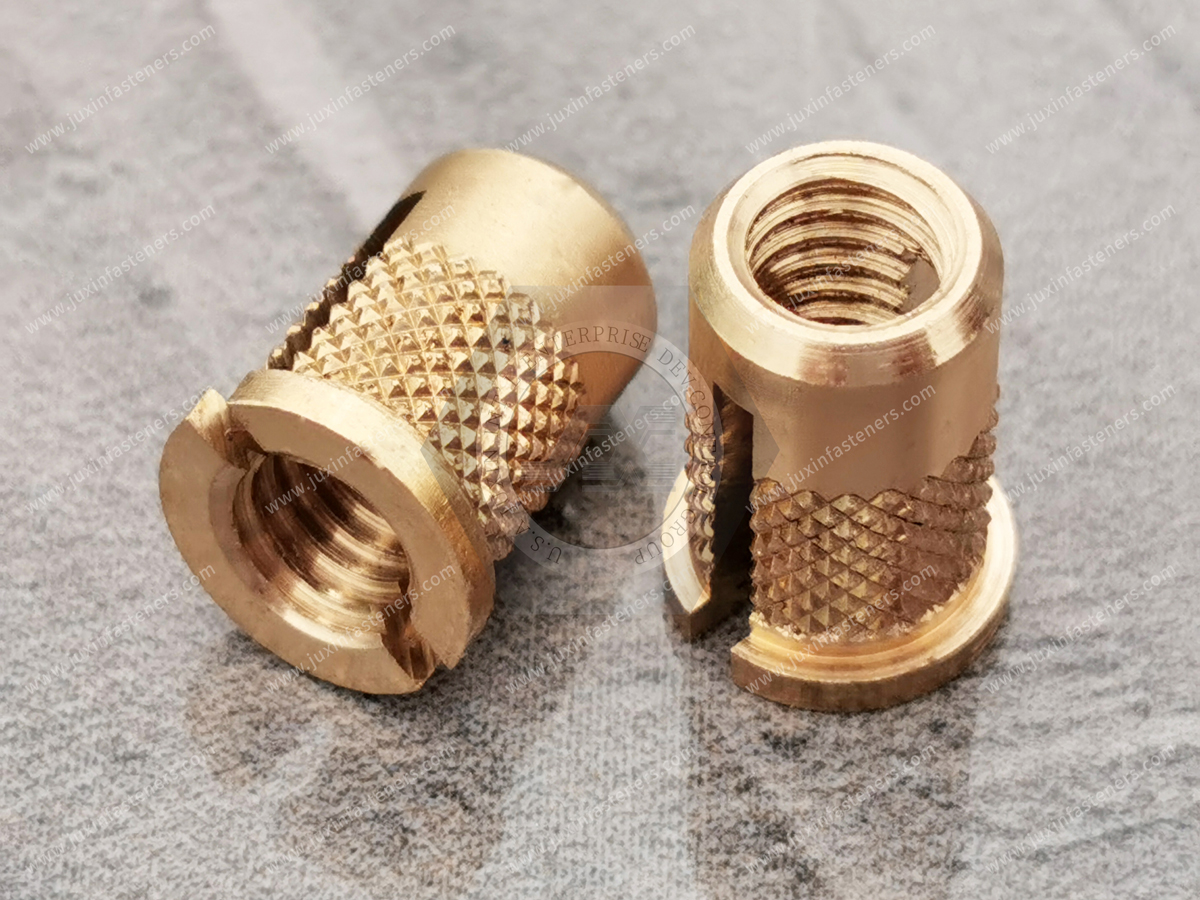

Self-Tapping Threaded Inserts

Self-tapping inserts create or form engagement features in a compatible host material during installation.

Depending on the specific design, they may be used in certain plastics and other materials.

Potential Advantages

• Post-molding installation

• No separate heat-insertion step for suitable designs

• Mechanical engagement with the host material

• Flexibility in selected production processes

Engineering Limitations

• Installation torque must be controlled

• Hole size is critical

• Brittle plastics may crack

• Material displacement can damage thin bosses

• Insert alignment affects final thread position

Important Clarification

Self-tapping inserts are not universally suitable for every plastic material.

The insert design must be compatible with the host material and specified installation process.

How to Select the Correct Insert Type

The final selection should be based on the actual host material, geometry, loading and production requirements.

Plastic Boss Design for EV Threaded Inserts

The plastic boss is often the controlling element in an insert joint.

A strong metal insert cannot compensate for an inadequately designed surrounding plastic structure.

Pilot Hole Diameter

The pilot hole must match the insert geometry and installation method.

An oversized hole may reduce mechanical engagement.

An undersized hole may cause excessive insertion stress, plastic cracking or distortion.

Boss Outside Diameter

The boss must provide enough surrounding material to resist expansion forces and service loads.

Insufficient wall thickness can lead to cracking or splitting.

Boss Height

Boss height affects available insert engagement and load distribution.

The selected insert length must be compatible with the available component depth.

Hole Depth

Blind holes must provide sufficient clearance for the insert and any displaced material.

The mating screw must not bottom out before the intended clamp load is developed.

Edge Distance

Inserts placed too close to an unsupported edge may create localized stress concentrations.

Ribs and Reinforcement

Appropriate ribs may improve component stiffness, but poorly positioned ribs can introduce molding defects or local stress.

Engineering Recommendation

Confirm the following dimensions before tooling release:

• Insert outside diameter

• Insert length

• Pilot hole diameter

• Pilot hole depth

• Boss outside diameter

• Boss height

• Distance to nearby walls

• Screw engagement length

• Clearance beneath the screw

The required dimensions must be established for the specific insert and host material.

EV Plastic Material Compatibility

Different engineering plastics respond differently to insertion forces, temperature and long-term loading.

ABS

ABS may be suitable for selected electronics housings, depending on temperature and environmental requirements.

Polycarbonate (PC)

PC offers useful engineering properties but requires attention to molding stress, chemical exposure and boss cracking.

Polyamide (PA / Nylon)

Polyamide properties are influenced by moisture absorption and temperature.

Glass-fiber reinforcement can also affect installation behavior and local stress.

PBT and Other Engineering Thermoplastics

Certain automotive electronics components use engineering thermoplastics selected for dimensional stability, electrical characteristics and thermal performance.

Insert installation must be validated for the specific material grade.

Composite and Thermoset Materials

These materials may not be suitable for conventional heat-set installation.

Mechanical inserts or other application-specific fastening methods may be necessary.

Engineering Recommendation

Specify the exact polymer grade, reinforcement level and relevant conditioning state during validation.

Generic material names are not sufficient for final production approval.

Pull-Out Resistance and Torque-Out Resistance

Two important performance characteristics of threaded inserts are pull-out resistance and torque-out resistance.

Pull-Out Resistance

Pull-out testing evaluates resistance to axial extraction from the host material.

Results depend on:

• Insert geometry

• Installation method

• Host material

• Boss dimensions

• Test temperature

• Loading direction

• Conditioning and aging

Torque-Out Resistance

Torque-out testing evaluates resistance to insert rotation within the host material.

This is different from the torque required to tighten the mating screw.

Why Both Matter

An insert may resist axial extraction but rotate under tightening torque.

Alternatively, an insert may resist rotation while the surrounding plastic fails under axial load.

Both failure modes must be considered.

Important Engineering Recommendation

Do not use a single published retention value as proof of suitability for every EV battery component.

Validate the actual insert and molded part under representative conditions.

Screw Tightening and Joint Preload

The internal metal thread of an insert allows a machine screw to engage a durable threaded surface.

However, the surrounding plastic still influences the complete joint.

Relevant Factors

• Screw material and thread

• Insert thread strength

• Plastic stiffness

• Joint compression

• Under-head bearing area

• Friction

• Temperature

• Long-term creep

Potential Failure Modes

• Insert rotation

• Insert pull-out

• Plastic boss cracking

• Screw thread stripping

• Excessive plastic compression

• Loss of clamp load

Engineering Recommendation

Establish screw tightening torque through application-specific testing.

The torque used to install an insert into plastic is not necessarily the same as the torque used to tighten the mating screw.

Vibration Resistance in EV Battery Assemblies

Vehicle vibration can affect threaded connections over time.

Metal threaded inserts may provide durable internal threads, but they do not automatically prevent the mating screw from loosening.

Potential Causes of Joint Loosening

• Inadequate initial preload

• Joint settlement

• Transverse vibration

• Thermal expansion

• Plastic creep

• Insufficient joint stiffness

Where necessary, the assembly may require an appropriate locking feature or another validated retention method.

Engineering Recommendation

Evaluate insert retention and screw loosening as separate requirements.

Thermal Cycling and Plastic Creep

EV battery-related assemblies can experience temperature changes during operation and environmental exposure.

Metals and polymers generally have different thermal expansion characteristics.

This difference may influence the stresses around an insert.

Potential Effects

• Reduced insert retention

• Local plastic deformation

• Boss cracking

• Joint relaxation

• Changes in screw preload

Plastic Creep

Under sustained load, certain polymers may deform over time.

This can affect joint compression and insert retention.

Engineering Recommendation

Where relevant, validate the complete joint after thermal cycling, temperature aging and sustained loading.

Electrical Isolation and Battery Safety

Battery systems introduce electrical design requirements that may not be present in ordinary mechanical assemblies.

Metal threaded inserts are electrically conductive.

Potential concerns include:

• Unintended conductive paths

• Reduced electrical clearance

• Insulation damage

• Contact with energized components

• Galvanic interactions between dissimilar metals

Engineering Recommendation

The insert position, mating screw length, surrounding plastic geometry and electrical insulation system must be reviewed together.

An embedded metal insert should not be assumed to provide electrical isolation.

Battery Enclosure Sealing and Moisture Protection

Threaded inserts may be used in serviceable battery-related covers and enclosure components.

However, the insert itself does not establish an environmental sealing rating.

Where the complete enclosure requires protection against water or dust, the joint may also need:

• Gaskets

• Sealing surfaces

• Suitable compression control

• Sealed openings

• Environmental validation

IEC 60529 defines the IP code classification system for enclosure protection.

Important Clarification

An IP rating applies to the tested enclosure configuration, not automatically to an individual threaded insert.

Installation Process Control for OEM Production

Production managers must consider whether the selected insert can be installed consistently at the required manufacturing volume.

Heat-Set Installation Control

Relevant variables include:

• Insert temperature

• Heating method

• Insertion force

• Insertion speed

• Insertion depth

• Cooling conditions

• Host material temperature

Molded-In Insert Control

Relevant variables include:

• Insert positioning

• Mold loading

• Insert retention during injection

• Plastic flow

• Mold temperature

• Part removal

Self-Tapping Insert Control

Relevant variables include:

• Pilot hole diameter

• Installation torque

• Alignment

• Insertion depth

• Host material condition

• Tool condition

Production Quality Indicators

Useful production measurements may include:

• Insert seating depth

• Installation force or torque

• Position accuracy

• Reject rate

• Rework rate

• Cycle time

• Tool wear

Information Gain: Installation Consistency Can Matter More Than Nominal Insert Strength

An insert design may achieve satisfactory laboratory retention results but still perform poorly in production if installation conditions vary.

For example, inconsistent heating or hole dimensions may produce different retention levels across otherwise similar molded parts.

Engineering Recommendation

Validate both the insert design and the repeatability of the intended manufacturing process.

Quality Control and Validation for EV Threaded Inserts

OEM quality planning should reflect the actual component function and customer requirements.

Incoming Insert Inspection

Potential inspection characteristics include:

• Material identification

• Internal thread dimensions

• Outside diameter

• Insert length

• Knurl or retention geometry

• Surface condition

• Visual defects

Installed Insert Inspection

Potential checks include:

• Position

• Seating depth

• Perpendicularity

• Boss damage

• Insert movement

• Thread condition

Mechanical Testing

Depending on the application, testing may include:

• Pull-out resistance

• Torque-out resistance

• Screw tightening performance

• Repeated assembly cycles

• Joint load testing

Environmental Validation

Where relevant:

• Thermal cycling

• Temperature aging

• Humidity exposure

• Corrosion evaluation

• Vibration testing

Relevant Thread Standards

For metric internal threads, ISO 261 and the ISO 965 series may be relevant to thread dimensions and tolerances.

For Unified inch threads, ASME B1.1 may be relevant.

Metric, UNC, UNF and other thread systems must be specified separately.

They are not directly interchangeable.

Metric and Inch Size References

These values are dimensional references only and do not establish equivalent thread specifications or product availability.

Common Failure Modes and Engineering Prevention

Total Installed Cost and Production Planning

For production managers and purchasing teams, insert unit price is only one part of the total cost.

Relevant cost elements include:

• Insert purchase cost

• Mold or tooling allocation

• Installation equipment

• Assembly labor

• Inspection

• Scrap and rework

• Maintenance

• Replacement components

Installed Cost per Accepted Assembly

A useful comparison is:

Total production, installation, tooling allocation, inspection and rework costs ÷ accepted assembly output

The calculation should use a consistent production period and avoid double-counting cost elements.

Engineering Recommendation

Compare heat-set, molded-in and self-tapping inserts using the actual production process, annual volume and quality requirements.

The lowest insert unit price does not necessarily result in the lowest total assembly cost.

Custom Threaded Inserts for EV Battery OEM Projects

Different EV battery-related components may require application-specific insert dimensions and materials.

Potential custom requirements include:

• Internal thread diameter

• Thread pitch

• Insert length

• Outside diameter

• Knurl pattern

• Retention geometry

• Material grade

• Surface finish

• Installation method

• Packaging requirements

Engineering Recommendation

Provide a complete drawing and identify the host material and installation process.

A drawing without the surrounding component information may not be sufficient to evaluate retention performance.

OEM Supplier Qualification and Procurement Requirements

Purchasing and supplier development teams should evaluate technical and commercial requirements together.

Technical Requirements

• Drawing compliance

• Material specification

• Thread accuracy

• Retention geometry

• Surface condition

• Installation compatibility

• Inspection criteria

Production Requirements

• Dimensional consistency

• Process control

• Traceability where required

• Packaging

• Engineering change management

• Production planning

Commercial Requirements

• Prototype quantities

• MOQ

• Annual purchasing volume

• Lead time

• Unit price

• Supply continuity

• Delivery requirements

Specific commercial conditions must be confirmed for each RFQ.

OEM RFQ Checklist

Frequently Asked Questions

What are threaded inserts used for in EV battery modules?

They provide reusable metal threads in selected plastic and lightweight components such as electronics housings, covers and mounting structures.

Are brass threaded inserts suitable for EV battery plastic housings?

They may be suitable for compatible engineering plastics, subject to retention, temperature, electrical and application requirements.

Which insert is strongest: heat-set, molded-in or self-tapping?

There is no universally strongest method. Performance depends on insert geometry, host material, boss design, installation and loading.

Do threaded inserts prevent screws from loosening under vibration?

Not automatically. Insert retention and screw loosening are separate engineering considerations.

Can threaded inserts be used in aluminum battery enclosures?

Certain insert designs may be suitable for metal components, but inserts intended for plastic should not automatically be used in aluminum.

The host material and installation method must match the selected insert.

Are threaded inserts electrically insulating?

Metal inserts are conductive. Electrical isolation must be provided by the overall component design where required.

Can threaded inserts be used for IP-rated battery covers?

They can be part of a sealed assembly, but the complete enclosure and sealing system must be validated.

Can EV battery inserts be supplied with UNC or UNF threads?

Such thread requirements can be reviewed against the specific product drawing.

Availability must be confirmed, and Unified inch threads are not interchangeable with metric threads.

What tests should an OEM request?

Depending on the application, relevant evaluations may include pull-out, torque-out, repeated assembly, thermal cycling, vibration and installed joint performance.

What information is needed for a custom insert quotation?

Provide the insert drawing, material, host component design, installation method, required performance, annual volume and delivery requirements.

Juxin Fasteners: EV Battery Threaded Insert and OEM Fastening Solutions

Juxin Fasteners welcomes inquiries for threaded inserts and custom fastening components used in automotive and industrial applications.

Relevant product categories include:

• Brass threaded inserts

• Stainless steel threaded inserts

• Aluminum threaded inserts

• Heat-set threaded inserts

• Molded-in threaded inserts

• Self-tapping threaded inserts

• Custom threaded inserts for plastic components

• Drawing-specific OEM fastening components

Specific material grades, dimensions, production requirements, testing, MOQ and delivery schedules require confirmation.

Request an EV Battery Threaded Insert Quotation

Are you developing an EV battery electronics housing, lightweight plastic component, thermal management bracket,

protective cover or other automotive assembly requiring durable threaded connections?

Juxin Fasteners welcomes technical and commercial inquiries from:

• Automotive design engineers

• Mechanical and structural engineers

• Manufacturing engineers

• Production managers

• Purchasing specialists

• Procurement managers

• Supplier development teams

• Supply chain managers

For an efficient technical review, please send:

Insert drawing + thread specification + material grade + host polymer or substrate + boss geometry + installation method

+ loading requirements + operating temperature + environmental requirements + electrical considerations

+ validation criteria + prototype quantity + annual volume + packaging + delivery schedule.

Our team can review the requirements and confirm suitable product options, technical feasibility and quotation conditions.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your EV battery threaded insert drawings and OEM RFQ to Juxin Fasteners for technical confirmation and quotation.
