Wedge anchors are post-installed mechanical expansion fasteners used to attach steel fixtures, industrial equipment, support brackets and other assemblies to suitable concrete.

They are commonly selected where a threaded stud-type connection and a mechanical expansion mechanism are required.

However, a reliable installation depends on more than choosing a nominal anchor diameter.

Concrete strength, cracking condition, fixture geometry, effective embedment, drilled-hole quality, installation torque, edge distance,

 anchor spacing and environmental exposure all influence the suitability of the anchoring system.

For industrial equipment manufacturers, engineering contractors, production managers and purchasing teams,

an additional challenge is consistency: the anchor selected during design must be the same approved configuration that is purchased, delivered and installed.

Juxin Fasteners supplies industrial fastening components and supports inquiries for concrete wedge anchors, heavy-duty expansion anchors and customized OEM mounting hardware.

This guide focuses on the practical connection between engineering specifications, installation quality, manufacturing consistency and industrial procurement.

What Is a Concrete Wedge Anchor?

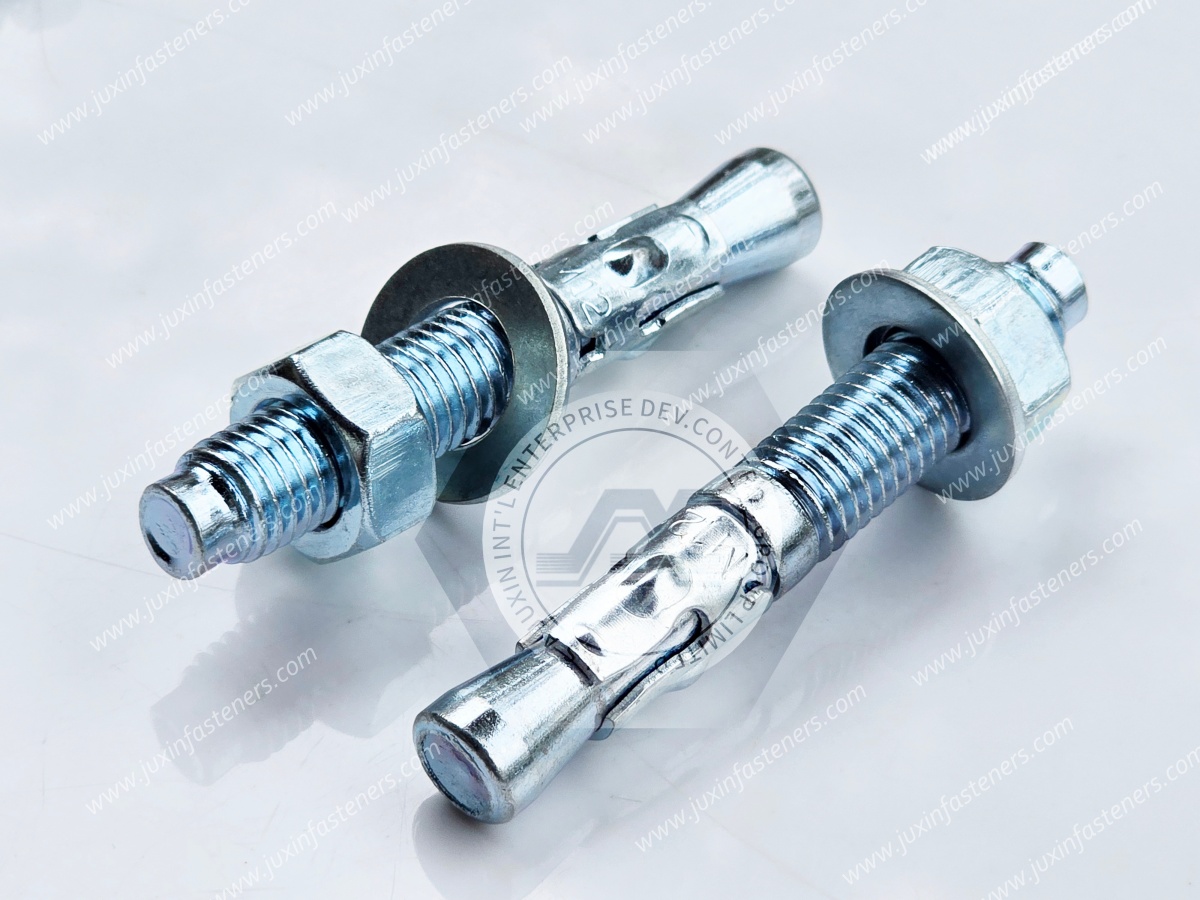

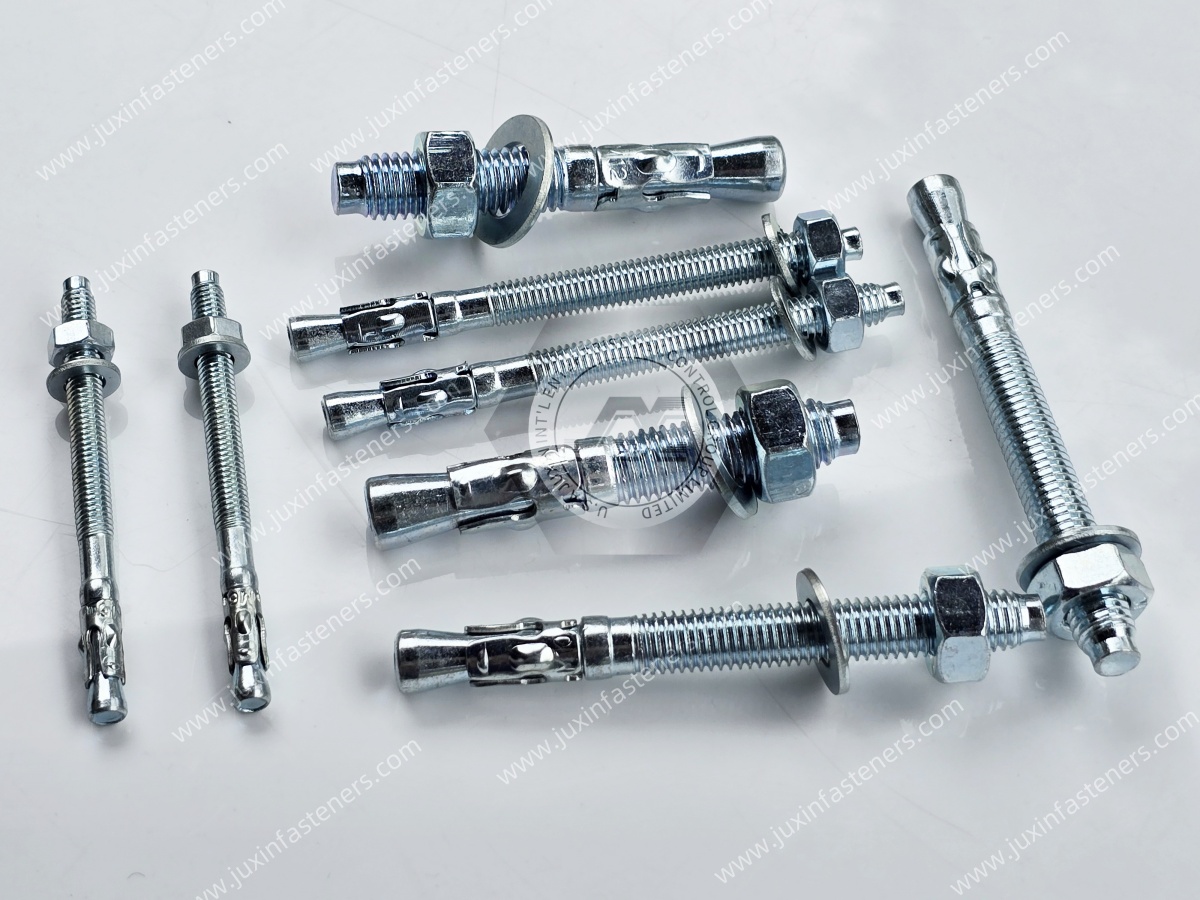

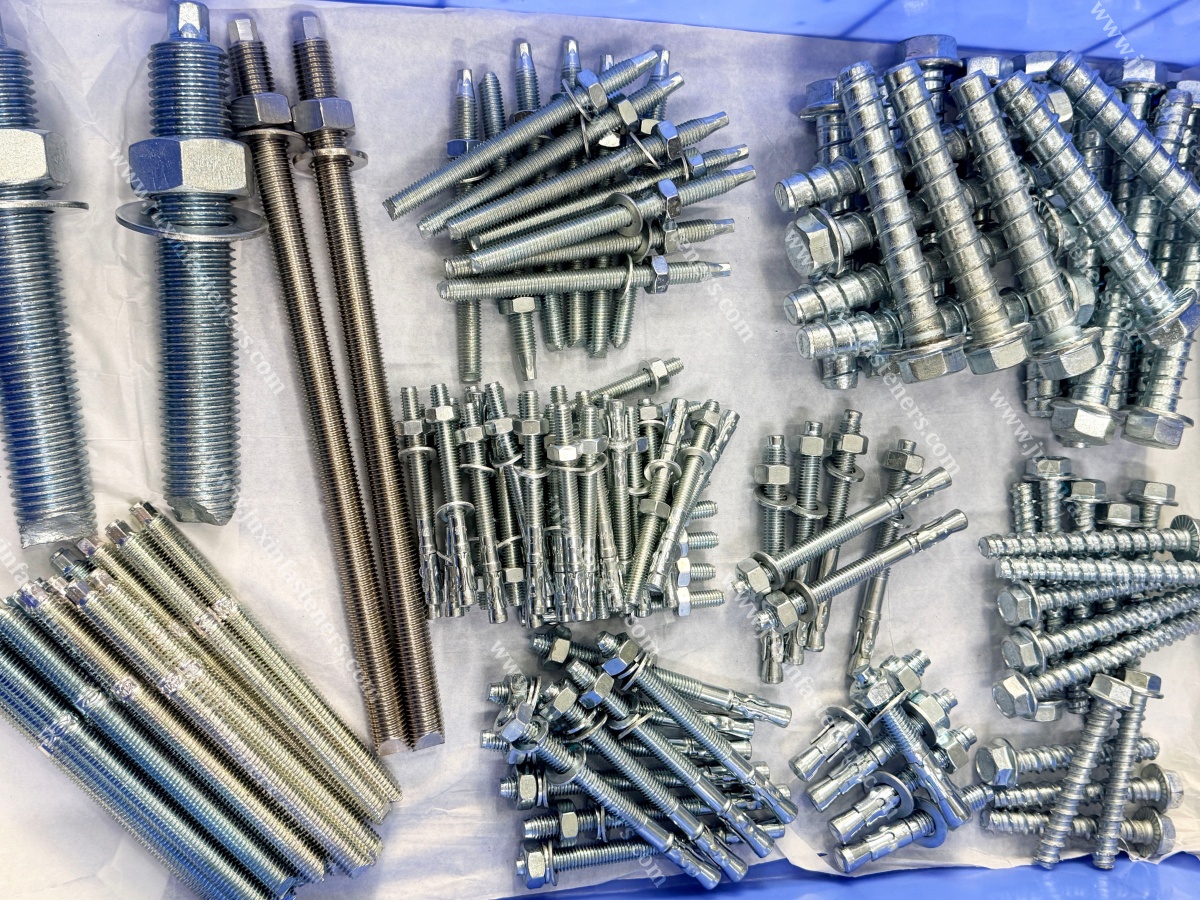

A concrete wedge anchor is a mechanical expansion anchor designed to develop engagement within a properly drilled hole in a suitable concrete substrate.

A typical stud-type wedge anchor assembly includes:

• Threaded steel anchor body

• Tapered expansion section

• Expansion clip or sleeve

• Hexagonal nut

• Washer

The anchor is inserted into the concrete and tightened according to the product's installation instructions.

As the nut is tightened, the tapered section interacts with the expansion element, developing radial contact and mechanical engagement with the concrete.

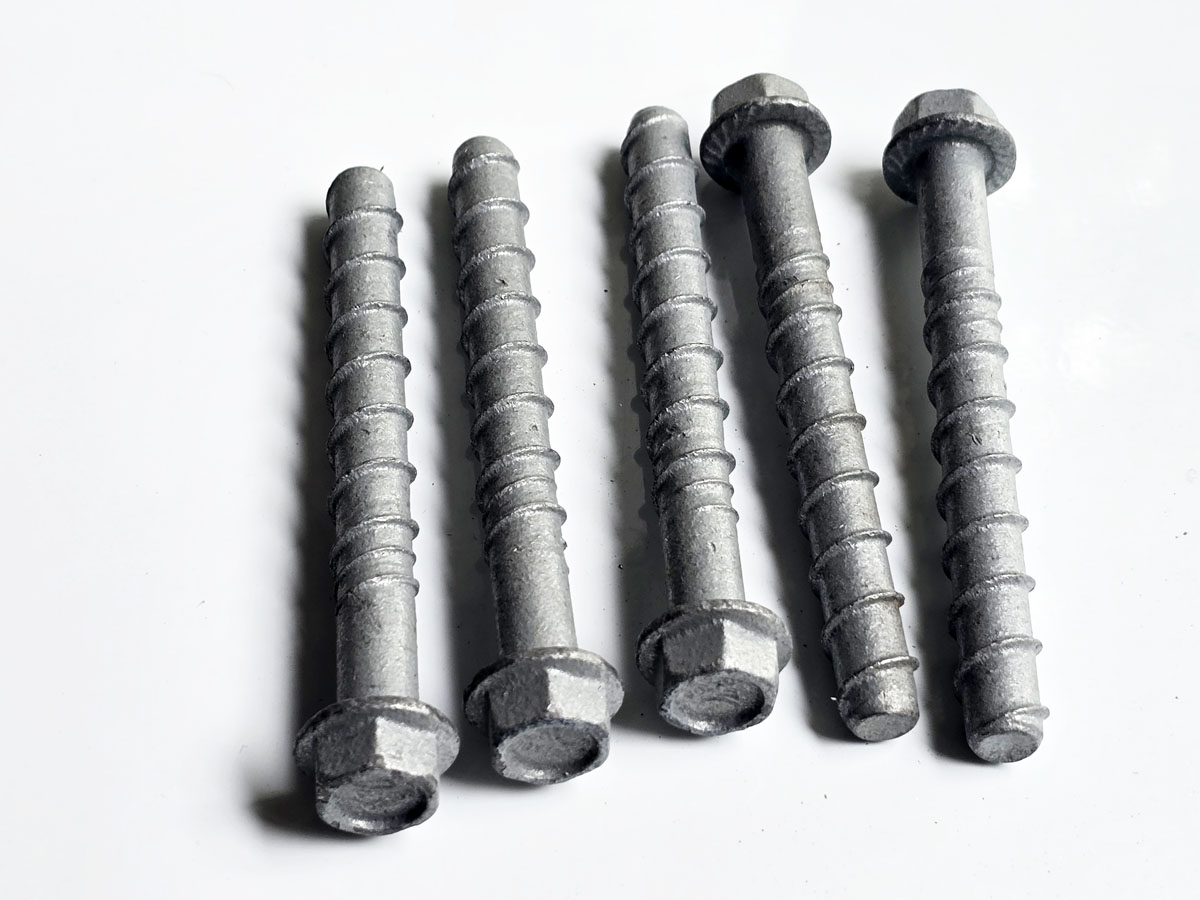

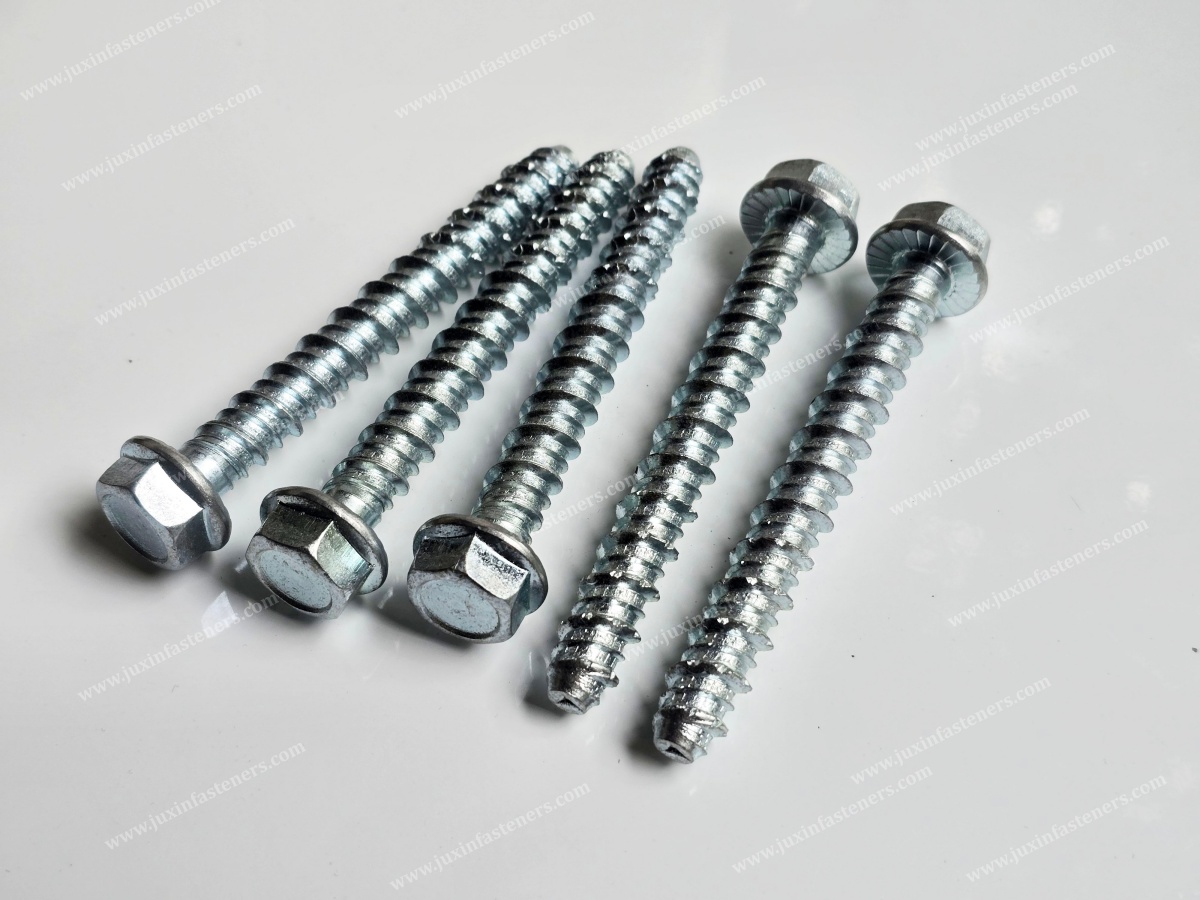

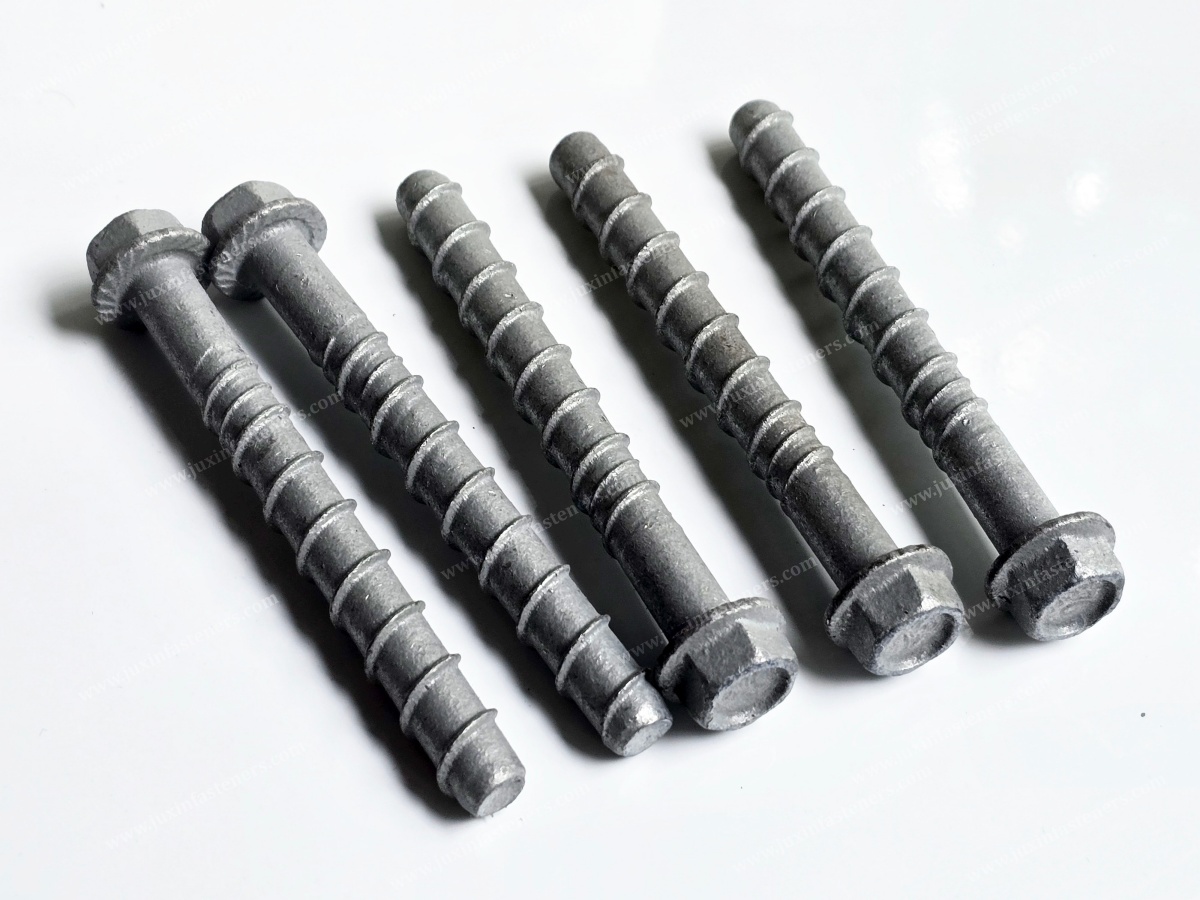

This anchoring mechanism differs from that of a concrete screw, which uses specially designed threads to engage the substrate.

Common Market Terminology

Depending on the region and product configuration, wedge anchors may be described as:

• Concrete wedge anchors

• Wedge anchor bolts

• Heavy-duty expansion anchors

• Mechanical expansion anchors

• Torque-controlled expansion anchors

• Stud-type concrete anchors

• Through-bolt anchors

The product description should always be supported by an exact technical designation.

The term heavy-duty alone does not establish an approved load capacity, cracked-concrete suitability or structural qualification.

How Wedge Anchors Transfer Loads into Concrete

A wedge anchor transfers load from the attached fixture through the anchor assembly into the surrounding concrete.

The complete load path is:

Equipment or structural fixture → base plate or bracket → anchor assembly → concrete substrate.

The resistance of the connection may be governed by different mechanisms.

Steel Resistance

The anchor steel must resist the applied tensile and shear forces.

Mechanical Engagement

The expansion mechanism must develop the required engagement within the concrete.

Concrete Resistance

The concrete must resist relevant failure modes, including breakout, splitting and edge-related failure.

Fixture Resistance

The base plate, bracket, washer bearing surfaces and connected equipment must also remain adequate.

Engineering Principle

Increasing anchor steel strength does not automatically increase the resistance of the complete connection.

Where concrete breakout or fixture deformation controls, a stronger steel stud may provide little improvement.

Why Wedge Anchor Installation Quality Matters

A wedge anchor may be correctly specified but incorrectly installed.

Common installation problems include:

• Incorrect drill diameter

• Insufficient hole depth

• Inadequate embedment

• Wrong concrete substrate

• Incorrect anchor location

• Excessive edge proximity

• Improper tightening

• Damaged threads

• Incompatible nut or washer

• Unapproved anchor substitution

These problems can reduce reliability and create expensive rework.

For production managers and installation supervisors, the objective is not merely to complete the installation quickly.

The objective is to achieve repeatable installation quality across multiple assemblies, sites and production batches.

Wedge Anchor Installation: A Controlled Workflow

The exact procedure must follow the selected manufacturer's published instructions and applicable project requirements.

A typical installation sequence includes the following stages.

Verify the Substrate

Confirm that the concrete is within the product's intended application range.

Check:

• Concrete type

• Specified compressive strength

• Cracked or uncracked condition

• Member thickness

• Existing damage

• Reinforcement constraints

• Project-specific restrictions

Do not assume that a wedge anchor qualified for concrete is also suitable for hollow block, brick or deteriorated masonry.

Confirm the Anchor Layout

Check the approved anchor positions against the fixture drawing.

Verify:

• Edge distance

• Anchor spacing

• Fixture-hole locations

• Concrete member geometry

• Installation access

Drill the Hole

Use the specified drilling equipment and hole dimensions.

An oversized hole can prevent the expansion mechanism from developing the intended engagement.

An undersized hole can interfere with insertion or damage the anchor.

Prepare the Hole

Remove drilling debris according to the actual product instructions.

Cleaning requirements may vary with anchor design, drilling method and installation orientation.

Insert the Anchor

Install the anchor to the required position and embedment.

Protect the threaded section and expansion components from damage.

Position the Fixture

Confirm that the base plate or bracket is properly seated and that the required nut and washer arrangement is present.

Apply the Specified Installation Torque

For torque-controlled expansion anchors, tightening activates the setting mechanism.

Use the exact product's required torque and installation procedure.

Inspect the Connection

Verify the completed installation according to the applicable project criteria.

Important Installation Limitation

Not every wedge anchor can be set using the same power tool or tightening method.

Some approved anchor systems impose specific restrictions on impact tools.

The manufacturer's installation instructions take precedence over general installation advice.

Installation Torque: Why Generic Torque Charts Are Not Enough

Installation torque is particularly important for torque-controlled expansion anchors.

Unlike ordinary bolt tightening, the torque applied to a wedge anchor may influence the setting of its expansion mechanism.

Insufficient Torque

May prevent the intended setting condition from being achieved.

Excessive Torque

May damage the anchor assembly or surrounding concrete.

Incorrect Tooling

May create inconsistent or uncontrolled tightening.

Incorrect Coating or Lubrication

May alter friction and the relationship between tightening torque and anchor setting.

Engineering Requirement

Installation torque must come from the exact anchor product's approved instructions.

It should not be inferred solely from:

• Thread diameter

• Bolt strength class

• General machinery bolt tables

• Another supplier's similar-looking anchor

Why This Matters for OEM Procurement

Two wedge anchors may share the same nominal diameter and length but have different:

• Expansion geometry

• Materials

• Coatings

• Setting behavior

• Installation torque

• Product qualification

They should not automatically be treated as interchangeable.

Anchor Diameter, Length and Effective Embedment

The following dimensions must be distinguished in technical drawings and purchase specifications.

Effective Embedment vs. Overall Length

An anchor's overall length is not its effective embedment depth.

Effective embedment depends on the actual anchor design and installation condition.

For product selection, use the manufacturer's dimensional drawings and approved technical data.

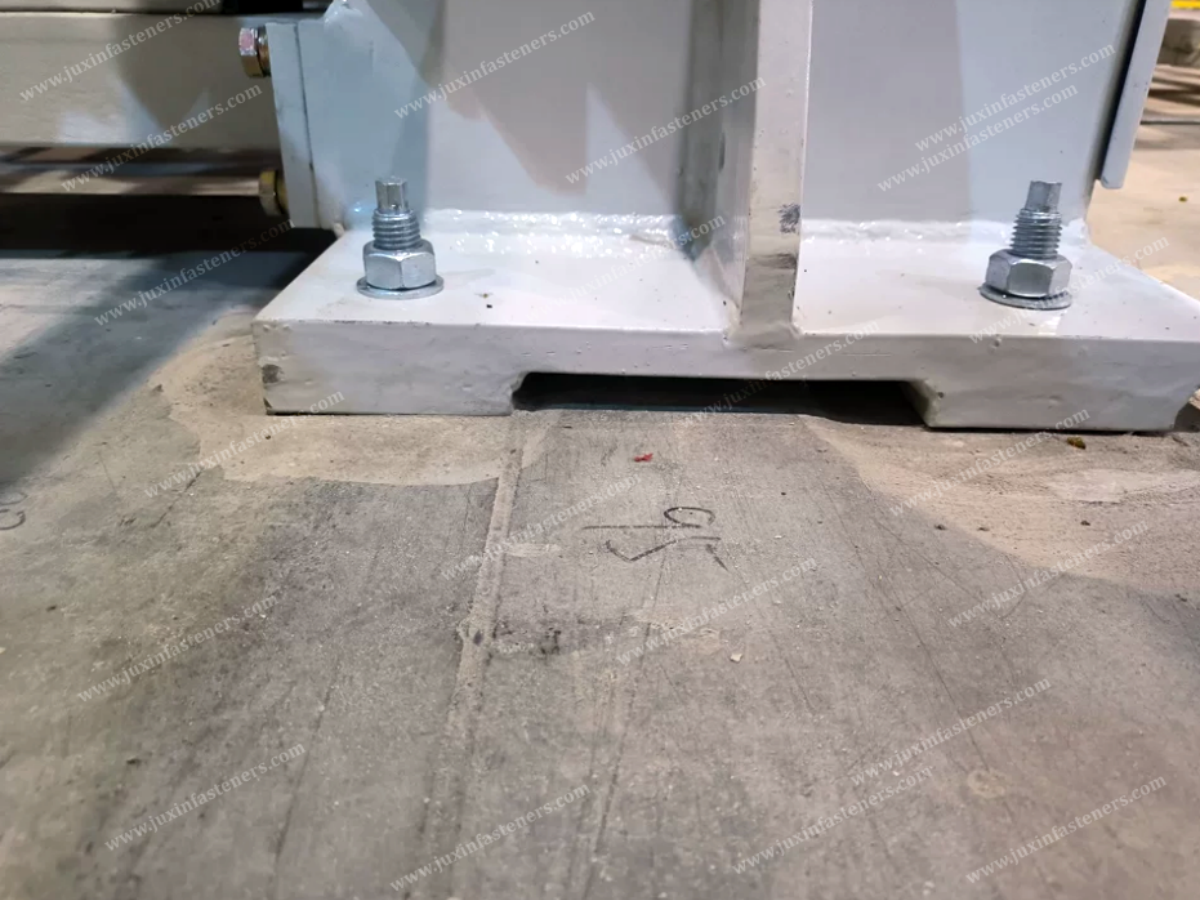

Fixture Thickness and Anchor Projection

Equipment manufacturers should specify:

• Base plate thickness

• Washer and nut arrangement

• Required installation depth

• Permitted fixture tolerance

• Required thread projection

• Any grout or stand-off condition

Engineering Information Gain: Why a Drawing With Only “M12 Anchor” Is Incomplete

An M12 thread designation identifies a metric thread size.

It does not specify:

• Exact wedge anchor design

• Overall length

• Drill-hole diameter

• Effective embedment

• Concrete qualification

• Installation torque

• Material

• Coating

• Design resistance

A complete procurement specification must contain enough information to identify the actual anchoring system.

Metric and Inch-Series Wedge Anchors

Metric products use metric dimensions and thread designations.

North American products may use inch-based dimensions and UNC threads.

Metric and inch-series anchors are not directly interchangeable.

The same applies to UNC, UNF, BSW and BSF thread systems.

A dimensionally similar replacement may still have different installation and qualification requirements.

Cracked and Uncracked Concrete: Product Approval Comes First

Concrete members may experience cracking during their service life.

Cracking can influence the performance of post-installed mechanical anchors.

Uncracked Concrete Applications

Some wedge anchors are qualified only for uncracked concrete.

Cracked Concrete Applications

Other wedge anchors are specifically qualified for cracked concrete under defined conditions.

Seismic Applications

Seismic loading may require additional product qualification and structural design provisions.

Product-Specific Approval

The approved application may vary according to:

• Anchor model

• Diameter

• Embedment

• Concrete type

• Concrete strength

• Loading

• Installation orientation

Do not assume that every size within a product family has the same approval scope.

Concrete Anchor Failure Modes

The engineering design should evaluate relevant failure mechanisms.

Steel Failure in Tension

The steel anchor may yield or fracture under excessive tensile loading.

Steel Failure in Shear

The anchor may fail under transverse loading.

Concrete Cone Breakout

A region of concrete may fracture around the anchor under tension.

Pullout Failure

The anchor may lose mechanical engagement with the concrete.

Concrete Splitting

The concrete may crack or split because of installation effects, geometry or loading.

Concrete Edge Breakout

Concrete near an edge may fail under shear.

Concrete Pryout

Certain shear-loading conditions may produce pryout failure.

Anchor Group Interaction

Closely spaced anchors may have interacting concrete failure regions.

Base Plate or Fixture Failure

The attached steel component may deform or fail before the anchor reaches its nominal resistance.

Why Edge Distance and Spacing Matter

Expansion anchors can introduce radial effects into the concrete.

Where anchors are close to concrete edges or one another, the available concrete resistance may be reduced.

The design should distinguish between:

• Minimum permitted installation dimensions

• Dimensions required to achieve a specified design resistance

These values are not necessarily identical.

Why Anchor Group Geometry Matters

An equipment base with four anchors should not automatically be treated as four independent anchors carrying equal loads.

Base plate stiffness, load eccentricity and overturning moments may create unequal anchor forces.

Stand-Off Installations

Where equipment or a bracket is positioned above the concrete surface, the exposed anchor may experience bending.

This condition should be evaluated separately from a base plate bearing directly on concrete.

Material and Surface Treatment Selection

Concrete wedge anchors are available in different material and coating systems.

The correct choice depends on the product design, environmental exposure and applicable approval.

Zinc-Plated Carbon Steel

Zinc-plated carbon steel may be an economical choice for appropriate indoor or less aggressive environments.

The actual corrosion performance depends on the coating specification and exposure.

Hot-Dip Galvanized Steel

Hot-dip galvanized systems may provide improved corrosion protection for certain outdoor applications.

However, coating thickness and the compatibility of the complete anchor assembly must be considered.

Mechanically Galvanized Steel

Certain commercial wedge anchor systems use mechanically galvanized finishes.

These should be specified by the actual product designation and coating requirements.

304 Stainless Steel

304 stainless steel may provide improved atmospheric corrosion resistance in suitable environments.

316 Stainless Steel

316 stainless steel may offer improved resistance to some chloride-containing conditions compared with 304 stainless steel.

It is not immune to pitting, crevice corrosion or every marine environment.

About 303 Stainless Steel

Some commercial anchor ranges may use stainless steel grades other than 304 or 316.

A particular stainless grade should not be substituted solely because it is described as stainless steel.

Material suitability depends on mechanical properties, corrosion requirements and product qualification.

Corrosion Selection Matrix

These are preliminary material considerations, not blanket recommendations or approvals.

Coating Changes Can Affect Installation

Surface treatments may influence:

• Thread fit

• Friction

• Setting torque

• Expansion behavior

• Corrosion performance

• Component compatibility

For a qualified concrete anchor, material or coating changes require technical review.

Hydrogen Embrittlement

Certain high-strength steel fasteners may be susceptible to hydrogen embrittlement.

Material strength, coating process and service conditions should be considered where relevant.

Galvanic Corrosion

Contact between dissimilar metals in the presence of an electrolyte can create corrosion risks.

Evaluate the anchor, washer, nut and attached fixture as a system.

Industrial Applications for Wedge Anchors

Industrial Machinery and Equipment Bases

Wedge anchors may be used for selected:

• Machinery bases

• Equipment frames

• Production equipment supports

• Industrial guarding

• Maintenance fixtures

Key considerations include:

• Equipment weight

• Operating forces

• Overturning

• Vibration

• Base plate geometry

• Concrete foundation condition

For highly dynamic machinery, fatigue-sensitive or specialized foundation applications, the responsible engineer must confirm that the selected anchor is qualified and suitable.

Warehouse Racking and Material Handling

Potential applications include:

• Storage rack bases

• Shelving supports

• Material handling equipment

• Warehouse safety barriers

• Equipment guards

These systems may be subject to impact and other loading requirements.

The anchor design must follow the applicable rack or equipment specification.

Electrical and Power Distribution Equipment

Concrete anchoring may be required for:

• Electrical cabinets

• Power distribution enclosures

• Industrial control equipment

• UPS equipment

• Auxiliary electrical support frames

Selection should account for equipment stability, fixture geometry, installation access and applicable electrical or building requirements.

HVAC and Mechanical Systems

Applications may include:

• HVAC equipment bases

• Pipe support structures

• Mechanical brackets

• Service equipment frames

• Building-services supports

Overhead and safety-related attachments require appropriate product qualification and engineering design.

Structural Steel Brackets and Frames

Wedge anchors may be considered for selected steel-to-concrete connections.

The engineer must evaluate:

• Tension

• Shear

• Combined loading

• Concrete resistance

• Fixture strength

• Product approval

Safety Railings and Guardrails

Handrails, barriers and guardrails can be safety-critical.

They require suitable anchoring design and approved products.

Rail and Transportation Infrastructure

Potential applications include:

• Station equipment

• Auxiliary steel supports

• Cable management

• Equipment enclosures

• Maintenance installations

Vibration, corrosion and project-specific qualification may be important.

Renewable Energy Facilities

Selected renewable-energy installations may use concrete anchoring for:

• Equipment bases

• Electrical support structures

• Auxiliary mounting assemblies

• Facility equipment

Environmental exposure and project loading requirements must be considered.

AI Data Centers and Industrial Cooling

Selected data center facilities may require concrete anchors for:

• Cooling equipment

• UPS installations

• Mechanical plant equipment

• Electrical support frames

• Auxiliary infrastructure

Not every server rack or enclosure requires concrete anchoring.

The actual equipment and facility design determines the requirement.

Application Selection Matrix

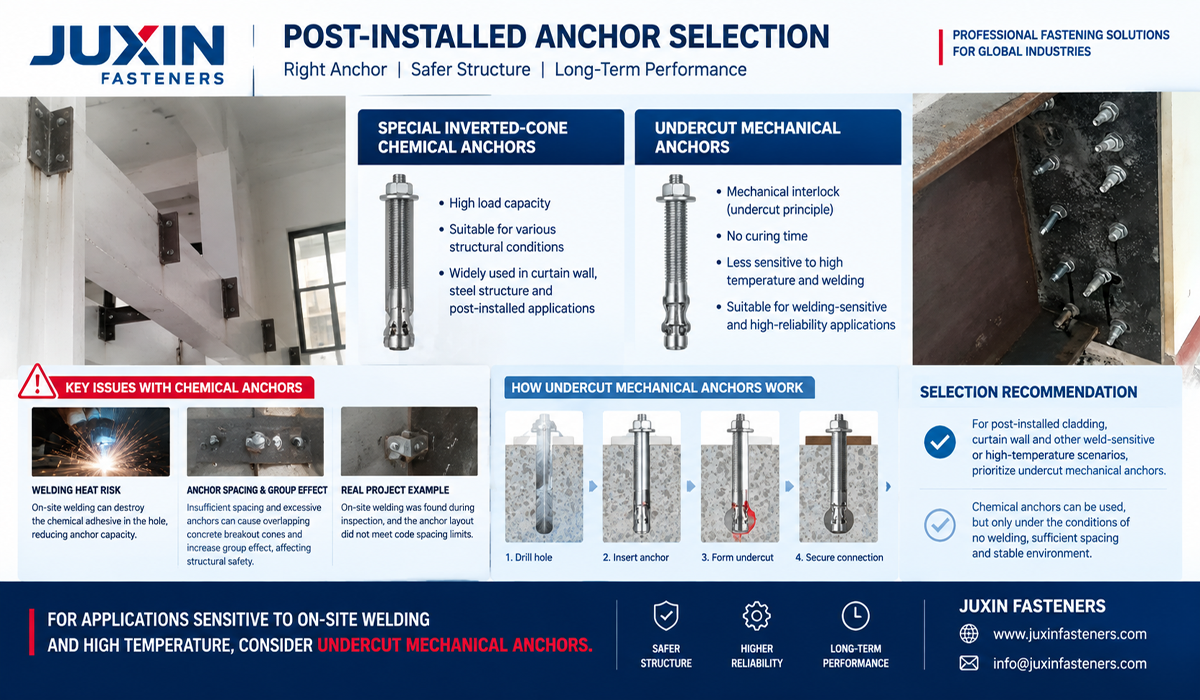

Wedge Anchors vs. Concrete Screws: A Practical Distinction

Wedge anchors and concrete screws are both post-installed mechanical anchoring systems, but they develop engagement differently.

Wedge Anchors

Use a mechanical expansion mechanism within the drilled hole.

Concrete Screws

Use specially designed threads that engage with the concrete.

The selection depends on:

• Approved base material

• Loading

• Embedment

• Edge distance

• Spacing

• Installation method

• Fixture geometry

• Removability requirements

• Product qualification

Are Concrete Screws Easier to Remove?

Some concrete screws can be removed.

However, removability does not establish approval for reuse.

Are Wedge Anchors Always Stronger?

No.

Design resistance must be compared using product-specific data under comparable conditions.

Can a Concrete Screw Replace a Wedge Anchor?

Only after engineering review of the replacement product, design and installation requirements.

Installation Repeatability: A Production Engineering Perspective

For OEM equipment programs and repeated installation projects, process consistency matters.

Standardize the Product Designation

Avoid purchase orders that describe only a generic diameter.

Control Drilling Tools

Use the specified drilling method and suitable equipment.

Control Hole Locations

Verify fixture patterns and concrete edge distances.

Protect Anchor Components

Prevent damage to threads and expansion elements during handling.

Control Setting Tools

Use the approved tightening method.

Maintain Installation Instructions

Provide the correct instructions with the applicable product or installation package.

Define Inspection Criteria

Use project-specific acceptance requirements.

Prevent Product Mixing

Separate different sizes, materials and approval configurations.

Record Critical Installations

Where required, document installation and inspection results.

Information Gain: The Cost of an Installation Error

A low-cost anchor may become expensive if the hole is drilled incorrectly or the wrong product is installed.

Rework may require:

• Engineering reassessment

• Relocation of the anchor

• Repair of the concrete

• Replacement of the fixture

• Additional inspection

• Installation downtime

For production managers, reducing installation errors may create greater value than a small reduction in fastener unit price.

Wedge Anchor Installation Troubleshooting

International Engineering Standards and Technical Evaluation

EN 1992-4

EN 1992-4 provides European design provisions for fastenings used in concrete.

The design considers relevant load effects and failure mechanisms.

European Technical Assessment (ETA)

An ETA may document the assessed performance and intended use of a specific anchor.

Engineers should verify:

• Exact product

• Covered sizes

• Base material

• Installation requirements

• Characteristic resistance

• Environmental conditions

• Restrictions

EAD 330232-02-0601

This European Assessment Document addresses mechanical fasteners for use in concrete.

The applicable assessment document and ETA must match the specific product.

ACI 318 Chapter 17

ACI 318 Chapter 17 addresses anchoring to concrete in applicable North American structural designs.

The governing edition depends on the adopted code and project requirements.

ACI CODE-355.2-24

ACI CODE-355.2-24 provides qualification requirements for post-installed mechanical anchors intended for applicable structural concrete applications.

ICC-ES Evaluation Reports

ICC-ES reports may document product-specific evaluation for stated code conditions.

An evaluation report is not a general certification covering every similar-looking wedge anchor.

Material Standards vs. Anchor Qualification

Material standards and thread standards are important, but they do not establish structural anchoring capacity.

A wedge anchor may conform to specified material and dimensional requirements without having an ETA or ICC-ES evaluation.

Critical Procurement Rule

Do not transfer an approval number, design resistance or installation torque from one manufacturer's anchor to another product.

Supplier Qualification for Wedge Anchor Procurement

Supplier development teams should review the complete product and documentation package.

Exact Product Identification

Confirm the manufacturer, model, size and configuration.

Application Suitability

Confirm the intended concrete and loading conditions.

Technical Documentation

Verify required drawings, installation instructions and evaluation reports.

Material and Coating

Check conformity with the purchase specification.

Assembly Consistency

Confirm the correct nut, washer and expansion components.

Dimensional Inspection

Establish the required dimensional checks.

Lot Identification

Agree on traceability requirements where necessary.

Change Control

Require review of changes to:

• Material

• Coating

• Expansion geometry

• Anchor dimensions

• Nut and washer specification

• Manufacturing process where it affects performance

Commercial Requirements

Confirm:

• MOQ

• Sample availability

• Order quantity

• Annual demand forecast

• Lead time

• Packaging

• Delivery destination

• Repeat-order requirements

Why Expansion Component Geometry Matters

The expansion clip or sleeve is a functional part of the anchoring system.

Its geometry and interaction with the tapered section influence setting behavior.

For bulk supply, dimensional consistency of the complete anchor assembly is important.

However, dimensional conformity alone does not replace concrete anchor performance qualification.

OEM and Bulk Wedge Anchor Supply

Juxin Fasteners supports industrial customers seeking standard wedge anchors and related fastening components.

Potential requirements include:

• Concrete wedge anchors

• Mechanical expansion anchors

• Industrial threaded fasteners

• Special mounting bolts

• Custom washers

• CNC machined mounting components

• OEM packaging

• Distributor supply

• Project-based procurement

• Repeat industrial orders

Specific availability, production feasibility and documentation must be confirmed for the requested product.

Custom Fastening Components

Where standard hardware does not meet the equipment design, Juxin Fasteners can review drawing-based inquiries for customized fastening components.

Potential requirements may include:

• Special dimensions

• Thread specifications

• Material selection

• Surface treatment

• Tolerances

• Inspection

• Packaging

Important Qualification Boundary

A custom threaded stud or modified expansion component is not automatically a qualified concrete anchor.

Where structural anchoring performance is required, the relevant engineering evaluation and product qualification must be established.

Production and Manufacturing Considerations

Depending on the product, manufacturing may involve:

• Forming

• Machining

• Thread processing

• Heat treatment

• Surface finishing

• Inspection

• Assembly

• Packaging

The actual manufacturing route depends on the specification.

Quality Inspection

Depending on customer requirements, quality controls may address:

• Dimensions

• Threads

• Material

• Expansion components

• Surface finish

• Nut and washer compatibility

• Packaging

• Identification

Product-level anchor qualification remains separate from routine manufacturing inspection.

Procurement Cost: Unit Price vs. Total Installed Cost

Industrial buyers should consider:

• Fastener unit price

• Drilling and setting time

• Installation tooling

• Inspection requirements

• Packaging efficiency

• Rework risk

• Replacement procedures

• Supply consistency

A lower purchase price does not always produce a lower total installed cost.

Supplier Comparison Matrix

Frequently Asked Questions

What are wedge anchors used for?

Wedge anchors are mechanical expansion fasteners used to attach suitable equipment and fixtures to concrete.

How do wedge anchors work?

They use a tapered section and expansion component to develop mechanical engagement within a drilled concrete hole.

What drill size should be used for a wedge anchor?

Use the drilled-hole diameter specified for the exact anchor product.

How much torque is required for a wedge anchor?

Use the product-specific installation torque and approved setting procedure.

Can wedge anchors be installed in cracked concrete?

Only when the exact anchor and applicable configuration are qualified for the specified cracked-concrete condition.

Can wedge anchors be used in hollow blocks?

Not automatically. The approved base material must be verified.

Can wedge anchors be used outdoors?

Yes, where the product is suitable for the required environment and the material or coating provides appropriate durability.

Are wedge anchors removable?

The nut and fixture may be removable, but the embedded anchor is generally not treated as a reusable fastening component.

Can wedge anchors be reused?

Reuse must not be assumed. Follow the exact product's technical instructions.

Are wedge anchors stronger than concrete screws?

Neither category is universally stronger. Compare approved design resistance under equivalent conditions.

What is the difference between overall length and embedment?

Overall length is the product dimension. Effective embedment is a parameter associated with anchoring resistance in the concrete.

Can an M12 wedge anchor replace a 1/2-inch wedge anchor?

Not automatically. Thread dimensions, drilled-hole requirements, product geometry and qualification may differ.

Do all wedge anchors have ETA or ICC-ES approval?

No. Approval is product-specific and must be verified.

Can Juxin Fasteners supply custom wedge anchors?

Juxin Fasteners can review custom fastening inquiries based on drawings and specifications.

 Structural anchor qualification and manufacturing feasibility require separate confirmation.

OEM Wedge Anchor RFQ Checklist

To help engineering and purchasing teams obtain a technically accurate quotation, provide the following information.

Product Identification

• Anchor type

• Product reference or drawing

• Nominal diameter

• Overall length

• Thread designation

• Material

• Surface treatment

• Nut and washer requirements

Fixture and Installation

• Base plate drawing

• Fixture thickness

• Hole pattern

• Drilled-hole diameter

• Required embedment

• Installation orientation

• Tooling restrictions

• Inspection requirements

Concrete Substrate

• Concrete type

• Specified concrete strength

• Cracked or uncracked condition

• Member thickness

• Edge distance

• Anchor spacing

Loads and Design

• Tensile load

• Shear load

• Combined loading

• Dynamic loading

• Seismic requirements where applicable

• Applicable design standard

Quality and Documentation

• Required ETA or ICC-ES report

• Material documentation

• Dimensional inspection

• Coating requirements

• Lot identification

• Customer-specific testing

Commercial Requirements

• Sample quantity

• Initial order quantity

• Annual forecast

• MOQ expectations

• Lead time

• Packaging

• Delivery location

Request a Wedge Anchor or OEM Fastener Quotation

Juxin Fasteners works with industrial OEMs, equipment manufacturers, engineering companies, distributors,

 procurement teams and supply chain specialists seeking industrial fastening components.

For standard wedge anchors, concrete expansion anchors, customized mounting bolts or other drawing-based fastening requirements,

please provide the exact specification and intended application.

For structural or safety-related concrete anchoring, include the required product qualification and engineering design documentation.

Our team can review the product requirements, requested quantity, material, surface treatment, packaging and commercial conditions.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Reliable Anchoring Starts With the Correct Product, Controlled Installation and Consistent Supply.
