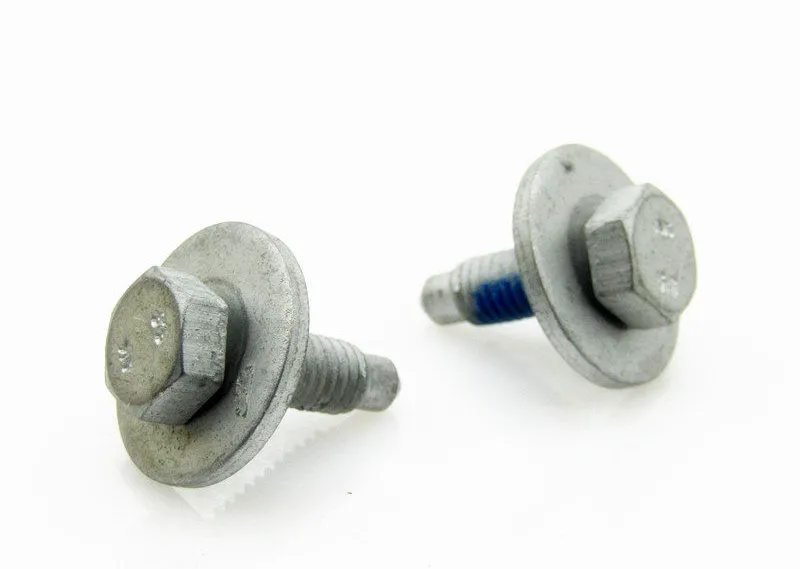

In automotive lighting systems, the M6 screw used in headlight adjustment mechanisms plays a critical role in ensuring precise beam alignment. This small but essential fastener is responsible for vertical and horizontal headlight positioning, directly affecting night-time driving safety, visibility, and regulatory compliance.

As part of modern vehicle headlamp assemblies, automotive M6 adjustment screws must withstand vibration, temperature variation, and long-term mechanical load. However, in real-world applications, issues such as loosening, thread damage, or component failure are common. This guide provides an engineering-focused solution for M6 automotive headlight screws, covering failure analysis, repair methods, and replacement strategies aligned with professional automotive service standards.

1. Function of M6 Headlight Adjustment Screws in Automotive Lighting Systems

The M6 headlight adjustment screw is typically integrated into the headlamp leveling mechanism, where it controls:

• Vertical beam height adjustment

• Horizontal beam alignment (in some designs)

• Headlight calibration stability after installation or      replacement

In OEM lighting assemblies, these screws are often part of a precision adjustment system involving plastic housings, gear linkages, or metal mounting brackets. Proper performance of the M6 automotive adjustment fastener ensures consistent illumination and safe visibility while driving.

2. Common Failure Issues of Automotive M6 Headlight Screws

In long-term vehicle operation, M6 adjustment screws in car headlights may experience the following issues:

2.1 Loose or Stripped Threads

This is one of the most common problems in headlight adjustment screw systems, often caused by vibration and repeated adjustment cycles.

Typical causes:

• Insufficient thread friction

• Plastic housing wear

• Over-tightening during repair

Engineering solutions:

• Install a rubber washer to increase friction

• Use thread reinforcement methods such as double-sided adhesive      for temporary stabilization

• For severe thread damage, apply a wire thread insert      (Helicoil repair system) to restore internal thread integrity

2.2 Broken or Missing M6 Screws

Physical damage or loss of the screw can result in the complete loss of the headlight adjustment function.

Recommended solutions:

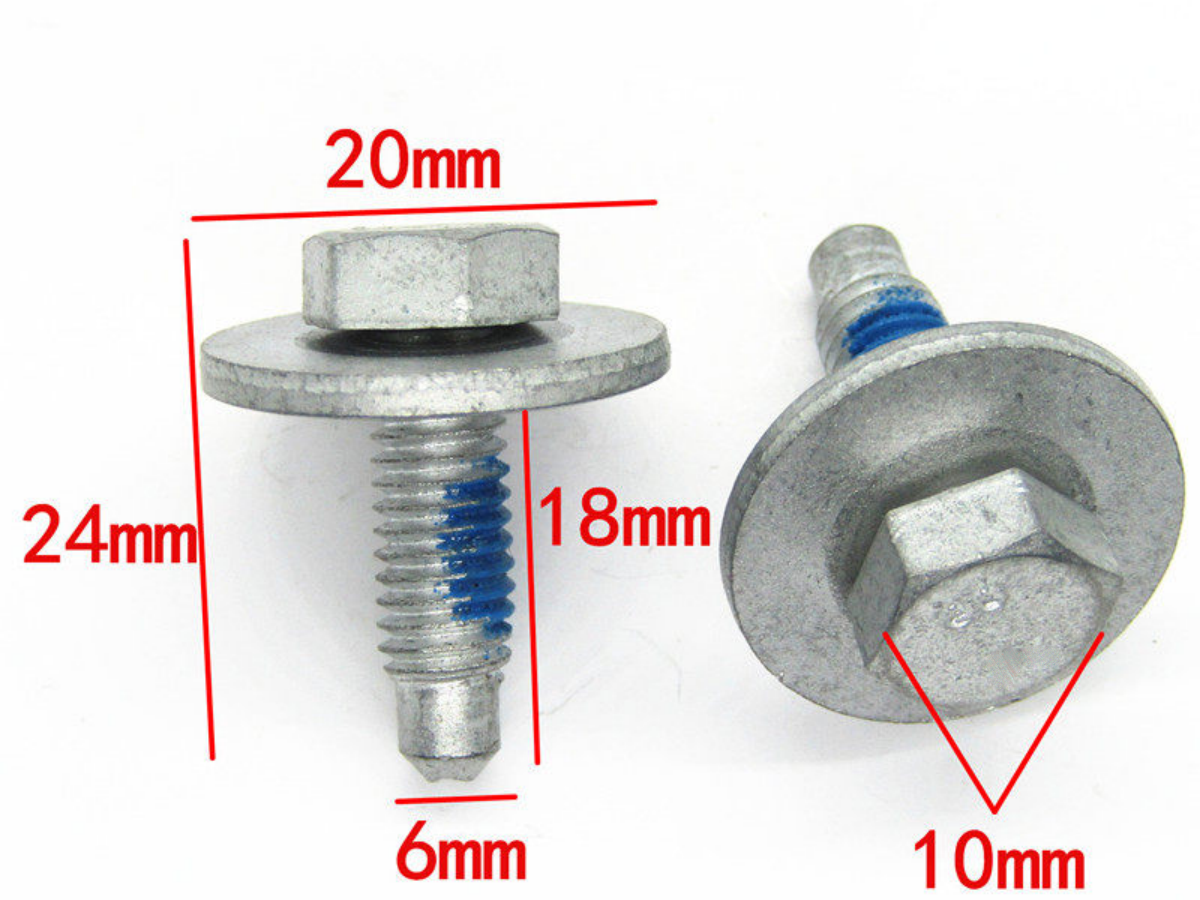

• Replace with an identical M6X18mm automotive headlight screw      (ensure correct length, thread pitch, and material grade)

• If the mounting base (plastic or metal insert) is damaged, the      entire headlamp assembly may need replacement

For repair efficiency, always verify OEM specifications before selecting a replacement M6 screw for car headlights.

2.3 Headlight Adjustment Failure (Screw Intact)

In some cases, the screw remains functional, but the adjustment system fails.

Possible causes:

• Internal gear wear

• Broken linkage inside headlamp housing

• Mechanical obstruction in the adjustment track

Recommended action:

• Disassemble the headlight assembly for inspection

• Replace internal adjustment mechanism components if required

• Consult a professional automotive repair service for      recalibration

3. Recommended Repair and Replacement Procedure

To ensure proper function of automotive headlight M6 adjustment fasteners, follow a structured diagnostic approach:

Step 1: Confirm M6 Screw Specification

Before replacement, verify the exact parameters using:

• Vehicle service manual

• OEM dealership reference

• Manufacturer technical support

Typical variants include:

• M6×10 headlight adjustment screw

• M6×12 automotive lighting fastener

• OEM-specific thread pitch configurations

Step 2: Evaluate Damage Level

• Screw-only failure → Replace M6 screw

• Thread or housing damage → Repair or replace headlamp assembly

Correct assessment prevents unnecessary replacement of the entire lighting system.

Step 3: DIY Replacement (Simple Cases Only)

For basic maintenance scenarios:

1. Remove headlamp assembly (may require bumper disassembly      depending on vehicle model)

2. Open the adjustment housing cover

3. Remove damaged M6 headlight screw

4. Install the replacement screw carefully

5. Tighten to moderate torque (avoid overtightening to prevent      thread stripping)

Step 4: Professional Calibration

After replacement, professional adjustment is required to ensure road safety compliance:

• Headlight beam must be recalibrated

• Use standard wall alignment method (6–7.6 meters distance)

• Ensure compliance with local lighting regulations

4. Engineering Considerations for M6 Automotive Headlight Screws

4.1 Specification Accuracy Is Critical

Although M6 screws are used in some headlight systems, many vehicles use M4 or M5 adjustment screws. Incorrect substitution may cause:

• Misalignment of beam pattern

• Premature thread failure

• Housing damage

Always confirm the correct OEM M6 headlight adjustment screw specification before replacement.

4.2 Torque Control and Installation Precision

Over-tightening is a major cause of failure in automotive headlight adjustment fasteners.

Best practices:

• Use controlled manual tightening tools

• Avoid impact drivers or pneumatic tools

• Apply torque gradually to prevent plastic housing cracking

4.3 Post-Installation Beam Calibration Requirement

After replacing an M6 headlight adjustment screw, recalibration is mandatory to ensure:

• Proper low/high beam distribution

• Compliance with safety regulations

• Driver visibility optimization

Some vehicles also include in-cabin leveling systems (0–3 adjustment dial), which can provide temporary correction but do not replace mechanical calibration.

5. JUXIN FASTENERS Automotive Lighting Fastener Solutions

As a professional manufacturer of automotive fasteners and precision M6 screws, JUXIN FASTENERS provides engineered solutions for lighting and adjustment systems, including:

• M6 headlight adjustment screws

• Automotive precision threaded fasteners

• Anti-loosening automotive screws

• Custom OEM lighting system fasteners

Our products are designed to meet the requirements of:

• Automotive OEM manufacturers

• Headlamp assembly suppliers

• Aftermarket repair systems

With strict quality control and engineering-grade production standards, we support global customers with reliable automotive M6 screw fastening solutions for lighting systems.

Conclusion

The M6 headlight adjustment screw in automotive lighting systems is a small but critical component that directly affects vehicle safety and visibility. Proper specification selection, correct installation practices, and timely maintenance are essential to prevent loosening, thread failure, or adjustment malfunction.

By following engineering repair procedures and using high-quality automotive M6 adjustment fasteners, manufacturers and repair professionals can ensure stable headlight performance and long-term reliability.
