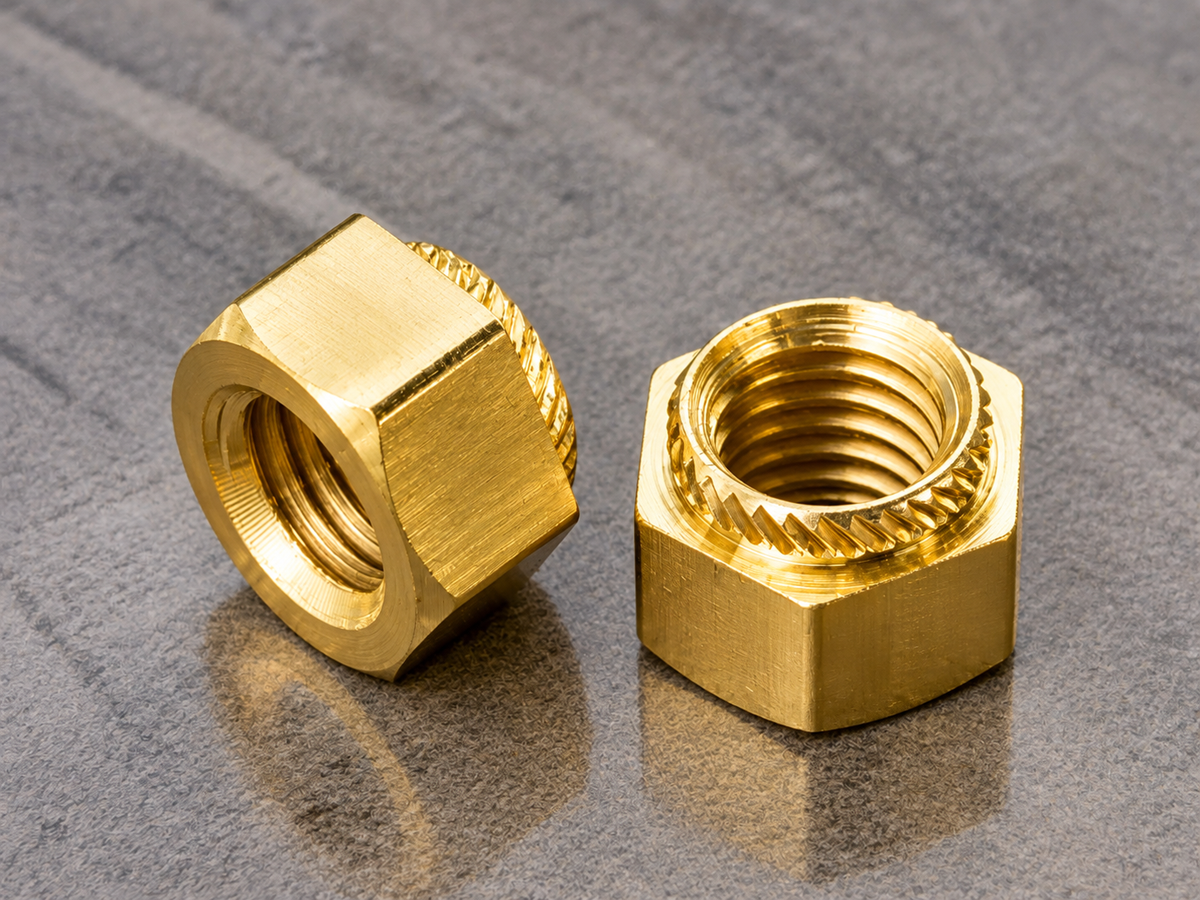

Brass Knurled Self-Clinching Hex Nuts – JX-NZFB Series

JX-NZFB Brass Knurled Self-Clinching Hex Nuts for Precision Sheet-Metal Assemblies

Product Overview

JX-NZFB brass knurled self-clinching hex nuts are internally threaded fastening components designed to create reusable threaded attachment points in compatible sheet-metal panels.

JUXIN FASTENERS supplies the JX-NZFB series for OEM manufacturers, sheet-metal fabricators, electrical equipment producers, electronic enclosure builders, instrumentation manufacturers, and industrial purchasing organizations.

The product incorporates a hexagonal external body with knurled or inclined mechanical retention features.

During controlled press installation, suitable surrounding sheet material deforms into the designated retention features.

This creates mechanical engagement between the nut and the supporting panel.

Once properly installed, the nut provides a retained internal thread for subsequent assembly using a compatible screw or bolt.

The brass construction distinguishes JX-NZFB from the steel JX-NZF series.

Brass may be selected for its material characteristics, machinability, appearance, and suitability for certain electrical or instrumentation applications.

However, the correct alloy must be chosen according to mechanical requirements, panel compatibility, environmental exposure, and the intended assembly function.

JX-NZFB Product Construction and Retention Mechanism

The JX-NZFB nut combines an internal metric thread with a hexagonal external profile.

The supplied product information identifies knurled and inclined retention features.

These features are intended to engage the supporting sheet during installation.

The nut is positioned in a correctly prepared mounting opening.

Controlled compressive force is then applied using appropriate installation tooling.

Where the panel material is compatible, the surrounding sheet flows into the nut's retention geometry.

This engagement helps resist rotation and axial displacement.

The internal thread remains available for fastening a mating screw or bolt.

The actual retention performance depends on nut geometry, panel thickness, sheet material, hole dimensions, and installation conditions.

The supplied information does not establish numerical torque-out or pushout ratings for this series.

Such values must be confirmed through approved technical documentation or application-specific testing.

Product Specifications and Material Options

Product series: JX-NZFB

Product type: Brass knurled self-clinching hex nut

Alternative terminology: Brass press-fit hex nut, brass hex clinch nut, brass captive threaded nut

External profile: Hexagonal

Retention features: Knurled or inclined mechanical engagement features

Thread configuration: Internal metric thread

Installation method: Controlled press-fit installation

Primary function: Permanent threaded attachment in compatible sheet-metal panels

Material family: Brass and brass alloys

Material options identified in the supplied information:

H63 brass

H65 brass

H68 brass

H70 brass

H90 brass

Additional brass alloys: Subject to engineering review

Surface finish: According to the approved specification

Custom dimensions: Subject to approved OEM drawings

Technical reference: Product specification PDF and CAD documentation, pages 85–86

The supplied information does not establish a complete thread-size table, installation-hole dimensions, nut height, retention performance, or universal minimum panel thickness.

These characteristics must be verified from the approved product drawing.

Brass Alloy Selection for JX-NZFB Hex Nuts

The supplied product information identifies several brass and brass alloy options.

Different brass compositions can provide different combinations of strength, ductility, machinability, corrosion behavior, and electrical conductivity.

The material must be selected according to the finished component requirements.

H63 Brass

H63 is a copper-zinc brass designation associated with a nominal copper content of approximately 63%.

Its suitability depends on the specified material condition and required manufacturing process.

H65 Brass

H65 brass contains a nominal copper content of approximately 65%.

It may be considered for applications where the required forming and mechanical characteristics are compatible with the product design.

H68 Brass

H68 brass contains a nominal copper content of approximately 68%.

The actual material condition should be selected according to manufacturing and application requirements.

H70 Brass

H70 brass contains a nominal copper content of approximately 70%.

It may be considered where the required ductility and other material characteristics are suitable.

H90 Brass

H90 brass contains a nominal copper content of approximately 90%.

Its properties differ from lower-copper-content brass alloys.

The correct material condition and suitability for a self-clinching nut must be evaluated.

These designations are supplied material references.

They should not automatically be treated as equivalent to a specific ASTM, EN, or other international material grade.

For international OEM procurement, the required chemical composition, mechanical properties, and material condition should be defined using an approved material specification.

Brass Material Properties and Engineering Considerations

Brass is widely used in industrial fastening components because of its machinability and useful material characteristics.

For threaded fasteners, the selected brass alloy must provide adequate thread strength and dimensional stability.

For self-clinching applications, the nut must also retain its geometry during installation.

The relative hardness and deformation behavior of the nut and supporting panel are important.

A softer nut installed into a harder panel may deform before the panel material flows into the intended retention features.

This can reduce mechanical engagement or damage the nut.

Therefore, the use of brass in a self-clinching design requires careful evaluation of the supporting sheet material.

The nut should not be assumed suitable for every steel, stainless steel, aluminum, or copper panel.

The correct material pairing must be established through engineering review and installation validation.

Metric Internal Threads and International Standards

The JX-NZFB series is intended to provide internal metric threads for compatible mating fasteners.

Relevant international metric thread standards include ISO 68-1, ISO 261, ISO 724, and ISO 965.

ASME B1.13M provides an additional metric screw thread reference used in American industrial applications.

The thread designation should identify the nominal diameter, pitch, and tolerance class.

A 6H internal thread tolerance class is common in metric fastening applications.

However, the actual JX-NZFB thread tolerance must be confirmed from the approved drawing.

The supplied information does not establish that every configuration uses the same tolerance class.

Metric threads are not directly interchangeable with UNC, UNF, or other inch-thread systems.

For international OEM purchasing, buyers should verify the complete thread designation before selecting mating screws.

Sheet-Metal Thickness and Installation Compatibility

The supplied product information references sheet-metal thicknesses greater than approximately 0.6 mm.

Other reference material discusses self-clinching applications in sheet metal around 1.0 mm thick.

These values should not be treated as universal minimum thickness specifications for JX-NZFB.

The actual minimum panel thickness depends on the selected nut size, external retention geometry, and supporting sheet material.

The panel must provide sufficient material for mechanical engagement.

If the sheet is too thin, the nut may not achieve the required retention.

If the panel is too hard, the supporting material may not deform adequately.

The installation opening must also match the selected nut geometry.

For OEM applications, the correct panel thickness range should be confirmed from the approved technical drawing.

Panel Material Compatibility

Brass self-clinching hex nuts require a compatible supporting material.

Aluminum Sheet Metal

Aluminum may be suitable for selected brass press-fit nut configurations where the sheet grade, thickness, and hardness allow the required material flow.

However, compatibility must be verified.

The relative hardness of the brass nut and aluminum panel should be considered.

Copper Sheet Metal

Copper panels may be considered where the material condition and mechanical requirements are compatible with the fastener design.

The engineer should evaluate panel deformation, retention strength, and the intended application.

Mild Steel Sheet Metal

Steel panels may be suitable for certain self-clinching fasteners.

However, a brass nut may not provide adequate retention in every steel grade.

The panel hardness and nut geometry must be evaluated.

Stainless Steel Sheet Metal

Stainless steel can be significantly harder than brass.

Conventional brass self-clinching nuts should not automatically be specified for stainless steel panels.

A suitable alternative fastener design may be required.

Plastic Panels

Conventional self-clinching installation relies on controlled deformation of metal sheet material.

Plastic materials have different creep, deformation, and temperature characteristics.

A dedicated threaded insert or validated fastening design may be more appropriate.

Installation Procedure for JX-NZFB Brass Hex Nuts

Correct installation begins with the approved nut and panel specifications.

The installation hole must be prepared to the required diameter and tolerance.

The panel should be inspected for excessive burrs or deformation.

The nut is positioned in the prepared opening according to its intended orientation.

Suitable punch and anvil tooling should support the fastener and panel during installation.

Controlled compressive force is applied using an appropriate press.

The supporting sheet material should engage the designated retention features.

The nut must be seated according to the approved installation specification.

After installation, the internal thread should remain functional.

The panel should be inspected for cracking, excessive distortion, or other damage.

Because brass can deform differently from steel, installation force must be selected carefully.

The supplied information does not establish a universal installation force for every JX-NZFB configuration.

Production validation should be performed using representative materials and tooling.

Installation Force and Brass Nut Deformation

The installation process must produce sufficient engagement without damaging the brass nut.

Insufficient force may leave the nut incompletely seated.

This can reduce torque-out or pushout resistance.

Excessive force may deform the hexagonal body, damage the internal thread, or distort the surrounding panel.

The required force depends on nut geometry, brass alloy, material condition, panel thickness, and supporting sheet properties.

For repetitive production, installation settings should be validated and controlled.

Where required, representative installed samples should be tested for mechanical retention.

Torque-Out and Pushout Performance

Torque-out and pushout resistance are important characteristics of self-clinching nuts.

Torque-Out Resistance

Torque-out resistance describes the ability of the installed nut to resist rotation in the supporting panel.

It depends on the external geometry, material engagement, and installation quality.

Pushout Resistance

Pushout resistance describes the ability of the installed nut to resist axial displacement from the panel.

It depends on sheet thickness, material properties, retention geometry, and installation conditions.

The supplied information does not provide verified numerical ratings.

For OEM applications, required retention performance should be established through approved testing or technical documentation.

Brass JX-NZFB Compared with Steel JX-NZF

JUXIN FASTENERS supplies the JX-NZFB brass series and the JX-NZF steel series as separate product configurations.

Both belong to the broader family of knurled self-clinching hex nuts.

Both are intended to provide retained internal threads in compatible sheet-metal assemblies.

The primary documented distinction is the material family.

JX-NZFB uses brass or brass alloy materials.

JX-NZF uses steel material options.

These material differences can influence thread strength, installation behavior, corrosion characteristics, and compatibility with the supporting panel.

However, the supplied information does not establish that the two series have identical dimensions or retention performance.

They should not be substituted without engineering verification.

Brass Self-Clinching Nuts Compared with Weld Nuts

Weld nuts are attached to metal components through welding.

Brass self-clinching nuts use mechanical press-fit installation.

The correct choice depends on panel material, thickness, manufacturing process, and required mechanical performance.

Brass nuts may be useful where welding is undesirable and the supporting material is compatible with press installation.

However, a brass clinch nut should not automatically be treated as a replacement for a steel weld nut in high-load applications.

Brass Self-Clinching Nuts Compared with Rivet Nuts

Rivet nuts create threaded connections through deformation of a fastener body.

Many rivet nuts can be installed with access from one side.

Self-clinching hex nuts generally require suitable press access to both sides of the panel.

Rivet nuts may therefore be preferable for closed sections or structures with limited rear access.

Brass self-clinching hex nuts may be appropriate for controlled factory assembly where the panel material and tooling are compatible.

Brass Self-Clinching Nuts Compared with Brass Threaded Inserts

Brass threaded inserts are available for different substrates and installation methods.

Some are designed for plastics, molded components, or heat-assisted installation.

JX-NZFB brass self-clinching hex nuts are intended for compatible sheet-metal applications.

The correct product should be selected according to substrate material and installation method.

A threaded insert designed for plastic should not automatically be substituted for a sheet-metal clinch nut.

Industrial Applications

Electrical Enclosures and Control Cabinets

Electrical equipment manufacturers use threaded fastening points for brackets, covers, internal mounting plates, and modular components.

Brass self-clinching hex nuts may be considered for compatible sheet-metal panels.

Their retained construction can simplify subsequent assembly operations.

However, electrical conductivity or grounding performance must be verified separately.

The presence of a brass nut does not automatically establish an approved electrical bonding connection.

Electronic Equipment and Instrumentation

Electronic equipment housings and instrumentation panels may require reusable threaded attachment points.

JX-NZFB brass nuts can be evaluated for suitable panel materials and mechanical fastening requirements.

The correct selection depends on sheet thickness, material compatibility, thread size, and required retention strength.

Telecommunications Equipment

Telecommunications equipment often incorporates modular sheet-metal enclosures and mounting brackets.

Brass press-fit hex nuts may be considered where the supporting material and assembly design permit.

For serviceable equipment, retained threaded fasteners can reduce loose-part handling.

The application should be evaluated for vibration and environmental exposure.

AI Data Center and Server Infrastructure

AI data centers contain electrical cabinets, network equipment, power conversion systems, and sheet-metal support structures.

Brass self-clinching hex nuts may be considered for selected non-structural threaded attachment points in compatible panels.

The product should not be assumed suitable for primary rack support or other safety-critical mounting applications without engineering validation.

Power Electronics and Electrical Equipment

Power conversion equipment, UPS systems, and electrical distribution enclosures use numerous mechanical fastening points.

Brass press-fit nuts may be appropriate for selected brackets, covers, and service panels.

Where electrical contact performance is required, the complete joint must be evaluated for contact resistance, surface condition, and applicable electrical requirements.

Industrial Automation and Control Systems

Automation equipment frequently includes control housings, instrument panels, and modular metal components.

JX-NZFB brass hex nuts may provide retained threaded connections where the panel material is suitable.

Production managers should verify installation consistency and retention performance.

Medical and Laboratory Equipment

Medical and laboratory equipment may contain precision metal enclosures, instrument housings, and serviceable panels.

Brass self-clinching nuts may be considered for appropriate mechanical attachment functions.

Material compatibility, cleaning exposure, and applicable regulatory requirements must be evaluated separately.

No medical-device certification is implied.

HVAC and Building Control Equipment

HVAC control units and building automation systems use sheet-metal housings and mounting brackets.

Brass self-clinching hex nuts may be considered for compatible mechanical fastening points.

Selection should account for vibration, corrosion exposure, and service access.

Precision Instruments and Measurement Equipment

Precision instruments may require compact, reusable threaded attachment points.

Brass can be useful in selected fastening applications because of its machinability and material characteristics.

However, dimensional stability, thread strength, and panel compatibility must be verified for the actual instrument design.

Production Efficiency and Manufacturing Considerations

For production managers, the total installed cost of a fastening system includes component price, hole preparation, tooling, installation labor, inspection, and rework.

A retained brass hex nut can eliminate the need to handle a loose nut during final assembly.

Where the supporting sheet is compatible, press installation may avoid welding operations.

However, the process requires appropriate tooling and controlled installation force.

The relative hardness of the brass nut and supporting panel is particularly important.

For repeat production, the installation process should be validated using the actual material grades and sheet thicknesses.

Inspection should verify seating, thread condition, panel deformation, and required retention performance.

Common Installation Problems and Prevention

Incorrect Hole Diameter

An oversized hole may reduce mechanical engagement.

An undersized hole may prevent correct seating or damage the fastener.

Insufficient Panel Thickness

A panel that is too thin may not provide enough material for the retention features.

Excessive Panel Hardness

A hard supporting sheet may not deform sufficiently.

The brass nut may deform instead of achieving the intended engagement.

Excessive Installation Force

Overpressing may damage the brass body, internal thread, or supporting panel.

Insufficient Installation Force

Incomplete installation may reduce torque-out and pushout resistance.

Incorrect Material Selection

Different brass alloys have different mechanical properties.

The selected alloy must be suitable for the intended application.

Thread Damage

Incorrect mating screws or excessive assembly torque may damage the internal thread.

The correct thread specification and tightening requirements should be followed.

Unverified Electrical Contact

Brass construction does not automatically establish a reliable electrical connection.

Electrical performance must be evaluated separately where required.

Unverified Corrosion Compatibility

Brass and other metals can interact differently in corrosive environments.

The complete assembly should be evaluated for material compatibility.

OEM Engineering Selection Checklist

Before approving JX-NZFB brass self-clinching hex nuts for production, engineers should confirm:

Required internal metric thread

Thread pitch and tolerance class

Hexagonal body dimensions

Knurled retention geometry

Installation-hole diameter

Panel thickness

Panel material and hardness

Brass alloy designation

Material condition

Installation orientation

Press tooling requirements

Required installation force

Torque-out performance requirements

Pushout performance requirements

Corrosion exposure

Electrical requirements where applicable

Inspection and documentation requirements

Annual production quantity

The approved engineering drawing should establish the final dimensions and installation requirements.

OEM Purchasing and Supplier Qualification

JUXIN FASTENERS supports inquiries from OEM manufacturers, sheet-metal fabricators, purchasing engineers, supplier development teams, procurement managers, and international industrial supply chains.

For accurate quotation, buyers should provide the required JX-NZFB configuration and applicable engineering drawing.

The purchasing specification should include thread size, nut dimensions, panel material, panel thickness, brass alloy, material condition, and expected order quantity.

Where applicable, buyers may specify torque-out and pushout testing requirements, material documentation, surface finish requirements, and inspection procedures.

For repeat purchasing programs, customers may identify annual demand, delivery schedules, lot identification, drawing revision control, and packaging requirements.

Any required RoHS or REACH documentation should be identified during quotation.

Manufacturing feasibility, inspection scope, and commercial conditions should be confirmed before order acceptance.

Custom JX-NZFB Brass Hex Nuts

JUXIN FASTENERS welcomes technical inquiries for standard and customer-specific JX-NZFB brass knurled self-clinching hex nuts.

Potential customization requirements include:

Internal metric thread specification

Hexagonal body dimensions

Nut height

Knurled retention geometry

Installation-hole compatibility

Panel thickness requirements

Brass alloy selection

Material condition

Surface finish

Dimensional tolerances

Torque-out and pushout requirements

Inspection documentation

Customer-specific packaging

Annual production demand

Custom manufacturing feasibility depends on the required geometry, material specification, manufacturing process, tooling, inspection requirements, and production volume.

Customers are encouraged to submit 2D engineering drawings, available 3D CAD models, and purchasing specifications for review.

Frequently Asked Questions

What is a brass self-clinching hex nut?

It is an internally threaded brass fastener with a hexagonal body and retention features designed for press installation into compatible sheet-metal panels.

What does JX-NZFB refer to?

JX-NZFB is the product series designation used by JUXIN FASTENERS for this brass knurled hex nut configuration.

What is the difference between JX-NZFB and JX-NZF?

JX-NZFB is identified as a brass or brass alloy series, while JX-NZF is identified as a steel series. Exact dimensional and mechanical differences must be confirmed from the applicable drawings.

Which brass alloys are available?

The supplied product information identifies H63, H65, H68, H70, and H90 as material options, subject to configuration and manufacturing confirmation.

Can brass self-clinching nuts be installed in aluminum panels?

They may be suitable for selected aluminum sheet materials, depending on the panel grade, thickness, hardness, and fastener geometry.

Can they be installed in stainless steel panels?

Compatibility must be verified. Conventional brass clinch nuts should not automatically be assumed suitable for hard stainless steel sheets.

Can they be installed in plastic panels?

Conventional metal self-clinching installation should not be assumed suitable for plastics. A dedicated insert or validated fastening design may be required.

Do JX-NZFB nuts require welding?

No. They are intended for mechanical press-fit installation.

Can standard pneumatic or hydraulic presses be used?

Suitable press equipment may be used where it provides the required controlled force and compatible tooling.

Do brass self-clinching nuts provide reusable threads?

Yes. They are designed to provide retained internal threads for repeated assembly, subject to the condition of the fastener and supporting panel.

Are brass clinch nuts suitable for electrical grounding?

Brass is electrically conductive, but an installed clinch nut is not automatically an approved grounding component. The complete electrical connection must be validated.

Can JUXIN FASTENERS review custom JX-NZFB drawings?

Customer-specific drawings and technical requirements may be submitted for engineering review. Manufacturing feasibility and final specifications must be confirmed before quotation.

What information should an OEM purchasing team include in an RFQ?

An RFQ should include the required thread, nut dimensions, panel material, panel thickness, brass alloy, estimated order quantity, quality requirements, and delivery expectations.

Related Sheet-Metal Fastening Solutions

For additional captive threaded fastening requirements, consider these related JUXIN FASTENERS product families:

Steel Knurled Self-Clinching Hex Nuts – JX-NZF

Self-Clinching Nuts

Floating Self-Clinching Nuts

Self-Clinching Standoffs

Rivet Nuts and Blind Threaded Inserts

Brass Threaded Inserts

Custom Precision Brass Fasteners

These product families offer different material options, installation methods, and retention mechanisms.

The appropriate fastening solution should be selected according to panel material, sheet thickness, installation access, mechanical performance, and production requirements.

Contact JUXIN FASTENERS for JX-NZFB Brass Hex Nut RFQs

JUXIN FASTENERS supplies industrial fastening components for OEM manufacturers, sheet-metal fabricators, purchasing engineers, supplier development teams, production managers, and international industrial supply chains.

For JX-NZFB brass knurled self-clinching hex nuts, press-fit threaded fasteners, and customer-specific brass fastening components, our team can review technical drawings, material specifications, installation requirements, and purchasing quantities.

We welcome inquiries involving electrical enclosures, electronic equipment, instrumentation panels, telecommunications equipment, industrial automation, and custom OEM metal components.

To request an engineering review or commercial quotation, please provide your technical drawings, required thread specifications, panel material and thickness, brass alloy requirements, estimated purchasing quantities, and delivery expectations.

Email: info@juxinfasteners.com

Website: www.juxinfasteners.com

Contact JUXIN FASTENERS to discuss JX-NZFB brass hex nut selection, custom press-fit fastening requirements, and long-term OEM supply opportunities.

JUXIN FASTENERS provides protective packaging for JX-NZFB brass knurled self-clinching hex nuts and other precision industrial fastening components.

The standard packaging arrangement may include inner protective polyfoam, outer corrugated cartons, and palletized packing, according to the confirmed order requirements.

Reference carton dimensions for comparable industrial fastener packaging:

29 × 19 × 19.5 cm

23.5 × 17.5 × 8 cm

Reference pallet dimensions:

215 × 100 × 90 cm

These dimensions are reference packaging configurations and have not been confirmed as the fixed packaging specification for every JX-NZFB brass nut order.

Packaging should protect the internal threads, hexagonal body, knurled retention features, and brass surfaces from damage during handling and transportation.

For OEM and industrial supply programs, customer-specific packaging arrangements may include protective separation, part-number identification, carton labeling, lot identification, and customer-defined packing instructions.

Final packing quantities, carton dimensions, pallet configurations, and labeling requirements will be confirmed according to the approved purchase order and shipment specifications.
