When an injection-molded plastic component needs a durable threaded connection, heat staking inserts can provide a practical alternative to forming threads directly into the polymer.
Product Specification
When an injection-molded plastic component needs a durable threaded connection, heat staking inserts can provide a practical alternative to forming threads directly into the polymer.

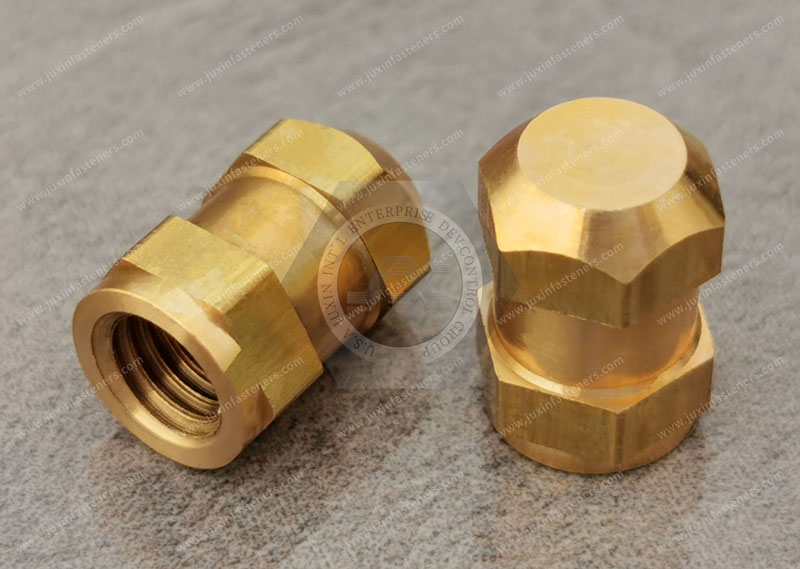

Heat staking inserts are metal threaded inserts installed into thermoplastic components after molding. During installation, controlled heat softens the surrounding plastic, allowing the polymer to flow around the external profile of the insert. After cooling, the plastic solidifies and mechanically locks the insert in position.
This installation method is widely considered for OEM plastic housings, electronic assemblies, automotive components, industrial equipment and other applications where a reliable metal thread is required.
For design engineers and procurement teams, selecting a heat staking insert involves more than choosing the correct thread. The plastic resin, boss geometry, insert dimensions, installation temperature, insertion depth and required retention performance all need to be considered together.
Heat staking inserts are metal threaded inserts designed for installation into thermoplastic components using controlled heat and pressure.
Unlike molded-in inserts, which are positioned in the mold before plastic injection, heat staking inserts are normally installed after the plastic component has been molded.
The process allows manufacturers to add reinforced metal threads without changing the fundamental injection-molding process.
A typical application consists of:
Injection-molded plastic boss → prepared insert location → heated metal insert → controlled insertion → polymer cooling → mechanically retained threaded insert
This makes heat staking particularly useful when a manufacturer needs a durable threaded connection while retaining the manufacturing flexibility of a post-molding installation process.
A typical heat staking installation process includes the following stages.
The plastic housing, bracket, cover or structural component is produced through injection molding.
The boss or insert location should be designed with the final threaded insert dimensions in mind.
Depending on the insert design and molding process, the component may contain a molded hole or boss suitable for receiving the insert.
Dimensional consistency is important because excessive interference or excessive clearance can affect installation quality.
The heat set insert for plastic is positioned in the boss or prepared hole.
The insert should be aligned correctly before the heating and insertion cycle begins.

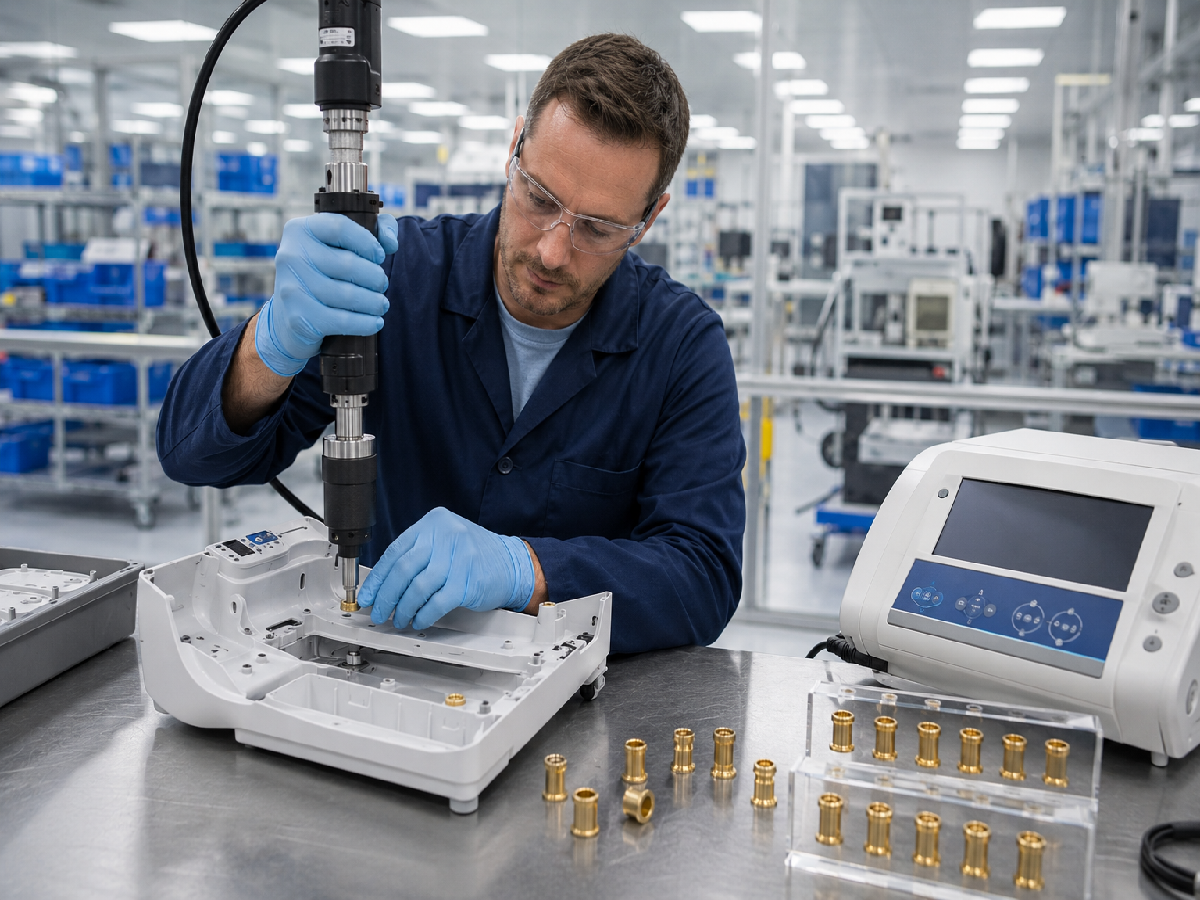

A heated installation tool transfers thermal energy to the metal insert.
The heat softens the surrounding thermoplastic without unnecessarily damaging the component.
Controlled pressure pushes the insert into the softened polymer.
As the insert moves into position, the softened plastic flows around the insert's external geometry.
After the insert reaches the specified installation depth, the plastic cools and solidifies.
The external geometry of the insert mechanically retains it within the plastic boss.
Production inspection may include:
Insert position
Installation depth
Thread condition
Torque resistance
Pull-out resistance
Visual appearance
Dimensional inspection
The final inspection criteria should be based on the requirements of the specific application.
Heat staking is primarily associated with thermoplastic materials because the polymer can be softened and re-solidified during installation.
Common materials considered for heat-set inserts include:
ABS
Polyamide (PA / Nylon)
Polycarbonate (PC)
PBT
PET
PEEK
Glass-filled thermoplastics
Other engineering thermoplastics
However, these materials do not behave identically.
For example, an installation process developed for unfilled ABS should not automatically be transferred to glass-filled nylon or PEEK.
Material grade, reinforcement, melting behavior, thermal conductivity and component geometry can all influence the installation window.
For OEM projects, the insert supplier and plastic-component manufacturer should evaluate the actual resin grade rather than relying only on the generic polymer name.
For structural and mechanical design engineers, the plastic boss is just as important as the threaded insert.
A good heat staking insert design considers the insert and plastic component as one mechanical system.
The boss must provide sufficient surrounding plastic to support the insert.
If the boss is too small, installation can create excessive stress or cracking.
If it is unnecessarily large, the component may require more material and additional space.
Wall thickness influences how the plastic flows around the insert and how the load is transferred into the surrounding component.
Thin-wall designs require particular attention to insertion force and stress concentration.
The outside diameter of the insert must be compatible with the boss dimensions and the selected installation process.
The internal thread size should be selected according to the mating screw and required load capacity.
Insert length affects the available thread engagement and the surface area available for mechanical retention.
Longer does not automatically mean better.
The insert length should be matched to the boss depth and component geometry.
The installation temperature must be compatible with the selected polymer and insert.
Too little heat may prevent adequate plastic flow.
Excessive heat can damage the surrounding plastic or affect the cosmetic appearance of the component.
Therefore, the process window should be established through testing rather than assuming one universal temperature.
The insert should reach the specified position without damaging the bottom of the boss or distorting the component.
A controlled stop on the installation equipment can help improve positional consistency during production.
Heating time depends on factors such as:
Insert mass
Insert geometry
Tool design
Polymer type
Boss dimensions
Equipment configuration
The objective is to provide sufficient thermal energy for plastic deformation while maintaining a stable production cycle.
Installation force should be controlled to prevent cracking, deformation or displacement of the plastic component.
This is especially important for thin-wall housings and small bosses.
Both methods can create metal threads in plastic, but they fit different production requirements.
| Feature | Heat Staking Inserts | Molded-In Inserts |
|---|---|---|
| Installation timing | After molding | During molding |
| Tooling change | Generally lower impact | Requires insert integration into mold |
| Post-mold installation | Yes | No |
| Production flexibility | High | Depends on mold design |
| Automation | Suitable | Suitable |
| Prototype flexibility | Often advantageous | Less flexible |
| High-volume OEM use | Yes | Yes |
| Process control | Heat + pressure + depth | Molding process + insert positioning |
For a new product, the preferred method should be selected according to the component design, production volume, tooling strategy and assembly process.
When properly designed and installed, heat staking threaded inserts can provide several benefits.
The insert provides a metal threaded interface inside the plastic component.
Metal threads can be better suited to repeated screw installation than threads formed directly in some plastics.
Manufacturers can install the inserts after the injection-molding process.
Heat staking can be integrated into controlled production and automated assembly systems.
Engineers can select insert geometry and installation parameters according to the component's requirements.
The process can be incorporated into high-volume manufacturing when the installation process is properly validated.
Brass heat set inserts are among the most commonly considered solutions for thermoplastic applications.
Brass provides a practical combination of:
Machinability
Thread performance
Thermal conductivity
Corrosion resistance
Cost efficiency
Other materials may be selected when the application requires different performance characteristics.
Suitable for many general industrial and electronic plastic applications.
Can be considered when improved corrosion resistance or higher mechanical performance is required.
Can be considered for weight-sensitive applications where aluminum is compatible with the required mechanical and environmental conditions.
Material selection should also consider the mating screw and the surrounding operating environment.
Heat staking inserts can support a wide range of industrial plastic assemblies.
Automotive plastic components increasingly combine lightweight polymers with metal fastening points.
Potential applications include:
Electronic housings
Sensor assemblies
Interior components
Plastic brackets
Control modules
Covers and panels
For automotive applications, vibration, temperature cycling and repeated assembly requirements should be evaluated.
Electric vehicle systems use numerous plastic and polymer components around electrical and battery-related systems.
Heat staking inserts for EV components can provide reinforced mounting points for selected plastic housings, covers, electrical modules and supporting components.
The final design should consider thermal exposure, vibration, electrical requirements and the specific polymer system.
Electronics housings often require multiple screw-mounted components within a lightweight plastic enclosure.
Heat-set inserts can provide durable mounting points for:
PCB assemblies
Internal brackets
Covers
Connectors
Shields
Electronic modules
Telecom cabinets and equipment may combine plastic housings with metal mounting hardware.
Heat staking inserts can provide reliable threaded points for internal assemblies and covers.
Industrial machinery often uses injection-molded covers, housings, guards and control components.
Heat-set inserts can help create stronger threaded mounting points while maintaining the advantages of plastic construction.
Robotic equipment requires lightweight components while maintaining reliable mechanical connections.
Heat staking inserts can be considered for:
Sensor housings
Controller enclosures
Protective covers
Plastic brackets
Actuator housings
Medical and laboratory equipment may use engineered thermoplastics for housings and structural components.
Insert material and process selection should account for temperature, cleaning chemicals, environmental exposure and the requirements of the finished assembly.
Before selecting a heat staking insert for plastic, procurement and engineering teams should define the following:
Resin type
Resin grade
Glass-fiber or mineral reinforcement
Wall thickness
Boss diameter
Boss height
Hole dimensions
Component geometry
Thread size
Thread standard
Insert outside diameter
Insert length
External knurl or retention profile
Material
Surface treatment
Dimensional tolerances
Heating method
Installation temperature
Heating time
Installation force
Insertion depth
Cooling requirements
Production cycle time
Automation requirements
Tightening torque
Torque-out resistance
Pull-out resistance
Temperature range
Vibration
Chemical exposure
Corrosion resistance
Required service life
Providing these parameters to a qualified threaded insert manufacturer can significantly improve the accuracy of product selection and quotation.
The choice between heat staking inserts and press-in threaded inserts depends largely on the plastic material and required retention performance.
Heat staking may be preferred when the thermoplastic can be reliably softened during installation and the application requires a strong integrated connection.
Press-in inserts may be more appropriate when the plastic component and hole geometry can provide sufficient interference retention without thermal processing.
The decision should consider the complete assembly rather than comparing the inserts based only on their nominal dimensions.
Standard threaded inserts may not always match the requirements of an OEM plastic component.
A custom heat staking insert may be considered when the project requires:
Custom outside diameter
Custom insert length
Special knurling
Non-standard external geometry
Metric or inch threads
Special materials
Tight dimensional tolerances
Specific installation depth
Customized surface treatment
High-volume production
For custom development, a technical drawing or plastic-component drawing is highly useful.
The supplier can evaluate the relationship between the insert dimensions, boss geometry, resin and installation method before recommending a production configuration.
For procurement managers and supply chain teams, the lowest unit price is not necessarily the lowest total cost.
A suitable heat staking insert supplier should be able to support the complete sourcing process, including:
Product selection
Material selection
Dimensional requirements
Custom insert development
OEM production
Quality control
Packaging
Production consistency
International supply requirements
A reliable sourcing specification should clearly define the insert material, thread, dimensions, surface requirements, plastic resin, application and expected annual volume.
This helps reduce misunderstandings between the fastener supplier, plastic injection molder and final OEM.
JUXIN Fasteners supports OEM and industrial customers requiring heat staking inserts for plastic, including brass and other metal threaded insert solutions for thermoplastic components.
Our fastening solutions can support applications in:
Automotive
EV
Electronics
Electrical equipment
Telecom
Industrial machinery
Robotics
Medical equipment
HVAC
OEM plastic assemblies
For projects requiring custom threaded inserts, customers can provide drawings, samples or application specifications for technical evaluation.
The key objective is to select the insert based on the complete application: plastic resin + boss design + insert geometry + installation process + mechanical requirements.
If you are sourcing heat staking inserts, heat set inserts, brass threaded inserts, threaded inserts for plastic or custom OEM threaded inserts, send your requirements to JUXIN Fasteners.
For faster technical evaluation, please provide:
Plastic resin and grade
Component drawing
Boss dimensions
Thread specification
Insert dimensions
Installation method
Required torque
Pull-out requirement
Material requirement
Surface treatment
Annual quantity
Our team can review your requirements and help identify a suitable fastening configuration for your plastic component.
JUXIN Fasteners
23+ Years of Fastener Industry Experience
OEM & Industrial Fastening Solutions
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
WhatsApp: +86 13660079809
A heat staking insert is a metal threaded insert installed into a thermoplastic component using controlled heat and pressure. The softened plastic flows around the external profile of the insert and mechanically retains it after cooling.
The terms are often used interchangeably in the fastener industry. Both generally describe metal threaded inserts installed into thermoplastics using controlled heat.
Common thermoplastics include ABS, PA/Nylon, PC, PBT, PET, PEEK and various glass-filled thermoplastics. The installation process must be developed according to the specific resin grade and component design.
Yes. Brass is widely used for heat-set insert applications because of its machinability, thermal conductivity and practical combination of performance and cost.
The boss should be designed according to the insert outside diameter, length, installation depth, plastic resin and required retention performance. Boss diameter and wall thickness should be validated through application testing.
Yes. Heat staking can be incorporated into controlled production and automated assembly systems. Installation temperature, force, depth and cycle time should be controlled for consistent production.
JUXIN Fasteners can support OEM requirements for custom threaded inserts based on drawings, samples and application specifications. Customization may include dimensions, external retention geometry, thread specifications and material requirements.
The most useful information includes the plastic resin, component drawing, boss dimensions, thread specification, insert dimensions, installation method, performance requirements and estimated annual quantity.
Product Packaging
Packaging Standard
At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.
1. Standard Export Packaging
Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:
Moisture-resistant inner protection
Poly bag or small box packing as required
Reinforced export cartons
Clear labeling with part number, specification, batch number, and quantity
Palletizing for sea or air shipment when necessary
Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.
2. Customized Packaging Options
We also provide customized packaging solutions according to customer requirements, including but not limited to:
Private labeling
Customized barcodes
Specific carton dimensions
Retail packaging
Special pallet configuration
Customer-specific marking and identification
So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.
3. Compliance & Quality Assurance
All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.

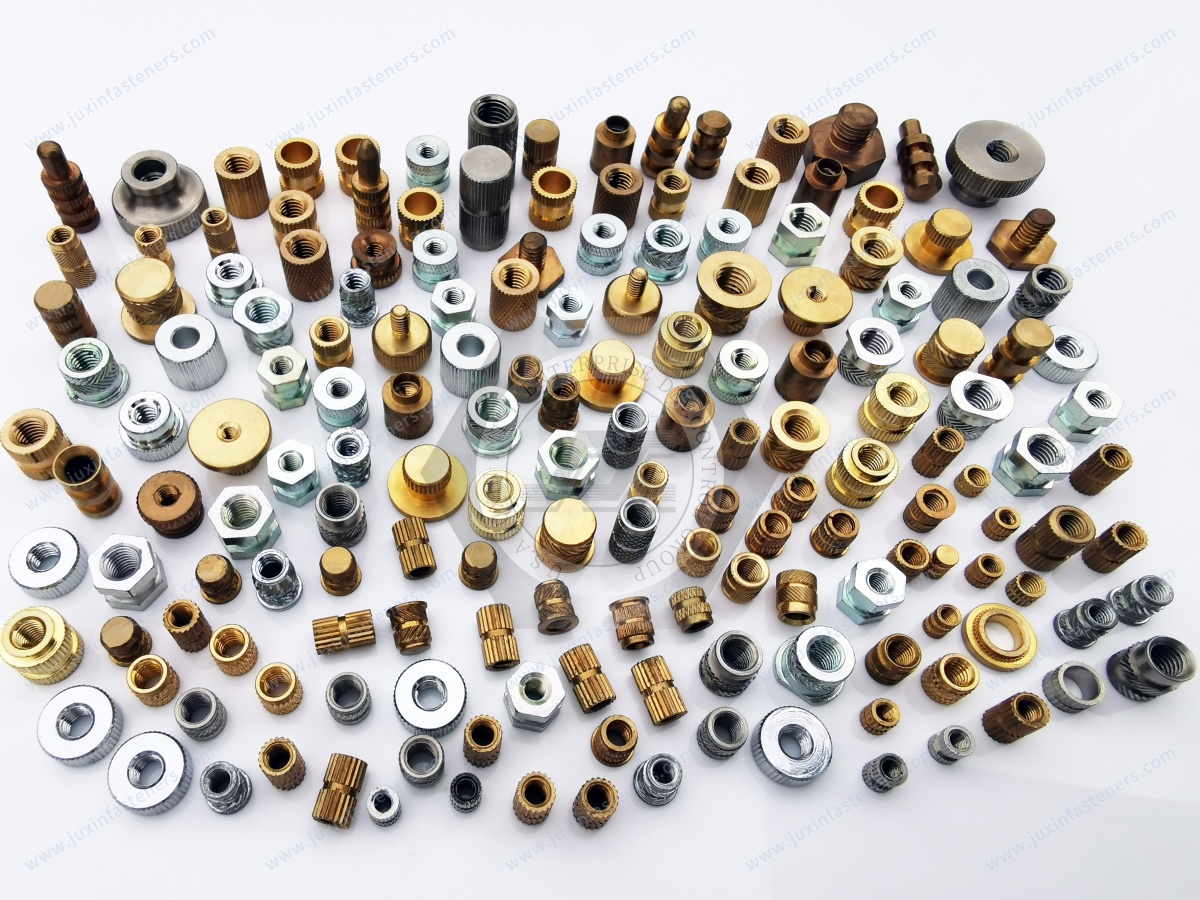

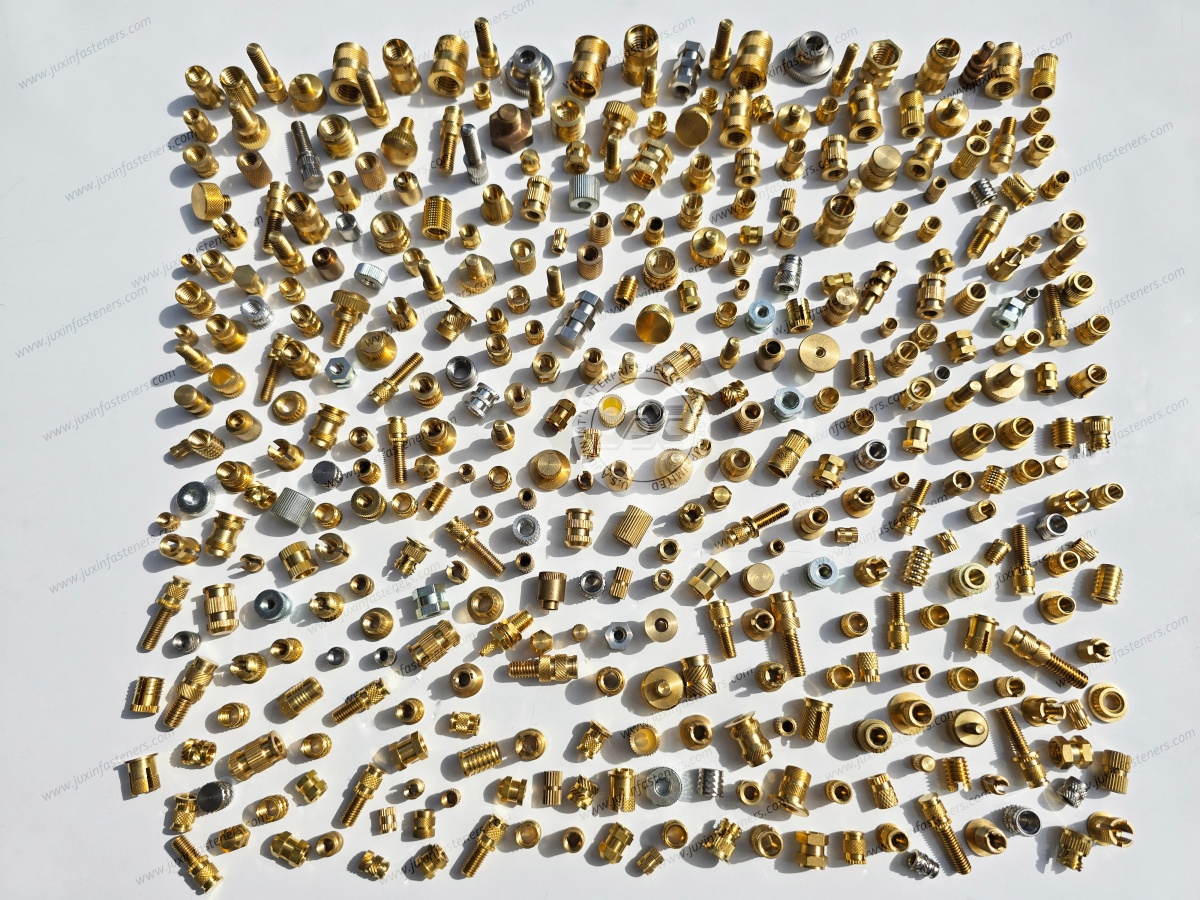

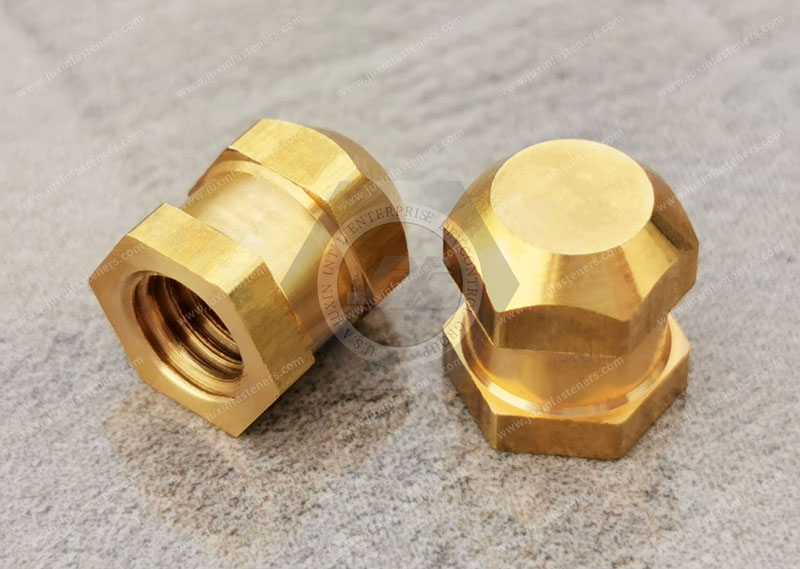

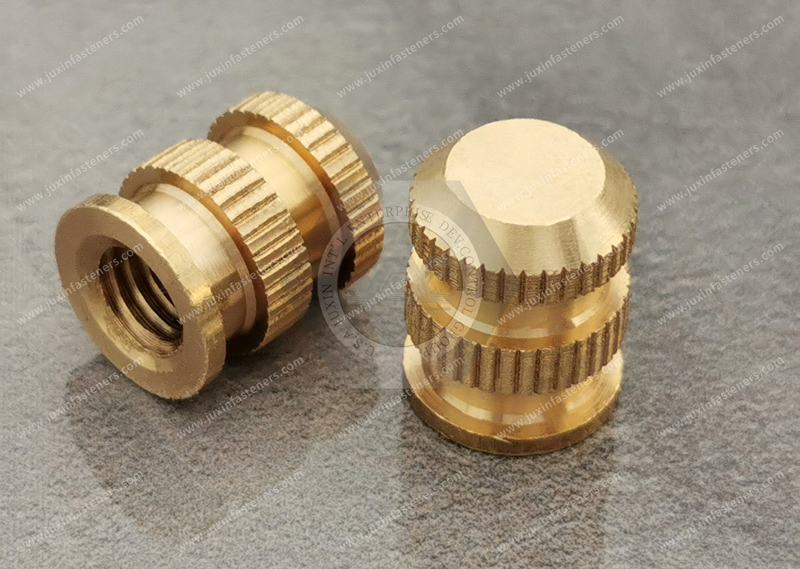

Product Pictures
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
