Engineering Solution: Threaded Inserts for Medical Equipment and Plastic Housings

Introduction and Application Overview

Modern medical equipment, diagnostic instruments, laboratory systems, and clinical devices increasingly use engineered plastics, polycarbonate, PEEK, ABS, PC/ABS blends, and other technical polymers for housings, covers, control panels, brackets, and internal assemblies.

These materials provide important advantages for medical equipment manufacturers, including low weight, electrical insulation, design flexibility, chemical resistance, and efficient high-volume production.

However, plastic components can present a fastening challenge. Directly tapped polymer threads may not provide sufficient durability when screws are repeatedly installed and removed during maintenance, inspection, component replacement, or equipment servicing.

Threaded inserts for medical equipment provide a practical solution by creating a durable metal thread inside a plastic or composite component.

By integrating a metallic threaded insert into the plastic boss, engineers can obtain a more reliable and reusable fastening point while maintaining the lightweight and insulating characteristics of the surrounding polymer.

The insert, plastic boss, installation process, mating screw, and assembly torque should be considered together as a complete fastening system.

Primary Applications Across Medical and Laboratory Equipment

JUXIN Fasteners supports OEM requirements for threaded inserts used across a wide range of medical, diagnostic, laboratory, and analytical equipment.

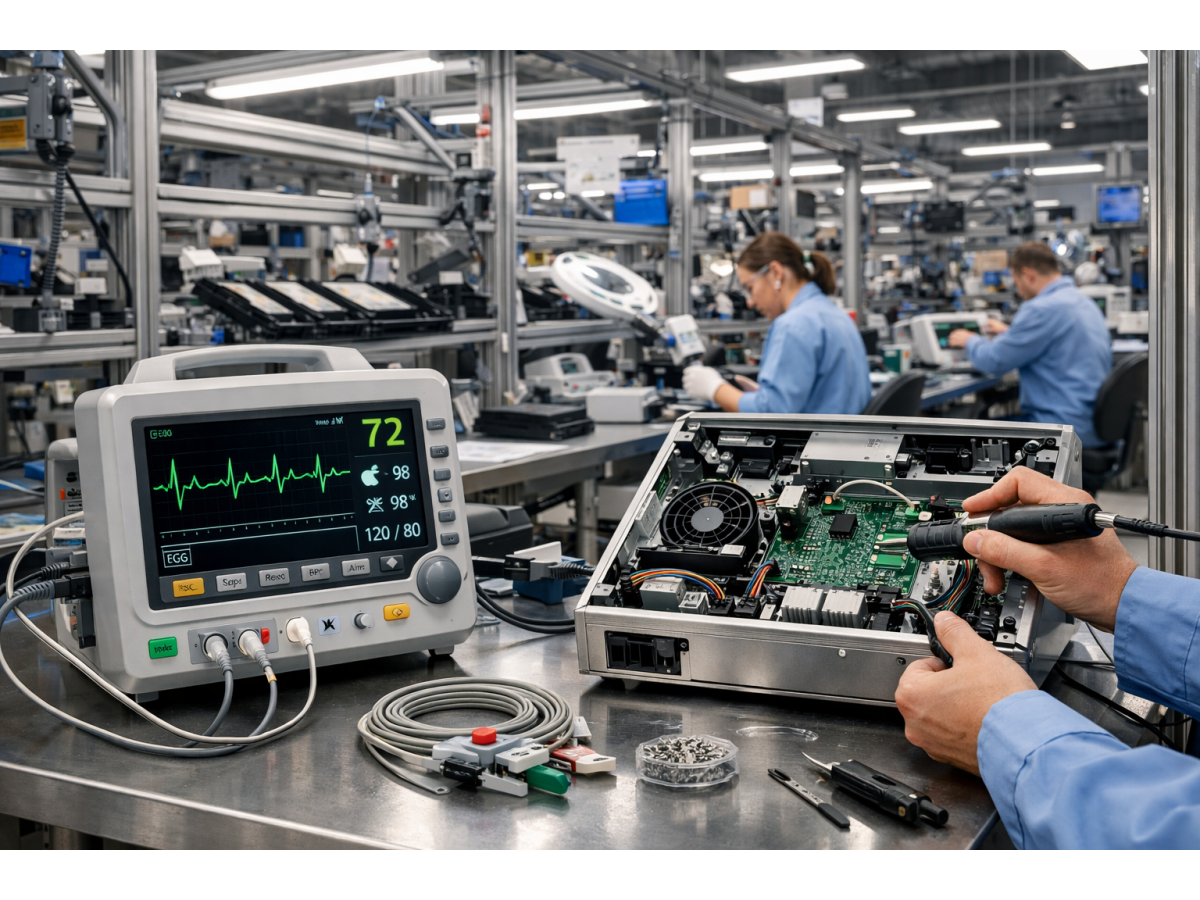

Medical Equipment Housings and Enclosures

Medical equipment such as patient monitors, ultrasound systems, infusion equipment, diagnostic devices, and portable clinical instruments often use plastic housings with internal mounting points.

Threaded inserts can provide secure fastening for:

• Housing covers
• Control panels
• Internal brackets
• Electronic modules
• Display assemblies
• Battery compartments

Laboratory and Clinical Instruments

Laboratory equipment frequently combines precision electronics, mechanical components, sensors, fluid systems, and polymer housings.

Potential applications include:

• Automated laboratory equipment
• Liquid handling systems
• Centrifuge housings
• Analytical instruments
• Blood analysis equipment
• Sample processing equipment

Threaded inserts can provide repeatable fastening points where internal components require periodic service or replacement.

Diagnostic and Imaging Equipment

Diagnostic and imaging systems may contain multiple plastic covers, control housings, brackets, and internal assemblies.

Applications can include:

• Diagnostic equipment covers
• Control consoles
• Sensor mounting brackets
• Electronic modules
• Internal structural components
• Service access panels

Electronic Control Housings and Modules

Medical equipment often contains PCBs, power supplies, displays, controllers, sensors, and communication modules inside polymer housings.

Threaded inserts for plastic housings can provide durable mounting points for electronic assemblies without requiring a conventional nut on the opposite side.

Internal Brackets and Structural Components

Plastic brackets and internal structural components may require secure screw connections while maintaining low weight.

Applications may include:

• Internal chassis brackets
• Battery compartment brackets
• Sensor mounts
• Cable management components
• Fluidic system brackets
• Structural support components

Plastic Covers and Service Access Panels

Medical and laboratory equipment can require access to internal components during maintenance or cleaning.

A metallic threaded insert provides a more durable reusable thread for covers and access panels than a directly tapped polymer thread in applications where repeated assembly is required.

Critical Engineering and Design Requirements

Medical equipment manufacturers need to balance mechanical reliability, material compatibility, production efficiency, and long-term service requirements.

Repeated Assembly and Serviceability

Medical and laboratory equipment may require regular inspection, calibration, cleaning, component replacement, or maintenance.

Directly tapped plastic threads can wear or strip after repeated screw installation.

A metal threaded insert provides a more durable internal thread and can support repeated assembly and disassembly when properly designed and installed.

Engineers should evaluate:

• Thread size
• Insert length
• Plastic material
• Boss dimensions
• Installation method
• Assembly torque
• Required service cycles

Pull-Out and Torque-Out Resistance

Where a threaded insert is installed into a plastic boss, mechanical performance depends on the interaction between the insert and surrounding polymer.

The insert's external geometry, knurling, grooves, undercuts, boss dimensions, plastic material, and installation process all influence retention.

For applications with higher mechanical loads, pull-out and torque-out performance should be evaluated according to the actual application requirements.

Plastic Resin and Boss Design

Different engineering plastics have different mechanical and thermal characteristics.

PEEK, PC, ABS, Nylon, glass-filled polymers, and other materials may behave differently during insert installation and under service loads.

The design engineer should consider:

• Polymer type
• Glass-fiber reinforcement
• Boss diameter
• Boss wall thickness
• Hole diameter
• Installation temperature
• Operating temperature
• Thermal expansion
• Required retention performance

Proper boss design can help reduce the risk of cracking or deformation during installation.

Chemical Exposure and Cleaning Requirements

Medical equipment may be exposed to cleaning agents, disinfectants, humidity, condensation, or other environmental conditions.

The insert material and surface treatment should therefore be selected according to the actual operating environment.

Stainless steel threaded inserts may be considered for applications requiring increased corrosion resistance or exposure to demanding cleaning conditions.

Material Selection for Medical Equipment Threaded Inserts

Brass Threaded Inserts

Brass threaded inserts are widely used in electronic and medical equipment because they offer a practical combination of machinability, mechanical performance, electrical conductivity, and cost efficiency.

They can be considered for:

• Medical equipment housings
• Laboratory instruments
• Electronic control modules
• Sensor housings
• Plastic enclosures
• Internal mounting brackets

Brass is also commonly used for heat staking and ultrasonic insertion into thermoplastic components.

Stainless Steel Threaded Inserts

Stainless steel threaded inserts can be considered where higher corrosion resistance, mechanical strength, or environmental durability is required.

Potential applications include:

• Medical equipment exposed to frequent cleaning
• Laboratory equipment
• Diagnostic instruments
• Outdoor or mobile medical equipment
• Fluid-handling equipment
• Demanding industrial-medical environments

Stainless steel selection should be based on the actual environmental and mechanical requirements of the application.

Aluminum Threaded Inserts

Aluminum threaded inserts can be considered for applications where weight reduction is an important design objective.

Potential applications include:

• Portable medical equipment
• Lightweight diagnostic equipment
• Robotics-assisted medical systems
• Lightweight electronic housings
• Aluminum and polymer assemblies

Material selection should balance weight, mechanical requirements, corrosion resistance, conductivity, and production cost.

Threaded Insert Installation Technologies

Heat Staking Threaded Inserts

Heat staking threaded inserts are commonly used with thermoplastic components.

The insert is heated and positioned into a prepared plastic boss. The surrounding polymer softens and flows around the external insert geometry before cooling and forming a mechanical connection.

This method can be suitable for high-volume production of medical equipment housings and electronic components.

Ultrasonic Threaded Inserts

Ultrasonic insertion uses controlled ultrasonic energy to soften the surrounding thermoplastic material during installation.

This process can support efficient production and consistent insert positioning when the plastic material, boss geometry, and insert design are properly matched.

Press-Fit Threaded Inserts

Press-fit installation can be used when the plastic material and component geometry provide sufficient interference and retention.

Important design factors include:

• Hole diameter
• Interference level
• Plastic hardness
• Boss geometry
• Installation force
• Required pull-out performance
• Required torque-out performance

Molded-In Threaded Inserts

For suitable high-volume applications, threaded inserts can be positioned directly into the injection mold before the plastic molding process.

Molded-in threaded inserts can provide strong mechanical integration when the insert geometry, molding process, and component design are properly coordinated.

Corrosion Resistance and Surface Treatment

Medical equipment may be exposed to humidity, condensation, cleaning agents, disinfectants, or other environmental conditions.

JUXIN can provide customized plating and surface treatment according to customer requirements.

For applications where enhanced corrosion resistance is specified, salt spray performance of up to 1,200 hours can be achieved when requested by the customer, depending on the substrate, coating system, process conditions, and applicable testing requirements.

This performance is application-specific and should not be considered a standard specification for every threaded insert.

Surface treatment should be selected according to the actual operating environment, material combination, cleanliness requirements, and customer specification.

Custom OEM Threaded Inserts for Medical Applications

Medical equipment manufacturers frequently require fasteners that differ from standard catalog dimensions.

JUXIN supports OEM custom threaded insert production according to customer engineering requirements.

Custom development can be based on:

• 2D engineering drawings
• 3D CAD files
• Samples
• Thread specifications
• Insert dimensions
• External geometry
• Material requirements
• Surface treatment
• Installation method
• Production volume
• Inspection requirements

Custom features may include modified insert lengths, diameters, thread specifications, flange dimensions, knurling patterns, grooves, undercuts, and other application-specific geometries.

Engineering Design Considerations

Plastic Material

The polymer material should be evaluated before selecting the insert.

Engineers should consider material hardness, reinforcement, temperature resistance, dimensional stability, chemical exposure, and installation characteristics.

Boss Geometry

The plastic boss surrounding the insert should provide sufficient material for installation and service loads.

Boss diameter, wall thickness, hole size, and surrounding component geometry can all influence fastening performance.

Insert Geometry

External insert geometry determines how the insert interacts with the surrounding plastic.

Depending on the application, engineers may consider:

• Knurling
• Helical grooves
• Retaining rings
• Undercuts
• Flanges
• Tapered profiles

Assembly Torque

The recommended screw torque should be compatible with the insert, plastic boss, mating screw, and overall joint design.

Excessive torque can damage the plastic component even when the metallic insert itself has sufficient thread strength.

Pull-Out and Torque-Out Requirements

For applications with significant mechanical loading, pull-out and torque-out performance should be evaluated using the actual plastic material, boss geometry, insert design, and installation process.

This provides a more realistic assessment than evaluating the insert alone.

Quality and Production Requirements for Medical OEMs

Medical equipment manufacturers often require consistent dimensions, stable production quality, reliable supply, and clear technical documentation.

For OEM threaded insert programs, important considerations may include:

• Dimensional consistency
• Thread quality
• Material control
• Surface treatment consistency
• Production repeatability
• Inspection requirements
• Packaging requirements
• Sample approval
• Drawing approval
• Batch identification where required

JUXIN supports customized fastener production using manufacturing processes including cold forging, CNC machining, stamping, injection molding, and customized fastener manufacturing.

Quality and documentation requirements can be established according to the customer's project and purchasing specifications.

From Prototype to Mass Production

Medical equipment fastening projects often begin with a drawing, prototype, or existing component before moving into larger production volumes.

A practical development process can include:

1. Review the application and engineering requirements

2. Confirm the plastic material and boss design

3. Select the insert material

4. Select the appropriate installation method

5. Develop or modify the insert geometry

6. Produce samples

7. Evaluate fit and assembly performance

8. Confirm production specifications

9. Move into mass production and quality control

Early cooperation between the threaded insert supplier, structural engineer, product designer, and manufacturing team can help identify fastening risks before tooling and mass production.

Why Choose JUXIN for Medical Equipment Threaded Inserts?

JUXIN supports medical equipment and laboratory equipment OEMs with standard and customized threaded insert solutions for plastic and composite components.

Our manufacturing capabilities include cold forging, CNC machining, stamping, injection molding, and customized fastener production.

We work with customers on insert dimensions, materials, external geometry, surface treatment, installation methods, and application requirements.

The objective is not simply to supply a threaded insert, but to develop a fastening solution that fits the customer's component design, assembly process, and production requirements.

Threaded Inserts Across Medical and Laboratory Applications

Threaded inserts can support fastening requirements across a wide range of equipment, including:

• Medical equipment
• Diagnostic instruments
• Laboratory equipment
• Analytical instruments
• Patient monitoring equipment
• Electronic medical devices
• Fluid-handling equipment
• Medical automation systems
• Sensor and control systems
• Portable medical equipment
• Healthcare electronics
• OEM plastic housings

Request a Custom Medical Equipment Threaded Insert Solution

If you are sourcing threaded inserts for medical equipment, medical devices, laboratory instruments, diagnostic systems, electronic housings, or other plastic components,

JUXIN can support your project from specification review and sample development through production.

Send us your engineering drawings, samples, thread requirements, plastic material, installation method, or application details for technical evaluation.
