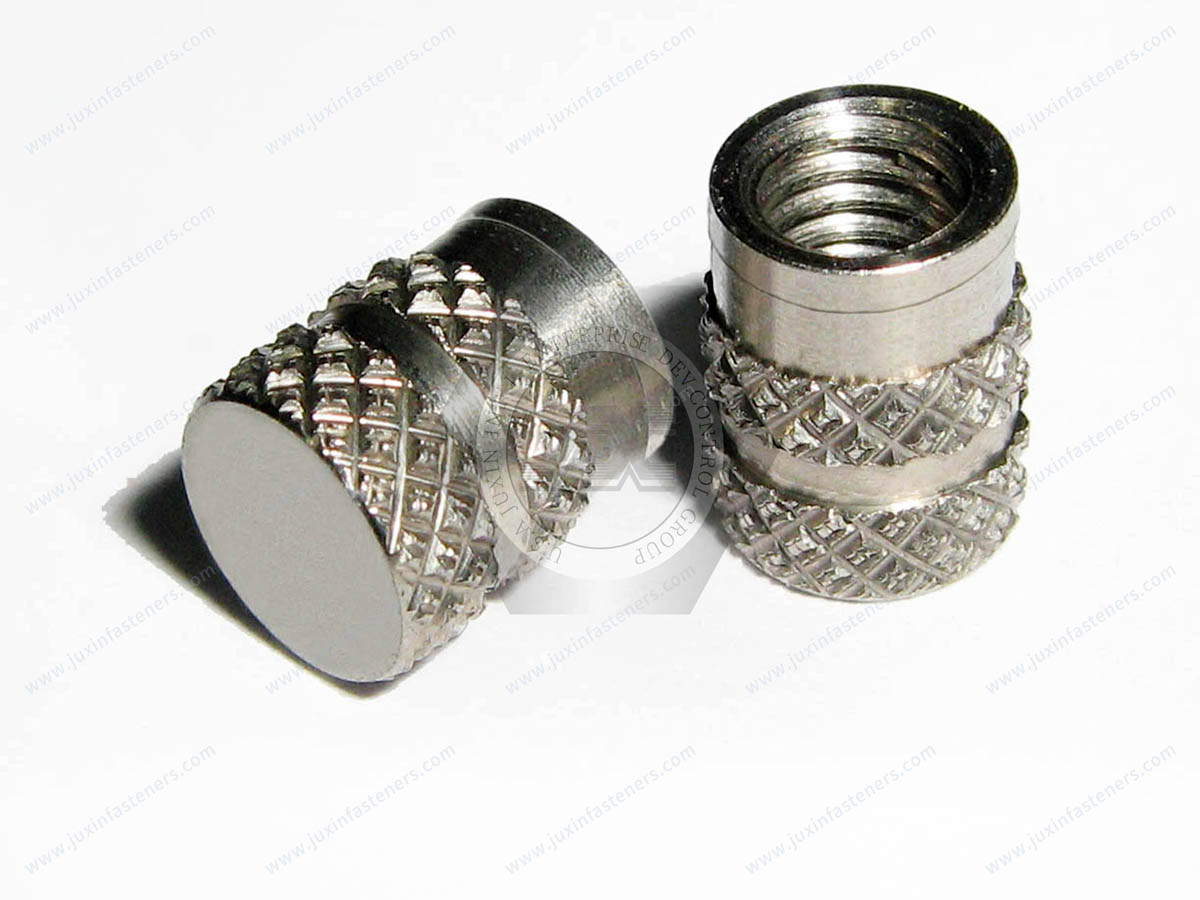

Stainless Steel Tapered Thru Threaded Inserts for Plastics

Tapered Thru Threaded Inserts for Plastics – Types JX-IUA, JX-IUB, JX-IUC

Overview

Tapered through threaded inserts for plastics, including JX-IUA, JX-IUB, and JX-IUC, are advanced heat-set threaded inserts designed to create strong, durable internal threads in thermoplastic components. Using a heat-set process, these inserts mechanically lock into the plastic substrate, providing reliable fastening without adhesives or additional hardware.

 These inserts are widely used in electronics, automotive, and household appliance applications, offering high pull-out strength, excellent vibration resistance, and long-term durability. Their design enables easy installation into pre-formed holes, simplifying assembly and supporting automated production lines.

Design Features of Tapered Threaded Inserts

The JX-IUA, JX-IUB, and JX-IUC series are engineered for maximum retention and stability in plastic parts. Key design characteristics include:

Tapered body profile for precise, progressive insertion

Angled knurled surfaces that enhance friction with plastic

Through-thread design allowing full bolt engagement

Mechanical interlock formation after cooling

The angled knurl pattern provides greater pull-out strength and torque resistance than conventional straight-knurl designs. This ensures the insert remains securely embedded even under high vibration or repeated assembly.

Heat-Set Installation Process

Tapered threaded inserts are installed using a heat-set insertion method.

Installation Principle

The insert is heated to a controlled temperature (typically 200–300°C, depending on the plastic) and pressed into a pre-formed hole. The surrounding plastic softens and flows into the insert's knurl pattern. Once cooled, the plastic solidifies, creating a mechanical bond that ensures high retention and torque resistance.

Installation Guidelines

Hole diameter: slightly smaller than insert outer diameter, typically 0.1–0.2 mm interference

Insertion force: applied vertically for accurate alignment

Cooling: sufficient time to form a stable mechanical lock

Safety: Operators should wear heat-resistant gloves during installation

After installation, a pull-out test is recommended to verify the connection's strength.

 Material Advantages and Corrosion Resistance

The JX-IUA, JX-IUB, and JX-IUC inserts are commonly manufactured from stainless steel (SUS303 or SUS304). Benefits include:

 Excellent corrosion resistance for use in humid or chemical environments

High mechanical strength for load-bearing applications

Reduced risk of rust-related failure compared with carbon steel

Class A strength rating according to technical specification Q1980616

Stainless steel construction ensures long-term reliability in industrial and consumer applications.

Advantages Over Conventional Nuts

Heat-set threaded inserts provide several advantages compared with traditional nuts:

No adhesives required: eliminates risk of glue failure

Improved vibration resistance: the mechanical lock resists loosening

Higher pull-out strength: angled knurling increases the friction area

Simplified assembly: eliminates the need for wrenches or special tooling

Compatible with automated production: ideal for high-volume manufacturing

These advantages make tapered through threaded inserts particularly suited for plastic housings, automotive interior parts, and appliance assemblies.

 Typical Applications

Electronics enclosures – secure internal components with strong threads

Automotive interiors – fasten plastic panels and brackets

Household appliances – reinforce plastic housings for repeated use

Industrial plastic assemblies – reliable mechanical connections in structural components

These inserts are also increasingly used in 3D-printed plastic parts, where optimized heat-set parameters enhance durability and performance.

Conclusion

Tapered through threaded inserts – Types JX-IUA, JX-IUB, and JX-IUC provide a high-performance, durable solution for reinforcing plastic components with internal threads. With features such as heat-set installation, angled knurling, stainless steel construction, and high pull-out strength, these inserts are ideal for electronics, automotive, and appliance applications where reliability, vibration resistance, and ease of assembly are critical.

For engineering drawings, sample requests, or quotations for threaded inserts for plastics, contact Juxin Fasteners, your trusted supplier of high-quality fastening solutions.
