Overview

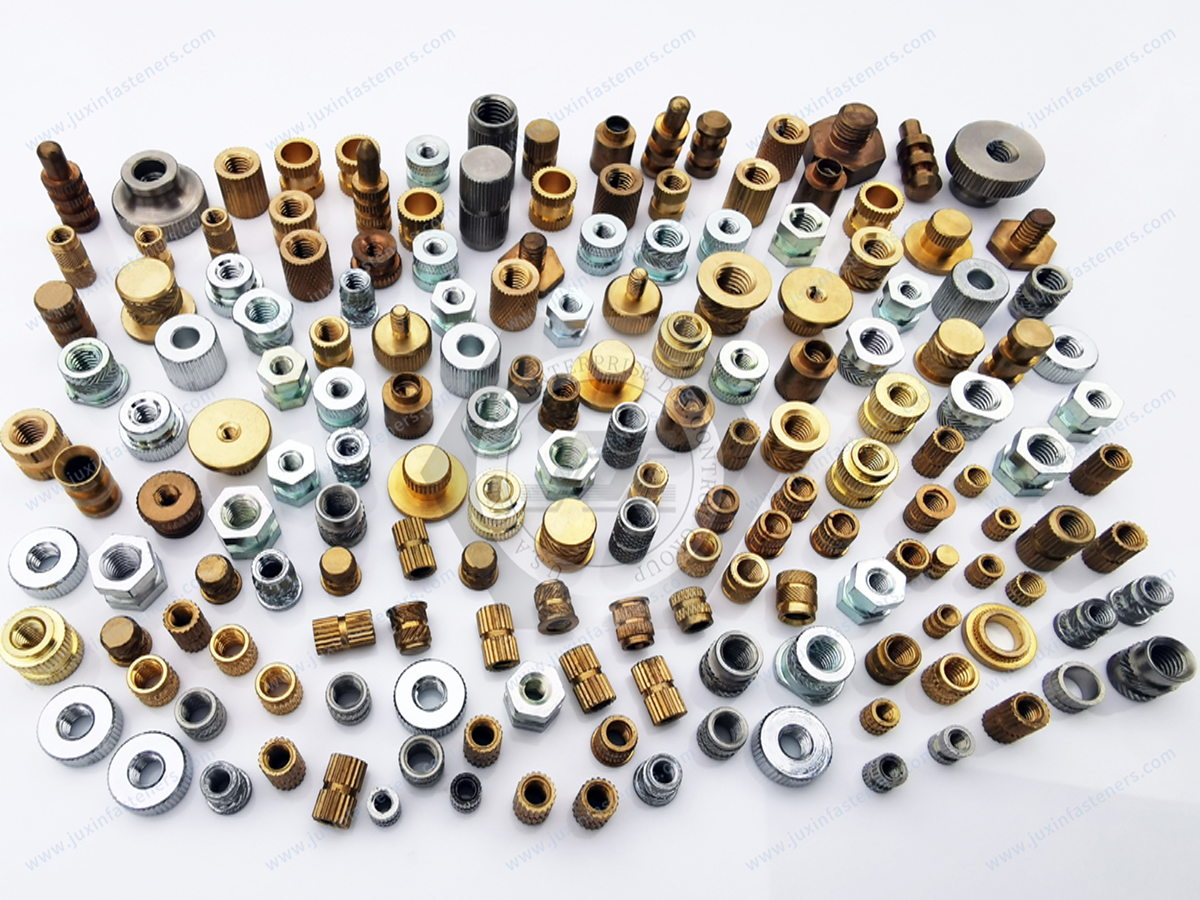

Tapered through threaded inserts are specialized thread-insert nuts designed for plastic components, providing strong, durable internal threads in thermoplastic parts. Models JX-IUA, JX-IUB, and JX-IUC are engineered for heat-set insertion, allowing the insert to be set.

These threaded inserts are widely used in electronics, automotive components, and household appliances, where reliable fastening and vibration resistance form between the metal insert and the plastic.

During installation, the insert is heated and pressed into a pre-formed hole in the plastic component. As the surrounding plastic softens, it flows into the insert’s knurled surface. After cooling, a mechanical interlock is formed between the metal insert and the plastic material, creating a secure threaded connection.

This design eliminates the need for adhesives and significantly improves the assembly's pull-out strength and vibration resistance.

Structural Design of Tapered Threaded Inserts

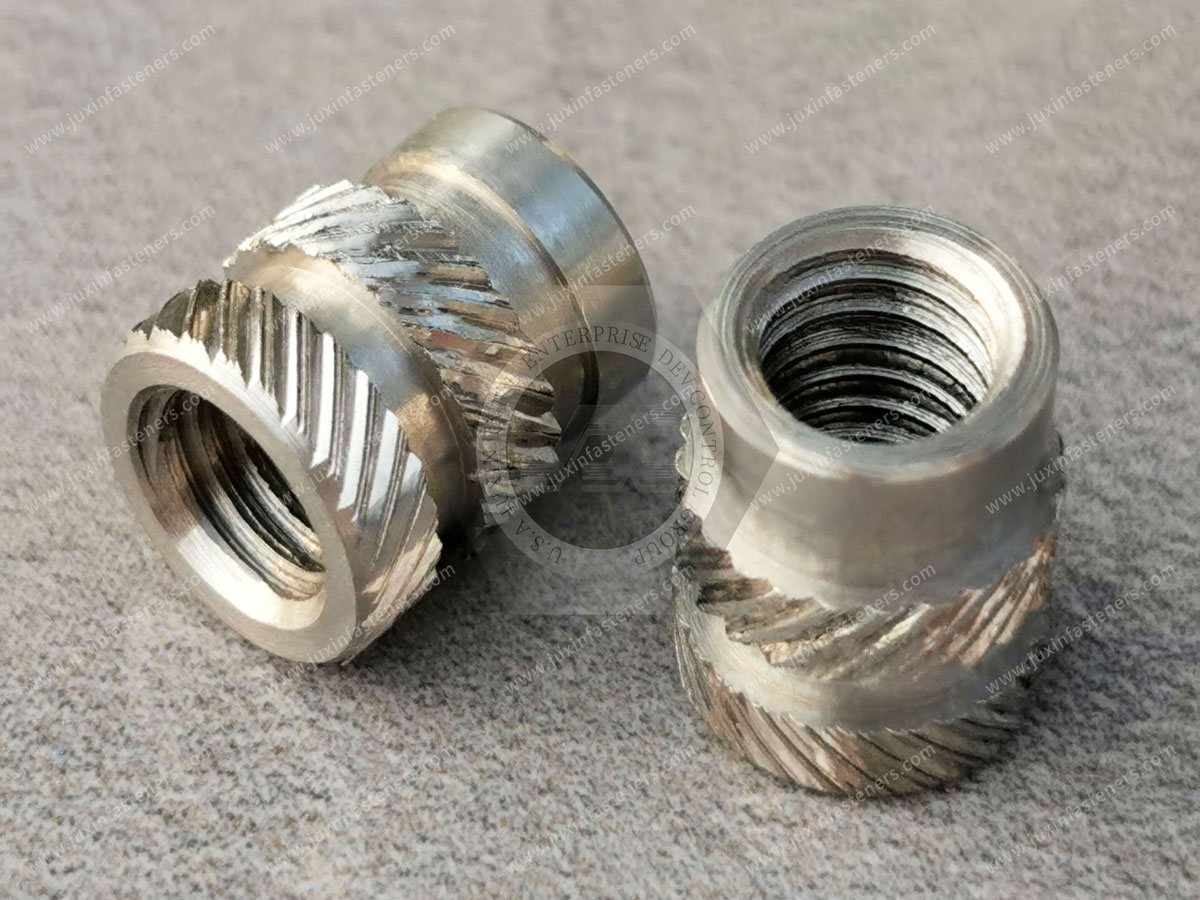

The JX-IUA, JX-IUB, and JX-IUC series feature a tapered outer structure with optimized knurling patterns designed to maximize retention in plastic materials.

Key design features include:

Tapered body profile for smooth and accurate insertion

Angled knurled surfaces that increase friction with plastic materials

Through-threaded design allowing full bolt engagement

Optimized geometry for heat-set installation

The angled knurling design provides a larger contact area with the surrounding plastic, improving the insert’s torque resistance and axial pull-out strength compared with conventional straight-knurl inserts.

Heat-Set Installation Process

Tapered threaded inserts are typically installed using a heat-set insertion process.

Installation Principle

The insert is heated to a controlled temperature and pressed into the plastic component. As the plastic softens, it flows into the knurling patterns on the insert surface. When the plastic cools, it solidifies around the insert, forming a strong mechanical bond.

This method ensures reliable thread reinforcement while maintaining the structural integrity of the plastic part.

Installation Guidelines

For optimal performance, the following parameters should be considered:

Hole diameter: typically designed with 0.1–0.2 mm interference relative to the insert outer diameter

Heating temperature: usually between 200 and 300°C, depending on the plastic material

Insertion force: applied vertically to maintain proper alignment

Cooling time: sufficient time must be allowed for the plastic to solidify and form the mechanical interlock

After installation, a pull-out strength test is recommended to verify connection performance.

Operators should also use protective gloves during installation due to the inserts' high temperature.

Materials and Corrosion Resistance

The JX-IUA, JX-IUB, and JX-IUC threaded inserts are commonly manufactured from stainless steel materials such as SUS303 or SUS304.

Advantages of stainless steel inserts include:

Excellent corrosion resistance

Long service life in humid or chemical environments

High mechanical strength

Reduced the risk of connection failure caused by rust

Compared with carbon steel fasteners, stainless steel inserts provide superior durability and reliability in demanding industrial environments.

These threaded inserts are manufactured to meet Class A strength requirements as specified in the relevant technical specifications.

Performance Advantages

Heat-set threaded inserts offer several performance advantages over conventional fastening solutions.

Strong Mechanical Interlock

The heat-set process creates a physical bond between the insert and the plastic, improving load capacity.

High Vibration Resistance

The mechanical locking structure prevents loosening under vibration, making the inserts ideal for dynamic environments.

Improved Pull-Out Strength

The angled knurl design significantly increases the axial retention force compared with standard nut installations.

Simplified Assembly

Unlike traditional nuts that require wrenches or additional hardware, heat-set inserts can be installed directly into plastic components using controlled heating equipment.

This simplifies assembly processes and supports automated production lines.

Comparison with Traditional Nuts

Traditional nuts typically rely on thread engagement or adhesive bonding to secure plastic assemblies. Over time, these connections may loosen due to vibration or adhesive degradation.

In contrast, heat-set threaded inserts create a direct mechanical bond with the plastic material.

Advantages include:

No risk of adhesive failure

Reduced thread wear

Improved long-term stability

Higher resistance to vibration and tensile loads

The angled knurl pattern used in the JX-IUA, JX-IUB, and JX-IUC inserts also provides greater frictional engagement with plastic materials than conventional straight-knurl designs.

Typical Applications

Because of their strength and reliability, tapered thru-threaded inserts are widely used across many industries.

Common applications include:

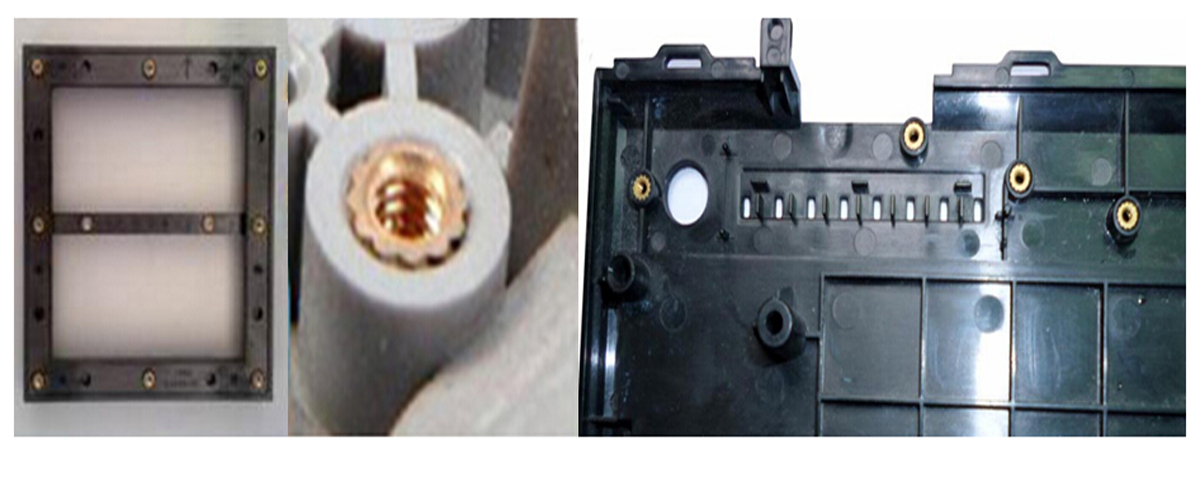

Electronic device housings

Automotive interior components

Household appliance structures

Plastic enclosures and panels

Industrial plastic assemblies

These inserts provide durable internal threads in plastic components that require frequent assembly and long-term reliability.

Conclusion

Tapered through threaded inserts – Types JX-IUA, JX-IUB, and JX-IUC provide an effective solution for reinforcing plastic components with strong internal threads. Through the heat-set installation process and optimized knurled design, these inserts deliver excellent pull-out strength, vibration resistance, and corrosion durability.

For manufacturers seeking reliable fastening solutions for plastic assemblies in electronics, automotive, and appliance applications, heat-set threaded inserts remain one of the most efficient and durable options.
