Thread Knurled Insert Nuts for Medical Device Plastic Components – Reliable Threaded Solutions for Medical Equipment

Modern medical devices increasingly rely on precision plastic components to achieve lightweight structures, compact designs, and high manufacturing efficiency. However, engineering plastics used in medical equipment—such as polypropylene (PP), polyethylene (PE), and polyurethane (TPU)—often lack the mechanical strength required for durable threaded connections.

Threaded insert nuts, particularly injection-molded threaded inserts, provide an effective solution by creating high-strength internal metal threads within plastic parts. These inserts combine precision knurling, high-quality materials, and efficient installation to ensure reliable fastening in medical equipment assemblies.

Design Features and Mechanical Performance

Threaded knurled insert nuts are pre-embedded threaded fasteners designed specifically for plastic components. Their outer surfaces feature precision knurling patterns that create a strong mechanical interlock with plastic materials during installation.

High Anti-Rotation and Pull-Out Strength

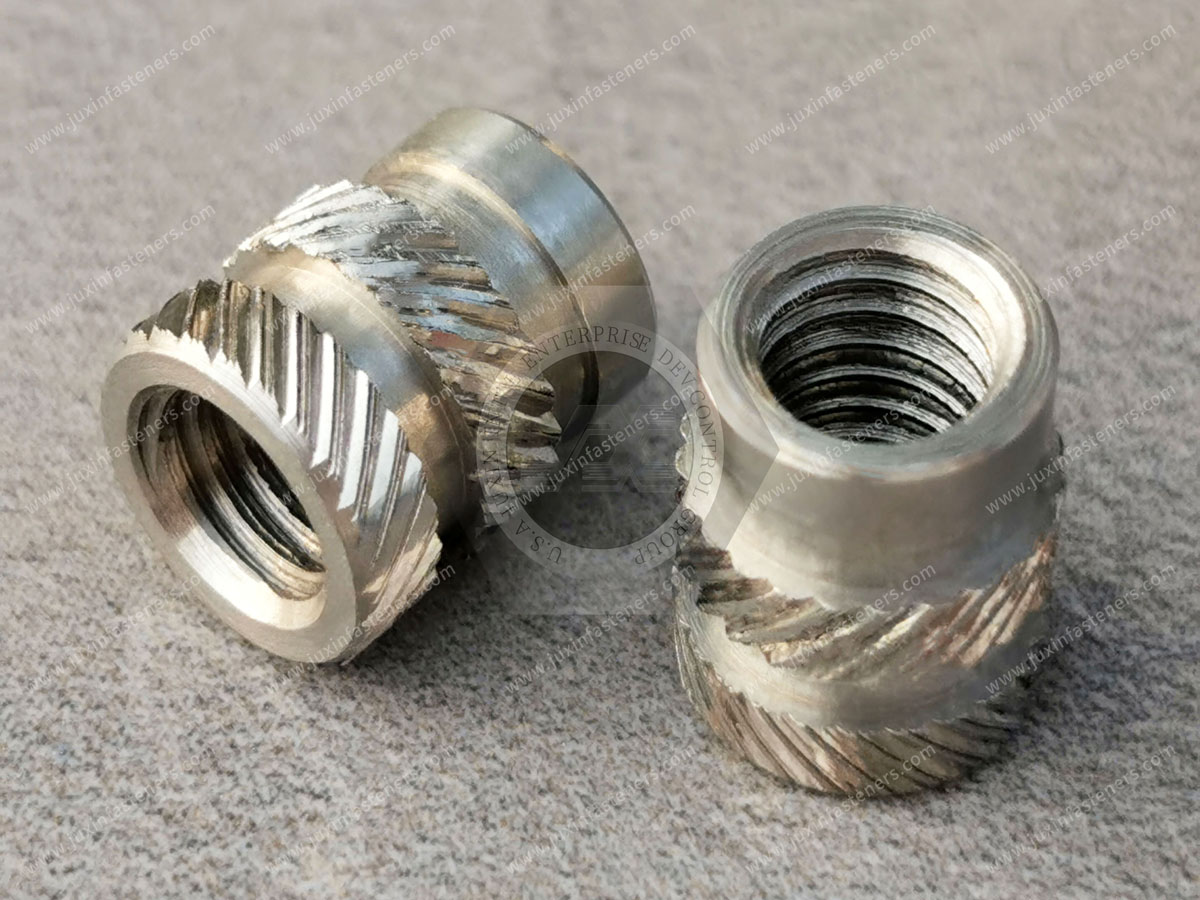

The external surface of the insert typically incorporates anti-slip knurling patterns such as:

 Diamond knurling

Mesh patterns

Herringbone knurling

Double-diagonal knurling

During injection molding or thermal installation, these patterns allow molten or softened plastic to flow into the grooves, forming a strong mechanical bond between the insert and the plastic component. This greatly improves:

Torsional strength

Pull-out resistance

Anti-rotation performance

These properties are essential for medical equipment components that must maintain stable fastening under repeated operation.

Optimized Structural Design

Many threaded insert nuts designed for medical device applications include additional structural features such as:

Round-head guiding structures for accurate positioning during installation

Stepped outer diameters to reduce stress concentration

Gradual insertion profiles to minimize the risk of plastic cracking

These design optimizations allow medical plastic parts to maintain reduced wall thickness while preserving structural strength, supporting the development of lightweight medical equipment.

Material Selection for Medical Industry Requirements

The medical device industry places strict requirements on material reliability, corrosion resistance, and environmental compliance.

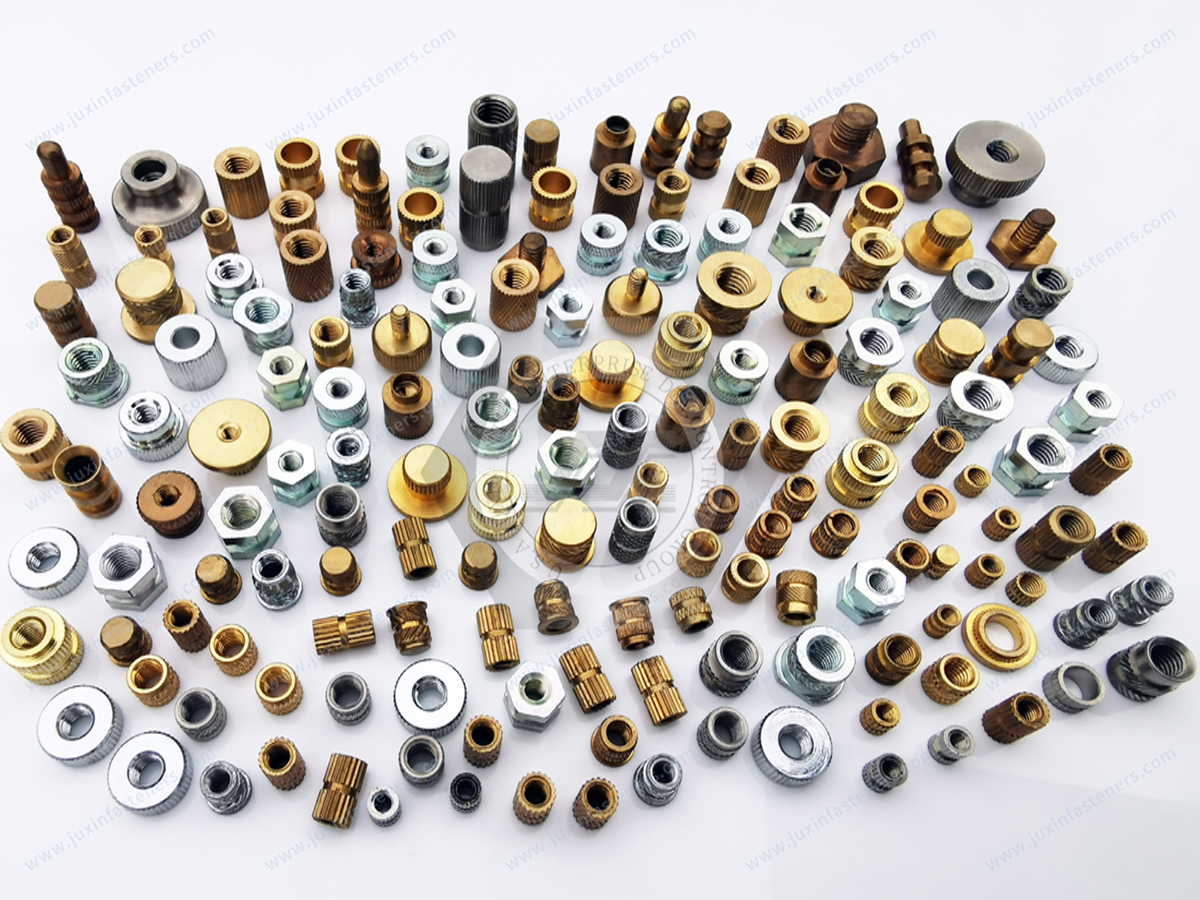

Thread knurled insert nuts are commonly manufactured from the following materials:

Brass (H59, H62, C3604) – excellent thermal conductivity, corrosion resistance, and machinability

Stainless Steel (SUS303) – higher strength and superior corrosion resistance for demanding environments

Carbon Steel – high load capacity and cost efficiency

Advantages of Brass Inserts

Brass inserts are widely used in medical equipment due to their:

Excellent thermal conductivity, which helps soften the surrounding plastic during installation

Stable mechanical properties

Good corrosion resistance

Compliance with environmental regulations such as RoHS

These characteristics ensure long-term reliability in medical equipment components.

Installation Processes and Manufacturing Advantages

Threaded knurled insert nuts can be installed using several high-precision processes commonly used in medical device manufacturing.

Injection Molding Pre-Embedding

In this process, the insert is positioned on the ejector pin of the injection mold before plastic injection.

After mold closing and injection:

Molten plastic flows around the knurled surface.

 The insert becomes permanently integrated with the plastic part.

This method provides:

Extremely strong bonding strength

High production efficiency

Excellent consistency in mass production

Hot-Melt Installation

Hot-melt installation is suitable for pre-molded plastic components. The insert is heated and pressed into a pre-drilled hole, allowing softened plastic to flow into the knurl pattern.

This process is often used for:

Large medical plastic components

Post-molding assembly operations

Ultrasonic Installation

Ultrasonic installation uses high-frequency vibration to generate heat through friction between the insert and the plastic. The plastic melts locally, and the insert is embedded quickly.

This method is ideal for:

Small precision parts

High-speed automated production lines

These installation methods enable fast, reliable, and repeatable connections, improving the overall efficiency of medical device assembly.

Compatibility with Medical-Grade Plastics

Thread insert nuts are compatible with a variety of plastics commonly used in medical equipment manufacturing, including:

Polypropylene (PP)

Polyethylene (PE)

Thermoplastic polyurethane (TPU)

These plastics offer excellent biocompatibility and chemical resistance, and, when combined with metal threaded inserts, they create durable, reliable structural assemblies.

Application Value in Medical Devices

Thread knurled insert nuts provide several critical advantages for medical equipment design and manufacturing.

Reliable Threaded Connections

Medical equipment often requires components that can be repeatedly assembled, disassembled, or adjusted. Metal internal threads created by inserts are far more durable than molded plastic threads, preventing wear or stripping over time.

Typical applications include:

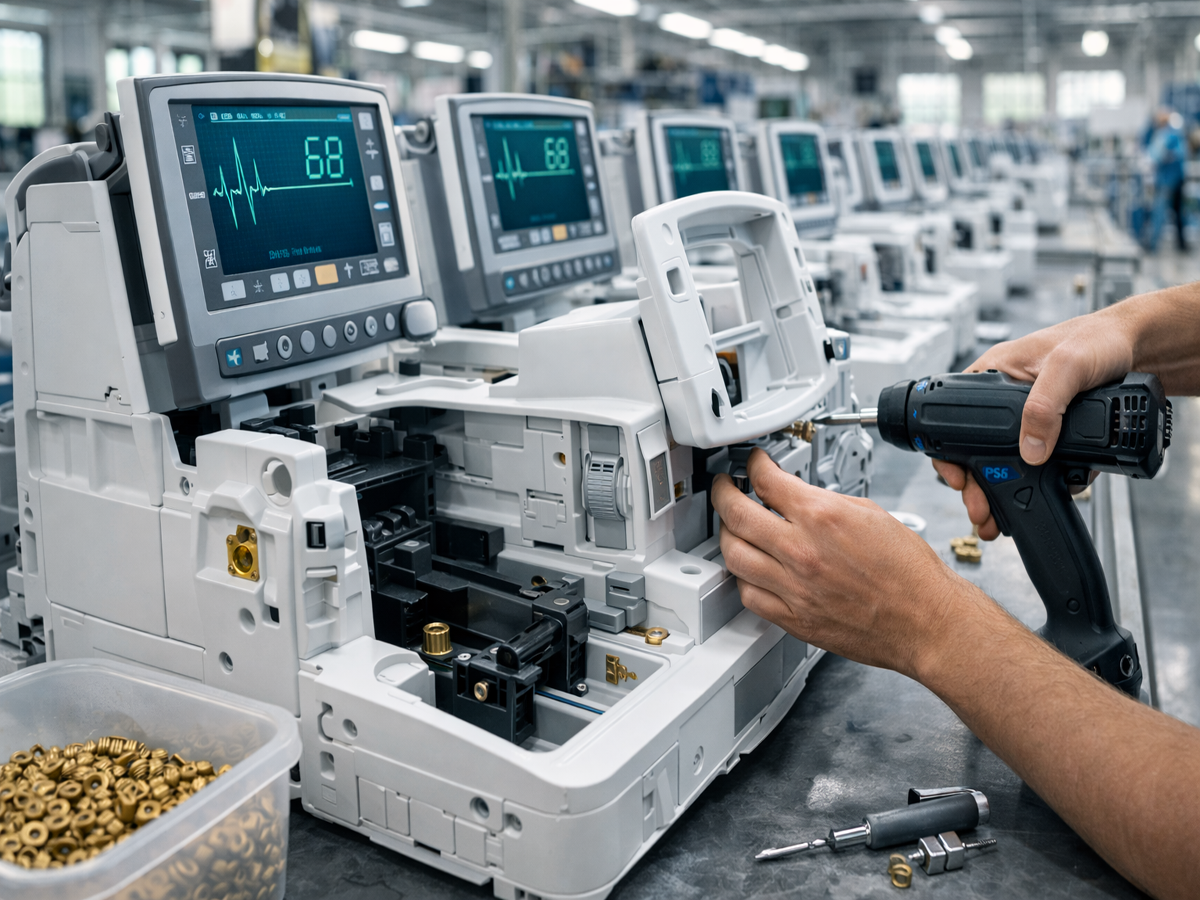

Medical equipment housings

Adjustable knobs and control panels

Mounting points for brackets and structural components

Access panels and service covers

Supporting Lightweight Equipment Design

By embedding metal inserts within plastic components, manufacturers can:

Reduce plastic wall thickness.

Maintain strong fastening points.

 Lower overall device weight

This approach supports the growing demand for portable and compact medical equipment.

Improved Production Precision and Automation

Modern medical device manufacturing requires extremely high consistency and precision. Automated insert installation equipment can achieve repeatability of ±0.01 mm, ensuring consistent product quality and reducing assembly costs.

Compliance with Safety and Environmental Standards

Medical equipment components must comply with strict safety and environmental regulations. Thread insert nuts manufactured from environmentally friendly brass materials, such as C3604, meet international directives, including RoHS, ensuring material safety and regulatory compliance.

Conclusion

Threaded knurled insert nuts provide a reliable, efficient threaded connection for plastic components in medical devices. Through optimized knurling structures, high-quality materials, and advanced installation processes, these inserts enable manufacturers to achieve:

Durable internal metal threads

Strong anti-rotation and pull-out performance

Lightweight equipment designs

High-precision automated production

As medical technology continues to evolve toward compact, reliable, and highly engineered devices, thread insert nuts remain an essential fastening solution for modern medical equipment manufacturing.

For technical support, custom specifications, or sample requests, contact Juxin Fasteners for professional threaded insert solutions for medical device applications.
