In modern automotive manufacturing, plastic components are widely used to reduce vehicle weight, improve design flexibility, and optimize production costs. However, engineering plastics such as ABS, PC, PA, and PP have limited thread strength and cannot withstand repeated assembly or high tightening torque.

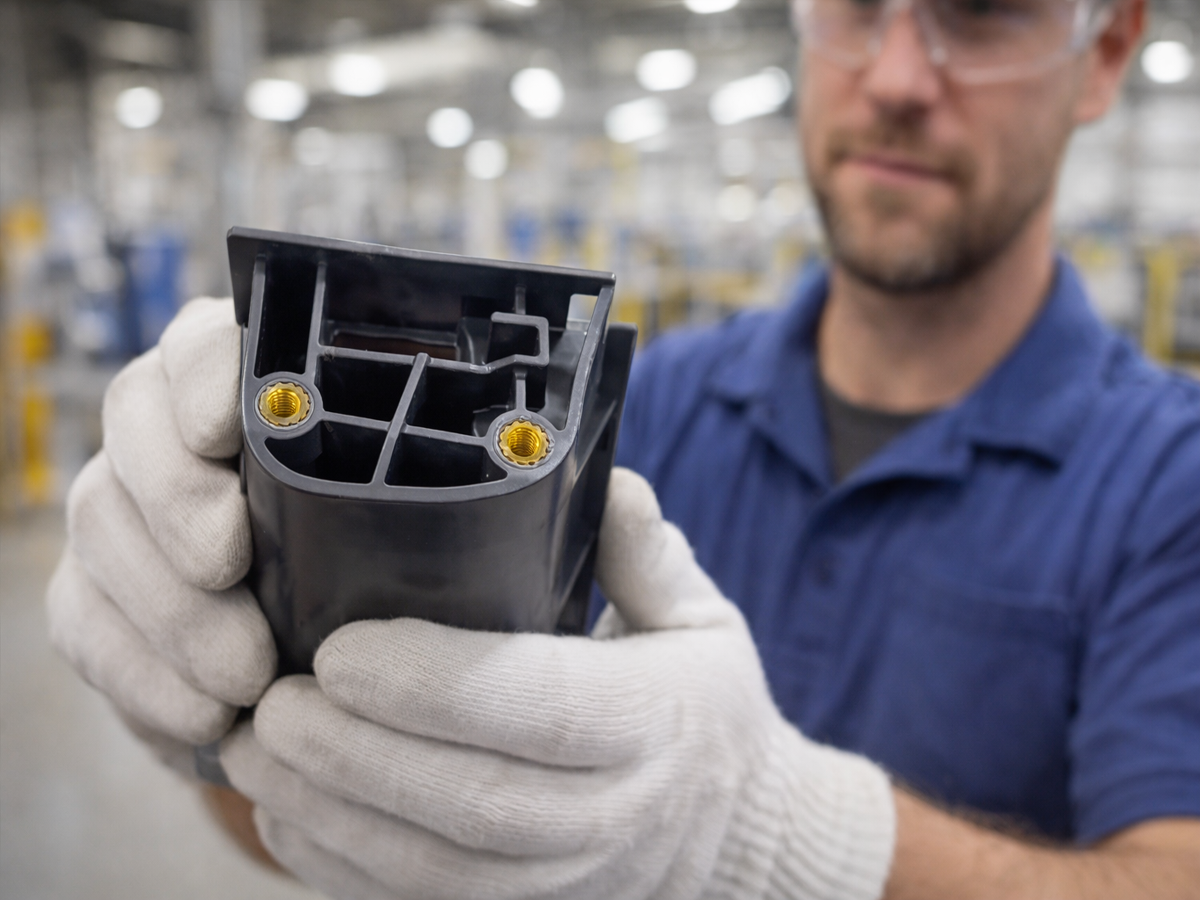

Thread insert nuts, especially knurled insert nuts designed for injection molding, provide a reliable solution by creating high-strength internal metal threads inside plastic components. These inserts integrate directly into plastic parts during the molding process, delivering durable fastening points for automotive assemblies while supporting the industry's ongoing lightweighting and high-efficiency manufacturing trends.

Design and Structural Features of Automotive Thread Insert Nuts

Enhanced Bonding and Anti-Loosening Performance

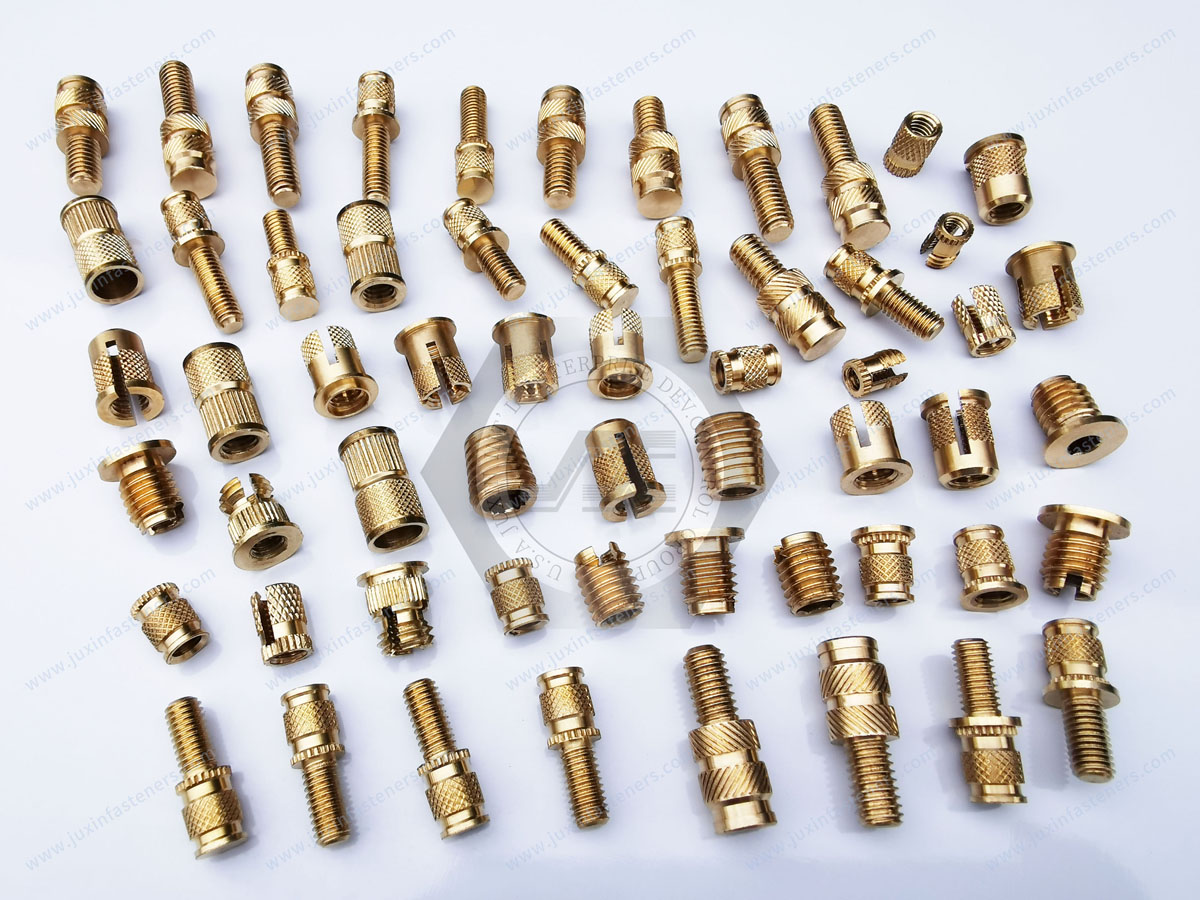

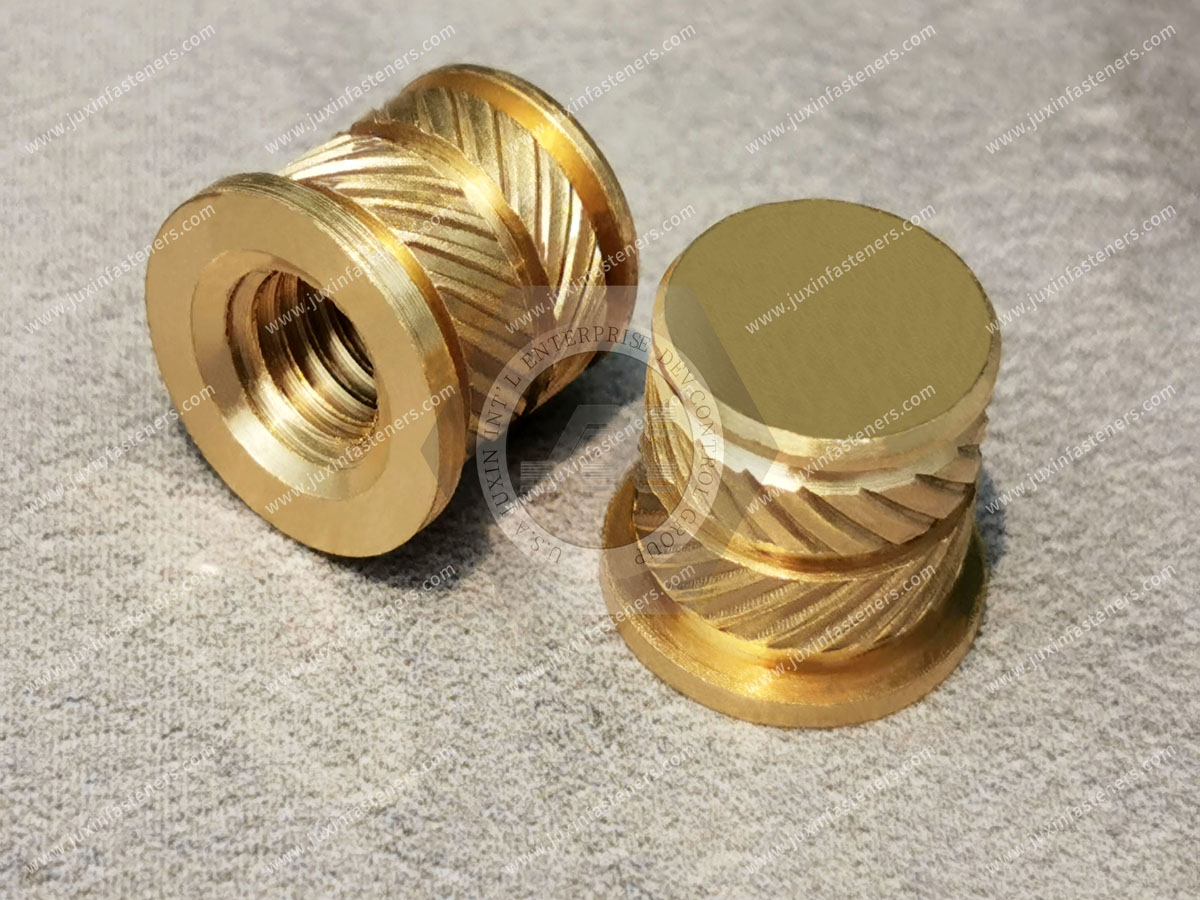

Automotive thread insert nuts typically feature precision knurling patterns on the outer surface, including:

 Straight knurling

Diamond or mesh patterns

Herringbone patterns

During injection molding, molten plastic flows around these knurled surfaces, creating a strong mechanical interlock. This design prevents the insert from rotating or sliding inside the plastic component, providing excellent pull-out resistance and torque resistance, which is critical for automotive applications exposed to vibration and mechanical loads.

Optimized Structural Design for Injection Molding

Many automotive inserts incorporate design features that improve installation and performance:

Round-head guide structures for accurate positioning during molding

Stepped or staged outer diameters that reduce stress concentration

Three-segment tapered designs that facilitate gradual insertion.

These optimized structures reduce the risk of plastic cracking or bursting during molding, while also enabling thinner plastic walls to support automotive lightweight design.

Thread Protection and Versatility

Thread insert nuts provide durable metal internal threads capable of repeated assembly and disassembly. Some models feature blind hole designs that prevent molten plastic from entering the threaded cavity during injection molding, ensuring clean, precise threads.

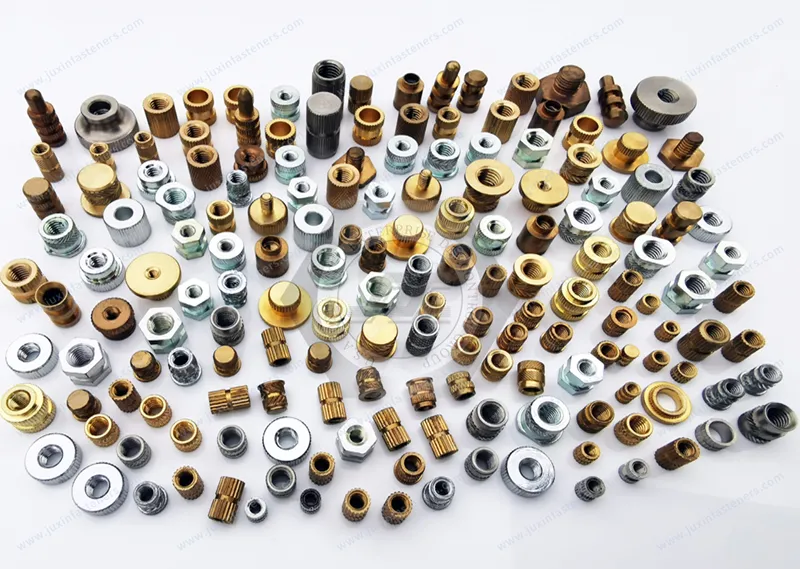

Available thread standards include:

Metric threads: M3 – M12

Unified (inch) thread standards

This flexibility allows integration into a wide range of automotive fastening applications.

Performance Advantages in Automotive Manufacturing

Improved Mechanical Strength and Durability

Embedding metal inserts into plastic components significantly enhances the local mechanical strength and load-bearing capacity of the assembly.

Compared with direct plastic threads, thread insert nuts provide:

Higher pull-out strength

Greater torque resistance

Longer service life in repeated assembly conditions

Brass inserts also offer excellent electrical conductivity, making them suitable for grounding or electrical connection applications.

Efficient Integrated Production

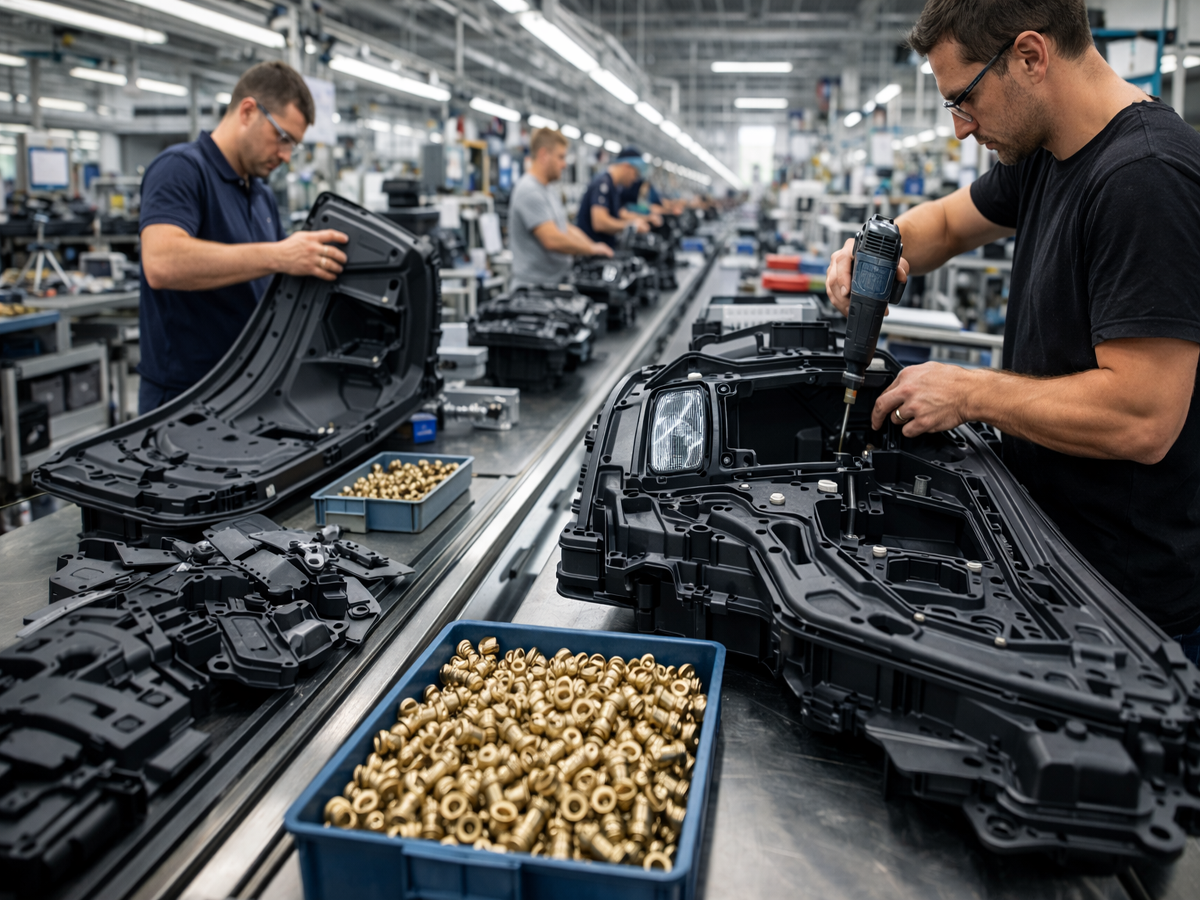

Thread insert nuts are typically pre-embedded during the injection molding process, eliminating secondary operations such as welding, riveting, or heat insertion.

Key advantages include:

Reduced manufacturing steps

Higher production efficiency

Lower assembly costs

Consistent installation quality

This integrated production approach is widely adopted in the manufacturing of automotive plastic components.

Supporting Automotive Lightweighting

By combining plastic structures with metal threaded inserts, manufacturers can replace heavier all-metal components while maintaining strong connection points.

This hybrid design:

Reduces overall component weight

Maintains structural strength where needed

Supports vehicle fuel efficiency and electric vehicle range improvements

Material Selection and Process Compatibility

Thread insert nuts for automotive applications are available in multiple materials to meet different performance requirements.

Common materials include:

Brass (C3604) – excellent corrosion resistance and electrical conductivity

Stainless Steel (SUS303) – high strength and corrosion resistance

Carbon Steel – high load capacity and cost efficiency

These inserts are specifically designed for integration with injection molding, ensuring precise positioning in the mold cavity. After mold closing, plastic injection, and cooling, the insert becomes permanently bonded to the plastic component.

They are compatible with common automotive engineering plastics such as:

ABS

PC

PA (Nylon)

PP

Typical Applications in Automotive Systems

Injection-molded thread-insert nuts are widely used in various automotive plastic components as reliable internal threaded connectors.

Interior Systems

Dashboard assemblies

Door panels

Center console structures

Interior trim mounting points

Automotive Electronics

Sensor housings

ECU or controller housings

Connector brackets

Electrical grounding points

Exterior and Functional Components

Headlamp and tail lamp housings

Front grilles

Wiper assemblies

Protective covers and plastic guards

These applications require durable fastening points that can withstand vibration, temperature variations, and repeated maintenance operations.

Conclusion

Thread insert nuts designed for injection molding provide an efficient, durable, and lightweight fastening solution for automotive plastic components. Their precision knurled structures, optimized installation design, and compatibility with injection molding processes make them an essential component in modern automotive manufacturing.

By integrating metal inserts directly into plastic parts, automotive manufacturers can achieve:

Reliable internal threaded connections

Improved mechanical strength and durability

Reduced production steps and manufacturing costs

Support for lightweight vehicle design

As automotive technology continues to evolve toward greater efficiency, electrification, and lightweight structures, thread-insert nuts will remain a critical solution for fastening high-performance plastic components.

For technical assistance, custom designs, or samples, contact Juxin Fasteners to learn more about our thread insert solutions for automotive applications.
