Flanged CD Weld Studs (Inch / Metric), also known as Capacitor Discharge Weld Studs, are precision-engineered fastening components designed for high-efficiency welding applications in modern manufacturing environments. The CDF / ACD series Flanged CD Weld Studs provide a reliable solution for joining fasteners onto thin sheet metal without pre-drilling, offering excellent performance in both automated and manual production systems.

These Flanged CD Weld Studs are widely used in automotive, electrical, and industrial sheet metal applications where speed, accuracy, and minimal thermal distortion are critical.

 Capacitor Discharge Welding Principle

Capacitor Discharge (CD) stud welding is a high-speed process that releases stored electrical energy instantaneously to generate an arc between the stud and the base material. The stud tip is vaporized, forming a plasma channel, and the molten materials are fused together under controlled pressure.

The entire welding cycle is completed in 4–6 milliseconds, making CD stud welding technology one of the fastest and most efficient fastening methods available for industrial production.

Because of its extremely short energy release time, Flanged CD Weld Studs create a very small heat-affected zone, which is especially important for thin sheet metal applications where deformation and burn-through must be avoided.

Product Structure & Material Options

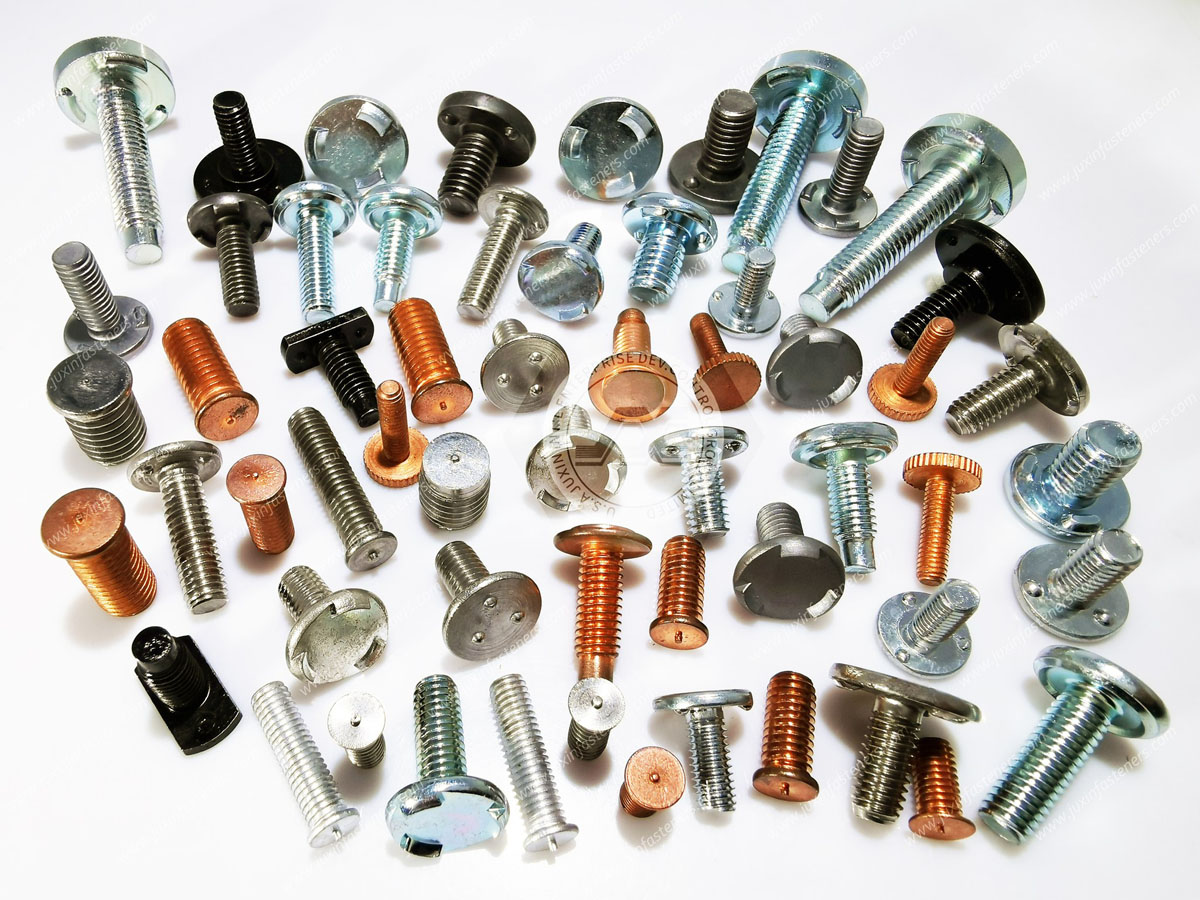

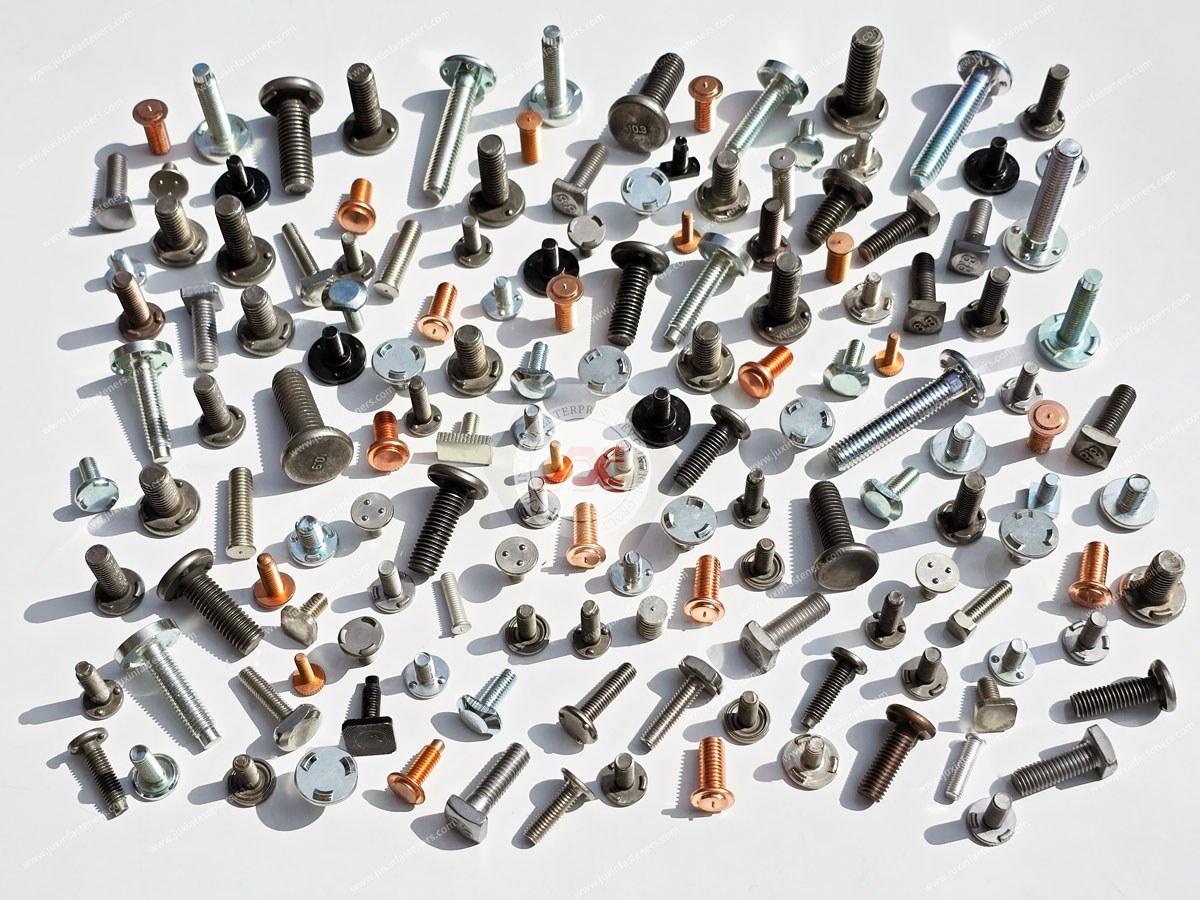

The Flanged CD Weld Studs – Inch / Metric (CDF / ACD Series) are available in multiple configurations to meet different engineering requirements:

• Thread types: External thread, internal thread, or      unthreaded

• Materials:

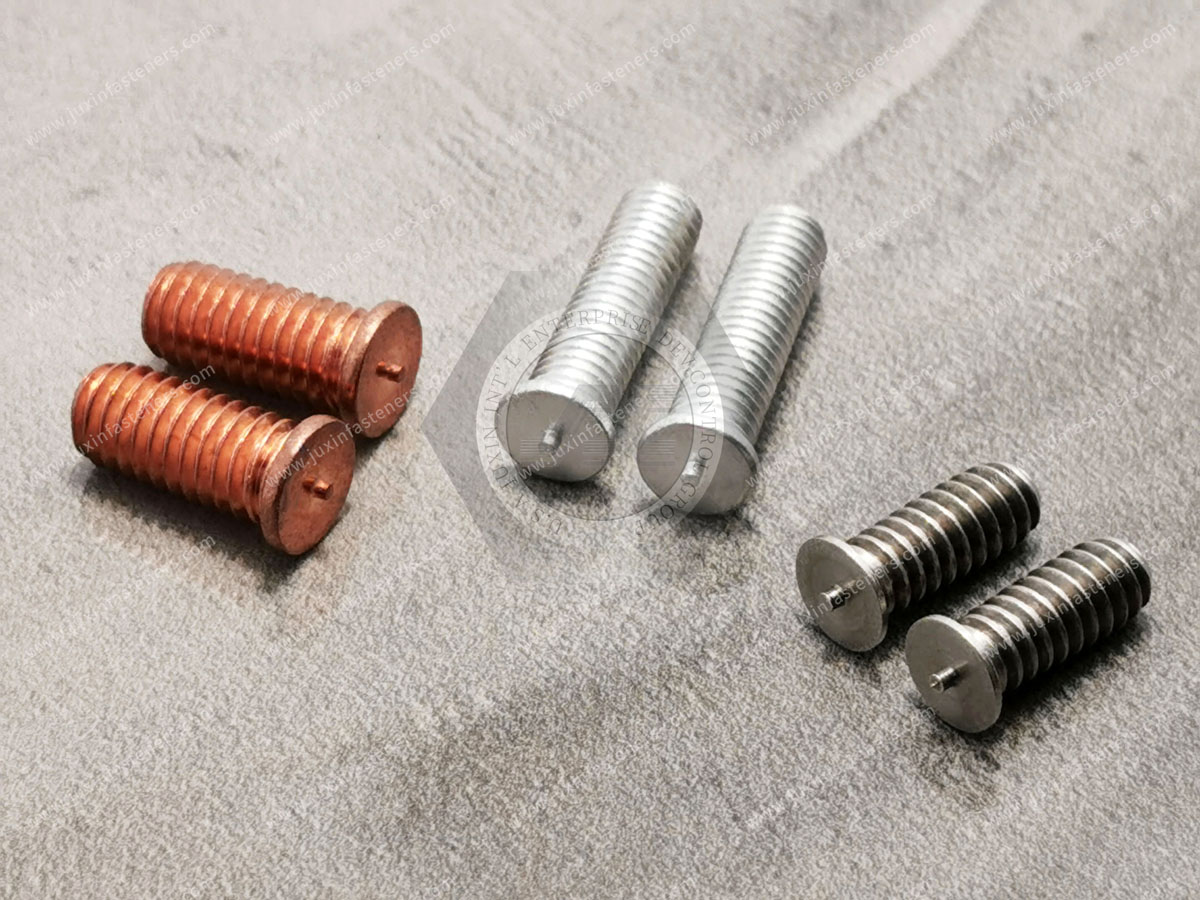

• Stainless steel CD weld studs for corrosion resistance       applications

• Mild steel CD weld studs with copper plating for improved       electrical conductivity

• Aluminum CD weld studs for lightweight structures

• Brass CD weld studs for specialized conductivity requirements

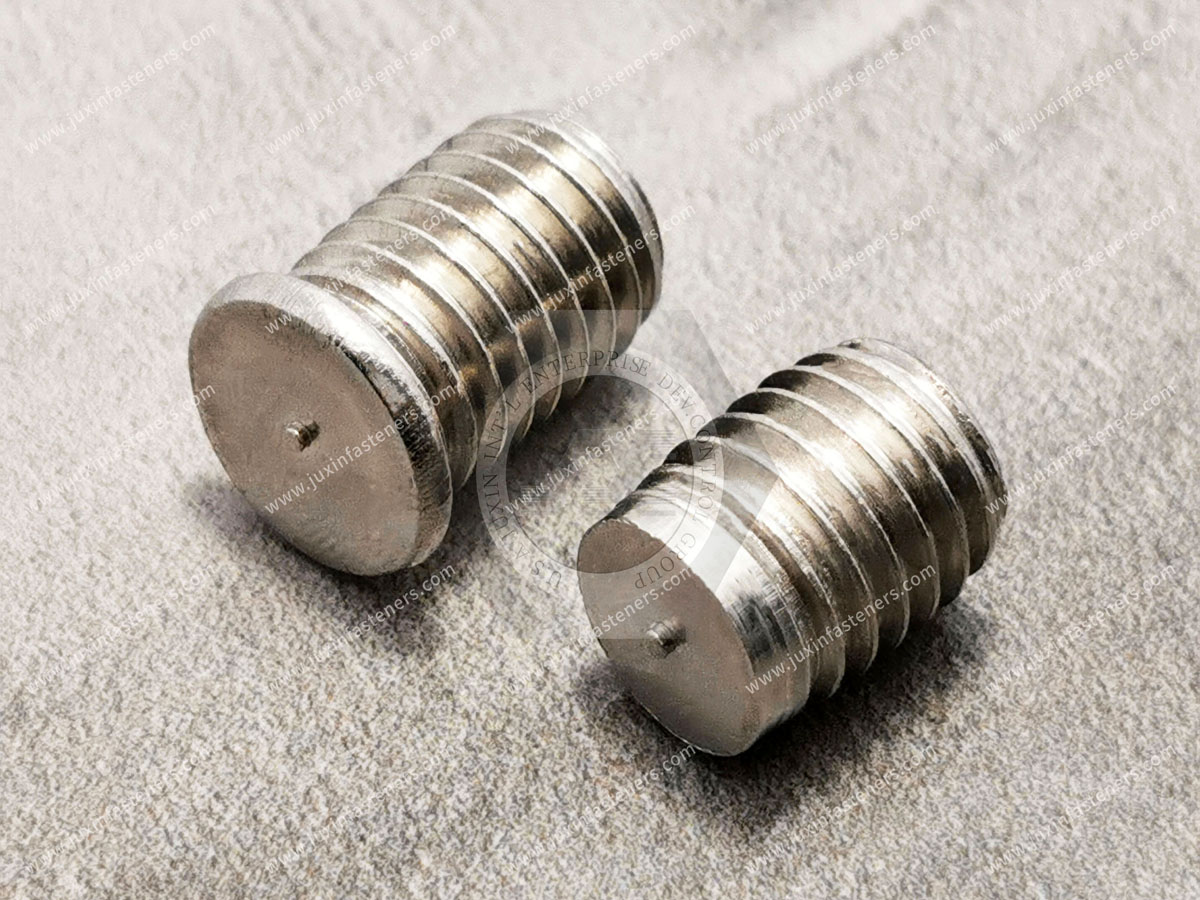

The flange design increases the contact area during welding, improving load distribution and ensuring higher pull-out strength compared to non-flanged CD weld studs.

 Key Advantages of Flanged CD Weld Studs

One of the primary advantages of Flanged CD Weld Studs (CDF / ACD) is their ability to deliver strong and consistent welds on thin sheet materials without surface damage.

Unlike traditional fastening methods such as riveting or tapping, CD stud welding eliminates the need for pre-drilling and does not require additional consumables such as flux.

The extremely short weld time—typically 4 to 6 milliseconds—allows production rates of up to 30–50 CD weld studs per minute, making it highly suitable for automated manufacturing lines.

The low heat input characteristic of capacitor discharge stud welding significantly reduces the risk of:

• Sheet metal deformation

• Burn-through on thin plates (<1.0 mm)

• Surface marking on visible panels

This makes Flanged CD Weld Studs ideal for applications requiring both structural strength and high surface quality.

 Automotive Manufacturing Applications

In the automotive industry, Flanged CD Weld Studs – Inch / Metric are extensively used in body-in-white (BIW) assembly processes. They are commonly applied for fastening wiring harnesses, interior trim components, insulation materials, and carpet systems directly onto vehicle body panels.

This hole-free fastening method improves the overall integrity of the vehicle structure while enhancing sealing performance and contributing to better NVH (Noise, Vibration, Harshness) characteristics.

In addition, CD weld studs are widely used in automotive electrical systems, where they provide reliable grounding and stable electrical connectivity between body panels and chassis systems. Copper-plated mild steel CD weld studs are especially effective in ensuring consistent current transmission in these applications.

 Industrial & Electrical Applications

Beyond automotive manufacturing, Flanged CD Weld Studs (CDF / ACD Series) are widely used in:

• Electrical control cabinets

• Power distribution enclosures

• Industrial sheet metal housings

• PCB mounting and electronic assemblies

In these applications, CD stud welding provides a clean and efficient fastening solution that eliminates secondary operations and improves assembly efficiency.

The use of stainless steel CD weld studs ensures long-term corrosion resistance, while aluminum variants are preferred in lightweight structural designs.

 Process Control & Welding Quality Requirements

To ensure consistent welding quality when using Flanged CD Weld Studs, strict process control is required.

Welding parameters such as current, discharge time, and stud lift height must be precisely adjusted according to material type and thickness. Incorrect parameter settings may lead to defects such as incomplete fusion or porosity.

Surface preparation is equally important. Oil, oxide layers, and contamination on the workpiece surface are major causes of welding defects and must be thoroughly removed before production.

For optimal results, the welding area should maintain a flat contact surface, typically within a 25–30 mm diameter zone. Welding on curved, uneven, or double-layered surfaces should be avoided whenever possible.

For thin sheet metal applications below 0.8 mm, backing support is recommended to prevent deformation during the welding process.

 Quality Inspection Standards

Industry-standard quality control methods for CD Weld Studs include visual inspection, non-destructive hammer testing, and destructive torque or tensile strength testing on sampled units.

These inspection methods ensure that each Flanged CD Weld Stud installation meets the required mechanical strength and reliability standards for industrial use.

 Future Development Trends

With the advancement of automotive electrification and lightweight vehicle design, Capacitor Discharge Stud Welding Technology continues to evolve.

Modern developments focus on improving compatibility with advanced materials such as aluminum alloys, which present challenges due to high thermal conductivity and surface oxidation behavior.

At the same time, CD stud welding systems are increasingly integrated with robotic automation and smart manufacturing platforms. Real-time monitoring and adaptive parameter control technologies are being adopted to ensure consistent welding quality and higher production stability in large-scale industrial environments.

Conclusion

Flanged CD Weld Studs – Inch / Metric (CDF / ACD Series) provide a highly efficient, low-distortion, and automation-ready fastening solution for modern manufacturing industries.

With their ultra-fast welding cycle, minimal heat input, and excellent mechanical performance, they are widely used in automotive body structures, electrical systems, and industrial sheet metal assemblies.

For manufacturers seeking a reliable Capacitor Discharge CD Weld Stud solution, the flanged design offers the ideal balance between production efficiency, structural strength, and surface quality.
