Weld Stud Solutions for Solar Photovoltaic Mounting

Weld Stud Solutions for Solar Photovoltaic Mounting Systems

Reliable Fastening Technology for PV Bracket Structures

With the rapid global expansion of solar photovoltaic (PV) power generation, the demand for high-strength, corrosion-resistant, and long-lasting structural connections in photovoltaic mounting systems has increased significantly.

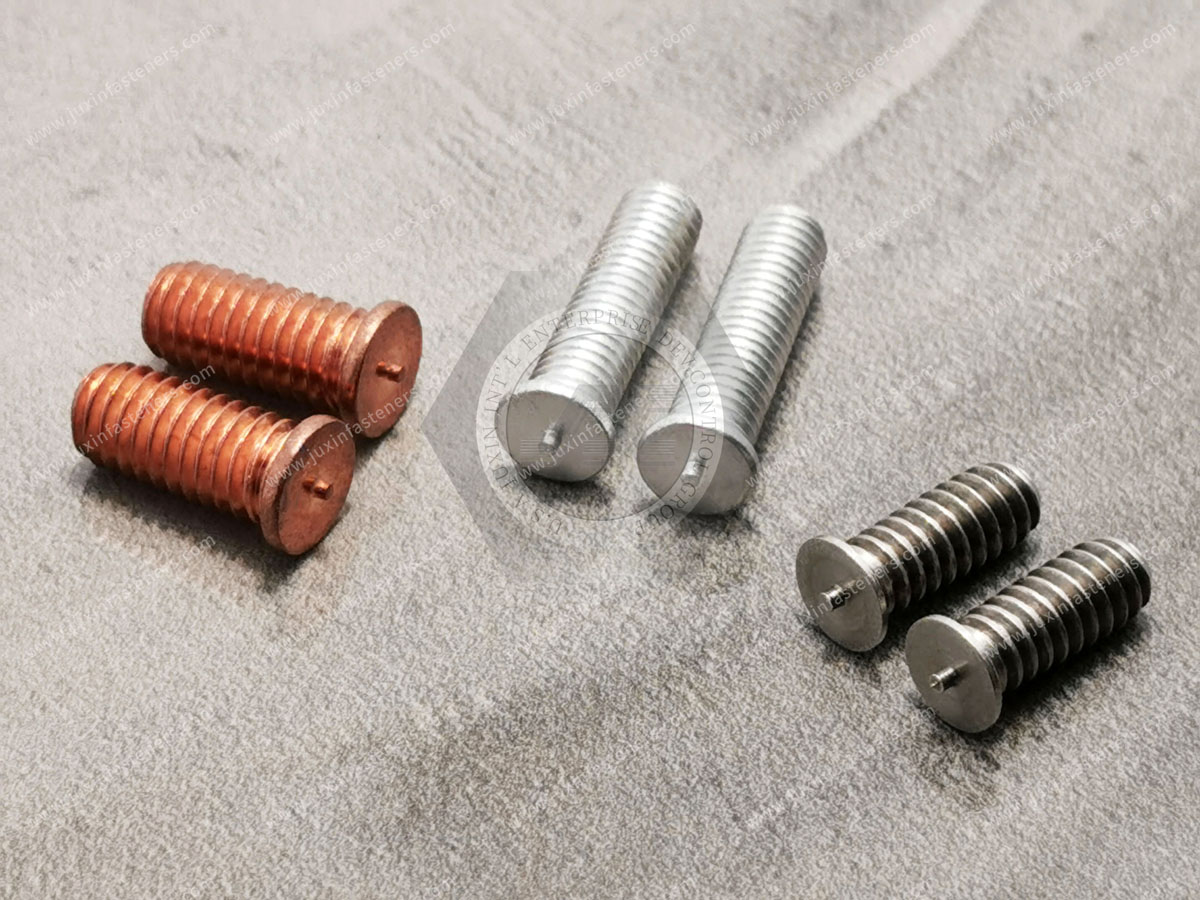

Weld studs are widely used in manufacturing solar panel mounting brackets, PV support structures, and solar equipment frames, providing strong, reliable fastening points for structural assembly.

Compared with traditional welding and mechanical fastening methods, stud welding offers important advantages, including high installation efficiency, strong structural integrity, reduced deformation, and improved corrosion protection, making it an ideal fastening solution for modern solar mounting system manufacturing.

Challenges in Traditional Welding for Photovoltaic Bracket Structures

Photovoltaic support structures are commonly manufactured from materials such as:

• Galvanized carbon steel

• Aluminum alloy

• Stainless steel

When using conventional welding processes such as arc welding or MAG welding, manufacturers often encounter several challenges.

Structural Deformation of Long Brackets

Solar mounting beams and support structures often exceed 6 meters in length. Traditional welding introduces concentrated heat that can cause local thermal distortion, leading to structural deformation and reduced alignment accuracy of solar arrays.

Excessive deformation can affect:

• Structural stability of PV arrays

• Installation precision

• Wind resistance performance of solar systems

Damage to Protective Coatings

Most PV mounting systems use galvanized steel for long-term outdoor corrosion protection.

High-temperature welding processes can damage the zinc coating near the weld, creating potential corrosion zones and reducing the structure's service life.

Since PV systems are designed for 20–25 years of outdoor operation, maintaining the integrity of the corrosion-resistant coating is essential.

Low Production Efficiency

Traditional welding processes often require:

• Multiple welding passes

• Skilled manual welders

• Post-weld straightening

• Surface treatment or zinc repair

These additional steps reduce production efficiency and increase manufacturing costs for large-scale PV mounting structures.

Weld Stud Technology for Photovoltaic Mounting Structures

Weld studs provide an efficient fastening solution for photovoltaic bracket manufacturing by creating strong threaded attachment points directly on structural components.

Through stud welding, the stud base fuses with the metal surface, forming a permanent metallurgical bond while minimizing heat input to the surrounding structure.

This process allows manufacturers to install high-strength threaded mounting points without compromising the structural integrity of PV support frames.

 Typical Applications of Weld Studs in Solar Mounting Systems

PV Bracket Structural Connections

Weld studs are widely used in ground-mounted and rooftop photovoltaic bracket systems to secure structural elements such as:

• Cross beams

• Support columns

• Diagonal braces

• Structural reinforcement plates

These connections ensure reliable load transfer across the mounting system.

Installation of Solar Module Frames

Photovoltaic module frames require precise and durable attachment points.

Stud welding fasteners provide threaded mounting points for:

• Solar panel clamps

• Module support rails

• Frame connectors

This simplifies installation and improves overall structural stability.

Equipment Enclosures and Control Cabinets

Solar energy systems often include additional equipment such as:

• Inverter cabinets

• Electrical control boxes

• Monitoring equipment enclosures

Weld studs allow secure installation of internal components while maintaining clean external surfaces and strong structural support.

Tracking System Components

In advanced photovoltaic systems, solar tracking brackets require precise mechanical structures and durable fastening points.

Weld studs are used to secure:

• Rotating bracket components

• Drive system supports

• Structural reinforcement parts

These applications require fastening solutions that can withstand continuous mechanical movement and environmental exposure.

Advantages of Weld Studs in PV Mounting System Manufacturing

High Structural Strength

Stud welding creates a permanent metallurgical bond between the stud and base metal, providing excellent tensile and shear strength.

This ensures reliable performance under wind loads, mechanical stress, and long-term outdoor operation.

Reduced Structural Deformation

Compared with traditional welding seams, stud welding introduces less heat into the structure, helping reduce thermal distortion in long photovoltaic support beams.

Improved Corrosion Protection

Since the welding area is localized and controlled, protective coatings such as galvanization remain largely intact, helping maintain long-term corrosion resistance.

Higher Production Efficiency

Stud welding supports automated production lines, enabling rapid installation of fastening points with consistent quality.

This helps manufacturers achieve:

• Faster production cycles

• Lower labor costs

• Improved manufacturing consistency

Supporting the Long-Term Reliability of Solar Energy Infrastructure

As the global photovoltaic industry continues to grow, manufacturers must balance quality, cost efficiency, and long-term reliability in PV mounting system design.

Weld studs provide a proven fastening solution that supports these goals by enabling strong, efficient, and durable structural connections in solar mounting structures.

From PV bracket fabrication to solar equipment assembly, stud welding fasteners play a critical role in improving manufacturing efficiency and ensuring the long service life of photovoltaic installations.
