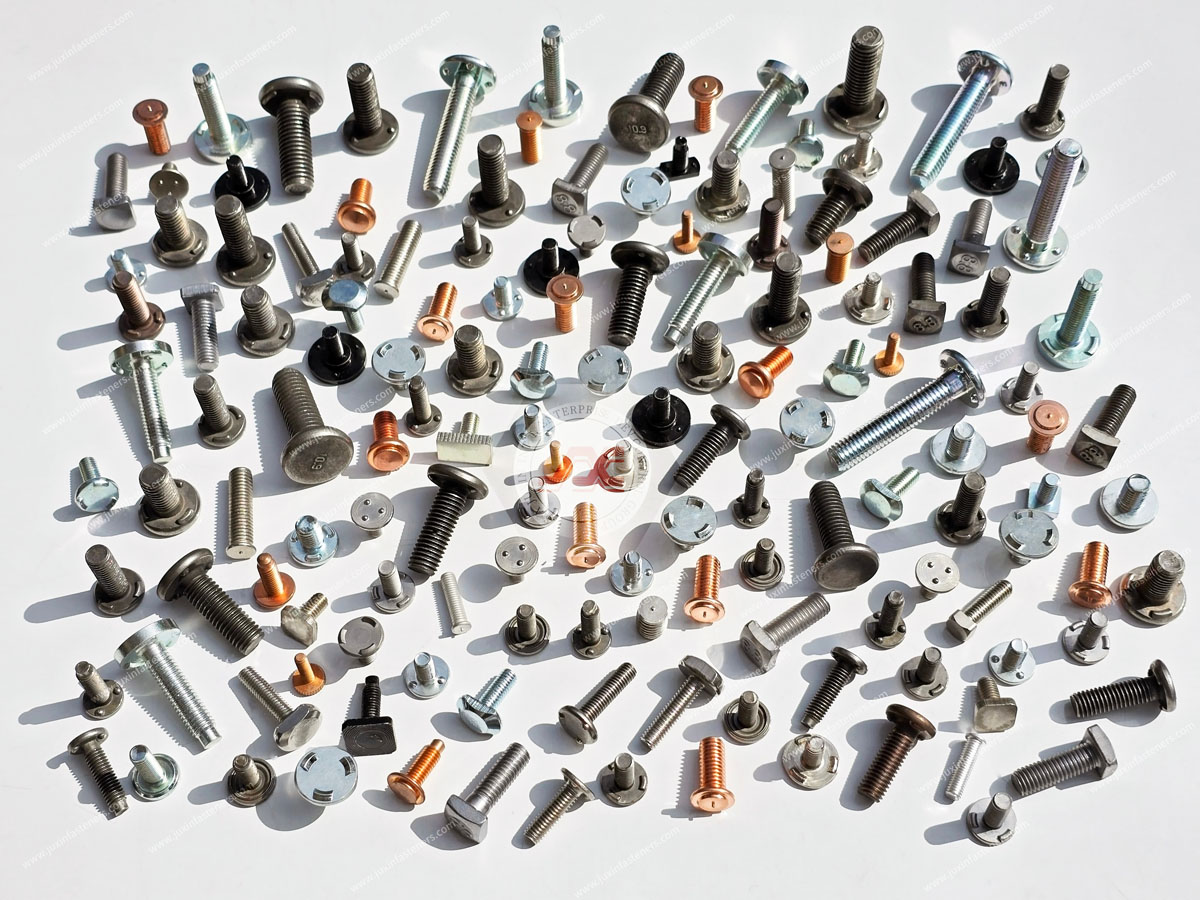

Weld Stud with 3 Projections Under the Head for Mechanical

Weld Stud with 3 Projections Under the Head for Mechanical & Industrial Equipment

6-32 Weld Stud with 3 Projections Under the Head

8-32 Weld Stud with 3 Projections Under the Head

10-24 Weld Stud with 3 Projections Under the Head

10-32 Weld Stud with 3 Projections Under the Head

1/4-20 Weld Stud with 3 Projections Under the Head

1/4-28 Weld Stud with 3 Projections Under the Head

5/16-18 Weld Stud with 3 Projections Under the Head

5/16-24 Weld Stud with 3 Projections Under the Head

3/8-16 Weld Stud with 3 Projections Under the Head

3/8-24 Weld Stud with 3 Projections Under the Head

1/2-13 Weld Stud with 3 Projections Under the Head

M3.5 x 0.60 Weld Stud with 3 Projections Under the Head

M4 x 0.70 Weld Stud with 3 Projections Under the Head

M5 x 0.80 Weld Stud with 3 Projections Under the Head

M6 x 1.00 Weld Stud with 3 Projections Under the Head

M8 x 1.25 Weld Stud with 3 Projections Under the Head

M10 x 1.50 Weld Stud with 3 Projections Under the Head

M12 x 1.75 Weld Stud with 3 Projections Under the Head

Reliable Stud Welding Fastening Solutions for Metal Cabinets, Enclosures, and Structural Brackets

In the mechanical and industrial equipment industry, reliable fastening solutions are essential for assembling metal cabinets, equipment enclosures, structural brackets, and industrial housings. Weld studs with 3 projections under the head provide a highly efficient and durable fastening solution widely used in sheet metal fabrication and equipment manufacturing.

Using stud welding technology, these specialized weld studs can be permanently attached to metal panels without drilling or tapping, creating strong threaded mounting points for subsequent component installation. The three projections under the head help concentrate welding energy and ensure stable positioning, consistent weld quality, and strong mechanical bonding.

Because of their high installation efficiency, excellent vibration resistance, and compatibility with automated production lines, weld studs with 3 projections are widely used in the assembly of metal cabinets, equipment frames, electrical enclosures, and industrial brackets.

What Is a Weld Stud with 3 Projections Under the Head?

A Weld Stud with 3 Projections Under the Head is a specially designed stud-welding fastener featuring three small projections beneath the head. These projections help concentrate the welding current and heat during welding, enabling the stud to fuse securely with the base metal.

This design offers several advantages for industrial applications:

• Stable positioning during welding

• Consistent weld penetration

• Improved weld strength and reliability

• Minimal distortion of thin sheet metal

As a result, these weld studs are particularly suitable for industrial sheet metal structures and equipment enclosures.

Key Applications in Mechanical and Industrial Equipment

Metal Cabinets and Equipment Enclosures

In the manufacturing of industrial cabinets, sheet metal enclosures, and equipment housings, weld studs with three projections are widely used to install internal components.

Typical applications include:

• Mounting plates

• Guide rails

• Cable management trays

• Door lock mechanisms

• Internal electrical components

Compared with traditional fastening methods that require drilling holes or welding nuts, stud welding allows the fastener to be attached directly to the cabinet surface without damaging protective coatings such as electroplating or powder coating.

This process helps maintain the enclosure's surface integrity, corrosion protection, and aesthetic appearance while significantly improving assembly efficiency.

Sheet Metal Equipment Housings

Many types of industrial equipment rely on precision sheet metal housings for protection and structural support.

Common examples include:

• Instrument enclosures

• Shielded equipment cabinets

• Medical device housings

• Industrial control cabinets

• Beauty equipment enclosures

Using projection weld studs allows manufacturers to create internal threaded mounting points without affecting the external surface, ensuring both functional performance and clean product design.

Structural Brackets and Industrial Frames

Industrial equipment often includes metal brackets and structural frames that require strong fastening points for component installation.

Weld studs with three projections provide reliable connections for:

• Equipment support brackets

• Frame structures

• Mounting platforms

• Internal mechanical assemblies

The welded connection forms a permanent metallurgical bond between the stud and the base metal, delivering higher strength than many conventional mechanical fastening methods.

Enhanced Connection Strength and Vibration Resistance

Industrial equipment frequently operates in environments with continuous vibration, mechanical loads, or movement. For these conditions, fastening systems must provide high strength and long-term stability.

Through arc stud welding or capacitor discharge welding, the base of the stud melts and fuses with the sheet metal substrate, creating a molecular-level bond between the two materials.

Key performance advantages include:

• High tensile strength

• Excellent shear resistance

• Strong vibration resistance

• Long-term structural stability

This welded connection helps prevent fastener loosening due to vibration, ensuring the safe and reliable operation of industrial equipment.

Support for Modular Equipment Design

Modern industrial equipment increasingly adopts modular design concepts to improve manufacturing efficiency and simplify maintenance.

Weld studs with 3 projections under the head support modular equipment assembly by enabling designers to standardize stud locations across structural panels.

Benefits include:

• Faster installation of functional modules

• Easy replacement of internal components

• Reduced assembly time on production lines

• Simplified equipment maintenance and upgrades

In many cases, additional weld studs can also be installed during equipment upgrades without disassembling the entire structure, reducing maintenance costs and downtime.

Important Process Considerations for Stud Welding

To achieve optimal performance when using projection weld studs in sheet metal cabinets and industrial enclosures, manufacturers should pay attention to several process factors.

Proper Welding Parameter Control

Welding current, time, and pressure must be properly adjusted according to:

• Base material type (carbon steel or stainless steel)

• Sheet metal thickness

• Stud size and geometry

Incorrect parameters may cause insufficient weld penetration or burn-through on thin metal sheets.

Welding Quality Inspection

After welding, weld joints should be inspected to ensure:

• Strong bonding between stud and base metal

• No porosity or slag inclusions

• Proper stud alignment

For critical structural components, additional mechanical strength testing may be required.

Corrosion Protection

To extend service life, welded areas should receive proper anti-corrosion treatment, especially when equipment operates in outdoor or humid environments.

Common protection methods include:

• Zinc plating

• Anti-rust coatings

• Protective painting

Conclusion

Weld studs with 3 projections under the head provide an efficient and reliable fastening solution for the mechanical and industrial equipment industry. From metal cabinets and sheet-metal enclosures to industrial brackets and equipment frames, these stud-welding fasteners enable strong, vibration-resistant, high-efficiency assembly.

With their compatibility with automated sheet-metal production lines, strong welded connections, and support for modular equipment design, projection-weld studs continue to play an important role in modern industrial equipment manufacturing.
