Automotive gear shifting mechanisms rely on a combination of shafts, pins, pivot components, sliding elements, and fastening hardware to translate driver or actuator input into controlled mechanical movement.
Product Specification
Automotive gear shifting mechanisms rely on a combination of shafts, pins, pivot components, sliding elements, and fastening hardware to translate driver or actuator input into controlled mechanical movement.
Depending on the vehicle architecture, these components may be used around a shift lever, selector mechanism, linkage, rocker,
pivot interface, or other mechanical connection. Although the individual components can appear relatively simple,
their performance depends on the relationship between geometry, mating components, dimensional requirements, material, surface condition, assembly method, and operating environment.
For engineers, the central question is therefore not simply which “fastener” to select. It is how to define the mechanical interface
that allows the required movement while maintaining the specified dimensional and functional requirements.
For procurement and supply chain teams, many of these components are customer-specific rather than generic catalog hardware.
A drawing or CAD model, material specification, dimensional requirements, surface treatment, quantity, packaging,
and application information may all be required to source the correct component.
JUXIN FASTENERS supplies customer-specific and non-standard automotive fastening and mechanical components according to approved drawings,
specified materials, surface finishes, dimensional requirements, and application conditions.
Automotive shifting systems combine mechanical movement with tightly defined interfaces.
A shift lever, rocker, shaft, pin, or sliding component may need to move relative to another component while maintaining the required alignment and dimensional relationship.
This creates several engineering considerations.
A shifting mechanism is essentially a mechanical movement system.
Depending on the design, components may rotate, pivot, slide, or move through a combination of these motions.
For this reason, the relationship between the component and its mating interface is critical.
Engineers may need to evaluate:
Pivot-axis location
Shaft diameter
Pin diameter
Component length
Mating-hole geometry
Radial or axial clearance
Alignment
Retention method
Surface condition
Assembly sequence
Required movement range
A component can have the correct nominal diameter and still be unsuitable if its overall geometry, shoulder position, length, retention feature, or mating interface does not match the assembly.
Shift mechanisms can be sensitive to dimensional variation because several components may work together within a relatively compact mechanism.
The relevant question is not necessarily whether every dimension must be as small as possible.
Instead, the engineering requirement is to establish the dimensional relationship needed for the intended movement.
For example, an interface may require sufficient clearance for rotation while maintaining the required positional relationship between the mating components.
This means that engineers should distinguish between:
Dimensional Accuracy
and
Functional Clearance
They are related, but they are not the same requirement.
A tighter tolerance is not automatically better if the resulting interface does not accommodate the required movement, assembly variation, lubrication condition, or operating environment.
Gear shifting mechanisms can be actuated repeatedly throughout vehicle operation.
Repeated movement can make the interface between shafts, pins, bushings, levers, rocker components, and sliding elements important to the long-term function of the mechanism.
Depending on the design, engineers may therefore evaluate:
Contact surfaces
Material pairing
Surface condition
Clearance
Lubrication requirements
Alignment
Load direction
Movement frequency
Environmental exposure
Dimensional stability
The appropriate specification depends on the actual mechanism and should be established from the customer's engineering requirements.

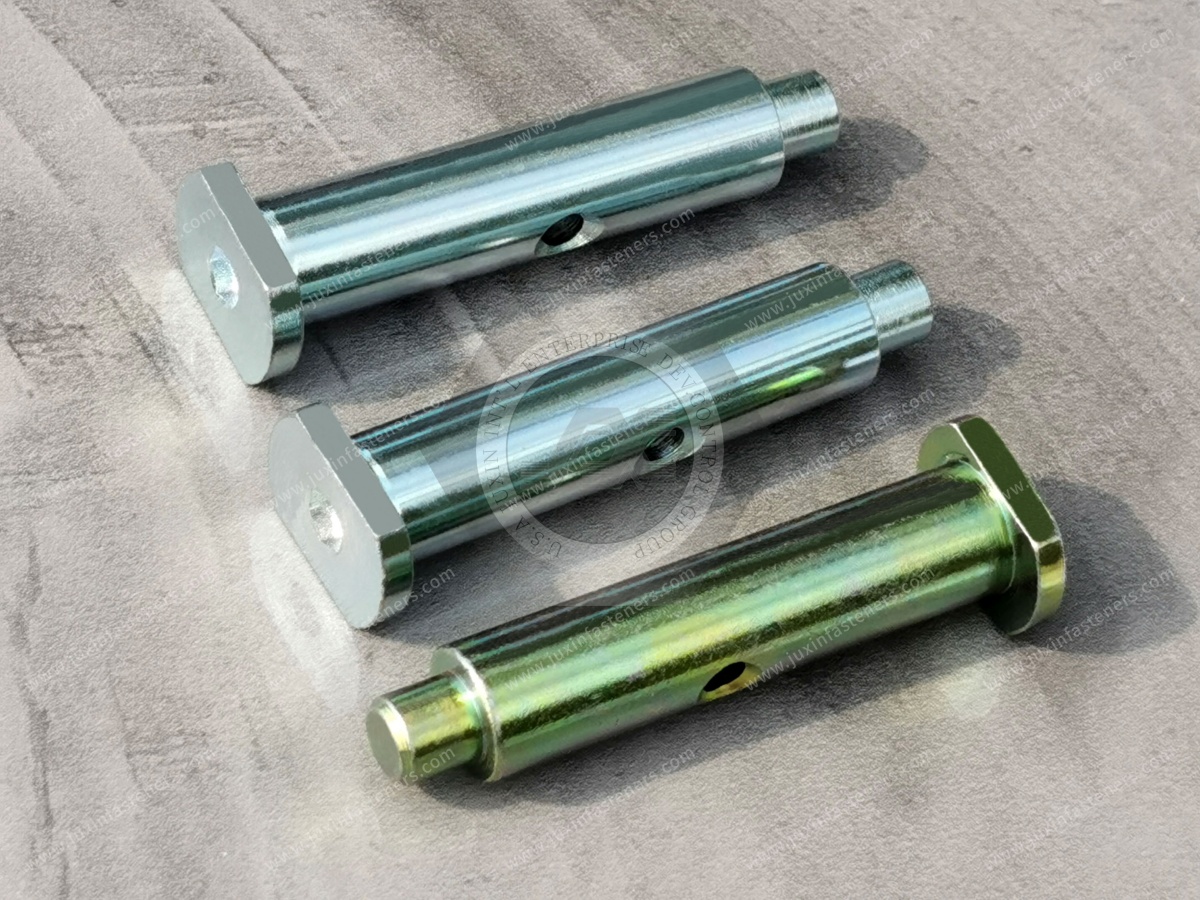

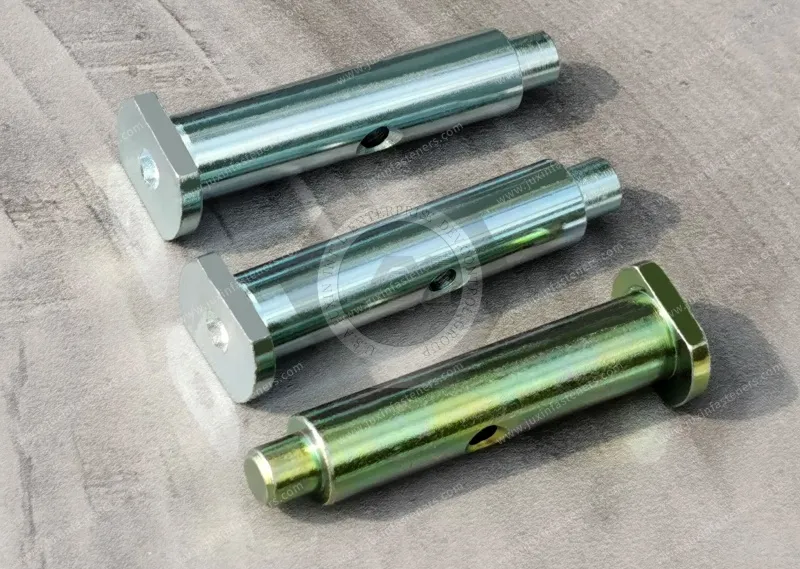

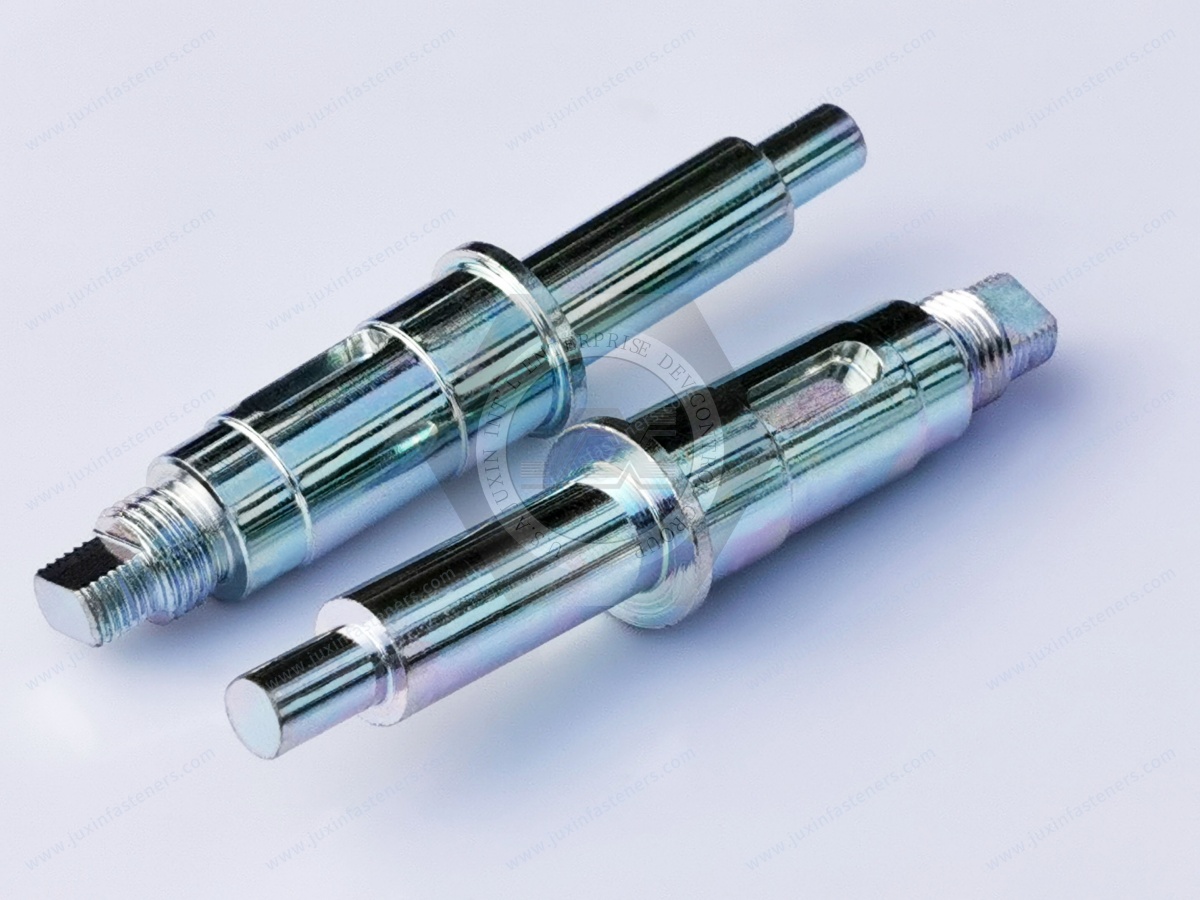

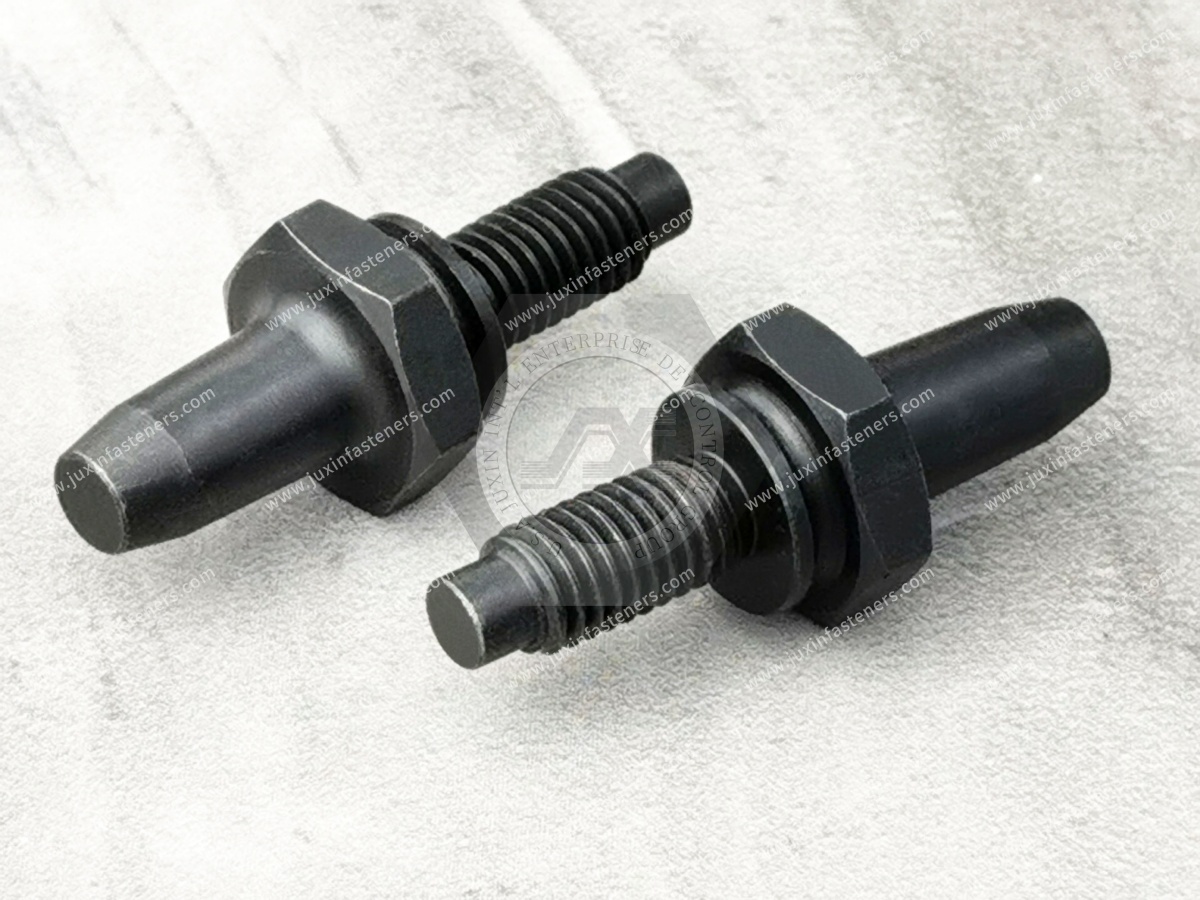

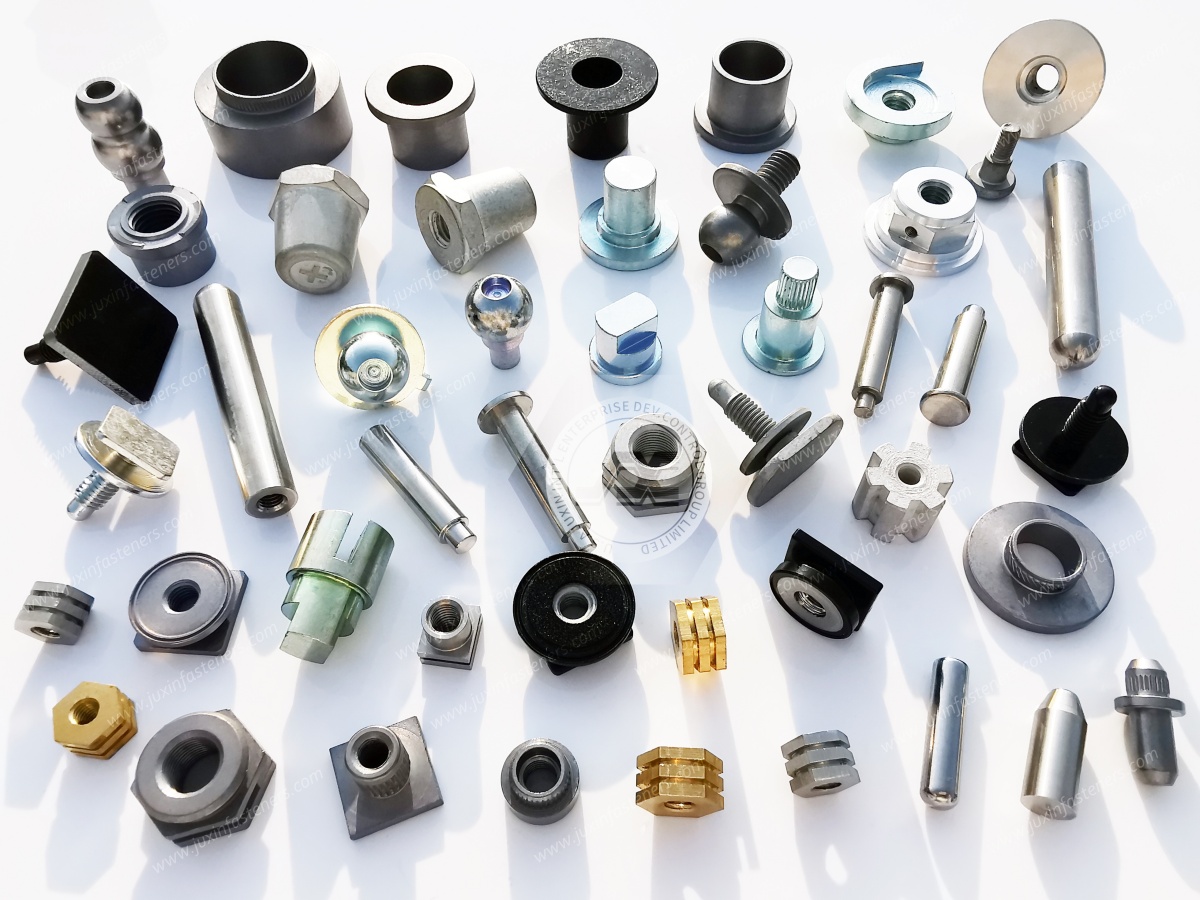

Shift shafts and pivot pins are common examples of application-specific components used to establish or support rotational movement within automotive shifting mechanisms.
These components may function as rotational axes, linkage interfaces, locating elements, or mechanical connections depending on the specific design.
Potential component types include:
Shift shafts
Shift pins
Rolling shafts
Fixed pivot shafts
Swing or pivot shafts
Shift sliding columns
Rocker pivot shafts
Ball pins
These names describe component functions or common application terminology rather than a universal dimensional standard.
The actual component specification should therefore be established from the customer's drawing, CAD model, or technical requirements.
A shift shaft may provide a rotational or mechanical interface within a shifting mechanism.
Its engineering definition can include:
Shaft diameter
Overall length
Shoulder locations
End geometry
Retention features
Mating-hole dimensions
Dimensional tolerances
Surface requirements
Material
Assembly method
The shaft should be evaluated as part of the complete mechanism rather than as an isolated cylindrical component.
Pivot pins can provide a defined rotational interface between a lever, rocker, linkage, bracket, or other mating component.
The engineering requirement may depend on:
Pin diameter
Pin length
Head or shoulder geometry
Retention method
Hole geometry
Mating materials
Required movement
Surface condition
Assembly sequence
A visually similar pin may not be interchangeable if the shoulder position, retention method, diameter, or overall length differs.

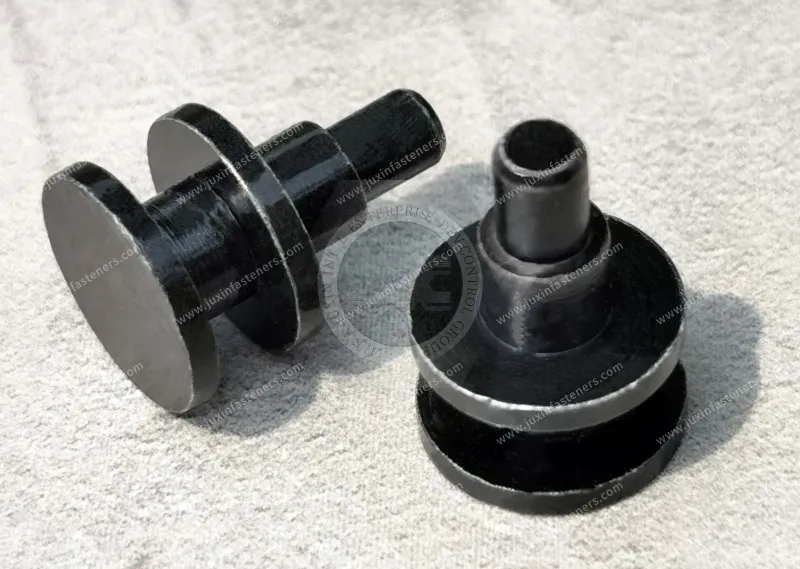

Rocker pivot shafts can be used where a rocker or lever rotates around a defined axis.
For these components, positional accuracy can be particularly important because the shaft establishes the relationship between the rocker and its surrounding mechanism.
The required geometry should therefore be based on the actual mating components and kinematic requirements.
Rolling shafts and swing or pivot shafts can be used in mechanisms where controlled mechanical movement occurs around or along a defined interface.
Depending on the application, the design may require specific:
Diameters
Lengths
End configurations
Shoulder features
Surface conditions
Retention methods
Material specifications
These components are often better described as application-specific mechanical components rather than generic automotive fasteners.
Not every shifting mechanism depends exclusively on rotational movement.
Some mechanisms incorporate sliding elements such as shift sliding columns or other guided components.
For sliding interfaces, engineers may need to evaluate:
Sliding direction
Contact geometry
Clearance
Surface condition
Material pairing
Lubrication
Environmental exposure
Required movement range
Dimensional consistency
The design objective is not simply to make the surface as smooth or as hard as possible.
The appropriate surface condition depends on the mating material, contact geometry, operating conditions, lubrication strategy, and customer-defined requirements.
This is another reason why generic statements such as “low friction” or “high wear resistance” are incomplete engineering specifications.

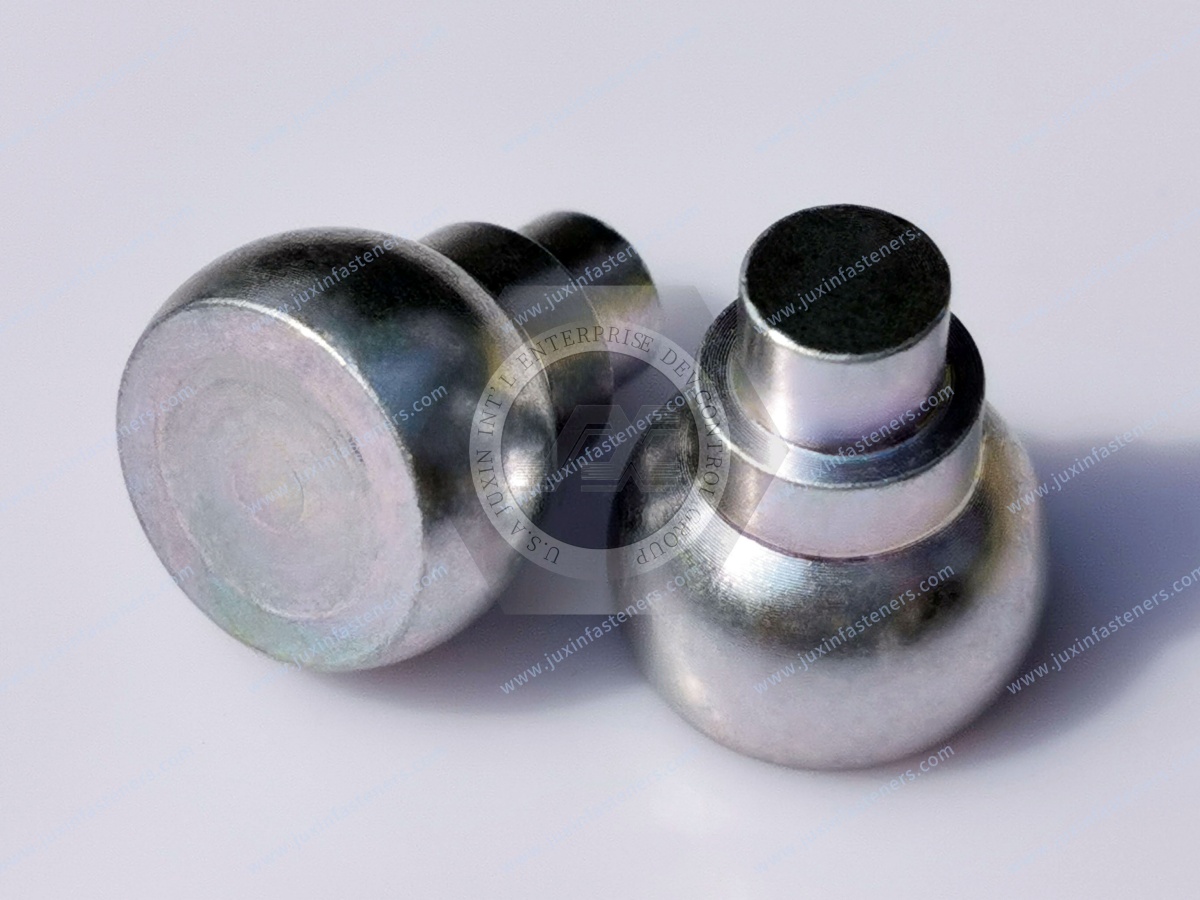

Ball pins can provide a different type of mechanical interface from a simple cylindrical pivot.
Depending on the mechanism, a ball pin can connect a linkage or actuator to a mating component while allowing the required angular movement.
Engineering considerations can include:
Ball geometry
Stud or shaft geometry
Mating socket or interface
Retention
Material
Surface condition
Dimensional requirements
Assembly method
Required range of movement
The actual ball geometry and mating interface must follow the customer-defined application.
Material selection should follow the mechanical function and interface requirements of the component.
Potential material families can include carbon steels, alloy steels, stainless steels, aluminum alloys, and other customer-specified materials depending on the application.
The correct material cannot be selected from the component name alone.
Engineers may need to consider:
Required mechanical properties
Mating material
Contact conditions
Corrosion environment
Wear considerations
Surface treatment
Temperature exposure
Manufacturing requirements
Dimensional stability
Assembly conditions
For example, a pivot component operating against a different material may have different surface and material requirements from a component used primarily as a static positioning pin.
A shift-system component should be evaluated together with its mating component.
The combination of:
Component Material + Mating Material + Surface Condition + Contact Geometry
can influence friction, wear behavior, corrosion considerations, dimensional stability, and assembly requirements.
This is more useful than simply specifying “steel shaft” or “stainless steel pin” without defining the application.
Surface treatment can be specified where the component requires additional corrosion protection, surface characteristics, wear considerations, or controlled friction behavior.
The appropriate treatment depends on the material and application.
Potential surface treatment families may include:
Zinc-based coatings
Zinc-Nickel Alloy coatings
Anodizing
Hard anodizing
Electroless nickel
Functional coatings
Lubricating or friction-control coatings
Not every treatment is appropriate for every shift component.
Zinc-Nickel Alloy coatings can be specified for selected steel components where corrosion protection is an important part of the application requirement.
For components exposed to moisture or other corrosive conditions, coating selection should consider:
Base material
Mating materials
Environmental exposure
Thread or contact interface
Assembly requirements
Required corrosion performance
Customer specifications
The actual corrosion requirement should be established from the vehicle application rather than assuming a universal coating performance level.
For selected aluminum alloy components, anodizing or hard anodizing may be considered according to the required surface characteristics and application conditions.
The final specification should consider:
Aluminum alloy
Component geometry
Mating material
Contact condition
Dimensional requirements
Wear considerations
Environmental exposure
One important engineering consideration in shifting mechanisms is that surface condition can influence how two components move relative to each other.
For a rotational or sliding interface, engineers may need to consider:
Geometry → Material Pairing → Surface Condition → Lubrication → Movement
Changing one element can influence the behavior of the complete interface.
For example, changing a coating may alter the surface condition and friction behavior. Changing a material pairing can also change contact behavior.
Therefore, a surface treatment should not be specified independently from the mechanical interface.
This is particularly important for customer-specific shift shafts, pivot shafts, pins, and sliding components.
A useful way to define an automotive shift-system component is to start with the movement rather than the product name.
Is the component primarily:
Rotating?
Pivoting?
Sliding?
Locating?
Retaining?
Connecting?
Supporting a linkage?
Identify:
Mating hole
Shaft bore
Bushing
Rocker
Lever
Linkage
Bracket
Socket
Sliding track
Other mating geometry
Specify:
Diameter
Length
Shoulder location
Head or end geometry
Retention features
Chamfers or radii where required
Special profiles
Identify the dimensions and tolerances that are functionally important.
Not every dimension necessarily requires the same tolerance level.
The drawing should distinguish critical functional dimensions from non-critical dimensions where appropriate.
Specify the required material or material family according to the engineering design.
Where applicable, define:
Surface finish
Coating
Heat treatment requirement
Lubrication
Friction-control requirement
Identify how the component is installed and retained.
Consider:
Moisture
Temperature
Vibration
Repeated movement
Contamination
Lubrication
Corrosive exposure
This creates a much more useful specification than simply asking a supplier for a “shift pin.”
A threaded bolt is designed primarily around a threaded fastening interface.
A shift shaft or pivot pin may instead be designed around:
Rotational movement
Controlled diameter
Bearing or mating surface
Shoulder location
Retention
Alignment
Clearance
Specific component geometry
Therefore, replacing an application-specific shaft or pin with a generic bolt simply because the diameter appears similar may change the mechanical interface.
For automotive OEM applications, the correct component should be selected from the actual engineering requirements.
This distinction also matters for procurement.
A supplier offering a visually similar standard component is not necessarily offering an equivalent engineering solution.
The shifting mechanism itself may contain metal precision components, while surrounding vehicle assemblies can incorporate polymer fastening components.
For example, the center console or trim surrounding a selector mechanism may use:
Automotive trim clips
Plastic retainers
Screw-type retainers
Plastic push rivets
Other application-specific plastic fastening components
The mechanical shift mechanism and the surrounding trim therefore represent different fastening requirements within the same vehicle area.
JUXIN FASTENERS supplies customer-specific plastic and metal fastening components across these automotive applications.
For broader polymer fastening applications, see the JUXIN FASTENERS guide to automotive plastic fasteners.
Automotive fastening requirements extend well beyond the shifting mechanism.
Different vehicle systems can require completely different component geometries and engineering considerations.
Chassis and undercarriage applications can include:
Rivet nuts
Aluminum alloy fasteners
Customer-specific bolts
Weld nuts
Self-locking nuts
Other application-specific fastening components
Environmental exposure, mating materials, surface treatment, thread geometry, and assembly requirements can all influence the specification.
See the related automotive chassis and undercarriage fastening solutions.
Automotive wiper systems can use:
Stainless steel solid rivets
Stainless steel shoulder rivets
Step rivets
Customer-specific linkage components
These applications involve repeated movement and require careful consideration of pivot geometry, material, dimensional consistency, and assembly requirements.
See the related automotive wiper system fastening solutions.
Rear spoiler assemblies can combine polymer and metal components.
A customer-specific Nylon Rear Spoiler Clip may work together with an Automotive Spoiler Slide Bolt depending on the assembly design.

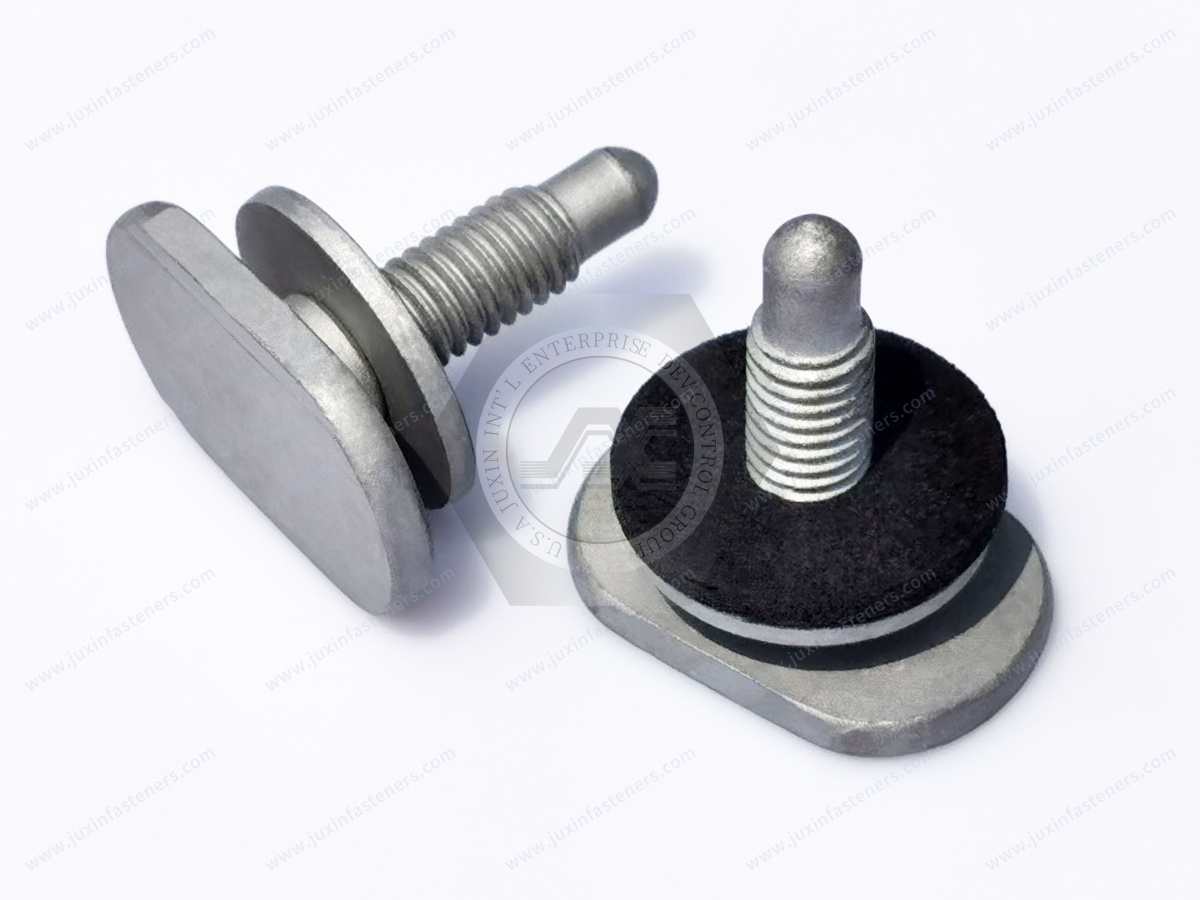

JUXIN FASTENERS has confirmed spoiler slide bolt configurations including M5 and M6 applications, with representative M6 × 14 and M6 × 20 configurations.
Applicable property classes include 8.8 and 10.9 for specified configurations. Finish options may include Color Zinc, Zinc-Nickel Alloy, and Black Zinc. Certain configurations may also include a pre-applied thread-locking patch where specified.
The slide bolt uses a special head geometry that can engage a mounting slot, track, or channel.
The basic installation concept is:
Slide → Position → Engage → Tighten
Depending on the mating geometry, the engaged head may help resist rotation.
The final performance depends on the complete spoiler mounting interface and customer-defined assembly requirements.
The same shift shaft or pivot pin can generate very different questions from engineering and procurement teams.
Design and mechanical engineers may ask:
What is the mating geometry?
What movement does the component support?
What diameter and length are required?
Which dimensions are functionally critical?
What clearance is required?
What material is specified?
What surface condition is required?
What retention method is used?
What assembly method applies?
What environmental conditions must be considered?
These questions define whether the component is technically appropriate.
Procurement and supply chain teams may ask:
Can the supplier manufacture according to the approved drawing?
Can material requirements be controlled?
Can dimensional consistency be maintained?
Can specified surface treatments be supplied?
Can samples be provided for approval?
Can packaging meet customer requirements?
Can production quantities be supported?
Can engineering changes be communicated and controlled?
Can the supplier support long-term supply?
These questions determine whether the component can become a reliable supply-chain item.
A successful sourcing project therefore requires both technical suitability and production consistency.
When sourcing automotive shift system fasteners, precision shafts, pivot pins, or related non-standard components, the following information is useful.
A drawing or CAD model can define:
Overall geometry
Critical dimensions
Mating interfaces
Tolerances
Surface requirements
Material
Special features
Identify the component's function:
Shift lever pivot
Linkage connection
Rocker pivot
Sliding interface
Selector mechanism
Other application-specific function
This information helps distinguish components that may look similar but perform different functions.
Specify the required material or material family where established.
If the material is open for evaluation, provide the functional requirements so the supplier can assess suitable options.
Specify the required coating, surface treatment, lubrication, or friction-related requirement where applicable.
Provide:
Installation method
Retention method
Assembly direction
Tightening requirement if threaded components are involved
Lubrication requirements where applicable
Procurement teams should also provide:
Sample quantity
Expected production quantity
Forecast
Packaging requirements
Inspection requirements
Documentation requirements
Delivery expectations
This allows the supplier to evaluate the component as a complete sourcing project.
“Shift pin” or “shift shaft” is not enough to define an application-specific component.
The drawing and mating interface are usually more important than the generic product name.
Two shafts with the same nominal diameter can have different lengths, shoulders, retention features, materials, or surface requirements.
Wear behavior depends on material pairing, surface condition, contact geometry, lubrication, movement, and operating environment.
The engineering requirement should be defined as specifically as practical.
A change in coating or surface condition can influence friction and dimensional characteristics.
Any finish change should therefore be reviewed against the approved engineering and assembly requirements.
Material compatibility is a system-level consideration.
The component should be evaluated together with the material and surface condition of the mating part.
Shift shafts, pivot pins, ball pins, and sliding columns may be classified as fastening or mechanical components, but their functional requirements are often application-specific.
This is why drawing-based sourcing is usually more appropriate than selecting from a generic catalog.
JUXIN FASTENERS is an OEM-oriented supplier of customer-specific and non-standard automotive fastening and mechanical components.
For automotive shift-system applications, the component scope can include:
Shift shafts
Shift pins
Rolling shafts
Fixed pivot shafts
Swing or pivot shafts
Shift sliding columns
Rocker pivot shafts
Ball pins
Customer-specific screws
Bolts
Nuts
Other application-specific fastening components
JUXIN FASTENERS manufactures customer-specific components according to approved drawings, specified materials, surface treatments, dimensional requirements, and application conditions.
The manufacturing requirement should be defined by the actual component geometry and customer specification rather than by a generic product category.
This approach is particularly relevant for automotive OEM and Tier-level sourcing where the component may be part of a larger mechanical system.
For a customer-specific shift shaft, pivot pin, rolling shaft, sliding column, or related automotive component, provide:
Engineering drawing
3D CAD model where available
Part number
Overall dimensions
Critical dimensional tolerances
Mating-hole dimensions
Material requirement
Surface treatment
Heat treatment requirement where specified
Surface finish requirement where specified
Retention method
Assembly method
Lubrication requirement where applicable
Application description
Initial sample quantity
Expected production volume
Packaging requirements
Inspection requirements
Documentation requirements
If the component is already in production, previous sample information or an approved reference component may also help establish the intended configuration, subject to customer requirements.
What components are commonly used in automotive gear shifting systems?
Automotive gear shifting mechanisms can use shift shafts, shift pins, rolling shafts, fixed pivot shafts, swing or pivot shafts, shift sliding columns, rocker pivot shafts,
ball pins, and other customer-specific mechanical or fastening components. The exact component depends on the vehicle's shifting mechanism and mating interfaces.
What is the difference between a shift shaft and a pivot pin?
A shift shaft typically provides a shaft-based mechanical or rotational interface within a shifting mechanism, while a pivot pin can establish a defined pivot connection between mating components.
The actual function depends on the specific vehicle mechanism and engineering design.
Why are shift shafts and pivot pins often customer-specific components?
Their geometry is commonly defined by the actual mechanism, including diameter, length, shoulders, retention features, mating-hole geometry, clearance, material,
and surface requirements. A generic component may therefore not provide the required interface.
What factors affect automotive shift-system component selection?
Important factors can include movement type, mating geometry, dimensions, tolerances, material, surface condition, retention method, assembly method, lubrication, environmental exposure, and the requirements of the complete mechanical system.
Does a tighter tolerance always improve a shift mechanism?
No. The appropriate tolerance depends on the functional interface. Excessively tight dimensions can affect assembly or required movement, while excessive clearance may affect positional control.
The correct tolerance should therefore be established from the actual mechanism and functional requirements.
What materials can be used for automotive shift shafts and pivot pins?
Depending on the application, materials can include carbon steels, alloy steels, stainless steels, aluminum alloys, or other customer-specified materials.
The appropriate selection depends on mechanical requirements, mating materials, environmental exposure, surface treatment, and assembly conditions.
Can surface treatment affect shift-system performance?
Yes. Surface treatment can influence corrosion protection, surface condition, friction behavior, dimensional characteristics, and interaction with mating components.
The selected treatment should therefore be evaluated together with the complete interface and assembly requirements.
Can Zinc-Nickel Alloy be used on automotive shift components?
Zinc-Nickel Alloy coatings can be specified for selected steel components where corrosion protection is required.
Suitability depends on the base material, application environment, mating materials, coating specification, and customer requirements.
What information should an OEM provide when sourcing custom shift shafts and pins?
A drawing or 3D CAD model, critical dimensions and tolerances, material, surface treatment, mating interface, assembly method, application information, quantity, packaging,
and documentation requirements provide a strong starting point for supplier evaluation.
Can JUXIN FASTENERS supply custom automotive shift system components?
JUXIN FASTENERS supplies customer-specific shift shafts, shift pins, rolling shafts, pivot shafts, sliding columns, ball pins, and other automotive fastening or mechanical components according to approved drawings, specified materials, surface treatments, dimensional requirements, and application conditions.
For automotive shift shafts, pivot pins, rolling shafts, sliding columns, ball pins, and other customer-specific fastening or mechanical components, provide the relevant drawing or CAD data together with the material, surface treatment, application, and production requirements.
JUXIN FASTENERS supplies customer-specific and non-standard automotive components for OEM and industrial applications.
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
Product Packaging
Packaging Standard
At Juxin Fasteners, we apply standardized export packaging to ensure product protection, traceability, and compliance with international logistics requirements.
1. Standard Export Packaging
Unless otherwise specified, all products will be packed according to our factory standard export packaging, which includes:
Moisture-resistant inner protection
Poly bag or small box packing as required
Reinforced export cartons
Clear labeling with part number, specification, batch number, and quantity
Palletizing for sea or air shipment when necessary
Our standard packaging is designed to ensure safe transportation, efficient warehousing, and long-distance international shipping.
2. Customized Packaging Options
We also provide customized packaging solutions according to customer requirements, including but not limited to:
Private labeling
Customized barcodes
Specific carton dimensions
Retail packaging
Special pallet configuration
Customer-specific marking and identification
So that you know, customized packaging may involve additional costs and extended lead time depending on the complexity of the requirements.
3. Compliance & Quality Assurance
All packaging processes are controlled under our ISO 9001 quality management system to ensure consistency, traceability, and product integrity throughout the supply chain.
Product Pictures
Hot Products
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
