Carbon Steel CNC Machining for EV Battery Packs | Custom OEM Parts

Aug. 24, 2026

Carbon Steel CNC Machining for EV Battery Pack Components and OEM Structural Hardware

Electric vehicle battery packs combine mechanical structures, electrical systems, thermal management, sealing interfaces, and safety-related assemblies within a tightly integrated enclosure.

The performance of the battery pack depends on more than the battery cells and modules.

 Mechanical components must also provide secure mounting, controlled spacing, accurate positioning, and reliable assembly under the intended operating conditions.

For selected applications, carbon steel CNC machining provides a manufacturing solution for custom battery pack mechanical components requiring controlled geometry, suitable mechanical strength, repeatable dimensions, and cost-effective production.

Typical components include battery enclosure mounting blocks, precision spacers, compression limiters, locating pins, threaded adapters, sleeves, bushings, and custom structural fastening interfaces.

However, carbon steel is not suitable for every battery pack function.

Its electrical conductivity, corrosion behavior, density, thermal properties, and compatibility with surrounding materials must be considered during component selection.

For example, a carbon steel mounting spacer may be appropriate for a mechanically loaded connection when the electrical isolation and corrosion requirements are properly addressed.

The same material should not automatically be selected for an electrically insulating component, conductive busbar, or specialized coolant-contact interface.

JUXIN FASTENERS supports drawing-based inquiries for custom carbon steel CNC machined components and industrial fastening hardware used in EV battery pack manufacturing.

Depending on part geometry and project requirements, suitable processes may include CNC turning, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Material specifications, manufacturing feasibility, achievable tolerances, surface treatments, inspection requirements, purchasing quantities, and commercial terms should be confirmed for each project.

Carbon Steel CNC Machining for EV Battery Packs | Custom OEM Parts

Where Carbon Steel CNC Components Are Used in EV Battery Packs

Battery pack mechanical assemblies contain numerous interfaces that must maintain structural integrity, dimensional relationships, and assembly consistency.

The appropriate component design depends on the battery architecture, surrounding materials, loading conditions, electrical requirements, and manufacturing process.

Battery Enclosure Mounting Interfaces

Battery enclosures may incorporate custom mounting blocks, threaded adapters, locating features, and mechanical connectors.

CNC machining can provide accurate threaded holes, shoulders, locating surfaces, and mounting geometries that are difficult to achieve through fabricated sheet metal alone.

Where the enclosure is made from aluminum, the interaction between carbon steel components and the surrounding material requires additional consideration.

Corrosion protection, galvanic isolation, joint loading, and assembly accessibility should be evaluated at the complete system level.

Battery Module Mounting Hardware

Battery modules may require precision mounting components that establish controlled positions within the enclosure.

These may include spacers, locating pins, threaded sleeves, and custom mounting interfaces.

Dimensional consistency is important where multiple modules must fit within a limited assembly space.

However, module retention and structural loading must be established by the battery system designer.

General CNC machining capability does not independently establish suitability for a safety-critical module retention system.

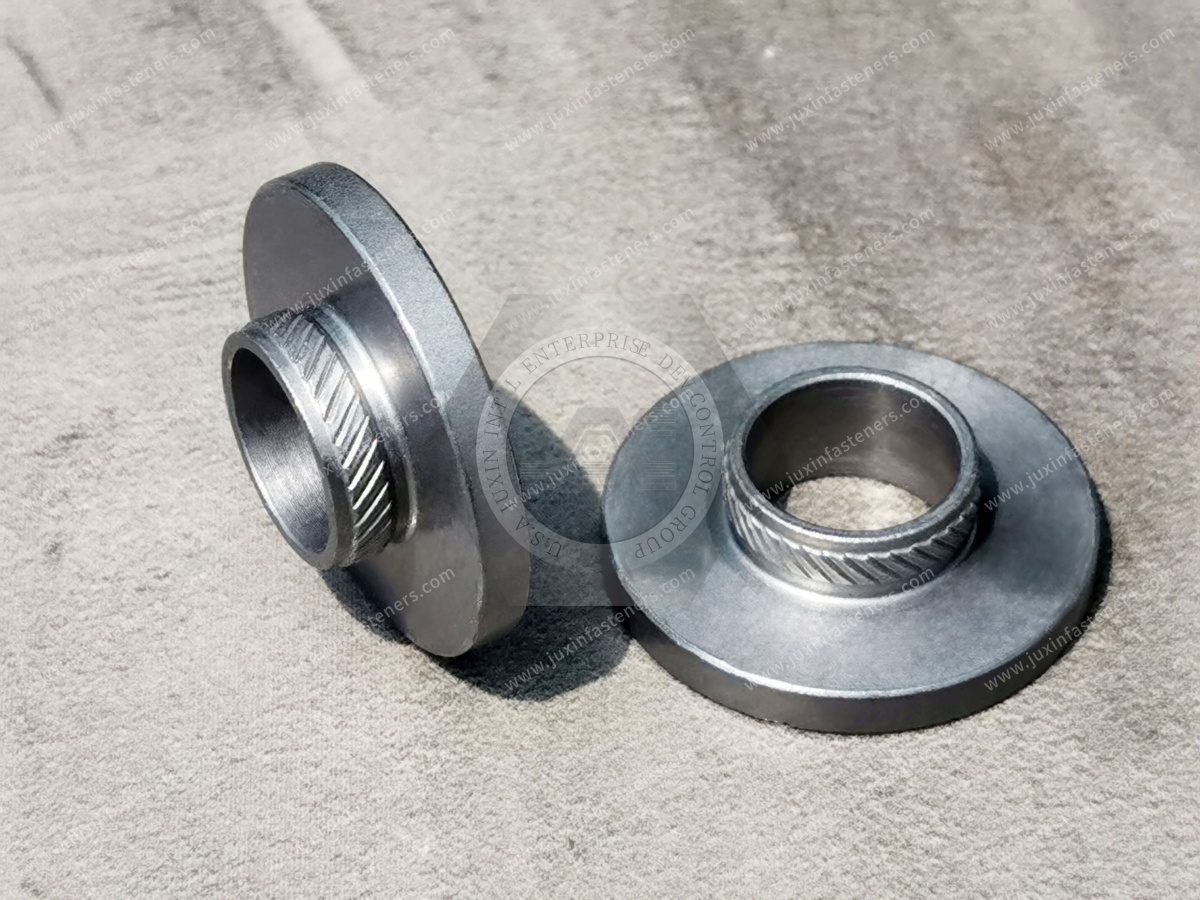

Structural Spacers and Compression Limiters

Custom machined spacers and compression limiters may be used in selected battery pack joints where controlled separation or resistance to excessive local compression is required.

The component must be designed according to the surrounding materials, clamping loads, joint geometry, and expected service conditions.

A compression limiter should not be selected solely by its nominal length or outside diameter.

Its stiffness, contact area, wall thickness, installation method, and relationship with the fastener must be considered.

Battery Pack Locating Pins and Alignment Components

Locating pins and precision sleeves may help establish repeatable positions during battery pack assembly.

Their geometry can influence module placement, enclosure alignment, and fixture compatibility.

However, locating components should not create unnecessary assembly overconstraint.

Thermal expansion and manufacturing variation across large battery pack structures may require appropriate clearance or floating interfaces.

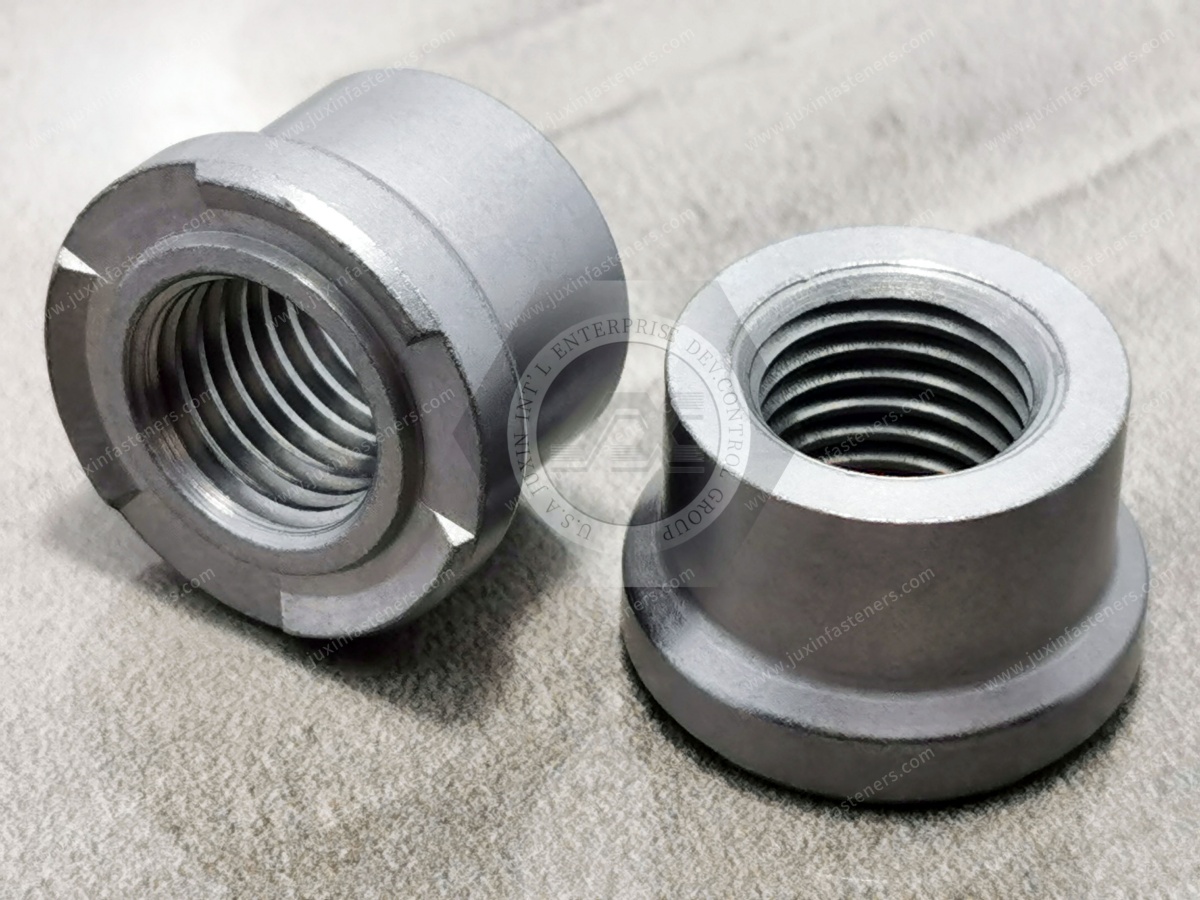

Custom Threaded Adapters and Fastening Interfaces

Battery pack assemblies may require threaded adapters, special studs, sleeves, and other custom fastening components.

CNC machining may be suitable where standard fasteners cannot provide the required geometry.

The threaded connection must be evaluated for joint loading, preload retention, installation access, corrosion protection, and compatibility with mating materials.

Cooling-System Mounting Components

Battery thermal management systems may require mechanical mounting brackets, spacers, and adapters to position cooling plates, pipes, or auxiliary equipment.

Carbon steel CNC machining may be considered for selected external mounting hardware.

However, coolant-contact components require separate evaluation of fluid compatibility, corrosion, sealing, pressure, and cleanliness requirements.

A general carbon steel machined component should not automatically be described as suitable for direct coolant contact.

Carbon Steel Material Selection for Battery Pack CNC Components

Carbon steel grades provide different combinations of strength, machinability, hardness, ductility, and heat-treatment response.

Material selection should follow the component function and approved engineering specification.

SAE/AISI 1018 Steel

SAE/AISI 1018 is a low-carbon steel that may be considered for selected machined spacers, mounting components, threaded adapters, and other mechanical hardware.

It can be suitable where the required strength and material properties are compatible with the design.

Its final properties depend on the material condition and manufacturing process.

Where surface hardening is required, a suitable treatment may be considered if permitted by the engineering specification.

SAE/AISI 1045 Steel

SAE/AISI 1045 is a medium-carbon steel that may be considered for selected pins, shafts, and mechanical components requiring different strength or hardness characteristics.

Its mechanical properties depend on material condition and heat treatment.

Where a component requires specific hardness or strength, the drawing should define the relevant requirements.

Free-Machining Carbon Steels

Free-machining grades may offer advantages for selected high-volume turned components.

However, material composition, mechanical properties, weldability, heat-treatment behavior, and applicable substance restrictions must be evaluated.

For example, leaded free-machining grades may not be acceptable under certain customer material or environmental requirements.

A material should not be selected solely because it offers faster machining.

Carbon Steel vs. Alloy Steel

Carbon steel and alloy steel should not be treated as identical materials.

Where higher strength, fatigue performance, or specialized heat-treatment response is required, an alloy steel may be more appropriate.

Any proposed material substitution requires engineering evaluation and customer approval.

Carbon Steel vs. Aluminum and Stainless Steel

Battery pack components may be manufactured from carbon steel, aluminum alloys, stainless steel, or other materials depending on the application.

Carbon steel may offer favorable strength and cost characteristics for selected structural components.

Aluminum alloys may offer advantages where weight reduction is important.

Stainless steel may be considered where particular corrosion-resistance requirements justify its use.

However, the complete system must be evaluated for mechanical performance, corrosion, thermal behavior, electrical requirements, and cost.

Carbon Steel CNC Machining for EV Battery Packs | Custom OEM Parts

Electrical Conductivity and Insulation Boundaries

Battery packs contain high-voltage electrical systems that require carefully controlled electrical isolation.

Carbon steel is electrically conductive.

Therefore, carbon steel CNC machined components should not be described as electrically insulating components.

Mechanical Components Near High-Voltage Systems

A carbon steel mounting block or spacer may be located near an electrical assembly, but its suitability depends on the complete insulation design.

Electrical clearance, creepage distance, protective barriers, insulation materials, and applicable safety requirements must be evaluated by the battery system designer.

Insulating Coatings Are Not Automatically Sufficient

A painted or coated steel component should not automatically be treated as a qualified electrical insulator.

Coating defects, installation damage, wear, environmental exposure, and long-term degradation may affect electrical performance.

Where electrical insulation is required, the complete design must be validated according to the applicable requirements.

Grounding and Bonding Interfaces

Some battery pack mechanical connections may form part of an intentional electrical bonding path.

Other connections must remain electrically isolated.

The required function must be clearly defined.

A coating that improves corrosion protection may also influence electrical contact resistance.

The appropriate surface treatment and assembly procedure depend on the intended electrical function.

Galvanic Corrosion Between Carbon Steel and Aluminum

Many EV battery enclosures and structural components incorporate aluminum alloys.

When carbon steel hardware is connected to aluminum in the presence of an electrolyte, galvanic corrosion may occur.

The risk depends on material combinations, exposed surface areas, moisture, protective coatings, and joint geometry.

Corrosion Protection

Protective coatings may reduce direct exposure of carbon steel to corrosive environments.

However, coating damage during installation or service may create localized corrosion risks.

Isolation Between Dissimilar Materials

Depending on the design, suitable barriers, coatings, or other isolation methods may be considered.

These measures must remain compatible with the mechanical and electrical requirements of the joint.

Moisture and Sealing

Battery enclosures may experience environmental exposure, condensation, or moisture intrusion under certain conditions.

The complete sealing and drainage strategy should be evaluated.

A corrosion-resistant fastener alone does not establish battery enclosure sealing performance.

Surface Coatings for Carbon Steel Battery Pack Components

Carbon steel commonly requires suitable corrosion protection where exposed to moisture or other corrosive environments.

The coating should be selected according to the approved specification and functional requirements.

Zinc Electroplating

Zinc electroplating may be considered for selected carbon steel components.

However, coating thickness can influence threads, precision bores, and close-fitting interfaces.

The drawing should clarify whether critical dimensions apply before or after coating.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered where particular corrosion-protection requirements are specified.

Their suitability depends on the complete coating system, application conditions, and acceptance criteria.

Phosphate and Other Treatments

Phosphate treatments and associated protective systems may be appropriate for selected applications.

Their corrosion performance depends on the complete treatment system and service environment.

Hydrogen Embrittlement Risk

Electroplating and certain chemical processing operations can introduce hydrogen into susceptible steel components.

For higher-strength or hardened steel parts, hydrogen embrittlement may create delayed fracture risks.

The need for appropriate process controls, testing, and post-treatment requirements depends on material strength, processing conditions, and the customer specification.

Coating and Electrical Contact

Surface coatings may influence electrical bonding and contact resistance.

Where a component must provide an intentional electrical connection, the coating and contact design require engineering approval.

Where electrical isolation is required, a conductive steel substrate must be considered within the complete insulation system.

Structural Spacers, Compression Limiters, and Joint Design

Battery pack mechanical joints may combine steel fasteners with aluminum structures, polymer components, composite materials, or other substrates.

The joint must be designed according to the actual clamping and loading conditions.

Compression Limiter Function

A compression limiter may help control local deformation in a joint containing compressible materials.

Its length, stiffness, contact area, and geometry must be coordinated with the surrounding structure.

An incorrectly designed limiter may reduce the intended clamping force or introduce unwanted load paths.

Fastener Preload

Fastener preload is influenced by the fastener properties, tightening method, joint stiffness, friction conditions, and mating materials.

A precision-machined spacer does not independently guarantee correct preload.

Thermal Expansion

Battery pack assemblies may experience temperature variation during operation and environmental exposure.

Different materials expand at different rates.

Where steel and aluminum components are combined, thermal expansion differences may influence clearances, joint loads, and alignment.

Fatigue and Vibration

Vehicle operation may introduce cyclic loading and vibration.

Joint geometry, preload retention, material properties, and local stress concentrations can influence fatigue performance.

The complete assembly must be evaluated against the intended service conditions.

Battery Pack Enclosure Sealing and Mounting Geometry

Battery enclosures may require controlled sealing surfaces, mounting interfaces, and mechanical attachment points.

CNC machining can provide precise geometry for selected mounting components.

However, sealing performance depends on the complete enclosure design.

Sealing Surface Flatness

A machined mounting interface may require controlled flatness where it interacts with a gasket or sealing system.

The appropriate tolerance depends on the seal design, compression requirements, and surrounding structure.

Surface Finish

Surface finish should be specified according to the function of the component.

A sealing surface, locating feature, and general mounting face may require different surface conditions.

Fastener Hole Location

Hole position and alignment can influence assembly efficiency and joint performance.

Poor alignment may create installation difficulties, unwanted side loading, or rework.

Assembly Tolerance Stack-Up

Battery packs contain multiple components that must fit within a constrained enclosure.

Tolerance stack-up analysis helps identify how dimensional variation affects the final assembly.

It can also help determine where precision machining provides meaningful value.

CNC Machining Processes for EV Battery Pack Carbon Steel Parts

The appropriate machining process depends on component geometry, material, tolerance requirements, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as spacers, sleeves, pins, threaded adapters, and cylindrical mounting hardware.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Workholding, tool access, cutting conditions, and surface finish requirements influence the process plan.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters, brackets, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in EV Battery Pack CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For battery pack mounting hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

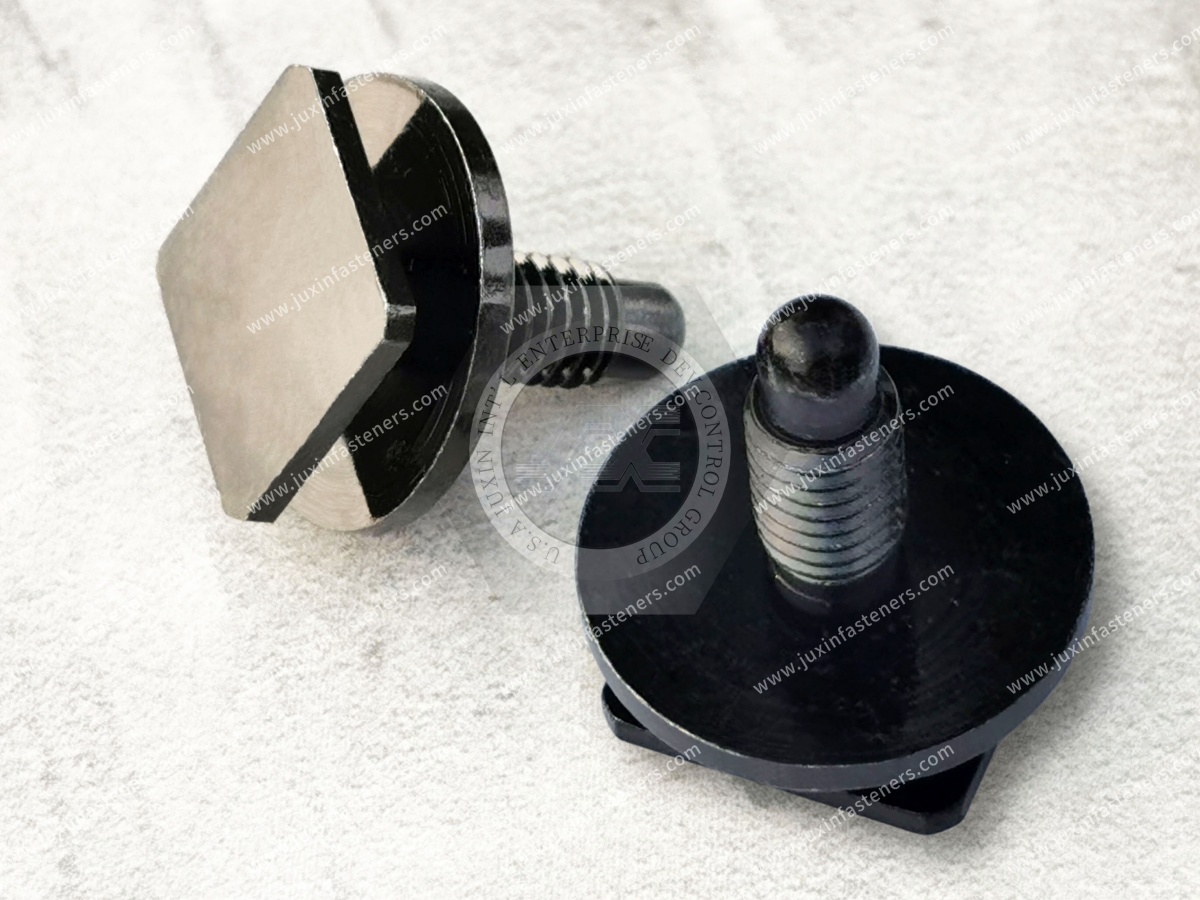

Carbon Steel CNC Machining for EV Battery Packs | Custom OEM Parts

GD&T and Battery Pack Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a battery enclosure mounting block may require controlled relationships between locating features, mounting holes, and reference surfaces.

A precision spacer may require appropriate controls between its end faces and central bore.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Metric and Inch Thread Standards

Battery pack components may use metric or inch thread systems depending on the OEM design.

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Thread size, pitch, tolerance class, and mating component compatibility must be confirmed from the approved drawing.

Production Assembly and Manufacturing Efficiency

EV battery pack manufacturing often involves repeated assembly operations with strict requirements for consistency and traceability.

The selected mechanical components should support reliable installation and efficient production.

Automated Assembly Compatibility

Where battery pack production uses automated equipment, component geometry and presentation can influence feeding, positioning, and installation.

Manufacturing engineers should consider orientation, handling, tool access, and installation sequence.

Torque-Controlled Assembly

Threaded connections may require controlled tightening procedures.

The appropriate method depends on joint design, fastener properties, friction conditions, and customer requirements.

A CNC machined component should not be assumed to provide a particular tightening performance without validation.

Error-Proofing

Where appropriate, locating features or asymmetric geometry may help reduce incorrect assembly.

However, error-proofing must be evaluated against the actual production process.

Part Identification and Traceability

OEM programs may require lot identification, drawing revision control, or other traceability measures.

The required level of traceability should be established during supplier qualification and quotation.

Quality Control for Custom EV Battery Pack CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, coating verification, and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified carbon steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Coating Inspection

Where corrosion protection is required, inspection may include coating thickness verification or other customer-defined checks.

The coating system and acceptance criteria should be established before production.

First-Article and Production Inspection

Automotive OEM projects may require first-article inspection, PPAP submissions, or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

Automotive Quality Planning and Battery Pack Supplier Requirements

EV battery pack OEM programs may require structured quality planning and production approval processes.

The applicable requirements depend on the customer, component function, and supply-chain program.

APQP and PPAP

Advanced Product Quality Planning (APQP) and Production Part Approval Process (PPAP) may be required for selected automotive production programs.

The required documentation and approval level must be established by the customer.

A successful prototype does not automatically constitute PPAP approval.

FMEA and Control Plans

Failure Mode and Effects Analysis (FMEA) and documented control plans may be required for selected programs.

These activities help identify and manage product and manufacturing risks.

IATF 16949

IATF 16949 is an automotive quality management system standard.

However, referencing IATF 16949 does not establish that JUXIN FASTENERS is certified to this standard.

Where certification is required, the supplier qualification requirements must be verified before project acceptance.

Battery System Safety Requirements

Battery pack assemblies may be subject to applicable vehicle, battery, and electrical safety requirements.

However, these requirements do not automatically apply to every isolated CNC machined component.

The relevant qualification and validation requirements depend on the component's function and the complete battery system design.

General machining capability does not establish compliance with battery pack safety requirements.

From Prototype Development to Repeat OEM Production

CNC machining can support EV battery pack component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Battery Pack Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every battery pack component requires CNC machining.

Standard bolts, nuts, washers, studs, spacers, and other fastening components may offer a more economical solution for suitable applications.

Carbon Steel CNC Machining for EV Battery Packs | Custom OEM Parts

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

  • Non-standard geometry

  • Precision locating features

  • Special threaded interfaces

  • Controlled spacer dimensions

  • Custom mounting blocks

  • Specific material requirements

  • Multiple machined features

  • Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded stud or spacer may provide an efficient solution for a compatible battery pack assembly.

However, standard components must still meet the required material, dimensional, mechanical, electrical, and environmental specifications.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

OEM Supplier Development and Procurement Considerations

For EV battery pack manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Strength, stiffness, weight, electrical conductivity, corrosion resistance, thermal expansion, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, heat treatment, coating, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined EV battery pack component depends on several factors:

  • Material grade and stock form

  • Part geometry

  • Machining cycle time

  • Number of setups

  • Tooling and tool wear

  • Heat-treatment requirements

  • Dimensional tolerances

  • Surface finish

  • Coating and secondary operations

  • Inspection and documentation requirements

  • Installation labor

  • Scrap and rework

  • Order quantity

  • Delivery schedule

Early collaboration between engineering, production, and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for EV Battery Pack Carbon Steel CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

  • 2D engineering drawing

  • 3D CAD model, if available

  • Component application and function

  • Carbon steel grade and material specification

  • Material condition and heat-treatment requirements

  • Critical dimensional tolerances

  • GD&T requirements

  • Thread specifications

  • Surface finish requirements

  • Coating or secondary processing requirements

  • Electrical isolation or bonding requirements

  • Mating materials and galvanic corrosion considerations

  • Mechanical loading and vibration requirements

  • Sealing or enclosure interface requirements

  • Operating temperature and environmental conditions

  • Inspection and documentation requirements

  • APQP or PPAP requirements, if applicable

  • Prototype or sample quantity

  • Estimated production order quantity

  • Annual demand forecast

  • Packaging requirements

  • Delivery destination and target schedule

Where the component is intended for a safety-critical battery pack application, the required qualification, validation, and approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for EV Battery Pack CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM battery pack manufacturing.

Relevant machining inquiries include:

  • Carbon steel CNC turned parts

  • Battery enclosure mounting blocks

  • Precision spacers and compression limiters

  • Custom threaded adapters

  • Battery pack locating pins

  • CNC machined sleeves and bushings

  • Structural mounting interfaces

  • Drawing-based battery pack mechanical connectors

  • OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and assembly compatibility.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Carbon Steel CNC Machining for EV Battery Packs | Custom OEM Parts

Request a Quote for Carbon Steel CNC Machining and EV Battery Pack Components

Are you developing a new EV battery pack mechanical component, sourcing custom carbon steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from EV manufacturers, battery pack OEMs, Tier 1 suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, heat-treatment requirements, critical tolerances, coating requirements, inspection criteria, and estimated purchasing quantities.

Where relevant, please also identify the component's electrical isolation, bonding, sealing, or corrosion requirements.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: EV Battery Pack Carbon Steel CNC Machining | Structural Mounting Parts | OEM Custom Components


Contact Us

Tel.:

+86 020 8621 0320

+86 020 3121 6067

Mobile: +86 136 6007 9809

Technical Support:

SEND INQUIREY

Copyright © Guangzhou Juxin Development Co., Ltd. All Rights Reserved | Sitemap
