Carbon Steel CNC Machining for Robotics, Robot Joint Interfaces and Custom OEM Mechanical Components

Robotic systems depend on precisely manufactured mechanical interfaces to support controlled motion, accurate positioning and repeatable assembly.

Industrial robots, collaborative robots, automated handling systems and robotic end-effectors may incorporate shafts,

 bushings, mounting blocks, locating pins, threaded adapters, mechanical connectors and custom tooling components.

While many robotic structures use aluminum, stainless steel or other engineered materials,

carbon steel can be a practical choice for selected components where strength, stiffness, wear resistance or cost efficiency is important.

CNC machining allows engineers to define component geometry according to the mechanical requirements of a particular robotic assembly.

However, dimensional accuracy alone does not guarantee robotic positioning performance.

Robot accuracy and repeatability depend on the complete mechanical system, including structural stiffness, joint geometry, bearings, transmission components, sensors, controls, assembly tolerances and operating conditions.

A precision-machined component may contribute to accurate assembly, but it should not be presented as independently establishing the positioning accuracy of the complete robot.

JUXIN FASTENERS supports drawing-based inquiries for custom carbon steel CNC machined components and industrial fastening hardware used in robotics and automated equipment.

Depending on component geometry and project requirements, suitable manufacturing processes may include CNC turning, CNC milling, drilling, tapping, threading, grooving and combined turning-milling operations.

Material selection, achievable tolerances, secondary treatments, inspection requirements, production quantities and delivery arrangements are evaluated according to the specific inquiry.

Where Carbon Steel CNC Machined Components Are Used in Robotics

Robotic systems contain different mechanical interfaces with different performance requirements.

The appropriate component design depends on the robot architecture, loading conditions, motion characteristics and intended application.

Industrial Robot Mechanical Assemblies

Industrial robots may require precision mounting interfaces, locating components and custom mechanical connectors.

Selected carbon steel CNC machined components may be used where the approved design requires their mechanical properties.

Potential applications include custom mounting blocks, threaded adapters, shafts and positioning components.

Collaborative Robot Peripheral Equipment

Collaborative robot installations may incorporate tooling, mounting adapters and external equipment interfaces.

Custom machined components may support these assemblies.

However, components affecting robot safety functions or protective measures require appropriate engineering evaluation.

General CNC machining capability does not establish compliance with robot safety requirements.

Robotic End-Effectors

End-effectors may include grippers, tooling plates, adapters and mechanical mounting interfaces.

CNC machined components can provide controlled geometry and repeatable attachment.

The design should consider payload, tool weight, stiffness, installation access and repeatability of the mounting interface.

Robotic Grippers

Robotic grippers may require custom shafts, pins, spacers, mounting blocks and mechanical adapters.

The appropriate material and geometry depend on gripping forces, movement, wear and the operating environment.

Automated Handling Systems

Automated handling equipment may incorporate precision mechanical interfaces for positioning and transfer operations.

Custom CNC machined components may support selected mounting and locating functions.

Robotics Manufacturing and Assembly Fixtures

Manufacturing fixtures used to assemble or inspect robotic systems may require locating pins, bushings, spacers and mounting blocks.

For these applications, dimensional repeatability and wear resistance may be important.

Typical Carbon Steel CNC Machined Components for Robotics

Different component types require different engineering and inspection considerations.

Robotic Shafts

CNC turned shafts may be used in selected mechanical positioning or drive assemblies.

Important characteristics can include shaft diameter, shoulder geometry, straightness, runout and surface finish.

Where shafts experience repeated movement or loading, fatigue and wear considerations may be important.

Precision Bushings

Bushings may provide controlled mechanical interfaces between shafts, supports and mating components.

Critical dimensions may include inner diameter, outer diameter, length, concentricity and perpendicularity.

Where sliding or rotational contact occurs, wear performance depends on the complete material and lubrication system.

Robot Joint Mounting Components

Selected joint-related mounting components may require controlled hole positions, mounting faces and locating features.

Their design should account for assembly alignment, stiffness and mechanical loading.

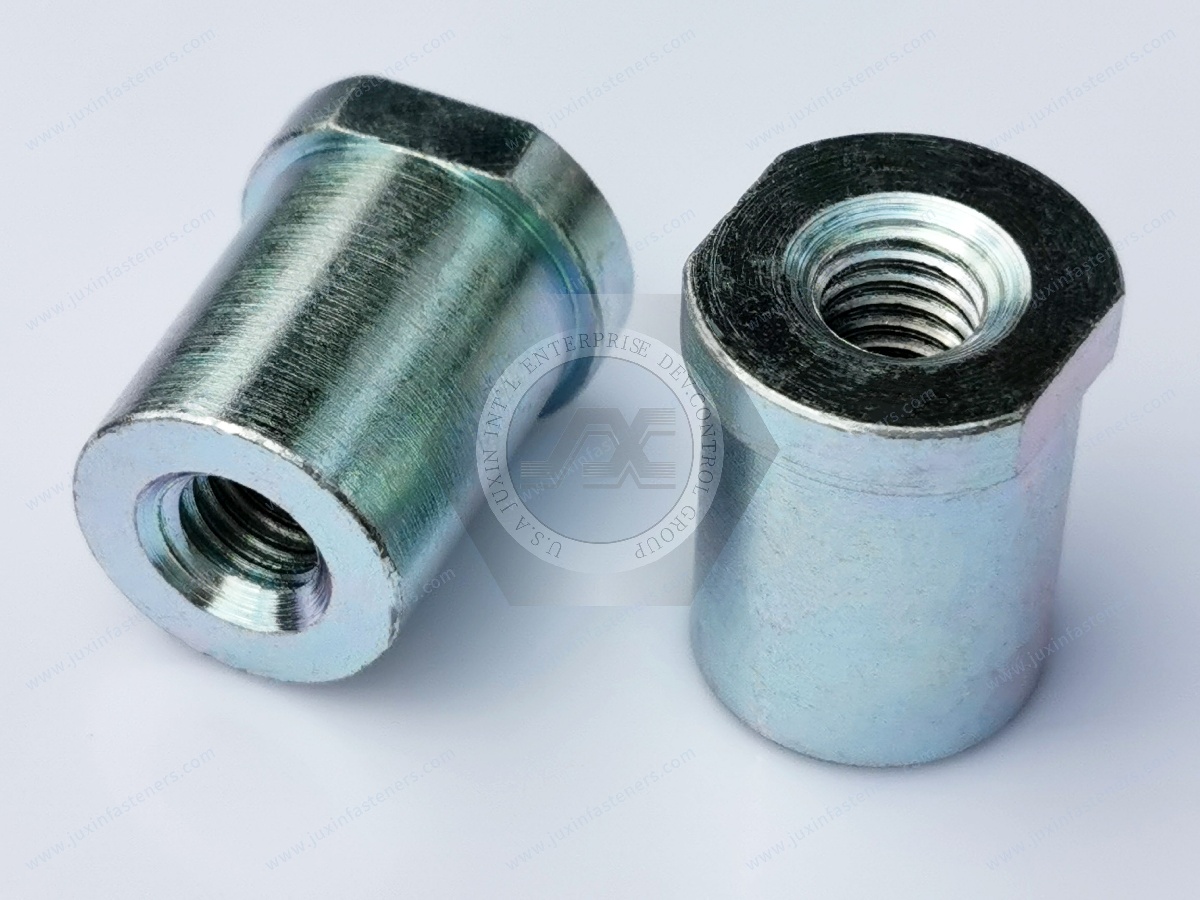

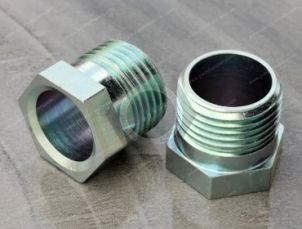

Threaded Adapters

Custom threaded adapters may connect mechanical interfaces that cannot be assembled using standard fasteners alone.

The drawing should specify thread size, pitch, tolerance class, engagement length and mating component requirements.

Mounting Blocks

CNC milled mounting blocks may provide controlled mounting faces, threaded holes and accurately positioned interfaces.

They may be useful for robotic tooling and support assemblies.

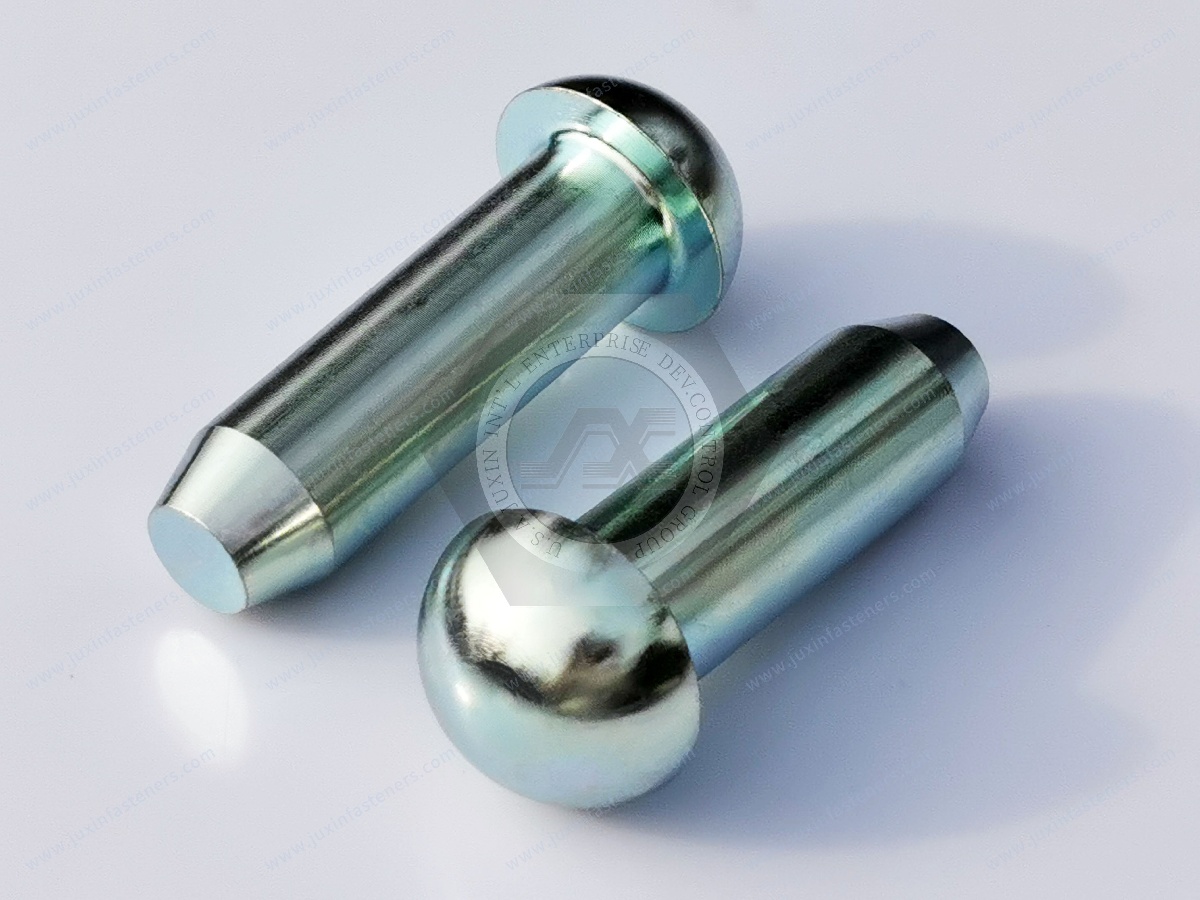

Locating Pins

Precision locating pins may help position components during assembly or tool installation.

The required fit depends on the intended assembly method and whether the pin must be removable.

End-Effector Mounting Components

Custom mounting components may provide mechanical interfaces between robotic arms and end-effectors.

The design should consider tool weight, load direction, fastening reliability and alignment.

Why Carbon Steel Is Used for Selected Robotics CNC Parts

Carbon steel may offer a useful combination of mechanical strength, stiffness, machinability and cost efficiency.

However, its suitability depends on the specific grade and application.

Mechanical Strength

Different carbon steel grades offer different strength and hardness characteristics.

For selected mounting and mechanical support applications, carbon steel may provide suitable performance.

The required properties should be defined by the approved drawing.

Stiffness

Steel has a relatively high elastic modulus compared with aluminum.

For selected components, this may help control elastic deformation under load.

However, stiffness depends on both material properties and component geometry.

Machinability

Some carbon steel grades can be machined efficiently using CNC turning and milling.

Machinability influences cutting forces, tool wear, surface finish, chip formation and cycle time.

Cost Efficiency

Carbon steel may provide cost advantages for selected components compared with more expensive engineering materials.

However, the total cost should include heat treatment, coating, inspection and service requirements.

Weight Limitations

Carbon steel is denser than aluminum.

For moving robot components, increased mass may affect inertia, acceleration, energy consumption and dynamic performance.

Material selection should consider the complete motion system.

Carbon Steel Grades for Robotics CNC Machining

The correct steel grade should be selected according to the approved drawing and functional requirements.

SAE/AISI 1018 Steel

SAE/AISI 1018 is a low-carbon steel that may be considered for selected spacers, mounting blocks, adapters and general mechanical components.

Its suitability depends on the required strength, material condition and corrosion protection.

SAE/AISI 1045 Steel

SAE/AISI 1045 is a medium-carbon steel that may be considered for selected shafts, pins and mechanical components requiring different strength or hardness characteristics.

Its properties depend on material condition and heat treatment.

Free-Machining Carbon Steel

Free-machining carbon steels may be suitable for certain turned components.

However, the material's mechanical properties, composition and customer requirements should be considered.

Carbon Steel vs. Alloy Steel

Carbon steel and alloy steel are not interchangeable.

For example, SAE/AISI 4140 is a chromium-molybdenum alloy steel rather than a plain carbon steel.

Where higher strength, hardenability or fatigue performance is required, an alloy steel may be more appropriate.

Any material substitution should be reviewed and approved by the customer's engineering team.

Carbon Steel vs. Stainless Steel

Stainless steel may be preferable where corrosion resistance is a major requirement.

Carbon steel may be more economical where a suitable coating can provide the required protection.

The correct choice depends on the operating environment and design requirements.

Carbon Steel vs. Aluminum

Aluminum may be suitable for weight-sensitive components.

However, differences in strength, stiffness, wear resistance, thread durability and thermal expansion must be evaluated.

Weight, Stiffness and Robot Motion Performance

Material selection in robotics involves a balance between mechanical strength, stiffness and moving mass.

Moving Mass

Increasing the mass of a moving robotic component may increase the load on motors, transmissions and bearings.

The effect depends on the component's location and the robot's motion profile.

Rotational Inertia

Mass located farther from a rotation axis can contribute more strongly to rotational inertia.

Therefore, component geometry and mass distribution may be as important as total component weight.

Structural Stiffness

A stiffer component may reduce elastic deformation under load.

However, the stiffness of the complete assembly also depends on joints, fasteners, bearings and structural interfaces.

Material Selection

Carbon steel may be appropriate for compact components requiring strength or stiffness.

Aluminum or other materials may be preferable where moving mass is a dominant design constraint.

Robot Joint Interfaces and Bearing Fits

Robot joints may require accurately manufactured mechanical interfaces.

The correct fit influences alignment, load distribution and assembly performance.

Bearing Seat Dimensions

Bearing-seat diameters should follow the approved assembly design and bearing manufacturer's recommendations.

The appropriate fit depends on bearing type, loading, rotation conditions and temperature.

Interference and Clearance Fits

Different applications may require interference, transition or clearance fits.

The correct choice depends on the function and assembly requirements.

ISO 286 may be relevant to dimensional tolerance systems for shafts and holes.

However, the final fit should follow the approved robot assembly design.

Shaft Runout

Excessive runout can contribute to vibration and uneven loading.

Where required, the drawing should define appropriate geometric controls and inspection methods.

Surface Finish

Bearing seats and other functional surfaces may require controlled surface finish.

The required finish depends on the mating component and operating conditions.

Joint Alignment

Misalignment between mechanical interfaces may increase bearing loads, friction or assembly stress.

The complete dimensional chain should be evaluated.

Backlash, Repeatability and Mechanical Assembly

Backlash and repeatability are important concepts in robotic motion systems.

However, they should not be attributed to CNC machining accuracy alone.

Backlash

Backlash may arise from clearance in gears, transmissions, couplings or other mechanical interfaces.

A machined component can influence assembly geometry, but the complete drive system determines the resulting backlash behavior.

Repeatability

Robot repeatability depends on the complete mechanical and control system.

Precision-machined mounting interfaces may help reduce assembly variation, but they do not independently establish robot repeatability.

Tolerance Stack-Up

The final position of a robotic component depends on the combined tolerances of multiple parts.

A tightly controlled machined adapter cannot compensate for uncontrolled variation elsewhere in the assembly.

Assembly Datum Strategy

Datum selection should reflect how the component is located and assembled.

Clear datum relationships can help improve manufacturing and inspection consistency.

End-Effector Mounting and Tooling Interfaces

Robotic end-effectors may require custom mounting interfaces.

The appropriate design depends on tool weight, payload, load direction, alignment and installation requirements.

Mounting Face Flatness

Mounting faces may require controlled flatness to support stable assembly.

The required tolerance depends on the complete interface design.

Locating Features

Locating pins, shoulders or other features may be used to establish repeatable positioning.

The design should distinguish locating functions from clamping functions.

Threaded Connections

Threaded fasteners may provide the clamping force required to secure the tool.

Thread engagement and tightening conditions should follow the approved design.

Tool Replacement

Where end-effectors are frequently changed, the design should consider repeated assembly, wear and positioning repeatability.

Cable and Pneumatic Clearance

Mounting components should not interfere with cables, pneumatic lines or other services.

The complete installation envelope should be considered.

Vibration, Fatigue and Fastening Reliability

Robotic systems may experience repeated acceleration, deceleration and cyclic loading.

These conditions can influence shafts, threaded connections and mechanical interfaces.

Fatigue Loading

Repeated loading may cause fatigue damage even when nominal stress is below the material's static strength.

Geometry, surface condition, heat treatment and operating loads influence fatigue performance.

Stress Concentrations

Sharp transitions, grooves, threads and small fillets may increase local stress.

The design should consider appropriate radii and feature placement.

Joint Preload

Correct joint preload can help maintain clamping force and reduce unwanted movement.

The appropriate preload depends on fastener properties, joint geometry, friction conditions and installation method.

Vibration Loosening

Vibration and transverse movement may contribute to loosening in certain threaded joints.

Suitable locking methods should be selected according to the actual application.

Repeated Maintenance

Robotic equipment may require periodic maintenance and component replacement.

The design should consider service access, repeated assembly and thread durability.

Surface Treatment and Corrosion Protection

Carbon steel components may require protective surface treatment depending on the operating environment.

Zinc Electroplating

Zinc electroplating may be considered for selected carbon steel components.

Coating thickness can affect threads, precision bores and close-fitting interfaces.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered where specific corrosion-protection requirements are established.

The suitability of the coating system depends on the environment and customer acceptance criteria.

Phosphate Treatments

Phosphate treatments and associated protective systems may be appropriate for selected components.

Their corrosion performance depends on the complete treatment system.

Black Oxide

Black oxide may be suitable for selected indoor tooling or mechanical components.

However, black oxide alone should not be assumed to provide sufficient protection for demanding moisture exposure.

Hydrogen Embrittlement

Electroplating and certain chemical processing operations can introduce hydrogen into susceptible steel components.

For higher-strength or hardened steel parts, hydrogen embrittlement may create delayed fracture risks.

The need for process controls and post-treatment requirements depends on the material and customer specification.

Coating and Fit Compatibility

Coatings can change the dimensions of threads, bores and mating surfaces.

Where close fits are required, the drawing should define whether dimensions apply before or after coating.

CNC Machining Processes for Robotics Components

The appropriate machining process depends on component geometry, material, tolerance requirements and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, pins, bushings, sleeves, spacers and threaded adapters.

Typical operations include facing, external turning, boring, drilling, grooving and threading.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters and components requiring flats, slots, pockets or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping and Threading

Machined components may require internal threads, external threads, precision holes and mounting features.

Thread quality depends on material properties, tooling, cutting conditions and inspection methods.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

Design for Manufacturability in Robotics CNC Parts

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure or residual stress.

Special workholding or controlled machining sequences may be required.

Small Features and Tool Accessibility

Small holes, narrow slots and deep internal features may require specialized tooling.

Simplifying these features where possible can reduce machining time and cost.

Surface Finish

Surface finish should be specified according to component function.

A bearing interface, locating surface and general mounting face may require different surface conditions.

GD&T for Robotic Mechanical Interfaces

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout and profile.

Datum selection should reflect how the component is located and assembled.

For example, a robotic shaft may require controlled relationships between bearing seats, shoulders and threaded features.

A mounting adapter may require accurate positional relationships between mounting holes and locating surfaces.

GD&T should support functional assembly and inspection rather than introduce unnecessary manufacturing complexity.

Metric and Inch Thread Standards

Robotic equipment may use metric or inch thread systems depending on the OEM design.

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Thread size, pitch, tolerance class and mating component compatibility must be confirmed before production.

Assembly Efficiency and Robotics Production-Line Considerations

For robotics manufacturers, component design directly affects assembly efficiency.

Production managers should consider installation time, tool access, handling, part orientation and inspection requirements.

Installation Access

A component may be dimensionally correct but difficult to install because of limited tool clearance.

The design should account for the required installation tools.

Part Orientation

Components with asymmetric geometry may require additional handling or orientation during assembly.

Where possible, designs that reduce orientation errors may improve production efficiency.

Fastener Standardization

Using common thread sizes and installation tools across a robotic equipment platform may simplify assembly and inventory management.

However, standardization should not compromise the required mechanical function.

Assembly Error Prevention

The design should reduce the risk of incorrect part selection, reversed installation or cross-threading.

Clear identification, suitable lead-in features and controlled assembly procedures may help.

Production Repeatability

A successful CNC machining process must provide repeatable dimensions across the required production quantity.

Program-controlled machining, suitable workholding, tool-life management and inspection planning can support process stability.

Quality Control for Custom Robotics CNC Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified carbon steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Coating Inspection

Where corrosion protection is required, inspection may include coating thickness verification or other customer-defined checks.

The coating system and acceptance criteria should be established before production.

Functional Inspection

For selected components, functional inspection may include assembly-fit checks or verification using a representative mating component.

However, functional inspection should not replace required dimensional verification.

Robotics Safety and Application-Specific Requirements

Robotic systems may be subject to additional safety requirements depending on their intended use.

ISO 10218 is relevant to industrial robot safety within its scope.

ISO/TS 15066 provides guidance relevant to collaborative robot applications.

These standards address robotic systems and related safety considerations.

Referencing them does not establish that JUXIN FASTENERS or a particular CNC machined component has been certified under those standards.

Where a component affects a safety-related function, the applicable design, verification and documentation requirements should be explicitly identified.

From Prototype Development to Repeat Robotics OEM Production

CNC machining can support robotic equipment development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Robotics Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every robotics component requires CNC machining.

Standard bolts, nuts, washers, studs, spacers, pins and other fastening components may offer more economical solutions for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard bolt, nut, washer or locating pin may provide an efficient solution for a compatible robotic assembly.

However, the selected fastener must match the material, loading, geometry and installation requirements.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

Robotics OEM Supplier Development and Procurement Considerations

For robotics manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Strength, stiffness, weight, fatigue behavior, wear resistance and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, heat treatment, coating, inspection requirements and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined robotics component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Heat-treatment requirements

• Dimensional tolerances

• Surface finish

• Coating and secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Assembly installation time

• Delivery schedule

Early collaboration between engineering, production and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Robotics Carbon Steel CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Carbon steel grade and material specification

• Material condition and heat-treatment requirements

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Mechanical loading and fatigue requirements

• Weight and stiffness considerations

• Bearing-fit requirements, if applicable

• Motion and vibration conditions

• Operating temperature range

• Corrosion and environmental exposure

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component affects a safety-related robotic function, the applicable design, qualification and verification requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for Robotics CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in robotics manufacturing.

Relevant machining inquiries include:

• Carbon steel CNC turned parts

• Robotic shafts and pins

• CNC machined bushings and sleeves

• Custom threaded adapters

• Robot joint mounting blocks

• Precision mechanical connectors

• End-effector mounting components

• Drawing-based robotic mechanical parts

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, alignment, stiffness and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes installation efficiency, process repeatability, inspection stability and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning and supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Carbon Steel CNC Machining and Robotics Components

Are you developing a new robotic mechanical component, sourcing custom carbon steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from robotics manufacturers, automation equipment builders, engineering teams, production departments and procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, heat-treatment requirements, surface finish, coating requirements, inspection criteria and estimated purchasing quantities.

Where applicable, please also identify payload, motion conditions, stiffness requirements, bearing fits, alignment requirements and installation constraints.

We can review your project requirements and discuss suitable machining approaches, technical clarification and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Robotics Carbon Steel CNC Machining | Custom Joint Components | End-Effector Mechanical Parts
