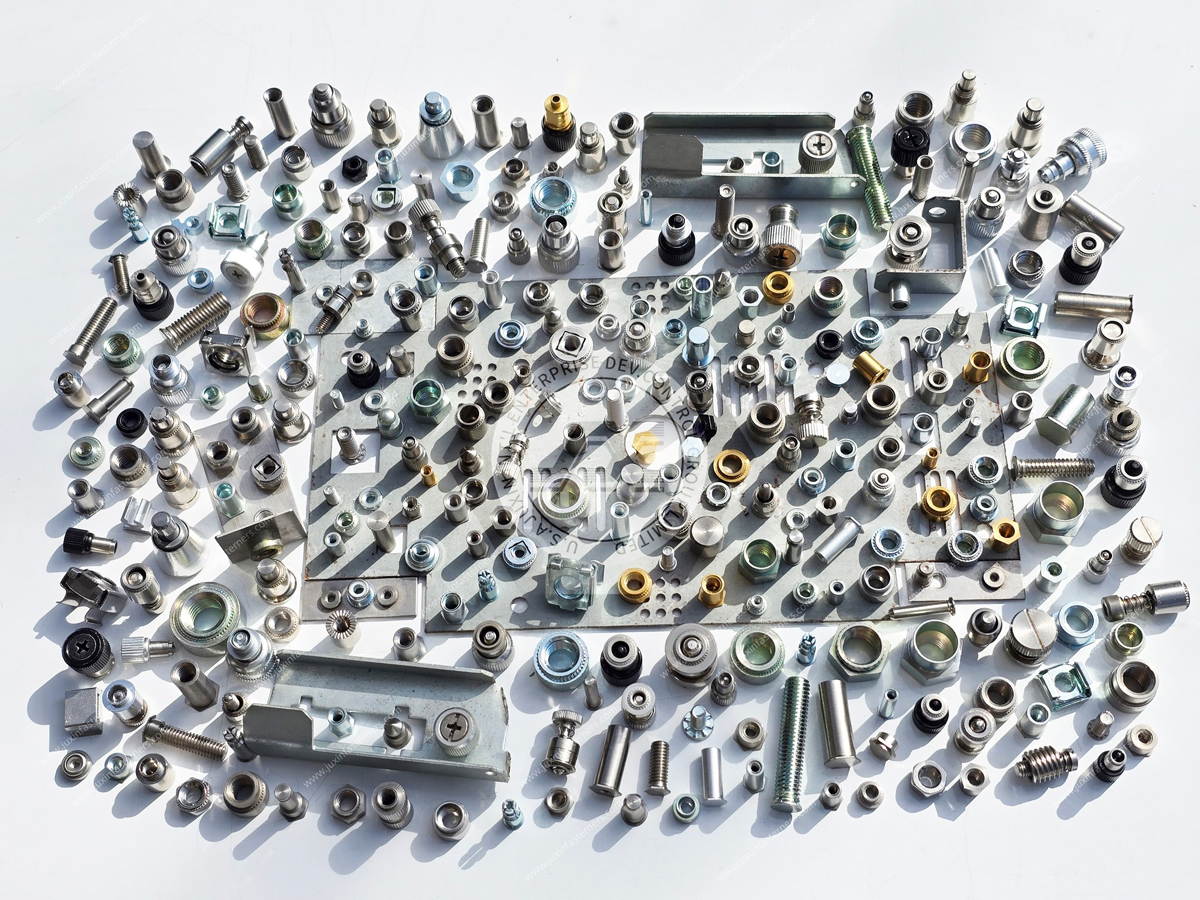

Construction Equipment Fasteners and Self-Clinching Studs for Sheet Metal Assemblies

Construction equipment manufacturers use fabricated sheet metal components throughout excavators, wheel loaders, cranes, earthmoving machinery, material handling equipment, and other heavy-duty industrial machines.

These components include machinery housings, electrical enclosures, operator control cabinets, access panels, protective covers, mounting brackets, and internal equipment supports.

Although construction machinery operates in demanding environments, not every fastening location requires a large structural bolt or welded connection.

Many non-structural sheet metal assemblies benefit from compact, permanently retained threaded fastening points that simplify manufacturing and equipment maintenance.

Self-clinching studs for construction equipment provide external threaded attachment points in compatible sheet metal.

Installed through controlled pressing rather than welding, these fasteners can reduce loose hardware handling and support repeatable assembly operations.

Their suitability depends on the actual sheet material, thickness, hardness, connection loads, vibration exposure, and installation conditions.

JUXIN FASTENERS supports drawing-based inquiries for industrial self-clinching studs, sheet metal fastening components, threaded hardware, and related OEM fastening requirements.

Our approach emphasizes practical engineering compatibility, manufacturing efficiency, and purchasing requirements for industrial equipment manufacturers.

Construction Equipment Applications and Fastening Requirements

Construction machinery incorporates numerous sheet metal assemblies that require secure attachment while allowing efficient production, inspection, and maintenance.

Fastener selection should be based on the function of the connection rather than the general classification of the machine.

Excavator Housings and Access Panels

Excavators contain fabricated metal covers, electrical compartments, access panels, control enclosures, and internal equipment brackets.

Self-clinching studs may be suitable for selected non-structural panels and mounting points where the substrate supports proper mechanical retention.

For service access panels, engineers should consider assembly clearance, repeated removal, vibration, and the possibility of thread damage during maintenance.

Where a connection is subjected to substantial impact or structural loading, the fastening system must be evaluated separately.

Wheel Loader and Earthmoving Equipment Enclosures

Wheel loaders and other earthmoving machines contain sheet metal covers, operator control cabinets, protective housings, and electrical enclosures.

These components may be exposed to vibration, dirt, moisture, temperature changes, and repeated maintenance.

Self-clinching studs can provide retained threaded mounting points for suitable fabricated panels and internal brackets.

However, the fastener's installation and retention performance must be verified against the actual sheet material and operating conditions.

Construction Machinery Electrical Cabinets

Electrical enclosures and control cabinets may contain mounting plates, electronic modules, cable management components, protective covers, and internal support brackets.

Self-clinching studs can reduce the handling of loose bolts and provide repeatable mounting positions during assembly.

Engineers should evaluate stud projection, electrical clearance, grounding requirements, and access for installation and maintenance.

A metallic fastening point should not automatically be considered a validated electrical bonding connection.

Operator Control Systems and Equipment Panels

Operator cabins and control systems often incorporate fabricated sheet metal panels, mounting brackets, protective covers, and instrument supports.

Retained threaded studs may simplify assembly where multiple components must be positioned accurately.

For vibration-exposed equipment, the complete joint must be evaluated for preload retention, loosening, and fatigue where applicable.

Internal Mounting Brackets and Protective Covers

Construction equipment may use sheet metal brackets to support electrical components, protective covers, and auxiliary equipment.

Self-clinching studs can be appropriate where loads remain within the verified capability of the fastener and surrounding sheet.

They should not be assumed suitable for primary structural connections, lifting attachments, chassis joints, or other safety-critical load-bearing locations.

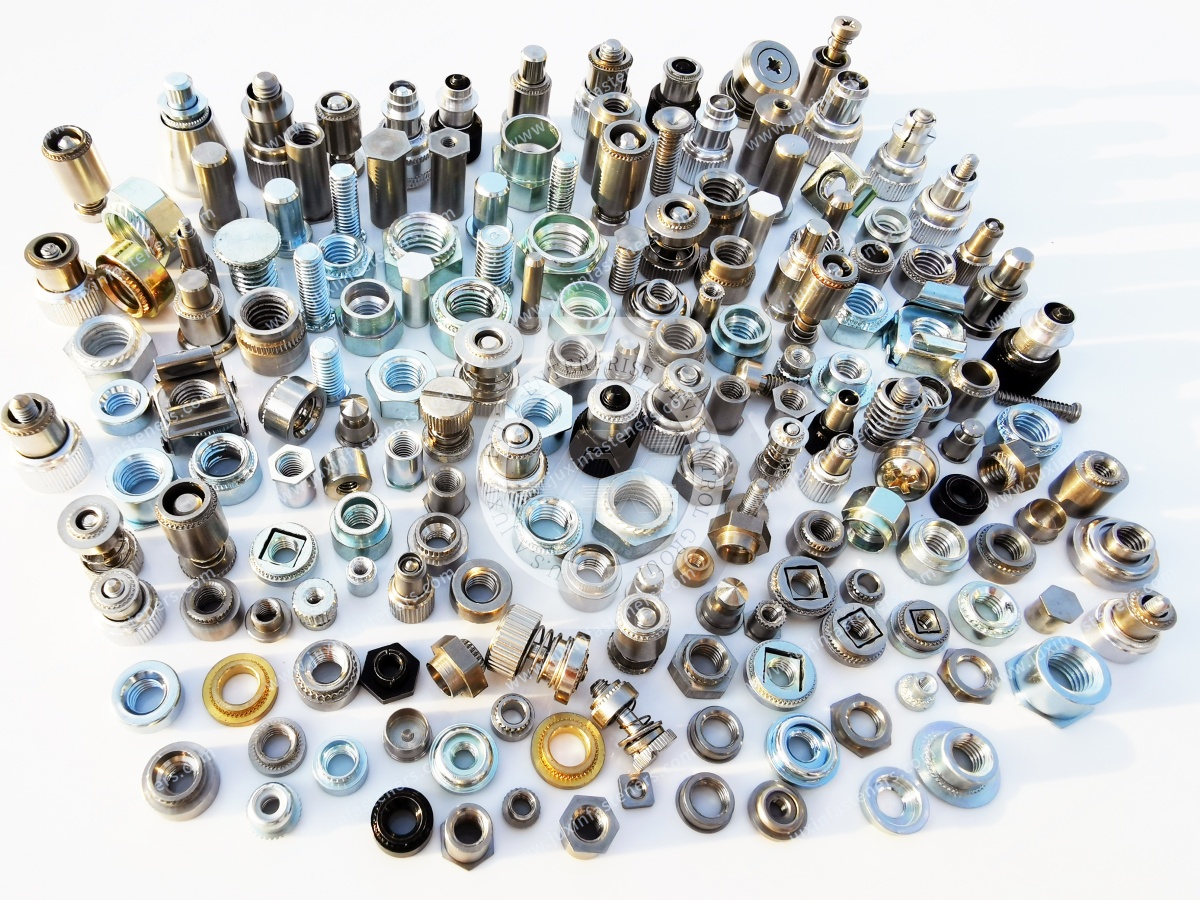

How Self-Clinching Studs Work in Construction Machinery Sheet Metal

A self-clinching stud is installed into a correctly prepared hole in compatible sheet metal using a controlled pressing operation.

During installation, the sheet material plastically deforms and flows into the fastener's retention features, creating a mechanical interlock.

The installed stud provides a permanently retained external thread for assembly with compatible nuts or other mating components.

Unlike welded studs, self-clinching studs do not require welding heat at the fastening location.

This can help avoid localized thermal distortion and additional welding-related operations in suitable sheet metal fabrication processes.

However, self-clinching installation requires specific material and geometric conditions.

Important factors include:

• Minimum sheet thickness

• Substrate hardness and ductility

• Installation-hole diameter

• Hole quality and burr condition

• Fastener retention geometry

• Fastener material and hardness

• Minimum edge distance

• Installation tooling and alignment

• Controlled pressing force

• Required pushout and torque-out performance

A self-clinching stud cannot be assumed compatible with every sheet metal grade used in heavy equipment manufacturing.

High-strength steel, hardened sheet material, and thick structural plate may require different fastening technologies.

Engineering Selection of Self-Clinching Studs for Heavy Equipment

Selecting a self-clinching stud requires evaluation of the actual joint design, substrate properties, and service environment.

Matching nominal thread size and stud length is not sufficient to establish mechanical suitability.

Sheet Thickness and Substrate Hardness

Self-clinching studs depend on controlled deformation of the sheet material during installation.

The sheet must meet the selected stud's minimum thickness requirements.

If the sheet is too thin, insufficient material may be available to engage the retention features.

If the substrate is too hard, the material may not flow adequately into the fastener's retention geometry.

Construction machinery may use cold-rolled steel, galvanized sheet, aluminum, stainless steel, or higher-strength steel grades.

Each substrate must be evaluated against the selected fastener's installation specification.

The hardness of the sheet is particularly important because a fastener intended for ductile sheet metal may not install correctly in hardened or high-strength steel.

Thread Size and Stud Length

Thread selection should reflect the connection's mechanical requirements, mating hardware, and available assembly space.

Metric thread sizes such as M4, M5, M6, and M8 may be relevant to certain machinery panel applications where supported by the selected stud series.

North American equipment designs may specify UNC or UNF inch-series threads.

Metric and Unified inch thread systems must be identified separately and are not directly interchangeable.

Stud length should account for:

• Thickness of the attached component

• Washer requirements

• Required nut engagement

• Thread projection

• Assembly tool clearance

• Nearby equipment and wiring

• Maintenance access

Excessive stud projection may interfere with internal components or create damage risks during servicing.

Insufficient thread engagement may compromise joint reliability.

Installation-Hole Diameter and Edge Distance

The mounting hole must follow the selected fastener's technical specification.

An oversized hole can reduce retention, while an undersized hole may prevent correct seating or cause local sheet deformation.

Hole position and quality should be controlled during fabrication.

Studs installed too close to sheet edges, bends, cutouts, or adjacent features may cause distortion or inadequate mechanical retention.

The minimum edge distance should be established using the selected fastener's installation requirements and verified against the actual panel design.

Pushout and Torque-Out Performance

Pushout resistance describes the fastener's ability to resist axial displacement from the sheet.

Torque-out resistance describes its ability to resist rotation within the sheet when torque is applied.

These characteristics depend on fastener geometry, substrate properties, sheet thickness, and installation quality.

Published performance values should not be treated as guaranteed results for every construction equipment assembly.

Where the connection is mechanically important, representative samples should be evaluated using appropriate procedures and agreed acceptance criteria.

Vibration, Impact, and Joint Reliability

Construction equipment frequently operates under vibration, repeated movement, and occasional impact loading.

These conditions can influence the reliability of threaded joints.

However, self-clinching stud retention and the resistance of the assembled nut joint to loosening are separate engineering considerations.

A stud may remain securely retained in the sheet while the mating nut loses preload under vibration.

Engineers should therefore evaluate:

• Joint preload requirements

• Applied dynamic loads

• Fastener retention performance

• Mating nut selection

• Suitable locking features

• Fatigue considerations

• Assembly tightening procedures

• Maintenance and inspection requirements

Where appropriate, compatible prevailing-torque nuts, flange nuts, or other locking solutions may be considered.

Their suitability must be verified against the joint design and applicable assembly requirements.

Self-clinching studs should not be selected for safety-critical or primary structural joints without specific engineering qualification.

Material and Surface Treatment Selection

Construction equipment fasteners may be exposed to moisture, dirt, chemicals, temperature variation, and outdoor weather conditions.

Material and coating selection should reflect the actual service environment and manufacturing process.

Carbon Steel Self-Clinching Studs

Carbon steel self-clinching studs may provide a practical combination of mechanical properties and cost for compatible industrial sheet metal applications.

Their suitability depends on fastener design, substrate compatibility, and corrosion-protection requirements.

Carbon steel should not be selected solely on the basis of price.

The installation characteristics and expected service environment must also be considered.

Heat-Treated Carbon Steel

Some self-clinching stud designs use heat-treated carbon steel to obtain the required mechanical characteristics.

The hardness and heat treatment must be appropriate for the selected fastener design and substrate.

A harder fastener does not automatically provide better performance in every sheet metal application.

The relationship between fastener hardness, substrate hardness, and material flow remains essential.

Zinc-Plated Carbon Steel

Zinc plating may provide corrosion protection for carbon steel fasteners used in suitable industrial environments.

For construction machinery, coating selection should consider moisture exposure, road contaminants, cleaning conditions, and customer requirements.

Coating thickness and processing should remain compatible with thread tolerances and installation characteristics.

Where electroplating is used on susceptible high-strength steel components, hydrogen embrittlement risk and appropriate process controls should be evaluated.

AISI 304 Stainless Steel

AISI 304 stainless steel may be considered for selected applications requiring corrosion resistance.

However, stainless steel self-clinching studs are not universally compatible with all stainless steel sheet materials.

The selected fastener series must be verified against substrate hardness, sheet thickness, and installation conditions.

AISI 304 should not automatically be treated as the most suitable material for every outdoor construction equipment application.

The actual corrosion environment and mechanical requirements must be considered.

Corrosion Protection for Outdoor Machinery

Outdoor construction equipment may experience rain, humidity, dirt, road salts, and other environmental contaminants.

Corrosion protection should be evaluated at the assembled joint level.

The interaction between the fastener, sheet material, coating, and surrounding environment can influence long-term performance.

ISO 9227 and ASTM B117 may be relevant where salt-spray testing is specified.

However, salt-spray exposure duration alone does not establish actual outdoor service life.

Self-Clinching Studs vs. Alternative Construction Equipment Fastening Methods

Different fastening technologies offer different advantages depending on the substrate, installation access, mechanical loading, and production process.

Self-Clinching Studs

Self-clinching studs provide retained external threads in compatible sheet metal.

They can simplify factory assembly and reduce loose hardware handling.

Their limitations include substrate hardness restrictions, minimum sheet thickness, installation access, and specific hole preparation requirements.

Weld Studs

Weld studs provide permanent threaded attachment points on suitable weldable materials.

They may be appropriate where welding is compatible with the component design and manufacturing process.

However, welding can introduce localized heat effects and may influence coatings, distortion, and finishing requirements.

Blind Rivet Nuts

Blind rivet nuts provide internal threads and can be installed from one side of a workpiece.

They may be suitable for certain equipment enclosures or assemblies with restricted access.

Selection requires evaluation of grip range, hole dimensions, substrate properties, and pullout or spinout performance.

Blind rivet nuts and self-clinching studs perform different functions and should not be treated as direct replacements without reviewing the joint design.

Conventional Bolts and Nuts

Conventional bolts and nuts provide flexibility for many equipment assemblies.

They may be preferable for higher-load joints, removable connections, or locations where retained studs are unnecessary.

However, they can increase loose-part handling and may require access to both sides of the assembly.

Selecting the Appropriate Fastening Method

The most suitable fastening method depends on the total assembly requirements.

Engineers and production teams should consider:

• Mechanical loading

• Sheet material and thickness

• Installation access

• Manufacturing sequence

• Assembly labor

• Tooling investment

• Inspection requirements

• Rework and maintenance

• Total installed cost

A lower fastener unit price does not necessarily produce the lowest overall assembly cost.

Manufacturing Efficiency and Production Line Integration

Construction equipment manufacturers often produce repeated sheet metal assemblies for machine housings, control cabinets, and protective covers.

Fastening methods therefore influence production efficiency, process stability, and manufacturing cost.

Press Installation and Tooling

Self-clinching studs should be installed using properly aligned tooling with adequate sheet support.

Incorrect tooling or angled pressing can cause incomplete clinching, fastener deformation, or sheet distortion.

Installation force should follow the selected fastener's technical requirements and be validated for the actual substrate.

Excessive force does not necessarily improve retention.

Assembly Sequence

Engineers should determine whether the stud is installed before or after bending, coating, or other fabrication operations.

Installation after forming may be limited by tool access.

Installation before forming may require clearance planning to prevent interference or damage during subsequent operations.

The installation sequence should be reviewed before finalizing fabrication tooling.

Pre-Coated and Galvanized Sheet Metal

Many machinery housings and equipment panels use galvanized or coated sheet metal.

Press installation can affect the protective coating near the fastening point.

Engineers should evaluate whether installation damages the coating and whether additional corrosion protection is required.

If coating is applied after installation, thread fit and masking requirements may also need consideration.

Production Consistency

For repeated manufacturing batches, consistent fastening performance depends on controlled process conditions.

Important variables include:

• Sheet material and hardness

• Hole diameter and position

• Fastener identification

• Tool alignment and condition

• Installation force

• Inspection frequency

• Material handling

Production managers should establish appropriate work instructions and inspection requirements.

Where necessary, representative installation trials and retention tests should be performed before volume production.

Common Self-Clinching Stud Failures and Prevention

Understanding potential failure mechanisms helps reduce manufacturing problems and field reliability risks.

Stud Rotation During Tightening

A stud may rotate when applied torque exceeds its retention capability.

Possible causes include incorrect hole dimensions, unsuitable substrate hardness, incomplete installation, or excessive tightening torque.

The solution requires review of both the installation process and the assembled joint.

Stud Pushout

Stud pushout may result from insufficient sheet thickness, inadequate material flow, incorrect installation, or excessive axial loading.

Engineers should verify substrate compatibility and retention performance.

Sheet Metal Distortion

Thin panels may deform when installation force is excessive or support tooling is inadequate.

Distortion can affect appearance, panel fit, and component alignment.

Proper tooling and installation validation are essential.

Corrosion Around the Fastening Point

Corrosion may develop where protective coatings are damaged or incompatible materials are exposed to moisture.

The corrosion-protection strategy should consider the complete assembled joint.

Thread Damage and Joint Loosening

Cross-threading, incorrect mating hardware, excessive tightening, and vibration can affect joint reliability.

Thread compatibility, assembly torque, and locking requirements should be evaluated.

International Standards and Technical Requirements

Construction equipment manufacturers supplying international markets may specify different thread systems, material requirements, and corrosion tests.

Applicable standards depend on the actual fastener and customer specification.

ISO Metric Threads

ISO 261 provides relevant metric screw thread series information.

ISO 965 addresses tolerance requirements for ISO general-purpose metric screw threads.

Metric thread designations and tolerance classes should be defined in the approved drawing.

ASME Unified Inch Threads

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

These thread systems may be relevant to North American construction machinery.

Metric and Unified inch threads are not directly interchangeable.

Corrosion Testing

ISO 9227 and ASTM B117 may be used where salt-spray testing is specified.

Test conditions and acceptance criteria should be agreed upon.

Salt-spray exposure duration alone does not establish field service life.

Product-Specific Installation Requirements

General thread standards do not define the complete installation requirements for self-clinching studs.

The selected product specification and approved engineering drawing should establish:

• Minimum sheet thickness

• Compatible substrate hardness

• Installation-hole diameter

• Minimum edge distance

• Installation tooling

• Required retention performance

• Critical dimensional requirements

OEM Construction Equipment Fastener Supplier Development

For construction machinery OEMs, sourcing a fastening component requires both engineering qualification and commercial evaluation.

A nominally matching fastener may not provide equivalent installation or mechanical performance.

Engineering Drawing Review

A complete drawing should identify the critical dimensions, thread system, material, surface treatment, tolerances, and installation requirements.

Where an existing component is being replaced, the original part number, drawing, or sample can help identify important compatibility requirements.

Alternative Fastener Evaluation

A proposed alternative self-clinching stud may differ in retention geometry, hole requirements, substrate compatibility, or tooling.

Matching nominal thread size and length does not establish direct interchangeability.

Engineering approval should be based on relevant dimensional and installation requirements.

Quality and Inspection Requirements

OEM purchasing specifications may include dimensional inspection, material documentation, coating requirements, traceability, and agreed mechanical testing.

These requirements should be confirmed during supplier qualification and quotation.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should review estimated order quantities, annual demand, MOQ, production feasibility, delivery schedules, and packaging.

For drawing-based or custom fastening components, tooling and material requirements may influence commercial terms.

JUXIN FASTENERS can review project information and confirm feasibility during the RFQ process.

Supply Chain Stability and Total Cost

Construction equipment manufacturers operating repeated production schedules require consistent component sourcing.

Supplier evaluation should consider technical conformity, total procurement cost, manufacturing consistency, delivery planning, and long-term supply requirements.

Cost reduction should not compromise the fastening system's reliability.

Practical RFQ Checklist for Construction Equipment Fasteners

A complete RFQ helps suppliers evaluate technical feasibility and prepare accurate quotations.

For self-clinching studs and related machinery sheet metal fasteners, useful information includes:

• 2D engineering drawing or 3D model

• Fastener type and application

• Metric or inch thread specification

• Thread diameter and stud length

• Sheet material and thickness

• Substrate hardness, if known

• Installation-hole dimensions

• Material and surface treatment

• Operating environment

• Required pushout or torque-out performance

• Vibration or mechanical loading requirements

• Installation process and tooling

• Critical dimensional tolerances

• Inspection and documentation requirements

• Estimated order quantity and annual usage

• Packaging and delivery requirements

• Target delivery schedule

For existing machinery designs, the original component drawing or part number may help identify compatibility requirements.

For new equipment development, early review of sheet thickness, substrate hardness, installation access, and stud geometry can reduce redesign during manufacturing preparation.

Why Work with JUXIN FASTENERS for Construction Equipment Fastening Projects?

JUXIN FASTENERS supports industrial OEM fastening inquiries involving fabricated metal assemblies, machinery housings, threaded hardware, and drawing-based components.

Relevant product inquiries include:

• Self-clinching studs for construction equipment

• Heavy equipment sheet metal fasteners

• Excavator enclosure fasteners

• Machinery housing fastening components

• Construction equipment control cabinet fasteners

• Threaded hardware for mounting brackets

• Industrial screws, bolts, nuts, and related fastening components

• Drawing-based OEM fastening requirements

• Alternative fastener sourcing and bulk purchasing projects

Our approach emphasizes technical requirement clarification and practical evaluation of the customer's drawings, materials, installation conditions, and purchasing needs.

For design and mechanical engineers, the priority is selecting a fastener compatible with the actual joint geometry, substrate, and mechanical requirements.

For manufacturing engineers and production managers, the priority includes installation efficiency, process consistency, and reliable assembly performance.

For procurement and supply chain teams, the priority includes drawing conformity, supplier evaluation, commercial feasibility, purchasing cost, and delivery planning.

Product availability, manufacturing feasibility, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Construction Equipment Self-Clinching Studs and OEM Fasteners

Are you developing a new construction equipment enclosure, evaluating a self-clinching stud replacement, or sourcing sheet metal fastening components for volume manufacturing?

JUXIN FASTENERS welcomes inquiries from construction machinery OEMs, equipment manufacturers, engineering teams, production departments, purchasing professionals, and industrial supply chain organizations.

Send us your engineering drawings, thread specifications, sheet material details, installation requirements, mechanical performance requirements, and estimated purchasing quantities.

We can review your project information and discuss suitable fastening options, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Construction Equipment Fasteners | Self-Clinching Studs | OEM Sheet Metal Hardware
