Electrical switchgear, industrial control cabinets, power-distribution enclosures and automation systems depend on extensive sheet-metal architecture.
Folded flanges, removable covers, service doors, internal brackets and access panels must be assembled efficiently while supporting long-term maintenance.
Where a threaded attachment point is located near an accessible sheet-metal edge or formed flange, clip-on nuts for electrical cabinets can provide a practical removable fastening solution.
Enclosed hex clip-on nuts, U-nuts, J-nuts and other spring fasteners can establish captive threaded points without requiring a conventional loose nut behind the panel.
This can be particularly useful in:
electrical switchgear cabinets;
industrial control enclosures;
power-distribution equipment;
automation cabinets;
junction boxes;
HVAC control enclosures;
data-center power equipment;
telecom equipment;
industrial machinery cabinets.
However, electrical enclosure fastener selection requires more than matching an M5, M6 or 1/4-inch thread.
The complete mechanical interface should be evaluated as:
Clip Nut + Finished Flange + Mating Screw + Cover / Bracket + Environment + Assembly Process
Where electrical continuity, grounding, bonding, ingress protection or other enclosure functions are involved, those requirements must be engineered separately.
An electrical cabinet clip-on nut is an edge-mounted spring fastener selected for an appropriate enclosure or cabinet assembly.

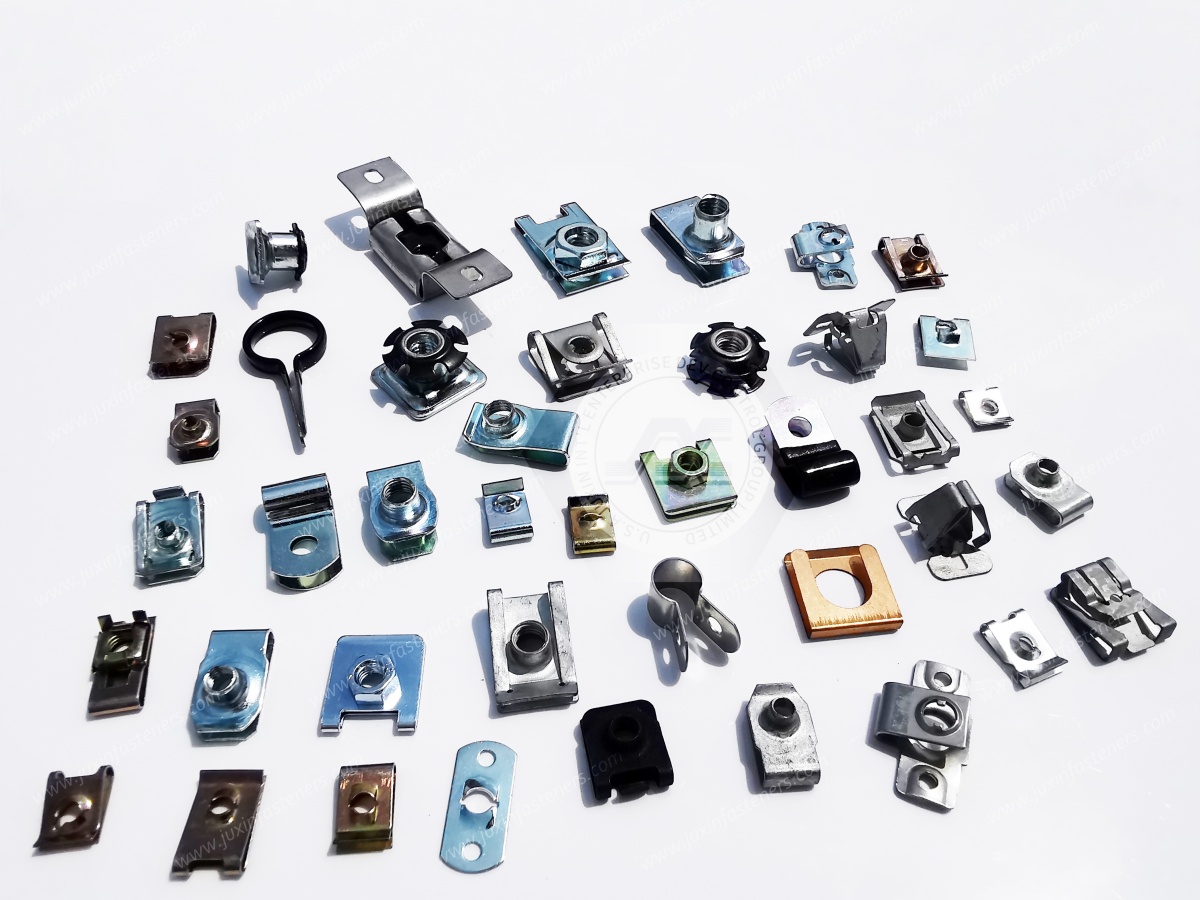

Possible configurations include:

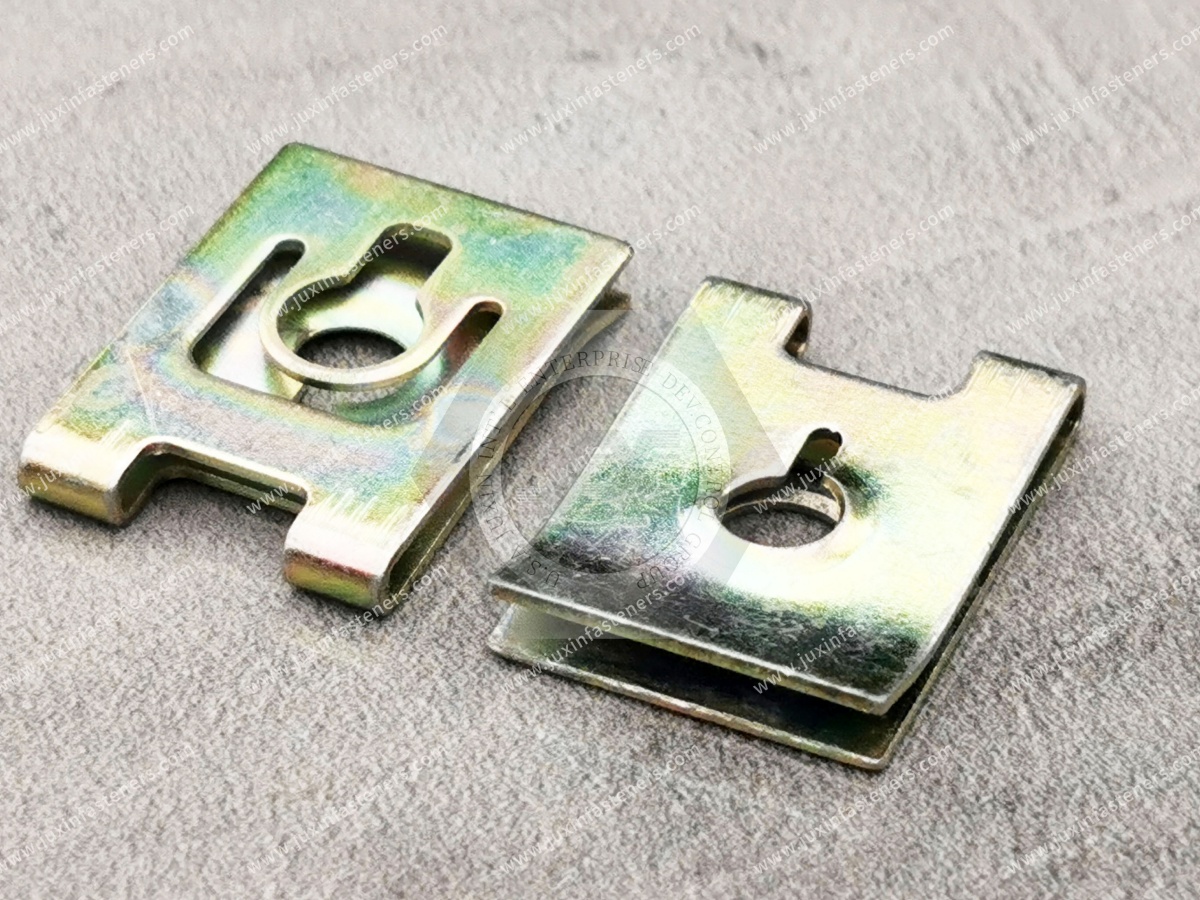

U-nuts;
J-nuts;

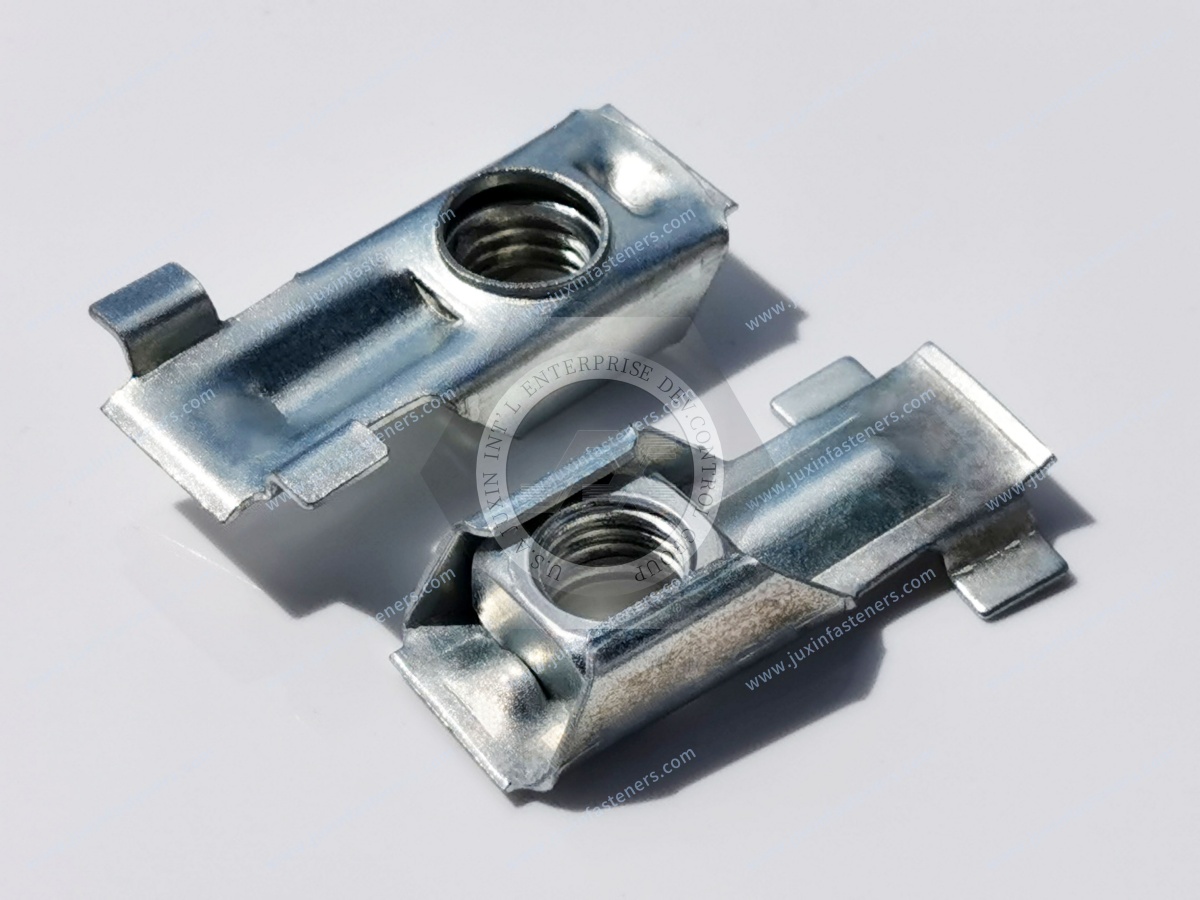

enclosed hex clip-on nuts;
low-profile clip nuts;
flanged-edge clip nuts;

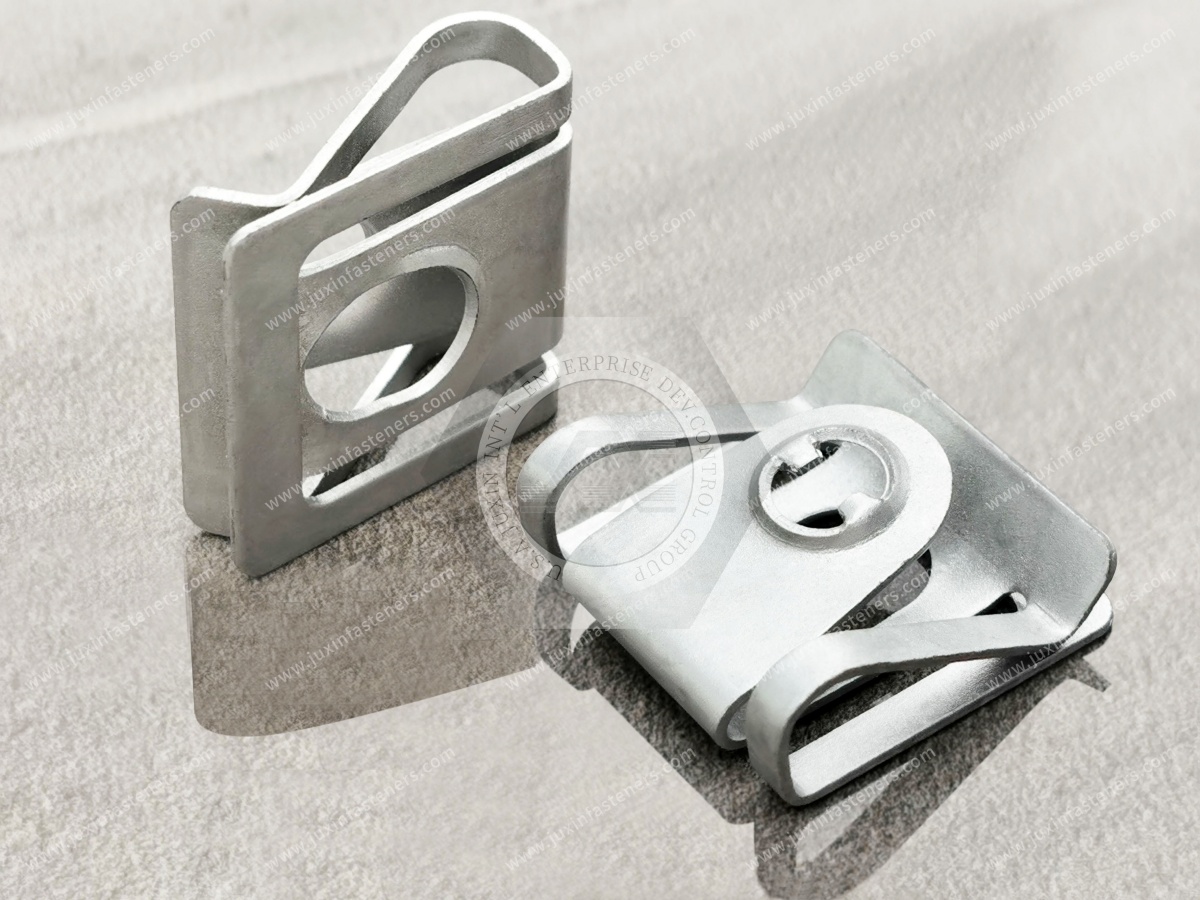

machine-screw spring nuts;
tapping-screw clips;
drawing-specific spring fasteners.
The correct design depends on:
panel thickness;
flange geometry;
hole setback;
thread;
screw;
load;
finish;
service environment.
Potential applications include appropriate:
removable cabinet covers;
access panels;
service doors;
internal auxiliary brackets;
cable-management covers;
control-panel covers;
equipment guards;
junction-box covers;
secondary sheet-metal assemblies.
The suitability of a clip-on nut depends on the actual mechanical and electrical function of the attachment.
Not every threaded attachment inside an electrical enclosure performs the same function.
A useful engineering approach is to classify the joint before selecting the fastener.
Examples may include:
removable covers;
secondary brackets;
service panels;
guards.
These are natural candidate applications for clip-on nuts where edge geometry permits.
Door hardware can experience loads from:
door mass;
opening and closing;
latching;
repeated service.
Some clip-on nut architectures may be appropriate for specific secondary door attachments.
However, a generic clip-on nut should not automatically be selected for heavily loaded:
primary hinges;
major latching points;
load-bearing door supports.
The actual load path must be evaluated.
Where a joint is required to provide:
protective earthing;
bonding;
controlled electrical continuity,
the electrical function must be specifically engineered and verified.
A standard clip-on nut should not automatically be assigned this role.
Where a cabinet or enclosure has an ingress-protection requirement, the complete enclosure architecture controls performance.
The clip-on nut alone is not an IP-rated sealing device.
Clip-on nuts can solve several practical sheet-metal assembly problems.
Potential benefits include:
captive threaded attachment;
no loose backside nut during final screw installation;
no welding at the clip installation location;
potential installation after painting or powder coating;
replaceability in suitable applications;
compatibility with folded sheet-metal flanges;
simplified maintenance access.
These benefits should still be evaluated against the actual cabinet design.
Painted sheet-metal interfaces are particularly important in electrical cabinet manufacturing.
A typical enclosure may pass through:
Sheet Forming → Pretreatment → Painting / Powder Coating → Final Assembly
If the fastener is installed after finishing, the clip interacts with the finished surface rather than bare sheet metal.
This changes the engineering problem.
Suppose a cabinet drawing specifies a nominal steel sheet thickness.
After finishing, the interface can include:
pretreatment;
primer where applicable;
paint;
powder coating;
other surface layers.
Therefore:
Nominal Sheet Thickness ≠ Automatically Finished Grip Thickness
For a clip operating near its grip-range boundary, coating thickness can affect fit.
Incorrect effective grip can contribute to:
excessive installation force;
insufficient retention;
clip distortion;
coating damage;
hole misalignment.
For detailed selection guidance, see Panel Thickness Selection Guide.
Installing clip-on nuts after finishing can avoid some process complications associated with creating welded or permanently installed threaded points before coating.
Potential benefits can include reducing the need for:
thread masking;
thread cleaning;
post-coating thread restoration.
However, post-paint installation creates its own engineering considerations.
The clip can contact and potentially disturb the coating.
Therefore:
Post-Paint Installation ≠ Guaranteed Finish Protection
Depending on the geometry and installation force, a clip may cause:
scratching;
indentation;
local coating removal;
edge damage.
The severity depends on:
clip geometry;
spring force;
panel material;
coating thickness;
coating hardness;
installation method.
For corrosion-sensitive applications, the installed interface should be evaluated rather than assuming the coating remains completely intact.
Electrical cabinets commonly use folded flanges for:
stiffness;
edge safety;
door interfaces;
mounting surfaces.
This creates useful locations for edge-mounted fasteners.
However, flange geometry must be considered carefully.
Relevant dimensions include:
flange thickness;
flange width;
bend radius;
edge return;
hole setback;
nearby formed features.
For more detail, see Clip-On Nuts for Flanged Edges.
The distance between the flange edge and the screw-hole center determines whether the clip thread aligns correctly with the panel hole.
Incorrect setback can cause:
difficult screw starting;
cross-threading;
clip migration;
abnormal installation torque.
Therefore the panel drawing and clip drawing should be evaluated together.
Throat depth determines how far the clip reaches over the panel edge.
Two clip-on nuts with the same thread size can have different throat depths.
Therefore:
Same M6 Thread ≠ Same Flange Compatibility
Clip-on nuts can simplify assembly where a technician cannot hold a conventional nut behind the flange during screw installation.
However, a conventional edge clip still requires access to a suitable panel edge during installation.
Therefore:
No Backside Nut Handling ≠ Universal Blind-Hole Installation
If the required threaded point is located away from an accessible edge, another fastening architecture may be more appropriate.
This distinction is fundamental.
Describes how securely the clip remains positioned on the flange before and during screw installation.
Depends on the complete:
Screw + Clip Thread + Panel + Attached Component
system.
Therefore:
High Clip Retention ≠ Automatically High Joint Strength
Another common misconception is that the spring force gripping the cabinet flange automatically prevents the screw from loosening.
It does not.
The spring arms primarily retain the clip on the panel.
Threaded-joint stability depends on factors such as:
initial clamp;
friction;
joint stiffness;
transverse movement;
vibration;
thermal cycling;
locking features where required.
Therefore:
Panel Grip Force ≠ Screw-Locking Torque
Electrical cabinets can experience mechanical input from:
repeated door closing;
nearby machinery;
fans;
pumps;
compressors;
transportation;
industrial vibration.
The appropriate fastener should be selected according to the actual load environment.
A standard clip-on nut should not automatically be marketed as “vibration-proof.”
Door closing can create transient loads.
Machine operation can create repeated cyclic vibration.
These are different mechanical conditions.
The fastener and panel should therefore be evaluated according to the actual application.
Large sheet-metal panels can respond dynamically to nearby equipment.
The local movement at a fastener can depend on:
panel stiffness;
cabinet geometry;
equipment excitation;
mounted mass.
Therefore:
Machine Vibration Input ≠ Automatically Fastener Local Load
This is particularly relevant in industrial control cabinets mounted near rotating machinery.
A metal clip-on nut contacting a metal cabinet may appear electrically conductive.
However, electrical continuity can be affected by:
paint;
powder coating;
conversion coatings;
plating;
oxidation;
contact pressure;
surface contamination.
Therefore a standard clip-on nut should not automatically be treated as a protective-earth or bonding fastener.
Specialized hardware can incorporate:
teeth;
serrations;
dedicated contact features.
These may be designed to penetrate coatings and establish metal-to-metal contact.
However, this functionality should not be assumed for a standard clip-on nut.
If electrical bonding is required, the relevant joint should be specifically designed and verified.
A mechanically secure joint may still have unsuitable electrical resistance.
Likewise, a conductive contact does not automatically establish the required mechanical durability.
Therefore:
Mechanical Joint Performance ≠ Electrical Bonding Performance
Electrical and electronic enclosures may have electromagnetic compatibility requirements.
A standard clip-on nut should not automatically be claimed to provide:
EMI shielding;
RFI shielding;
controlled shielding continuity.
These functions depend on the complete enclosure design.
Another important boundary is ingress protection.
A clip-on nut is not automatically:
waterproof;
dustproof;
IP54;
IP65;
IP66;
IP67;
IP68.
Ingress protection belongs to the tested enclosure or assembly configuration.
IEC 62208 provides general requirements for empty enclosures intended for use with low-voltage switchgear and controlgear assemblies within its scope.
It addresses the enclosure as a system.
A clip-on nut used inside such an enclosure should not be described as independently “IEC 62208 compliant” merely because it is installed in an enclosure designed or tested according to that standard.
The correct distinction is:
Enclosure Requirement → System Level
Clip-On Nut → Mechanical Component Within the Enclosure
The IEC 61439 series addresses low-voltage switchgear and controlgear assemblies within its scope.
The presence of an IEC 61439 requirement on a switchgear project does not create a universal clip-on nut specification.
The fastener must support the mechanical architecture without being assigned compliance claims that belong to the complete assembly.
Clip-on nuts may be used for appropriate auxiliary internal components such as:
brackets;
cable-management components;
covers;
secondary rails.
However, not every mounting rail should automatically use a clip-on nut.
DIN rail and other functional mounting systems can have their own mechanical architecture.
Switchgear cabinets may contain:
contactors;
drives;
power supplies;
transformers;
busbar assemblies;
other heavy equipment.
A generic clip-on nut should not automatically be used for high-load equipment simply because it fits the sheet-metal flange.
Evaluate:
equipment mass;
load direction;
vibration;
panel stiffness;
thread capacity;
safety consequence.
A busbar joint can involve:
electrical current;
contact pressure;
thermal cycling;
temperature rise;
electrical resistance.
A generic clip-on nut should not automatically be promoted as a busbar fastener.
Electrical equipment may contain removable barriers or protective covers.
Clip-on nuts can be considered for appropriate mechanical attachments.
However, if the barrier contributes to electrical safety, the complete barrier system and fastener arrangement must meet the applicable assembly requirements.
Clip-on nuts can be useful in suitable junction-box designs where:
the thread is near an accessible edge;
the cover is removable;
the joint does not assign sealing performance to the clip itself.
If the box requires environmental sealing, the gasket and enclosure architecture should be evaluated separately.
HVAC equipment can include:
control panels;
electrical cabinets;
service covers;
fan-control enclosures.
Clip-on nuts may provide useful removable attachment points.
They should not automatically be represented as providing:
airtightness;
water sealing;
vibration isolation.
Data-center infrastructure can contain:
power-distribution cabinets;
UPS enclosures;
cooling-control cabinets;
electrical equipment racks.
Clip-on nuts can support appropriate mechanical covers and brackets.
They should not automatically be described as:
grounding hardware;
busbar hardware;
EMI components.
Automation systems frequently require access to:
PLC equipment;
drives;
relays;
terminals;
wiring.
Serviceable covers and secondary brackets can create suitable applications for clip-on nuts.
Electrical enclosure manufacturers may require either metric or inch fasteners depending on market and equipment platform.
Metric requirements may include commonly used machine-screw threads.
North American programs may also specify Unified threads such as:
UNC;
UNF.
The RFQ should explicitly define:
nominal diameter;
thread pitch or threads per inch;
mating screw requirement.
For more detail, see Metric Clip-On Nuts Selection Guide and Inch Clip-On Nuts Selection Guide.
Two M6 electrical cabinet clip nuts can differ in:
grip range;
throat depth;
hole setback;
spring geometry;
thread architecture;
overall envelope;
material;
coating.
Likewise, two 1/4-inch clip nuts may not be interchangeable.
Therefore:
Thread Size = One Selection Parameter
not:
Thread Size = Complete Fastener Specification
Specification-controlled carbon spring steel can provide the elastic behavior required for many clip-on fastener designs.
Final performance depends on:
material condition;
thickness;
forming;
heat treatment;
geometry.
Material name alone does not establish fastener performance.
Stainless spring materials can be considered where the application requires their mechanical and environmental characteristics.
Potential applications may include:
humid environments;
selected outdoor equipment;
corrosive industrial environments.
However:
Stainless ≠ Corrosion-Proof
The actual material grade and environment must be evaluated.
Where stainless clip-on nuts are being evaluated, material selection should reflect:
atmospheric exposure;
chlorides;
cleaning chemicals;
industrial contaminants;
cost.
For more detail, see 304 vs 316 Stainless Clip-On Nuts.
Electroplated carbon steel clip nuts can provide a combination of:
spring performance;
corrosion protection;
commercial efficiency.
Where applicable, ISO 4042 provides requirements for electroplated coating systems on fasteners, including clips.
The required coating should still be defined by the applicable product or customer specification.
For susceptible hardened or high-strength spring-steel clips, electroplating and related processing can require hydrogen-embrittlement risk controls.
The risk depends on:
material;
hardness/strength;
processing;
coating route;
applied stress.
No universal baking procedure should be assigned to every electrical cabinet clip nut.
Electrical cabinets can operate in very different environments.
Potential exposure may be relatively mild.
Potential exposure can include:
humidity;
condensation;
oils;
process contaminants;
cleaning chemicals.
Potential exposure can include:
rain;
humidity;
temperature cycling;
atmospheric contaminants.
More aggressive corrosion evaluation may be required.
Therefore:
Electrical Cabinet ≠ One Universal Corrosion Class
Where salt-spray testing is specified, ISO 9227 provides recognized laboratory test methods.
The required:
test method;
exposure duration;
acceptance criteria
should come from the applicable customer or product specification.
A result such as a specified number of salt-spray hours should not be translated directly into:
years outdoors;
years without corrosion;
enclosure service life.
Real exposure depends on the actual environment.
Electrical cabinets often require repeated maintenance access.
A replaceable clip-on nut can offer a useful lifecycle advantage where the panel architecture permits replacement.
If the clip thread becomes damaged, the clip may potentially be replaced without replacing the complete enclosure panel.
Repeated screw removal and installation can affect:
clip threads;
screw threads;
panel edge;
coating;
spring geometry.
Where repeated maintenance cycles matter, define and validate the required service cycle.
Potential problems include:
clip migration;
coating damage;
excessive insertion force;
misalignment;
cross-threading;
thread stripping;
screw loosening;
corrosion;
panel-edge deformation.
For detailed troubleshooting, see Clip-On Nut Failure Analysis.
Possible causes include:
incorrect grip range;
coating thickness assumptions;
panel thickness variation;
unsuitable spring geometry.
Measure the actual finished interface rather than relying only on nominal sheet thickness.
Potential contributors include:
coating build-up;
incorrect grip range;
excessive spring force.
Consequences can include:
difficult installation;
coating damage;
panel deformation.
Possible causes include:
hole setback error;
clip misalignment;
driver misalignment;
incorrect mating screw.
Investigate:
initial clamp;
joint movement;
vibration;
joint stiffness;
screw locking strategy.
Do not automatically increase clip grip force.
Investigate:
coating damage during installation;
moisture retention;
panel finish;
clip finish;
environmental exposure;
dissimilar-metal contact.
If the joint was expected to provide electrical continuity, investigate the electrical design separately.
Painted contact surfaces and standard clip geometries may not provide the intended bonding path.
| Engineering Requirement | Selection Consideration |
|---|---|
| Folded flange | Clip-on nut may be suitable |
| Accessible panel edge | Suitable for conventional edge clip |
| No backside wrench access | Captive clip can simplify assembly |
| Mid-panel blind thread | Consider another fastener architecture |
| Post-paint installation | Evaluate finished thickness and coating damage |
| Removable service cover | Clip-on nut can offer lifecycle advantages |
| Heavy hinge attachment | Load-path analysis required |
| High-load equipment mount | Dedicated mechanical validation required |
| Protective grounding | Dedicated electrical design required |
| EMI continuity | Enclosure-level design required |
| IP-rated enclosure | Validate complete enclosure |
| Outdoor environment | Define corrosion requirement |
| Repeated maintenance | Define service-cycle requirement |
| Automated screwdriving | Control alignment and clip position |
Is the fastener used in:
switchgear;
control cabinet;
power-distribution panel;
junction box;
HVAC enclosure;
data-center equipment;
industrial automation cabinet?
Is it retaining:
cover;
service panel;
door component;
bracket;
guard?
Does the joint have requirements involving:
grounding;
bonding;
EMI;
electrical continuity?
If yes, these requirements must be defined separately.
Specify:
carbon steel;
stainless steel;
aluminum;
other material.
Include:
bare sheet thickness;
paint;
powder coating;
other surface systems.
Specify:
flange width;
bend radius;
hole setback;
throat depth.
Specify:
metric or inch;
nominal diameter;
pitch or TPI;
mating screw;
screw finish.
Include where relevant:
component mass;
door load;
vibration;
service load.
Specify:
indoor/outdoor;
humidity;
condensation;
chemicals;
chloride exposure where relevant.
Evaluate the actual:
Production Clip + Finished Enclosure Flange + Production Screw + Mounted Component + Assembly Process
A clip fitting one prototype cabinet does not establish production robustness.
Volume manufacturing introduces:
sheet tolerance;
bend tolerance;
coating variation;
hole-position variation;
fastener-lot variation;
screwdriving variation.
Validation should represent production conditions.
Two suppliers may both offer:
M6 Electrical Cabinet Clip Nut
while their components differ in:
grip range;
throat depth;
hole setback;
spring force;
free-state geometry;
thread geometry;
coating thickness.
Therefore:
Same Catalogue Name ≠ Same Assembly Behavior
Supplier changes should be reviewed against the controlled assembly specification.
Purchasing decisions should consider more than fastener unit price.
A more useful model is:
Fastener Price + Installation Cost + Rework Risk + Coating Damage Risk + Maintenance Cost + Replacement Cost
This can change the sourcing decision.
Electrical and mechanical engineers may search:
clip-on nuts for electrical cabinets;
switchgear clip nuts;
electrical enclosure U-nuts;
control cabinet spring nuts;
powder-coated panel fasteners;
switchgear enclosure fasteners;
folded flange clip nuts;
removable electrical cabinet fasteners.
These searches indicate engineering-selection intent.
Procurement teams may search:
electrical cabinet clip nut supplier;
switchgear fastener manufacturer;
control enclosure spring nut supplier;
electrical enclosure U-nut manufacturer;
custom cabinet clip nuts;
metric and inch clip nut supplier.
These searches indicate supplier-selection and RFQ intent.
When requesting engineering and commercial evaluation from JUXIN FASTENERS, provide where applicable:
enclosure type;
equipment application;
fastener function;
2D drawing;
3D model where available;
assembly drawing;
current fastener sample;
current supplier part number;
thread size;
metric or inch thread;
thread pitch or TPI;
mating screw specification;
screw material;
screw finish;
panel material;
bare sheet thickness;
thickness tolerance;
paint/powder-coating system;
coating thickness where controlled;
finished grip thickness;
flange width;
bend geometry;
edge radius;
hole diameter;
hole setback;
throat-depth requirement;
fastener envelope;
clip-retention requirement where defined;
mechanical load requirement;
vibration requirement where applicable;
service-removal requirement;
expected service cycles;
indoor/outdoor environment;
humidity/condensation exposure;
chemical exposure;
corrosion requirement;
coating specification;
corrosion test method;
exposure duration where specified;
acceptance criteria;
grounding/bonding requirement where applicable;
EMI requirement where applicable;
enclosure ingress-protection requirement where applicable;
installation method;
screwdriving method;
automated-feeding requirement;
packaging requirement;
inspection requirement;
documentation requirement;
sample quantity;
prototype quantity;
production quantity;
estimated annual demand;
program timing;
customer-specific requirements.
They can provide removable threaded attachment points on suitable folded flanges and panel edges for covers, access panels, auxiliary brackets and other appropriate sheet-metal assemblies.
Many clip-on nut designs can be installed after finishing. However, engineers should evaluate finished panel thickness, installation force and potential coating damage.
Not automatically. It avoids some pre-paint fastener-processing issues, but the clip itself can scratch or locally disturb the coating during installation.
A standard clip-on nut should not automatically be treated as a grounding or bonding fastener. Electrical continuity requires dedicated design and verification.
Not automatically. EMI performance belongs to the complete enclosure system.
No. A standard clip-on nut is not independently a waterproof or IP-rated component.
Potentially, as mechanical components within an appropriately engineered enclosure. The complete enclosure must satisfy the required ingress-protection performance.
That depends on the actual attachment and load. Primary hinges and high-load latching points require dedicated load-path analysis rather than generic clip selection.
Not automatically. Panel retention and screw-joint stability are different functions.
A generic clip-on nut should not automatically be specified for electrical busbar joints. Those connections require dedicated electrical and mechanical engineering.
IEC 62208 addresses empty enclosures for low-voltage switchgear and controlgear assemblies within its scope. It should not be treated as a generic product specification for an individual clip-on nut.
No. IEC 61439 requirements apply to low-voltage switchgear and controlgear assemblies within their applicable scope. An individual clip-on nut should not inherit an assembly-level compliance claim automatically.
JUXIN FASTENERS can review available drawings, samples, finished flange dimensions, mating screw requirements, environment, assembly process and annual demand to identify candidate clip-on nut configurations for evaluation.
A sourcing request may begin:
“Need M6 clip nut for powder-coated electrical cabinet.”
That description still leaves important engineering questions unanswered.
The sourcing team should determine:
What Does the Fastener Retain?
Is It Purely Mechanical or Does the Joint Have an Electrical Function?
What Is the Bare Sheet Thickness?
What Is the Finished Thickness?
What Is the Flange Geometry?
What Is the Hole Setback?
What Screw Is Used?
Will the Clip Be Installed Before or After Painting?
Can Coating Damage Be Accepted?
What Mechanical Load Applies?
What Environment Applies?
Is Grounding or Bonding Required?
Does the Enclosure Have an IP Requirement?
How Often Will the Panel Be Removed?
The sourcing path becomes:
Enclosure Type → Fastener Function → Electrical Function Boundary → Finished Flange Geometry → Thread / Screw → Mechanical Load → Environment → Clip Architecture → Samples → Assembly Validation → Controlled Specification → Production RFQ
This turns a generic cabinet hardware request into a controlled engineering and procurement specification.
JUXIN FASTENERS supports OEM and industrial sourcing for:
electrical cabinet clip-on nuts;
switchgear clip nuts;
control enclosure spring nuts;
U-nuts;
J-nuts;
enclosed hex clip-on nuts;
flanged-edge clip nuts;
low-profile clip nuts;
metric clip-on nuts;
inch clip-on nuts;
carbon spring-steel clips;
stainless spring clips where appropriate;
drawing-based spring fasteners.
Potential applications include appropriate:
switchgear cabinets;
industrial control enclosures;
power-distribution equipment;
junction boxes;
HVAC control cabinets;
data-center power equipment;
telecom equipment;
automation cabinets;
machinery enclosures;
service-access panels.
For related engineering guidance, see:
Strong-Grip Clip-On Enclosed Hex Nuts
Clip-On Nuts for Flanged Edges
Panel Thickness Selection Guide
Sheet-Metal Fastener Selection Guide
Carbon Steel Clip-On Nuts: Material & Coating Guide
304 vs 316 Stainless Clip-On Nuts
Metric Clip-On Nuts Selection Guide
Inch Clip-On Nuts Selection Guide
For an electrical cabinet, switchgear or control-enclosure clip-on nut RFQ, send your drawing, panel material, bare and finished thickness,
flange geometry, hole setback, mating screw specification, coating system, environmental requirements, service requirements, sample quantity and estimated annual demand to:
For electrical enclosure fastening, the correct sourcing question is not simply:
“Which clip nut fits this M6 cabinet hole?”
It is:
“Which clip geometry, finished flange interface, thread, material, coating and assembly process match the mechanical requirements of
this enclosure without confusing mechanical fastening with grounding, sealing or electrical functionality?”
MORE NEWS
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
