Advanced Bolt Preload Monitoring Technologies for Industrial Reliability | JUXIN FASTENERS

In modern engineering systems, the reliability of bolted joints is directly linked to structural safety, operational continuity,

and lifecycle cost control. However, it is widely recognized that bolt preload decreases over time in service,

driven by vibration, thermal cycling, creep, and corrosion.

This gradual loss of axial clamping force is one of the primary root causes of:

• Structural loosening failures

• Fatigue cracking initiation

• Leakage in pressure systems

• Catastrophic joint separation in extreme cases

As a result, in-service bolted connection monitoring has become a critical requirement in high-risk industries such as wind power,

petrochemical processing, bridge engineering, and aerospace systems.

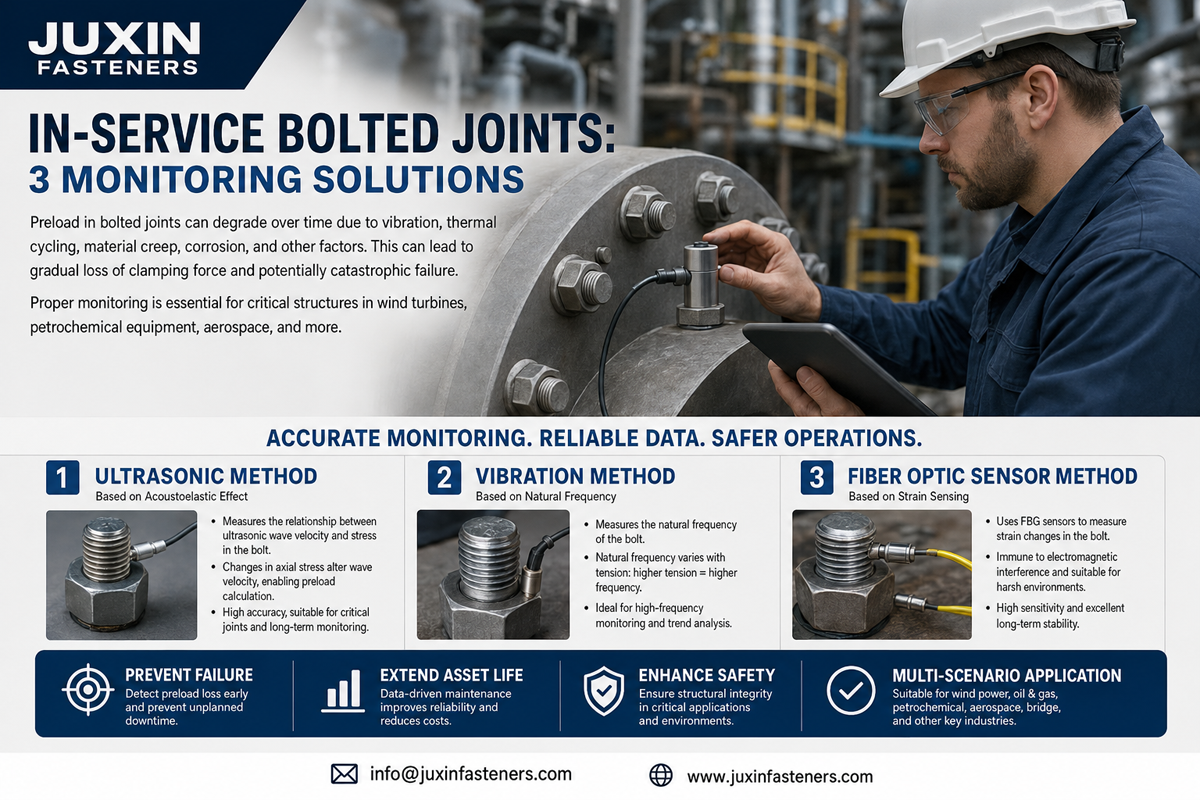

This article presents a comprehensive engineering overview of three mainstream monitoring technologies:

• Ultrasonic bolt preload measurement

• Vibration-based structural monitoring

• Fiber Bragg Grating (FBG) fiber-optic sensing systems

All references to legacy regional standards such as DIN are aligned here with internationally recognized frameworks

including ISO, DIN, SAE, ASTM, and VDI standards.

1. Why Monitoring Bolted Connections Is Essential in Engineering Design

Bolted joints designed according to standards such as ISO 898-1 (mechanical properties of fasteners) and analyzed using

VDI 2230 (bolted joint design guideline) are typically installed with controlled preload.

However, in real service conditions, preload loss occurs due to:

• Stress relaxation of materials

• Micro-slip at joint interfaces

• Thermal expansion mismatch

• Dynamic vibration loading

• Corrosion-induced surface degradation

Even a well-designed joint can experience significant preload reduction over time, making condition monitoring essential for predictive maintenance strategies.

2. Ultrasonic Bolt Preload Monitoring (High-Precision Quantitative Method)

2.1 Principle: Acoustoelastic Effect

Ultrasonic monitoring is based on the acoustoelastic principle, where the propagation time of ultrasonic waves changes linearly with axial stress in the bolt.

When tension is applied:

• Stress increases

• Ultrasonic wave velocity changes

• Time-of-flight (TOF) shifts

• Preload can be calculated using calibrated coefficients

This method enables direct quantitative measurement of bolt tension.

2.2 Engineering System Example (DS140 Class Ultrasonic Analyzer)

A typical industrial system includes:

• Ultrasonic transducer mounted on bolt end

• Signal reflection from bolt tip or opposite end

• Temperature compensation algorithm

• Real-time digital preload output

• Cloud-based data transmission for remote monitoring

2.3 Advantages

• High accuracy (up to ~1.5% FS class measurement performance)

• Non-destructive and non-intrusive

• Direct measurement of axial preload force

• Suitable for long-term single-point monitoring

2.4 Limitations

• Requires calibration using identical bolt material (acoustoelastic coefficient)

• Needs accessible bolt end surface

• Limited applicability for short bolts (e.g., < M20 or < 200 mm length)

• Performance reduced in high-temperature environments affecting piezoelectric stability

2.5 Typical Applications

• Wind turbine foundation anchor bolts

• Tower flange bolt systems

• Pressure vessel critical fasteners

• Aerospace structural bolts

Relevant standards:

• ISO 898-1 / ISO 898-2 (mechanical      properties)

• SAE J429 (automotive fastener      classification)

3. Vibration-Based Bolt Monitoring (Rapid Structural Screening Method)

3.1 Principle: Structural Dynamic Response

The vibration method evaluates bolt condition by analyzing changes in:

• Natural frequency

• Mode shapes

• Frequency response function (FRF)

As preload decreases:

• Joint stiffness decreases

• Structural natural frequency shifts downward

• Dynamic response amplitude changes

This relationship enables indirect detection of loosening.

3.2 Engineering Mechanism

In flange or bolted joint systems:

• Preload maintains interface contact stiffness

• External loads are distributed through clamping force

• When loosening occurs, interface separation changes load paths

• Structural stiffness reduction becomes measurable in vibration spectrum

3.3 Advantages

• No sensors required on individual bolts

• Fast batch inspection capability

• Low installation cost

• Suitable for large-scale structural screening

3.4 Limitations

• Highly sensitive to boundary conditions

• Influenced by ambient vibration noise

• Cannot identify specific loosened bolt positions

• Provides group-level rather than single-bolt diagnosis

3.5 Advanced Development Direction

Emerging technologies include:

• Capacitive-resistive dual-mode flexible sensors

• High/low pressure sensitivity hybrid detection systems

These are particularly promising for aerospace and heavy industrial applications.

3.6 Typical Applications

• Wind turbine tower flange inspection

• Bridge joint bolt systems

• Large mechanical structural frames

Standards alignment:

• ASTM E1876 (resonant frequency methods)

• ISO 7626 (structural vibration testing principles)

4. Fiber Optic Sensing (FBG-Based Distributed Monitoring Systems)

4.1 Principle: Bragg Wavelength Shift

Fiber Bragg Grating (FBG) sensors detect strain and temperature changes by monitoring shifts in reflected light wavelength.

When applied to bolted joints:

• Bolt strain → wavelength shift

• Preload → calculated from strain correlation

• Temperature compensation applied for accuracy

4.2 System Architecture

FBG-based systems enable:

• Multiple sensing points on a single fiber

• Distributed axial strain measurement

• Full structural monitoring networks

• High spatial resolution data acquisition

4.3 Key Advantages

• True distributed monitoring capability

• Minimal wiring complexity

• Lightweight and non-intrusive

• Suitable for retrofit applications

• Excellent long-distance signal transmission stability

4.4 Technical Challenges

• Sensor packaging affects strain transfer efficiency

• Temperature-strain cross-sensitivity requires decoupling

• Fiber splicing and protection increase maintenance complexity

• Higher initial system cost

4.5 Typical Applications

• Offshore wind turbine tower flanges

• Pressure vessel structural monitoring

• Aerospace composite structures

• Large-scale bridge systems

Relevant standards:

• ISO 11174 (fiber optic sensing principles – general framework)

• IEC 61757 (fiber optic sensors)

5. Engineering Selection Strategy: How to Choose the Right Monitoring Method

Selecting a monitoring solution must consider three key dimensions:

5.1 High-Precision Critical Bolts → Ultrasonic Method

Best for:

• Pressure vessels

• Aerospace engines

• Nuclear-grade fastening systems

Why:

• Highest accuracy

• Direct preload measurement

• Long-term stability per single bolt

5.2 Large Bolt Groups → Vibration Method

Best for:

• Wind turbine flanges

• Bridge joints

• Industrial structural frames

Why:

• Fast scanning

• Low cost

• Effective trend identification

5.3 High-Density Critical Zones → Fiber Optic FBG System

Best for:

• Offshore wind turbines

• Full flange circumference monitoring

• Distributed structural health monitoring

Why:

• Multi-point continuous monitoring

• High spatial resolution

• Reduced cabling complexity

6. Integrated Monitoring Strategy (Industry Best Practice)

In modern engineering systems, these methods are not competing technologies—they are complementary layers.

A best-practice monitoring architecture typically includes:

Layer 1: Vibration Screening

• Rapid identification of potential loosening zones

Layer 2: Ultrasonic Verification

• Precise preload quantification of suspect bolts

Layer 3: Fiber Optic Continuous Monitoring

• Real-time structural health tracking in critical zones

This multi-level strategy significantly improves:

• Maintenance efficiency

• Safety redundancy

• Lifecycle cost optimization

7. Engineering Standards and Compliance Framework

Modern bolt monitoring systems align with international engineering standards:

• ISO 898-1 / ISO 898-2 – Mechanical properties of fasteners

• VDI 2230 – Bolt joint calculation  methodology

• SAE J429 / SAE J1199 – Automotive fastening standards

• ASTM E standards – Vibration and structural testing

• IEC 61757 – Fiber optic sensor systems

These frameworks ensure global engineering consistency and reliability.

8. Conclusion: From Reactive Maintenance to Predictive Bolt Health Management

The evolution of bolted connection monitoring is shifting from:

• Manual inspection → intelligent sensing

• Periodic maintenance → continuous monitoring

• Failure response → predictive prevention

Each technology plays a critical role:

• Ultrasonic systems → precision preload measurement

• Vibration analysis → fast structural screening

• Fiber optic sensing → high-density distributed monitoring

Together, they form a complete predictive maintenance ecosystem for bolted joints.
