Railway rolling stock and trackside equipment operate under demanding mechanical and environmental conditions.

Passenger trains, freight vehicles, onboard electrical systems, ventilation equipment and railway signaling cabinets rely on threaded fasteners to secure mechanical assemblies and maintain equipment serviceability.

Depending on the application, fasteners may experience vibration, repeated loading, temperature changes, moisture, dust and frequent maintenance.

These operating conditions require careful selection of bolt strength, joint preload, locking methods, corrosion protection and installation procedures.

For railway equipment manufacturers, fastener selection must also consider production efficiency, dimensional consistency, maintenance requirements and long-term supply continuity.

JUXIN FASTENERS supplies industrial bolts, nuts, washers, prevailing-torque lock nuts, self-clinching fasteners and drawing-based custom metal components for suitable railway equipment applications.

This guide examines practical fastening solutions for railway vehicle auxiliary equipment, interior assemblies, electrical enclosures,

 HVAC systems and trackside infrastructure, while distinguishing general industrial hardware from fasteners used in safety-critical railway structures.

Fastening Applications in Railway Rolling Stock and Trackside Equipment

Railway equipment includes a wide range of mechanical and electrical assemblies.

The correct fastener depends on the actual equipment design.

A fastener used for an electrical cabinet is not automatically suitable for a bogie suspension, braking linkage or another safety-critical railway connection.

Vibration-Resistant Fasteners for Railway Equipment

Railway equipment can experience vibration from wheel-rail interaction, rotating machinery, ventilation systems and vehicle movement.

Under unfavorable joint conditions, transverse displacement can contribute to rotational loosening.

Potential fastening options include:

• All-metal prevailing-torque lock nuts

• Nylon-insert lock nuts where suitable

• Properly designed preloaded joints

• Application-specific locking arrangements

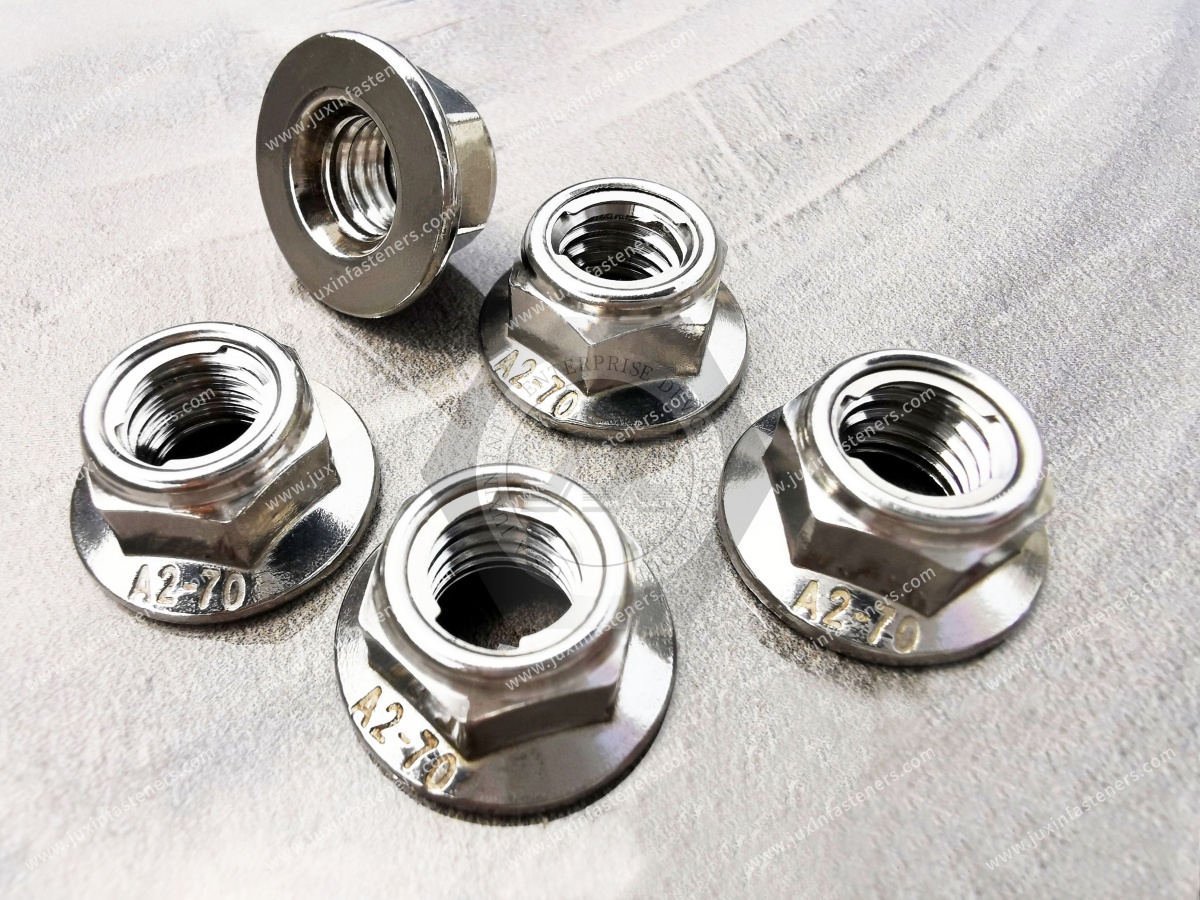

All-Metal Prevailing-Torque Lock Nuts

All-metal prevailing-torque lock nuts use a mechanical locking feature to resist rotation.

Depending on the product design, ISO 7042 and related specifications may apply.

These nuts may be considered for selected auxiliary equipment and mechanical mounting assemblies.

Prevailing Torque vs. Joint Preload

Prevailing torque is the resistance generated by the locking feature during thread engagement.

Joint preload is the clamping force holding the assembly together.

These are different mechanical characteristics.

A locking nut can resist rotation but cannot prevent every form of preload loss.

Engineering insight: A locking feature should not be treated as a substitute for correct bolt preload and joint design.

For vibration-sensitive equipment, the complete joint should be evaluated under representative operating conditions.

High-Strength Bolts for Railway Auxiliary Equipment

High-strength bolts are used in many industrial machinery and equipment assemblies.

For applicable metric carbon steel and alloy steel bolts, ISO 898-1 defines mechanical property classes, including 8.8, 10.9 and 12.9.

These classes identify specified mechanical properties but do not independently establish suitability for a railway application.

Property Class 8.8

Class 8.8 bolts may be suitable for selected equipment mounting brackets and general mechanical assemblies when supported by the design requirements.

Property Class 10.9

Class 10.9 bolts offer higher specified mechanical strength than class 8.8 bolts.

They may be considered where higher strength or preload capacity is required.

Property Class 12.9

Class 12.9 bolts provide higher specified mechanical strength but require careful consideration of fatigue, environmental exposure, coating selection and application-specific requirements.

Engineering insight: Selecting a stronger bolt does not automatically improve the fatigue performance of a railway equipment joint.

Joint stiffness, preload, grip length, load direction and installation conditions can strongly influence fatigue behavior.

Fatigue and Dynamic Loading in Railway Assemblies

Railway equipment may experience repeated loading during acceleration, braking, vibration and temperature changes.

Fatigue performance depends on the complete joint configuration.

Potential failure mechanisms include:

• Fatigue cracking

• Joint separation

• Preload loss

• Fretting damage

• Bolt bending

• Thread damage

• Local deformation of clamped components

Important design factors include:

• Bolt preload

• Joint stiffness

• Grip length

• Thread position

• Load direction

• Mating material properties

• Installation consistency

Preload and Joint Stability

A properly designed preloaded joint can reduce the variation in bolt loading under certain external load conditions.

However, the required preload depends on the specific assembly.

Insufficient preload may permit joint separation or slip.

Excessive preload may damage the fastener or clamped components.

Engineering insight: A bolt with the correct nominal diameter and strength class can still be unsuitable if its grip length or thread position differs from the original design.

These details should be reviewed when qualifying alternative suppliers.

Controlled Tightening and Installation Procedures

Railway equipment manufacturers may use controlled tightening procedures for selected mechanical assemblies.

The relationship between tightening torque and bolt preload depends on friction.

Important variables include:

• Thread surface condition

• Coating type

• Lubrication

• Bearing surface friction

• Nut configuration

• Installation equipment

Two fasteners with identical nominal dimensions may achieve different preload values when tightened to the same torque if their surface conditions differ.

Engineering insight: A coating change can require review of the installation procedure even when the bolt dimensions remain unchanged.

For preload-sensitive connections, the OEM should define the required tightening method and acceptance criteria.

Self-Clinching Nuts and Studs for Railway Equipment Cabinets

Railway vehicles contain electrical cabinets, control panels and auxiliary equipment housings.

Self-clinching fasteners can provide reusable threaded attachment points in suitable sheet metal.

Self-Clinching Nuts

Self-clinching nuts may be used for:

• Electrical cabinet panels

• Control equipment housings

• HVAC equipment enclosures

• Internal mounting brackets

They can reduce the need for loose nuts during final assembly.

However, installation performance depends on panel thickness, hardness and hole preparation.

Self-Clinching Studs

Self-clinching studs provide fixed threaded mounting points.

They may simplify the installation of equipment brackets and electrical components.

Threaded Standoffs

Threaded standoffs provide controlled spacing for electrical and mechanical components.

Potential applications include:

• Circuit board supports

• Controller mounting panels

• Electrical module brackets

• Internal equipment structures

Engineering insight: Self-clinching fastener selection must consider the actual parent sheet material and thickness, not just the required thread diameter.

For production applications, representative installation trials may be necessary to confirm compatibility.

Captive Panel Screws for Railway Equipment Maintenance

Railway equipment may require periodic inspection and maintenance.

Conventional loose screws can be misplaced during servicing.

Captive panel screws are designed to remain retained in the panel when disengaged from the mating thread.

Potential applications include:

• Electrical cabinet access covers

• HVAC maintenance panels

• Equipment inspection covers

• Serviceable control housings

Maintenance Efficiency

Retained screws may reduce loose-part handling and simplify maintenance.

However, captive fastener selection should consider panel thickness, retention method, screw travel and mating thread compatibility.

Engineering insight: A captive screw improves fastener retention during servicing but does not automatically provide vibration resistance or environmental sealing.

These functions must be evaluated separately.

Corrosion Protection for Railway Equipment Fasteners

Railway equipment may operate in humid, coastal, industrial or cold-weather environments.

Corrosion protection influences serviceability and maintenance requirements.

Potential material and coating options include:

• Zinc-plated carbon steel

• Zinc-nickel-coated steel where specified

• Zinc-flake coating systems

• Stainless steel for suitable applications

• Customer-specified protective finishes

The correct selection depends on environmental exposure, mechanical requirements and joint compatibility.

Zinc-Nickel Coatings

Zinc-nickel coatings may be considered for selected steel fasteners requiring corrosion protection.

Performance depends on the coating system, thickness, passivation and test conditions.

Zinc-Flake Coatings

Zinc-flake systems may be suitable for selected industrial fasteners.

For high-strength steel components, coating selection should consider hydrogen embrittlement susceptibility.

Stainless Steel Fasteners

Stainless steel may be suitable for selected railway equipment enclosures and auxiliary components.

Applicable parts of ISO 3506 define mechanical properties for relevant stainless steel fasteners.

However, stainless steel fasteners should not automatically replace high-strength carbon steel bolts without mechanical evaluation.

Salt Spray Testing

ASTM B117 defines a laboratory salt spray test method.

It can support evaluation of specified coating systems.

However, salt spray hours do not directly predict service life in railway environments.

Engineering insight: Corrosion resistance and mechanical strength must be evaluated separately.

A fastener with a corrosion-resistant finish may still be unsuitable for a fatigue-sensitive connection.

Hydrogen Embrittlement in High-Strength Railway Fasteners

Certain high-strength steel fasteners can be susceptible to hydrogen embrittlement.

Hydrogen may enter susceptible materials during manufacturing, cleaning, pickling, electroplating or other processes.

Under unfavorable conditions, hydrogen-assisted cracking may cause delayed brittle failure.

Risk depends on material strength, processing history, applied stress and environmental exposure.

For susceptible fasteners, coating selection should consider appropriate process controls and testing requirements.

Non-electrolytic coating systems may reduce hydrogen introduction associated with electrolytic deposition, but they do not eliminate every possible source of hydrogen.

Post-plating baking does not provide an unconditional guarantee against hydrogen embrittlement.

Custom Fasteners for Railway Equipment OEMs

Standard catalog fasteners may not satisfy every railway equipment design.

Drawing-based custom hardware may be required for:

• Special bolt lengths

• Modified head geometry

• Custom threaded studs

• Precision spacers

• Special nuts

• Drawing-specific washers

• Custom mounting components

• Controlled dimensions for automated assembly

JUXIN FASTENERS supports drawing-based inquiry review for industrial fastening components.

Manufacturing feasibility depends on material, geometry, tolerances and expected production volume.

Cold Forming

Cold forming may be appropriate for selected fastener geometries and production quantities.

It can support efficient material utilization and repeatable production for suitable designs.

CNC Machining

CNC machining may be appropriate for complex geometries, controlled shoulders and drawing-specific dimensions.

Some components may require a combination of forming and secondary machining.

Engineering insight: Customization should focus on dimensions and characteristics that affect equipment function.

Overly restrictive tolerances on noncritical features can increase manufacturing cost without improving performance.

Manufacturing Efficiency in Railway Equipment Assembly

Production managers and manufacturing engineers must balance mechanical performance with installation speed, assembly consistency and cost.

Installation Accessibility

Railway equipment may contain restricted mounting locations.

Fastener head geometry and tool clearance should be considered during design.

Assembly Sequence

Self-clinching fasteners may be installed before final cabinet assembly.

This can reduce loose-part handling during later production stages.

Torque Control

Installation procedures should be appropriate for the actual fastener, coating and joint.

Dimensional Consistency

Fastener geometry and thread quality can influence automated or semi-automated assembly.

Maintenance and Replacement

Railway equipment may require periodic servicing.

The OEM should define when fasteners may be reused and when replacement is required.

Total Assembly Cost

Fastener unit price is only one part of total manufacturing cost.

Installation labor, tooling, rework, maintenance and supply continuity should also be considered.

International Standards and Railway Equipment Requirements

Applicable standards depend on the specific fastener and project requirements.

Railway equipment projects may impose additional requirements for vibration, environmental performance, quality management, traceability and product qualification.

These requirements should be identified during supplier qualification.

A general-purpose bolt meeting ISO 898-1 is not automatically qualified for a safety-critical railway application.

Metric and inch-series thread systems must be treated as separate specifications.

Railway Safety-Critical Fastening Applications

Certain railway connections require specialized design, testing and approval.

Examples may include:

• Bogie primary structural connections

• Suspension linkages

• Brake system components

• Coupling systems

• Other safety-critical mechanical assemblies

These applications may involve:

• High cyclic loading

• Controlled preload

• Fatigue assessment

• Specialized materials

• Inspection and traceability requirements

• Project-specific qualification

General industrial fasteners should not be represented as suitable for these applications without the required validation.

For safety-critical railway inquiries, the responsible OEM must define the complete fastener specification and qualification requirements.

JUXIN FASTENERS should evaluate such inquiries individually and confirm manufacturing and documentation feasibility before making any supply commitment.

OEM Supplier Qualification and Alternative Sourcing

Railway equipment manufacturers may seek alternative suppliers for bolts, nuts, washers, locking hardware and custom fasteners.

Supplier qualification should consider both technical conformity and commercial supply capability.

Material Traceability and Inspection Documents

Some railway projects require material inspection documentation under EN 10204.

The specific document type should be identified during procurement.

An EN 10204 3.1 inspection certificate should not be assumed for every standard industrial fastener.

Where required, documentation availability and traceability requirements must be confirmed before order acceptance.

Alternative Sourcing: Functional Equivalence Matters

Two fasteners with the same nominal dimensions may differ in:

• Mechanical properties

• Grip length

• Thread position

• Coating thickness

• Installation friction

• Locking characteristics

• Fatigue behavior

For demanding railway applications, dimensional similarity alone does not establish functional equivalence.

The OEM should define the required validation and approval procedures.

Request Railway Rolling Stock and Trackside Equipment Fasteners

JUXIN FASTENERS supports OEM sourcing and drawing-based technical review for industrial fasteners used in suitable railway equipment applications.

For railway vehicle auxiliary equipment, electrical cabinets, HVAC systems, trackside signaling enclosures and other equipment, please provide:

• 2D drawings and available 3D models

• Fastener type and thread specification

• Material and mechanical property requirements

• Joint loading and installation conditions

• Required surface treatment

• Applicable inspection and testing requirements

• Prototype quantity and annual forecast

• Packaging and delivery requirements

For railway safety-critical connections, please identify the applicable qualification, inspection and approval requirements.

Our team can review the supplied information to discuss suitable standard and custom fastening options and quotation feasibility.

Website: www.juxinfasteners.com

OEM Technical Review & RFQ: info@juxinfasteners.com

Send your drawings and purchasing requirements to discuss fastening solutions for your next railway equipment project.

Related JUXIN FASTENERS Engineering Solutions

• Self-Clinching Nuts for Railway Interiors & HVAC Sheet Metal Cabinets — reusable threaded connections for railway equipment enclosures.

• All-Metal Prevailing-Torque Lock Nuts for High-Vibration Industrial Assemblies — vibration-resistant mechanical fastening.

• Captive Panel Screws & Retained Fasteners for Serviceable Equipment Panels — maintenance-friendly panel attachment.

• Custom Cold-Headed Fasteners & Special Formed Parts for Industrial OEMs — drawing-based custom fastener sourcing.

These related topics provide additional guidance on vibration-resistant hardware, enclosure fastening, custom manufacturing and OEM supplier qualification.
