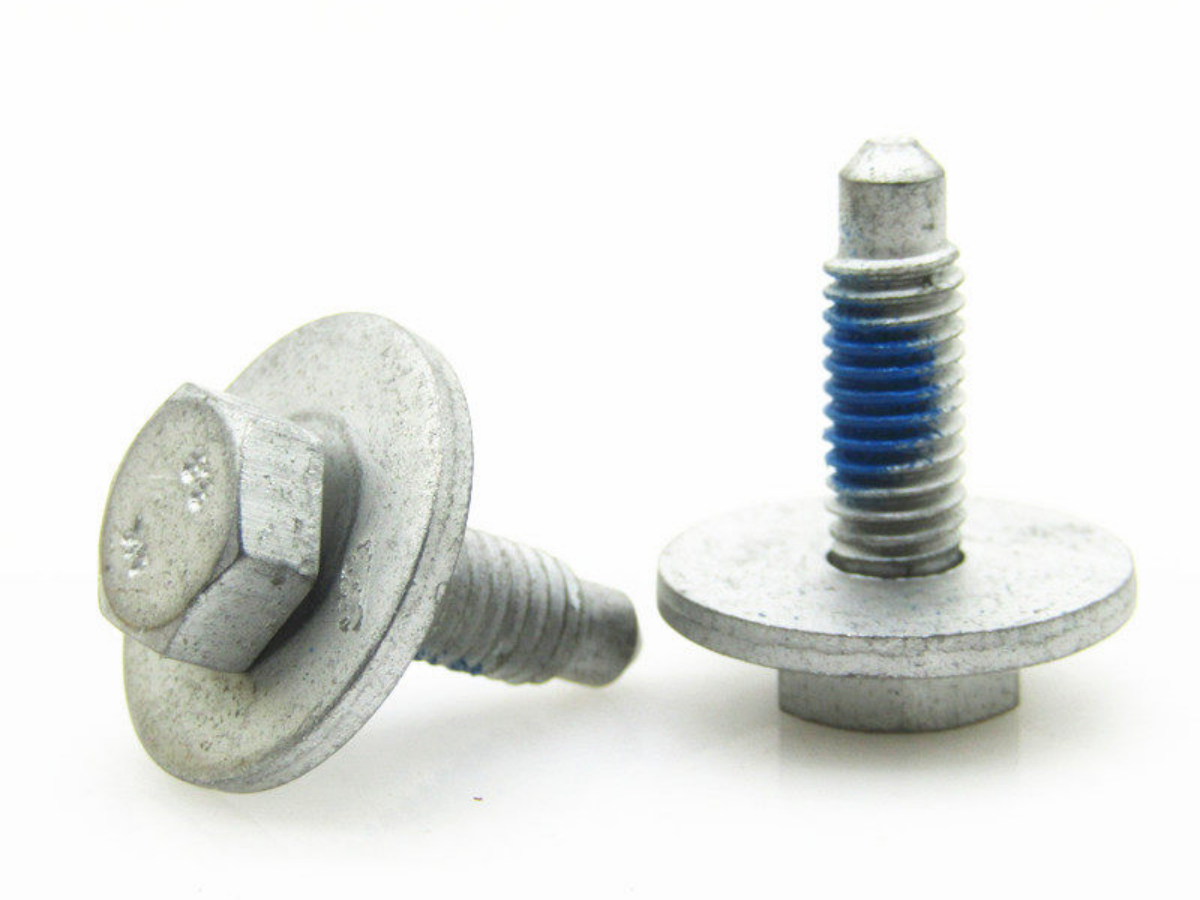

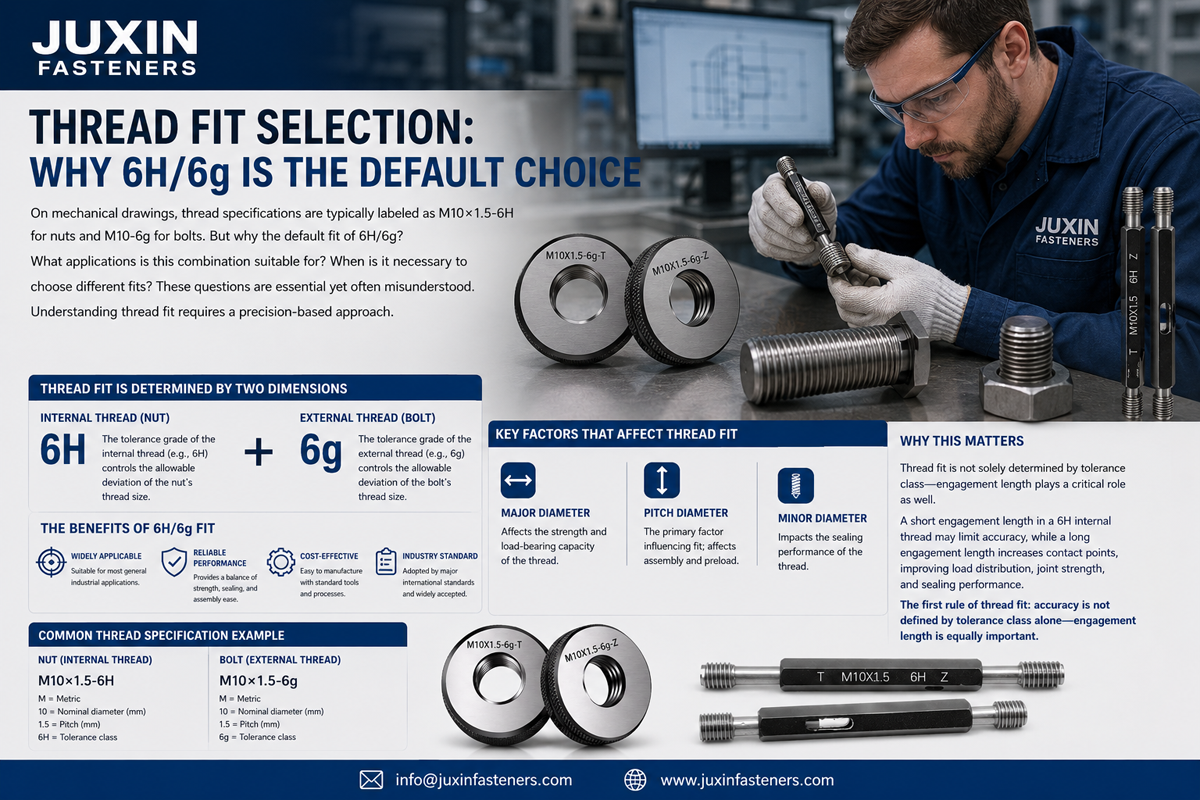

In mechanical engineering, threaded connections are the backbone of structural assembly across automotive, aerospace, energy, and industrial equipment. On engineering drawings, designers typically specify thread tolerances such as M10×1.5–6H (internal thread) or 6g (external thread).

But why is the 6H/6g fit the global default standard? And when should engineers deviate from it?

This article provides a technical and practical explanation of ISO metric thread tolerance systems, based on ISO 965, ISO 724, ISO 898, and DIN 13 standards, helping engineers, procurement teams, and quality inspectors select the correct thread fit for real-world applications.

1. Understanding Thread Fit: Why Precision Is Not Just a Tolerance Number

Thread fit accuracy is not determined only by the tolerance class. It is defined by two critical engineering dimensions:

1.1 Tolerance Zone (Manufacturing Precision)

The tolerance zone controls deviations in:

• Pitch diameter (critical for load transfer)

• Major diameter

• Minor diameter

A tighter tolerance class (e.g., grade 5 or 6) means:

• Higher machining accuracy

• Higher cost

• Improved assembly consistency

A standard ISO 6H / 6g tolerance represents the optimal balance between manufacturability and performance.

1.2 Thread Engagement Length (Mechanical Compensation Factor)

Thread performance is also strongly influenced by engagement length:

• Longer engagement = more load-bearing thread turns

• Better error distribution across thread flanks

• Higher real-world connection reliability

Even with the same ISO 6H tolerance class, a long-thread engagement significantly improves:

• Load capacity

• Sealing performance

• Vibration resistance

This is a key principle defined in VDI 2230 bolt calculation methodology.

2. What Do 6H and 6g Mean in ISO/DIN Thread Standards?

According to ISO 965-1 / ISO 965-2 (Metric thread tolerances) and DIN 13 thread standards, thread designations consist of:

2.1 Number “6” → Tolerance Grade

The number indicates precision level:

• Lower number = tighter tolerance = higher precision

• Grade 6 = standard industrial precision level

Typical classification:

• Precision grade (4–5): aerospace, instrumentation

• Medium grade (6): industrial fasteners (standard default)

• Coarse grade (7–8): hot-rolled or non-critical structures

2.2 Letters H / g → Tolerance Position

Internal thread (nuts, tapped holes)

• H = zero lower deviation

• Most commonly used reference position in ISO system

External thread (bolts, screws)

• h = zero upper deviation (reference)

• g = slightly reduced pitch diameter for coating allowance

• e = larger allowance for heavy coatings or loose fit

2.3 Why 6H/6g Is the Default Combination

The ISO 6H/6g fit is widely used because it provides:

• Reliable assembly clearance

• Stable manufacturing cost

• Compatibility across global supply chains

• Balanced strength and ease of assembly

This is why ISO 965-1 explicitly identifies 6H and 6g as preferred general-purpose tolerance zones.

3. Standard Thread Fit Combinations in Engineering Practice

3.1 6H/6g – General Purpose Industrial Fasteners (Default Standard)

This is the most widely used configuration in:

• Automotive assembly

• Machinery manufacturing

• Construction steel structures

• General OEM components

Example:
For M10×1.5 (ISO metric thread):

• Internal thread (6H): controlled tolerance zone

• External thread (6g): reduced pitch diameter for assembly clearance

Result:

• Smooth assembly

• Stable preload

• Reliable vibration resistance

3.2 6H/6h or 7H/6g – High Strength or Sealing Connections

Used in:

• Pressure vessels

• Hydraulic systems

• Heavy-duty structural joints

Characteristics:

• Reduced clearance or near-interference fit

• Higher preload retention

• Improved sealing performance

Requires:

• Longer thread engagement

• Tight machining control

• Compliance with ISO 898-1 / VDI 2230 design rules

3.3 6H/6e or 7H/8g – Frequent Disassembly or Thin-Wall Parts

Used in:

• Maintenance-heavy assemblies

• Thin sheet metal structures

• Plastic or deformable housings

Advantages:

• Increased assembly clearance

• Reduced risk of galling or thread seizure

• Better tolerance to deformation

4. Coating Effects: The Most Common Thread Fit Failure Source

One of the most critical engineering issues is surface coating influence on thread fit.

Standards:

• ISO 4042 – Electroplated coatings for fasteners

• ISO 10683 – Non-electrolytically applied zinc flake coatings

• DIN EN ISO 1461 – Hot-dip galvanizing

4.1 Why Coatings Change Thread Dimensions

Coating thickness affects:

• Thread flanks

• Thread roots

• Effective pitch diameter

Important engineering rule:

Coating effect ≈ 4 × coating thickness on pitch diameter

4.2 Electroplating Example (Zinc 8–12 μm)

For an M10 external thread (6g):

• Coating thickness: 8–12 μm

• Pitch diameter increase: ~32–48 μm

If paired with a standard 6H nut:

• Risk of interference

• Reduced thread engagement

• Assembly force increase or jamming

4.3 Hot-Dip Galvanizing (Severe Fit Change)

For coatings up to 40–80 μm:

Standard fit is not sufficient.

Required adjustments:

• Internal threads: oversize tapping (6AZ / 6AX equivalent      systems)

• External threads: undersized (6az class)

Reference:

• ISO 10684 (hot-dip galvanized fasteners)

• GB/T 22029-2024 (converted to ISO-aligned tolerance practice)

4.4 Dacromet / Zinc-Flake Coatings

Typical thickness: 5–15 μm

Recommended practice:

• External thread: 6g with coating allowance

• Inspection: Go/No-Go gauges after coating

• Controlled torque tightening validation

5. Engineering Decision Workflow for Thread Fit Selection

Step 1: Define Connection Type

• Standard fastener → 6H/6g (ISO default)

• If no tolerance specified → assume 6H/6g per ISO 965

Step 2: Determine Strength or Sealing Requirement

• High strength / pressure sealing → 6H/6h or 7H/6g

• Requires longer engagement per VDI 2230

Step 3: Evaluate Surface Coating

• Electroplating → 6G/6e pre-plating design

• Hot-dip galvanizing → 6AZ/6az system (ISO 10684)

• Dacromet → 6g with inspection control

Step 4: Define Maintenance Requirement

• Frequent disassembly → 6H/6e or 7H/8g

• Prevent galling and thread seizure

6. Why 6H/6g Remains the Global Industrial Standard

The dominance of the 6H/6g system is driven by engineering optimization:

• Balanced machining cost

• High interchangeability

• Stable assembly behavior

• Compatibility across ISO/DIN global supply chains

• Proven reliability under vibration and thermal cycling

It represents the most cost-effective engineering equilibrium point between:

• Manufacturing precision

• Assembly reliability

• Mechanical performance

7. Quality Inspection: Go/No-Go Thread Gauge Control

To ensure compliance with ISO/DIN thread standards, industrial inspection relies on:

• Go/No-Go plug gauges for internal threads (6H)

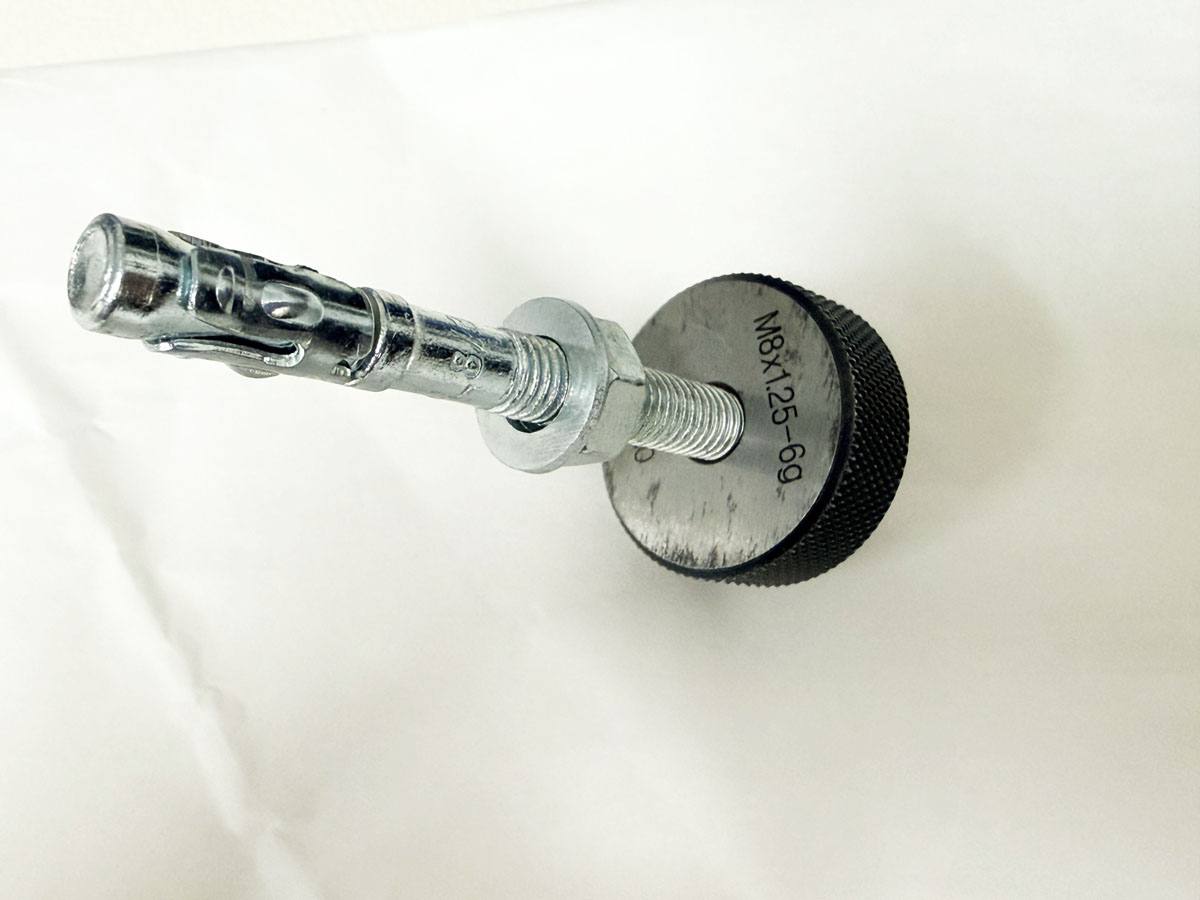

• Ring gauges for external threads (6g)

• Dimensional verification per ISO 1502 (gauging system)

This ensures:

• Interchangeability across suppliers

• Prevention of assembly mismatch

• Stable mass production quality control

8. Conclusion: Engineering Logic Behind 6H/6g Default Selection

The 6H/6g thread fit system is not arbitrary—it is the result of decades of international standardization under ISO 965 and DIN 13 frameworks.

It provides:

• Optimal balance of precision and cost

• Reliable assembly clearance

• Strong compatibility with coatings

• Stable performance under industrial conditions

However, correct selection must always consider:

• Load requirements

• Thread engagement length

• Surface coating type

• Maintenance frequency
