Stainless Steel CNC Machining for Construction Equipment

Stainless Steel CNC Machining for Construction Equipment and OEM Precision Components

Construction equipment manufacturers require reliable mechanical components for excavators, loaders, compact construction machines, lifting equipment, access platforms, auxiliary attachments, and other heavy machinery.

These machines operate under demanding conditions involving vibration, mechanical loading, dust, moisture, outdoor exposure, and repeated operating cycles.

For selected applications, stainless steel CNC machining provides a flexible manufacturing solution for custom mechanical parts requiring accurate dimensions,

corrosion resistance, controlled surface conditions, and repeatable production.

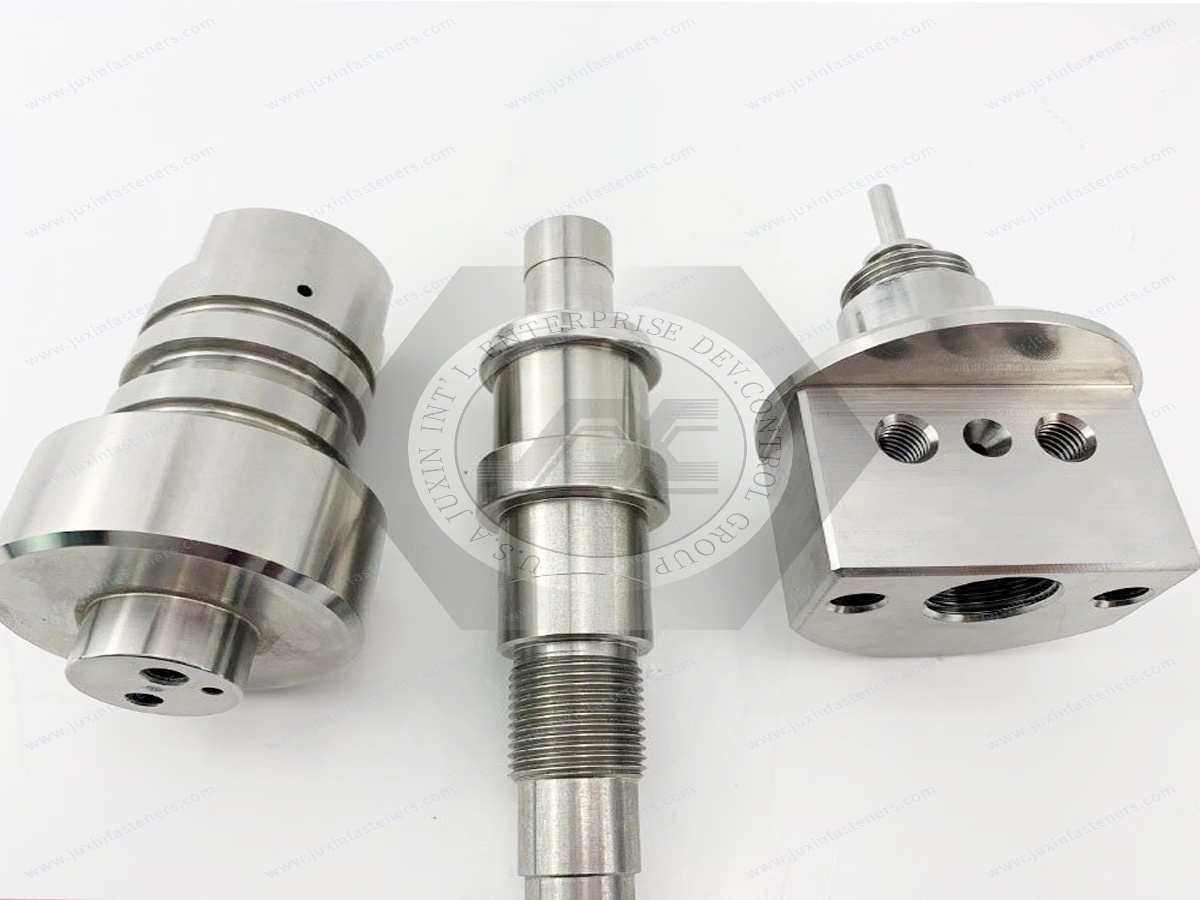

Typical components include precision shafts, locating pins, bushings, sleeves, threaded adapters, mounting blocks, mechanical connectors, and custom fastening hardware.

However, stainless steel is not automatically the best material for every construction machinery component.

High-load pivot pins, heavily loaded bearing interfaces, and abrasion-exposed parts may require hardened alloy steels, engineered bearing materials, surface treatments, or other specialized solutions.

Material selection must therefore consider actual operating loads, wear conditions, corrosion exposure, fatigue requirements, manufacturing feasibility, and cost.

JUXIN FASTENERS supports drawing-based inquiries for custom stainless steel CNC machined components and industrial fastening hardware used in construction equipment manufacturing.

Depending on part geometry and project requirements, suitable processes may include CNC turning, Swiss-type machining, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Manufacturing feasibility, material specifications, achievable tolerances, inspection requirements, production quantities, and commercial terms should be confirmed for each project.

Construction Equipment Applications for CNC Machined Components

Construction machinery incorporates numerous mechanical assemblies requiring accurate mounting, positioning, spacing, and connection.

The appropriate component design depends on the equipment function, duty cycle, operating environment, and maintenance requirements.

Excavator and Loader Auxiliary Equipment

Excavators and loaders may use custom machined pins, spacers, threaded adapters, mounting blocks, and mechanical interfaces in selected auxiliary equipment assemblies.

CNC machining can support components requiring controlled diameters, shoulders, threads, grooves, and locating features.

However, major pivot joints and highly loaded structural connections require specialized engineering evaluation.

The suitability of stainless steel must be confirmed against the actual load spectrum, wear conditions, and design requirements.

Construction Machinery Control and Sensor Mounting

Construction equipment may incorporate sensors, monitoring devices, control modules, and protective equipment housings.

Custom CNC machined mounting blocks, threaded sleeves, spacers, and adapters may be used where standard hardware does not provide the required geometry.

Engineers should consider vibration, impact exposure, corrosion resistance, installation access, and the protection of sensitive equipment.

Where electrical grounding or insulation is required, these functions must be evaluated separately from mechanical fastening.

Access Platforms and Auxiliary Mechanical Assemblies

Access platforms and auxiliary construction equipment may require precision spacers, bushings, locating pins, and custom threaded components.

CNC machining can support accurate dimensions and repeatable component geometry.

However, components involved in lifting, personnel support, or other safety-critical functions may require additional qualification, testing, and approval.

General machining capability does not establish suitability for safety-critical applications.

Equipment Enclosures and Protective Structures

Construction equipment housings and protective enclosures may incorporate machined mounting hardware, spacers, threaded adapters, and mechanical interfaces.

These components may be exposed to moisture, dust, vibration, and repeated maintenance.

Design engineers should consider material compatibility, joint accessibility, corrosion protection, and the surrounding sheet metal or structural material.

Maintenance and Replacement Components

Construction machinery often remains in service for extended periods, creating demand for replacement parts and controlled component sourcing.

Custom CNC machining may be considered for drawing-based replacement components where the original engineering requirements are available.

However, dimensional similarity alone does not establish functional equivalence.

Material properties, heat treatment, fatigue behavior, wear characteristics, and applicable approval requirements must be reviewed before a replacement part is accepted.

When Is Stainless Steel Appropriate for Construction Equipment?

Stainless steel may be selected for construction equipment components where corrosion resistance, mechanical strength, dimensional stability, or surface durability are important.

However, different stainless steel grades provide different combinations of machinability, corrosion resistance, hardness, and mechanical properties.

Material selection should be based on the actual component function and operating environment.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned spacers, sleeves, threaded adapters, and precision mechanical components where its corrosion resistance and mechanical properties meet the application requirements.

Compared with AISI 304, AISI 303 generally offers improved machinability but may provide reduced corrosion resistance in certain environments.

Its suitability should be reviewed where welding, demanding corrosion exposure, or specific material restrictions are involved.

AISI 304 Stainless Steel

AISI 304 is widely used for industrial mechanical components requiring corrosion resistance and general-purpose material properties.

It may be suitable for selected construction equipment spacers, mounting hardware, sleeves, and precision machined parts.

However, AISI 304 can work-harden during machining, requiring suitable tooling, cutting conditions, and process control.

Its mechanical properties and wear resistance must be evaluated against the actual application.

AISI 316 Stainless Steel

AISI 316 may be considered for selected components exposed to moisture or more demanding corrosive environments.

It generally offers improved resistance to certain corrosive conditions compared with AISI 304.

However, AISI 316 is not universally resistant to every chemical or chloride exposure condition.

Its corrosion resistance does not automatically make it suitable for heavily loaded or abrasive bearing interfaces.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that may be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected components requiring specific hardness or wear-related properties.

Their corrosion resistance and heat-treatment behavior differ from those of austenitic stainless steels.

The engineering drawing should identify the required material condition, hardness, and applicable specification.

Precipitation-Hardening Stainless Steel

Precipitation-hardening stainless steels, including 17-4 PH, may be considered for selected high-strength precision components.

Their mechanical properties depend on the specified heat-treatment condition.

Where these materials are required, the applicable material specification, heat-treatment condition, and mechanical requirements should be clearly defined.

Stainless Steel vs. Hardened Alloy Steel

For heavily loaded pins, shafts, and bearing interfaces, hardened alloy steels may offer more suitable combinations of strength, hardness, fatigue performance, and wear resistance.

The correct material depends on the complete engineering requirements.

A stainless steel component should not be substituted for a hardened alloy steel component solely because it provides improved corrosion resistance.

Material substitution requires evaluation of strength, hardness, fatigue behavior, wear characteristics, dimensional requirements, and operating conditions.

Pins, Bushings, Shafts, and Mechanical Interfaces

Different construction equipment components create different manufacturing and inspection challenges.

Precision Shafts

CNC turning may be suitable for shafts requiring controlled diameters, shoulders, grooves, threads, and surface finish.

Important characteristics may include concentricity, runout, straightness, and the relationship between critical features.

For slender shafts, workpiece deflection and vibration during machining can influence dimensional accuracy.

Where shafts are used in rotating or highly loaded equipment, the complete operating conditions must be considered.

Locating and Mounting Pins

Precision locating pins may be used in equipment positioning, mounting assemblies, and mechanical interfaces.

Critical dimensions may include pin diameter, length, shoulder geometry, and mating fit.

Engineers should consider insertion requirements, mechanical loading, wear behavior, material hardness, and repeated assembly.

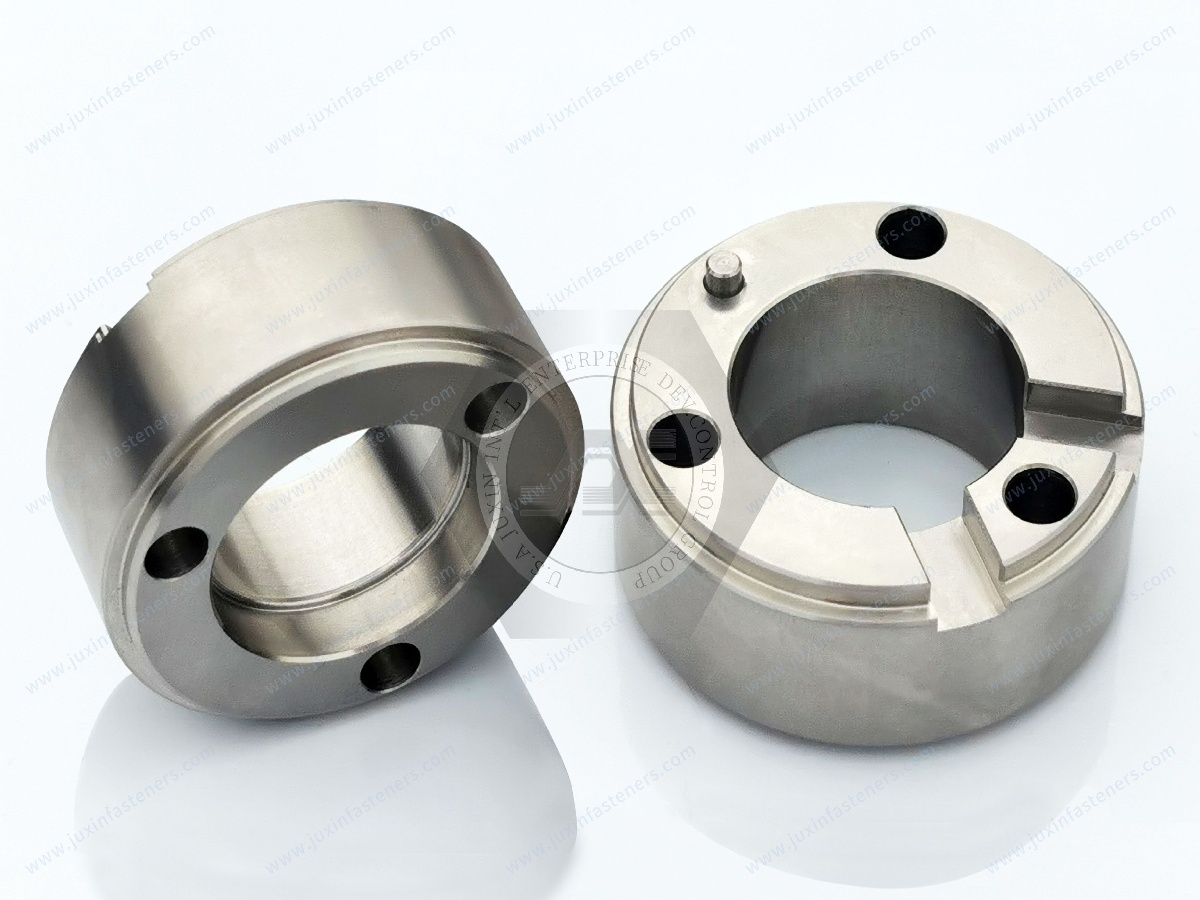

Bushings and Sleeves

Machined bushings and sleeves may provide controlled spacing, alignment, or mechanical interfaces.

Important characteristics include inner diameter, outer diameter, length, concentricity, and perpendicularity.

For sliding or rotating interfaces, the complete bearing arrangement must be evaluated.

Stainless steel alone does not guarantee suitable wear performance.

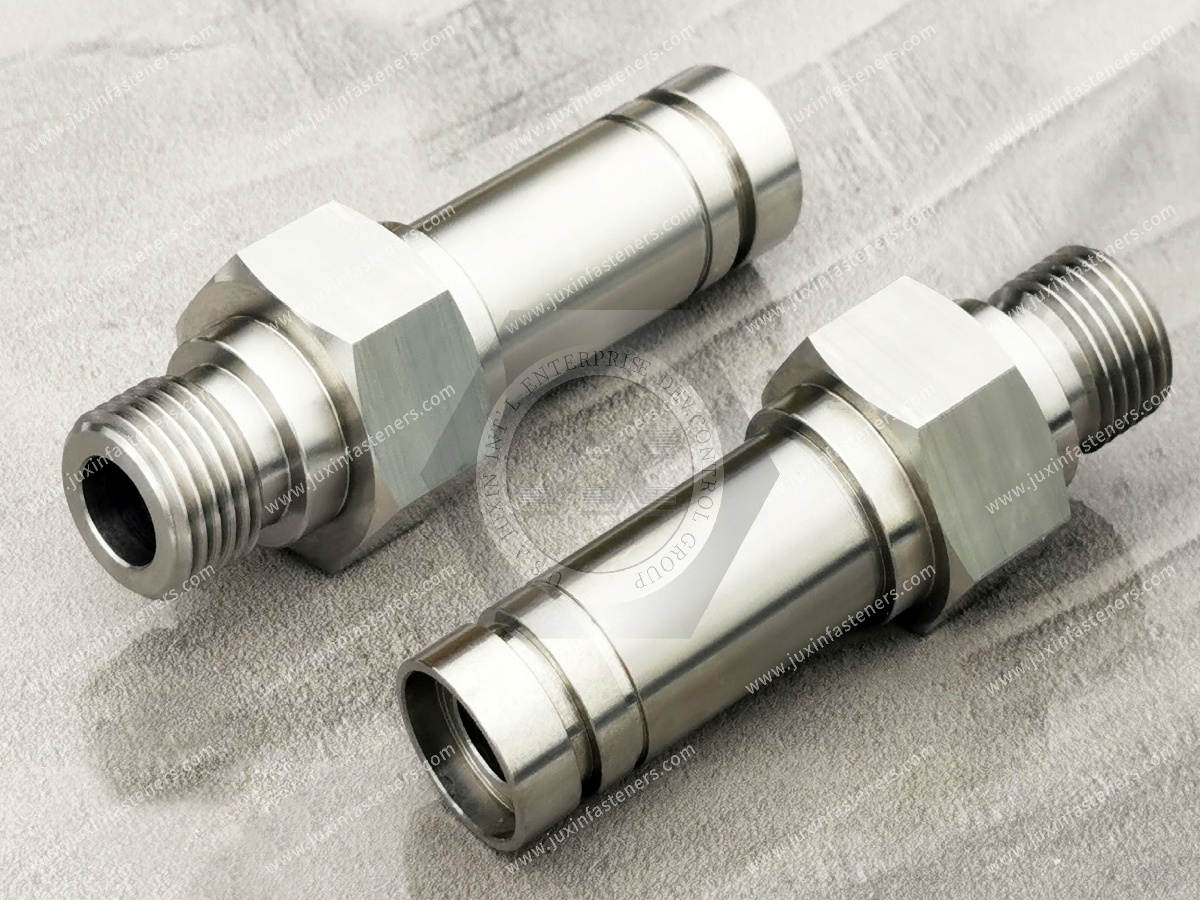

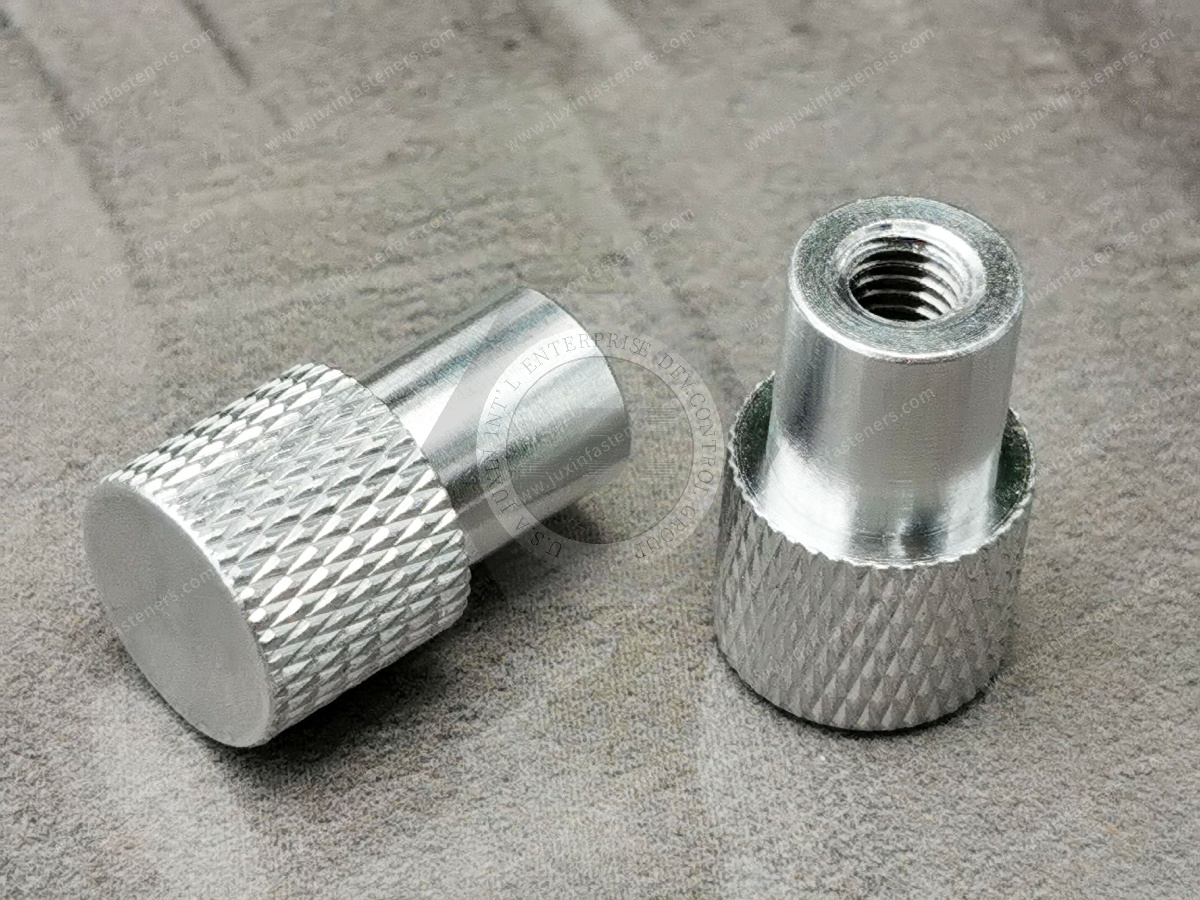

Threaded Adapters and Custom Connectors

Custom threaded components may include adapters, sleeves, studs, spacers, and special fastening hardware.

CNC machining may be suitable where standard components do not meet the required geometry or material specification.

Thread dimensions should follow the approved drawing and applicable international standard.

Metric, UNC, and UNF thread systems must be specified separately and are not directly interchangeable.

Mounting Blocks and Equipment Interfaces

CNC-milled mounting blocks may incorporate threaded holes, slots, precision bores, locating features, and mounting surfaces.

These components may support sensors, control devices, protective equipment, or auxiliary machinery.

Design engineers should consider tool accessibility, minimum wall thickness, thread engagement, datum selection, and inspection requirements.

Abrasive Wear, Shock Loading, and Vibration

Construction equipment operates in environments that may involve dust, sand, mud, impact loading, and repeated mechanical movement.

These conditions can influence component wear, fatigue, and joint reliability.

Abrasive Wear

Abrasive particles may enter mechanical interfaces and accelerate wear.

Material hardness, surface condition, lubrication, sealing, and joint geometry may influence wear performance.

For heavily loaded sliding interfaces, specialized bearing materials or hardened components may be more appropriate than general-purpose stainless steel.

Shock Loading

Construction machinery may experience sudden or irregular loads during operation.

Shock loading can create localized stress and increase the risk of deformation or fatigue damage.

The component geometry and material properties must be evaluated against the actual operating conditions.

Vibration and Fastener Loosening

Threaded assemblies may experience preload loss under vibration.

The complete joint should be evaluated for tightening requirements, mating hardware, locking features, and maintenance conditions.

A precision-machined threaded component does not automatically prevent loosening.

Fatigue and Stress Concentration

Repeated loading may create fatigue risks in components containing shoulders, grooves, threads, sharp transitions, or other stress-concentrating features.

Design engineers should evaluate the actual load spectrum and component geometry.

Where fatigue performance is critical, appropriate engineering analysis and validation are required.

Corrosion Resistance in Outdoor Construction Equipment

Construction equipment may be exposed to rain, humidity, mud, cleaning chemicals, and temperature variation.

Corrosion resistance should be evaluated according to the actual exposure conditions.

Moisture and Mud Exposure

Moisture and mud may remain around mechanical joints and mounting interfaces.

Material selection, joint geometry, drainage, and maintenance access can influence long-term performance.

Mixed-Material Assemblies

Construction equipment may combine stainless steel components with carbon steel, aluminum, and other materials.

When dissimilar metals are electrically connected in the presence of an electrolyte, galvanic corrosion may occur.

The risk depends on material combinations, exposed surface areas, moisture, protective coatings, and joint geometry.

Surface Treatments and Corrosion Testing

Surface condition and any required secondary treatment should be specified according to the component's function.

ISO 9227 and ASTM B117 may be relevant where salt-spray testing is required.

However, salt-spray exposure duration alone does not establish actual service life.

CNC Machining Processes for Construction Equipment Precision Parts

Different CNC machining processes provide advantages depending on geometry, material, tolerance requirements, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, pins, bushings, sleeves, threaded adapters, and cylindrical spacers.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Process planning should consider workholding, tool access, dimensional relationships, and surface finish.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter, slender precision components.

The guide-bushing arrangement can support the workpiece near the cutting area, helping control deflection in suitable applications.

However, Swiss-type machining is not automatically the most economical choice for every small component.

Part geometry, material, setup complexity, cycle time, and production quantity influence process selection.

CNC Milling

CNC milling may be suitable for mounting blocks, adapters, brackets, housings, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

For stainless steel, machining plans should account for tool wear and work hardening.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in Construction Equipment CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For construction equipment hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

Stainless steel threaded components may experience galling under certain assembly conditions.

Suitable mating materials, surface treatments, lubrication, or assembly procedures may be necessary.

Surface Finish and Functional Requirements

Surface finish should be specified according to component function.

A bearing interface, sealing surface, protective equipment mounting surface, and general fastening feature may require different surface conditions.

Specifying unnecessarily fine surface finish across an entire component can increase machining cost without improving performance.

GD&T and Precision Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a precision bushing may require controlled relationships between its internal bore, outer diameter, and end faces.

A mounting block may require accurate positional relationships between mounting holes, locating features, and reference surfaces.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Precision, Repeatability, and Production Stability

For construction equipment OEM manufacturing, a successful CNC machining process must produce consistent results across the required production quantity.

A dimensionally accurate prototype does not automatically establish production capability.

Important process controls may include:

• Approved CNC programs

• Controlled workholding

• Tool-life management

• Material consistency

• Cutting parameters

• In-process inspection

• Final dimensional verification

• Documented drawing revisions

• Appropriate handling and packaging

Production managers should evaluate machining cycle time, setup requirements, inspection frequency, scrap risk, and process consistency.

The appropriate manufacturing approach depends on component complexity, required tolerances, and purchasing volume.

Quality Control for Custom CNC Construction Equipment Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement, and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified stainless steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Surface Finish Verification

Where surface finish is functionally important, the drawing should define the relevant parameters and inspection requirements.

The measurement method should be suitable for the specified surface and geometry.

First-Article and Production Inspection

OEM projects may require first-article inspection or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

International Standards for Construction Equipment CNC Components

Construction equipment projects may involve technical requirements beyond those normally applied to general industrial mechanical components.

The applicable standards depend on the equipment type, component function, and customer specification.

ISO Metric Threads

ISO 261 provides relevant metric screw thread series information.

ISO 965 addresses tolerance requirements for ISO general-purpose metric screw threads.

Metric thread designations and tolerance classes should be defined in the approved drawing.

ASME Unified Inch Threads

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

These thread systems may be relevant to North American construction equipment designs.

Metric and Unified inch threads are not directly interchangeable.

Construction Equipment Safety Requirements

Certain construction equipment may be subject to machinery safety standards, equipment-specific requirements, and customer approval procedures.

However, these requirements do not automatically apply to every CNC machined component.

Their relevance depends on the component's function and the complete equipment design.

Corrosion Testing

ISO 9227 and ASTM B117 may be relevant where salt-spray testing is specified.

The required test method and acceptance criteria should be defined by the customer.

From Prototype Development to Repeat OEM Production

CNC machining can support construction equipment component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Construction Equipment Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every construction equipment component requires CNC machining.

Standard screws, nuts, washers, studs, pins, bushings, and other fastening components may offer a more economical solution for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Specific material requirements

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded stud or precision dowel pin may provide an efficient solution for a compatible mechanical assembly.

However, standard components must still meet the required material, dimensional, mechanical, and environmental specifications.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

OEM Supplier Development and Procurement Considerations

For construction equipment manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Corrosion resistance, strength, hardness, fatigue behavior, wear characteristics, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined construction equipment component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Delivery schedule

Early collaboration between engineering and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Construction Equipment CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Mechanical loading and wear requirements

• Corrosion and operating environment

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical or heavily loaded construction machinery application, the required qualification, validation, and approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for Construction Equipment CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• Construction equipment precision shafts

• Locating and mounting pins

• CNC machined bushings and sleeves

• Custom threaded adapters

• Precision mounting components

• Equipment mounting blocks

• Drawing-based construction machinery mechanical parts

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and Construction Equipment Components

Are you developing a new construction equipment mechanical component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from construction machinery manufacturers, heavy equipment suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, and estimated purchasing quantities.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Construction Equipment CNC Machining | Stainless Steel Precision Parts | OEM Custom Components
