Stainless Steel CNC Machining for Industrial Machinery

Stainless Steel CNC Machining for Industrial Machinery and OEM Precision Components

Industrial machinery manufacturers require precision mechanical components that support reliable motion, accurate positioning, secure assembly, and consistent production performance.

These components are used in automated production equipment, packaging machinery, conveyor systems, assembly machines, processing equipment, inspection systems, and other industrial mechanical assemblies.

Stainless steel CNC machining provides a flexible manufacturing solution for selected custom machine parts requiring controlled dimensions, corrosion resistance, accurate geometry, and repeatable quality.

Typical components include precision shafts, rollers, bushings, sleeves, threaded adapters, mounting blocks, housings, locating pins, and special fastening hardware.

However, the correct material and manufacturing process depend on the component's mechanical function.

A stainless steel spacer used in a static assembly has different engineering requirements from a rotating shaft, loaded roller, or sliding bushing.

For components exposed to high contact stresses, abrasive wear, or repeated fatigue loading, hardened alloy steel, engineered bearing materials, or other alternatives may be more appropriate.

JUXIN FASTENERS supports drawing-based inquiries for custom stainless steel CNC machined components and precision industrial fastening hardware.

Depending on the component geometry and production requirements, suitable processes may include CNC turning,

Swiss-type machining, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Manufacturing feasibility, material specifications, achievable tolerances, inspection requirements, purchasing quantities, and delivery arrangements are evaluated according to the specific project.

Industrial Machinery Applications for Custom CNC Machined Parts

Industrial machinery contains numerous mechanical assemblies requiring accurate mounting, positioning, spacing, and connection.

The appropriate component design depends on the equipment architecture, operating speed, load conditions, maintenance requirements, and production environment.

Automated Assembly Equipment

Automated assembly machines may incorporate locating pins, precision spacers, threaded adapters, mounting blocks, shafts, and mechanical interfaces.

These components help establish repeatable positions for tooling, fixtures, sensors, and auxiliary mechanisms.

Critical dimensions may include hole position, datum relationships, perpendicularity, concentricity, and controlled fits.

Where equipment operates at high cycle rates, engineers should also consider fatigue, wear, and repeated positioning.

Packaging Machinery

Packaging equipment may use precision rollers, shafts, bushings, mounting components, and custom threaded hardware.

CNC machining can support application-specific geometries where standard components do not meet the required dimensions.

For packaging equipment exposed to washdown or cleaning chemicals, material and surface condition require additional evaluation.

Food-contact applications may also require separate material, hygiene, and regulatory assessment.

General stainless steel machining capability does not automatically establish food-contact suitability.

Conveyor and Material Handling Systems

Conveyor equipment may incorporate precision shafts, rollers, spacers, sleeves, and mounting interfaces.

Engineers should evaluate operating loads, rotational speed, alignment, bearing selection, and maintenance conditions.

Where a machined roller operates with a bearing, the complete assembly must be considered.

Roller diameter accuracy alone does not establish suitable dynamic performance.

Industrial Inspection and Testing Equipment

Inspection machines and test fixtures may require precision housings, locating pins, mounting blocks, adapters, and threaded components.

CNC machining can support accurate relationships between mounting features, bores, shoulders, and reference surfaces.

Where measurement accuracy is important, engineers should consider thermal expansion, structural stiffness, vibration, and datum stability.

Processing and Production Machinery

Industrial processing equipment may use custom bushings, shafts, mounting components, threaded adapters, and mechanical interfaces.

Material selection should account for corrosion exposure, cleaning requirements, temperature, mechanical loading, and maintenance frequency.

Where a component contacts process fluids or operates under pressure, the applicable material compatibility and validation requirements must be established separately.

Machine Maintenance and Replacement Parts

Industrial machinery may remain in operation for many years, creating demand for replacement parts and repeat purchasing.

Drawing-based CNC machining can support replacement components where the original technical requirements are available.

However, matching the external dimensions of an existing part does not establish functional equivalence.

Material properties, heat treatment, hardness, surface finish, wear behavior, and assembly requirements must also be reviewed.

Choosing Stainless Steel for Industrial Machinery Components

Stainless steel may be selected for industrial machinery components where corrosion resistance, durability, dimensional stability, or suitable mechanical properties are required.

However, different grades provide different combinations of machinability, strength, hardness, corrosion resistance, and magnetic behavior.

The material must be selected according to the actual application rather than appearance or nominal grade alone.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned spacers, sleeves, threaded adapters, and precision machine hardware.

Compared with AISI 304, AISI 303 generally offers improved machinability but may provide lower corrosion resistance in certain environments.

Its suitability should be reviewed where welding, demanding corrosion exposure, or customer material restrictions are involved.

AISI 304 Stainless Steel

AISI 304 provides corrosion resistance and general-purpose mechanical properties for many industrial applications.

It may be suitable for selected machine spacers, mounting hardware, sleeves, and precision machined components.

However, AISI 304 can work-harden during machining, requiring suitable tooling and process control.

Its mechanical properties and wear resistance must be evaluated against the component's operating conditions.

AISI 316 Stainless Steel

AISI 316 may be considered for selected machinery components exposed to moisture or more demanding corrosive environments.

It generally offers improved resistance to certain corrosive conditions compared with AISI 304.

However, AISI 316 is not universally resistant to every chemical or chloride exposure condition.

Improved corrosion resistance does not automatically provide improved bearing or wear performance.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that may be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected components requiring specific hardness or wear-related properties.

Their corrosion resistance and heat-treatment behavior differ from those of austenitic stainless steels.

The engineering drawing should identify the required material condition, hardness, and applicable specification.

17-4 PH Stainless Steel

17-4 PH is a precipitation-hardening stainless steel that may be considered for selected high-strength precision components.

Its mechanical properties depend on the specified heat-treatment condition.

Where this material is required, the applicable material specification, heat-treatment condition, and mechanical requirements should be clearly defined.

When Stainless Steel Is Not the Best Choice

Stainless steel is not necessarily the preferred material for highly loaded gears, heavily loaded shafts, rolling-contact surfaces, or abrasive bearing interfaces.

Depending on the application, hardened alloy steel, tool steel, engineered bearing materials, or other materials may provide more suitable wear and fatigue performance.

A proposed material substitution should be reviewed against the complete functional specification.

Precision Shafts and Machine Motion Components

Precision shafts are common components in industrial machinery.

Their function may involve transmitting motion, supporting rotating assemblies, locating components, or providing mechanical interfaces.

Shaft Diameter and Bearing Fit

The shaft diameter and tolerance must be compatible with the mating bearing or bushing.

A nominal diameter alone is not sufficient to define the required fit.

The design should consider the selected bearing, loading direction, operating temperature, assembly method, and maintenance requirements.

Where ISO limits and fits are used, ISO 286 may be relevant.

The appropriate tolerance class must be determined by the equipment designer.

Concentricity and Runout

For rotating shafts, the relationship between bearing seats, shoulders, and other critical features can influence assembly performance.

Runout and geometric controls should reflect the functional requirements.

Excessive geometric variation may contribute to vibration, uneven loading, or premature wear.

Shaft Shoulders and Stress Concentration

Sharp transitions, grooves, threads, and shoulders may create local stress concentrations.

Where fatigue is important, engineers should evaluate transition geometry, surface condition, material properties, and the expected load spectrum.

Slender Shaft Machining

Slender shafts may deflect during machining due to cutting forces and workholding conditions.

Suitable machining methods, support arrangements, and process planning may be required.

The achievable tolerance depends on geometry, material, tooling, and machine capability.

CNC Machined Rollers for Industrial Machinery

Rollers may be used in conveyor systems, packaging equipment, positioning mechanisms, and other machinery.

CNC turning can produce controlled diameters, shoulders, bores, and mounting features.

However, roller performance depends on more than dimensional accuracy.

Roller Diameter and Surface Finish

The required diameter tolerance and surface finish depend on the roller's function.

A transport roller, guide roller, and precision positioning roller may have different requirements.

Unnecessarily fine surface finish may increase machining cost without improving performance.

Bearing Interfaces

Where a roller incorporates a bearing, the bore and shoulder geometry must be compatible with the bearing arrangement.

The complete assembly should be evaluated for load, speed, fit, lubrication, and operating temperature.

Dynamic Behavior

At higher rotational speeds, imbalance and geometric variation may affect machine performance.

A CNC-machined roller is not automatically dynamically balanced.

Any balancing requirements must be specified and validated for the application.

Bushings, Sleeves, and Locating Components

Bushings and sleeves may provide spacing, alignment, guidance, or mechanical interfaces.

Important characteristics include inner diameter, outer diameter, length, concentricity, and perpendicularity.

Sliding and Rotating Interfaces

For sliding or rotating interfaces, material compatibility and wear behavior are important.

Stainless steel-on-stainless steel contact may create risks of adhesive wear or galling under certain conditions.

Suitable bearing materials, lubrication, surface treatments, or alternative designs may be required.

Locating Pins

Locating pins may establish repeatable positions in fixtures, tooling, and mechanical assemblies.

The required pin fit depends on the mating hole, assembly method, and functional requirements.

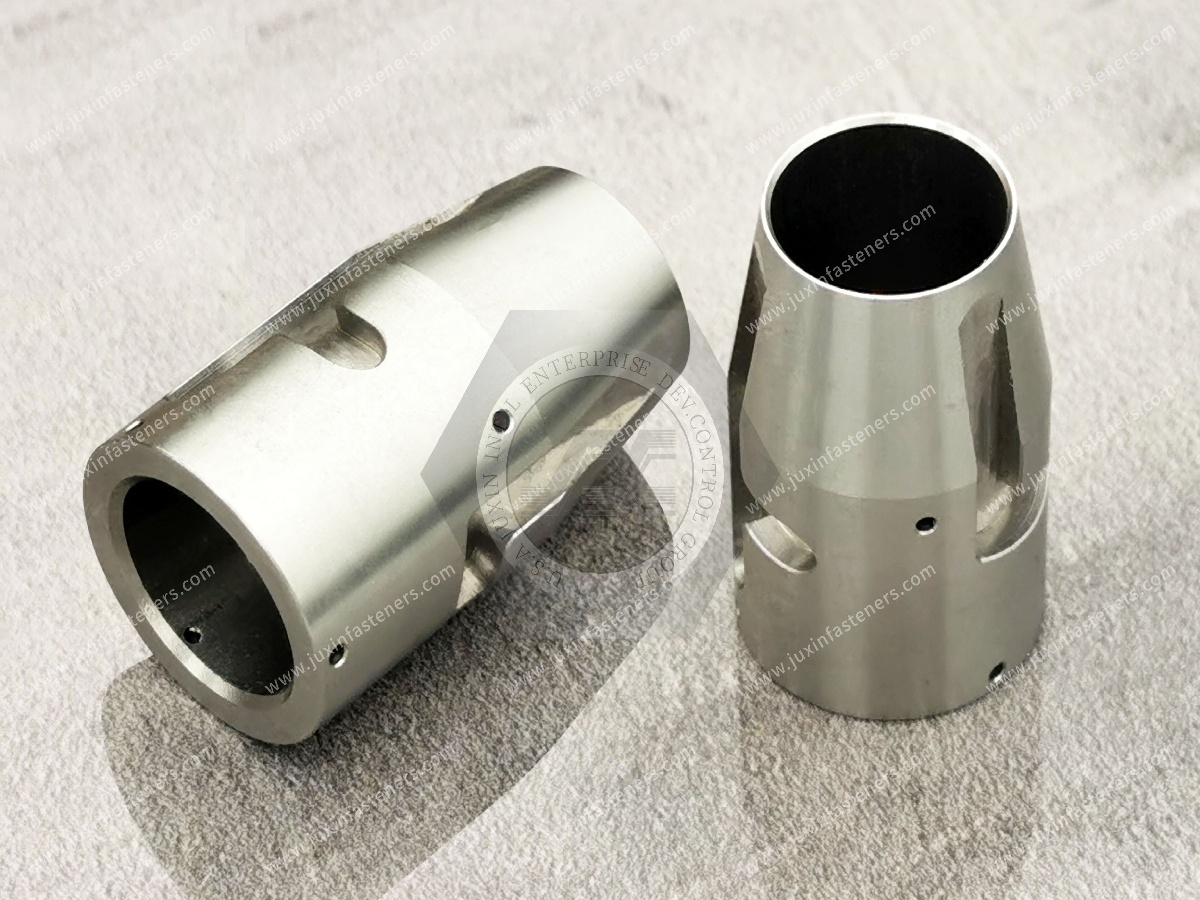

Precision Sleeves and Spacers

Machined sleeves and spacers may establish controlled assembly distances.

Their dimensions should be selected according to the complete joint design.

Incorrect spacer length or insufficient bearing area can affect clamping conditions and alignment.

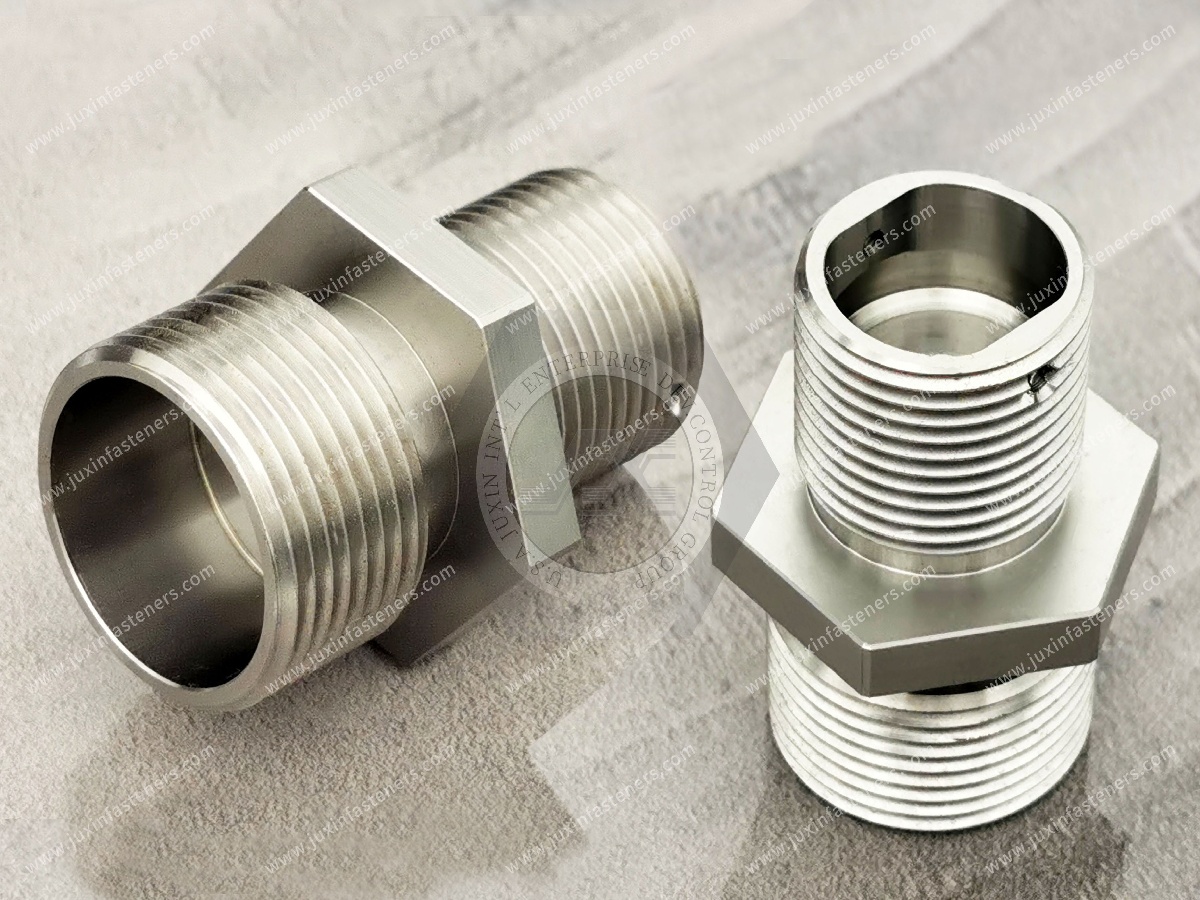

Custom Threaded Adapters and Machine Fastening Components

Industrial machinery frequently uses custom threaded components that cannot be sourced as standard hardware.

These may include precision studs, threaded sleeves, adapters, special nuts, and custom mounting components.

CNC machining can support non-standard geometry, multiple features, and controlled dimensional relationships.

Thread Standards

ISO 261 and ISO 965 may be relevant to ISO metric screw threads.

ASME B1.1 covers Unified inch screw threads, including UNC and UNF series.

Metric and Unified inch threads are not directly interchangeable.

Where BSW or BSF threads are specified, their separate British thread standards and geometry must be respected.

A nominal diameter conversion does not establish thread compatibility.

Thread Engagement

Thread engagement should be evaluated according to the applied load, mating material, thread size, and assembly requirements.

A longer thread engagement does not automatically improve the joint if other failure modes govern the design.

Galling and Assembly Reliability

Stainless steel threaded components may experience galling under certain assembly conditions.

Suitable mating materials, lubrication, surface treatments, and installation procedures may reduce the risk.

Locking and Vibration Resistance

Where machinery operates under vibration, the complete joint should be evaluated for preload retention and loosening resistance.

A custom machined thread does not automatically provide vibration resistance.

CNC Machining Processes for Industrial Machinery Components

The appropriate machining process depends on geometry, material, tolerance requirements, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, rollers, bushings, sleeves, threaded adapters, and cylindrical spacers.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Workholding, tool access, cutting conditions, and surface finish requirements influence the process plan.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter, slender precision components.

The guide-bushing arrangement can support the workpiece near the cutting area, helping control deflection in suitable applications.

However, Swiss-type machining is not automatically the most economical choice for every small component.

Part geometry, material, setup complexity, cycle time, and production quantity influence process selection.

CNC Milling

CNC milling may be suitable for mounting blocks, housings, adapters, brackets, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

For stainless steel, machining plans should account for tool wear and work hardening.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in Industrial Machinery CNC Parts

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For industrial machinery hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

Surface Finish and Functional Requirements

Surface finish should be specified according to component function.

A bearing interface, sealing surface, machine contact surface, and general mounting feature may require different surface conditions.

Specifying unnecessarily fine surface finish across an entire component can increase machining cost without improving performance.

GD&T and Precision Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a precision bushing may require controlled relationships between its internal bore, outer diameter, and end faces.

A mounting block may require accurate positional relationships between mounting holes, locating features, and reference surfaces.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Precision, Repeatability, and Production Stability

For industrial machinery OEM manufacturing, a successful CNC machining process must produce consistent results across the required production quantity.

A dimensionally accurate prototype does not automatically establish production capability.

Important process controls may include:

• Approved CNC programs

• Controlled workholding

• Tool-life management

• Material consistency

• Cutting parameters

• In-process inspection

• Final dimensional verification

• Documented drawing revisions

• Appropriate handling and packaging

Production managers should evaluate machining cycle time, setup requirements, inspection frequency, scrap risk, and process consistency.

The appropriate manufacturing approach depends on component complexity, required tolerances, and purchasing volume.

Quality Control for Custom CNC Industrial Machinery Parts

Inspection planning should follow the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, hardness testing, surface-finish measurement, and functional checks.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified stainless steel grade.

The required documentation should be agreed upon during quotation.

Hardness and Heat-Treatment Verification

Where hardness or heat-treatment condition is functionally important, the drawing should define the applicable requirements.

Any required testing or documentation should be confirmed before production.

Surface Finish Verification

Where surface finish is functionally important, the drawing should define the relevant parameters and inspection requirements.

The measurement method should be suitable for the specified surface and geometry.

First-Article and Production Inspection

OEM projects may require first-article inspection or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

From Prototype Development to Repeat OEM Production

CNC machining can support industrial machinery component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

The appropriate optimization depends on the required production quantity.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Industrial Machinery Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every industrial machinery component requires CNC machining.

Standard screws, nuts, washers, studs, pins, bushings, and other fastening components may offer a more economical solution for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom mounting blocks

• Specific material requirements

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded stud or precision dowel pin may provide an efficient solution for a compatible mechanical assembly.

However, standard components must still meet the required material, dimensional, mechanical, and environmental specifications.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

OEM Supplier Development and Procurement Considerations

For industrial machinery manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Corrosion resistance, strength, hardness, fatigue behavior, wear characteristics, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined industrial machinery component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity

• Delivery schedule

Early collaboration between engineering and procurement teams can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Industrial Machinery CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Mechanical loading and wear requirements

• Corrosion and operating environment

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical or heavily loaded machinery application, the required qualification, validation, and approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for Industrial Machinery CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• Industrial machinery precision shafts

• CNC machined rollers and bushings

• Custom threaded adapters

• Precision mounting components

• Machine housings and mounting blocks

• Locating pins and precision sleeves

• Drawing-based industrial machinery components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and Industrial Machinery Components

Are you developing a new industrial machinery component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from industrial machinery manufacturers, automation equipment suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, and estimated purchasing quantities.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Industrial Machinery CNC Machining | Stainless Steel Precision Parts | OEM Custom Components
