Stainless Steel CNC Machining for Medical Equipment

Stainless Steel CNC Machining for Medical Equipment and OEM Precision Components

Medical equipment manufacturers require precision mechanical components that support accurate assembly, reliable positioning, corrosion resistance, controlled surface quality, and repeatable manufacturing.

These components may be used in diagnostic instruments, laboratory analyzers, medical equipment enclosures,

instrument positioning mechanisms, non-patient-contact equipment assemblies, and other medical technology applications.

Stainless steel CNC machining provides a flexible manufacturing solution for selected custom mechanical parts requiring accurate geometry, controlled material properties, and consistent dimensional quality.

Typical components include precision housings, shafts, pins, bushings, sleeves, threaded adapters, spacers, mounting blocks, and special fastening hardware.

Medical equipment manufacturing also introduces application-specific considerations involving material documentation, surface condition, cleaning compatibility, contamination control, design verification, and supplier qualification.

The required level of control depends on the component's intended use and its role in the complete medical equipment assembly.

JUXIN FASTENERS supports drawing-based inquiries for custom stainless steel CNC machined parts and precision fastening hardware used in medical equipment manufacturing.

Depending on the component geometry and production requirements, suitable machining processes may include CNC turning, Swiss-type machining,

CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Manufacturing feasibility, material specifications, achievable tolerances, inspection requirements, documentation, order quantities, and delivery arrangements must be confirmed for each project.

Medical Equipment Applications for CNC Machined Components

Medical equipment contains numerous mechanical assemblies that require accurate positioning, reliable fastening, and controlled dimensional relationships.

The appropriate component design depends on the equipment function, operating environment, cleaning requirements, and applicable customer specifications.

Diagnostic and Laboratory Instrument Components

Diagnostic analyzers, laboratory instruments, and automated testing equipment may require precision housings, locating pins, threaded adapters, spacers, and mechanical mounting components.

CNC machining can support complex geometries involving bores, shoulders, threads, slots, and accurately positioned mounting holes.

Design engineers should consider component alignment, vibration, installation access, material compatibility, and dimensional repeatability.

Where equipment uses automated sample-handling mechanisms, the complete motion system must be evaluated for positioning accuracy and mechanical reliability.

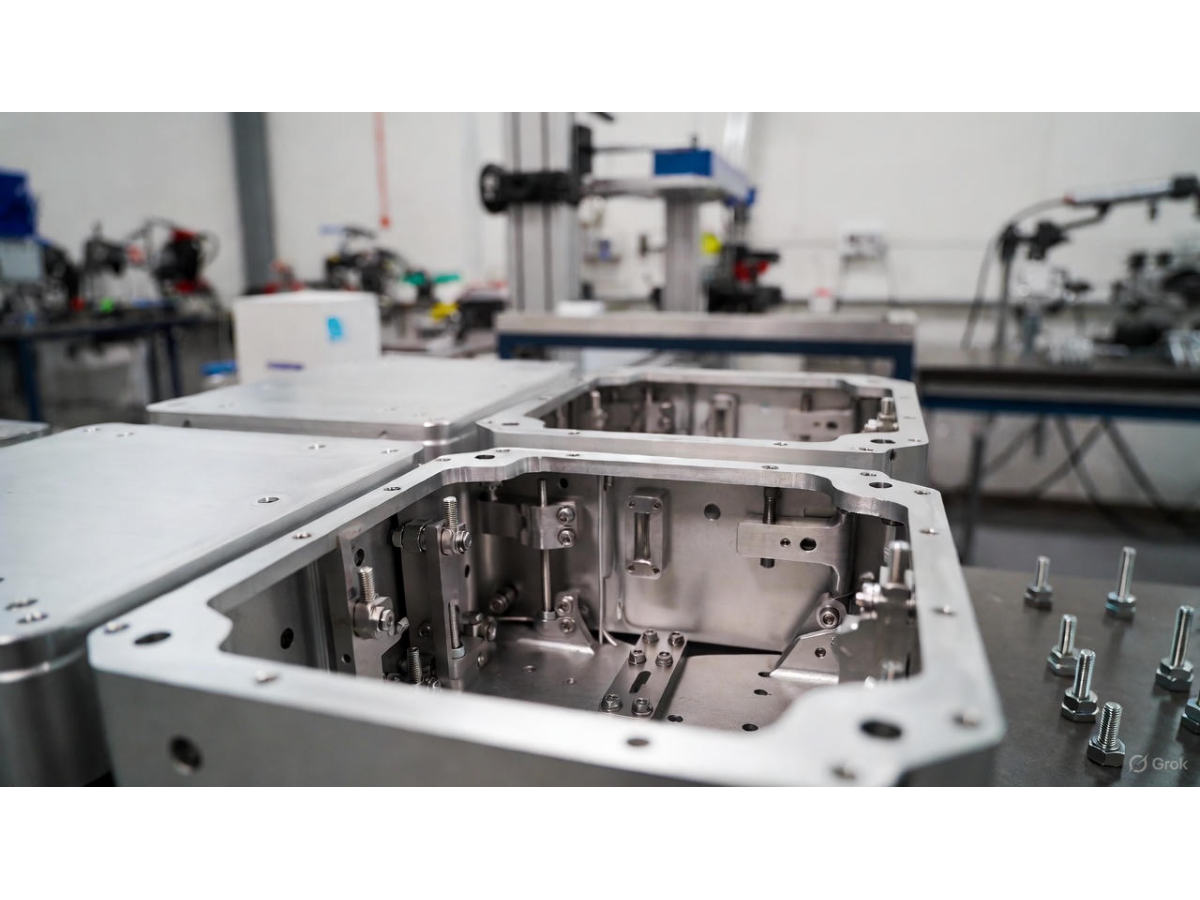

Medical Equipment Enclosures and Mounting Hardware

Medical equipment housings and instrument enclosures may incorporate threaded standoffs, mounting blocks, precision spacers, bushings, and custom fastening components.

These parts may support internal equipment mounting and controlled separation between assemblies.

Where the enclosure is manufactured from thin sheet metal, the fastening method must be compatible with the sheet thickness, substrate material, and joint loading.

Standard self-clinching fasteners, rivet nuts, and threaded standoffs may provide a more economical solution than custom CNC machining for suitable applications.

Precision Positioning and Adjustment Components

Selected medical equipment mechanisms may require precision shafts, locating pins, bushings, and threaded adjustment components.

CNC machining can support controlled diameters, shoulders, threads, and surface conditions.

However, moving assemblies require evaluation of wear, lubrication, mechanical loading, and repeated positioning.

A dimensionally accurate machined part does not automatically establish the accuracy or reliability of the complete positioning mechanism.

Instrument Housings and Sensor Mounting Components

Medical instruments may require custom sensor housings, threaded sleeves, adapters, and mechanical interfaces.

CNC machining can produce features such as precision bores, sealing surfaces, mounting holes, and internal threads.

Engineers should evaluate thermal expansion, electrical compatibility, vibration, and installation conditions.

Where the component is located near sensitive measurement equipment, magnetic properties and material selection may also be relevant.

Laboratory Equipment and Cleaning-Exposed Assemblies

Laboratory equipment may contain machined mechanical components exposed to cleaning agents, disinfectants, moisture, or repeated maintenance.

Stainless steel may be considered where corrosion resistance and cleanable surfaces are important.

However, the selected material must be evaluated against the actual cleaning chemicals, concentration, exposure time, and operating conditions.

The suitability of a component for cleaning or disinfection cannot be established from stainless steel grade alone.

Medical Equipment vs. Implantable Medical Device Components

Medical equipment mechanical parts and implantable medical device components are not interchangeable categories.

Implantable devices, surgical implants, and components with direct patient-contact or biological safety requirements may require specialized materials,

 manufacturing controls, biocompatibility evaluation, validation, and regulatory approval.

General CNC machining capability does not establish suitability for these applications.

Such projects require explicit review of the intended use, applicable specifications, regulatory requirements, and supplier qualification before acceptance.

Stainless Steel Material Selection for Medical Equipment CNC Machining

Stainless steel may be selected for medical equipment components where corrosion resistance, strength, hardness, surface quality, or dimensional stability are important.

However, different stainless steel grades provide different combinations of machinability, corrosion resistance, mechanical properties, and magnetic behavior.

Material selection must be based on the actual component function and customer specification.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned spacers, sleeves, threaded adapters, and precision mechanical components where its material properties meet the application requirements.

Compared with AISI 304, AISI 303 generally offers improved machinability but may provide reduced corrosion resistance in certain environments.

Its suitability should be reviewed where welding, demanding corrosion exposure, or specific material restrictions are involved.

AISI 303 should not automatically be selected for patient-contact applications.

AISI 304 Stainless Steel

AISI 304 is widely used for industrial mechanical components requiring corrosion resistance and general-purpose material properties.

It may be suitable for selected medical equipment housings, spacers, mounting hardware, sleeves, and precision machined parts.

However, AISI 304 can work-harden during machining, requiring suitable tooling, cutting conditions, and process control.

Its corrosion resistance should be evaluated against the actual operating environment, including cleaning chemicals and repeated moisture exposure.

AISI 316 Stainless Steel

AISI 316 may be considered for selected medical equipment components requiring improved resistance to certain corrosive environments.

It generally offers improved resistance to some corrosive conditions compared with AISI 304.

However, AISI 316 is not universally resistant to every disinfectant, cleaning chemical, or chloride exposure condition.

The required grade and material condition should follow the customer specification.

AISI 316 and AISI 316L are different material designations and should not be treated as automatically interchangeable.

Neither designation alone establishes biocompatibility or suitability for implantation.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that may be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected components requiring specific hardness or wear-related properties.

Their corrosion resistance and heat-treatment behavior differ from those of austenitic stainless steels.

The engineering drawing should identify the required material condition, hardness, and applicable specification.

Precipitation-Hardening Stainless Steel

Precipitation-hardening stainless steels, including 17-4 PH, may be considered for selected high-strength precision components.

Their mechanical properties depend on the specified heat-treatment condition.

Where these materials are required, the applicable material specification, heat-treatment condition, and mechanical requirements should be clearly defined.

Material Documentation and Traceability

Medical equipment OEMs may require documentation identifying the specified material grade, condition, and applicable material standard.

Depending on the project, material test reports, heat or lot identification, and other traceability information may be required.

These requirements should be agreed upon before production.

Material identification alone does not establish compliance with all medical device regulatory requirements.

Surface Finish, Burr Control, and Cleanability

Surface condition is particularly important for medical equipment components that may be cleaned, handled frequently, or installed near sensitive instruments.

Surface Roughness

Surface roughness requirements should reflect the component's actual function.

A general mounting block may not require the same surface condition as a sealing interface or precision sliding component.

Unnecessarily tight surface finish requirements can increase machining cost without improving performance.

Where surface roughness is critical, the drawing should define the required parameter and measurement method.

Burrs and Sharp Edges

Machining operations may produce burrs around drilled holes, milled edges, threads, and intersecting features.

Burrs can interfere with assembly, damage mating components, create handling hazards, or contribute to unwanted particle generation.

The engineering drawing should define appropriate edge conditions and any critical deburring requirements.

Blind Holes and Internal Features

Blind holes, deep bores, and intersecting passages may be difficult to clean and inspect.

Where cleanliness is important, engineers should consider tool accessibility, chip evacuation, cleaning access, and inspection feasibility during the design stage.

Reducing unnecessary blind features may improve manufacturability and cleaning effectiveness.

Cleaning and Disinfection Compatibility

Medical equipment components may be exposed to detergents, disinfectants, alcohol-based cleaning agents, or other chemicals.

The selected material and surface treatment should be compatible with the intended cleaning process.

Repeated chemical exposure may affect corrosion resistance or surface condition.

Cleaning validation, where required, must be defined according to the component's intended use and customer requirements.

Passivation and Surface Treatments

Some stainless steel components may require passivation or other surface treatments.

ASTM A967/A967M may be relevant where chemical passivation of stainless steel parts is specified.

However, passivation requirements, treatment methods, acceptance criteria, and documentation must be agreed upon for the project.

Passivation should not be described as sterilization, and it does not independently establish medical-device cleanliness or biocompatibility.

Precision Shafts, Bushings, and Threaded Components

Different medical equipment components create different machining and inspection challenges.

Precision Shafts

CNC turning may be suitable for shafts requiring controlled diameters, shoulders, grooves, threads, and surface finish.

Important characteristics may include concentricity, runout, straightness, and the relationship between critical features.

For slender shafts, workpiece deflection and vibration during machining can influence dimensional accuracy.

Where shafts are used in moving equipment, wear, lubrication, and fatigue requirements must be considered.

Locating Pins

Precision locating pins may be used in instrument assembly, positioning fixtures, and mechanical interfaces.

Critical dimensions may include pin diameter, length, shoulder geometry, and mating fit.

Engineers should consider insertion requirements, wear behavior, material hardness, and repeated assembly.

Bushings and Sleeves

Machined bushings and sleeves may provide controlled spacing, alignment, or mechanical interfaces.

Important characteristics include inner diameter, outer diameter, length, concentricity, and perpendicularity.

For sliding or rotating interfaces, the complete bearing arrangement must be evaluated.

Stainless steel alone does not guarantee suitable wear performance.

Threaded Adapters and Custom Fasteners

Custom threaded components may include precision studs, threaded sleeves, adapters, spacers, and special mounting hardware.

CNC machining may be suitable where standard components do not meet the required geometry or material specification.

Thread dimensions should follow the approved drawing and applicable international standard.

Metric, UNC, and UNF thread systems must be specified separately and are not directly interchangeable.

CNC Machining Processes for Medical Equipment Precision Parts

Different CNC machining processes provide advantages depending on geometry, material, tolerance requirements, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, pins, bushings, sleeves, threaded adapters, and cylindrical spacers.

Typical operations include facing, external turning, boring, drilling, grooving, and threading.

Process planning should consider workholding, tool access, dimensional relationships, and surface finish.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter, slender precision components.

The guide-bushing arrangement can support the workpiece near the cutting area, helping control deflection in suitable applications.

However, Swiss-type machining is not automatically the most economical choice for every small component.

Part geometry, material, setup complexity, cycle time, and production quantity influence process selection.

CNC Milling

CNC milling may be suitable for instrument housings, mounting blocks, adapters, brackets, and components requiring flats, slots, pockets, or multiple mounting features.

Datum selection and fixture stability are important where positional relationships between features affect assembly.

Drilling, Tapping, and Threading

Machined components may require internal threads, external threads, precision holes, and mounting features.

Thread quality depends on material properties, tooling, cutting conditions, and inspection methods.

For stainless steel, machining plans should account for tool wear and work hardening.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational operations.

For suitable components, reducing the number of setups may improve relationships between critical features and reduce handling.

The benefit depends on machine configuration, tooling, part complexity, and production volume.

Design for Manufacturability in Medical Equipment CNC Components

Design for Manufacturability (DFM) helps align engineering requirements with practical machining processes.

Early DFM evaluation can reduce unnecessary complexity, improve production repeatability, and lower total component cost.

Tolerance Allocation

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical dimensions may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and cost.

Thin Walls and Machining Stability

Thin-walled components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Special workholding or controlled machining sequences may be required.

The achievable tolerance depends on material, geometry, tooling, and process stability.

Deep Holes and Tool Accessibility

Deep or narrow holes may require specialized tooling and additional machining time.

Engineers should consider tool reach, chip evacuation, coolant access, and measurement requirements.

Where design flexibility exists, simplifying difficult internal features may reduce cost.

Thread Engagement and Assembly Loads

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For medical equipment hardware, engineers should consider joint loads, mating materials, assembly torque, and the risk of thread damage.

Stainless steel threaded components may experience galling under certain assembly conditions.

Suitable mating materials, surface treatments, lubrication, or assembly procedures may be necessary.

Surface Finish and Functional Requirements

Surface finish should be specified according to component function.

A sealing interface, bearing surface, instrument contact surface, and general mounting feature may require different surface conditions.

Specifying unnecessarily fine surface finish across an entire component can increase machining cost without improving performance.

GD&T and Precision Assembly Requirements

Geometric Dimensioning and Tolerancing (GD&T) helps define relationships between critical features.

Depending on the drawing system, ASME Y14.5 or ISO 1101 may be applicable.

Relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

Datum selection should reflect how the component is located and assembled.

For example, a precision bushing may require controlled relationships between its internal bore, outer diameter, and end faces.

An instrument mounting block may require accurate positional relationships between mounting holes, locating features, and reference surfaces.

GD&T should support functional assembly and inspection rather than introducing unnecessary manufacturing complexity.

Precision, Repeatability, and Production Stability

For medical equipment OEM manufacturing, a successful CNC machining process must produce consistent results across the required production quantity.

A dimensionally accurate prototype does not automatically establish production capability.

Important process controls may include:

• Approved CNC programs

• Controlled workholding

• Tool-life management

• Material consistency

• Cutting parameters

• In-process inspection

• Final dimensional verification

• Documented drawing revisions

• Appropriate handling and packaging

Production managers should evaluate machining cycle time, setup requirements, inspection frequency, scrap risk, and process consistency.

The appropriate manufacturing approach depends on component complexity, required tolerances, and purchasing volume.

Quality Control and Medical Equipment Supplier Requirements

Medical equipment procurement may involve more extensive documentation and approval requirements than general industrial machining.

The required controls depend on the component's intended use and customer specification.

Dimensional Inspection

Critical dimensions may be verified using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other verification methods.

The inspection method should follow the specified thread standard and customer requirements.

Material Verification

Customers may require material test reports, heat or lot traceability, or additional verification of the specified stainless steel grade.

The required documentation and acceptance criteria should be agreed upon before production.

Surface Finish Verification

Where surface finish is functionally important, the drawing should define the relevant parameters and inspection requirements.

The measurement method should be suitable for the specified surface and geometry.

First-Article and Production Inspection

Medical equipment OEM programs may require first-article inspection or other customer-defined approval activities before repeat production.

Inspection frequency, reporting, traceability, and approval requirements should be established according to the purchasing specification.

Any required certification, testing, or documentation must be confirmed for the specific project.

ISO 13485 and Medical Device Quality Management

ISO 13485 is a quality management system standard for organizations involved in medical devices and related services within its scope.

However, referencing ISO 13485 does not establish that JUXIN FASTENERS is certified to this standard.

Where a customer requires ISO 13485-certified suppliers, the certification and approval requirements must be verified before the project is accepted.

ISO 14971 and Risk Management

ISO 14971 addresses risk management for medical devices.

Its relevance to a specific machined component depends on the intended use and the medical device manufacturer's risk management process.

The component supplier should understand the critical characteristics and applicable controls identified by the customer.

Biocompatibility and Patient-Contact Components

ISO 10993-1 provides a framework for biological evaluation of medical devices within its scope.

However, material grade alone does not establish biocompatibility.

Any patient-contact or implantable application requires appropriate evaluation of the finished device or component according to the intended use.

Drawing Revision and Change Control

Medical equipment projects may require controlled drawing revisions, material substitutions, manufacturing changes, and inspection documentation.

A supplier should not assume that an alternative material, revised machining process, or dimensional change can be implemented without customer approval.

The applicable change-control requirements should be agreed upon before production.

From Prototype Development to Repeat OEM Production

CNC machining can support medical equipment component development because geometry and machining programs can be revised as the design evolves.

However, transitioning from prototypes to repeated production requires additional process planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, functional interfaces, and inspection requirements.

Potential manufacturing risks should be clarified before machining begins.

Material and Process Selection

The material and machining process should be selected according to functional requirements, part geometry, quantity, and cost.

Alternative manufacturing approaches may be considered where technically appropriate and permitted by the customer's specification.

Prototype and First-Article Machining

Initial parts can be evaluated for dimensional accuracy, assembly fit, surface condition, and manufacturing feasibility.

Any design or process changes should be documented and approved where required.

Process Optimization

After design approval, machining operations may be optimized for cycle time, tooling, repeatability, and inspection efficiency.

Any changes affecting approved processes or critical characteristics should follow the applicable change-control requirements.

Repeat Production and Final Inspection

Repeat production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, traceability, and delivery arrangements should be established according to the customer's purchasing specification.

CNC Machining vs. Standard Medical Equipment Fasteners

Custom CNC machining provides flexibility for non-standard geometry and precision mechanical interfaces.

However, not every medical equipment component requires CNC machining.

Standard screws, nuts, washers, standoffs, self-clinching fasteners, rivet nuts, and other fastening components may offer a more economical solution for suitable applications.

When CNC Machining May Be Appropriate

CNC machining may be justified where the design requires:

• Non-standard geometry

• Precision concentric features

• Special threaded interfaces

• Controlled locating features

• Custom instrument housings

• Specific material requirements

• Multiple machined features

• Drawing-based dimensional relationships

When Standard Fasteners May Be More Economical

Standard fastening components may be preferable where the required function can be achieved without custom machining.

For example, a standard threaded standoff or self-clinching nut may provide an efficient mounting solution for compatible sheet metal.

However, self-clinching fasteners require suitable sheet thickness, substrate hardness, hole geometry, and installation conditions.

The appropriate solution should be selected according to engineering compatibility and total installed cost.

OEM Supplier Development and Procurement Considerations

For medical equipment manufacturers, sourcing custom machined components requires both technical qualification and commercial evaluation.

Supplier selection should consider drawing conformity, material compatibility, machining feasibility, process consistency, quality expectations, documentation, and supply planning.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where an existing component is being transferred from another supplier, the latest drawing revision and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A proposed alternative material or machining process should be reviewed against the original engineering requirements.

Material substitution should not be approved solely because two grades have similar nominal properties.

Corrosion resistance, strength, hardness, cleaning compatibility, and application requirements must be considered.

Any proposed change should be approved by the customer's engineering team.

MOQ, Lead Time, and Volume Purchasing

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, inspection requirements, and production volume can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Total Cost Optimization

The total cost of a machined medical equipment component depends on several factors:

• Material grade and stock form

• Part geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection and documentation requirements

• Scrap and rework

• Order quantity

• Delivery schedule

Early collaboration between engineering and procurement teams can help identify cost-saving opportunities without compromising functional or approval requirements.

Practical RFQ Checklist for Medical Equipment CNC Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and intended use

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish and edge requirements

• Coating or secondary processing requirements

• Cleaning or disinfection requirements

• Corrosion and operating environment

• Material traceability requirements

• Inspection and documentation requirements

• First-article approval requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for patient-contact, implantable, or other regulated medical device applications, the required qualification, validation, certification, and supplier approval procedures should be explicitly identified.

Why Work with JUXIN FASTENERS for Medical Equipment CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• Medical equipment precision housings

• Precision shafts and locating pins

• CNC machined bushings and sleeves

• Custom threaded connectors

• Precision mounting components

• Instrument mounting hardware

• Laboratory equipment mechanical parts

• Drawing-based medical equipment components

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, supplier qualification, commercial feasibility, cost control, delivery planning, and long-term sourcing evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, documentation, and any applicable medical equipment approval requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and Medical Equipment Components

Are you developing a new medical equipment mechanical component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for precision instrument hardware?

JUXIN FASTENERS welcomes technical and commercial inquiries from medical equipment manufacturers, diagnostic instrument suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, quality documentation requirements, and estimated purchasing quantities.

We can review your project requirements and discuss machining feasibility, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Medical Equipment Stainless Steel CNC Machining | Precision Mechanical Parts | OEM Custom Components
