Stainless Steel CNC Machining for EV Components

Stainless Steel CNC Machining for EV Components and OEM Precision Parts

Electric vehicle manufacturers rely on precision-machined metal components throughout electric drive systems, battery pack auxiliary assemblies,

 thermal management equipment, charging interfaces, sensors, electrical enclosures, and mechanical mounting structures.

These components must meet demanding requirements for dimensional accuracy, material compatibility, assembly reliability, corrosion resistance, and repeatable manufacturing.

Stainless steel CNC machining for EV components provides a flexible manufacturing solution for customized parts requiring accurate geometry, controlled surface conditions, and consistent production quality.

Depending on the application, CNC machining can produce precision shafts, bushings, spacers, threaded components, sensor housings, mounting hardware, connectors, sleeves, and other drawing-based mechanical parts.

JUXIN FASTENERS supports custom CNC machining inquiries for electric vehicle manufacturers, automotive suppliers, engineering teams, and industrial OEM procurement departments.

Our machining-related capabilities can be evaluated according to the customer's drawings and may involve CNC turning, Swiss-type machining, CNC milling, drilling, tapping, threading, grooving, and combined turning-milling operations.

Material selection, achievable tolerances, manufacturing feasibility, inspection requirements, production quantities, and delivery arrangements should be confirmed for each project.

Why Stainless Steel Is Used in EV Precision Components

Stainless steel may be selected for EV components where corrosion resistance, mechanical strength, wear-related properties, temperature exposure, or dimensional stability are important.

However, stainless steel is not the optimal material for every electric vehicle component.

Its density, electrical conductivity, thermal conductivity, magnetic behavior, machinability, and cost must be evaluated against the component's functional requirements.

For example, aluminum alloys may be preferable where low weight and thermal conductivity are primary considerations, while stainless steel may be appropriate for selected corrosion-exposed mechanical parts.

The correct material should be selected according to the component's operating environment, mechanical loading, manufacturing process, and customer specification.

AISI 303 Stainless Steel

AISI 303 is an austenitic stainless steel developed for improved machinability.

It may be considered for selected turned components, threaded hardware, bushings, and precision mechanical parts where its corrosion resistance and mechanical properties meet the application requirements.

Compared with AISI 304, AISI 303 generally offers improved machinability but may provide lower corrosion resistance in certain environments.

Its suitability should be evaluated where welding, demanding corrosion exposure, or specific material restrictions are involved.

AISI 304 Stainless Steel

AISI 304 is widely used in industrial equipment and mechanical components because of its corrosion resistance and general material properties.

It may be suitable for selected EV mounting hardware, sleeves, spacers, sensor-related components, and precision machined parts.

However, machining AISI 304 requires appropriate cutting tools, feeds, speeds, cooling, and process control because the material can work-harden during machining.

Its suitability for electrical or magnetic applications should also be verified, particularly where cold working or machining may influence magnetic behavior.

AISI 316 Stainless Steel

AISI 316 may be considered where the operating environment requires improved resistance to certain corrosive conditions compared with AISI 304.

Potential applications include selected components exposed to moisture, road contaminants, or aggressive environments.

However, AISI 316 is not universally resistant to every chemical or chloride exposure condition.

Material selection should be based on the actual environment and customer requirements.

AISI 410 and 420 Stainless Steels

AISI 410 and AISI 420 are martensitic stainless steels that may be heat-treated to obtain different hardness and strength characteristics.

They may be considered for selected mechanical components where hardness, wear behavior, or strength requirements justify their use.

Their corrosion resistance and heat-treatment requirements differ from those of austenitic stainless steels.

The required condition, hardness, dimensional stability, and final machining sequence should be specified.

Precipitation-Hardening Stainless Steels

Precipitation-hardening stainless steels, such as 17-4 PH, may be considered for selected high-strength precision components.

Their properties depend on the specified heat-treatment condition.

Where these materials are used, engineering drawings should define the applicable material specification, heat-treatment condition, and required mechanical properties.

Material substitution should not be based solely on nominal strength or corrosion resistance.

Typical Stainless Steel CNC Machined Components for EV Applications

Electric vehicles incorporate many precision mechanical components that can be manufactured using CNC turning, milling, drilling, threading, and other machining operations.

The appropriate process depends on the part geometry, material, dimensional requirements, and production quantity.

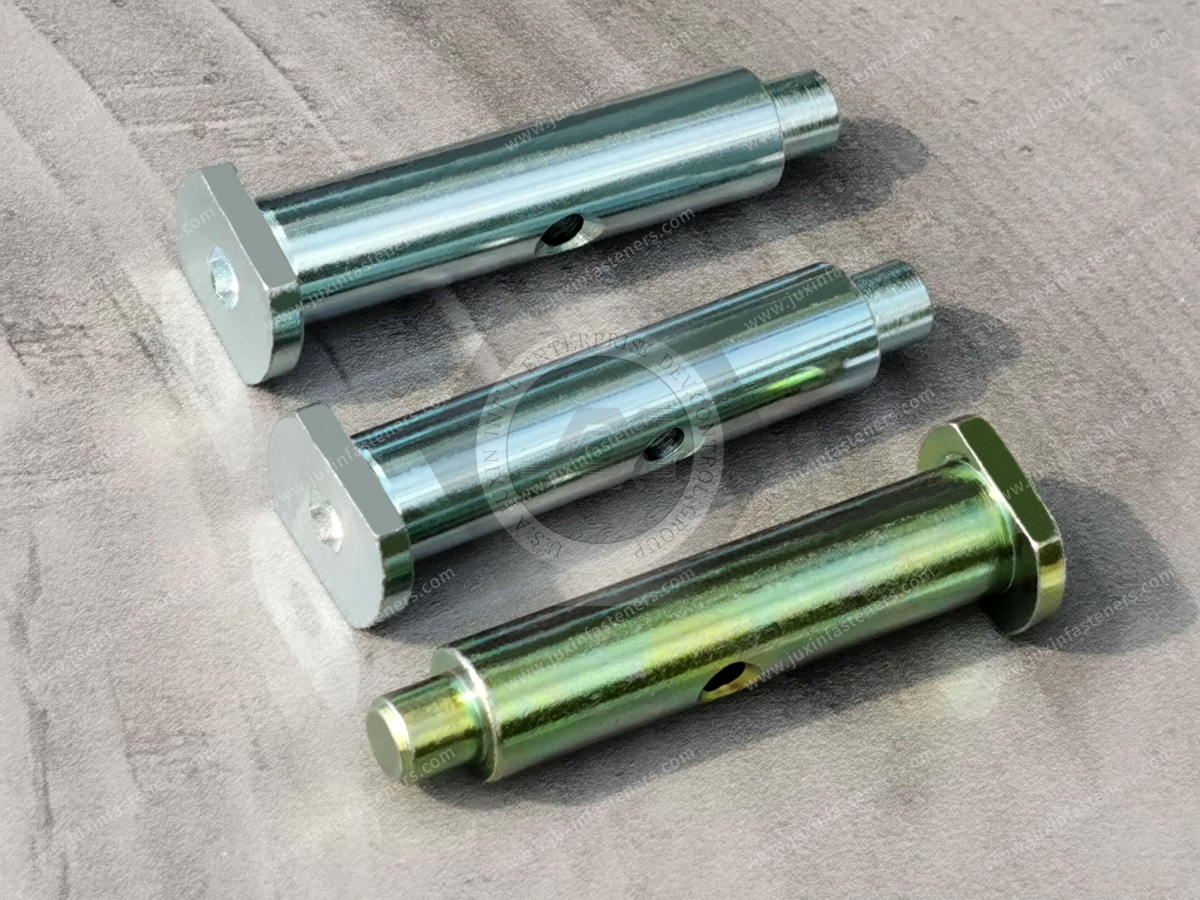

Precision Shafts and Cylindrical Components

CNC turning and Swiss-type machining may be suitable for selected precision shafts, pins, sleeves, and cylindrical mechanical components.

These parts may be used in sensors, actuators, auxiliary mechanisms, and other mechanical assemblies where the design requires accurate diameters, concentricity, and surface finish.

Engineers should evaluate shaft geometry, length-to-diameter ratio, material condition, and critical functional surfaces.

For slender components, deflection and vibration during machining can influence dimensional consistency.

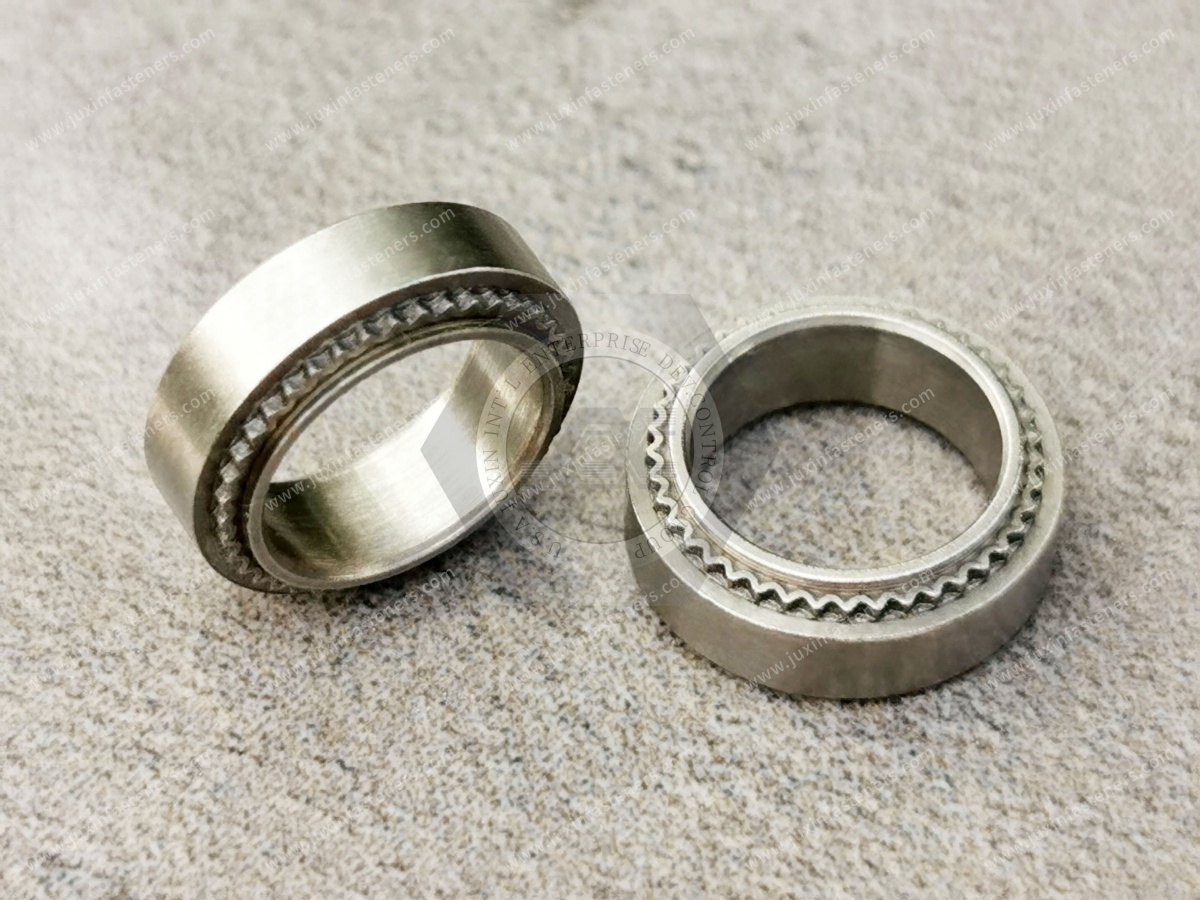

Bushings, Spacers, and Sleeves

Precision bushings, spacers, and sleeves may be used to establish component positioning, maintain assembly distances, or provide mechanical interfaces.

Important characteristics may include inner and outer diameters, length, concentricity, perpendicularity, and surface finish.

Material selection should account for mechanical loading, corrosion exposure, mating materials, and any wear requirements.

Where a bushing functions as a bearing surface, the complete tribological system must be evaluated rather than assuming that stainless steel alone provides suitable wear performance.

Sensor Housings and Mounting Components

EV sensors and electronic systems may require machined housings, threaded adapters, mounting components, and protective mechanical interfaces.

CNC machining can support complex geometries involving bores, threads, grooves, shoulders, and mounting features.

For sensor-related parts, engineers should consider sealing interfaces, positional accuracy, thermal expansion, electrical requirements, and assembly accessibility.

Material selection must also consider whether magnetic properties or electrical conductivity could affect the sensor's function.

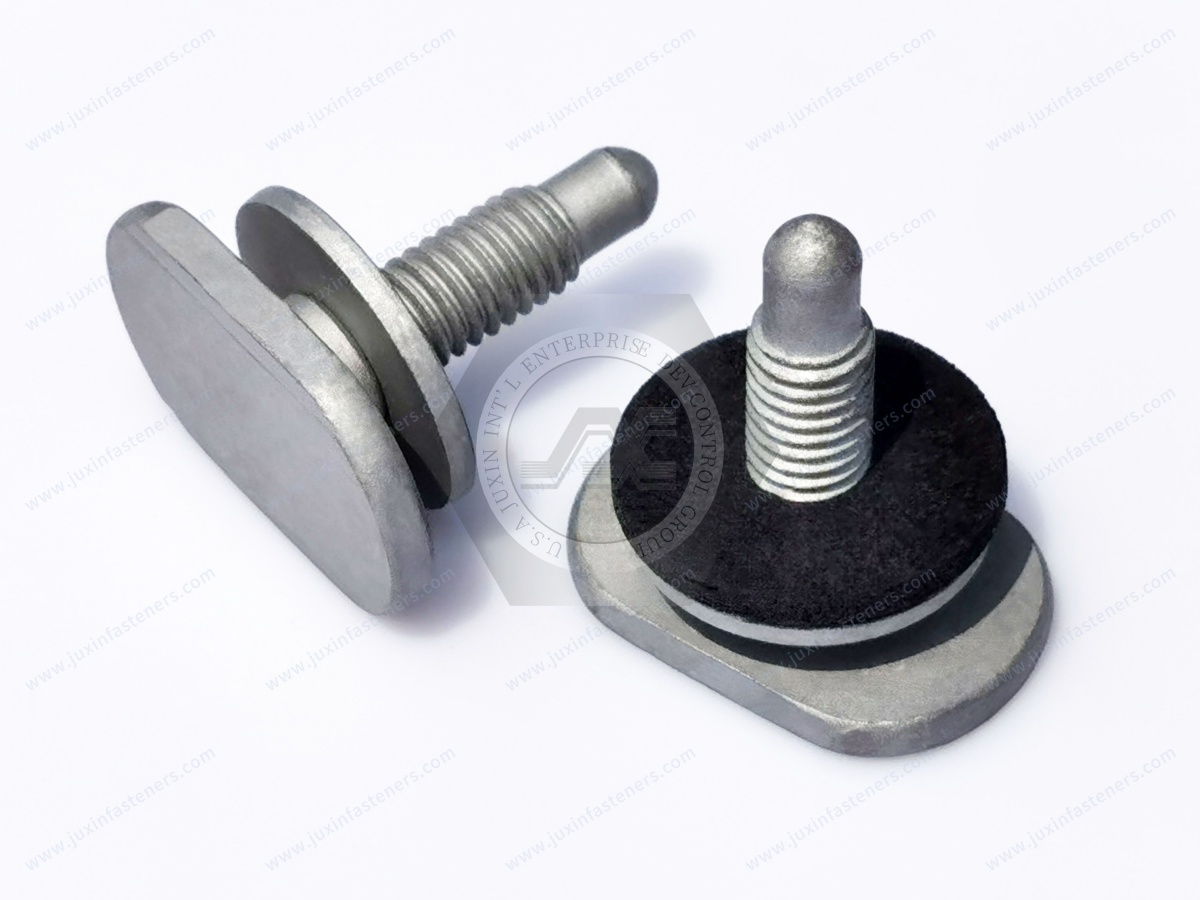

Threaded Connectors and Custom Fastening Components

Custom threaded components may include studs, threaded pins, precision nuts, sleeves, spacers, and special mounting hardware.

CNC machining can be suitable where standard fasteners do not meet the required geometry, material, or assembly conditions.

Thread dimensions should follow the applicable engineering drawing and international thread standard.

Metric, UNC, and UNF thread systems must be specified separately and should not be treated as interchangeable.

Thermal Management System Components

EV thermal management systems may require precision mechanical interfaces, fittings, mounting components, and related hardware.

CNC machining can support components requiring controlled geometry and suitable material properties.

However, stainless steel is not automatically the preferred material for heat-transfer components because its thermal conductivity is substantially lower than that of many aluminum alloys.

For fluid-contact components, engineers must evaluate corrosion compatibility, sealing design, pressure requirements, cleanliness, and the actual coolant or refrigerant environment.

Any pressure-containing or safety-critical component requires application-specific engineering validation.

Battery Pack Auxiliary Hardware

Battery pack assemblies may use precision spacers, mounting sleeves, threaded components, brackets, and other mechanical hardware.

CNC-machined stainless steel components may be considered where their properties meet the design requirements.

However, battery pack applications may involve electrical isolation, galvanic compatibility, vibration, thermal expansion, and specific safety requirements.

A metallic component should not be assumed electrically insulating.

Safety-critical battery pack components must be qualified according to the customer's engineering and validation requirements.

CNC Machining Processes for Custom EV Components

Different machining processes provide different advantages depending on part geometry, tolerance requirements, material, and production quantity.

CNC Turning

CNC turning is suitable for rotationally symmetric components such as shafts, pins, bushings, sleeves, threaded parts, and cylindrical spacers.

Typical operations include external turning, internal boring, facing, drilling, threading, and grooving.

Process planning should consider workholding, tool access, surface finish, and dimensional relationships between features.

Swiss-Type CNC Machining

Swiss-type machining may be advantageous for small-diameter, slender, and precision turned components.

The guide-bushing arrangement can provide support close to the cutting area, helping control deflection in suitable part geometries.

However, Swiss-type machining is not automatically the most economical process for every small component.

Part length, diameter, material, complexity, setup requirements, and production volume influence process selection.

CNC Milling

CNC milling is suitable for components requiring flats, pockets, slots, mounting surfaces, complex profiles, or multiple geometric features.

For precision EV parts, milling process planning should consider datum selection, fixture stability, tool access, and the relationship between critical surfaces.

Drilling, Tapping, and Threading

Drilling and threading operations may be required for mounting holes, internal threads, external threads, and assembly interfaces.

Thread quality depends on material properties, cutting conditions, tool selection, and inspection methods.

Where stainless steel is machined, tool wear and work hardening must be controlled.

Combined Turning and Milling

Turn-mill machining can combine rotational and non-rotational features in a coordinated manufacturing process.

For suitable components, reducing the number of setups may improve feature relationships and reduce handling.

However, the benefit depends on machine configuration, tooling, cycle time, and production requirements.

Design for Manufacturability (DFM) in EV CNC Machining

A well-designed CNC component should meet functional requirements while remaining practical to manufacture and inspect.

Early DFM review can reduce machining complexity, unnecessary tolerances, material waste, and production cost.

Avoiding Unnecessary Tight Tolerances

Not every dimension requires the same tolerance.

Critical-to-function features should receive appropriate dimensional and geometric controls.

Non-critical features may permit more economical tolerances.

Unnecessarily tight tolerances can increase machining time, inspection effort, scrap risk, and overall cost.

Tolerance selection should reflect assembly function rather than applying the smallest possible value throughout the drawing.

Hole Depth and Tool Accessibility

Deep, narrow holes and difficult-to-access internal features may require specialized tooling or additional machining operations.

Engineers should consider tool reach, chip evacuation, coolant access, and the stability of the machining process.

Where design flexibility exists, simplifying internal features may reduce manufacturing cost.

Thin Walls and Component Deformation

Thin-walled stainless steel components may deform during machining due to cutting forces, clamping pressure, or residual stress.

Process planning may require special workholding, controlled cutting parameters, or additional operations.

The achievable dimensional accuracy depends on the material, geometry, and machining sequence.

Threads and Assembly Interfaces

Thread specifications should identify the required standard, size, pitch, tolerance class, and functional engagement.

For critical threaded connections, engineers should consider assembly loads, mating materials, galling risk, and tightening procedures.

Stainless steel threaded components may be susceptible to galling under certain assembly conditions.

Appropriate design, surface condition, lubrication, or mating material selection may be necessary.

Surface Finish and Functional Requirements

Surface finish should be specified according to component function.

A sealing surface, bearing interface, decorative surface, and general mounting feature may require different surface conditions.

Specifying an unnecessarily fine finish across an entire component can increase machining cost without improving performance.

GD&T and Critical Dimensional Control

Geometric Dimensioning and Tolerancing (GD&T) helps communicate functional requirements for precision machined components.

Depending on the design, relevant controls may include position, flatness, perpendicularity, parallelism, runout, and profile.

ASME Y14.5 and ISO 1101 provide relevant frameworks for geometric tolerancing, depending on the drawing system used.

The applicable drawing convention should be clearly identified.

Datum selection should reflect how the component is located and assembled in the finished equipment.

For example, a precision bushing may require controlled relationships between its internal bore, external diameter, and end faces.

A sensor housing may require accurate positional relationships between mounting holes, sealing surfaces, and internal features.

GD&T should support functional assembly and inspection rather than adding unnecessary complexity.

Precision, Repeatability, and Production Stability

For EV OEM manufacturing, producing one accurate prototype is not sufficient to establish a reliable production process.

The machining process must deliver consistent results across the required production quantity.

Important process controls may include:

• Approved CNC programs

• Controlled workholding and fixtures

• Tool selection and tool-life management

• Cutting parameters

• Material consistency

• Coolant and chip control

• In-process dimensional checks

• Final inspection

• Documented revision control

Process stability depends on the interaction between machine capability, material, tooling, geometry, and measurement methods.

A tolerance that can be achieved on a prototype may require additional process development before it can be maintained economically in repeated production.

Quality Control for Custom CNC Machined EV Parts

Inspection planning should be based on the approved drawing and the component's functional requirements.

Depending on the project, inspection may include dimensional measurement, thread inspection, material verification, surface-finish measurement, hardness testing, and functional checks.

Dimensional Inspection

Critical dimensions may be measured using suitable micrometers, calipers, bore gauges, height gauges, or coordinate measuring equipment.

The selected measurement method should provide sufficient capability for the specified tolerance.

Thread Inspection

Threaded components may require appropriate thread gauges or other dimensional verification methods.

The inspection approach should follow the applicable thread specification and customer requirements.

Material Verification

Customers may require material documentation or additional verification of the specified stainless steel grade.

The required documentation and acceptance criteria should be agreed upon during quotation.

Surface Finish Inspection

Where surface finish is functionally important, the drawing should identify the relevant parameters and inspection requirements.

The appropriate measurement method depends on the surface geometry and specification.

First-Article and Production Inspection

OEM projects may require first-article inspection or other customer-defined approval activities before volume production.

Inspection frequency and reporting requirements should be established according to the project specification.

JUXIN FASTENERS does not assume that every machining project requires the same inspection documentation or certification.

Specific testing, inspection records, and approval procedures must be confirmed during supplier qualification.

From Prototype Development to Repeat OEM Production

CNC machining can support engineering development because component geometry and machining programs can be modified as the design evolves.

However, moving from prototype machining to repeated production requires additional planning.

Engineering Drawing and CAD Review

The initial review should identify material, geometry, critical tolerances, surface finish, functional features, and inspection requirements.

Potential manufacturing risks should be clarified before production planning.

Material and Process Selection

The selected material and machining process should reflect the component's functional requirements, geometry, and purchasing quantity.

Alternative processes may be evaluated where they offer technical or economic advantages.

Prototype or First-Article Machining

Initial parts can be used to evaluate dimensions, assembly fit, surface condition, and manufacturing feasibility.

Any required design or process changes should be documented.

Process Optimization

Once the design is approved, machining operations may be optimized for repeatability, cycle time, tooling, and inspection efficiency.

The appropriate approach depends on production volume and component complexity.

Repeat Production and Final Inspection

Repeated production should follow the approved drawing revision and agreed quality requirements.

Inspection, packaging, and delivery arrangements should be established according to the customer's purchasing specification.

OEM CNC Machining Supplier Development and Procurement Considerations

For EV manufacturers and automotive suppliers, selecting a machining supplier involves more than comparing unit prices.

Supplier evaluation should consider technical capability, material compatibility, dimensional requirements, process stability, quality expectations, and commercial feasibility.

Drawing-Based Supplier Evaluation

A technically complete RFQ should include the approved drawing, CAD model, material specification, tolerances, surface finish, and required quantity.

Where the component is being transferred from an existing supplier, revision history and critical functional characteristics should be identified.

Alternative Material and Process Evaluation

A supplier may propose an alternative stainless steel grade or machining process where appropriate.

However, material substitution should not be approved solely because two grades appear similar.

Corrosion resistance, strength, hardness, magnetic behavior, machinability, and application requirements must be evaluated.

Any proposed change should be reviewed and approved by the customer's engineering team.

MOQ, Lead Time, and Volume Planning

Purchasing teams should provide estimated order quantities, annual demand, target delivery schedules, and packaging requirements.

For custom CNC components, setup complexity, material availability, tooling, and inspection requirements can influence MOQ and lead time.

Commercial feasibility should be confirmed for each project.

Cost Optimization for OEM Production

The total cost of a machined component depends on more than raw material price.

Important cost drivers include:

• Material grade and stock form

• Component geometry

• Machining cycle time

• Number of setups

• Tooling and tool wear

• Dimensional tolerances

• Surface finish

• Secondary operations

• Inspection requirements

• Scrap and rework

• Order quantity and delivery schedule

Early collaboration between engineering and procurement can help identify cost-saving opportunities without compromising functional requirements.

Practical RFQ Checklist for Stainless Steel CNC Machined EV Components

A complete RFQ helps reduce technical clarification and supports accurate quotation.

Useful information includes:

• 2D engineering drawing

• 3D CAD model, if available

• Component application and function

• Stainless steel grade and material specification

• Heat-treatment condition, if applicable

• Critical dimensional tolerances

• GD&T requirements

• Thread specifications

• Surface finish requirements

• Coating or secondary processing requirements

• Inspection and documentation requirements

• Prototype or sample quantity

• Estimated production order quantity

• Annual demand forecast

• Packaging requirements

• Delivery destination and target schedule

Where the component is intended for a safety-critical EV application, the required qualification, validation, and approval requirements should be explicitly identified.

Why Work with JUXIN FASTENERS for Custom CNC Machining Projects?

JUXIN FASTENERS supports drawing-based inquiries for precision machined components and industrial fastening hardware used in OEM manufacturing.

Relevant machining inquiries include:

• Stainless steel CNC turned parts

• Custom precision shafts and pins

• CNC machined bushings and sleeves

• Precision spacers

• Sensor mounting components

• Custom threaded connectors

• CNC machined studs and fastening hardware

• Precision mounting components

• Drawing-based EV mechanical parts

• OEM repeat purchasing requirements

Our approach emphasizes clear technical communication and evaluation of the customer's drawings, materials, tolerances, manufacturing requirements, and purchasing quantities.

For design and mechanical engineers, the priority is functional geometry, material suitability, and dimensional accuracy.

For manufacturing engineers and production managers, the priority includes process repeatability, machining efficiency, inspection stability, and consistent production quality.

For procurement and supply chain teams, the priority includes technical conformity, commercial feasibility, cost control, delivery planning, and long-term supplier evaluation.

Manufacturing feasibility, achievable tolerances, MOQ, lead time, testing, and documentation requirements are confirmed according to the specific inquiry.

Request a Quote for Stainless Steel CNC Machining and Custom EV Components

Are you developing a new EV mechanical component, sourcing custom stainless steel CNC machined parts, or evaluating an alternative supplier for repeat OEM production?

JUXIN FASTENERS welcomes technical and commercial inquiries from electric vehicle manufacturers, automotive suppliers, engineering teams, production departments, and industrial procurement organizations.

Send us your 2D drawings, 3D CAD models, material specifications, critical tolerances, surface finish requirements, and estimated purchasing quantities.

We can review your project requirements and discuss suitable machining approaches, technical clarification, and RFQ arrangements.

JUXIN FASTENERS

Website: https://www.juxinfasteners.com

Email: info@juxinfasteners.com

RFQ: Stainless Steel CNC Machining | Custom EV Components | OEM Precision Parts
