Plastic and composite materials are increasingly used in automotive, EV, electronics, industrial equipment, telecom systems, electrical products and other engineered applications.
These materials can reduce weight, provide design flexibility and simplify high-volume manufacturing.
However, when a component requires a reliable screw connection, the surrounding plastic or composite material may not provide the thread durability or mechanical strength required for the application.
Threaded bushings provide a reinforced metal internal thread within plastic, composite and other lightweight components.
Depending on the component design, threaded bushings can be installed using molding, press fitting, heat staking, ultrasonic insertion or other controlled assembly methods.
For OEM design engineers and procurement teams, the correct threaded bushing should be selected based on the component material, available space,
loading conditions, installation process and required fastening performance.

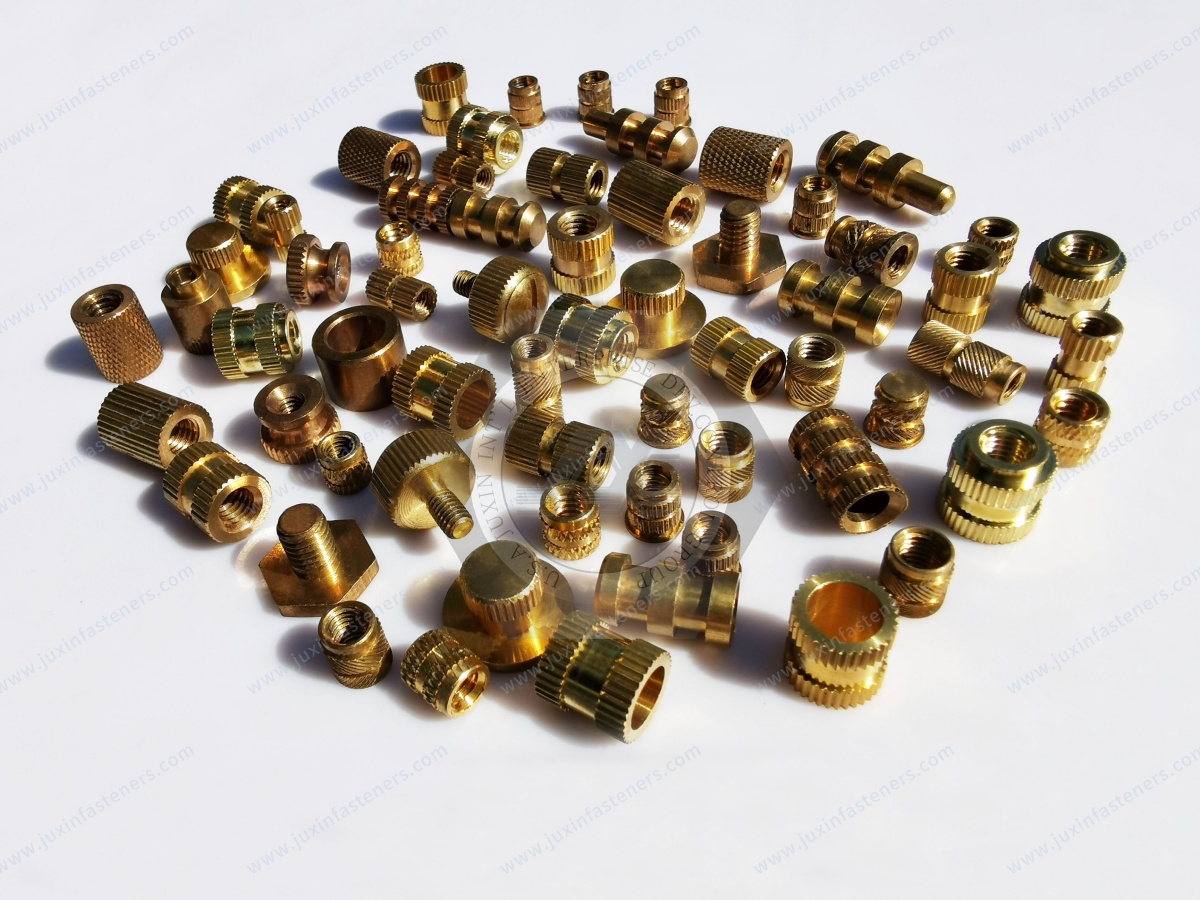

Threaded bushings are metal fastening components designed to provide an internal threaded connection inside plastic, composite or lightweight structural components.
Unlike a conventional loose nut, a threaded bushing can become an integrated fastening point within the component.
The internal thread accepts a mating screw or threaded fastener, while the external geometry transfers loads into the surrounding material.
A typical system consists of:
Plastic or composite component → threaded bushing → internal metal thread → mating screw
This construction can provide a more durable fastening interface while allowing the main component to remain lightweight.
Directly tapping a plastic component can be suitable for some low-load applications.
However, a metal threaded bushing can provide advantages when the fastening point must withstand higher assembly loads, repeated service or long-term mechanical loading.
A metal internal thread can provide greater resistance to thread wear than a thread formed directly in many plastics.
This can be particularly useful where screws need to be removed and reinstalled during maintenance.
The bushing creates a localized metal fastening point without requiring the entire plastic component to be manufactured from metal.
A threaded bushing can be integrated into selected thin-wall plastic or composite structures where installing a conventional nut behind the component would be difficult.
When the rear side of a component cannot be accessed during assembly, an integrated threaded bushing can eliminate the need to hold a separate nut in position.
A defined metal thread can support more consistent screw installation and tightening compared with some direct plastic-thread applications.
Threaded bushings can be customized for different thread sizes, lengths, outside diameters and external retention profiles.
A conventional nut normally requires access to the opposite side of the component.
This can create difficulties when the component is:
Thin
Enclosed
Difficult to access from the rear
Space constrained
Designed for automated assembly
Intended to have a permanent fastening point
A threaded bushing can be integrated into the component so that the mating screw can be installed from the accessible side.
| Requirement | Conventional Nut | Threaded Bushing |
|---|---|---|
| Rear-side access | Often required | May not be required |
| Integrated fastening point | No | Yes |
| Plastic component integration | Limited | Designed for it |
| Thin-wall applications | Application dependent | Often advantageous |
| Automated assembly | Possible | Suitable for many designs |
| Permanent installation | No | Possible |
| Custom external profile | Limited | Highly customizable |
The best solution depends on the component geometry and loading conditions.
Composite materials require particular attention because their mechanical behavior differs from conventional thermoplastics.
Composites may include:
Fiber-reinforced polymers
Glass-fiber composites
Carbon-fiber composites
Composite panels
Laminated structures
Lightweight sandwich panels
For composite applications, the external bushing geometry should be designed to transfer loads effectively into the surrounding material.
Important factors can include:
Fiber orientation
Local material thickness
Hole geometry
Bushing length
External retention profile
Pull-out load
Torque load
Compression strength
Environmental exposure
For high-load composite structures, the threaded bushing should be evaluated together with the complete joint design.
Material selection affects mechanical performance, weight, corrosion resistance, conductivity and temperature capability.
Brass threaded bushings are widely used in plastic and electronic applications.
Brass offers:
Good machinability
Practical mechanical performance
Good thermal conductivity
Electrical conductivity
Compatibility with many insert manufacturing processes
Common applications include electronic housings, electrical equipment, telecom equipment and industrial plastic components.
Aluminum threaded bushings can be considered where weight reduction is important.
They can provide a metal threaded connection while minimizing additional component weight.
They may be suitable for selected automotive, aerospace-related, electronics and lightweight composite applications, subject to mechanical validation.
Stainless steel threaded bushings can be selected where corrosion resistance or higher mechanical performance is required.
They may be considered for:
Outdoor equipment
Marine-related environments
Industrial equipment
Chemical exposure
High-humidity applications
Higher-load assemblies
The specific stainless steel grade should be selected according to the operating environment.
The installation method should be selected according to the material, component design and production process.
A molded-in threaded bushing is positioned in the injection mold before plastic is injected.
The polymer flows around the external bushing profile and mechanically integrates with the component as it cools.
This method can be attractive for high-volume production where the fastening point can be incorporated directly into the molding process.
A press-in threaded bushing is installed into a prepared hole using controlled mechanical force.
External knurls, ribs or interference features provide retention.
This method does not require intentional heating of the surrounding polymer.
Heat staking uses controlled heat to soften the thermoplastic around the bushing.
Pressure then seats the bushing at the required depth.
After cooling, the polymer solidifies around the external profile.
Ultrasonic insertion uses high-frequency mechanical energy to generate localized heat around the bushing.
The softened polymer flows around the external profile before cooling and retaining the insert.
This method can be suitable for automated, high-volume assembly.
The external geometry is critical to threaded bushing performance.
The internal thread connects the mating fastener, while the external profile determines how loads are transferred into the surrounding plastic or composite.

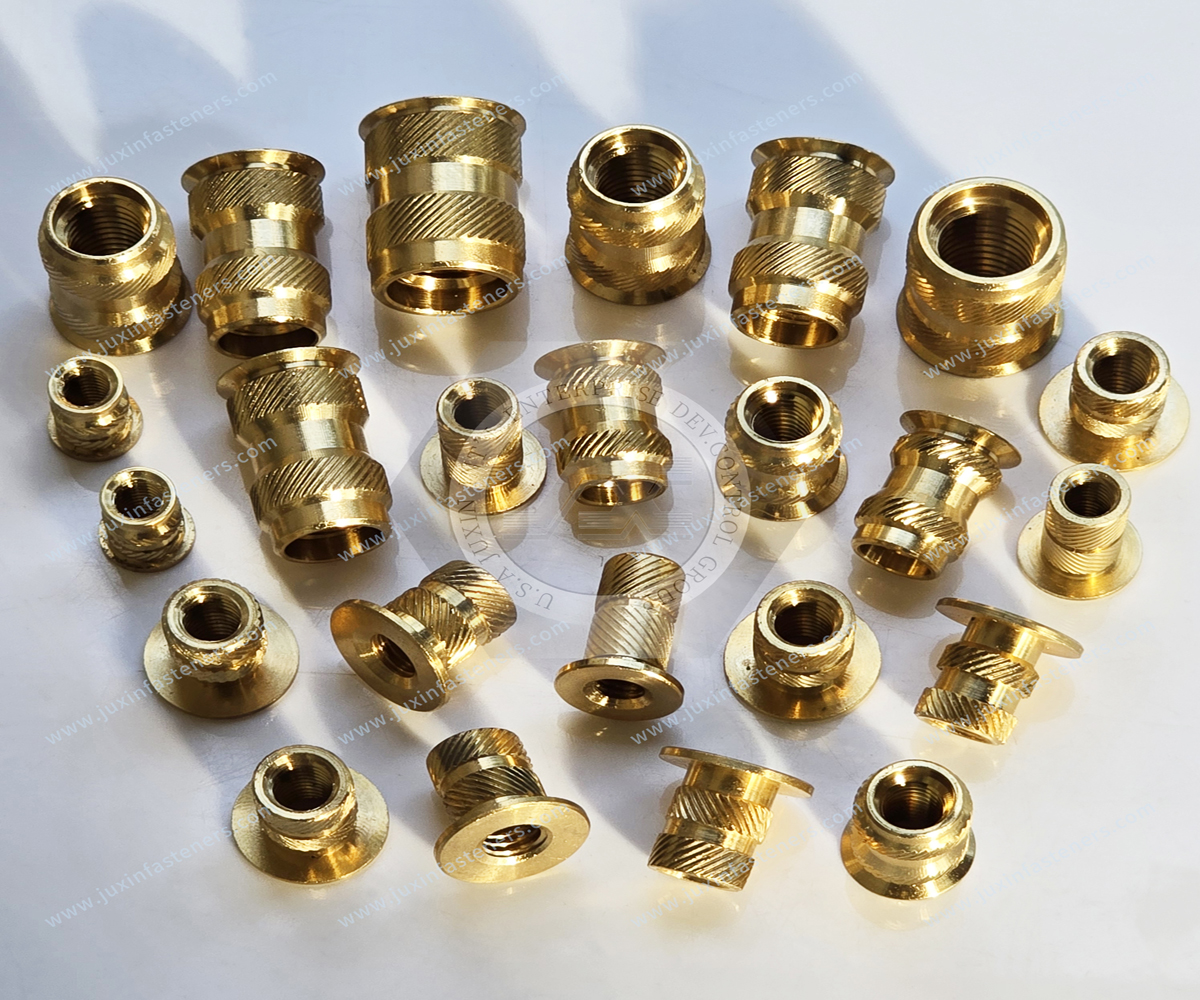

Knurled threaded bushings use external knurling to increase mechanical engagement.
Knurling can improve resistance to rotational movement when the screw is tightened.
Ribs create raised external surfaces that can increase mechanical retention within the surrounding material.
Barbed external features can help resist axial movement and improve retention in selected plastic applications.
Undercuts can allow the surrounding polymer or composite material to mechanically lock around the bushing.
This can be useful when pull-out resistance is an important design requirement.
A flange provides a larger seating surface.
Depending on the application, it can help control installation depth and distribute loads around the fastening location.
Thin-wall plastic and composite components present specific engineering challenges.
There may be limited material around the fastening point, making excessive local stress a concern.
Design engineers should evaluate:
Component thickness
Bushing outside diameter
Bushing length
Boss diameter
Hole diameter
Interference
Installation force
Pull-out load
Torque-out resistance
The objective is to achieve sufficient retention without damaging the surrounding structure.
One of the key advantages of an integrated threaded bushing is that it can eliminate the need for a separate nut behind the component.
This can simplify assembly when the rear side is:
Enclosed
Difficult to reach
Occupied by another component
Too narrow for tooling
Inaccessible after final assembly
This design approach is particularly relevant to housings, panels, covers and enclosed assemblies.
Pull-out resistance measures the axial force required to remove a threaded bushing from the surrounding material.
Performance depends on:
Bushing length
External profile
Material properties
Component thickness
Boss geometry
Installation method
Applied load
For demanding applications, pull-out testing should be performed using the actual plastic or composite material and production-representative components.
Torque-out resistance measures the ability of the bushing to resist rotation during screw tightening.
A bushing may remain physically installed while still rotating if its external retention is insufficient.
External knurls, ribs, flats or other anti-rotation features can help transfer torque into the surrounding material.
Torque requirements should therefore be considered during the initial bushing design.
Some industrial products require regular access for maintenance, inspection or component replacement.
Examples include:
Industrial control equipment
Electrical enclosures
Telecom equipment
Electronic housings
HVAC equipment
Serviceable automotive components
Industrial machinery
A metal threaded bushing can provide a more durable fastening interface for repeated screw installation than relying solely on a plastic thread.
The final design should still be validated for the required number of assembly cycles and tightening torque.
Automotive systems use plastic and composite materials in many interior, exterior and electronic assemblies.
Threaded bushings can provide fastening points for:
Sensor housings
Electronic modules
Plastic brackets
Covers
Interior components
Electrical assemblies
The joint should be validated for vibration, temperature cycling and long-term service conditions.
Electric vehicles use lightweight plastic and composite materials throughout electrical and electronic systems.
Threaded bushings for EV components can be considered for selected housings, covers, electronic modules and structural plastic assemblies.
Thermal exposure, vibration, electrical requirements and mechanical loading should be considered during product development.
Electronic housings often require multiple internal fastening points while maintaining low weight.
Threaded bushings can provide metal threads for:
PCB mounting
Internal brackets
Covers
Connectors
Electronic modules
Electrical enclosures and control equipment may require durable fastening points for components that need installation or service.
Integrated threaded bushings can simplify fastening where rear access is restricted.
Telecom cabinets and equipment housings often contain multiple internal modules.
Threaded bushings can provide mounting points for brackets, circuit assemblies, covers and internal components.
Industrial equipment can use plastic covers, guards, control panels and lightweight housings.
Threaded bushings can provide reinforced screw connections without replacing the entire component with metal.
Robotic systems and automation equipment frequently use lightweight housings and sensor components.
Threaded bushings can provide reliable fastening points for sensors, covers, brackets and electronic modules.
HVAC systems can include molded plastic housings, control components and covers.
Threaded bushings can provide durable fastening interfaces where direct plastic threads may not provide the required service life.
Medical and laboratory equipment often uses engineered plastics for housings and structural components.
Bushing material and surface condition should be selected according to the required environmental and mechanical performance.
Composite panels can require localized fastening points for brackets, covers and equipment.
A correctly designed external bushing profile can distribute mechanical loads into the surrounding composite structure.
For structural and design engineers, the threaded bushing should be considered as part of the complete joint rather than as an isolated fastener.
Key design variables include:
Material + component thickness + bushing geometry + external retention + thread + load + installation method
Engineers should evaluate both the local fastening point and the surrounding structure.
For higher-load applications, testing may be required to establish:
Pull-out strength
Torque-out strength
Tensile performance
Shear performance
Fatigue behavior
Temperature performance
Environmental resistance
Standard threaded bushings may not fit every plastic or composite component.
A custom threaded bushing can be developed according to the customer's drawing and application requirements.
Customization can include:
Outside diameter
Overall length
Thread diameter
Thread pitch
Metric threads
Inch threads
Internal thread depth
External knurling
Ribs
Barbs
Undercuts
Flanges
Blind-end designs
Through-hole designs
Brass
Aluminum
Stainless steel
Dimensional tolerances
Surface treatment
For OEM development, a component drawing or sample is highly recommended.
This allows the insert geometry to be evaluated together with the actual mounting structure.
For procurement managers and supply chain teams, a professional RFQ should provide enough information for the supplier to evaluate the complete application.
Recommended information includes:
Component drawing
Plastic or composite material
Material grade
Component thickness
Boss dimensions
Hole diameter
Thread specification
Bushing outside diameter
Bushing length
External retention profile
Installation method
Required torque
Pull-out requirement
Environmental requirements
Annual production volume
Providing the component drawing is particularly useful for custom threaded bushing projects.
It allows the supplier to evaluate the bushing together with the actual structure instead of supplying a generic part based only on thread size.
JUXIN Fasteners supports OEM and industrial customers sourcing threaded bushings for plastic and composite components.
Our fastening solutions can support applications across:
Automotive
EV
Electronics
Electrical equipment
Telecom
Industrial machinery
Robotics
HVAC
Medical equipment
Plastic housings
Composite components
OEM assemblies
For custom projects, customers can provide engineering drawings, samples or application specifications for technical evaluation.
The bushing design can be developed around the complete application:
Component material + thickness + boss geometry + bushing profile + thread + installation method + mechanical requirements
This application-based approach helps procurement teams, supply chain managers and engineering teams select a fastening solution suited to the actual component.
If you are sourcing threaded bushings for plastic, composite threaded bushings, brass threaded bushings, aluminum threaded bushings,
stainless steel threaded bushings or custom OEM threaded bushings, contact JUXIN Fasteners.
For faster technical evaluation, please provide:
Component drawing
Plastic or composite material
Material grade
Component thickness
Boss dimensions
Hole diameter
Thread size and standard
Bushing dimensions
External profile requirement
Material requirement
Installation method
Required torque
Pull-out requirement
Estimated annual quantity
JUXIN Fasteners supports OEM and industrial fastening requirements from product specification through production supply.
JUXIN Fasteners
23+ Years of Fastener Industry Experience
OEM & Industrial Fastening Solutions
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
Threaded bushings provide reinforced metal threads inside plastic, composite and lightweight components.
They are commonly used when a component requires a durable screw connection or when access for a conventional nut is restricted.
A conventional nut normally remains separate from the component and often requires access from the opposite side.
A threaded bushing can be integrated into the plastic or composite component and provide a permanent fastening point.
Yes. Threaded bushings can be used in plastic housings, electrical enclosures, electronic products, automotive components, telecom equipment and industrial equipment when the component is designed to support the bushing.
Yes. Threaded bushings can be designed for selected composite components and panels.
The external profile, component thickness and load path should be evaluated to achieve suitable mechanical retention.
Common materials include brass, aluminum and stainless steel. Material selection depends on mechanical load, weight, corrosion resistance, conductivity and operating temperature.
Yes. Custom threaded bushings can be manufactured with different outside diameters, lengths, threads, knurling, ribs, undercuts, flanges, materials and tolerances.
Depending on the design, threaded bushings can be molded into the component, press fitted, heat staked or installed ultrasonically.
They can be suitable for selected thin-wall plastic and composite components, but the bushing dimensions, interference, boss geometry and installation force must be evaluated to avoid excessive local stress.
The specification should include the component material, material grade, thickness, hole and boss dimensions,
thread, bushing dimensions, external retention profile, installation method, required torque and pull-out performance.
Yes. JUXIN Fasteners supports custom OEM threaded bushing requirements based on engineering drawings, samples and application specifications.
MORE NEWS
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
