Not all thermoplastics behave the same way when a metal threaded insert is installed.
The same insert geometry and installation parameters cannot automatically be transferred from one polymer to another.
For OEM components, threaded inserts for thermoplastics should be selected according to the actual resin, material grade, component geometry, installation method and required mechanical performance.
ABS, nylon, polycarbonate, PBT and PEEK each have different characteristics that can affect insert installation and long-term joint performance.
For design engineers, structural engineers, procurement managers and supply chain teams, understanding the relationship between the plastic resin and the threaded insert is an important part of developing a reliable fastening system.
A threaded insert does not work independently from the surrounding plastic.
The polymer determines how the component responds during installation and under service loads.
Important material-related factors include:
Softening behavior
Processing temperature
Thermal response
Shrinkage
Material stiffness
Moisture absorption
Boss strength
Creep behavior
Pull-out resistance
Torque resistance
Environmental performance
For this reason, a plastic threaded insert that performs well in ABS should not automatically be specified for nylon, PBT or PEEK without validation.
The insert, plastic component and installation process should be treated as one fastening system.

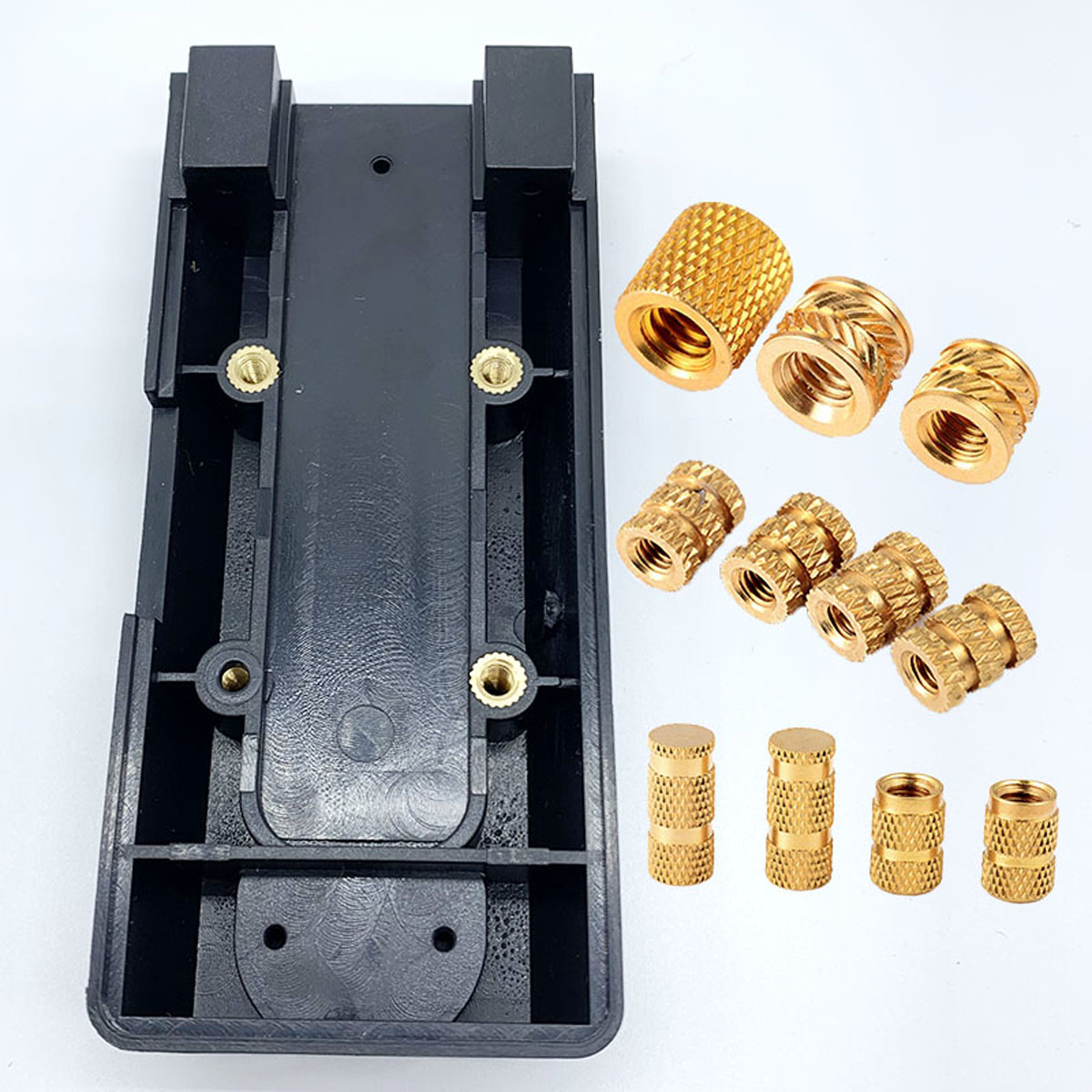

ABS threaded inserts are commonly considered for injection-molded housings, electronic products, industrial components and automotive applications.
ABS is widely used because it offers a useful combination of strength, impact resistance, processability and cost efficiency.
Depending on the component design, several installation methods can be considered.
Heat staking can be used to install threaded inserts after the ABS component has been molded.
Controlled heat softens the polymer around the installation location. The insert is then pressed into position, allowing the softened material to flow around the external retention profile.
After cooling, the ABS mechanically retains the insert.
Important parameters include:
Heating temperature
Heating time
Insertion depth
Installation force
Boss dimensions
Insert outside diameter
Cooling time
These parameters should be developed using the actual ABS grade and component geometry.
Ultrasonic insertion can provide localized heating around the insert.
This can be attractive for automated production where fast and repeatable installation is required.
The ultrasonic energy, pressure and insertion depth should be established according to the component and resin.
For threaded inserts for ABS plastic, the boss must provide sufficient material around the insert.
Engineers should evaluate:
Boss diameter
Boss wall thickness
Insert diameter
Hole diameter
Insert length
Distance to adjacent features
Insufficient support can reduce mechanical retention, while excessive interference can create unnecessary stress.
Nylon threaded inserts, also known as PA threaded inserts, are widely used in automotive, electrical, industrial and electronic applications.
Nylon can provide good mechanical performance and wear resistance, but its behavior differs from ABS.
One important consideration is moisture absorption.
The moisture condition of nylon can affect dimensional and mechanical behavior, so production and validation should use material conditions representative of the actual application.
Glass-filled nylon provides increased stiffness compared with many unfilled nylon grades.
However, reinforcement can also change the behavior of the plastic during insert installation.
For threaded inserts for glass-filled nylon, engineers should consider:
Glass-fiber content
Resin grade
Fiber orientation
Boss geometry
Installation force
Insert profile
Pull-out resistance
Torque-out resistance
A design validated in unfilled PA should not automatically be transferred to glass-filled PA.
Heat staking can be considered for selected nylon components.
The actual resin grade and processing characteristics should determine the installation parameters.
Temperature, heating time and insertion force should be controlled to achieve consistent installation without damaging the component.
Ultrasonic insertion can be considered where localized heating and automated assembly are desirable.
Because nylon grades can differ significantly, the ultrasonic process should be developed specifically for the production material.
Polycarbonate threaded inserts are used in applications where the plastic component requires a combination of strength, impact resistance and dimensional performance.
PC is commonly found in:
Electronic housings
Electrical equipment
Automotive components
Industrial enclosures
Lighting-related components
Control equipment
Polycarbonate components can be sensitive to localized stress depending on the component design, processing condition and environment.
When designing threaded inserts for PC plastic, engineers should carefully evaluate:
Boss geometry
Hole dimensions
Insert interference
Installation force
Insert profile
Distance from component edges
Local wall thickness
Excessive installation force or unsuitable interference can increase the risk of cracking or stress concentration.
For this reason, insert installation parameters should be validated using production-representative PC components.
PBT threaded inserts are commonly considered for electrical and automotive components.
PBT is a thermoplastic polyester with properties that can make it suitable for engineered electrical and mechanical applications.
Typical applications include:
Automotive electrical components
Connectors
Electrical housings
Industrial equipment
Electronic components
The specific PBT grade should be considered because reinforced and unreinforced materials can have different mechanical and processing characteristics.
When selecting threaded inserts for PBT, consider:
Resin grade
Glass-fiber reinforcement
Boss dimensions
Installation method
Insert external profile
Required tightening torque
Pull-out requirement
Operating temperature
For higher-volume applications, molded-in, heat staking or ultrasonic installation can be evaluated according to the component and production process.
PEEK threaded inserts are used in applications where high-performance engineering plastics are required.
PEEK is known for its high-temperature capability, chemical resistance and mechanical performance.
It is used in demanding industrial and engineering environments, including selected:
Aerospace-related applications
Medical equipment
Semiconductor equipment
Industrial machinery
Chemical processing equipment
High-performance electrical components
Because PEEK has significantly different processing and thermal characteristics from common thermoplastics, its threaded insert solution requires careful engineering.
When developing threaded inserts for PEEK plastic, engineers should consider:
PEEK grade
Reinforcement
Component geometry
Installation temperature
Heating method
Insert geometry
Installation force
Cooling behavior
Pull-out strength
Torque resistance
Operating temperature
A standard installation process developed for ABS or PC should not simply be copied to PEEK.
For demanding PEEK applications, prototype and application-specific validation are recommended before production release.
| Plastic | Typical Characteristics | Key Insert Considerations |
|---|---|---|
| ABS | Easy processing, good impact performance | Boss design, heat staking, ultrasonic installation |
| Nylon / PA | Good mechanical properties, moisture absorption | Resin grade, moisture condition, installation parameters |
| Glass-Filled Nylon | Higher stiffness and strength | Fiber content, boss geometry, installation force |
| PC | Strong and impact resistant | Stress concentration, interference, cracking risk |
| PBT | Engineering electrical and automotive applications | Resin grade, reinforcement, temperature |
| PEEK | High-performance engineering polymer | High processing temperature, geometry, thermal behavior |
The table provides a starting point only. Final insert selection should be based on the actual material grade and component design.
The surrounding polymer is only one part of the selection process.
The insert itself can also be manufactured from different metals.

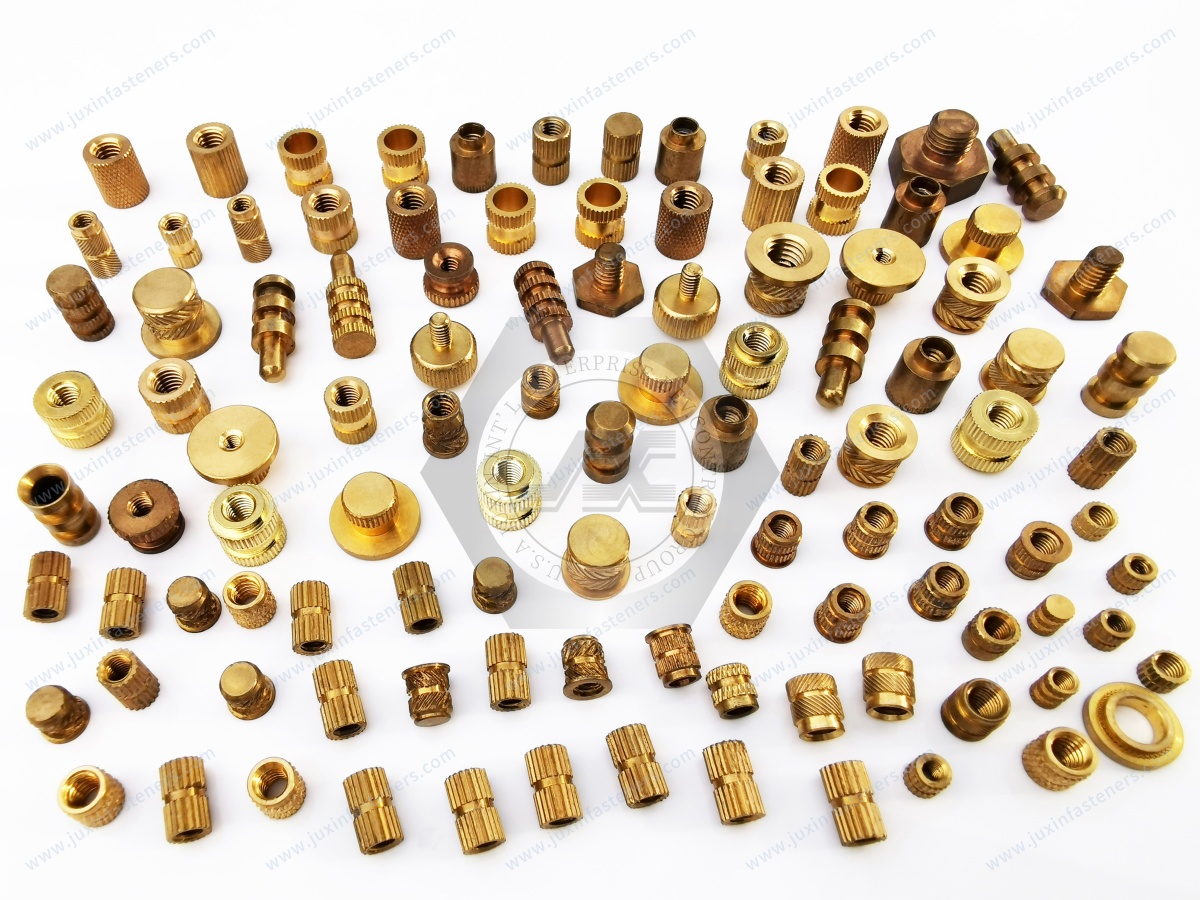

Brass threaded inserts are widely used across thermoplastic applications.
Brass can provide:
Good machinability
Reliable internal threads
Electrical conductivity
Thermal conductivity
Practical cost efficiency
Common applications include electronic housings, electrical components, automotive parts and industrial equipment.
Aluminum threaded inserts can be considered where low weight is important.
They can provide a metal fastening point while minimizing additional mass.
This can be relevant to lightweight automotive, electronics and selected composite applications.
Stainless steel threaded inserts can be considered where increased corrosion resistance or mechanical performance is required.
Potential applications include:
Outdoor equipment
Industrial machinery
High-humidity environments
Marine-related equipment
Corrosive environments
The appropriate stainless steel grade should be selected according to the actual service conditions.
The installation method should be evaluated together with the resin.
Molded-in threaded inserts are positioned inside the injection mold before the polymer is injected.
This can be attractive for stable, high-volume OEM production.
The mold design must control:
Insert position
Thread alignment
Insert retention during molding
Polymer flow
Final dimensional position
Heat staking uses controlled thermal energy to soften the polymer locally.
It can be suitable for selected ABS, nylon, PC, PBT and other thermoplastic components.
The installation temperature should be established according to the actual material.
Ultrasonic installation uses localized mechanical energy to generate heat around the insert.
It can provide fast, repeatable installation and may be suitable for automated production.
Ultrasonic energy, pressure and insertion depth should be validated for the specific resin.
Press-in threaded inserts rely on mechanical interference.
They can be useful when thermal installation is undesirable.
For press-in applications, the relationship between:
Insert outside diameter + hole diameter + plastic properties + interference
is critical.
Excessive interference can damage the plastic, while insufficient interference can reduce retention.
The boss is one of the most important parts of the fastening system.
A metal insert can only perform effectively if the surrounding plastic provides adequate structural support.
Engineers should evaluate:
Boss diameter
Boss height
Wall thickness
Hole diameter
Insert diameter
Insert length
Installation depth
Distance from edges
Nearby ribs and features
For thin-wall components, local stress should receive particular attention.
Pull-out performance is influenced by both insert design and polymer properties.
Important factors include:
Polymer strength
Insert length
External profile
Boss diameter
Installation method
Component thickness
A longer insert may increase the available engagement area, but it must fit the actual boss geometry.
For demanding applications, pull-out testing should be performed using the production plastic resin and actual component geometry.
When a screw is tightened, the insert must resist rotation.
This is especially important for applications requiring controlled tightening torque.
External features such as:
Knurling
Ribs
Barbs
Flats
Undercuts
can improve mechanical engagement with the surrounding polymer.
The required torque should be defined during the engineering stage rather than after the insert has already been selected.
Many industrial products require components to be removed and reinstalled.
Examples include:
Electronic housings
Industrial control equipment
Telecom equipment
Electrical enclosures
Automotive modules
HVAC equipment
Medical equipment
A metal threaded insert can provide a more durable fastening interface for repeated screw installation than a thread formed directly in plastic.
The required number of assembly cycles should be included in the validation plan.
ABS, PA, PBT and reinforced engineering plastics are widely used in automotive and EV systems.
Threaded inserts can provide fastening points for:
Electronic modules
Sensor housings
Plastic brackets
Covers
Electrical components
Interior assemblies
For EV applications, engineers may also need to consider temperature cycling, vibration and long-term environmental exposure.
Plastic housings often require multiple fastening points.
Plastic threaded inserts can support:
PCB mounting
Internal brackets
Covers
Connector assemblies
Control modules
Brass inserts are frequently considered where electrical conductivity is also relevant.
Telecom equipment often combines compact plastic housings with multiple internal mounting points.
Threaded inserts can simplify the attachment of internal modules and brackets where access to the rear side is restricted.
Industrial equipment may use ABS, PA, PC, PBT or other engineered plastics for covers, control panels and protective housings.
Threaded inserts can create durable fastening points without requiring a fully metal structure.
Robotic and automation equipment often benefits from lightweight housings and compact fastening structures.
Threaded inserts can provide mounting points for:
Sensors
Controllers
Covers
Brackets
Electronic modules
Medical and laboratory equipment can use engineered thermoplastics for housings and structural components.
Insert material, installation method and surface condition should be selected according to the application's mechanical and environmental requirements.
High-performance polymers such as PEEK may be used in demanding equipment applications.
For these applications, threaded insert selection should consider temperature, chemical exposure, cleanliness requirements and dimensional stability where applicable.
For an OEM project, the following information should be defined before requesting a quotation:
Plastic resin
Resin grade
Glass-fiber content
Component thickness
Boss dimensions
Hole diameter
Thread size
Thread pitch
Insert outside diameter
Insert length
External retention profile
Installation method
Insert material
Surface treatment
Required tightening torque
Pull-out requirement
Operating temperature
Environmental conditions
Annual production volume
A component drawing is especially useful for custom threaded insert projects.
It allows the supplier to evaluate the fastening point together with the actual plastic structure.
ABS, nylon, PC, PBT and PEEK have different characteristics.
An insert solution should be validated for the actual resin.
Glass-filled polymers can behave differently from unfilled polymers.
The reinforcement level should be included in the specification.
An M4 or 1/4-20 specification does not fully define the insert.
Outside diameter, length and external retention profile are equally important.
Heat staking and ultrasonic parameters should not simply be copied from one polymer to another.
The insert cannot compensate for an inadequately designed plastic boss.
A prototype that performs well does not automatically guarantee consistent mass-production performance.
Standard inserts may not fit every injection-molded component.
Custom plastic threaded inserts can be developed around the customer's component and production process.
Customization can include:
Thread size
Thread pitch
Outside diameter
Insert length
Thread depth
Knurling
Ribs
Barbs
Undercuts
Flanges
Blind-end designs
Through-hole designs
Brass
Aluminum
Stainless steel
Dimensional tolerances
Surface treatments
For OEM projects, engineering drawings, component samples and material specifications can help establish the appropriate design.
JUXIN Fasteners supports OEM and industrial customers sourcing threaded inserts for ABS, nylon, PC, PBT, PEEK and other thermoplastic components.
Our fastening solutions can support applications across:
Automotive
EV
Electronics
Electrical equipment
Telecom
Industrial machinery
Robotics
HVAC
Medical equipment
Semiconductor equipment
Plastic housings
Composite components
JUXIN can support different installation requirements, including:
Molded-in threaded inserts
Heat staking inserts
Ultrasonic threaded inserts
Press-in threaded inserts
For custom applications, customers can provide engineering drawings, samples or component specifications for technical evaluation.
The objective is to select the insert according to the complete application:
Resin + material grade + component geometry + insert design + installation method + mechanical requirements + operating environment
If you are sourcing threaded inserts for ABS, threaded inserts for nylon, threaded inserts for PC, threaded inserts for PBT, threaded inserts for PEEK,
brass threaded inserts, heat staking inserts, ultrasonic inserts or custom plastic threaded inserts, contact JUXIN Fasteners.
For faster technical evaluation, please provide:
Plastic resin and grade
Glass-fiber content if applicable
Component drawing
Boss dimensions
Wall thickness
Hole diameter
Thread specification
Insert dimensions
External profile requirement
Installation method
Insert material
Surface treatment
Required torque
Pull-out requirement
Operating environment
Estimated annual quantity
JUXIN Fasteners supports OEM and industrial fastening requirements from product specification through production supply.
JUXIN Fasteners
23+ Years of Fastener Industry Experience
OEM & Industrial Fastening Solutions
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
Not necessarily. The insert geometry may be similar, but installation parameters and component design should be developed according to the specific resin, grade and application.
Molded-in, heat staking, ultrasonic and press-in threaded inserts can all be considered for ABS depending on the component design, production process and required mechanical performance.
Yes. Threaded inserts can be used in nylon and PA components. Resin grade, moisture condition, boss geometry and installation parameters should be considered.
Yes. However, glass-fiber reinforcement can change the mechanical and installation behavior of the plastic. The actual resin grade and fiber content should be included in the design evaluation.
Yes. Threaded inserts can be used in PC components, but engineers should pay particular attention to local stress, interference, boss geometry and installation force.
Engineers should consider the PBT grade, reinforcement, boss geometry, installation method, insert profile, tightening torque, pull-out requirement and operating temperature.
PEEK has high-performance thermal and mechanical characteristics that differ from common thermoplastics. Insert geometry and installation parameters therefore require application-specific engineering and validation.
Brass is widely used because it provides good machinability, practical mechanical performance and electrical and thermal conductivity.
Aluminum and stainless steel can be selected for specific weight, corrosion or performance requirements.
Start with the actual plastic resin and grade, then evaluate component geometry, boss dimensions, installation method, thread specification, insert material, external profile, torque and pull-out requirements.
Yes. JUXIN Fasteners supports custom OEM threaded inserts based on engineering drawings, samples and application requirements, including customized dimensions, threads, external retention profiles and materials.
MORE NEWS
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
