Vibration-Resistant Wedge Anchors for Concrete

Reliable Concrete Anchoring for Heavy Machinery and Industrial Equipment

Industrial equipment operating under continuous vibration, impact, and dynamic loads requires a fastening system designed for secure and consistent anchorage.

  JUXIN FASTENERS vibration-resistant wedge anchors provide a dependable concrete anchoring solution for heavy machinery, vibrating feeders, conveyors,

production equipment, structural supports, and industrial installations.

Designed for use in sound concrete, wedge anchors for concrete develop strong mechanical expansion at the base of the drilled hole.

This helps maintain a secure connection where equipment is exposed to repeated vibration and operational movement.

For engineers, contractors, and industrial purchasing teams, selecting the appropriate heavy-duty concrete anchor is essential for equipment stability,

installation reliability, and long-term fastening performance.

Engineered for Vibration-Intensive Industrial Applications

Heavy machinery can generate continuous dynamic forces during operation. Conventional fastening methods may not provide the required anchoring performance

 when equipment is subjected to repeated vibration.

A vibration-resistant concrete anchor uses an expansion mechanism that engages the concrete at the bottom of the drilled hole. As the anchor nut is tightened,

 the expansion wedges develop radial pressure against the concrete, creating a mechanical interlock.

This design makes wedge anchors particularly suitable for applications such as:

• Vibrating feeders and material handling equipment

• Conveyor systems and conveyor supports

• Industrial machinery and production equipment

• Heavy equipment mounting

• Manufacturing and processing machinery

• HVAC equipment and mechanical systems

• Industrial racks and equipment supports

• Steel structures and base plates

• Pumps, compressors, and rotating equipment

• Equipment platforms and machinery frames

Why Choose Wedge Anchors for Concrete?

Unlike surface-mounted fastening methods, concrete wedge anchors transfer fastening forces directly into the concrete substrate through mechanical expansion.

Key advantages include:

Strong Mechanical Anchorage

The expansion wedges engage the concrete near the bottom of the drilled hole, creating a secure mechanical connection for demanding industrial applications.

Vibration Resistance

The mechanical expansion system is well suited to equipment subjected to continuous vibration and operational movement when properly designed and installed.

Heavy-Duty Performance

Heavy-duty wedge anchors are commonly selected for machinery bases, steel fixtures, equipment supports, and other applications where reliable concrete anchoring is required.

Through-Fixture Installation

The anchor can be installed through the equipment base or fixture, helping simplify positioning and installation during machinery assembly.

Consistent Installation

When the correct drill diameter, embedment depth, hole cleaning procedure, and installation torque are maintained, wedge anchors can provide repeatable anchoring performance.

Installation Considerations for Concrete Wedge Anchors

Correct installation is critical to achieving the expected pull-out and shear performance of a concrete wedge anchor.

A typical installation process includes:

1. Drill the Hole

Drill a hole in sound concrete using the specified diameter and depth for the selected anchor.

2. Clean the Hole

Remove drilling dust and debris using an appropriate hole-cleaning procedure. Proper hole preparation helps ensure reliable expansion and load transfer.

3. Position the Equipment

Place the machinery, base plate, or fixture over the drilled hole and insert the anchor through the fixture.

4. Install the Anchor

Drive the anchor into the hole until the washer is properly seated against the fixture surface.

5. Tighten the Nut

Apply the specified installation torque to activate the expansion wedges and establish the mechanical connection.

6. Verify Installation

Confirm that the anchor is correctly seated and tightened before placing the equipment into service.

Engineering Note: Anchor diameter, embedment depth, concrete strength, edge distance, spacing, installation torque, and applied loads should be evaluated for each specific application.

Concrete Substrate Requirements

Wedge anchors are designed primarily for concrete applications. Their expansion mechanism depends on the strength and integrity of the concrete surrounding the anchor.

For vibration-intensive applications, engineers should consider:

• Concrete compressive strength

• Effective embedment depth

• Anchor diameter

• Hole diameter and depth

• Edge distance

• Anchor spacing

• Tension and shear loads

• Dynamic and vibration loads

• Concrete cracking conditions

• Required safety factors

Wedge anchors should not automatically be substituted into softer masonry substrates such as lightweight block or brick unless the selected anchor has

been specifically engineered and approved for that substrate.

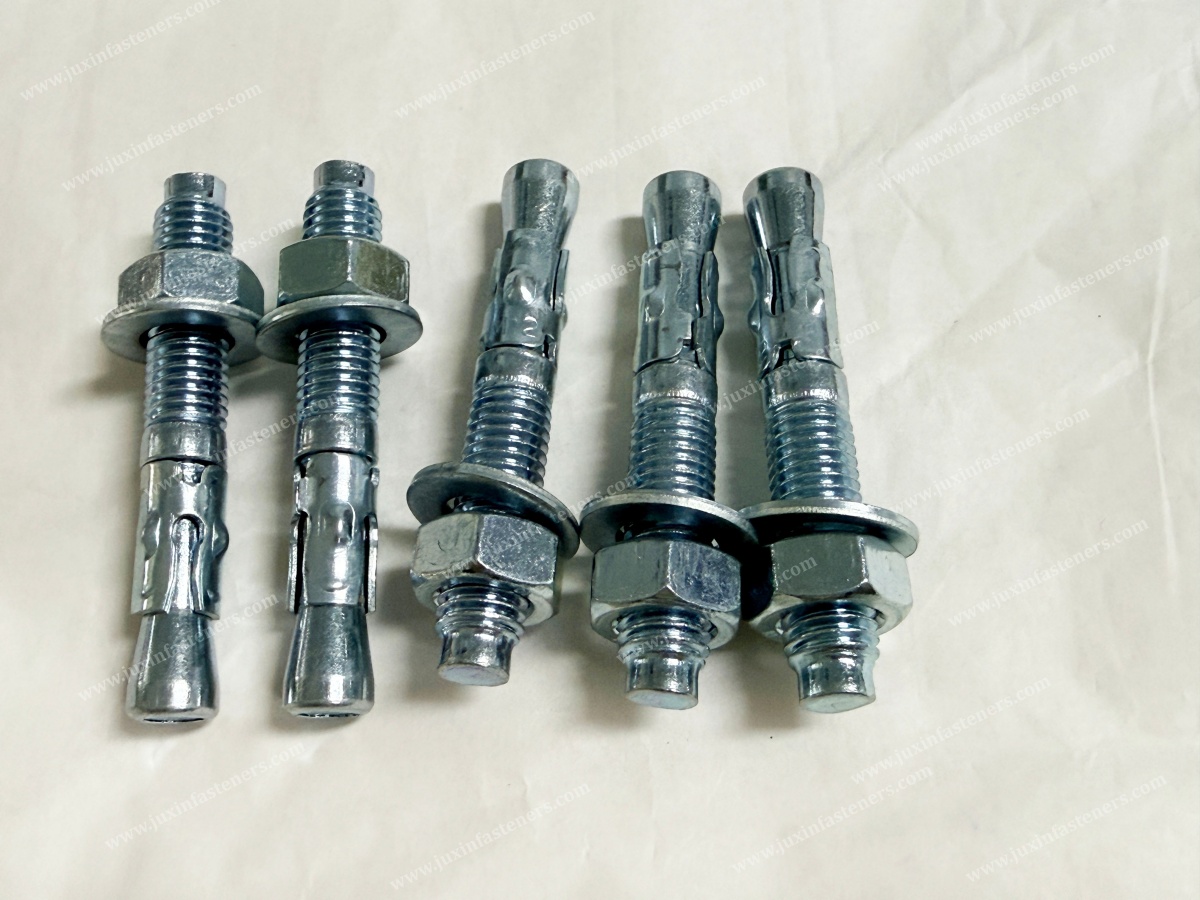

Zinc-Plated Steel Wedge Anchors

Zinc-plated steel wedge anchors are a practical choice for many indoor industrial environments and applications with occasional exposure to moisture.

The zinc-plated surface provides a basic level of corrosion protection while maintaining a cost-effective solution for general-purpose concrete anchoring.

Typical applications include:

• Indoor manufacturing facilities

• Industrial machinery installation

• Warehouse equipment

• Conveyor systems

• Production lines

• Equipment frames

• Mechanical supports

• General construction applications

For continuously wet, outdoor, chemically aggressive, or highly corrosive environments, engineers should evaluate whether a more corrosion-resistant

material or coating system is appropriate.

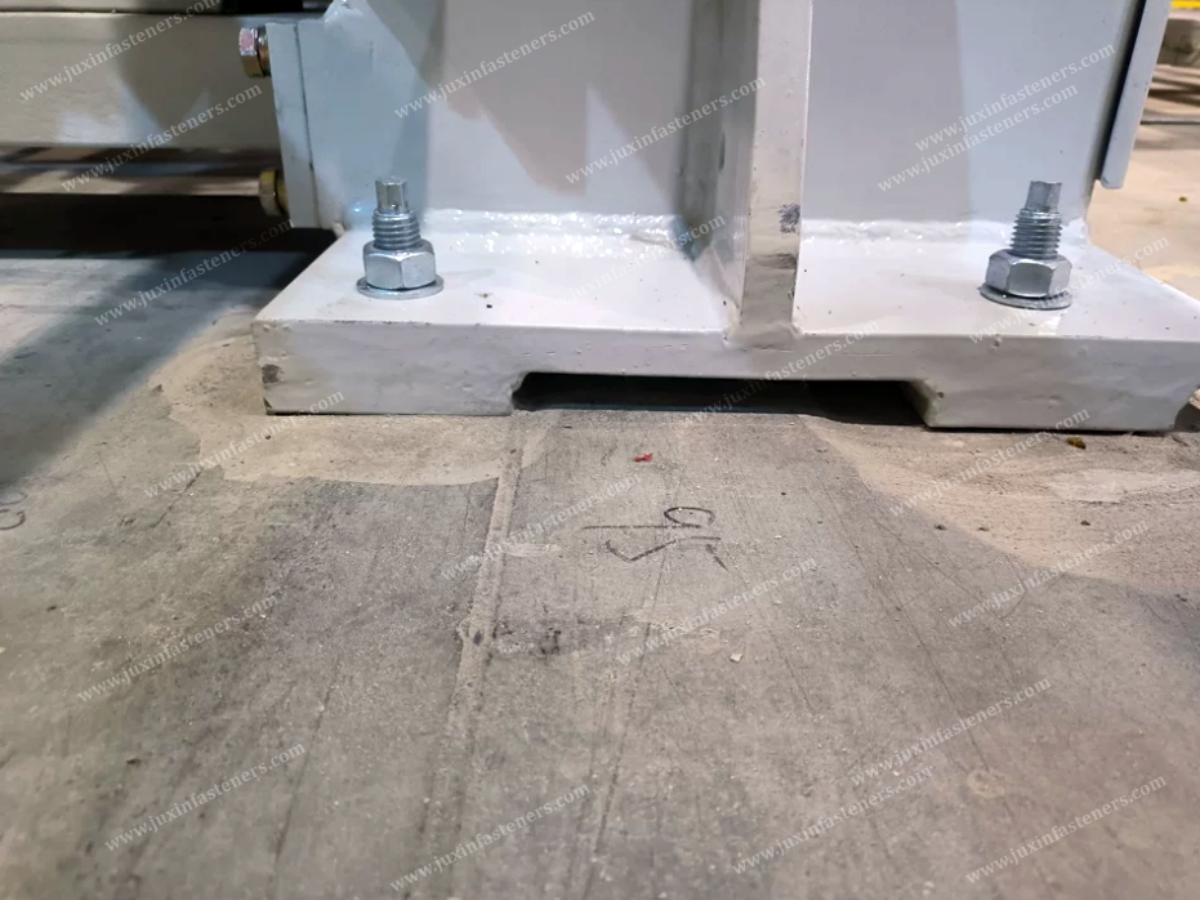

Wedge Anchors for Industrial Machinery

Industrial machinery often creates vibration that can transfer directly into the concrete foundation. A properly selected machinery anchoring system helps maintain

 equipment positioning and reduces the risk of fastening-system movement.

JUXIN FASTENERS provides concrete fastening solutions for industrial applications where engineers and purchasing teams require reliable mechanical anchoring,

 consistent production quality, and application-focused support.

Our industrial concrete anchors can be considered for equipment bases, structural fixtures, machinery supports, and other concrete fastening applications.

Applications Across Industrial Sectors

Manufacturing & Production

Secure production machinery, equipment frames, machine bases, and factory-floor installations.

Material Handling

Anchor conveyor systems, vibrating feeders, transfer equipment, and material handling structures to concrete floors.

HVAC & Mechanical Systems

Support mechanical equipment, equipment bases, and selected HVAC installations requiring concrete anchoring.

Construction & Infrastructure

Provide mechanical anchoring for steel fixtures, equipment supports, base plates, and construction components installed into concrete.

Industrial Automation

Secure automated production equipment, machinery frames, and supporting structures exposed to repeated operational movement.

Energy & Utilities

Suitable for selected equipment support applications where mechanical anchoring into concrete is required.

Engineering and Purchasing Advantages

For professional buyers, the right fastening solution involves more than selecting an anchor based only on diameter.

When sourcing concrete wedge anchors, purchasing and engineering teams should evaluate:

• Anchor diameter and length

• Effective embedment

• Base material

• Concrete strength

• Load requirements

• Vibration conditions

• Corrosion environment

• Installation method

• Required installation torque

• Quality and dimensional consistency

• Packaging and labeling requirements

• Project-specific technical documentation

JUXIN FASTENERS works with industrial customers to provide fastening solutions aligned with application requirements and production needs.

Frequently Asked Questions

What are vibration-resistant wedge anchors?

Vibration-resistant wedge anchors are mechanical concrete anchors designed to create a secure expansion connection inside concrete.

They are commonly used for equipment and structures exposed to vibration when the anchor is properly selected and installed.

Are wedge anchors suitable for heavy machinery?

Yes. Heavy-duty concrete wedge anchors are commonly used for machinery bases, equipment supports, conveyors, and other industrial applications.

The anchor must be selected according to the actual tension, shear, vibration, concrete, and installation conditions.

Can wedge anchors be removed?

The machinery or fixture can generally be removed by loosening the nut.

However, a standard expansion wedge anchor is typically considered a permanent anchor in the concrete and is not designed for routine removal and reuse.

What concrete can wedge anchors be installed in?

Wedge anchors are primarily intended for concrete.

The concrete strength, cracking condition, edge distance, spacing, embedment, and applied loads should be evaluated before installation.

Are zinc-plated wedge anchors suitable for outdoor applications?

Zinc-plated steel can be suitable for applications with limited or occasional moisture exposure.

 For severe outdoor, marine, chemical, or continuously wet environments, a more corrosion-resistant anchoring solution may be required.

Choose the Right Concrete Anchoring Solution

Reliable equipment anchoring starts with the correct combination of anchor type, concrete condition, embedment, installation procedure, and load requirements.

Whether you are sourcing vibration-resistant wedge anchors, heavy-duty concrete anchors, industrial concrete anchors, or machinery anchoring solutions,

 JUXIN FASTENERS can support OEMs, distributors, contractors, engineers, and industrial purchasing teams with application-focused fastening solutions.

Contact JUXIN FASTENERS for concrete anchoring solutions tailored to your application.
