Aluminum Nylon Insert Lock Nuts: DIN 985 Style, Anodizing and OEM Selection

Aluminum Nylon-Insert Locknuts: DIN 985-Style Design, Anodizing and OEM Selection

Lightweight fastening components are important in motorcycle accessories, automotive nonstructural assemblies,

 industrial machinery, automation equipment and precision mechanical systems.

For applications requiring reduced component weight and resistance to unintended fastener rotation,

aluminum nylon-insert locknuts provide an alternative to conventional steel locking nuts, subject to the mechanical requirements of the joint.

In the United States, these fasteners are commonly described as nylon-insert locknuts, nylon-insert hex locknuts, or aluminum nylon-insert locknuts.

The terms Nyloc nuts and Nylock nuts are also encountered in international product searches.

A related but different product, the nylon-insert flange locknut, incorporates an integral flange beneath the hexagonal body.

Flange locknuts should be evaluated separately because their bearing geometry and dimensional requirements differ.

This article focuses on non-flanged, DIN 985-style aluminum nylon-insert locknuts.

These fasteners combine an aluminum alloy body with a polymer locking insert.

 The insert creates prevailing torque against the mating screw or bolt thread, helping resist unintended rotation.

However, lightweight construction and a locking insert do not automatically make a fastener suitable for every load, temperature or vibration condition.

A reliable fastening system requires evaluation of material strength, thread engagement, tightening conditions, joint stiffness, environmental exposure and maintenance requirements.

Juxin Fasteners welcomes drawing-based inquiries from OEM manufacturers, engineering teams, production managers,

procurement specialists and supplier development teams seeking aluminum nylon-insert locknuts for industrial applications.

What Is an Aluminum Nylon-Insert Locknut?

An aluminum nylon-insert locknut is a hexagonal prevailing-torque nut manufactured with an aluminum alloy body and a retained polymer insert.

During installation, the mating external thread engages and locally deforms the polymer insert.

This interference generates resistance to rotation, known as prevailing torque.

The main elements are:

• Aluminum alloy hexagonal nut body

• Internal machine thread

• Nylon or other specified polymer locking insert

• Insert-retention geometry

• Optional anodized surface finish

Unlike a free-spinning hex nut, a nylon-insert locknut produces additional rotational resistance after the mating thread reaches the locking element.

This resistance is useful, but it is not a substitute for proper joint preload.

Nylon-Insert Locknuts vs Nylon-Insert Flange Locknuts

Although both product types use a polymer locking element, they have different bearing geometries.

An integral flange may help distribute bearing load over a larger area, but its actual benefit depends on the joint geometry and mating material.

Engineering Recommendation

Do not substitute a nylon-insert flange locknut for a non-flanged nylon-insert locknut solely because the thread size is identical.

Check the bearing surface, available space, mating component and approved drawing.

DIN 985-Style Aluminum Nylon-Insert Locknuts

DIN 985 is a familiar designation associated with prevailing-torque hexagon nuts using non-metallic inserts.

For international OEM purchasing, it remains a useful dimensional reference and search term.

However, DIN 985-style aluminum nylon-insert locknuts should not automatically be described as fully compliant with every material or mechanical requirement of the original standard.

An aluminum version may follow the general nut geometry while using a different body material and project-specific performance requirements.

For accurate procurement, the specification should identify:

• Applicable nut geometry

• Aluminum alloy and temper

• Internal thread designation

• Polymer locking insert

• Prevailing-torque requirements

• Surface finish

• Inspection criteria

Engineering Recommendation

Specify the aluminum nut by an approved drawing rather than relying exclusively on the DIN 985 designation.

6061 Aluminum Alloy: Material Selection

6061 aluminum alloy is a common engineering material used in lightweight mechanical components.

Its characteristics include low density, useful machinability and compatibility with suitable anodizing processes.

Potential benefits for locknut applications include:

• Reduced mass compared with steel

• Suitable general corrosion behavior in many environments

• Machinability for selected custom geometries

• Decorative or protective anodized finishes

• Compatibility with weight-sensitive assemblies

However, 6061 aluminum is not a single mechanical-property condition.

Its strength depends on the specified temper and manufacturing history.

For example, a drawing requiring 6061-T6 must not be treated as equivalent to an unspecified 6061 material condition.

Engineering Recommendation

Confirm the alloy, temper and required mechanical performance before production.

Aluminum vs Steel Nylon-Insert Locknuts

Aluminum and steel nylon-insert locknuts may have similar external shapes, but their mechanical behavior differs.

Important Engineering Clarification

A higher-strength steel bolt can overload the internal threads of an aluminum nut if the tightening conditions are unsuitable.

The bolt property class does not determine the load capacity of the aluminum nut.

Engineering Recommendation

Evaluate the bolt, nut and clamped components as one fastening system.

How Nylon-Insert Locknuts Resist Loosening

The polymer insert creates frictional interference with the mating thread.

This provides prevailing torque during installation and removal.

The locking feature can help resist unintended nut rotation, but successful vibration performance also depends on:

• Correct joint preload

• Joint stiffness

• Contact surface conditions

• Transverse loading

• Fastener geometry

• Temperature

• Repeated installation and removal

Prevailing Torque Is Not Clamp Load

Prevailing torque is the rotational resistance generated by the locking element.

Clamp load is the force compressing the joint members.

These are different mechanical quantities.

A nylon-insert locknut may produce substantial rotational resistance without establishing sufficient clamp load.

Conversely, excessive tightening may strip the aluminum threads or damage the mating components.

Engineering Recommendation

Develop an assembly-specific tightening procedure that accounts for the prevailing-torque feature and the mechanical capacity of the aluminum nut.

Vibration Resistance and Joint Reliability

Motorcycles, industrial machinery and mobile equipment can experience repeated vibration and dynamic loading.

Nylon-insert locknuts may be useful in these environments when the joint has been correctly designed and validated.

However, the polymer insert alone cannot prevent every form of loosening.

Possible failure mechanisms include:

• Insufficient initial preload

• Joint slip

• Embedment or settlement

• Thermal cycling

• Excessive transverse movement

• Polymer insert deterioration

• Aluminum thread damage

Engineering Recommendation

For demanding vibration environments, evaluate the complete assembly rather than relying on prevailing torque alone.

Nylon Insert Temperature Limits

The locking element is a critical component of a nylon-insert locknut.

Its temperature capability depends on the polymer formulation and operating conditions.

Potential problems from excessive temperature exposure include:

• Softening

• Creep

• Permanent deformation

• Loss of prevailing torque

• Material aging

• Reduced locking effectiveness

The aluminum body may tolerate conditions that the polymer insert cannot.

Engineering Recommendation

Specify the required operating temperature range and confirm the polymer material before approving the nut.

Do not assume that a general-purpose nylon-insert locknut is suitable for engine exhaust systems or other high-temperature locations.

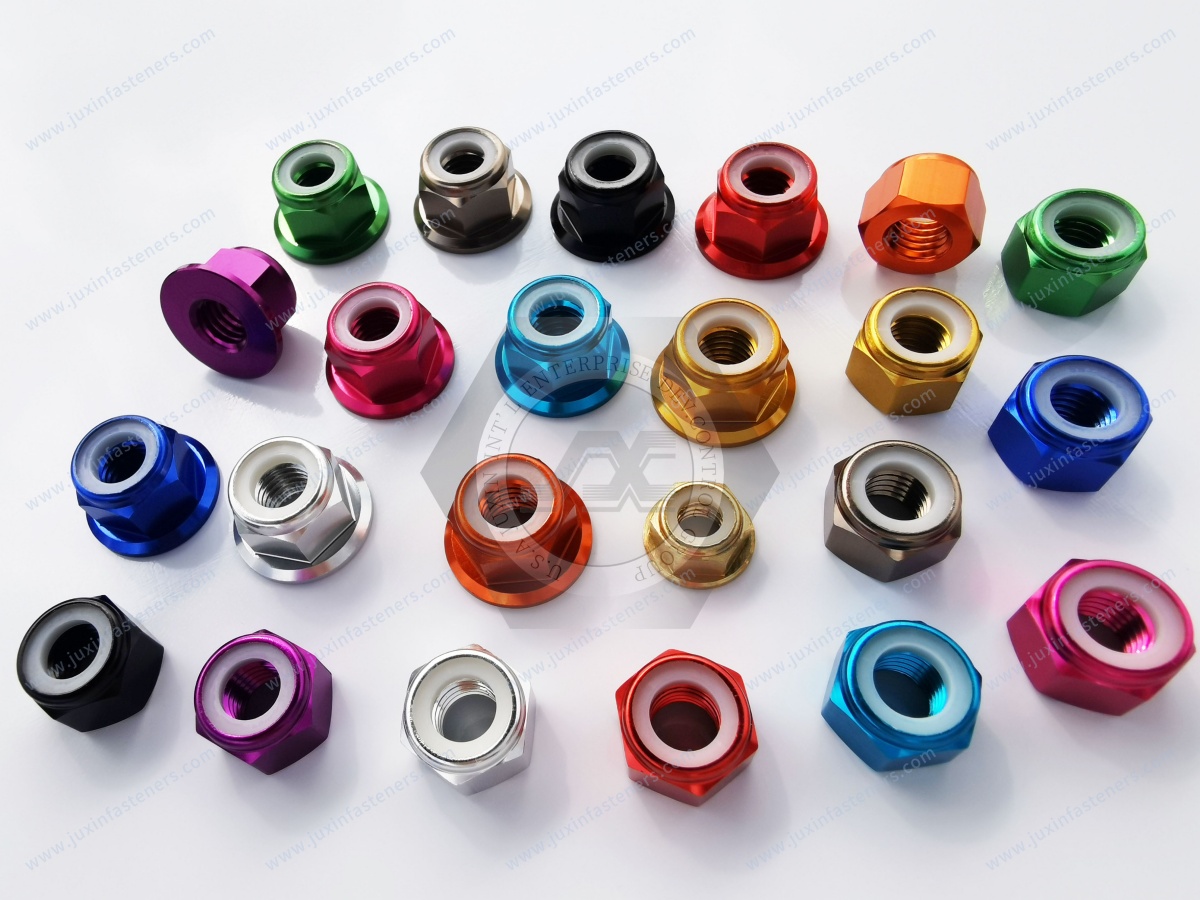

Anodized Aluminum Nylon-Insert Locknuts

Anodizing is commonly used to modify the surface of aluminum components.

For aluminum locknuts, anodizing may be specified for:

• Surface protection

• Appearance

• Color identification

• Selected wear-related requirements

Potential decorative colors include black, blue, gold, purple and gray, subject to process feasibility and color approval.

Anodizing and Polymer Insert Assembly Sequence

The anodizing process may involve chemical treatment, electrical processing, rinsing and sealing.

These operations may be unsuitable for an already-installed polymer locking element.

Depending on the product design, installing the polymer insert after anodizing may be the preferred manufacturing sequence.

Engineering Recommendation

Confirm the actual production sequence before approving the product.

The polymer insert should not be assumed compatible with anodizing chemicals or processing temperatures.

How Anodizing Affects Thread Fit

Anodizing changes the surface condition of aluminum.

The oxide layer can influence the finished thread dimensions and mating fit.

For a prevailing-torque locknut, this may affect:

• Thread engagement

• Installation torque

• Friction

• Dimensional acceptance

• Assembly consistency

Engineering Recommendation

Define the required thread condition after surface finishing and verify compatibility with the mating bolt.

Corrosion and Dissimilar Metals

Aluminum locknuts may be assembled with steel or stainless steel bolts.

When dissimilar metals are electrically connected in the presence of an electrolyte, galvanic corrosion can become a concern.

Relevant factors include:

• Bolt and nut materials

• Moisture exposure

• Road salt

• Surface treatment

• Contact conditions

• Coating damage

• Service environment

Engineering Recommendation

Evaluate the actual material combination and exposure conditions.

Anodizing should not automatically be considered a complete solution to galvanic corrosion.

Motorcycle Applications

Aluminum nylon-insert locknuts may be evaluated for selected motorcycle accessories and nonstructural assemblies.

Potential applications include:

• Fairing attachments

• Accessory brackets

• Decorative panels

• Lightweight covers

• Nonstructural mounting hardware

Selection should account for vibration, weather exposure, mating bolt material, temperature and maintenance frequency.

Safety Limitation

Aluminum nylon-insert locknuts must not be assumed suitable for wheel retention, steering, braking, suspension or other safety-critical motorcycle joints.

Those connections require approved fastener specifications and application-specific engineering validation.

Automotive Lightweight Applications

In automotive manufacturing, aluminum nylon-insert locknuts may be considered for selected nonstructural components where low weight and controlled fastening are desirable.

Potential applications include:

• Interior equipment assemblies

• Lightweight covers

• Accessory brackets

• Serviceable housings

• Selected nonstructural attachments

Engineers should evaluate the mechanical load, corrosion exposure, temperature and required service life.

Important Clarification

Aluminum nylon-insert locknuts are not universal replacements for steel automotive locknuts.

Structural or safety-related substitutions require formal engineering approval.

Motorsport and Racing Applications

Motorsport projects often place a high value on reducing component mass.

Anodized aluminum nylon-insert locknuts may be considered for suitable noncritical assemblies where both weight and appearance matter.

Potential advantages include:

• Low component mass

• Color identification

• Compact geometry

• Polymer prevailing-torque locking

However, a racing application does not automatically justify using aluminum in a highly loaded fastening joint.

Engineering Recommendation

Select the fastener based on actual loading, temperature and approved mechanical requirements rather than weight or appearance alone.

Industrial Machinery and Automation Equipment

Industrial equipment may use aluminum nylon-insert locknuts in applications involving:

• Adjustable mechanisms

• Instrument mounting

• Machine covers

• Lightweight assemblies

• Precision mechanical equipment

• Selected automation fixtures

Manufacturing engineers should consider tightening consistency, accessibility, inspection and maintenance.

For repetitive production, the nut must also be compatible with the intended feeding and installation process.

Aerospace and Regulated Applications

Lightweight fastening is important in aerospace and other regulated industries.

However, a general industrial aluminum nylon-insert locknut must not be described as aerospace-qualified without the required material, design, testing and approval documentation.

Only approved fastening systems should be used in regulated or safety-critical assemblies.

Thread Sizes and International Thread Systems

Aluminum nylon-insert locknuts may be requested in metric thread sizes such as:

• M3

• M4

• M5

• M6

• M8

• M10

• M12

• M16

These are potential inquiry sizes, not a confirmed stock or production range.

Availability requires verification.

Metric thread requirements may reference ISO 261 and the ISO 965 series where applicable.

For US purchasing, UNC and UNF threads are also relevant search and drawing specifications, but they require separately manufactured and verified thread forms.

These are dimensional conversions only.

Metric, UNC, UNF, BSW and BSF threads are not directly interchangeable.

Thread Stripping and Tightening Limitations

Aluminum nut threads may become the limiting mechanical element in a bolted joint.

Potential failure modes include:

• Internal thread stripping

• Nut body deformation

• Excessive bearing stress

• Loss of clamp load

• Damage to the polymer insert

Engineering Recommendation

Determine the allowable tightening conditions using the specific aluminum alloy, nut geometry, mating bolt and joint design.

Do not apply steel nut tightening assumptions automatically to an aluminum nut.

Reuse of Aluminum Nylon-Insert Locknuts

The locking element may lose some prevailing-torque performance after repeated installation and removal.

Reuse performance depends on:

• Polymer material

• Thread condition

• Mating bolt finish

• Operating temperature

• Number of assembly cycles

• Previous tightening conditions

Engineering Recommendation

Establish reuse criteria based on the applicable purchasing specification and measured locking performance.

Do not assume unlimited reuse.

Quality Control for Aluminum Nylon-Insert Locknuts

A suitable inspection plan should cover the nut body, internal thread, locking insert and finished surface.

Dimensional Inspection

• Internal thread

• Across-flats dimension

• Nut height

• Bearing face

• Insert position

• Finished dimensions after anodizing

Material Verification

• Aluminum alloy

• Required temper

• Polymer insert specification

Surface Inspection

• Anodized finish

• Color consistency where required

• Visible defects

• Thread condition

Functional Inspection

• Prevailing torque

• Installation behavior

• Removal behavior

• Thread integrity

• Reuse performance where specified

Relevant Standards

DIN 985 remains a recognized reference for the traditional non-metallic-insert hex locknut form.

ISO 2320 addresses mechanical and functional properties of applicable prevailing-torque steel nuts.

Its complete requirements should not automatically be applied to aluminum nuts.

For aluminum products, acceptance criteria must be established using the applicable drawing, material requirements and agreed functional tests.

Engineering Recommendation

Specify the test method and acceptance limits instead of relying only on a general description such as "high locking torque."

Production-Line Assembly and Process Control

For production managers and manufacturing engineers, aluminum nylon-insert locknuts introduce several assembly considerations.

Potential Process Requirements

• Correct part feeding

• Nut orientation

• Thread engagement

• Controlled tightening

• Tool calibration

• Cross-threading prevention

• Inspection

• Traceability where required

Common Assembly Problems

Information Gain: Prevailing Torque Changes the Tightening Process

Replacing a standard hex nut with a nylon-insert locknut changes the torque required during assembly.

The measured tightening torque includes resistance from the locking element.

Therefore, a tightening program developed for a free-spinning nut may not deliver the same clamp load when used with a nylon-insert locknut.

Engineering Recommendation

Validate the tightening process using representative production components.

Total Installed Cost: Aluminum vs Steel Locknuts

A lightweight nut may offer design advantages without necessarily reducing overall manufacturing cost.

The total installed cost may include:

• Raw material

• Nut manufacturing

• Anodizing

• Polymer insert assembly

• Inspection

• Automated feeding

• Tightening time

• Scrap

• Rework

• Packaging

• Logistics

Engineering Recommendation

Compare aluminum and steel alternatives using total cost per accepted assembly and the required joint performance.

Custom Aluminum Nylon-Insert Locknuts for OEM Projects

OEM programs may require custom configurations rather than general catalog products.

Potential requirements include:

• Special thread sizes

• Modified nut dimensions

• Specified aluminum alloy and temper

• Polymer locking element selection

• Anodized finishes

• Custom colors

• Prevailing-torque acceptance criteria

• Part identification

• OEM packaging

Juxin Fasteners welcomes drawings for technical and commercial review.

Specific manufacturing feasibility, tooling requirements, MOQ, sample availability and delivery schedules must be confirmed for each project.

Supplier Qualification for US and International OEM Purchasing

When sourcing aluminum nylon-insert locknuts, purchasing teams should assess technical compliance and supply capability together.

Technical Review

• Approved product drawing

• Material and temper

• Thread dimensions

• Locking element specification

• Prevailing-torque criteria

• Anodizing requirements

• Mating bolt compatibility

• Inspection documentation

Manufacturing Review

• Production method

• Polymer insert assembly

• Surface finishing

• Dimensional consistency

• Process inspection

• Engineering change control

Commercial Review

• Prototype requirements

• Minimum order quantity

• Annual demand

• Tooling cost

• Unit pricing

• Lead time

• Packaging

• Delivery schedule

• Supply continuity

Important Commercial Clarification

Product availability, manufacturing capabilities, certifications, production capacity and lead times must be verified during supplier qualification.

OEM RFQ Checklist

Frequently Asked Questions

What are aluminum nylon-insert locknuts?

They are aluminum alloy nuts with a polymer locking insert that creates prevailing torque against the mating external thread.

What are nylon-insert locknuts called in the United States?

Common purchasing terms include nylon-insert locknuts, nylon-insert hex locknuts and prevailing-torque locknuts. Nyloc and Nylock are also encountered as alternative search terms.

What is the difference between a nylon-insert locknut and a nylon-insert flange locknut?

A conventional nylon-insert hex locknut has a standard hexagonal bearing configuration. A nylon-insert flange locknut includes an integral flange with a different bearing geometry.

Are aluminum nylon-insert locknuts the same as DIN 985 steel nuts?

They may follow a similar geometric style, but aluminum and steel nuts have different material and mechanical requirements.

Why use 6061 aluminum for locknuts?

6061 aluminum provides low density and useful engineering properties for suitable lightweight applications.

Can aluminum nylon-insert locknuts be anodized?

Yes, suitable aluminum nut bodies can be anodized. The process sequence and compatibility with the polymer insert must be confirmed.

Does anodizing affect thread fit?

It can affect the finished thread dimensions and surface condition. Finished thread requirements should be verified.

Are nylon-insert locknuts vibration-proof?

No fastener should be considered vibration-proof solely because it contains a polymer locking element. Joint design and validation remain essential.

Can aluminum nylon-insert locknuts be reused?

Reuse depends on the product specification, polymer condition, mating thread and remaining prevailing-torque performance.

Can aluminum locknuts replace steel locknuts?

Only after confirming mechanical compatibility and obtaining appropriate engineering approval.

Can Juxin Fasteners review custom aluminum nylon-insert locknut drawings?

Yes. Juxin Fasteners welcomes drawing-based OEM inquiries, subject to technical and manufacturing feasibility confirmation.

Juxin Fasteners: Aluminum Nylon-Insert Locknut Solutions

Juxin Fasteners welcomes inquiries involving:

• Aluminum nylon-insert locknuts

• DIN 985-style aluminum locknuts

• 6061 aluminum locking nuts

• Anodized aluminum locknuts

• Lightweight motorcycle and automotive accessory fasteners

• Custom OEM aluminum nuts

• Drawing-specific industrial fastening components

Related nylon-insert flange locknuts should be specified separately because they use a different body and bearing configuration.

Specific materials, dimensions, finishes, locking requirements, MOQ and lead times require confirmation.

Request a Quotation for Aluminum Nylon-Insert Locknuts

Are you developing lightweight motorcycle accessories, automotive nonstructural assemblies,

industrial machinery or precision equipment requiring aluminum nylon-insert locknuts?

Juxin Fasteners welcomes technical inquiries from mechanical engineers, structural engineers, design engineers, manufacturing engineers,

production managers, purchasing specialists, procurement managers, supplier development teams and supply chain managers.

For technical review and quotation, please provide:

Product drawing + thread size and system + aluminum alloy and temper + polymer insert specification + anodized finish and color

 + mating bolt requirements + prevailing-torque criteria + tightening procedure + operating temperature + environmental conditions

 + application loads + inspection requirements + prototype quantity + annual demand + packaging + required delivery schedule.

Our team can review the requirements and confirm available product options, technical feasibility and quotation conditions.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your aluminum nylon-insert locknut drawings and OEM RFQ to Juxin Fasteners for technical confirmation and quotation.
