Automotive fasteners connect far more than individual metal components.
They establish mechanical interfaces across chassis structures, suspension systems, powertrain assemblies,
electric vehicle equipment, thermal-management systems, electrical enclosures and serviceable vehicle modules.
In these applications, the engineering objective is not simply to select the strongest bolt available.
It is to create a reliable joint that maintains the required mechanical function under actual service conditions.
A high-strength bolt can still be part of an unreliable assembly if the mating nut, parent material, joint geometry, surface treatment or tightening process is unsuitable.
Likewise, an appropriately designed automotive fastening system must account for dynamic loads, vibration, thermal cycling, corrosion, assembly variation and maintenance requirements.
JUXIN FASTENERS supplies industrial and automotive fastening components, including high-strength bolts and nuts, custom screws, studs,
double-ended studs, stainless steel fasteners and related fastening solutions for OEM applications.
This guide connects fastener selection with mechanical joint design, production assembly and supplier qualification.
It is intended for automotive design and mechanical engineers, manufacturing teams, production managers,
procurement specialists and supplier development professionals evaluating fastening solutions for new vehicle programs or existing production assemblies.
Automotive high-strength fasteners are threaded fastening components selected to satisfy defined mechanical and functional requirements in vehicle assemblies.
Depending on the product, these requirements may involve tensile strength, proof loading, hardness, fatigue resistance, clamping performance, installation conditions or other application-specific properties.
The term high-strength fastener should not be used as a substitute for a complete technical specification.
A controlled product definition must identify the fastener type, geometry, thread system, material, applicable mechanical property requirement, finish and intended assembly conditions.
For example, a carbon or alloy steel bolt specified to ISO 898-1 must be evaluated within that standard's product scope.
An inch-series steel bolt specified under SAE J429 follows a different mechanical property framework.
A stainless steel fastener may require a specification based on ISO 3506 and the relevant material designation.
These products should not be described as mechanically equivalent simply because they share a nominal diameter.
| Fastener category | Primary function | Typical automotive application |
|---|---|---|
| High-strength bolts | Create clamped mechanical joints | Chassis brackets, mounting structures, powertrain equipment |
| High-strength nuts | Provide compatible internal threads and joint retention | Structural and mechanical assemblies |
| Flange bolts and nuts | Integrate a bearing flange into the threaded connection | Brackets, housings and production assemblies |
| Studs and double-ended studs | Provide fixed threaded mounting interfaces | Housings, manifolds and alignment-sensitive assemblies |
| Machine screws | Secure components to prepared internal threads | Electrical modules, covers and equipment housings |
| Thread-forming screws | Form mating threads in suitable materials | Selected sheet-metal and polymer assemblies |
| Washers | Modify bearing conditions or joint geometry | Bolted connections and sensitive surfaces |
| Hose and pipe clamps | Secure fluid lines, hoses and tubing | Cooling, HVAC and fluid-routing systems |
| Wire harness clamps | Retain and guide cables or harnesses | Electrical and electronic vehicle systems |
| Custom automotive fasteners | Meet application-specific drawing requirements | OEM and specialized vehicle programs |
Not every product in this portfolio is classified as a high-strength threaded fastener.
Clamps, washers and polymer components perform different functions and require their own selection criteria.

One of the most important principles in automotive fastening is:
Fastener strength is not the same as joint strength.
A bolt may satisfy its specified mechanical property class while the assembled joint fails through a different mechanism.
Potential failure locations include:
Bolt fracture
Internal or external thread stripping
Nut failure
Bracket deformation
Parent-material crushing
Hole elongation
Joint slip
Joint separation
Loss of preload
Fatigue damage
The governing failure mechanism depends on the complete load path.
Consider a steel bolt used to secure a bracket to an aluminum structure.
Increasing the bolt property class may improve the fastener's mechanical capability,
but it does not automatically increase the aluminum component's thread-stripping resistance or bearing capacity.
The joint may still be limited by the parent material.
Similarly, increasing bolt diameter may require a larger hole that reduces the remaining section of a thin bracket.
The correct engineering question is therefore:
Which component or interface governs the joint's performance under the actual load case?
This question should be answered before changing the bolt grade, diameter or fastening architecture.
Automotive joints experience combinations of mechanical loads rather than one isolated loading condition.
Tensile loading acts along the fastener axis.
Relevant design considerations include bolt strength, thread engagement, joint stiffness, preload and the possibility of joint separation.
Shear loading acts transversely to the fastener axis.
The engineer must determine whether the joint is intended to resist transverse loading through friction between clamped surfaces,
direct bearing between the fastener and hole, or another defined mechanism.
These are different design conditions.
Automotive brackets frequently experience axial force, transverse force and bending moment simultaneously.
For example, an offset bracket may create additional loading at the fastener group because the applied force does not act directly through the mounting surface.
Repeated loading can create fatigue concerns even when the maximum load is below the fastener's static strength.
Shock loading may introduce transient forces or movement that are not represented by a simple static calculation.
The selected fastener and joint architecture should be evaluated against the complete service load spectrum.
Preload is the initial clamping force established during tightening.
For many automotive bolted joints, preload is essential because it helps maintain contact between the assembled components.
The appropriate preload depends on the joint design.
Too little preload may permit separation or relative movement.
Excessive preload may overload the fastener, strip threads or damage the clamped materials.
The engineering objective is not maximum tightening force.
It is a controlled clamping condition suitable for the intended application.
Tightening torque is an assembly input.
Preload is the resulting fastener tension and associated joint clamping condition.
The relationship between the two is influenced by friction at the threads and bearing surfaces.
A simplified engineering expression is:
T = K × F × d
Where:
T = tightening torque
K = empirical torque coefficient for the defined assembly
F = target preload
d = nominal fastener diameter
This simplified relationship is useful for illustrating the role of friction, but it is not a substitute for a validated tightening specification.
The torque coefficient depends on the actual fastener, coating, lubrication, mating component and bearing interface.
It must not be treated as a universal constant.
Consider two bolts with identical nominal dimensions and mechanical property classes.
One has a particular zinc-based coating.
The other uses a different coating or lubrication condition.
At the same applied torque, the resulting preload may differ because the friction conditions differ.
This means a coating change can become a functional assembly change.
For torque-critical production, procurement specifications should therefore control not only the mechanical property class but also the relevant surface and friction requirements.
A bolted joint behaves as an interacting mechanical system.
The stiffness of the fastener and the clamped components influences how external loads affect the joint.
Joint separation occurs when the applied loading and joint response cause the clamped interfaces to lose contact.
Depending on the application, this can increase cyclic loading and affect joint reliability.
A transversely loaded joint may slip if the available frictional resistance is insufficient for the applied load.
Potential consequences include fretting, hole wear, noise and changes in load distribution.
Some joints are intentionally designed to transfer transverse loading through bearing rather than relying exclusively on friction.
The applicable design method must reflect the intended load-transfer mechanism.
Fastener selection should begin with the required joint behavior.
Selecting a high-strength bolt without establishing whether the joint is friction-controlled, bearing-controlled or subject to separation can lead to an unsuitable design.
High-strength bolts are widely used in automotive mechanical assemblies where specified loading and joint conditions justify their use.
Relevant design characteristics include:
Nominal diameter and thread pitch
Thread length and engagement
Bolt length
Head geometry
Mechanical property class
Material and heat treatment
Surface treatment
Bearing interface
Mating nut or threaded component
Tightening method
Service environment
Hex-head bolts provide conventional external wrenching access.
Tool clearance and head dimensions must be compatible with the surrounding assembly.
Flange-head bolts incorporate an enlarged bearing feature.
In suitable applications, they can provide a defined bearing interface without a separate washer.
However, the flange geometry must be evaluated against the mating surface, local bearing stress and tightening process.
Socket-head designs may be selected where the surrounding geometry favors internal drive access.
The available tool engagement and service access must be considered.
Countersunk fasteners can reduce head projection.
In thin sheet or locally stressed structures, the material removed by countersinking may affect joint capacity.
The countersink should be treated as part of the structural geometry.
The nut is an integral part of a bolted joint.
A bolt and nut should be evaluated as a compatible threaded system.
The specification should address:
Thread form
Nominal diameter
Pitch
Thread tolerance
Mechanical property requirements
Material
Surface finish
Bearing geometry
Installation conditions
ISO 898-2 is relevant to the mechanical properties of certain carbon and alloy steel nuts with specified property classes within its scope.
The selected nut must be suitable for the mating bolt and application.
Flange nuts provide an integrated bearing feature.
They may simplify the assembly in applications where their geometry and functional requirements are appropriate.
Certain locking nuts use a prevailing-torque mechanism to resist rotation.
Their suitability depends on the product design, temperature, installation requirements and reuse conditions.
Prevailing torque is not equivalent to the required clamp load.
The tightening process must account for the selected nut's characteristics.
All-metal distorted-thread locknuts are one example of a prevailing-torque locking architecture.
They may be considered in suitable applications, but the correct locking design must be selected against the joint requirements.
A locking feature should not be used as a substitute for proper joint design.

Studs provide threaded mounting interfaces that may simplify component positioning and repeated assembly.
Depending on the design, a stud may remain attached to one component while a mating nut secures another.
This can be useful for brackets, housings and selected equipment interfaces.
Double-ended studs provide threaded portions at both ends.
Their design may include different thread lengths or configurations according to the application.
| Design consideration | Bolt | Stud |
|---|---|---|
| Complete fastener removal | Often convenient | Depends on installed interface |
| Component alignment | Requires appropriate assembly features | Fixed stud may assist positioning |
| Repeated service | Depends on mating thread durability | Can reduce repeated disturbance of one threaded interface |
| Tool access | Head access required | Nut-side access may be advantageous |
| Thread engagement | Defined by bolt and receiving thread | Must be defined at both relevant interfaces |
The selection should follow the customer's drawing and assembly requirements.
Automotive electrical, interior and auxiliary assemblies may use machine screws or thread-forming screws.
Machine screws engage existing internal threads.
Typical applications include electrical modules, control housings and mechanical covers.
The thread, drive, head geometry and mating component must be compatible.
Thread-forming screws create mating threads through material displacement in suitable substrates.
Applications may include selected sheet-metal and polymer components.
The correct screw geometry depends on the substrate and installation requirements.
Thread-forming screws should not automatically replace conventional machine screws, nuts or threaded inserts.
Where repeated disassembly is expected, engineers should evaluate whether the formed internal thread will maintain the required functionality throughout the intended service life.
Washers can modify the interface between the fastener and clamped component.
Potential functions include increasing bearing area, protecting surfaces or accommodating specific joint geometry.
However, adding a washer changes the assembly stack-up and can affect tightening behavior.
Thin sheet may be vulnerable to local indentation, crushing, tearing or hole enlargement.
The designer should evaluate:
Sheet thickness
Material strength
Hole diameter
Edge distance
Fastener spacing
Head or washer bearing area
Load direction
Joint stiffness
Aluminum components may require particular attention to local bearing pressure, thread engagement and material compatibility.
A higher-strength steel fastener does not eliminate limitations imposed by the aluminum structure.
Where direct tapping does not provide a suitable threaded interface, a compatible threaded insert or blind rivet nut may be considered.
The alternative fastening architecture must be validated for the actual panel and load case.
Not every automotive fastening requirement is a bolted structural joint.
Fluid routing and electrical systems use clamps and retention components to secure hoses, pipes, tubing and wiring.
These components require a different engineering approach.
The first design input should be the actual hose-and-fitting assembly.
Important parameters include:
Hose outside diameter
Fitting geometry
Hose material
Hose wall thickness
Clamp working range
Band geometry
Required compression
Service temperature
Fluid exposure
Vibration
Too little compression may produce inadequate retention or sealing.
Too much compression may damage the hose.
The correct compression condition depends on the hose, fitting and clamp design.
Pipe clamps may support cooling lines, HVAC tubing, air lines and other routed components.
The clamp should control movement while avoiding unacceptable local damage.
For safety-critical fluid systems, application-specific validation and customer requirements are essential.
Wire harness clamps should secure cables while minimizing abrasion, excessive bending and unwanted movement.
Material selection should account for temperature, vibration, chemical exposure and installation access.
Depending on the component, clamp materials may include carbon steel, stainless steel or engineering polymers.
The selected material must be appropriate for the service environment.
Chassis and suspension systems may experience substantial dynamic loading and repeated mechanical stress.
Potential fastening locations include:
Subframes
Crossmembers
Suspension brackets
Structural mounting interfaces
Equipment mounting points
These applications require attention to joint geometry, load transfer, preload, fatigue and environmental exposure.
The applicable mechanical property class or customer specification should be defined by the engineering design.
A general statement such as "automotive high-strength bolt" is not sufficient for a safety-related application.
The assembly process must follow the approved tightening specification.
For safety-critical joints, the customer may require additional validation, traceability and production controls.
No generic fastener selection guide can replace vehicle-specific engineering approval.
Powertrain and engine-bay assemblies introduce temperature, vibration and chemical-exposure considerations.
Potential applications include:
Engine mounting
Transmission mounting
Auxiliary brackets
Equipment housings
Manifold-related assemblies
Exhaust-related mounting hardware
Material properties, coatings and joint behavior may change with temperature.
The engineering specification should define the actual service temperature profile.
Engine-bay fasteners may encounter oils, coolants, cleaning agents, moisture and road contaminants.
The selected material and coating should be compatible with the expected exposure.
Differences in thermal expansion between connected components can affect preload and contact pressure.
The complete assembly should be evaluated rather than assuming the fastener material alone determines thermal reliability.
Electric vehicles introduce fastening challenges involving lightweight materials, electrical equipment, thermal management and serviceable enclosures.
Potential applications include:
Battery-related brackets and mounting interfaces
Power electronics housings
Electrical equipment supports
Thermal-management assemblies
Aluminum structural components
Auxiliary mounting hardware
Steel fasteners used with aluminum components require evaluation of bearing behavior, galvanic corrosion and differential thermal expansion.
Battery-related fastening may involve additional sealing and serviceability requirements.
The joint's structural and sealing functions should be evaluated separately where appropriate.
Some interfaces require electrical continuity.
Others require insulation.
Fastener material and surface treatment should be selected according to the defined electrical function.
Replacing a steel fastener with aluminum does not automatically improve the complete assembly.
The designer must account for strength, joint geometry, durability and any additional reinforcement required.
Material selection should be based on the mechanical and environmental requirements of the application.
Carbon steel may provide a suitable balance of mechanical properties, manufacturing characteristics and cost for many automotive fastening applications.
The required material, property class and surface treatment should be defined by the applicable specification.
Alloy steel may be selected where the specified mechanical property requirements justify its use.
Heat treatment and mechanical verification may be relevant depending on the product.
Stainless steel may be considered for corrosion-sensitive applications.
However, stainless steel should not automatically be substituted for a high-strength alloy steel bolt.
Mechanical property requirements, thread galling, temperature and corrosion exposure must be evaluated.
Aluminum fasteners may be suitable for selected lightweight assemblies.
Their mechanical capability, thread durability and compatibility with the mating materials must be verified.
Engineering polymers may be used in certain clips, clamps, spacers and nonstructural fastening components.
Creep, stress relaxation, temperature and chemical exposure can influence their long-term performance.
Surface treatment influences more than appearance or corrosion protection.
It may affect:
Corrosion resistance
Thread friction
Under-head friction
Torque–preload behavior
Electrical contact
Dimensional fit
Compatibility with mating materials
Zinc-based coatings are used on suitable steel fasteners for corrosion protection.
The specification should identify the required coating system and performance criteria.
Zinc-nickel coatings may be considered where the application requires a defined corrosion-protection system.
Performance should be assessed against the specified coating and test requirements.
A coating change can alter tightening behavior even if the bolt geometry and mechanical property class remain unchanged.
For torque-controlled automotive assembly, this can affect the resulting preload.
Dissimilar metals in electrical contact may experience galvanic corrosion under suitable environmental conditions.
Material pairing, coating, exposure and joint geometry should be evaluated together.
ASTM B117 defines a laboratory salt-spray test method.
Salt-spray exposure time should not be interpreted as a direct prediction of vehicle service life.
Automotive fastener specifications should identify the applicable product and thread standards.
ISO 261 provides relevant metric thread designation information.
ISO 965 addresses metric thread tolerances.
The drawing should define the correct nominal diameter, pitch and tolerance class.
ASME B1.1 covers Unified screw threads, including UNC and UNF series.
These are distinct from ISO metric threads.
BSW and BSF thread systems are also distinct.
They must not be treated as interchangeable with ISO metric or Unified threads based on nominal diameter alone.
Relevant examples include:
| Standard | Relevant scope |
|---|---|
| ISO 898-1 | Mechanical and physical properties of specified carbon and alloy steel bolts, screws and studs |
| ISO 898-2 | Mechanical properties of specified carbon and alloy steel nuts |
| ISO 3506-1 | Mechanical and physical properties of certain corrosion-resistant stainless steel bolts, screws and studs |
| SAE J429 | Mechanical and material requirements for specified inch-series externally threaded fasteners |
| ASME B1.1 | Unified inch screw threads |
| ISO 261 | ISO general-purpose metric thread designation |
| ISO 965 | ISO metric thread tolerances |
| ASTM B117 | Salt-spray laboratory testing |
These standards have defined scopes and should not be applied indiscriminately to clamps, polymer components or unrelated products.
Customer-specific automotive requirements may introduce additional specifications.

Automotive fastening systems often experience repeated loading throughout service.
Fatigue behavior depends on stress range, mean stress, preload, geometry, surface condition and the complete load path.
A high static strength rating does not automatically establish suitable fatigue performance.
Vibration can contribute to relative movement and loosening in unsuitable joint designs.
A stronger bolt alone does not solve every vibration-related problem.
Prevailing-torque nuts and other locking architectures may be considered according to the application.
The selected locking mechanism should be validated as part of the complete joint.
Temperature variation can change material dimensions, contact conditions and joint preload.
Representative thermal-cycle evaluation may be appropriate for the intended environment.
The mounting hole is part of the mechanical joint.
Its geometry affects alignment, bearing conditions and load distribution.
The correct hole specification depends on the selected fastening architecture.
Oversized holes may affect alignment or bearing behavior.
Undersized holes may interfere with assembly.
Burrs can affect seating and local contact.
Hole preparation should be compatible with the approved manufacturing process.
Insufficient edge distance can increase the risk of local tearing or deformation.
The required distance depends on material, thickness, load direction and joint geometry.
Multiple fasteners interact through the surrounding structure.
The complete fastener pattern should be evaluated rather than treating every bolt as an isolated component.
A fastener that meets its dimensional and mechanical specifications can still produce an unacceptable joint if the assembly process is uncontrolled.
For production managers and manufacturing engineers, tightening consistency is a critical manufacturing requirement.
Torque-controlled assembly uses a specified tightening torque.
Its relationship to preload depends on friction and the defined assembly.
Some automotive joints use torque-plus-angle or other controlled tightening methods.
The appropriate method depends on joint design and customer requirements.
Production controls may include:
Tool calibration
Torque monitoring
Angle monitoring
Fastener identification
Assembly sequence
Process records
Error-proofing
Maintenance
Changing a nut, washer, coating, lubricant or mating surface can affect tightening behavior.
Even when the nominal bolt specification remains unchanged, the assembly may require engineering review or revalidation.
When a fastening problem occurs, the investigation should begin with the observed failure mode.
| Observed problem | Possible contributing factor | Engineering investigation |
|---|---|---|
| Bolt fracture | Overload, fatigue or incorrect specification | Review loading, joint geometry and mechanical requirements |
| Thread stripping | Insufficient engagement or weak mating material | Review thread geometry, material and installation |
| Joint loosening | Inadequate preload or relative movement | Review tightening process and vibration loading |
| Bracket deformation | Excessive local stress | Review bearing area and structural geometry |
| Hole elongation | Joint slip or bearing loading | Review load-transfer mechanism |
| Inconsistent preload | Friction or tightening variation | Review coating, lubrication and tool process |
| Corrosion | Material pairing or unsuitable protection | Review environment and coating system |
| Hose leakage | Incorrect clamp compression or hose interface | Review hose, fitting and clamp selection |
| Harness abrasion | Incorrect routing or retention geometry | Review clamp position and contact surfaces |
A corrective action should address the verified root cause.
Replacing a failed fastener with a stronger one may not resolve a problem originating in the joint geometry or assembly process.
Automotive OEM sourcing requires clear product specifications and appropriate verification.
Depending on the product and customer requirements, inspection may include:
Dimensional measurement
Thread inspection
Material verification
Mechanical property testing
Surface-treatment verification
Functional checks
Batch identification
Packaging inspection
Thread inspection should use methods appropriate to the specified thread system and tolerance.
Mechanical testing should follow the relevant product standard or customer-approved method.
Where specified, inspection may address coating thickness, appearance, corrosion testing and friction-related requirements.
The required documentation should be agreed during supplier qualification.
It may include dimensional reports, material documentation, inspection records and customer-specific quality submissions.
For automotive procurement teams, a lower unit price is not sufficient evidence of an acceptable replacement fastener.
A technically comparable product must satisfy the controlled engineering requirements.
Two bolts with the same nominal diameter and pitch may differ in:
Mechanical property class
Head geometry
Thread length
Material
Heat treatment
Coating
Friction behavior
Dimensional tolerance
Installation requirements
Any of these differences may affect the assembled joint.
| Evaluation area | Procurement and engineering requirement |
|---|---|
| Drawing | Confirm part number and revision |
| Thread | Confirm designation and tolerance |
| Geometry | Compare head, length, bearing features and critical dimensions |
| Material | Confirm specified material requirements |
| Mechanical properties | Confirm applicable property class or test criteria |
| Surface treatment | Compare coating and friction-related requirements |
| Assembly | Review tightening and mating-component compatibility |
| Functional performance | Define required joint validation |
| Quality | Agree inspection, records and change control |
| Commercial terms | Confirm MOQ, lead time, annual volume and packaging |
The purpose of second-source qualification is not simply to identify a visually similar fastener.
It is to establish a controlled alternative that satisfies the required technical and production conditions.
Fastener procurement decisions should consider the complete installed cost.
Relevant cost factors may include:
Fastener unit price
Nut or washer requirements
Installation tooling
Assembly cycle time
Inspection
Rework
Scrap
Packaging
Production interruptions
Service requirements
For example, a flange-head fastener may eliminate a separate washer in an appropriately designed joint.
However, the actual benefit depends on the approved assembly and manufacturing process.
Similarly, changing a fastener coating to reduce purchase cost may introduce tightening revalidation or quality-control requirements.
The best commercial decision should account for both engineering conformity and manufacturing efficiency.
A structured selection process helps engineering, production and procurement teams work from the same requirements.
Define the vehicle application
Identify the assembly, connected components and intended function.
Establish the load path
Determine axial, shear, bending, vibration, fatigue and shock requirements.
Evaluate the parent materials
Review steel, aluminum, stainless steel, polymers or mixed-material interfaces.
Select the fastening architecture
Choose the appropriate bolt, nut, stud, screw, threaded insert, clamp or specialized component.
Define geometry and threads
Specify dimensions, thread system, tolerance, engagement and bearing interfaces.
Define material and mechanical requirements
Identify applicable standards, property classes and customer specifications.
Define the surface treatment
Specify corrosion protection and friction-related requirements where relevant.
Define the assembly process
Establish tightening method, tools, lubrication and process controls.
Validate the complete joint
Use representative components and assembly conditions for the required verification.
Release the controlled RFQ
Provide the approved drawing, technical specification, quality requirements and commercial information.
This sequence connects engineering design with production repeatability and supplier qualification.
A high-strength designation should be supported by a defined material and mechanical property specification applicable to the product. The term alone does not establish the bolt's performance.
No. A higher property class may not improve a joint limited by thread stripping, panel deformation, insufficient preload or another failure mechanism.
Coatings can change thread and bearing-surface friction, affecting the relationship between applied torque and resulting preload.
Only after confirming the mechanical, corrosion, temperature and joint requirements. Stainless steel is not automatically a direct mechanical replacement.
No. ISO metric and Unified thread systems use different specifications and must be treated separately.
A flange bolt integrates a bearing feature into the fastener. A separate washer provides a distinct component and interface. Their suitability depends on the approved joint design.
Selection should begin with the actual hose, fitting, working diameter, material, temperature, fluid exposure and required compression behavior.
The controlled drawing, thread, geometry, material, mechanical requirements, coating, assembly conditions, quality documentation and relevant validation requirements should be provided.
A part number may help identify a product, but a controlled drawing or complete technical specification is preferable for reliable OEM comparison.

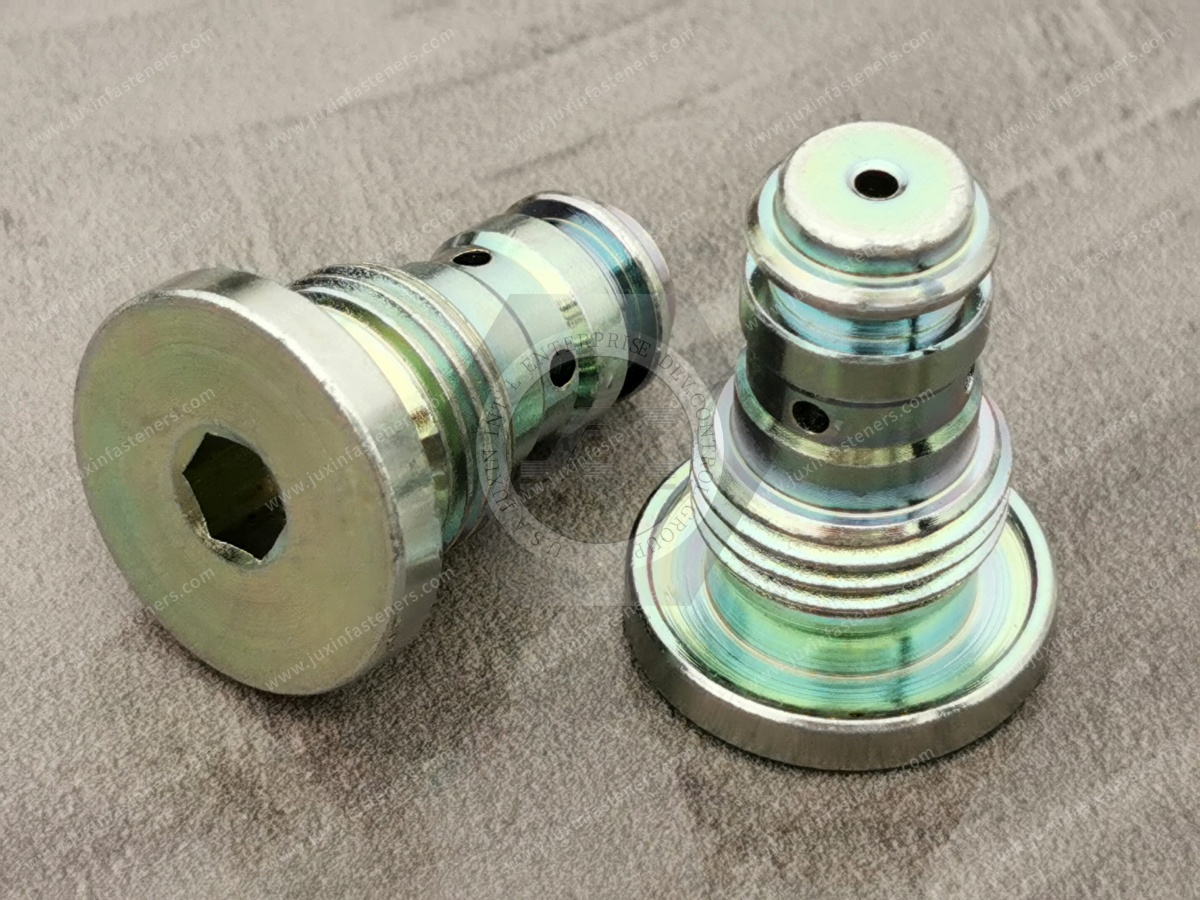

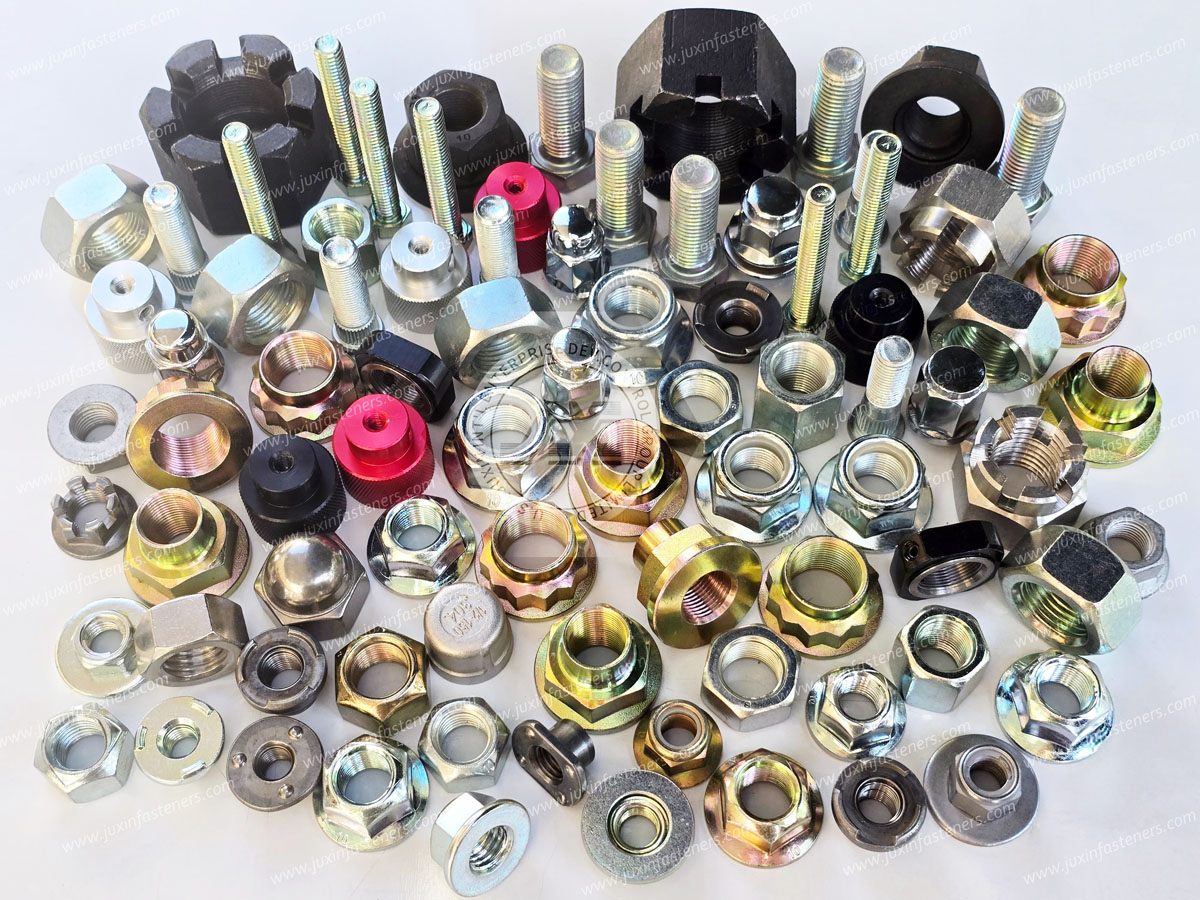

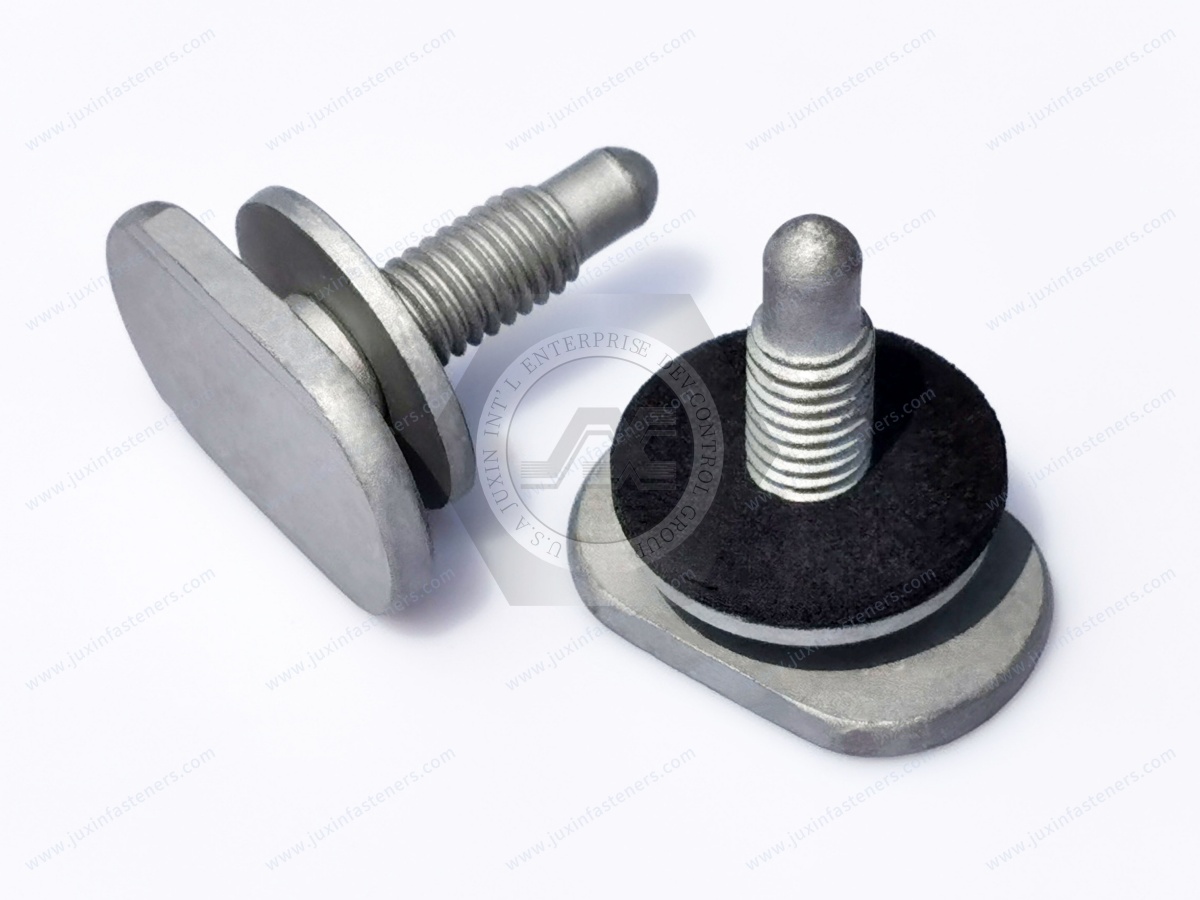

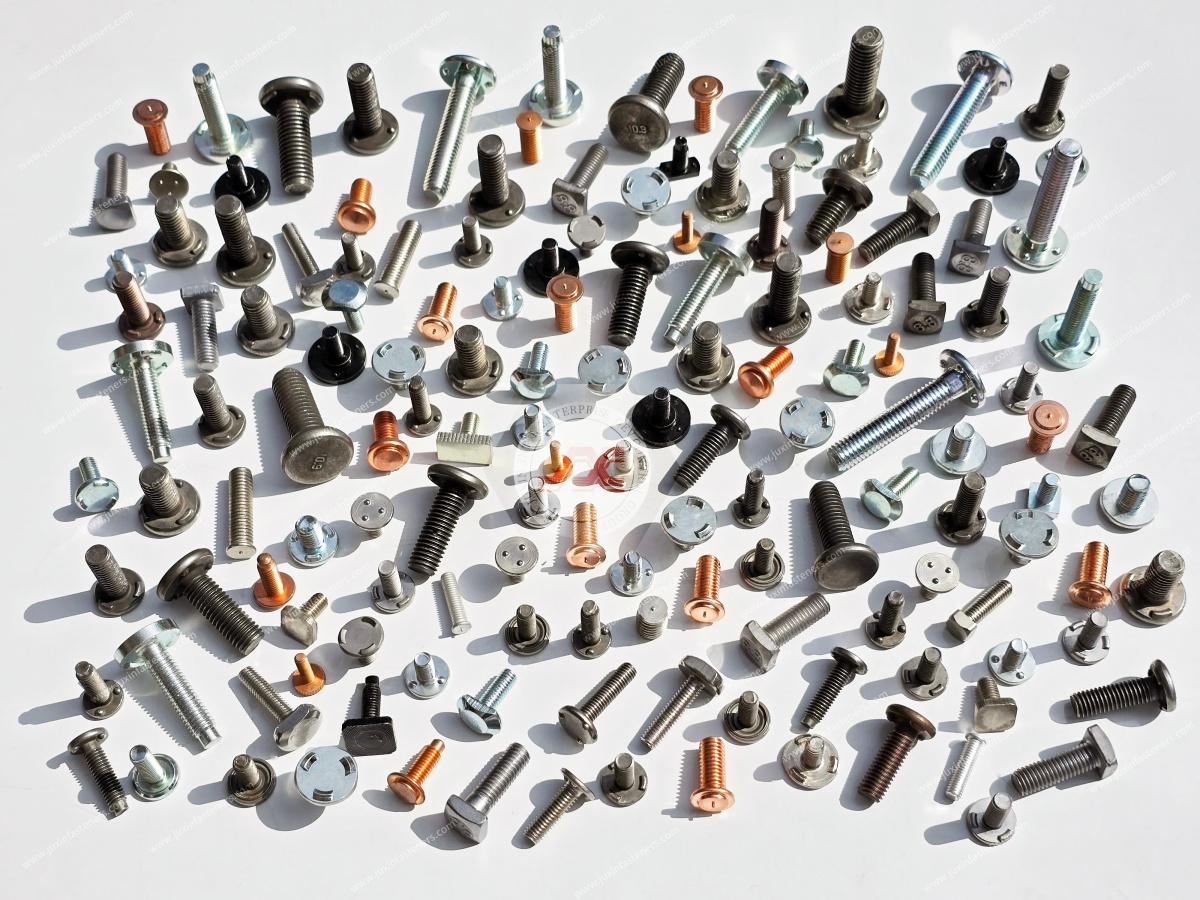

JUXIN FASTENERS supports industrial and automotive customers sourcing high-strength bolts, nuts, studs, double-ended studs, screws, stainless steel fasteners, clamps and customized fastening components.
Whether your project involves a new automotive assembly, replacement fastener, production cost review or second-source qualification, a clear technical specification helps establish the appropriate solution.
For engineering evaluation and quotation, please provide:
2D drawing and available 3D model
Part number and drawing revision
Fastener type and geometry
Thread designation and tolerance
Material and mechanical property requirements
Surface treatment and corrosion requirements
Mating components and parent materials
Joint loading and service conditions
Tightening method or assembly requirements
Temperature and vibration requirements
Applicable OEM specifications
Required inspection and documentation
Prototype and annual production quantities
Packaging and delivery requirements
For hose, pipe or wire harness clamps, include the relevant component dimensions, material and operating conditions.
For second-source projects, provide the existing controlled specification and identify any characteristics that must remain unchanged.
Company: JUXIN FASTENERS
Website: https://www.juxinfasteners.com/
Email: info@juxinfasteners.com
Send your automotive fastener drawings and OEM RFQ to JUXIN FASTENERS for technical review, product selection and industrial sourcing discussions.
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
