Automotive threaded fasteners are essential components in vehicle manufacturing, providing removable and serviceable mechanical connections across structural assemblies,

 powertrain-related equipment, body panels, battery systems and electronic modules.

A modern vehicle may contain many different types of threaded connections. Some require high-strength bolts and controlled preload.

Others use weld nuts for automated body assembly, rivet nuts for thin sheet metal, self-tapping screws for selected housings or specialized locking nuts for vibration-sensitive joints.

The correct automotive fastener is not necessarily the strongest or most expensive option.

It is the component that meets the joint's mechanical requirements while remaining compatible with the materials, installation process, production volume and service conditions.

For design, structural and mechanical engineers, the priorities include joint geometry, load transfer, material compatibility, thread engagement and mechanical reliability.

Manufacturing engineers and production managers must also consider installation access, fastening cycle time, tool selection, process variation, rework and repeatable assembly quality.

Procurement and supplier development teams require clear specifications, approved alternatives, inspection requirements and dependable supply arrangements.

This guide explains how to select automotive screws, bolts, nuts and threaded inserts for OEM vehicle manufacturing and related industrial applications.

Why Threaded Connections Matter in Automotive Manufacturing

Threaded fastening allows components to be joined using screws, bolts, nuts or internal threaded features.

Compared with permanent joining methods, threaded connections can offer important advantages when designed appropriately:

• Removable joints for maintenance and repair

• Defined clamp-load capability

• Compatibility with modular assembly

• Opportunities for automated installation

• Replacement of individual components

• Flexible product and service design

However, threaded joints introduce design requirements that must be controlled throughout manufacturing and vehicle operation.

These include preload, friction, joint stiffness, thread engagement, corrosion, vibration and thermal expansion.

Engineering Principle

A threaded connection should be designed as a complete mechanical system rather than evaluated solely by the nominal strength of the screw.

Automotive Screws, Bolts and Nuts: Understanding the Product Categories

Automotive fastening systems use different threaded components according to the application.

Engineering Recommendation

Choose the fastening architecture before finalizing fastener dimensions, materials and coatings.

High Strength Automotive Screws and Bolts

Carbon steel and alloy steel screws are used in many automotive mechanical assemblies.

Applicable metric mechanical-property classes may include:

• Class 8.8

• Class 10.9

• Class 12.9

These are property classes under ISO 898-1 for applicable bolts, screws and studs.

Important Engineering Distinction

Higher property class does not automatically provide better fatigue performance, corrosion resistance or vibration resistance.

A higher-strength bolt may also require stronger mating threads, different tightening controls or additional coating-process precautions.

Engineering Recommendation

Specify the required mechanical-property class according to joint loads, preload requirements, mating materials and approved OEM specifications.

Automotive Hex Head Screws

Hex head screws and bolts are commonly used where external wrench or socket access is available.

Potential applications include:

• Mechanical equipment mounting

• Engine accessories

• Industrial vehicle assemblies

• Structural brackets

• Selected chassis-related connections

The correct design depends on head geometry, thread length, grip length, tool access and the location of any shear plane.

Engineering Recommendation

Confirm whether a fully threaded screw or partially threaded bolt is required rather than treating them as identical.

Automotive Hex Flange Bolts

Flange bolts combine a hex head with an integrated flange beneath the head.

The flange may provide a larger bearing area and reduce the need for a separate washer in suitable designs.

Potential Production Advantages

• Reduced component handling

• Fewer loose parts at the assembly station

• Potentially shorter fastening cycle time

• Simplified feeding and installation

• Controlled bearing geometry

Important Limitation

A flange does not automatically eliminate the need for a washer or provide vibration resistance.

Engineering Recommendation

Evaluate bearing pressure, mating surface material and torque-tension behavior before approving a flange-bolt substitution.

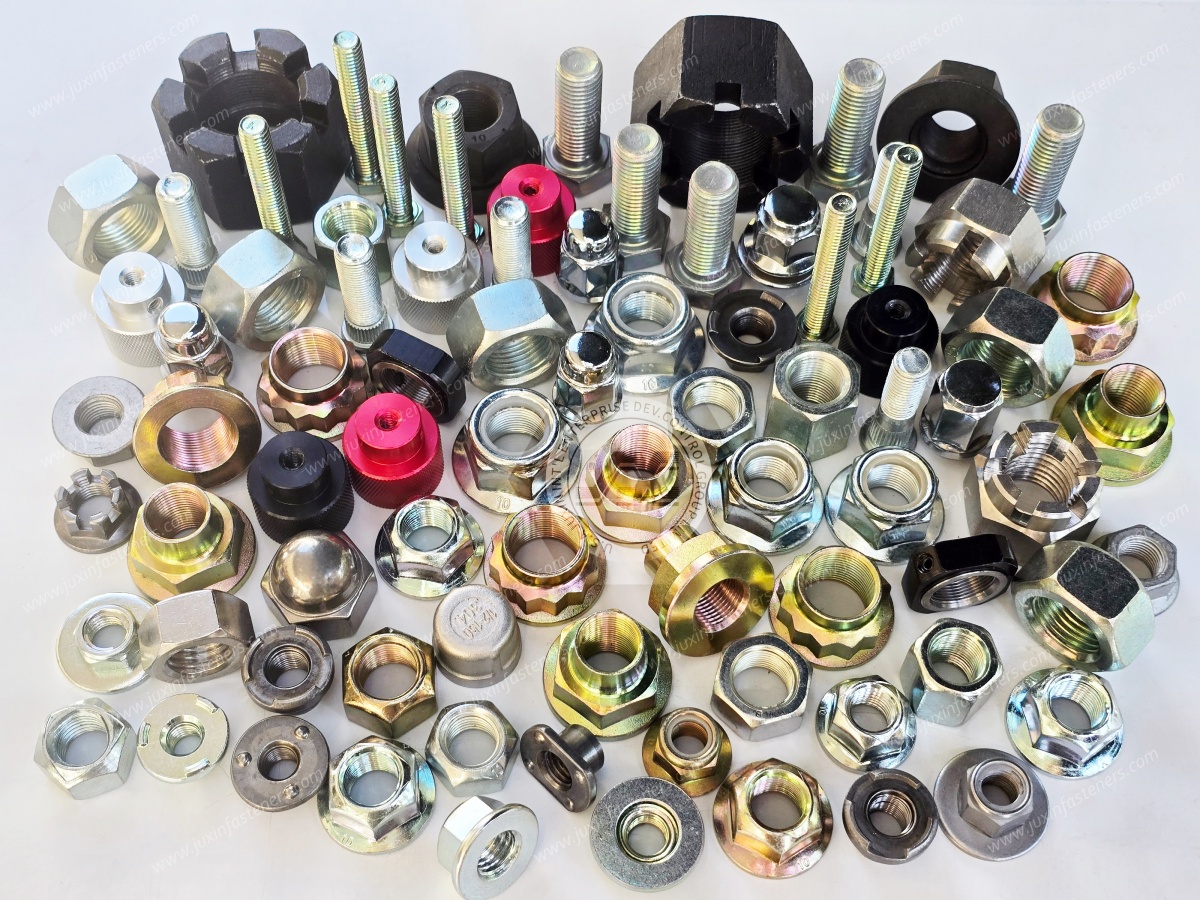

Automotive Nuts and Locking Nuts

Automotive threaded assemblies may use conventional hex nuts, flange nuts, prevailing torque nuts or application-specific locking nuts.

Nylon Insert Lock Nuts

A nylon insert provides prevailing torque through interference with the mating thread.

These nuts may be suitable for selected applications where operating temperature and other service conditions are compatible with the locking element.

All-Metal Prevailing Torque Nuts

All-metal locking nuts use a controlled mechanical interference feature.

They may be considered for applications where a polymer locking element is unsuitable.

Flange Nuts

Flange nuts incorporate a bearing flange that can simplify selected assemblies.

Important Engineering Limitations

• Prevailing torque is not the same as joint preload.

• Reuse can change locking performance.

• Temperature can affect polymer locking elements.

• Serrated bearing surfaces may damage certain mating materials.

• Not every locking nut is appropriate for every safety-critical joint.

Engineering Recommendation

Specify the nut's mechanical-property class, locking characteristics, installation requirements and reuse restrictions where applicable.

Weld Nuts for Automotive Body Assembly

Weld nuts provide an internally threaded fastening point attached to a suitable metal structure.

They are widely considered in vehicle body and sheet-metal assembly designs.

Potential Applications

• Body brackets

• Door structures

• Seat-related mounting structures

• Equipment supports

• Weldable sheet-metal components

Engineering Considerations

• Base-metal weldability

• Sheet thickness

• Weld-nut geometry

• Welding process

• Position tolerance

• Thread protection

• Joint loading

Information Gain: Weld-Nut Location Accuracy Can Be as Important as Thread Strength

A weld nut may meet its mechanical requirements but still cause assembly problems if its position is inconsistent with the mating component.

Production Recommendation

Control weld-nut position, orientation and thread condition as part of the assembly process.

Rivet Nuts for Automotive Thin Sheet Metal

Rivet nuts, also known as blind rivet nuts or threaded rivet inserts, create internal threads in suitable thin-walled components.

They are especially useful when access is available from only one side of the assembly.

Potential Applications

• Automotive body panels

• Equipment brackets

• Battery-related enclosures

• Lightweight structures

• Industrial vehicle housings

Engineering Considerations

• Sheet thickness

• Grip range

• Hole diameter

• Hole tolerance

• Material hardness

• Installation force

• Pull-out resistance

• Torque-out resistance

Important Limitation

A rivet nut does not automatically provide the same strength as a welded nut or a solid tapped component.

Information Gain: Rivet-Nut Installation Quality Depends on the Parent Material

A rivet nut may perform differently in steel, aluminum and other sheet materials even when its nominal thread size is unchanged.

Engineering Recommendation

Validate the selected rivet nut using the actual sheet material, thickness and installation equipment.

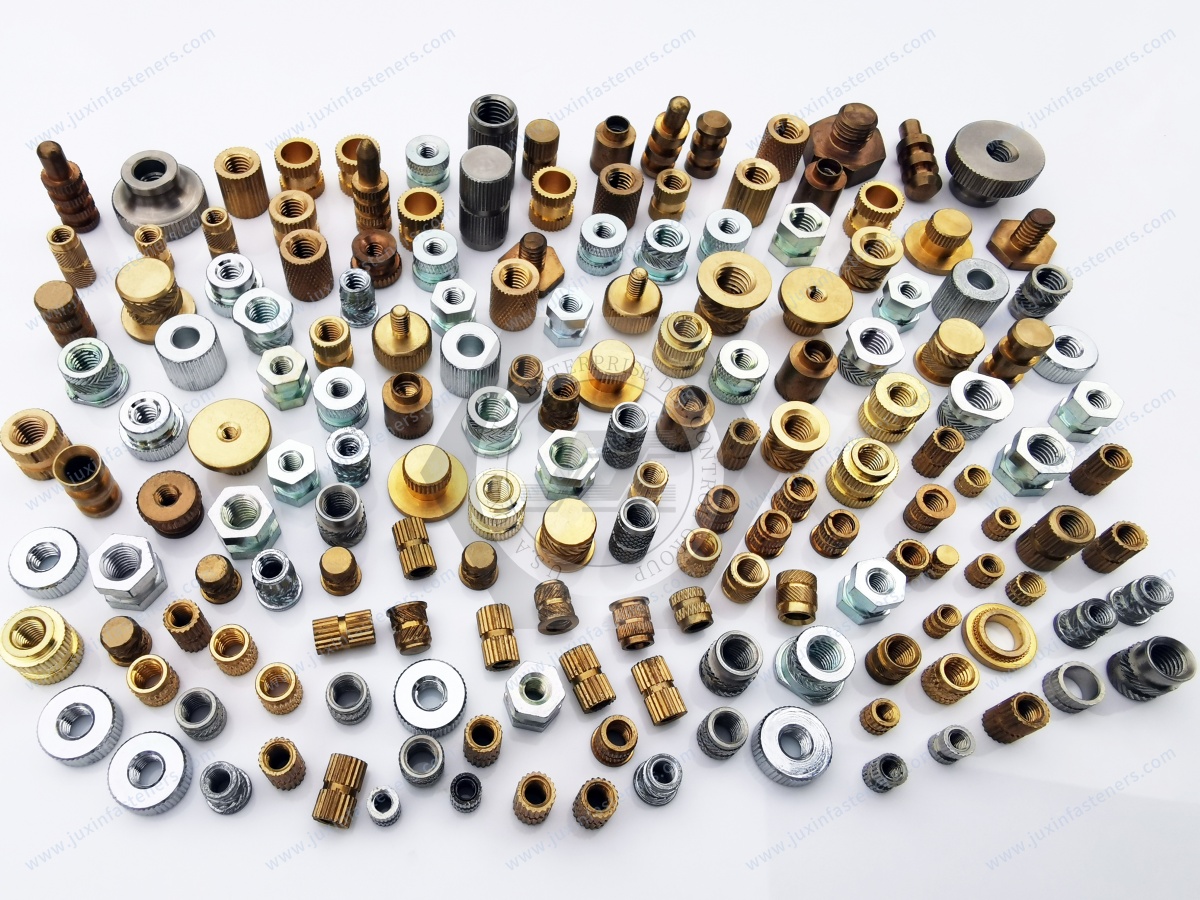

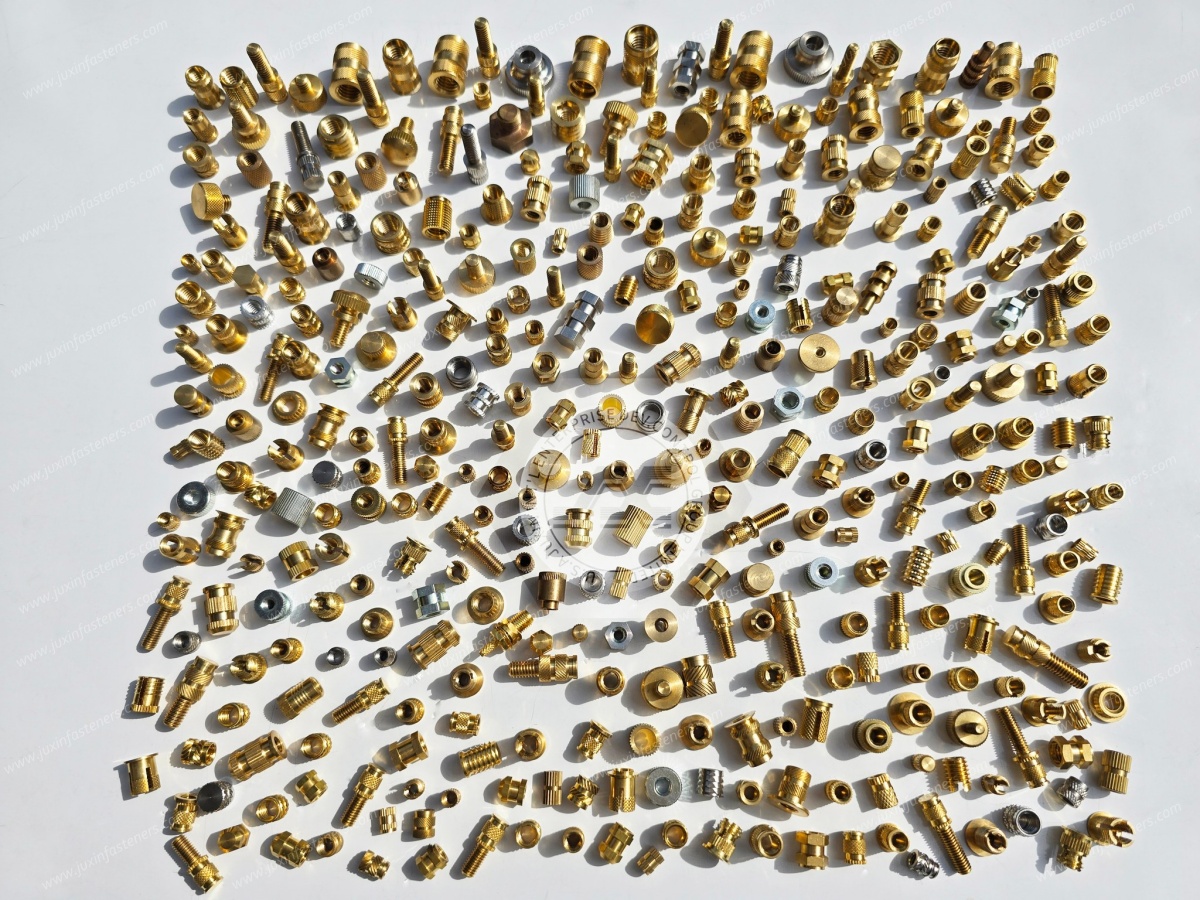

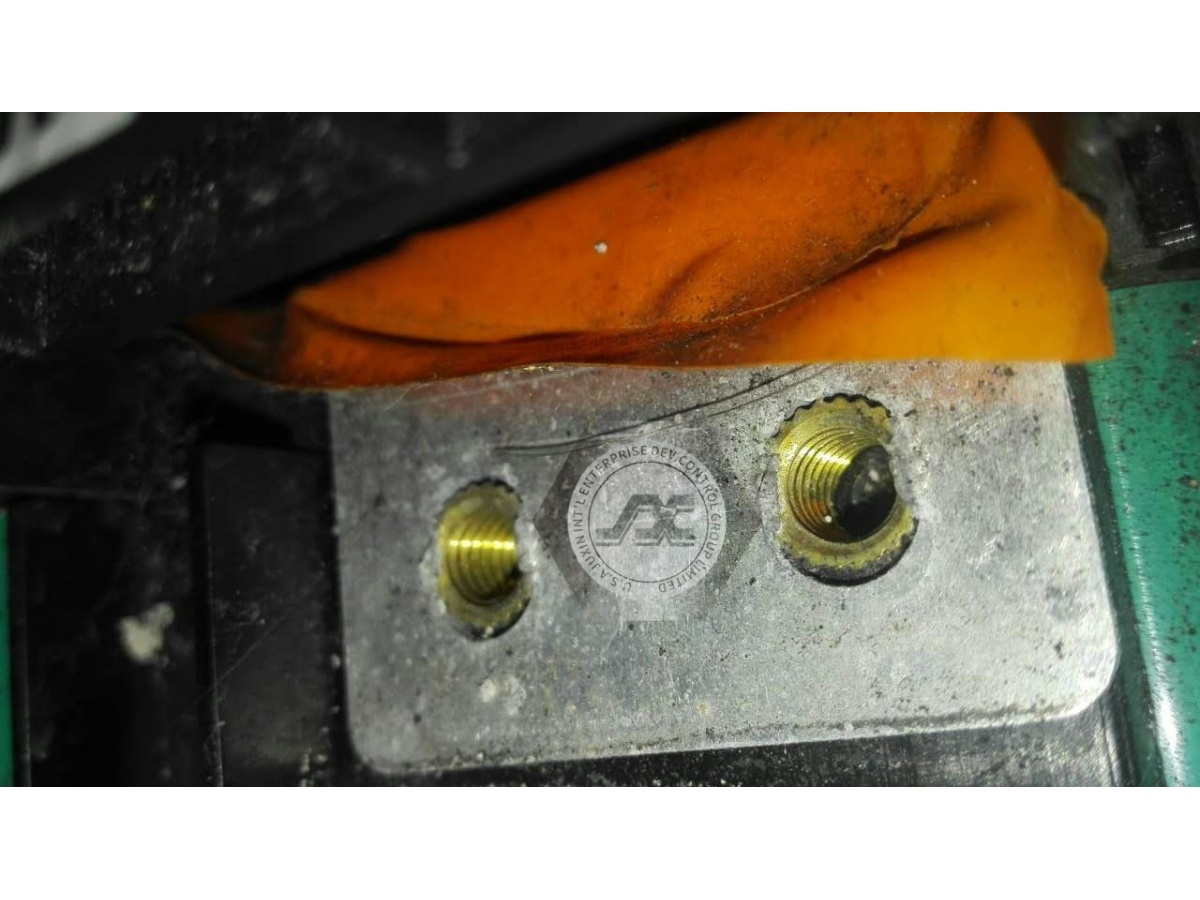

Threaded Inserts for Lightweight Automotive Materials

Automotive manufacturers use aluminum alloys, engineering plastics and other lightweight materials in suitable applications.

Threaded inserts can provide defined internal threaded connections in these materials.

Potential applications include:

• Plastic housings

• Interior assemblies

• Electronic modules

• Lightweight mechanical components

• Selected battery-related equipment

Engineering Considerations

• Parent material properties

• Insert geometry

• Installation method

• Pull-out strength

• Torque-out strength

• Thermal expansion

• Repeated assembly requirements

Important Limitation

Different insert technologies are not directly interchangeable.

Engineering Recommendation

Select the insert type according to the parent material and the actual manufacturing process.

Self-Tapping Screws for Automotive Components

Self-tapping screws are used in selected automotive applications where the mating material and joint design permit thread formation during installation.

Potential applications include:

• Interior components

• Plastic housings

• Selected sheet-metal components

• Equipment covers

• Non-structural brackets

Engineering Considerations

• Pilot-hole diameter

• Material thickness

• Thread-forming or thread-cutting mechanism

• Installation torque

• Strip torque

• Repeated assembly requirements

Information Gain: Installation Torque and Strip Torque Must Be Evaluated Together

A self-tapping screw may require enough torque to form a thread but can damage the mating material if the installation process exceeds its capacity.

Production Recommendation

Validate the installation window using the actual component material and geometry.

Automotive Engine and Powertrain Threaded Connections

Engine-related equipment may experience elevated temperatures, vibration and cyclic mechanical loading.

Potential applications include:

• Engine accessories

• Mechanical housings

• Intake-related components

• Transmission-related assemblies

• Equipment brackets

Engineering Considerations

• Operating temperature

• Thermal expansion

• Joint stiffness

• Preload retention

• Fatigue

• Corrosion

• Maintenance access

Important Limitation

Cylinder-head bolts and other highly specialized powertrain fasteners may require application-specific materials, tightening methods and validation.

Engineering Recommendation

Do not substitute general-purpose high-strength bolts into specialized engine joints without OEM approval.

Automotive Chassis and Suspension Fasteners

Chassis and suspension assemblies may require high-strength threaded connections with controlled preload and fatigue performance.

Potential applications include:

• Subframe-related joints

• Mechanical brackets

• Selected suspension connections

• Steering-related equipment

• Structural support assemblies

Critical Safety Requirement

Safety-critical chassis, steering and braking joints require approved OEM specifications and application-specific validation.

Engineering Recommendation

Do not change property class, coating, locking method or fastener geometry without formal engineering approval.

Automotive Wheel Fastening Systems

Wheel fastening is a specialized safety-critical application.

Depending on vehicle architecture, the system may use:

• Wheel bolts

• Wheel studs

• Lug nuts

• Application-specific wheel-end components

Engineering Considerations

• Wheel-seat geometry

• Thread engagement

• Clamp load

• Tightening procedure

• Corrosion

• Joint settlement

Important Limitation

Conical-seat, spherical-seat and flat-seat wheel fasteners are not directly interchangeable.

Fine-thread selection alone does not guarantee vibration resistance.

Engineering Recommendation

Use the approved vehicle and wheel manufacturer's specifications for wheel fastening.

Automotive Body Assembly Fasteners

Vehicle body structures may use several threaded fastening technologies.

Potential applications include:

• Doors

• Hood assemblies

• Interior structures

• Body panels

• Equipment brackets

Possible Fastener Solutions

• Flange bolts

• Machine screws

• Weld nuts

• Rivet nuts

• Self-tapping screws

• Locking nuts

Information Gain: The Best Body Fastener Depends on Access and Assembly Sequence

A weld nut may be appropriate when welding is available before final assembly.

A rivet nut may be preferable where only one-sided access is available.

A self-tapping screw may simplify selected low-load assemblies where the parent material supports reliable thread formation.

Production Recommendation

Consider the complete manufacturing sequence before choosing the fastener.

Automotive Electronics and Electrical Equipment

Modern vehicles contain electronic control units, sensors, communication modules and power electronics.

Threaded fasteners may be used for:

• Electronic housings

• Equipment brackets

• Control modules

• Electrical cabinets

• Mechanical supports

• Battery-related components

Engineering Considerations

• Compact geometry

• Installation access

• Corrosion

• Thermal cycling

• Electrical isolation

• Mechanical retention

Important Limitation

Mechanical fastening does not automatically establish electrical bonding, conductivity or high-voltage safety compliance.

Engineering Recommendation

Coordinate mechanical fastening requirements with the electrical design.

EV Battery Enclosures and Lightweight Structures

EV battery-related equipment may combine aluminum structures, steel brackets, sheet-metal components and polymer housings.

Potential fastening solutions include:

• High-strength bolts

• Flange screws

• Weld nuts

• Rivet nuts

• Threaded inserts

• Application-specific locking nuts

Engineering Considerations

• Dissimilar material contact

• Thermal expansion

• Joint stiffness

• Vibration

• Corrosion

• Service access

• Assembly sequence

Information Gain: Lightweight Materials Can Shift the Failure Mode Away From the Fastener

A high-strength bolt may remain intact while the aluminum thread, thin sheet or insert interface fails.

Engineering Recommendation

Evaluate the parent material and fastening interface rather than selecting a higher property class by default.

Preload and Clamp Load in Automotive Threaded Joints

Preload is the tensile force developed in a bolt or screw during tightening.

The resulting clamp force helps hold the joint members together.

Why Preload Matters

Appropriate preload can help:

• Maintain joint contact

• Reduce joint separation

• Support load transfer

• Improve connection stability

• Reduce certain fatigue-related risks

Important Limitation

Excessive preload can damage fasteners, internal threads or clamped components.

Engineering Recommendation

Define the preload requirements according to the complete joint design.

Torque-Tension Relationship and Friction Variation

Tightening torque is commonly used to develop preload.

However, torque is not a direct measurement of clamp load.

The relationship depends on:

• Thread friction

• Bearing surface friction

• Coating

• Lubrication

• Mating components

• Installation method

• Joint geometry

Information Gain: Two Screws With Identical Dimensions and Strength Can Produce Different Clamp Loads

A coating or lubrication change may alter friction and preload.

Production Recommendation

Validate tightening parameters using representative production components.

Vibration Loosening and Locking Solutions

Automotive threaded joints may experience vibration, impact and thermal cycling.

Potential locking solutions include:

• Nylon insert lock nuts

• All-metal prevailing torque nuts

• Suitable flange fasteners

• Thread-locking coatings

• Mechanical locking devices

• Application-specific locking features

Important Engineering Limitation

No single locking method is suitable for every automotive application.

Engineering Recommendation

Select the locking method according to service temperature, preload, joint geometry and required validation.

Why Fine Threads Are Not Automatically More Vibration-Resistant

Fine threads may offer geometric advantages in selected applications.

However, vibration resistance depends on the complete joint.

Important Engineering Limitation

A fine-thread screw is not inherently self-locking.

Engineering Recommendation

Do not rely on thread pitch alone as an anti-loosening strategy.

Corrosion Protection for Automotive Threaded Fasteners

Automotive fasteners may be exposed to moisture, road salt, chemicals and temperature variation.

Suitable surface treatments depend on the application.

Zinc Electroplating

Used for corrosion protection in selected industrial and automotive applications.

Zinc-Nickel Coating

Used in selected automotive applications requiring defined corrosion performance.

Zinc-Flake Coating

Used in selected automotive and industrial fastening systems.

Important Engineering Considerations

• Coating thickness

• Thread fit

• Corrosion requirements

• Friction behavior

• Process compatibility

• Hydrogen embrittlement risk

Important Limitation

A coating name alone does not establish a specific corrosion-performance level.

Engineering Recommendation

Specify the complete coating system and acceptance criteria.

Hydrogen Embrittlement in High Strength Automotive Fasteners

Hydrogen embrittlement is an important consideration for susceptible high-strength steel fasteners.

Potential contributing factors include:

• Material strength and hardness

• Hydrogen-generating processing

• Certain electroplating operations

• Sustained tensile stress

• Aggressive service environments

Important Engineering Limitation

Not every high-strength automotive fastener will experience hydrogen embrittlement.

Engineering Recommendation

Review the complete material and coating process for susceptible fasteners.

Common Automotive Threaded Joint Failure Modes

Thread Stripping

May occur when the mating thread lacks sufficient strength or engagement.

Fastener Fracture

May result from overload, fatigue or other contributing conditions.

Preload Loss

May result from joint settlement, relaxation or incorrect tightening.

Vibration Loosening

May occur when joint movement and preload conditions permit rotation.

Corrosion Damage

May affect thread condition and long-term reliability.

Insert Pull-Out or Torque-Out

May occur when an insert is unsuitable for the parent material or installation conditions.

Engineering Recommendation

Investigate the complete joint and assembly process when diagnosing failures.

Manufacturing Engineering: Improving Automotive Assembly Efficiency

Production managers and manufacturing engineers must balance fastening reliability with assembly efficiency.

Important Production Variables

• Fastener geometry

• Thread specification

• Coating condition

• Mating components

• Installation access

• Tool selection

• Tightening strategy

• Feeding and handling

• Inspection

• Traceability

Potential Production Problems

• Cross-threading

• Incorrect fastener selection

• Insufficient preload

• Excessive preload

• Damaged drive features

• Insert installation defects

• Rework

Information Gain: Reducing Fastener Count Does Not Always Reduce Total Assembly Cost

A design using fewer fasteners may still require more complex tooling, tighter tolerances or additional inspection.

Production Recommendation

Evaluate total installed cost rather than only fastener quantity.

Automated Fastener Installation and Process Control

Automated assembly may use:

• Screw feeding systems

• Torque-controlled tools

• Torque-angle monitoring

• Positioning fixtures

• Error-proofing systems

• Inspection stations

Important Engineering Limitation

Automation does not automatically eliminate fastening defects.

Production Recommendation

Validate the process using actual production components and defined acceptance criteria.

International Standards for Automotive Threaded Fasteners

Relevant standards depend on the actual fastener type and application.

ISO 898-1

Mechanical properties of applicable carbon steel and alloy steel bolts, screws and studs.

ISO 898-2

Mechanical properties of applicable nuts with specified property classes.

ISO 3506 Series

Mechanical properties of applicable corrosion-resistant stainless steel fasteners.

ISO 965 Series

Tolerances for ISO general-purpose metric screw threads.

ISO 16047

Torque/clamp force testing for threaded fasteners within its applicable scope.

ISO 4042

Electroplated coating systems for fasteners within its applicable scope.

ISO 10683

Non-electrolytically applied zinc-flake coating systems for fasteners within its applicable scope.

Important Standards Principle

Dimensional requirements, mechanical-property requirements, coating specifications and OEM approval requirements are separate elements.

Engineering Recommendation

Identify the applicable standards according to the actual product and approved customer drawing.

Metric and Inch-Series Thread Compatibility

Metric threads, UNC threads, UNF threads, BSW threads and BSF threads belong to different thread systems.

They are not directly interchangeable.

Approximate inch conversions are reference values only.

Engineering Recommendation

Confirm the full thread designation, tolerance and mating component before approving an alternative fastener.

Automotive Fastener Supplier Qualification

Procurement and supplier development teams should evaluate technical conformity and commercial suitability.

Product Definition

• Approved drawing or standard

• Part number and revision

• Fastener geometry

• Thread designation

• Material requirements

• Mechanical-property class

• Surface treatment

• Installation requirements

Quality Requirements

• Dimensional inspection

• Thread verification

• Mechanical-property testing where applicable

• Coating verification

• Functional testing where specified

• Material documentation

• Change control

Production Requirements

• Prototype quantities

• Production batch quantities

• Annual demand

• Packaging

• Traceability where required

• Delivery schedule

Commercial Requirements

• MOQ

• Lead time

• Pricing structure

• Supply continuity

• Approved substitutions

Information Gain: Supplier Qualification Must Include the Mating Joint

A fastener may meet dimensional and mechanical requirements but still perform differently when coating friction, insert installation or mating-thread conditions change.

Procurement Recommendation

Evaluate fastener conformity and joint-level performance separately.

OEM Drawing Review and Custom Automotive Fasteners

Custom automotive fastening projects should begin with a complete technical definition.

Recommended RFQ Information

• Approved drawing

• Part number and revision

• Fastener type

• Nominal diameter and thread pitch

• Length and geometry

• Material specification

• Mechanical-property requirements

• Surface coating

• Mating material and thickness

• Installation method

• Service environment

• Inspection requirements

• Prototype quantity

• Annual demand

• Target delivery schedule

Important Limitation

Custom dimensions, manufacturing processes, documentation and production schedules require technical and commercial confirmation.

Frequently Asked Questions

What are automotive threaded fasteners?

They are screws, bolts, nuts and threaded components used to create removable mechanical connections in vehicle assemblies.

Which automotive fasteners are suitable for thin sheet metal?

Depending on the design, weld nuts, rivet nuts or suitable self-tapping screws may be considered.

Are Class 10.9 bolts suitable for every automotive application?

No. The correct property class depends on the joint design and approved OEM specification.

Do flange bolts prevent vibration loosening?

Not automatically. Flange geometry does not replace joint-level locking validation.

Can nylon insert lock nuts be reused?

Reuse depends on the product specification, locking performance and application requirements.

Are rivet nuts suitable for EV battery enclosures?

They may be suitable for selected designs, subject to parent-material, installation and joint-performance validation.

Why do automotive screws loosen?

Potential causes include insufficient preload, joint settlement, friction variation, vibration and incompatible components.

Can automotive fastener coatings affect installation torque?

Yes. Coating and lubrication changes can alter friction and resulting clamp load.

What information should be included in an automotive fastener RFQ?

Provide the approved drawing, material, thread, geometry, coating, installation requirements, quantities and quality criteria.

Juxin Fasteners: Automotive Screws, Nuts and OEM Threaded Fastening Solutions

Juxin Fasteners supplies industrial and automotive fastening components for OEM manufacturing applications.

Relevant product categories include:

• Automotive hex head screws

• Automotive flange bolts

• High-strength metric screws

• Machine screws

• Self-tapping screws

• Flange nuts

• Nylon insert lock nuts

• All-metal locking nuts

• Weld nuts

• Rivet nuts

• Threaded inserts

• Custom OEM threaded fasteners

Specific dimensions, materials, mechanical-property classes, manufacturing methods, coatings, inspection documentation, samples,

 MOQ and delivery schedules are subject to technical and commercial confirmation.

Safety-critical automotive applications require customer-approved specifications and application-specific validation before production use.

Request an Automotive Threaded Fastener RFQ

Are you developing a new automotive assembly, improving production-line fastening efficiency or qualifying an alternative OEM fastener supplier?

Do you need hex head screws, flange bolts, locking nuts, weld nuts, rivet nuts or drawing-specific threaded components?

Juxin Fasteners welcomes drawing-based inquiries from automotive design engineers, structural engineers, manufacturing teams,

production managers, procurement specialists and supplier development teams.

For technical review and quotation, please provide:

Approved drawing or standard + part number and revision + fastener type + nominal diameter and thread designation + geometry and length

+ material specification + mechanical-property class + coating requirements + mating material and thickness

+ installation method + preload or torque requirements + service environment + inspection criteria + prototype quantity + annual demand + batch size + packaging + target delivery schedule.

Company: Juxin Fasteners

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your automotive threaded fastener drawings and OEM RFQ to Juxin Fasteners for technical review, product selection and quotation.
