Oct. 16, 2023
Bearing retaining rings are compact mechanical fasteners used to provide axial retention of bearings on shafts or inside housings.
Depending on the assembly architecture, they may also be called bearing circlips, bearing snap rings, bearing retaining clips, external circlips or internal circlips.
Unlike threaded locknuts, end plates or bolted bearing retainers, a retaining ring fits into a machined groove and creates a mechanical shoulder that limits axial movement.
This makes retaining rings particularly useful where engineers need:
Compact axial packaging
Low component count
Rapid assembly
Removable bearing retention
Standardized shaft or housing designs
Cost-efficient high-volume production
However, a bearing retaining ring should not be selected from nominal diameter alone.
The complete retention system should be evaluated as:
Bearing + Retaining Ring + Groove + Shaft or Housing + Axial Load + Tolerance Stack + Installation Method + Operating Environment
For OEM engineers and purchasing teams, understanding this relationship is critical when specifying or sourcing bearing retaining rings for automotive,
EV, industrial machinery, robotics, rail transit, electrical equipment, HVAC, telecommunications equipment, semiconductor equipment and other engineered assemblies.
A bearing retaining ring is a spring-type mechanical fastener installed into a groove on a shaft or inside a housing to create an axial stop for a bearing.
Two basic architectures are commonly encountered:

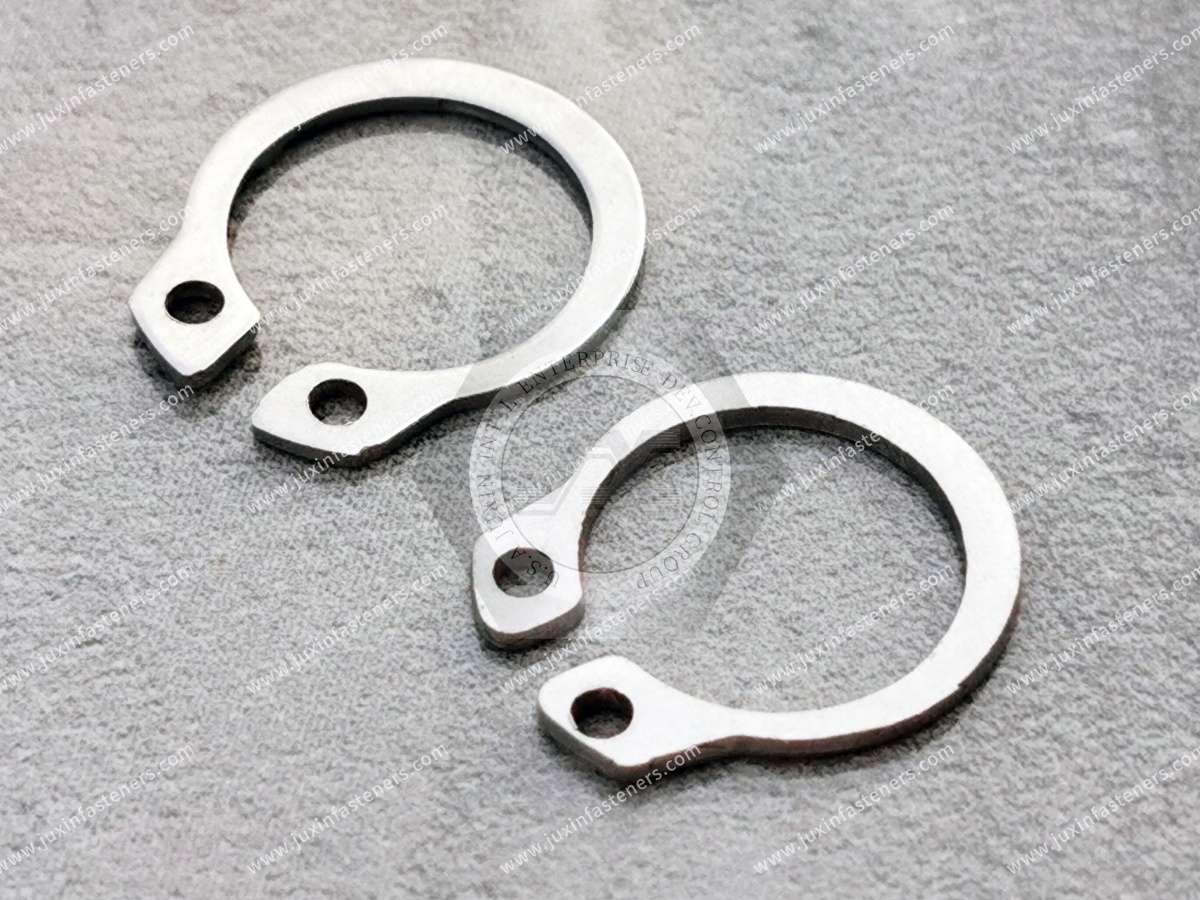

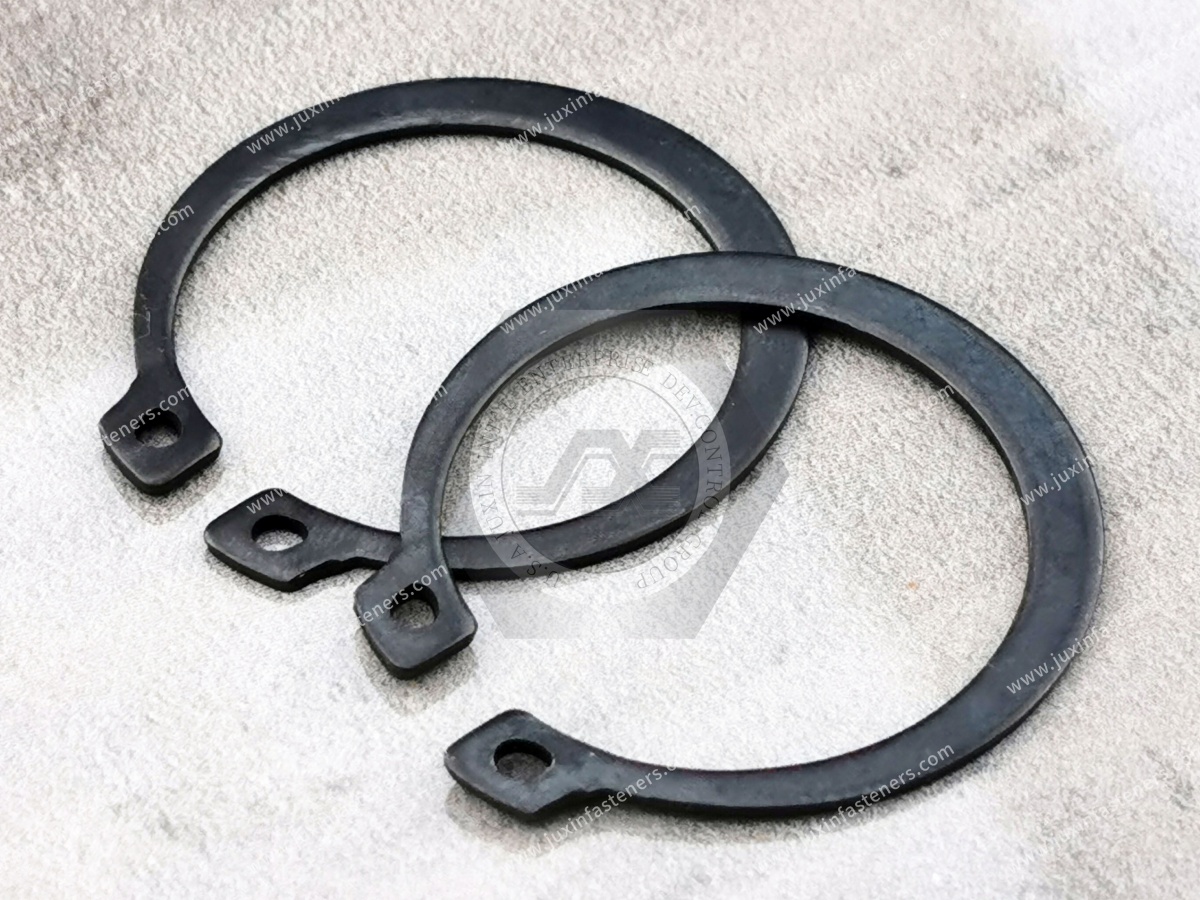

An external retaining ring is installed in a groove around the outside diameter of a shaft.
The ring can provide an axial stop for a bearing inner ring or another component mounted on the shaft.

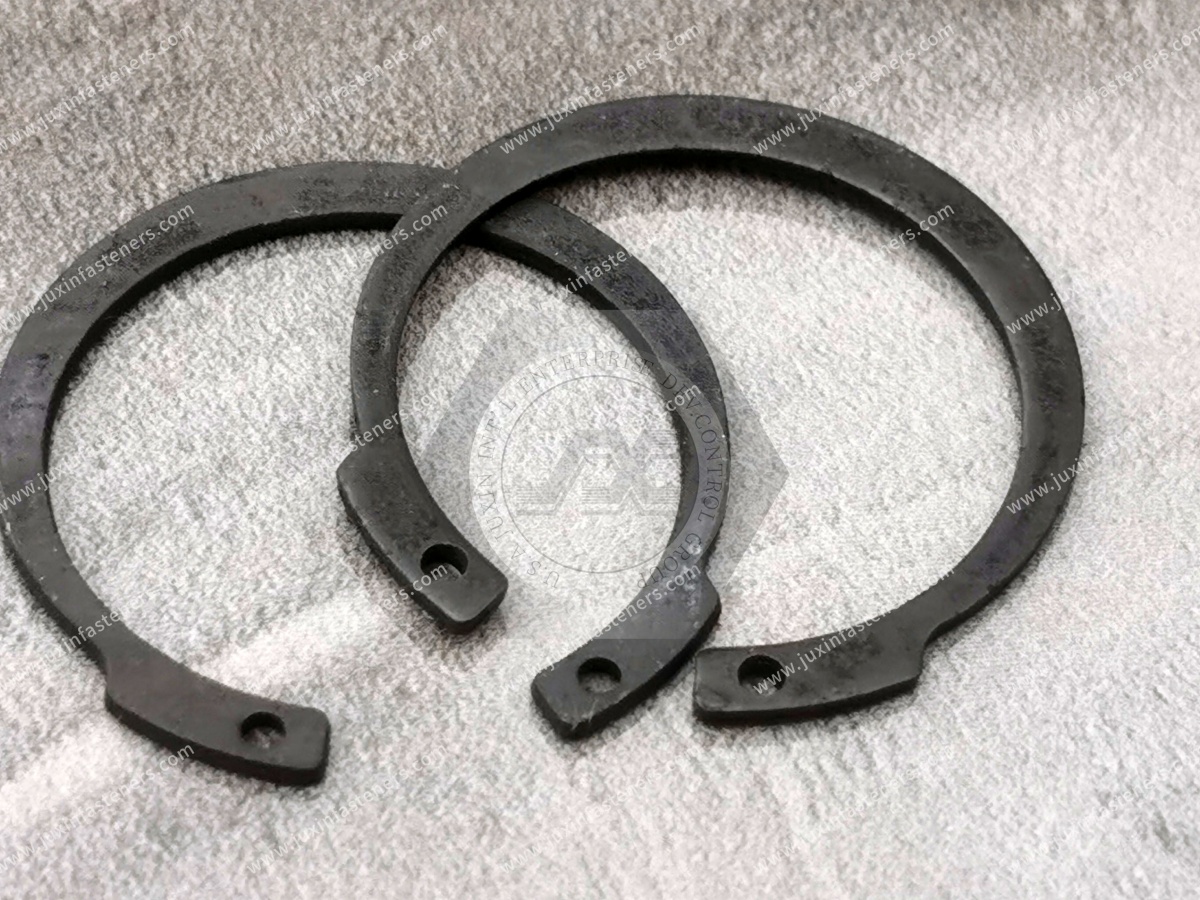

An internal retaining ring is installed in a groove machined into the inside diameter of a housing or bore.
The ring can provide an axial stop for the bearing outer ring.
This distinction is fundamental because shaft and bore retaining rings use different geometries, installation methods and groove designs.
These terms are often used differently across industries and markets.
Common purchasing and engineering search terms include:
Bearing retaining ring
Bearing circlip
Bearing snap ring
Bearing retaining clip
Shaft circlip
Internal circlip
External circlip
Bearing lock ring
Bearing snap ring for shaft
Bearing snap ring for housing
In an RFQ, terminology alone may not provide enough information to identify the correct part.
For reliable sourcing, the buyer should provide the applicable standard, drawing, groove dimensions, bearing arrangement or physical sample whenever possible.
Choosing between an external and internal retaining ring begins with identifying which bearing ring requires axial retention.
When a bearing is mounted onto a shaft, an external retaining ring can be positioned in a shaft groove to restrict axial movement.
DIN 471 is widely associated with external retaining rings for shafts.
Typical applications can include:
Electric motors
Gearboxes
Pumps
Actuators
Rollers
Transmission mechanisms
Power tools
Industrial machinery
The retaining ring forms an axial shoulder on the shaft side of the assembly.
When a bearing is installed inside a housing, an internal retaining ring can be fitted into a housing groove to restrict axial movement of the bearing outer ring.
DIN 472 is widely associated with internal retaining rings for bores.
Typical applications can include:
Motor housings
Gear housings
Pump housings
Wheel and roller assemblies
Industrial equipment
Mechanical cartridges
Actuator housings
Precision mechanisms
The correct solution depends on the complete bearing arrangement rather than simply whether a bearing is present.
A retaining ring does not support axial bearing load independently.
For a shaft-mounted arrangement, a simplified axial load path can be:
Bearing Inner Ring → Retaining Ring → Shaft Groove → Shaft
For a housing-mounted arrangement:
Bearing Outer Ring → Retaining Ring → Housing Groove → Housing
This distinction provides an important engineering insight:
The axial load capacity of a bearing retaining system is not determined by the retaining ring alone.
The groove, shaft or housing material, contact geometry and bearing arrangement all contribute to the performance of the system.
A high-strength retaining ring cannot compensate for an incorrectly designed groove.
Important groove variables can include:
Groove diameter
Groove width
Groove depth
Groove location
Groove tolerance
Edge condition
Surface finish
Distance from adjacent shoulders
Shaft or housing material
Shaft or housing hardness
The ring must seat correctly within the groove and transfer axial force into the surrounding component.
Incorrect groove geometry can cause:
Incomplete ring seating
Excessive axial movement
Ring deformation
Groove-edge deformation
Difficult installation
Difficult removal
Reduced retention capability
For this reason, OEM bearing-retention projects should evaluate the ring and groove together.
One frequently overlooked detail is the relationship between the bearing edge geometry and the retaining ring.
Bearings commonly include chamfers or corner radii around their rings.
The retaining-ring arrangement must provide suitable contact geometry so that the axial force can be transferred into the retaining system as intended.
If the contact relationship is poorly designed, the bearing may not seat against the retaining feature in the expected way.
Engineers should therefore consider:
Bearing chamfer
Retaining-ring geometry
Groove position
Available contact area
Adjacent shoulder geometry
Required axial clearance
This is particularly important in compact bearing assemblies where very little axial space is available.
Installing a circlip does not necessarily create a zero-clearance bearing assembly.
The final axial position can depend on the tolerance stack between:
Shaft shoulder
Housing shoulder
Bearing width
Groove location
Groove width
Retaining-ring thickness
Spacer or shim thickness
Adjacent components
Therefore:
Retaining the bearing and controlling bearing axial clearance are related but different engineering tasks.
If precise axial positioning or preload is required, additional components or a different bearing-retention architecture may be necessary.
A retaining ring can create an axial stop, but it should not automatically be treated as a bearing-preload device.
Bearing preload is a controlled engineering condition influenced by factors such as:
Bearing type
Internal clearance
Thermal expansion
Shaft and housing fits
Spacer geometry
Spring elements
Locking systems
Assembly procedure
If controlled preload is required, engineers should design the complete bearing system accordingly.
A standard circlip should not be assumed to generate a defined bearing preload simply because it limits axial movement.
A retaining ring is only one method of axial bearing retention.
Depending on the equipment, engineers may also use:
Machined shoulders
Locknuts
End plates
Bearing covers
Spacers
Threaded retaining rings
Flanges
Press-fit arrangements
Combination retention systems
The choice depends on:
Available axial space
Axial load
Required serviceability
Production volume
Manufacturing cost
Assembly sequence
Required positioning accuracy
Operating environment
Retaining rings are especially attractive when compactness and assembly efficiency are important.

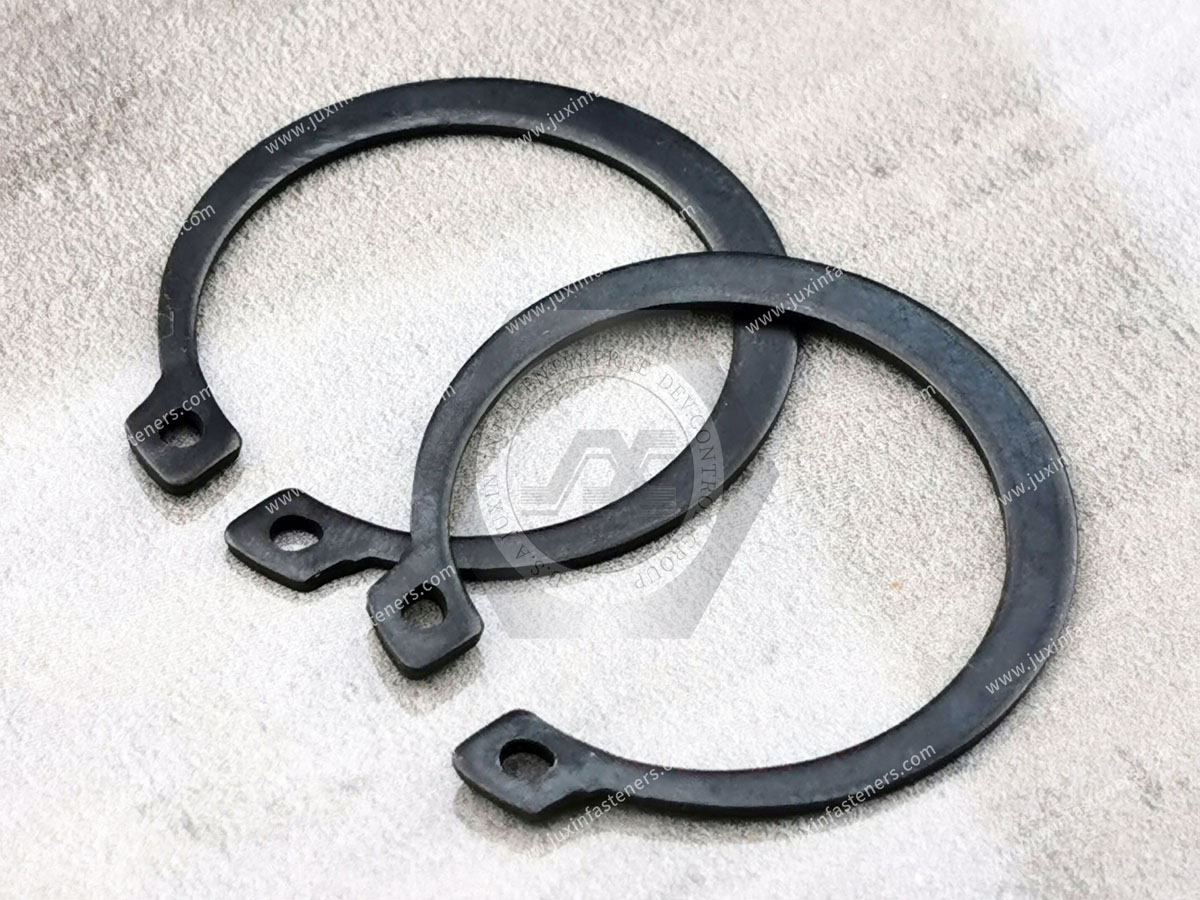

Elastic bearing retaining rings are typically produced from materials capable of providing controlled spring behavior during installation and reliable mechanical performance after seating.
Common material families can include:
Carbon spring steel
Alloy spring steel
Stainless spring steel
Specialized corrosion-resistant alloys for application-specific requirements
Material selection should be based on the applicable standard, drawing and operating conditions.
Spring steels are widely used for standard industrial circlips because they can provide the required combination of:
Strength
Hardness
Elastic recovery
Wear resistance
Manufacturing efficiency
Finished performance depends not only on raw material but also on:
Forming
Heat treatment
Hardness control
Dimensional accuracy
Edge condition
Surface treatment
For OEM second-source development, these manufacturing variables should be reviewed together rather than specifying only a generic material family.
Stainless retaining rings may be selected for assemblies exposed to moisture, cleaning processes or corrosive environments.
Depending on the application and applicable specification, stainless material families can include A2 / 304-type and A4 / 316-type materials.
Potential applications include:
Food-service equipment
Medical equipment
HVAC systems
Pumps
Outdoor equipment
Telecommunications equipment
Laboratory equipment
Semiconductor equipment
Stainless steel should not automatically be assumed to provide adequate corrosion resistance in every environment.
Actual exposure to chlorides, chemicals, cleaning agents, temperature and humidity should be evaluated.
Surface protection may be required for carbon or alloy steel retaining rings.
Depending on the application and customer specification, suitable finish families can include:
Phosphate and oil systems
Black finishes
Zinc-based coatings
Zinc-nickel coatings
Zinc-flake coating systems
Other engineered corrosion-protection finishes
The selected finish should be evaluated for:
Corrosion requirement
Base-material hardness
Hydrogen-embrittlement risk where applicable
Coating thickness
Dimensional tolerance
Groove fit
Installation behavior
Customer environmental requirements
A retaining ring is not merely a cosmetic metal component.
It must fit into a controlled groove.
Changing from one coating system to another can affect finished dimensions and surface behavior.
For precision bearing assemblies, engineers may need to evaluate whether the coating influences:
Ring thickness
Groove engagement
Installation force
Seating
Friction
Removal
Corrosion performance
This is particularly important when qualifying a replacement supplier against an existing production part.
A practical engineering selection process begins with the bearing arrangement.
Is the bearing being retained:
On a shaft?
Inside a housing?
For shaft retention, evaluate an external retaining ring.
For housing retention, evaluate an internal retaining ring.
Where applicable, determine whether the design follows a recognized standard such as:
DIN 471 for external retaining rings for shafts
DIN 472 for internal retaining rings for bores
Customer drawings may define different dimensions or requirements.
Confirm:
Groove diameter
Groove width
Groove depth
Groove position
Relevant tolerances
Identify whether the retaining system experiences:
Static axial load
Cyclic axial load
Reversing load
Shock load
Assembly load
Consider:
Bearing width
Bearing chamfer
Inner-ring or outer-ring contact
Adjacent shoulder
Available axial space
Determine the acceptable axial movement after assembly.
Consider:
Corrosion
Temperature
Humidity
Chemical exposure
Required service life
Customer specification
Prototype testing may be appropriate when the application involves significant load, vibration, high cycling or safety-related requirements.
When a bearing moves axially during service, replacing the retaining ring with a stronger-looking ring is not always the correct solution.
Potential failure causes include:
The selected ring may not match the groove or intended application.
The groove may be too wide, shallow, deep or incorrectly positioned.
The shaft or housing material may deform under axial load.
The ring may not be fully engaged around the groove.
Excessive expansion or compression can permanently distort the ring.
The actual service load may exceed the capability of the complete retaining system.
Corrosion can reduce ring integrity or interfere with groove engagement.
Unexpected axial movement may result from the complete assembly tolerance rather than the retaining ring itself.
This troubleshooting approach is more useful than evaluating the circlip in isolation.
External circlips are generally expanded during installation.
A typical process is:
Confirm the correct ring and part number.
Inspect the shaft groove.
Inspect the ring for damage or distortion.
Use suitable circlip installation tooling.
Expand the ring only as much as necessary.
Position it over the shaft.
Release it into the groove.
Confirm complete seating.
Over-expansion can permanently deform the ring and should be avoided.
Internal circlips are compressed to enter a housing or bore.
A typical process is:
Inspect the housing groove.
Verify the correct ring.
Compress the ring with suitable tooling.
Insert it into the housing.
Align it with the groove.
Release the ring.
Verify full circumferential engagement.
Incomplete seating should be detected before the assembly enters service.
Reuse should not automatically be assumed.
Removal and reinstallation can affect:
Ring geometry
Elastic recovery
Surface condition
Installation features
Coating condition
For critical assemblies, the maintenance specification or equipment design requirements should determine whether the retaining ring can be reused.
Where there is uncertainty, replacement may provide a more controlled service condition.
Electric motors are a major application area for bearing retention.
Retaining rings may be used in suitable motor architectures to position bearings within:
Motor shafts
End housings
Gear motors
Fan motors
Pump motors
Actuator motors
The required design depends on motor speed, bearing arrangement, axial loading, housing geometry and assembly process.
Automotive and mobility systems contain many bearing-supported mechanisms.
Potential retaining-ring applications include:
Transmission mechanisms
Electric motors
Pumps
Actuators
Seat mechanisms
Steering-related mechanisms
Auxiliary drive systems
Thermal-management equipment
The correct retaining solution should be determined from the actual assembly and customer requirements rather than from the automotive application name alone.
Electrification creates demand for motors, pumps, actuators and automated production systems that contain shaft and housing bearing assemblies.
Potential applications include:
Electric drive auxiliaries
Thermal-management pumps
Cooling systems
Actuators
Battery manufacturing equipment
Automated handling systems
Production fixtures
There is no universal “EV bearing retaining ring.”
Material, geometry and performance requirements should be based on the actual mechanical system.
Bearing retaining rings are commonly used in:
Gearboxes
Pumps
Motors
Reducers
Conveyors
Rollers
Machine tools
Packaging equipment
Processing machinery
Material-handling systems
These applications can involve very different combinations of load, speed, vibration and environment.
Robotic and automation systems often require compact bearing arrangements.
Potential applications include:
Robotic joints
Gear mechanisms
Grippers
Actuators
Positioning systems
Rollers
Conveyors
Automated assembly equipment
High-cycle equipment may require additional attention to groove wear, fatigue and production consistency.
Potential applications in rail-related equipment include bearing-supported mechanisms within:
Door systems
Actuators
Auxiliary equipment
Seat mechanisms
Control mechanisms
Maintenance equipment
Project-specific requirements for vibration, fatigue, documentation and traceability should be reviewed before production.
HVAC and cooling systems contain numerous rotating components.
Potential bearing retaining applications include:
Fans
Blowers
Pumps
Motors
Compressors
Valve actuators
Cooling equipment
Humidity, condensation, temperature and corrosion exposure can influence retaining-ring material and finish selection.
High-density computing infrastructure increasingly depends on sophisticated thermal-management systems.
Suitable mechanical subassemblies can contain bearing retaining rings within:
Pumps
Motors
Fans
Blowers
Valve actuators
Cooling distribution equipment
Liquid-cooling systems
The end-use industry does not determine the retaining-ring specification.
Engineers should still begin with the bearing arrangement, shaft or housing groove, axial load, environment and service requirements.
Bearing retaining rings may be used in mechanical components within:
Cooling fans
Electric motors
Actuators
Mechanical drives
Ventilation equipment
Auxiliary mechanisms
In these applications, the retaining ring provides mechanical axial retention unless another function has been specifically engineered.
Potential applications include bearing-supported components within:
Cooling systems
Fans
Motors
Antenna mechanisms
Actuators
Adjustment systems
Outdoor communication equipment
Outdoor installations can increase the importance of corrosion-resistant materials and coatings.
Semiconductor manufacturing equipment uses numerous precision motion and automation systems.
Potential applications include:
Robotics
Material-handling systems
Positioning mechanisms
Pumps
Motors
Actuators
Automated equipment
A commercial bearing retaining ring should not automatically be represented as cleanroom-, vacuum- or semiconductor-qualified.
Any special cleanliness, material or process requirement must be defined separately.
Bearing retaining rings may be used in:
Commercial mixers
Dispensing systems
Refrigeration equipment
Motors
Pumps
Conveyors
Food-processing machinery
Humidity, washdown and cleaning chemicals can influence material selection.
Use in food-service equipment does not automatically establish suitability for direct food contact.
Potential non-implant applications include:
Diagnostic equipment
Laboratory automation
Pumps
Motors
Actuators
Positioning equipment
Sample-handling systems
Projects requiring specific cleanliness, documentation, material traceability or regulatory controls should define those requirements in the RFQ.
Compact bearing retaining systems can be used in:
Measuring instruments
Small motors
Cooling fans
Rollers
Mechanical indicators
Adjustment mechanisms
Household and commercial appliances
Electromechanical assemblies
As component size decreases, dimensional control and groove accuracy can become increasingly important.
Where possible, designing around standardized retaining rings can simplify sourcing and replacement.
However, custom or drawing-based bearing retaining rings may be required for:
Legacy bearing assemblies
Non-standard shaft diameters
Non-standard housing bores
Existing non-standard grooves
Restricted axial space
Special ring thickness
Modified lug geometry
Special materials
Special surface treatments
Customer-specific retention requirements
A sourcing project should therefore distinguish between:
Standard Bearing Retaining Ring
Standard-Based Modified Retaining Ring
Drawing-Based Replacement Ring
Functional Equivalent
Fully Custom Retaining Ring
Some maintenance and OEM second-source projects begin with an existing physical part rather than a complete drawing.
A practical development process can follow:
Existing Sample → Dimensional Inspection → Bearing & Groove Review → Material / Finish Evaluation → Drawing Confirmation → Prototype → Assembly Validation → Pilot Production → Production
However, a sample alone may not reveal:
Original material specification
Heat-treatment requirement
Hardness target
Coating specification
Design axial load
Fatigue requirement
Original dimensional standard
For this reason, application information should accompany the sample whenever possible.
Engineers may search for:
Bearing retaining ring
Bearing snap ring
Bearing circlip
Retaining ring for bearing
External circlip for bearing
Internal circlip for bearing
Bearing snap ring groove
Bearing axial retention
How to retain a bearing on a shaft
How to retain a bearing in a housing
DIN 471 retaining ring
DIN 472 retaining ring
Their central question is usually:
How should this bearing be retained axially within the available shaft or housing architecture?
Purchasing, sourcing and supplier-development teams may search for:
Bearing retaining ring manufacturer
Bearing circlip supplier
Bearing snap ring supplier
Stainless bearing retaining rings
Spring steel retaining ring manufacturer
Custom bearing retaining rings
OEM circlip manufacturer
Retaining ring second source
Custom snap ring from drawing
Their central question is different:
Can the supplier reproduce the required geometry, material, heat treatment, finish and production consistency?
A strong B2B sourcing page must address both engineering and procurement intent.
For faster technical review and quotation, provide as much of the following information as possible.
Applicable standard
Customer drawing
Existing part number
Physical sample
External or internal retaining ring
Bearing designation where relevant
Bearing dimensions
Which bearing ring requires axial retention
Bearing chamfer or relevant edge geometry
Shaft diameter or bore diameter
Groove diameter
Groove width
Groove depth
Groove location
Shaft or housing material
Relevant hardness requirement
Expected axial load
Static or dynamic loading
Shock conditions
Vibration
Rotational speed where relevant
Required service life
Acceptable axial clearance
Required material
Hardness where specified
Surface treatment
Corrosion requirement
Restricted-substance requirements
Temperature
Humidity
Outdoor exposure
Cleaning chemicals
Chlorides
Other corrosive media
Prototype quantity
Pilot quantity
Production quantity
Estimated annual usage
Packaging requirements
Traceability requirements
Required delivery schedule
For OEM and Tier supply chains, a bearing retaining ring should not be evaluated solely by unit price.
Depending on the project, supplier qualification may need to consider:
Drawing interpretation
Material control
Forming-process control
Heat-treatment control where applicable
Hardness verification
Dimensional inspection
Groove-critical dimensions
Surface-treatment control
Prototype development
Production consistency
Lot identification
Packaging
Change management
Long-term supply continuity
For high-volume programs, suitable dimensional or visual inspection methods can also be integrated according to the characteristics identified as critical on the approved drawing.
For engineers developing a new assembly, the decision path can be structured as:
Which bearing must be retained?
→ Is the bearing retained on the shaft or inside the housing?
→ Which bearing ring requires axial positioning?
→ What axial load reaches the retaining feature?
→ What shaft or housing material carries the groove?
→ What groove geometry is available?
→ How does the bearing chamfer contact the retaining feature?
→ What axial clearance is acceptable?
→ Is bearing preload required separately?
→ What installation access is available?
→ Will the assembly require service removal?
→ What environmental exposure exists?
→ Which material and surface finish are appropriate?
→ Can a standard DIN 471 / DIN 472 architecture be used?
→ Is a custom or drawing-based retaining ring required?
This process prevents the common mistake of selecting a retaining ring solely from nominal bearing or shaft diameter.
For broader retaining-ring selection, engineers can continue to the Elastic Retaining Rings & Circlips Engineering Selection Guide.
For comparison between installation architectures, review Retaining Rings for Shafts and Bores.
For housing applications, continue to DIN 472 Retaining Rings for Bores.
For shaft applications, review External Retaining Rings for Shafts / DIN 471.
Where radial shaft installation is required, review E-Type Retaining Rings for Shafts.
For non-standard grooves, legacy components or special materials, evaluate Custom Retaining Rings & Spring Fasteners.
These related resources create a complete selection path from general circlip architecture to application-specific sourcing.
JUXIN FASTENERS supports bearing retaining ring, circlip and custom spring-fastener projects for industrial OEMs, engineering teams, purchasing organizations and supplier-development programs.
Requirements can be evaluated from:
International standard
Customer drawing
Physical sample
Bearing information
Shaft or housing dimensions
Groove dimensions
Material specification
Surface-finish requirement
Application conditions
Production quantity
Depending on the project, the sourcing path may involve:
Standard External Bearing Circlip → Standard Internal Bearing Circlip → Standard-Based Modified Ring → Drawing-Based Replacement → Custom Bearing Retaining Ring
A useful sourcing process should follow the actual bearing assembly rather than begin with a generic product name:
Bearing → Shaft or Housing Retention → Groove → Axial Load → Contact Geometry → Tolerance Stack → Material → Surface Finish → Installation → Validation → Production
This turns a generic inquiry such as:
“Please quote a bearing snap ring.”
into a much more actionable engineering RFQ:
“Please evaluate an external or internal bearing retaining ring for this bearing, shaft or housing groove, axial load, material, operating environment and production requirement.”
For bearing retaining rings, bearing circlips, bearing snap rings, external shaft circlips, internal bore circlips, stainless steel retaining rings,
spring steel retaining rings, drawing-based replacements, custom retaining rings or OEM second-source development,
send your drawing, sample, bearing information, shaft or bore dimensions, groove dimensions, material, surface finish, application requirements and quantity to:
JUXIN FASTENERS can review the available technical information and evaluate an appropriate standard, manufacturing, sampling and production path for your project.
MORE NEWS
Sep. 27, 2026
Sep. 27, 2026
Sep. 27, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
