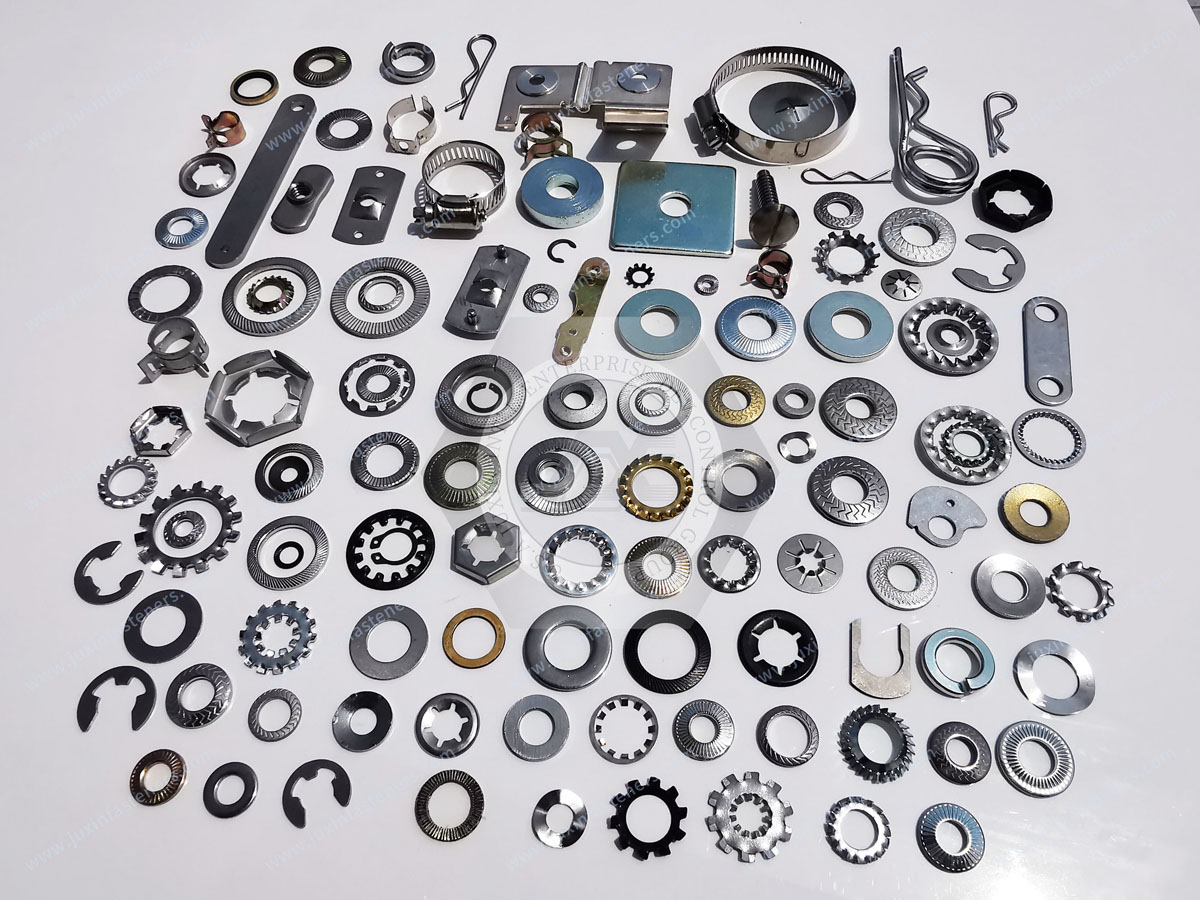

Elastic retaining rings, commonly called circlips, snap rings or retaining rings, are compact mechanical fasteners used to provide axial retention of components on shafts or inside bores.
Unlike threaded nuts, collars or bolted retainers, a circlip is installed into a machined groove.
Once properly seated, the portion of the retaining ring extending beyond the groove forms a mechanical shoulder that restricts axial movement of the retained component.
Common applications include retaining bearings, gears, rollers, bushings, pulleys, linkages and other mechanical components.
The three most important retaining-ring architectures for many industrial assemblies are:
External retaining rings for shafts
Internal retaining rings for bores
E-type retaining rings or E-clips for radial shaft installation
Although these components appear simple, reliable selection requires more than matching a ring to a nominal shaft or bore diameter.
The complete retention system should be evaluated as:
Retaining Ring + Groove + Shaft or Housing + Retained Component + Axial Load + Installation Method + Operating Environment
This system-level approach is particularly important for OEM, automotive, EV, industrial machinery, robotics, rail transit, electrical equipment and other engineered assemblies.
An elastic retaining ring is a spring-type fastener designed to deform temporarily during installation and recover sufficiently to engage a groove.
Depending on the design, the ring may be:
Expanded over a shaft
Compressed into a bore
Pushed radially into a shaft groove
Once installed, the retaining ring creates an axial stop.
Its primary engineering purpose is therefore axial retention and positioning.
A conventional retaining ring should not automatically be treated as a sealing element,
vibration isolator or torque-transmission component unless the complete assembly has been specifically engineered for an additional function.
Industrial terminology varies by region, standard, catalog and purchasing organization.
Common search terms include:
Retaining ring
Elastic retaining ring
Circlip
Snap ring
Shaft retaining ring
Bore retaining ring
External circlip
Internal circlip
E-clip
E-ring
Shaft clip
Retaining clip
Because terminology is not always consistent, engineers and buyers should identify the required part using the applicable standard, drawing and dimensional requirements whenever possible.
Understanding where and how the ring is installed is the first step in product selection.

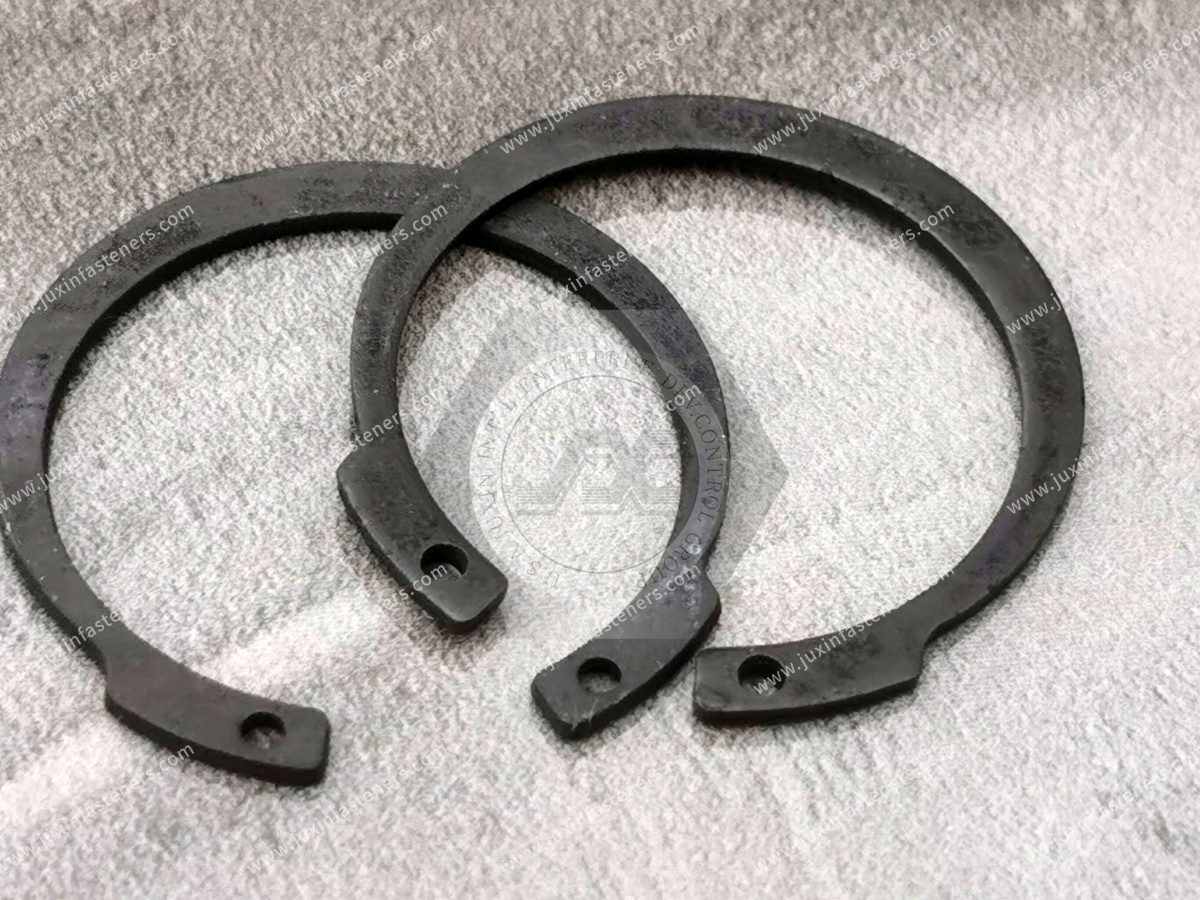

External retaining rings are installed into grooves machined around the outside diameter of a shaft.
A conventional external circlip is expanded during installation, passed over the shaft and released into the groove.
DIN 471 is a widely recognized dimensional standard associated with external retaining rings for shafts.
Typical applications include:
Bearing retention
Gear positioning
Roller assemblies
Pulley assemblies
Linkage mechanisms
Transmission components
Motor assemblies
Mechanical actuators
External retaining rings are particularly useful when the assembly provides access to the end of the shaft.

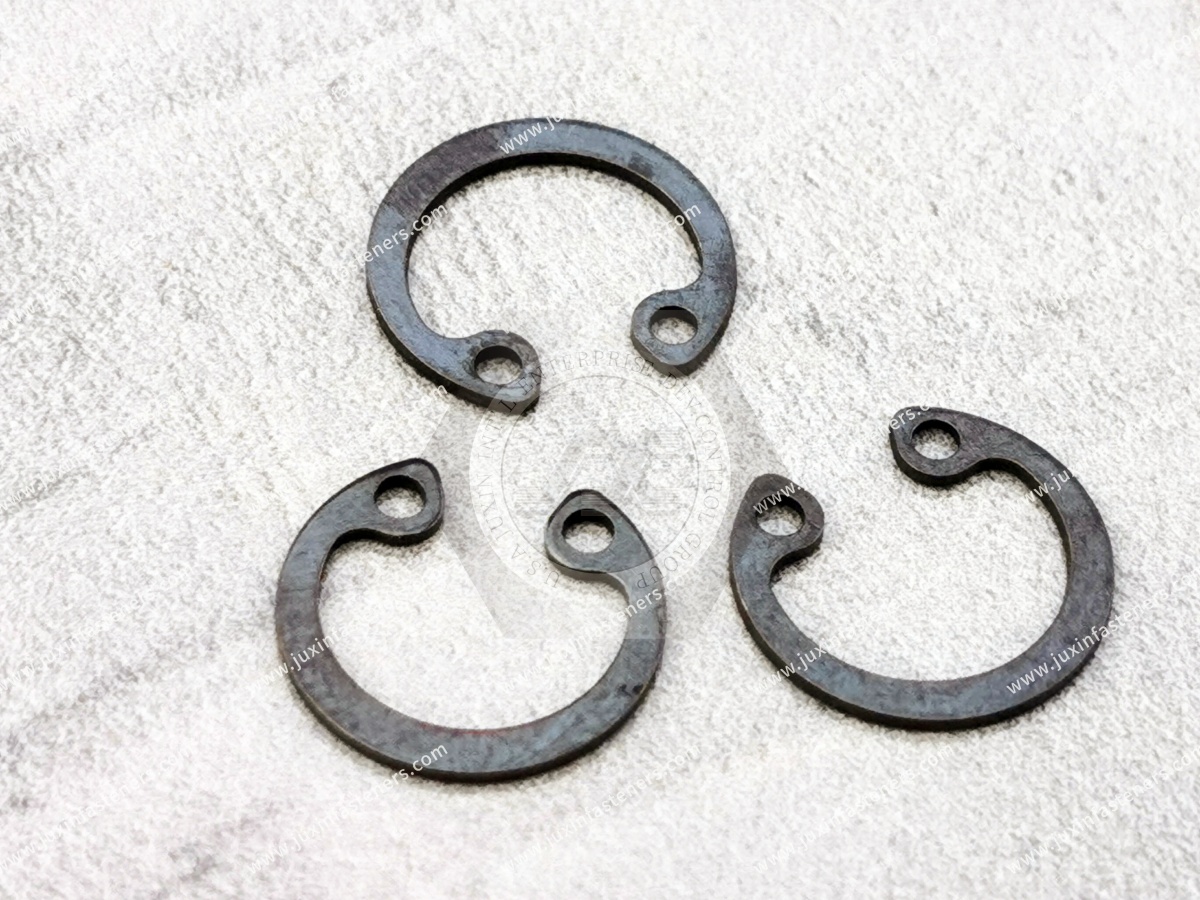

Internal retaining rings are installed into grooves machined inside housings or bores.
During installation, the ring is compressed to enter the bore and then allowed to expand into the groove.
DIN 472 is widely associated with internal retaining rings for bores.
Typical applications include:
Bearing retention inside housings
Gearbox assemblies
Motor housings
Pump assemblies
Valve mechanisms
Hydraulic and pneumatic equipment
Mechanical cartridges
Precision equipment
The housing groove becomes an important structural part of the retention system.
E-type retaining rings, commonly called E-clips or E-rings, use a different installation architecture.
Instead of being expanded over the end of the shaft, an E-clip is normally pushed radially into a shaft groove.
This can be advantageous where:
Shaft-end access is restricted
Radial installation is preferred
Assembly space is limited
Fast installation is required
High-volume automated assembly is planned
E-clips are frequently found in small mechanisms, automotive assemblies, appliances, motors, linkages, actuators and industrial equipment.
The most fundamental circlip selection question is whether the retained component is located on a shaft or inside a bore.
Installed on a shaft.
The ring engages an external shaft groove and creates an axial stop for components positioned along the shaft.
Installed inside a bore or housing.
The ring engages an internal groove and prevents a component from moving beyond the retaining position.
This distinction may sound basic, but confusing shaft and bore retaining architectures can lead to incorrect groove design, incorrect tooling and incorrect sourcing.
Both E-clips and conventional external circlips can retain components on shafts, but they should not be treated as interchangeable simply because they fit similar nominal shaft sizes.
Typically:
Installed from the shaft end
Expanded during installation
Used with an external shaft groove
Installed using suitable circlip tooling
Available in standardized configurations
Typically:
Installed radially
Pushed directly into the groove
Does not need to pass over the shaft end
Can support rapid production assembly
Can be useful where axial installation access is restricted
The correct architecture depends on load, groove geometry, assembly sequence, available space, service requirements and production method.
A retaining ring does not carry axial load independently of the surrounding assembly.
For a shaft-mounted ring, the approximate load path is:
Retained Component → Retaining Ring → Shaft Groove Edge → Shaft
For a bore-mounted ring, the load path becomes:
Retained Component → Retaining Ring → Housing Groove Edge → Housing
This leads to an important engineering principle:
The axial capacity of a retaining-ring assembly is a system property, not merely a property of the ring.
A stronger retaining ring cannot compensate indefinitely for an undersized groove, weak shaft material or inadequate housing geometry.
The groove is one of the most important parts of any retaining-ring system.
Depending on the ring type, engineers may need to control:
Groove diameter
Groove width
Groove depth
Groove location
Groove edge geometry
Groove tolerance
Surface finish
Distance from adjacent shoulders
Shaft or housing material
Shaft or housing hardness
If the groove is too shallow, too deep, too wide, incorrectly positioned or damaged, the retaining ring may not perform as intended.
Burrs can also interfere with installation and seating.
Therefore, a retaining-ring problem should not automatically be diagnosed as a ring problem.
The groove should also be inspected.
This distinction is important in engineering troubleshooting.
A retaining system may fail because the ring:
Deforms
Fractures
Disengages
Is incorrectly installed
Is incorrectly sized
But failure can also occur because the groove:
Deforms
Shears at the edge
Has incorrect dimensions
Is machined in material that cannot support the required load
Contains excessive burrs or damage
In some applications, the groove or surrounding component can become the limiting element before the retaining ring itself reaches its mechanical limit.
This is why retaining-ring selection should include the shaft or housing design.
A purchasing request such as:
“We need a circlip for a 20 mm shaft.”
provides useful information, but it may not completely define the required component.
The same nominal shaft diameter can be associated with different:
Retaining-ring standards
Groove dimensions
Ring thicknesses
Materials
Surface finishes
Load requirements
Installation methods
A better RFQ includes the applicable standard or drawing.
For replacement projects, a physical sample plus assembly information can also support evaluation.
A systematic selection process should consider the following.
Is the ring installed:
On a shaft?
Inside a bore?
Radially into a shaft groove?
This determines the basic retaining architecture.
What force can act against the retained component?
Static, cyclic, shock and reversing loads may require different engineering evaluation.
The groove must support the transferred load without unacceptable deformation.
The groove must match the selected retaining ring and applicable dimensional specification.
Determine whether the ring retains:
Bearing
Gear
Roller
Pulley
Bushing
Lever
Linkage
Other component
Contact geometry can influence load transfer.
Assembly sequence can determine whether an external circlip, internal circlip or E-clip is practical.
If regular disassembly is expected, accessibility and removal method become important.
Consider:
Temperature
Humidity
Outdoor exposure
Chlorides
Cleaning chemicals
Industrial contamination
Corrosive media
These conditions influence material and surface-finish selection.
Retaining rings require controlled elastic behavior during installation and sufficient strength after seating.
Depending on the applicable standard and application, material families may include:
Carbon spring steels
Alloy spring steels
Stainless spring steels
Specialized corrosion-resistant or temperature-resistant materials
Material selection should consider:
Elastic recovery
Mechanical strength
Fatigue conditions
Corrosion exposure
Temperature
Manufacturing process
Required surface treatment
Customer specification
The material designation should be confirmed against the applicable standard or approved customer drawing rather than assumed from product appearance.
Spring steels are widely used because they can provide the combination of strength and elastic recovery required for circlips and retaining rings.
Finished performance depends on more than raw material selection.
Important manufacturing variables can include:
Material condition
Forming process
Heat treatment
Hardness
Dimensional control
Edge condition
Flatness
Surface treatment
For OEM sourcing, these variables can be important when qualifying an alternative supplier.
Stainless retaining rings may be selected where corrosion resistance is more important.
Depending on the application and specification, stainless material families may include A2 / 304-type and A4 / 316-type materials.
Potential applications include:
Food-service equipment
HVAC systems
Medical and laboratory equipment
Telecommunications equipment
Electrical equipment
Semiconductor equipment
Instruments and meters
Outdoor equipment
However, stainless steel is not universally resistant to every chemical or corrosive environment.
The actual temperature, chloride concentration, cleaning chemicals and other environmental conditions should be evaluated before material selection.
Carbon and alloy steel retaining rings may use different surface-protection systems depending on the project.
Possible finish families include suitable:
Phosphate and oil systems
Black finishes
Zinc-based coatings
Zinc-nickel coatings
Zinc-flake coating systems
Other engineered finishes
Coating selection should consider:
Corrosion requirement
Base-material hardness
Hydrogen-embrittlement risk where applicable
Coating thickness
Dimensional tolerance
Groove engagement
Installation behavior
Environmental compliance requirements
A surface-treatment change should not automatically be treated as cosmetic.
Retaining rings are dimensional components that must engage controlled grooves.
A coating can change the finished dimensions and surface behavior of the ring.
For tight-tolerance assemblies, engineers should evaluate whether a coating change affects:
Ring thickness
Groove engagement
Installation force
Surface friction
Seating
Removal
Corrosion performance
This is particularly relevant when developing an OEM second source.
Bearings are among the most common components retained by circlips.
A retaining ring can provide an axial stop for:
Bearing inner rings on shafts
Bearing outer rings inside housings
However, engineers should also consider bearing chamfers and surrounding contact geometry.
The retained bearing surface should transfer load into the retaining system appropriately.
Axial clearance also depends on the complete tolerance stack, which can include:
Shaft shoulder
Housing shoulder
Bearing width
Groove location
Retaining-ring thickness
Spacer thickness where used
A retaining ring does not automatically create zero-clearance bearing positioning.
Retaining rings can position gears, pulleys and rollers axially on shafts.
However, axial retention and torque transmission are different functions.
The retaining ring may prevent the component from moving along the shaft, while torque may be transmitted through:
Keys
Splines
Flats
Interference fits
Pins
Geometric engagement
Other drive features
Separating these functions helps engineers avoid loading the retaining ring in a way the assembly was not designed to support.
External circlips are generally expanded using suitable installation tooling.
A typical installation sequence is:
Verify the correct retaining ring.
Inspect the shaft groove.
Expand the ring only as required for installation.
Position the ring over the shaft.
Release it into the groove.
Confirm complete seating.
Inspect for visible distortion.
Excessive expansion can permanently deform the ring.
Internal circlips are compressed during installation.
A typical process is:
Verify the ring and bore groove.
Inspect the groove for contamination or burrs.
Compress the ring using suitable tooling.
Insert it into the bore.
Position it at the groove.
Release the ring.
Confirm complete engagement.
The ring should be fully seated before the assembly is placed into service.
E-clips are normally installed differently from conventional circlips.
They are generally pushed radially into a shaft groove using:
Manual installation tools
Dedicated applicators
Assembly fixtures
Pneumatic equipment
Automated insertion systems
This installation architecture is one reason E-clips are attractive for high-volume production.
Reuse should not automatically be assumed.
Installation and removal can change:
Ring geometry
Elastic behavior
Surface condition
Edge condition
For safety-critical, high-load or controlled OEM applications, service specifications may require replacement rather than reuse.
The decision should follow the applicable engineering and maintenance requirements.
Automotive assemblies use retaining rings in numerous mechanical mechanisms.
Potential applications include:
Transmission mechanisms
Seat systems
Door and latch mechanisms
Wiper assemblies
Pumps
Small motors
Actuators
Linkages
Steering-related mechanisms
Auxiliary systems
Automotive projects may require additional dimensional, material, traceability and process controls according to the specific customer program.
EV platforms introduce many pumps, actuators, cooling systems and automated mechanisms where compact axial retention may be required.
Potential applications include:
Thermal-management pumps
Cooling equipment
Actuators
Electric motors
Production fixtures
Battery manufacturing equipment
Automated handling systems
There is no universal “EV retaining ring.”
Selection should be based on the actual mechanical assembly, environment and customer specification.
Robotics and industrial automation frequently require compact shaft and bearing retention.
Potential applications include:
Robotic joints
Grippers
Actuators
Gear mechanisms
Linkages
Rollers
Conveyors
Positioning systems
Automated assembly equipment
For high-cycle systems, fatigue, groove wear and dimensional consistency may require additional evaluation.
Retaining rings are used throughout:
Machine tools
Packaging equipment
Processing machinery
Pumps
Gearboxes
Motors
Conveyors
Material-handling equipment
Construction machinery
General mechanical equipment
Their compact installation envelope can help simplify mechanical assemblies compared with larger threaded retaining systems.
Potential retaining-ring applications in rail-related equipment include:
Door mechanisms
Actuators
Seat mechanisms
Auxiliary systems
Control mechanisms
Maintenance equipment
Customer-specific vibration, fatigue, material, documentation and traceability requirements should be reviewed for each project.
Retaining rings may be used in suitable:
Ground-support equipment
Manufacturing tooling
Test equipment
Laboratory systems
Automation equipment
Non-flight-critical mechanical assemblies
A standard commercial retaining ring should not automatically be described as aerospace-qualified.
Program-specific requirements must be established separately.
Mechanical assemblies within electrical equipment may use retaining rings in:
Cooling fans
Motors
Actuators
Mechanical interlocks
Switch mechanisms
Cabinet hardware
The retaining ring provides mechanical retention unless an additional electrical function has been specifically engineered and validated.
Potential applications include:
Fans
Blowers
Motors
Pumps
Valve mechanisms
Actuators
Cooling equipment
Humidity, condensation, cleaning conditions and temperature can influence material and coating selection.
Modern high-density computing infrastructure increasingly relies on fans, pumps, motors, valves and liquid-cooling equipment.
Retaining rings may be used in suitable mechanical subassemblies within:
Cooling distribution units
Pumps
Fans
Motors
Valve actuators
Liquid-cooling systems
Selection should be based on the actual shaft or bore, groove, axial load and operating environment rather than the end-use industry name alone.
Potential applications include:
Base-station equipment
Antenna mechanisms
Cooling fans
Motors
Actuators
Adjustment mechanisms
Outdoor communication equipment
Outdoor exposure can make corrosion protection an important sourcing requirement.
Potential applications include mechanical systems within:
Automation equipment
Robotics
Material handling
Motion-control systems
Pumps
Actuators
Positioning equipment
Standard retaining rings should not automatically be represented as cleanroom- or vacuum-qualified.
Those requirements must be specified and validated separately.
Retaining rings may be used in mechanical assemblies within:
Commercial mixers
Refrigeration equipment
Dispensing systems
Pumps
Motors
Conveyors
Processing equipment
Washdown conditions, humidity and cleaning chemicals should be considered when selecting materials and finishes.
Use in food-service equipment does not automatically establish approval for direct food contact.
Potential non-implant applications include:
Diagnostic equipment
Laboratory automation
Pumps
Motors
Actuators
Positioning systems
Sample-handling mechanisms
Material, cleanliness, documentation and traceability requirements should be defined according to the specific project.
Miniature retaining rings are useful in compact mechanical systems such as:
Measuring instruments
Indicators
Adjustment mechanisms
Small shafts
Sensor mechanisms
Precision linkages
Tolerance control becomes increasingly important as retaining-ring dimensions become smaller.
High-volume electronic and electromechanical products may use retaining rings in:
Motors
Fans
Hinges
Rollers
Linkages
Rotating mechanisms
Control assemblies
E-clips can be especially attractive where rapid radial installation supports automated production.
A practical selection path begins with assembly architecture.
Is the retained component mounted on a shaft?
→ Consider an external retaining ring or E-clip.
Is the retained component located inside a housing or bore?
→ Consider an internal retaining ring.
For a shaft application:
Can the ring be installed from the end of the shaft?
→ A conventional external circlip may be suitable.
Is radial installation preferred because shaft-end access is limited or high-speed assembly is required?
→ Evaluate an E-type retaining ring.
Then continue with:
Axial Load → Groove Geometry → Shaft/Housing Material → Retained Component → Axial Clearance
→ Installation Method → Service Requirements → Environment → Material → Surface Finish → Validation
This decision path is more reliable than selecting a retaining ring from diameter alone.
Standard retaining rings are usually the most economical solution when the assembly is designed around established dimensions.
Custom retaining rings may be required for:
Non-standard shaft diameters
Non-standard bore diameters
Existing legacy grooves
Special ring thickness
Restricted installation envelope
Modified geometry
Special material
Special coating
Customer-specific retention requirements
The sourcing project should therefore identify whether the requirement is:
Standard Retaining Ring
Standard-Based Modified Ring
Exact Drawing Replacement
Functional Equivalent
Custom Retaining Ring
Industrial buyers sometimes need a replacement retaining ring but have no original drawing.
A physical sample can support development through:
Sample → Dimensional Inspection → Groove Review → Application Review → Material / Finish Evaluation → Drawing Confirmation → Prototype → Assembly Test → Production
However, a physical sample alone may not reveal the original:
Material specification
Heat-treatment requirement
Hardness target
Coating specification
Design axial load
Fatigue requirement
Original engineering standard
Providing application information improves the reliability of replacement-part development.
Engineers and buyers often arrive at retaining-ring pages with different questions.
Engineers may search for:
What is a circlip?
Types of retaining rings
Internal vs external circlip
E-clip vs circlip
Retaining ring groove dimensions
Circlip axial load
Retaining ring for bearing
Retaining ring for shaft
Retaining ring for bore
How to select a circlip
Their primary question is:
Which retaining architecture works in my assembly?
Purchasing and supplier-development teams may search for:
Retaining ring manufacturer
Circlip supplier
E-clip manufacturer
Stainless steel retaining ring supplier
Spring steel circlip supplier
Custom retaining rings
OEM circlip supplier
Retaining ring second source
Retaining rings from drawing
Their primary question is:
Can this supplier manufacture the required part consistently and support production?
A successful industrial sourcing project must answer both questions.
Providing complete technical information reduces quotation uncertainty and accelerates engineering review.
Provide where available:
Applicable standard
2D drawing
Customer part number
Physical sample
Required retaining-ring type
Specify:
Shaft diameter or bore diameter
Groove diameter
Groove width
Groove location
Shaft or housing material
Relevant hardness requirement
Identify whether the ring retains a:
Bearing
Gear
Pulley
Roller
Bushing
Lever
Linkage
Other component
Provide available information regarding:
Axial load
Static or dynamic loading
Vibration
Shock
Required service life
Acceptable axial clearance
Specify:
Required material
Hardness where applicable
Surface finish
Corrosion requirement
Restricted-substance requirements
Identify:
Temperature
Humidity
Outdoor exposure
Chlorides
Cleaning chemicals
Other relevant media
Provide:
Sample quantity
Pilot quantity
Production quantity
Estimated annual usage
Packaging requirements
Traceability requirements
Required delivery schedule
For OEM, Tier-1, Tier-2 and industrial programs, retaining-ring sourcing should consider more than unit price.
Depending on the project, supplier evaluation may include:
Drawing review
Material control
Forming-process control
Heat-treatment control where applicable
Dimensional inspection
Surface-treatment control
Prototype development
Production consistency
Automated inspection where appropriate
Lot identification
Packaging
Engineering change management
Long-term supply support
For high-volume retaining rings, automatic sorting and dimensional inspection can support suitable product characteristics when the inspection plan is matched to the actual drawing requirements.
JUXIN FASTENERS supports industrial retaining-ring projects for engineers, OEM purchasing teams, supplier-development organizations and global supply chains.
Product requirements can be evaluated from:
International or customer standard
2D drawing
Physical sample
Shaft or bore dimensions
Groove dimensions
Material requirement
Surface-finish requirement
Application information
Production quantity
Depending on the project, the sourcing path may involve:
External Shaft Circlip → Internal Bore Circlip → E-Type Retaining Ring → Standard-Based Modified Ring → Drawing-Based Replacement → Custom Retaining Ring
This allows engineers and procurement teams to evaluate the fastening architecture rather than treating every retaining ring as the same product.
A useful retaining-ring sourcing process follows the mechanical assembly:
What component must be retained?
→ Is it mounted on a shaft or inside a bore?
→ Is axial or radial installation required?
→ What is the shaft or bore diameter?
→ What is the groove geometry?
→ What axial load reaches the retaining ring?
→ What is the shaft or housing material?
→ What axial clearance is acceptable?
→ What installation method will production use?
→ Will the assembly require service removal?
→ What environment will the ring operate in?
→ What material and surface finish are required?
→ Is a standard retaining ring available?
→ Is an exact replacement or custom design required?
→ How will samples be validated?
→ What are the pilot and production quantities?
This converts a generic request such as:
“Please quote retaining rings.”
into an actionable engineering RFQ:
“Please evaluate the appropriate external circlip, internal circlip or E-type retaining ring for this groove, axial load, material, environment and assembly process.”
For external retaining rings, internal retaining rings, E-clips, circlips, spring steel retaining rings, stainless steel retaining rings,
drawing-based replacement parts, custom retaining rings or second-source development, send your drawing, sample,
shaft or bore dimensions, groove dimensions, material, surface finish, application requirements and quantity to:
JUXIN FASTENERS can review the available technical information and evaluate an appropriate standard, manufacturing, sampling and production path for your project.
MORE NEWS
Sep. 27, 2026
Sep. 27, 2026
Sep. 27, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
