Aug. 26, 2023
Blind threaded studs, also called blind rivet studs or externally threaded blind studs,
provide a practical method for creating a permanent external threaded mounting point when only one side of the parent material is accessible.
Unlike a blind rivet nut, which creates an internal thread, a blind threaded stud creates an external threaded post.
This difference makes the product useful when a component, bracket, panel, clip, spacer,
or other assembly part must be positioned over a protruding threaded post and secured with a nut or other mating component.
Blind threaded studs are particularly relevant to thin sheet-metal assemblies, electrical enclosures, automotive brackets,
HVAC equipment, appliance panels, industrial machinery, tubular structures, and hollow profiles where conventional through-bolting or backside access is difficult.
The engineering decision should not be based on thread size alone. Hole diameter, parent-material thickness,
grip range, stud length, blind-side forming geometry, external thread specification, installation conditions, load direction, corrosion environment,
and mating hardware all influence the performance of the finished joint.
JUXIN FASTENERS supplies custom fastening solutions for industrial applications and can evaluate blind threaded stud requirements according to customer drawings, specifications,
application conditions, and production requirements.

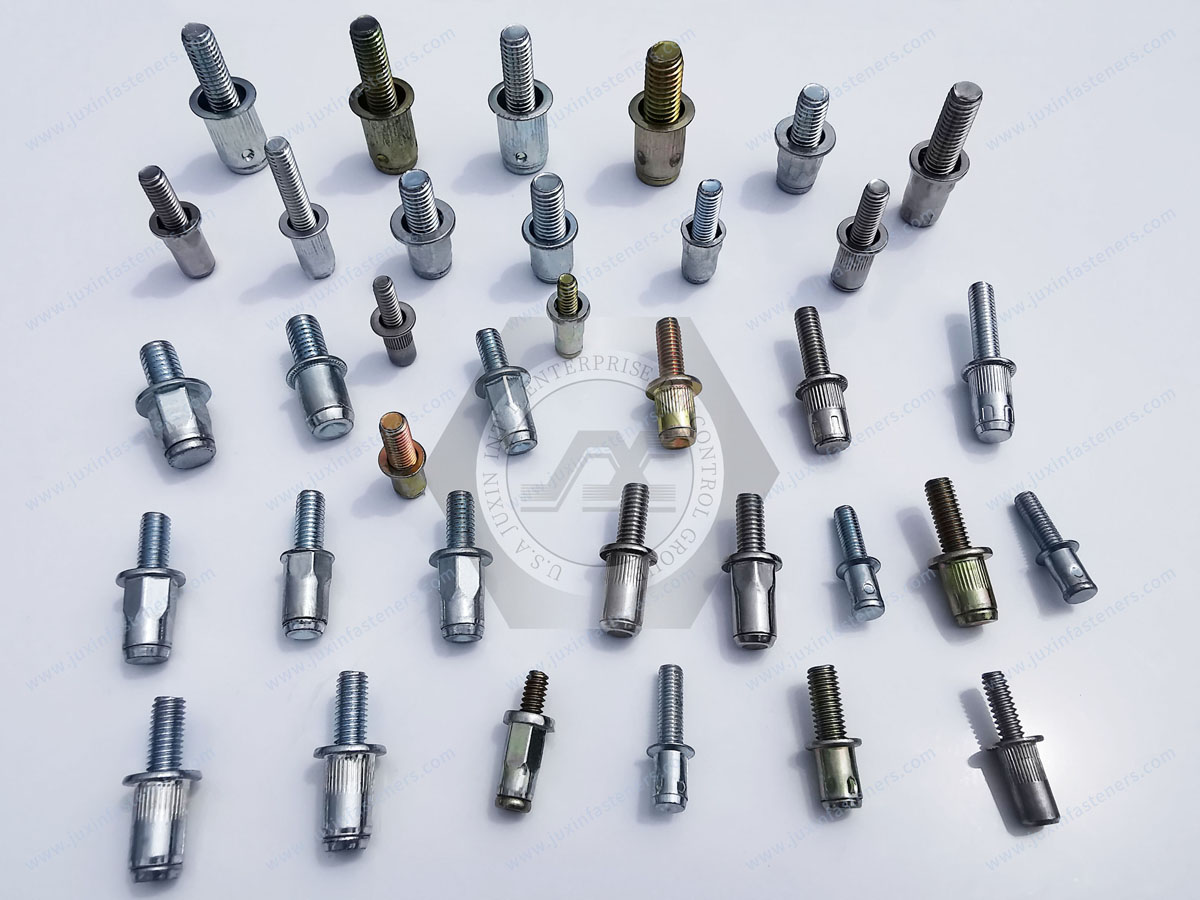

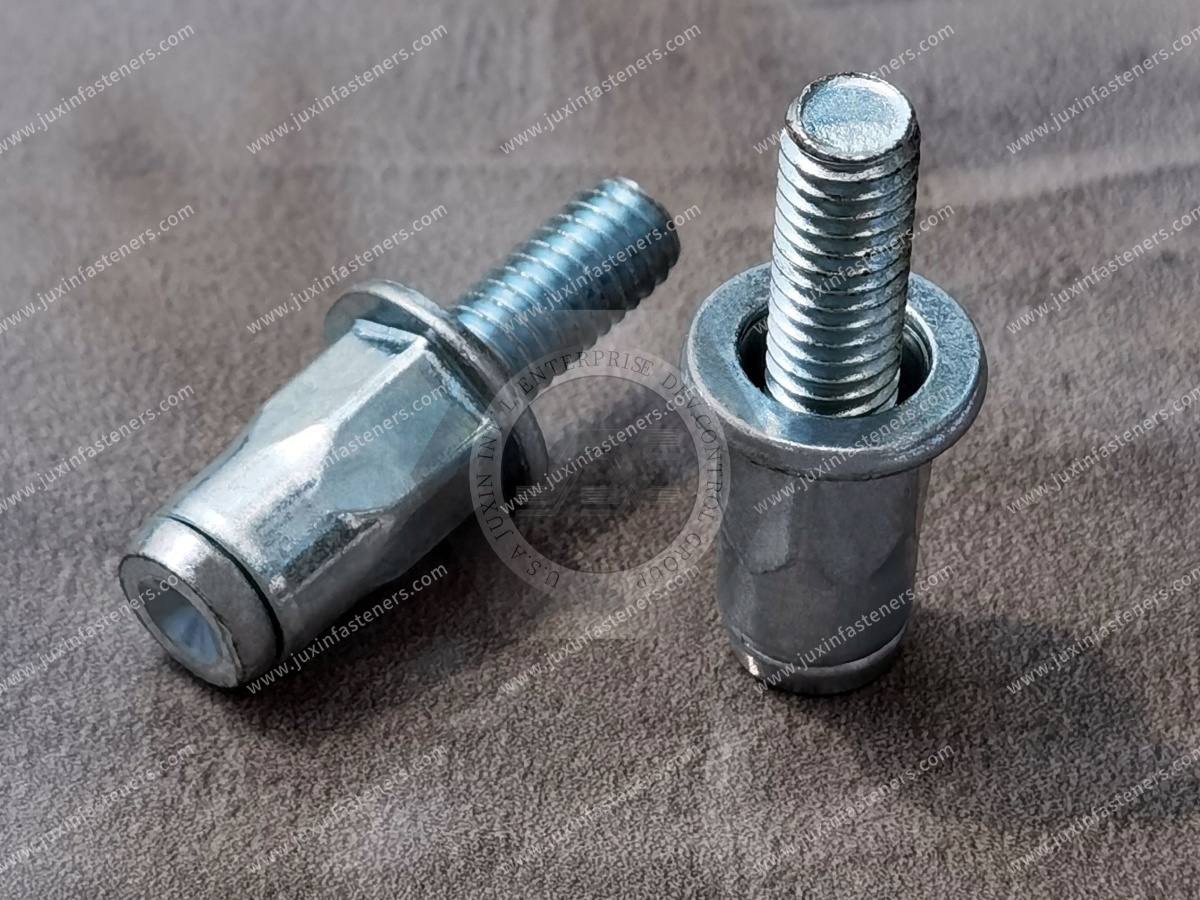

A blind threaded stud is a mechanically installed fastener that creates an external threaded post in a panel, sheet, tube, profile, or other structure that can normally be accessed from only one side.
The typical construction includes:
An externally threaded stud section
A body or sleeve designed for blind-side deformation
A head, flange, or bearing feature
A forming zone that expands or collapses during installation
A defined grip range corresponding to the parent material or assembly stack-up
After installation, the external thread remains available on the accessible side of the assembly.
A mating nut, bracket, spacer, clip, or other component can then be installed onto the exposed thread.
This makes blind threaded studs fundamentally different from blind rivet nuts.
The distinction is important during engineering selection.

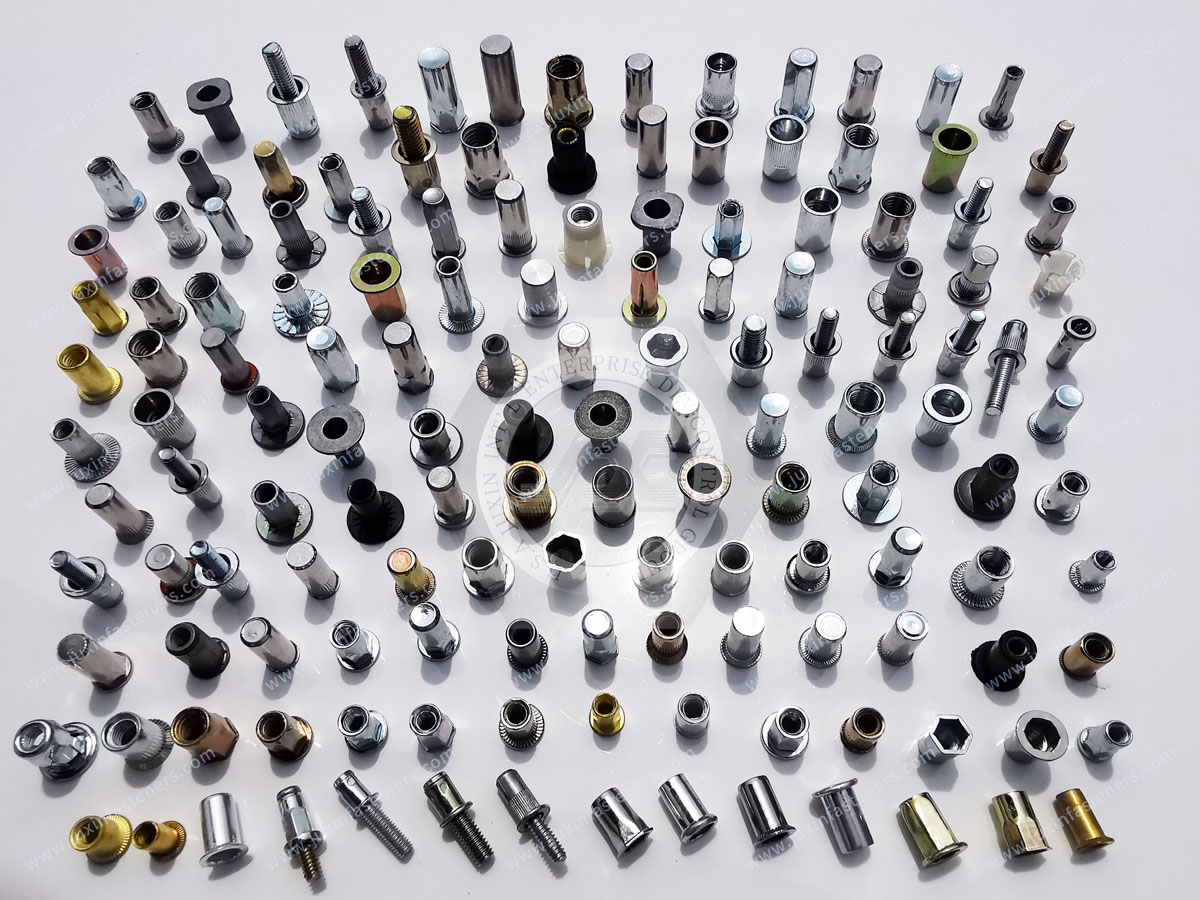

A blind rivet nut creates an internal threaded hole.
A blind threaded stud creates an external threaded post.
The two products can both provide single-sided installation, but they solve different mounting architectures.
For example:
A blind rivet nut can receive a screw from the front.
A blind threaded stud can project through a component and receive a nut.
A blind rivet nut is useful when the mating hardware must enter the insert.
A blind threaded stud is useful when the mating component must locate over the threaded post.
For broader blind rivet nut engineering principles, see the JUXIN FASTENERS guide to Blind Rivet Nuts: Engineering Principles, Installation Mechanics & Industrial Solutions.
An external threaded post can simplify component positioning and assembly.
Instead of attempting to hold a screw from one side while accessing a hidden nut from the opposite side, the threaded stud establishes the mounting point before the mating component is positioned.
This can be valuable when:
The backside of the panel is inaccessible.
The assembly is hollow.
A bracket must be located over a fixed threaded post.
A component needs a defined mounting position.
A conventional weld stud would introduce heat.
The parent panel has already been coated or finished.
Welding access is restricted.
Assembly access is available from only one direction.
The advantage is therefore not simply “more strength.” It is a combination of access, assembly architecture, positioning, and mechanical fastening.
The defining installation characteristic is access from one side of the parent structure.
The installer places the blind stud into a prepared hole and uses an appropriate installation system to deform or collapse the blind-side portion of the fastener.
The resulting mechanical interlock holds the fastener within the parent material.
The exact deformation mechanism depends on the specific blind stud design and installation tooling.
For this reason, engineers should evaluate the actual fastener design rather than assuming that every externally threaded blind stud installs in exactly the same way.
The installed joint depends on mechanical interaction between the fastener and the parent material.
During installation, the blind-side portion of the fastener forms against the rear surface of the panel or structure.
This creates a clamping and bearing relationship between:
The accessible-side head or flange
The parent material
The deformed blind-side section
The resulting joint is influenced by both fastener geometry and parent-material behavior.
This is an important engineering principle:
The blind threaded stud and the parent panel form one joint system.
The fastener should therefore not be evaluated independently from the hole and substrate.
The mounting hole is part of the fastening system.
If the hole is too small, installation may be difficult or may damage the fastener.
If the hole is too large, the available material around the fastener may be reduced and the intended mechanical engagement may not be achieved.
Hole quality can also be affected by:
Burrs
Distortion
Punching characteristics
Drilling quality
Coating thickness
Local deformation
Hole roundness
Hole location
The correct hole specification should therefore be controlled on the engineering drawing or installation documentation.
Panel thickness directly affects the installed geometry.
A blind threaded stud selected for one sheet thickness may not be appropriate for another thickness because the blind-side deformation must occur within the intended material range.
For this reason, the specification should identify the actual material thickness or total grip condition.
This is especially important for assemblies containing multiple layers.
Grip range is often misunderstood as simply “panel thickness.”
In practical assemblies, the effective grip condition can depend on the total material stack-up participating in the installation.
For example, the joint may include:
One sheet
Multiple stacked sheets
A coated panel
A bracket and panel
A spacer or mounting component
A local reinforcement
The selected fastener must accommodate the actual installation condition.
Grip selection should therefore be based on the assembly rather than an isolated nominal sheet thickness.
The external thread is the functional mounting interface.
Common engineering considerations include:
Metric or inch thread system
Nominal thread size
Thread pitch
Thread length
Thread form
Mating nut compatibility
Required thread engagement
Available exposed length after installation
The external thread should be specified according to the mating component and assembly requirement.
Metric and inch-thread products should not be mixed simply because their nominal diameters appear similar.
Stud length should be selected from the actual assembly stack-up.
The designer should consider:
Parent-material thickness
Bracket or component thickness
Washer thickness if used
Nut dimensions
Required thread engagement
Clearance around the assembly
Available space behind or around the component
A longer stud is not automatically a stronger stud.
Excessive exposed thread may increase interference risk without providing a useful engineering benefit.
The external stud must provide sufficient usable thread for the mating component.
The required engagement depends on the mating thread, material combination, joint loading, and applicable engineering requirements.
Engineers should avoid specifying stud length simply from the visible thread dimension.
Instead, determine the required thread engagement from the complete joint design.
One of the most important Information Gain points in blind stud selection is that “strength” is not one single property.
A blind threaded stud joint may experience different failure modes.
Pull-out refers to the fastener being displaced from the parent material under an axial loading condition.
Pull-through involves the fastener or its bearing geometry moving through or deforming the parent material.
Shear loading acts primarily across the fastening interface.
A long exposed stud can experience bending when the attached component applies an offset load.
These failure modes should be considered separately during engineering validation.
A common specification mistake is to focus on the mechanical strength classification of the mating screw or nut while overlooking the parent material and blind fastening interface.
The overall joint can be limited by:
Panel thickness
Parent-material strength
Hole diameter
Blind-side bearing area
Fastener geometry
Installation condition
Load direction
Stud projection
Local panel deformation
Therefore, a high-strength mating nut or screw does not automatically make the complete blind stud assembly a high-strength joint.
Thin sheet metal is one of the primary applications for blind fastening technology.
Examples include:
Electrical cabinets
Control panels
HVAC equipment
Appliance panels
Automotive brackets
Industrial enclosures
Machinery covers
Equipment frames
When the sheet is too thin to provide sufficient conventional threaded engagement, a blind fastener can establish a dedicated mounting point.
The correct product must still be selected according to the actual sheet material, thickness, hole, grip and load requirements.
Electrical and electronic equipment frequently uses sheet-metal enclosures where backside access can be limited after the enclosure is assembled.
Blind threaded studs can provide external mounting points for:
Brackets
Covers
Cable-management components
Internal mounting structures
Support components
Electrical hardware
Where enclosure sealing is important, the fastener should be evaluated as part of the complete enclosure sealing system.
A blind threaded stud should not automatically be described as a waterproof or sealing component unless the specific design and assembly have been validated for that purpose.

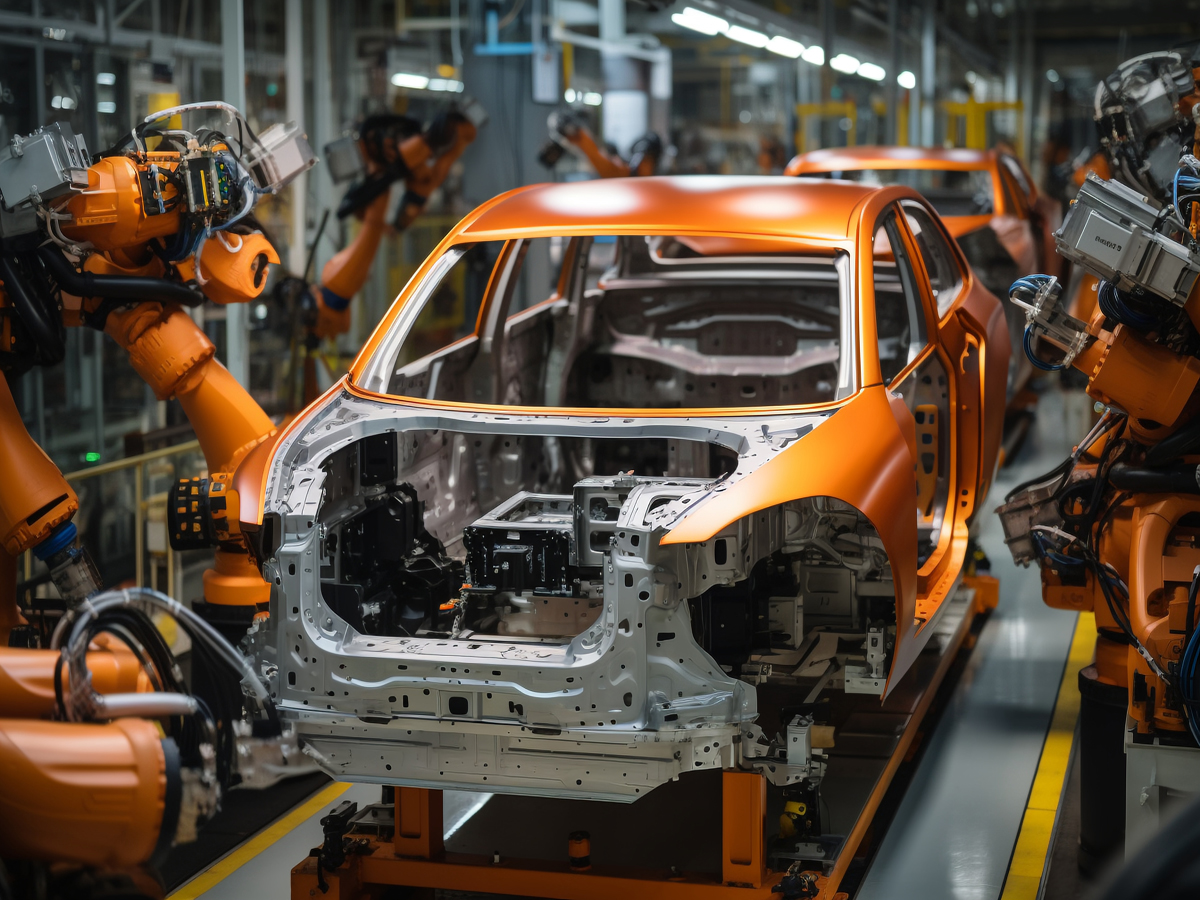

Automotive structures often contain thin formed panels and enclosed sections where welding or backside nut access can complicate production.
Blind threaded studs can provide mounting points for:
Brackets
Shields
Covers
Trim-related components
Equipment supports
Underbody or compartment components
Application-specific vibration, corrosion, temperature cycling and assembly-load requirements should be considered during product selection.
For broader automotive fastener applications, see the JUXIN FASTENERS solution for Industrial & Automotive Bolts and Nuts.
HVAC equipment often combines sheet metal, formed panels, brackets and enclosed assemblies.
External threaded studs can simplify the attachment of:
Mounting brackets
Equipment supports
Covers
Panels
Service-related components
Internal structural elements
The selected material and finish should be evaluated against the expected environmental exposure.
Industrial machinery frequently contains:
Guards
Covers
Brackets
Frames
Panels
Mounting plates
Tubular sections
Where access to the rear of a structure is limited, a blind threaded stud can provide a practical external mounting point without requiring a conventional through-bolt and rear-side nut.
Appliance manufacturing often involves thin sheet-metal panels with pre-formed surfaces and restricted internal access.
Blind threaded studs can support mounting requirements where a protruding threaded post is more convenient than a threaded hole.
The product should be selected according to panel construction, appearance requirements, load condition and assembly method.
Blind threaded studs can also be considered for hollow profiles and tubular structures where the opposite wall cannot be reached during assembly.
Typical examples include:
Equipment frames
Structural profiles
Vehicle components
Machinery frames
Enclosed support structures
The available installation space and internal geometry should be confirmed before selection.
Blind threaded studs can sometimes provide an alternative to welded mounting studs, but the products should not be treated as universally interchangeable.
Welding provides a different joint mechanism.
Blind mechanical installation avoids introducing welding heat at the installation point, which can be useful when:
The parent panel has a sensitive coating.
Heat distortion must be minimized.
Welding access is restricted.
Post-weld finishing would be undesirable.
The assembly process favors mechanical installation.
However, the mechanical alternative must still be validated for the actual load and environmental requirements.
Welding can introduce localized heat into the parent structure.
Depending on the material and surface system, this can affect:
Coatings
Appearance
Local distortion
Heat-sensitive components
Subsequent finishing operations
A blind threaded stud is installed mechanically rather than by welding.
This means the installation process does not introduce welding heat at the fastening point.
That distinction is more technically accurate than claiming that the product “eliminates all thermal distortion.”
Pre-coated or finished sheet metal creates another engineering consideration.
If welding is performed after coating, the local coating system may be affected and additional finishing operations may be required.
A mechanically installed blind stud can be considered where preserving the existing surface finish is important.
The compatibility of the installation process with the coating and panel should still be confirmed through application testing.
External studs can provide a useful positioning feature during assembly.
A bracket or component can be located over the exposed stud before the mating nut is tightened.
This can help simplify assembly where the component would otherwise need to be held manually while a fastener is inserted.
The benefit depends on the actual assembly geometry and access conditions.
Some external threaded stud configurations can be combined with spacer or stand-off functions.
These designs can help establish a controlled distance between:
A panel and bracket
An enclosure and component
A mounting surface and electronic assembly
Two structural elements
Where a fixed offset is required, the spacer geometry should be specified as part of the fastener design rather than assumed from a standard stud.
Bracket mounting is a common application because the bracket can be placed directly over an externally threaded post.
The design engineer should check:
Bracket hole diameter
Stud diameter
Stud projection
Nut clearance
Washer clearance
Edge distance
Installation tool access
These details often determine whether a theoretically suitable stud works efficiently in production.
Blind threaded studs may be produced in different materials depending on the application.
Potential choices can include:
Carbon steel

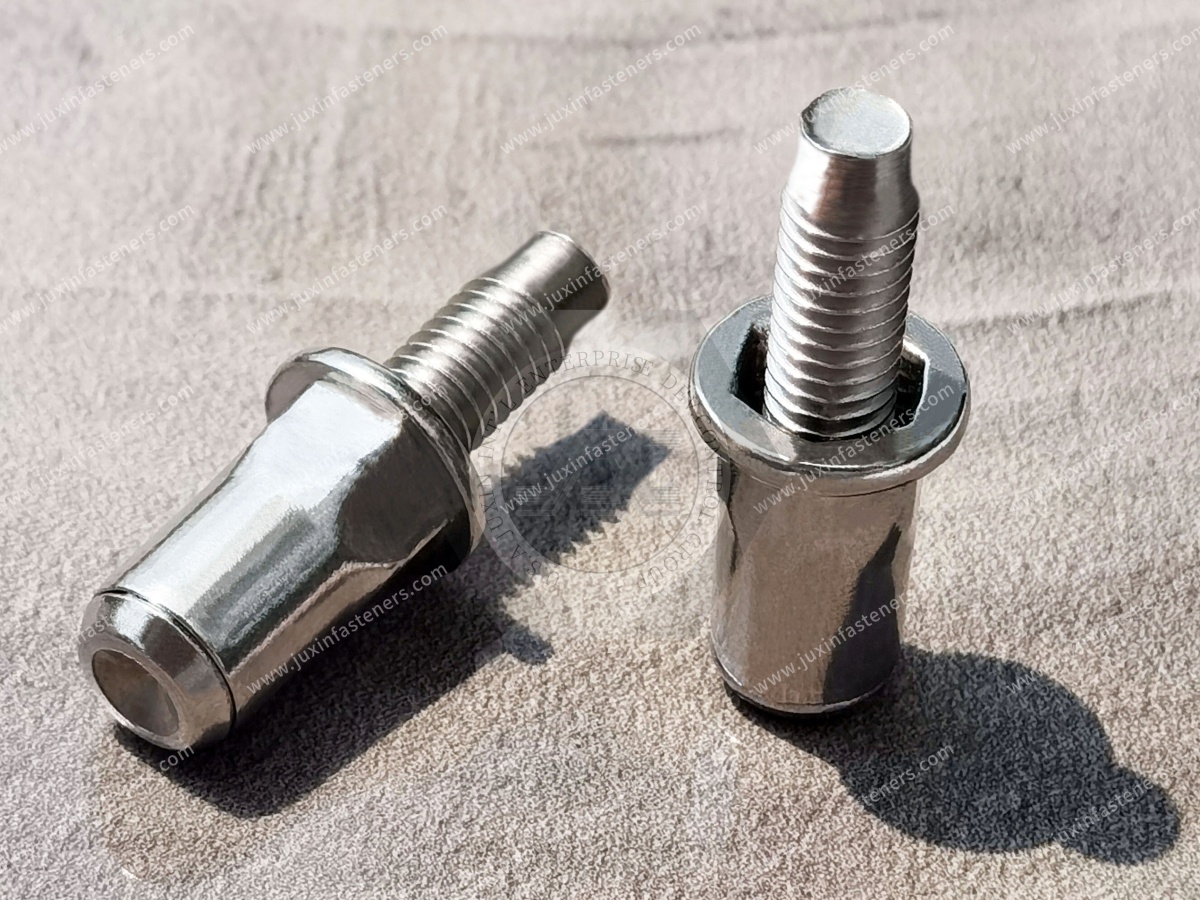

Stainless steel
Aluminum alloys
Other application-specific materials
Material selection should consider:
Mechanical requirements
Parent material
Corrosion environment
Weight
Temperature
Chemical exposure
Surface treatment
Galvanic compatibility
The correct material is therefore an application decision rather than simply a catalog preference.
Carbon steel can provide a practical combination of mechanical performance and manufacturing flexibility for many industrial applications.
Typical applications may include:
Industrial equipment
Automotive brackets
Electrical enclosures
Machinery structures
General sheet-metal assemblies
The required surface treatment should be selected according to the environmental conditions and customer specification.
Stainless steel can be considered where corrosion resistance or material compatibility is important.
Potential applications include:
Outdoor equipment
Food-related equipment where applicable
HVAC equipment
Electrical enclosures
Industrial machinery
Equipment exposed to moisture
Where stainless steel fasteners are specified, the exact stainless grade and applicable product standard should be identified rather than using “stainless steel” as a complete specification.
Where applicable, ISO 3506 can be considered for stainless steel fastener mechanical and material classification within its scope.
Aluminum can be considered where weight reduction is an important design objective.
However, lower density does not automatically mean that an aluminum blind stud will provide the same mechanical behavior as a steel version.
Engineers should consider:
Load requirements
Thread durability
Parent-material compatibility
Corrosion environment
Installation behavior
Galvanic compatibility
Material substitution should therefore be validated rather than assumed.
Surface treatment can affect corrosion behavior, appearance and material compatibility.
Possible systems may include:
Zinc-based coatings
Zinc-nickel systems
Passivation for applicable stainless products
Other customer-specified protective finishes
The appropriate finish depends on the fastener material, parent material and environmental exposure.
A coating should not be specified solely from a generic “corrosion resistance” requirement without defining the actual environment and validation method.
When dissimilar metals are assembled together, galvanic corrosion may become a system-level consideration.
This is particularly relevant when combining:
Steel and aluminum
Stainless steel and aluminum
Plated carbon steel and conductive aluminum structures
The engineer should consider:
Material pairing
Electrolyte exposure
Surface treatment
Contact area
Environmental conditions
Drainage and moisture retention
The fastener should therefore be evaluated as part of the complete material system.
Automotive, industrial and mobile equipment can expose fasteners to vibration.
A blind threaded stud assembly should be evaluated for:
Joint movement
Nut loosening
Stud bending
Panel deformation
Local fatigue
Mating-component movement
The correct locking strategy may depend on the mating nut, washer, joint design and customer assembly specification.
For related locking-nut applications, see the JUXIN FASTENERS guide to Nylon Insert Locknuts and Self-Locking Fasteners.
Temperature changes can alter the behavior of both the fastener and parent material.
Different coefficients of thermal expansion can create changes in the joint condition during thermal cycling.
This can be particularly relevant when combining:
Steel fasteners with aluminum panels
Stainless fasteners with aluminum structures
Metal fasteners with polymer components
For demanding applications, thermal cycling should be included in application-specific validation.
Blind threaded studs can also be considered for certain non-metallic substrates, but plastic, fiberglass and composite materials should not be treated as mechanically identical to sheet steel.
Important considerations include:
Local crushing
Creep
Stress relaxation
Hole deformation
Pull-through
Temperature sensitivity
Moisture exposure
For broader plastic fastening considerations, see the JUXIN FASTENERS Automotive Plastic Fasteners Guide.
When a metal stud is installed into a polymeric structure, long-term behavior may differ from a metal-to-metal joint.
Under sustained loading, some plastics can experience creep or stress relaxation.
This means that an assembly that passes an initial installation test may still require long-term evaluation when subjected to sustained load or elevated temperature.
The exposed length of a threaded stud matters when the mating component applies an offset load.
A longer projection can increase the lever arm between the load and the parent structure.
This can increase bending effects on the stud.
Therefore, the designer should not maximize exposed thread length without considering the actual assembly geometry.
The distance between the stud hole and the panel edge can influence local material behavior.
Insufficient edge distance can increase the risk of local deformation or pull-through depending on the parent material and load direction.
The appropriate edge distance should therefore be established from the application and validated for the actual substrate.
The stud hole may also be positioned near:
Bends
Formed features
Cut-outs
Other holes
Embossments
Panel edges
These nearby features can affect local stiffness and installation access.
Designers should evaluate the actual panel geometry rather than considering the hole as an isolated feature.
Blind threaded studs require an installation process suited to their specific geometry.
Depending on the design, installation may involve a spin/pull or other dedicated mechanical installation method.
The correct tool should match:
Thread size
Stud geometry
Installation principle
Grip range
Required installation condition
Tool selection should be confirmed against the specific fastener rather than assumed from the thread size alone.
Installation force and stroke are important process parameters.
The objective is to form the blind-side section correctly without damaging:
The stud
The panel
The external thread
The coating
The surrounding assembly
The correct values depend on the specific product design and application.
For this reason, installation parameters should be established from the product specification and validated using the actual parent material.
Over-installation can deform the parent material or damage the fastener.
Potential symptoms can include:
Excessive panel deformation
Damaged threads
Distorted head geometry
Local cracking in sensitive substrates
Inconsistent installed height
Controlled installation is therefore part of joint quality.
Under-installation can also create problems.
If the blind-side section does not form correctly, the mechanical engagement may not reach the intended condition.
Possible consequences include:
Reduced retention
Excessive movement
Rotation
Premature loosening
Variable installed height
The installation process should therefore be validated rather than judged only by visual appearance.
Pull-out testing can help evaluate axial retention in the actual parent material.
The test should consider:
Parent material
Sheet thickness
Hole condition
Fastener geometry
Installation process
Load direction
Test fixture
A pull-out value obtained from one panel construction should not automatically be transferred to another material or thickness.
Pull-through evaluates the behavior of the fastener and parent material under a load that tends to pull the assembly through the panel.
This can be especially important for thin or relatively soft substrates.
The result can depend strongly on:
Head or flange geometry
Panel thickness
Material strength
Hole diameter
Load direction
Where the mating nut is tightened, rotational behavior may become important.
The joint should be evaluated for:
Stud rotation
Panel deformation
Mating nut torque
Installation condition
Fastener geometry
Torque resistance is not identical to pull-out strength.
They should be treated as separate engineering characteristics.
A blind threaded stud may also be subjected to lateral loads.
The resulting joint behavior depends on:
Stud diameter
Exposed length
Bracket geometry
Panel thickness
Material properties
Load direction
Hole condition
A stud selected primarily for axial mounting should not automatically be assumed to be suitable for high lateral loading.
Bending deserves special attention when a mounted component is offset from the panel.
For example, a bracket may place the applied load some distance away from the panel surface.
This creates a moment that can increase stress in the exposed stud and the parent-material interface.
Reducing unnecessary stud projection and controlling bracket geometry can therefore be important design considerations.
One of the most useful engineering principles in blind fastening is that the fastener may not be the first component to fail.
The parent panel can experience:
Pull-through
Local yielding
Hole enlargement
Cracking
Deformation
Fatigue
Therefore, a fastener with a high nominal material strength does not automatically create a high-capacity assembly.
The panel must be included in engineering validation.
Automotive applications may involve:
Body panels
Brackets
Underbody components
Interior structures
Battery-related support structures
Thermal-management components
Equipment mounting points
Application requirements can include vibration, corrosion, thermal cycling, assembly speed and restricted access.
Product selection should therefore be based on the complete vehicle component design.
Electrical equipment manufacturers may use externally threaded mounting points for:
Brackets
Cable-management hardware
Covers
Supports
Internal assemblies
Equipment mounting
For enclosures requiring environmental protection, sealing performance must be evaluated at the complete assembly level.
The presence of a blind stud alone does not establish an IP rating.
Industrial equipment can benefit from single-sided mechanical fastening where service access or structural geometry makes through-bolting inconvenient.
Applications may include:
Machinery guards
Control cabinets
Pump equipment
Industrial frames
Equipment covers
Mounting brackets
The selected fastener should be matched to the actual load and service environment.
HVAC and building equipment often use formed sheet-metal assemblies.
External threaded studs can provide convenient mounting points where the rear side of the panel is enclosed.
Material and surface-treatment selection should consider:
Indoor or outdoor exposure
Moisture
Condensation
Chemical exposure
Parent-metal compatibility
Appliances frequently require repeatable attachment points in thin sheet metal.
Blind studs can support:
Brackets
Covers
Supports
Internal mounting components
Assembly fixtures
The correct design depends on the panel construction and production process.
Specialized aerospace and transportation equipment can impose strict requirements on weight, material traceability, corrosion behavior, installation process and qualification.
For such applications, the fastener should be specified against the customer's engineering documentation and applicable industry requirements.
A generic catalog designation should not be treated as sufficient qualification for a safety-critical application.
Blind threaded studs do not have one universal standard that can simply be applied to every product configuration.
Applicable standards depend on the exact product type, thread system, material, dimensional geometry and customer specification.
Potentially relevant frameworks may include:
ISO standards for applicable fastener dimensions or thread systems
DIN standards where the exact product scope matches
ASME/ANSI standards for applicable inch-threaded products
ASTM standards for applicable material or test methods
SAE standards where the application and product scope are relevant
The exact standard should therefore be confirmed against the product drawing and specification.
A common catalog-writing problem is to assign ISO 8848 or ISO 8849 to every blind threaded stud.
That approach is not technically reliable.
Fastener standards must be matched to their actual scope.
Blind threaded studs, blind rivet studs, blind rivet nuts and blind rivets are different product architectures.
For OEM procurement, the correct approach is to specify the exact product geometry, material,
thread, dimensions and applicable standard rather than inserting an unrelated standard simply to make the product appear standardized.
Material standards should also be used carefully.
For example, a standard covering a raw material, sheet product or wire product does not automatically constitute a finished-fastener performance standard.
The engineering specification should distinguish between:
Finished fastener standards
Material standards
Thread standards
Coating standards
Test methods
Customer-specific requirements
This distinction improves procurement accuracy and supplier communication.
Blind threaded studs can be designed for metric or inch-threaded applications depending on the target market and customer specification.
Metric applications may use thread designations such as:
M5
M6
M8
M10
Inch applications may use UNC or other applicable thread systems.
The actual selection should be determined by the mating component and customer drawing.
Nominal diameter alone is not sufficient to define a thread.
Custom applications may require a specific exposed thread length.
The correct dimension should be determined from the complete stack-up and required mating engagement.
A custom stud can therefore involve changes to:
Thread length
Overall length
Head geometry
Body geometry
Grip range
Material
Surface treatment
The drawing should identify all critical dimensions.
The head or flange controls the interface between the fastener and the parent material.
Engineering considerations include:
Bearing area
Head diameter
Head thickness
Panel contact
Appearance
Clearance
Installation access
A larger head does not automatically produce a proportionally stronger joint because parent-material behavior still governs performance.
Some blind stud designs may incorporate geometry intended to resist rotation.
However, rotation resistance depends on the complete installed interface.
Relevant factors can include:
Hole geometry
Body geometry
Parent material
Installation condition
Applied torque
Panel deformation
The presence of knurling, ribs or another external feature should not be interpreted as an unconditional guarantee of torque resistance.
Corrosion resistance should be evaluated at the assembly level.
Consider:
Fastener material
Coating system
Parent material
Environmental exposure
Moisture
Chemical exposure
Temperature
Galvanic compatibility
For demanding applications, the corrosion-validation method should be defined by the customer specification or engineering requirement.
ASTM B117, for example, is a laboratory salt-spray test method; a test duration should not be interpreted by itself as a direct prediction of service life.
Visible fasteners may have appearance requirements in addition to mechanical requirements.
Relevant considerations can include:
Color
Surface finish
Coating uniformity
Head appearance
Scratch resistance during installation
Compatibility with adjacent surfaces
For visible automotive or equipment components, these requirements should be included in the drawing or procurement specification.
Quality control should focus on the characteristics that determine whether the fastener fits and performs as specified.
Typical inspection areas can include:
External thread dimensions
Thread pitch
Overall length
Head or flange dimensions
Body diameter
Material identification
Surface treatment
Critical dimensional tolerances
The exact inspection plan should follow the customer's drawing and agreed quality requirements.
External threads should be controlled using appropriate thread inspection methods.
Depending on the specification, this may involve:
Thread gauges
Dimensional measurement
Optical inspection
Functional mating checks
The inspection method should correspond to the actual thread standard and customer requirement.
Critical dimensions may include:
Overall length
Thread length
Head diameter
Head thickness
Body diameter
Grip-related dimensions
Hole-related dimensions
Not every dimension has the same functional importance.
The supplier and customer should identify critical-to-function characteristics during drawing review.
Production approval should include installation validation using the actual:
Panel material
Panel thickness
Hole specification
Fastener
Installation tool
Installation process
This is more meaningful than evaluating the fastener only as an individual loose component.
For demanding applications, validation may include multiple loading and environmental conditions.
Depending on the application, engineers may evaluate:
Pull-out
Pull-through
Torque or rotation
Shear
Bending
Vibration
Thermal cycling
Corrosion exposure
The test plan should reflect the actual service conditions.
Consistent production requires control of the characteristics that affect installation and joint performance.
Important controls may include:
Raw material
Forming dimensions
Thread geometry
Heat-treatment requirements where applicable
Surface treatment
Dimensional inspection
Packaging
Lot identification
The appropriate controls should be agreed according to the customer's quality requirements.
For an OEM blind threaded stud RFQ, the drawing should ideally identify:
Product geometry
Thread designation
Thread length
Overall length
Head or flange dimensions
Grip range
Material
Surface treatment
Critical tolerances
Applicable standards
Application environment
Packaging requirements where applicable
A complete drawing significantly reduces interpretation risk.
Procurement teams should avoid purchasing only by the generic description “blind threaded stud.”
A better purchasing specification identifies:
Product architecture + thread + dimensions + grip + material + finish + application + quality requirements.
This allows suppliers to quote comparable products.
Supplier development teams can evaluate:
Drawing interpretation
Manufacturing capability
Material control
Thread control
Surface-treatment control
Dimensional consistency
Installation validation
Traceability requirements
Packaging
Production capacity
Change-control process
This creates a more reliable supplier-qualification process than comparing unit price alone.
When requesting a quotation from JUXIN FASTENERS, provide as much of the following information as available:
2D drawing
3D model if available
Thread size and pitch
Required thread length
Overall stud length
Parent-material type
Parent-material thickness
Grip range
Mounting-hole diameter
Head or flange requirements
Material
Surface treatment
Environmental conditions
Mating nut or component information
Estimated annual volume
Prototype or production requirement
Applicable customer standards
Inspection or documentation requirements
This information allows the supplier to evaluate the application rather than quote a generic catalog item.
Two blind threaded studs with the same nominal thread can have very different suitability for an application.
The actual difference may come from:
Panel thickness
Grip range
Head geometry
Stud projection
Material
Installation method
Load direction
Surface treatment
Providing application information therefore improves both technical accuracy and commercial comparability.
The most important distinction between a blind threaded stud and a blind rivet nut is not simply the direction of the thread.
It changes how the mating component enters the joint.
An internal-thread insert receives a screw.
An external-thread stud presents a mounting post.
That difference can affect component positioning, assembly sequence, nut access, clearance and serviceability.
A common sourcing mistake is to specify the fastener without specifying the panel.
The installed joint consists of:
Fastener + hole + parent material + installation process + mating component + applied load.
Changing any one of these elements can change the resulting performance.
Another common mistake is to equate strong external threads with a strong installed joint.
The thread may remain intact while the parent panel pulls through.
Alternatively, the stud may experience bending while the panel remains intact.
Therefore, engineering validation should identify the actual governing failure mode.
For many blind threaded stud applications, engineers should distinguish at least:
Axial retention → pull-out
Panel failure → pull-through or local deformation
Lateral loading → shear
Offset loading → bending
These are not interchangeable test conditions.
Stud length should not be selected simply because a longer thread appears to provide more engagement.
The correct length depends on the complete stack-up and the required mating engagement.
An unnecessarily long stud can create clearance and interference problems, while an insufficiently long stud can prevent proper nut engagement.
“Blind” describes access to the installation side.
It does not automatically describe sealing performance.
A blind threaded stud should therefore not be promoted as waterproof, IP-rated or leak-proof unless the specific fastener and complete assembly have been designed and validated for that requirement.
Knurling, ribs or other body features can contribute to rotational resistance, but the result depends on the parent material, hole and installation condition.
Therefore:
Anti-rotation geometry is not a substitute for application validation.
Thin sheet metal may have insufficient local material to support the same loads as a thicker structural section.
As the panel becomes thinner, local deformation and pull-through can become increasingly important.
This is why the parent panel should be included in the engineering validation.
The fastener finish should not be selected independently from the panel material.
Steel, stainless steel and aluminum combinations can create different corrosion conditions.
The appropriate surface system should therefore consider the complete assembly and environment.
A practical selection sequence is:
Step 1 — Define the application
What component is being mounted?
Step 2 — Identify the parent structure
Sheet, tube, profile, bracket, enclosure or composite panel?
Step 3 — Define the material
Steel, stainless steel, aluminum, plastic or another substrate?
Step 4 — Define thickness and grip
What material thickness or stack-up must the fastener accommodate?
Step 5 — Define the hole
What hole diameter and tolerance are available?
Step 6 — Define the external thread
Metric, UNC or another specified thread system?
Step 7 — Define stud projection
How much usable thread is required after installation?
Step 8 — Define the environment
Indoor, outdoor, moisture, chemicals, vibration, thermal cycling or other exposure?
Step 9 — Define validation
Which failure modes and environmental conditions must be tested?
Step 10 — Define procurement requirements
Drawing, material, finish, inspection, documentation, packaging and annual volume?
This workflow turns a generic fastener search into a controlled engineering specification.
JUXIN FASTENERS supports custom industrial fastening requirements involving blind installation, external threaded mounting and sheet-metal assembly.
Depending on the application and confirmed product specification, sourcing discussions can cover:
Blind threaded studs
Blind rivet studs
External threaded blind fasteners
Custom thread lengths
Metric thread configurations
Inch-thread configurations where applicable
Carbon steel options
Stainless steel options
Aluminum options where applicable
Surface-treatment requirements
Application-specific geometry
OEM drawing-based production
The exact material, dimensions, finish and manufacturing configuration should be confirmed against the customer's drawing and application requirements.
When the application requires an internal threaded mounting point rather than an external threaded post, a blind rivet nut may be more appropriate.
JUXIN FASTENERS also provides engineering information for EV Blind Rivet Nuts: High-Reliability Fastening Solutions for Electric Vehicle Manufacturing,
including considerations for aluminum panels, thin-sheet fastening, grip range, anti-rotation and application validation.
For sealed enclosure applications, see Sealing Blind Rivet Nuts for EV Battery Enclosures.
Where the application also requires high-strength bolts and nuts, the complete joint should be evaluated rather than selecting the mating hardware independently.
See the JUXIN FASTENERS High-Strength Bolts and Nuts solution for related industrial fastening requirements.
For procurement and supplier-development teams, blind threaded stud sourcing should be managed as an engineering-controlled component.
The commercial evaluation can include:
Product conformity
Drawing interpretation
Material selection
Surface-treatment requirements
Production consistency
Inspection requirements
Packaging
Documentation
Annual demand
Application validation
Change-control expectations
This approach helps purchasing teams compare suppliers on the characteristics that actually affect the finished assembly.
A prototype blind stud should be evaluated using the same basic joint architecture expected in production.
Important variables include:
Production panel material
Production thickness
Production hole
Production installation method
Production mating hardware
Changing these parameters after prototype approval can change the joint behavior.
Once a blind threaded stud is approved, changes to critical characteristics should be controlled.
Potentially significant changes include:
Material
Thread
Grip range
Head geometry
Surface treatment
Installation method
Supplier manufacturing process
OEM customers may have their own formal change-control requirements, which should be incorporated into the supply agreement where applicable.
For production fasteners, correct packaging can be as important as the component itself.
Packaging and identification may need to protect against:
Thread damage
Surface damage
Mixed part numbers
Lot confusion
Contamination
Incorrect quantity
Customer-specific labeling and packaging requirements should be defined during sourcing.
The fastest way to establish a technically meaningful discussion is to provide the drawing and application information at the beginning.
A useful RFQ package should identify:
Fastener: Blind threaded stud / blind rivet stud
Thread: Size, pitch and thread system
Dimensions: Overall length, thread length and head geometry
Grip: Parent-material thickness or total stack-up
Hole: Diameter and tolerance
Material: Parent material and fastener material
Finish: Required surface treatment
Environment: Moisture, corrosion, vibration, temperature or chemicals
Quantity: Prototype, annual demand or production volume
Validation: Required performance tests or customer specifications
This allows JUXIN FASTENERS to evaluate the requirement from both an engineering and procurement perspective.
Blind threaded studs provide an external threaded mounting point through single-sided mechanical installation.
Their value is particularly clear where:
Backside access is restricted
The structure is hollow
Thin sheet metal requires a dedicated mounting interface
A protruding threaded post simplifies assembly
Welding heat should be avoided at the installation point
A pre-finished panel should remain mechanically intact
However, reliable selection depends on more than thread size.
The engineer should evaluate the parent material, hole, grip range, stud geometry, thread length, exposed projection, installation method, load direction, environmental exposure and mating component.
The procurement team should translate those engineering requirements into a controlled RFQ specification.
If your application requires an externally threaded mounting point for thin sheet metal, hollow profiles, electrical enclosures, automotive brackets,
HVAC equipment or industrial machinery, JUXIN FASTENERS can review the requirement based on your drawing and application information.
Please send:
2D drawing
3D model if available
Thread specification
Parent-material thickness
Mounting-hole information
Required grip range
Material and surface-treatment requirements
Application environment
Estimated production quantity
Applicable customer specifications
For OEM sourcing, supplier development and engineering evaluation, contact:
Email: info@juxinfasteners.com
JUXIN FASTENERS can then review the blind threaded stud requirement and discuss the appropriate product geometry, material, finish, installation condition and production specification for your application.
MORE NEWS
Sep. 25, 2026
Sep. 25, 2026
Sep. 25, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
