Engineering Focus: Preventing Leakage at Retained Threaded Connections
An EV battery enclosure may have a carefully designed perimeter gasket, sealed electrical connectors and controlled ventilation components, yet still develop an unwanted leakage path at a threaded mounting point.
This can occur when a fastener penetrates the enclosure wall and its sealing interface is not adequately controlled.
Closed-end sealing blind rivet nuts offer a fastening option for these situations. They combine a retained internal thread, one-sided installation and a closed distal end.
With an appropriate under-head sealing element, they can also help control leakage around the fastener-to-panel interface.
Their performance, however, depends on the completed joint.
A closed barrel is not equivalent to a sealed flange, and neither feature automatically establishes an IP rating for the enclosure.
This distinction is particularly important in electric vehicle battery packs, high-voltage electrical housings, automotive electronics and stationary energy storage equipment.
JUXIN FASTENERS supplies industrial blind rivet nuts, closed-end threaded inserts and sealing rivet nut configurations for OEM applications.
Selection and quotation should be based on the actual enclosure design, panel material, installation method and sealing requirements.
A conventional through-hole creates an interruption in the enclosure boundary.
If the hole receives an open-end threaded insert, the internal passage through the insert may become a potential route for moisture or contamination.
Replacing the open-end insert with a closed-end version can remove that direct through-body route, provided the closed end remains intact.
Yet another route remains possible between the outside of the rivet nut body and the surrounding panel.
The installation hole is generally larger than the threaded passage. Although setting the rivet nut creates mechanical retention, that deformation does not necessarily produce a continuous fluid-tight interface.
A sealing element beneath the flange can help address this route.
Consequently, the fastening design must manage two different leakage mechanisms:
Through-body leakage: Fluid travels through the internal passage of an open-ended insert or through a defect in the closed barrel.
Around-body leakage: Fluid travels through the interface between the rivet nut and the enclosure panel.
These mechanisms require different design controls.
A closed-end barrel addresses the first. A correctly engineered flange seal addresses the second.
Neither should be confused with sealing the entire enclosure.

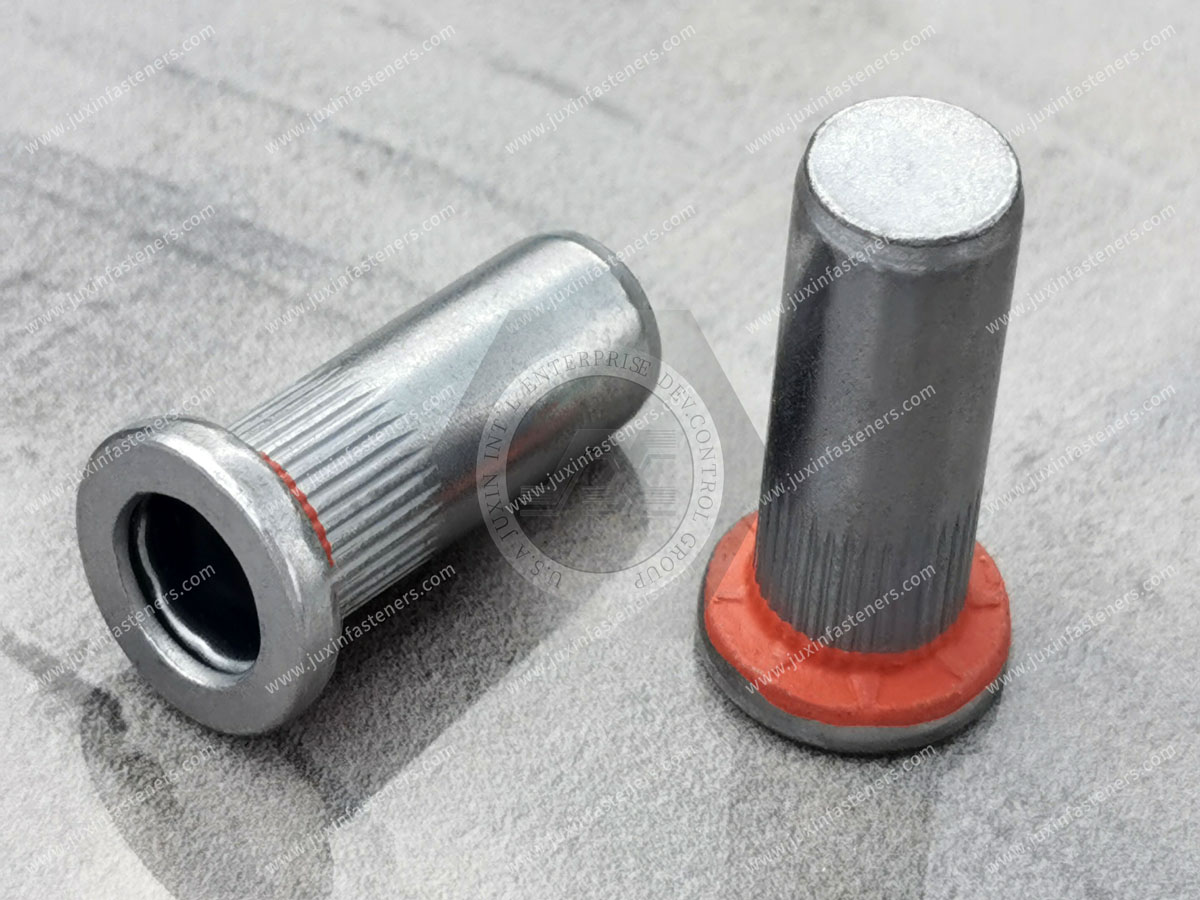

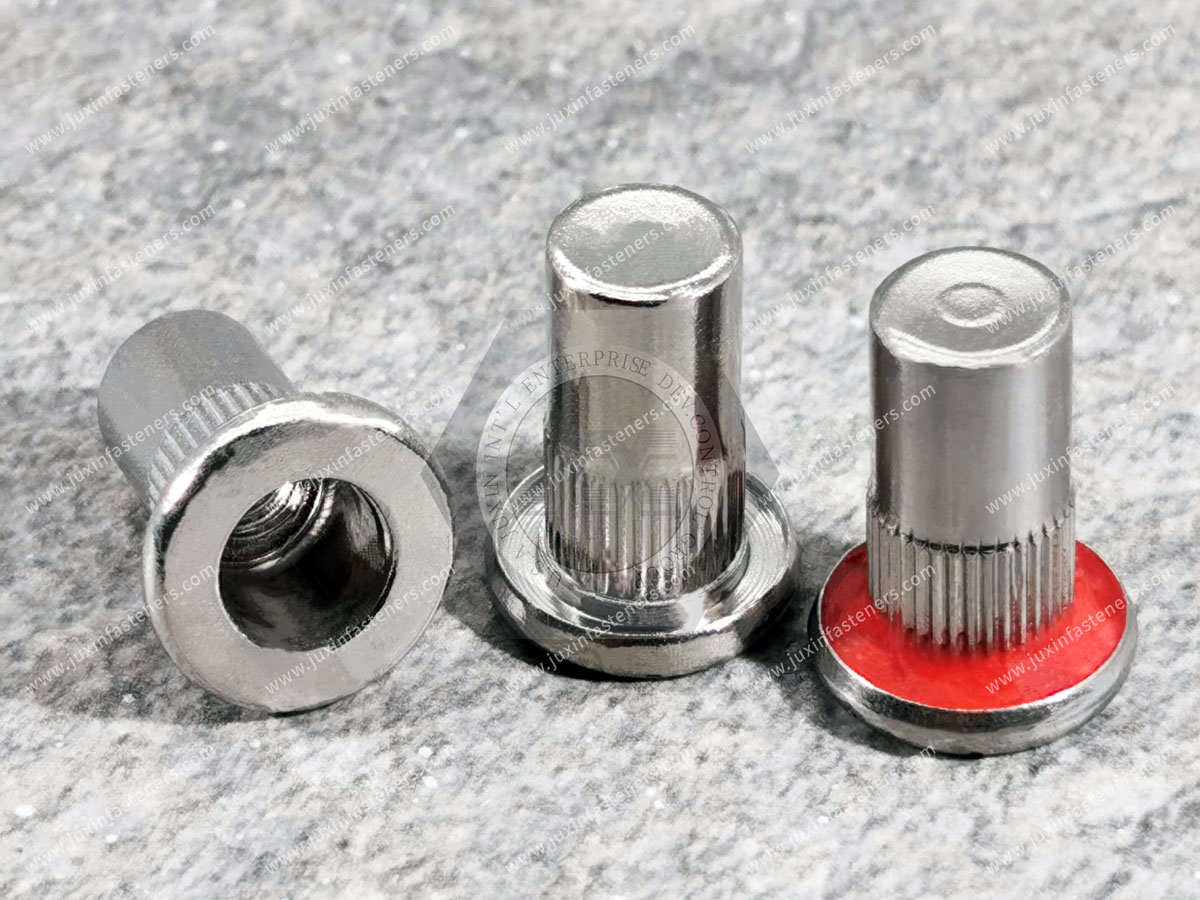

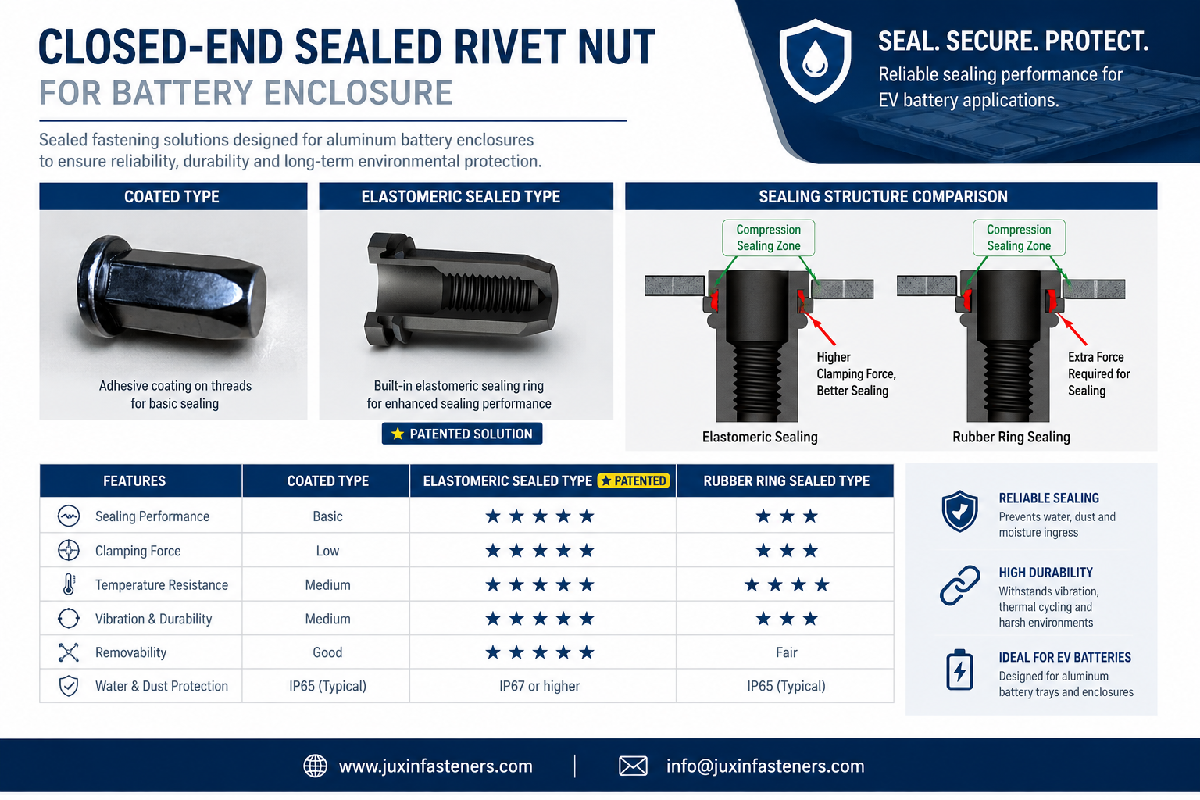

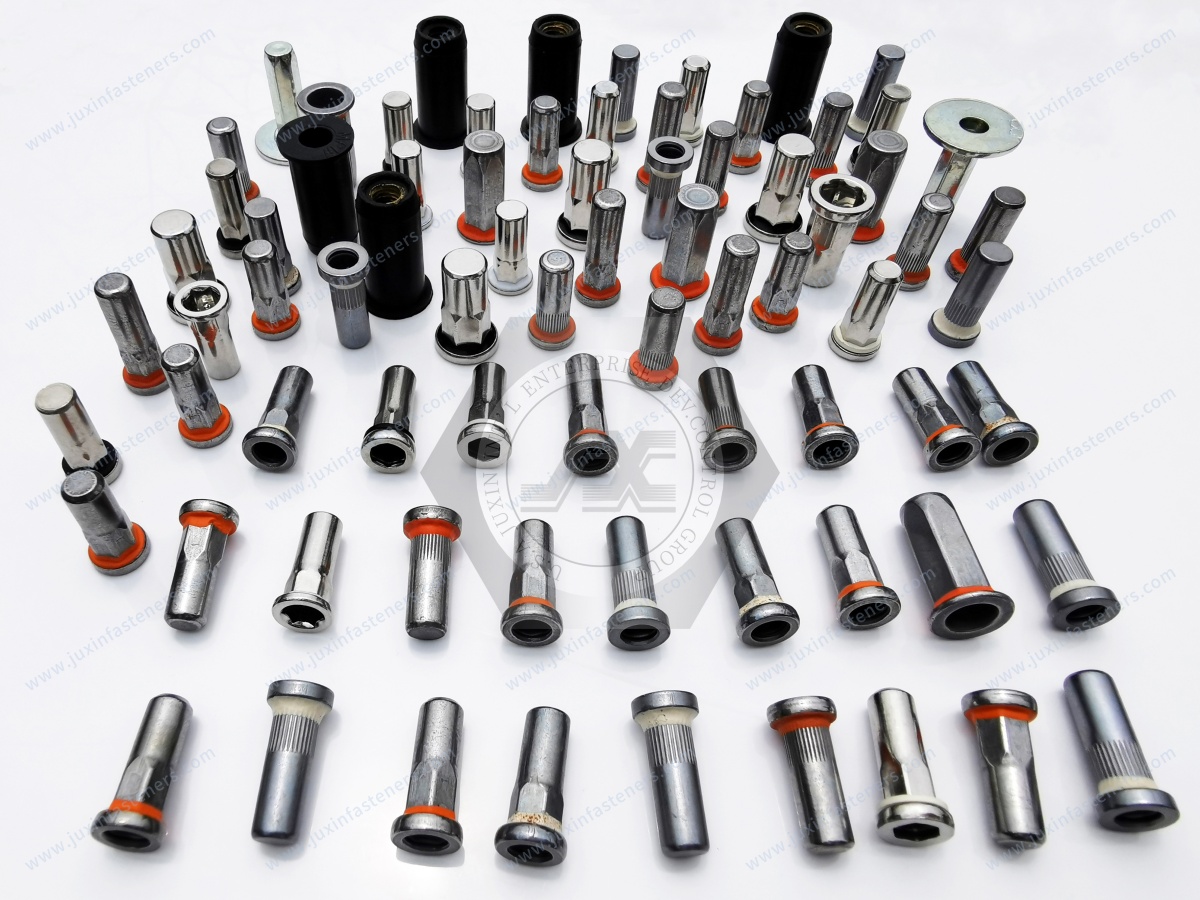

A typical closed-end sealing blind rivet nut incorporates several functional regions.
Internal thread
The thread provides engagement for the mating screw and allows the attached component to be installed or removed.
Deformable installation body
This region collapses in a controlled manner during blind installation, forming the mechanical retention feature behind the panel.
Closed distal end
The closed end prevents a direct opening through the barrel, provided it remains intact and is not damaged by the mating screw or installation process.
Head or flange
The flange provides the visible-side seating surface and can support a sealing element.

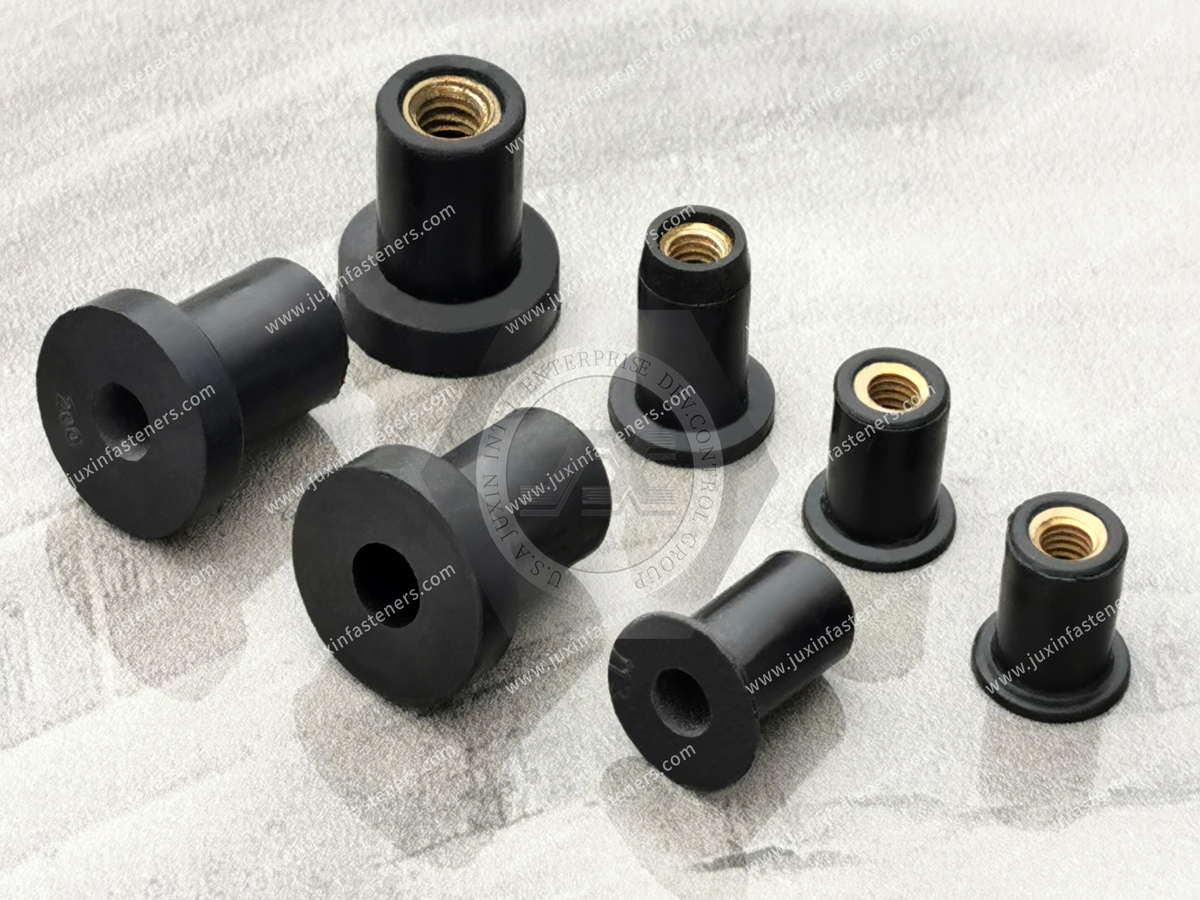

Under-head sealing feature
Depending on the specified design, this may be a captured elastomer ring, washer or other engineered sealing interface.
The exact construction must be confirmed from the product drawing. Not every closed-end rivet nut includes a seal, and not every sealing rivet nut has a closed distal end.
A closed-end barrel can be mechanically intact while the surrounding panel interface leaks.
The under-head seal therefore deserves the same engineering attention as the rivet nut body.
When the insert is installed, the flange approaches the panel and compresses the sealing element.
The seal must establish sufficient contact with the mating surfaces without being damaged by excessive compression.
Several conditions can prevent this:
A burr beneath the flange
Uneven panel flatness
An incompatible seal material
An incorrectly sized sealing ring
Excessive setting force
Inadequate flange seating
Local sheet distortion
Seal extrusion into the installation hole
Long-term compression relaxation
The sealing ring is not simply an accessory added after fastener selection.
Its geometry and compression behavior are part of the installed joint design.
A captured under-head seal may simplify component handling because the sealing element remains associated with the rivet nut during feeding and installation.
A separate sealing washer may offer a different assembly approach but introduces another component that must be correctly positioned.
The preferred arrangement depends on the installation equipment, required seal geometry, replacement strategy and manufacturing controls.
A captured seal should not automatically be assumed to outperform a separate washer. The completed interface must be evaluated.
The following analysis separates leakage sources by physical location rather than grouping all failures under the term "waterproofing."
| Leakage location | Potential mechanism | Engineering consideration |
|---|---|---|
| Closed barrel | Damage, cracking or manufacturing defect | Barrel integrity and screw clearance |
| Flange perimeter | Incomplete seal contact | Seal geometry and compression |
| Panel surface | Burrs, distortion or roughness | Hole preparation and seating surface |
| Seal material | Chemical attack, aging or compression set | Material compatibility |
| Installation zone | Excessive deformation or incorrect setting | Tooling and installation window |
| Adjacent enclosure features | Cover seams, connectors or vents | Complete enclosure sealing design |
This distinction is useful during troubleshooting.
If leakage is detected near a threaded insert, replacing the rivet nut without identifying the actual leakage route may not resolve the problem.
Consider a battery enclosure panel fitted with a closed-end sealing rivet nut.
The enclosure fails a specified leak test, and the suspected location is the threaded mounting point.
An engineering investigation should first determine whether the leakage is genuinely associated with that location.
Possible causes include incomplete seal compression, a damaged under-head ring, a distorted installation hole or leakage traveling from an adjacent enclosure joint.
A controlled investigation may compare:
The original installed joint
A joint with verified flange seating
A joint installed using the approved setting parameters
A joint with the specified sealing element
An otherwise identical panel without the suspected leakage path, where an appropriate test fixture allows
The objective is to isolate the relevant interface without changing several variables simultaneously.
Engineering insight: A leak observed near a rivet nut is not proof that fluid passed through the closed barrel. The leakage path must be identified before corrective action is selected.

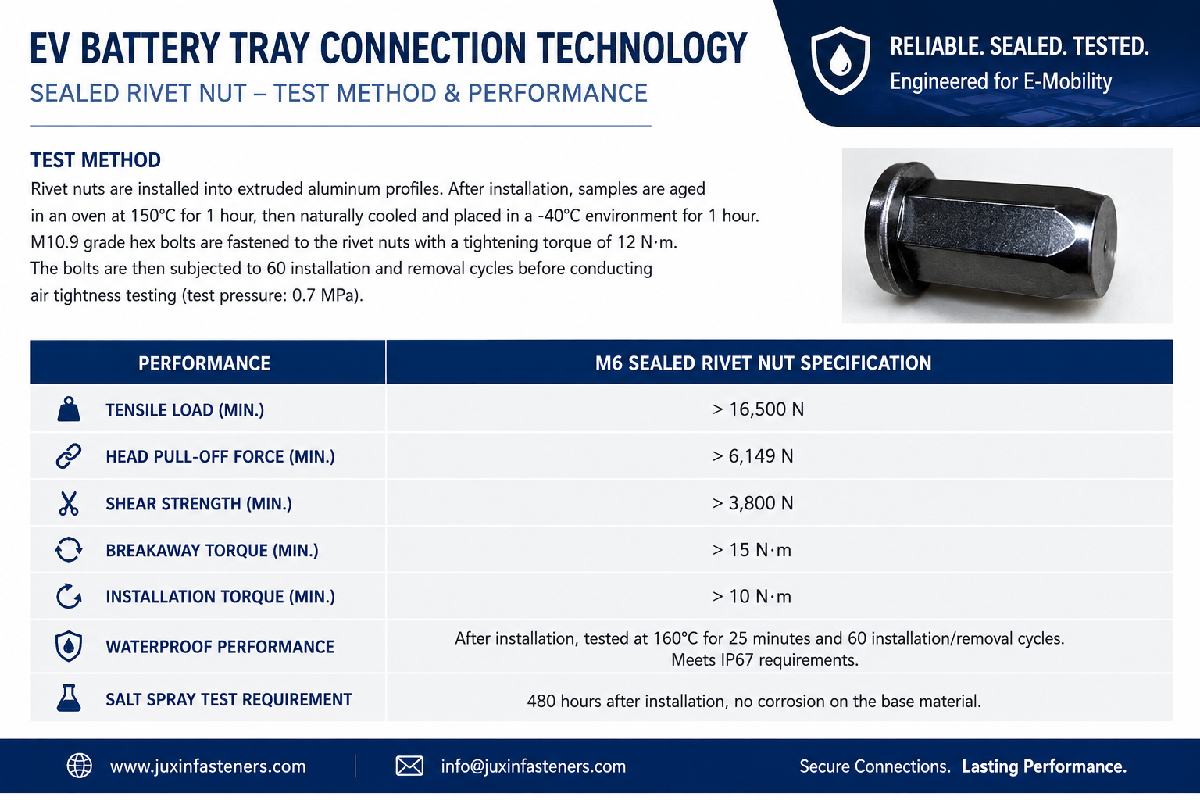

Air leak testing and ingress-protection testing answer different questions.
An air leak test may evaluate the rate at which gas passes through an enclosure or component under defined pressure conditions.
The result depends on the test method, pressure differential, temperature, fixture, stabilization time and acceptance criteria.
IP testing evaluates protection against specified ingress conditions.
For road-vehicle electrical equipment, ISO 20653:2023 establishes applicable IP-code requirements and tests for enclosures.
For general electrical equipment enclosures, IEC 60529 provides the broader IP Code framework.
These methods are not automatically interchangeable.
An enclosure that satisfies a particular air leak acceptance limit cannot be assumed to have achieved IP67 solely from that result.
Likewise, an enclosure that passes an applicable IP test has not necessarily demonstrated compliance with an unrelated air leakage specification.
A production engineer evaluating a sealed threaded interface should begin with the customer's functional requirement.
The test specification may need to identify:
Test boundary
Is the test intended for the individual fastener interface, a panel subassembly or the complete enclosure?
Test medium
Is air, water or another specified medium used?
Pressure condition
What pressure differential applies, and in which direction?
Acceptance criterion
What measured result constitutes acceptance?
Fixture configuration
Does the fixture reproduce the actual installed joint without creating an artificial seal?
Environmental conditioning
Is testing required before or after thermal cycling, vibration or chemical exposure?
Test timing
Will testing occur during development, qualification, production or after a process change?
These details are necessary to make results comparable.
A generic statement such as "100% waterproof" does not provide an actionable production requirement.
Fastener-level evaluation can help investigate a particular sealing interface.
Assembly-level testing determines how the relevant enclosure configuration performs.
The two approaches can complement each other, but they should not be presented as equivalent.
For an OEM program, the test boundary and acceptance criteria should be agreed before samples are evaluated.
JUXIN FASTENERS can review customer-defined sealing and inspection requirements during technical quotation.
Specific testing or documentation should be confirmed as part of the agreed supply scope rather than assumed.
IP67 is an enclosure protection classification, not a universal property of a closed-end rivet nut.
For a road-vehicle application, the relevant requirements should be interpreted according to the specified standard and test plan.
The complete enclosure may contain numerous potential leakage locations, including:
Cover joints
Gaskets
Electrical connectors
Cable entries
Pressure-management vents
Service openings
Welded or formed seams
Fastener penetrations
A sealing rivet nut contributes to the design only at its relevant interface.
The enclosure-level result must be established by the appropriate validation procedure.
Do not specify an "IP67 rivet nut" without defining the installed configuration and required verification.
A more useful requirement is a closed-end sealing rivet nut intended for an enclosure with a specified IP target,
with component and assembly validation defined by the OEM.
Closed-end construction creates an important geometric constraint: the mating screw cannot pass freely through the end of the insert.
If the screw is too long, it may contact the closed end before the attached component is fully clamped.
This can create a misleading tightening condition.
The assembly tool may reach its target torque even though the intended joint preload has not been established.
Depending on the geometry and loading, excessive contact force may also damage the insert.
For a closed-end rivet nut, the drawing review should therefore consider:
Available internal depth
Usable thread engagement
Screw length and tolerance
Attached component thickness
Washer thickness
Joint stack-up
Required tightening condition
The closed barrel should not be treated as a mechanical stop unless the joint has been specifically engineered for that function.
A bottomed-out screw can affect the intended joint clamping condition.
If the enclosure design depends on a particular clamp load elsewhere in the assembly, an incorrect screw length can create a sealing problem even when the rivet nut's under-head seal is intact.
This is an example of how fastening geometry and enclosure sealing interact.
A sealing element must maintain adequate contact pressure throughout the required operating conditions.
Too little compression may leave a leakage path.
Too much compression may cause extrusion, tearing, permanent deformation or accelerated relaxation.
The appropriate compression depends on the specified seal material and geometry.
It should not be inferred from the nominal rivet nut thread size.
The installation process should establish repeatable flange seating without exceeding the allowable deformation of the panel or sealing element.
Where relevant, the drawing or control plan should define critical seal dimensions, seating requirements and inspection criteria.

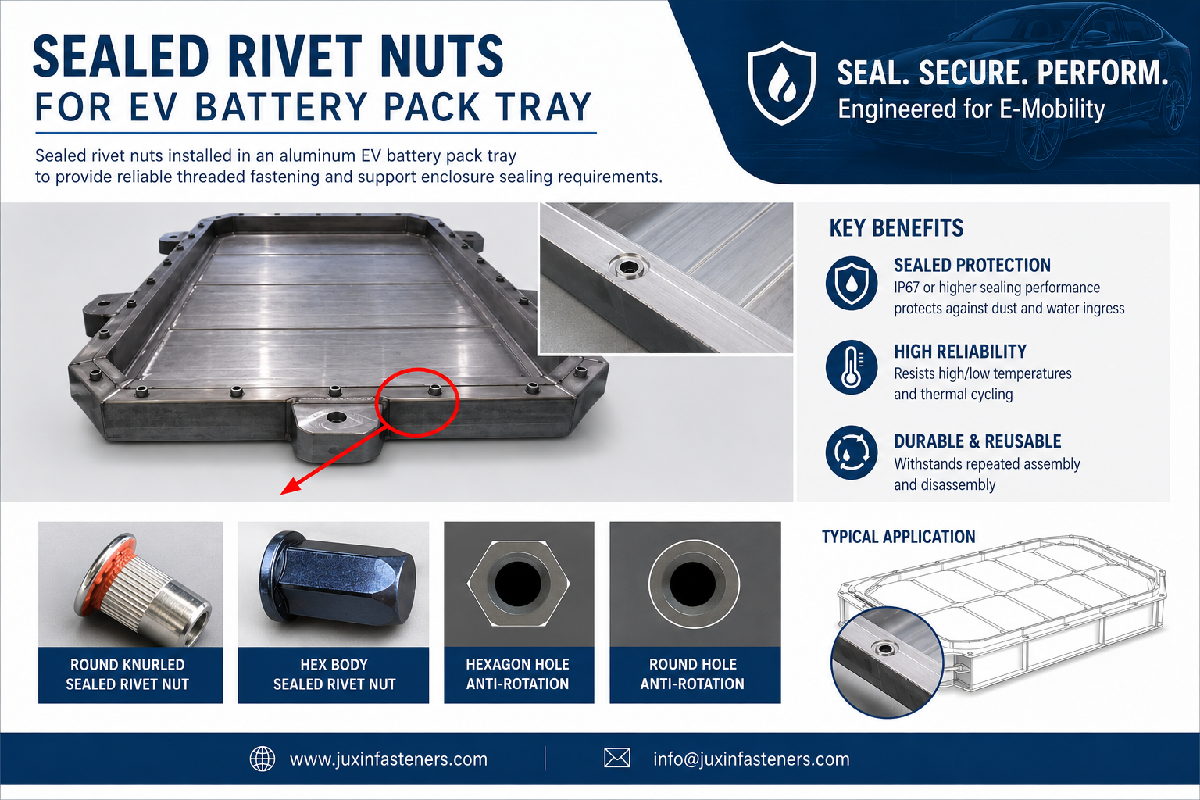

Aluminum battery enclosures introduce particular challenges because local panel stiffness and material condition can influence installation.
A setting operation that works well in a thicker steel panel may not be suitable for a thin aluminum wall.
Potential problems include:
Local sheet crushing
Hole enlargement
Flange indentation
Panel warping
Seal displacement
Excessive backside deformation
The installation window should be established using the actual rivet nut, panel material, thickness, hole and tool.
A battery enclosure may include a formed flange, reinforcement or locally modified sheet geometry.
The relevant grip condition is the actual material thickness engaged by the deformable portion of the rivet nut, not simply the nominal thickness shown elsewhere on the enclosure drawing.
Surface coatings and nearby geometry may also affect seating and sealing even where they do not materially change the structural grip.
These conditions should be reviewed individually rather than combined into a single assumed thickness.
Hole diameter and geometry affect mechanical retention, but hole preparation also influences sealing.
A burr under the flange can interrupt contact with the seal.
An irregular hole may create uneven deformation during installation.
For a non-round insert, the hole profile must match the intended body geometry.
The required hole condition should be established from the approved rivet nut design and panel manufacturing process.

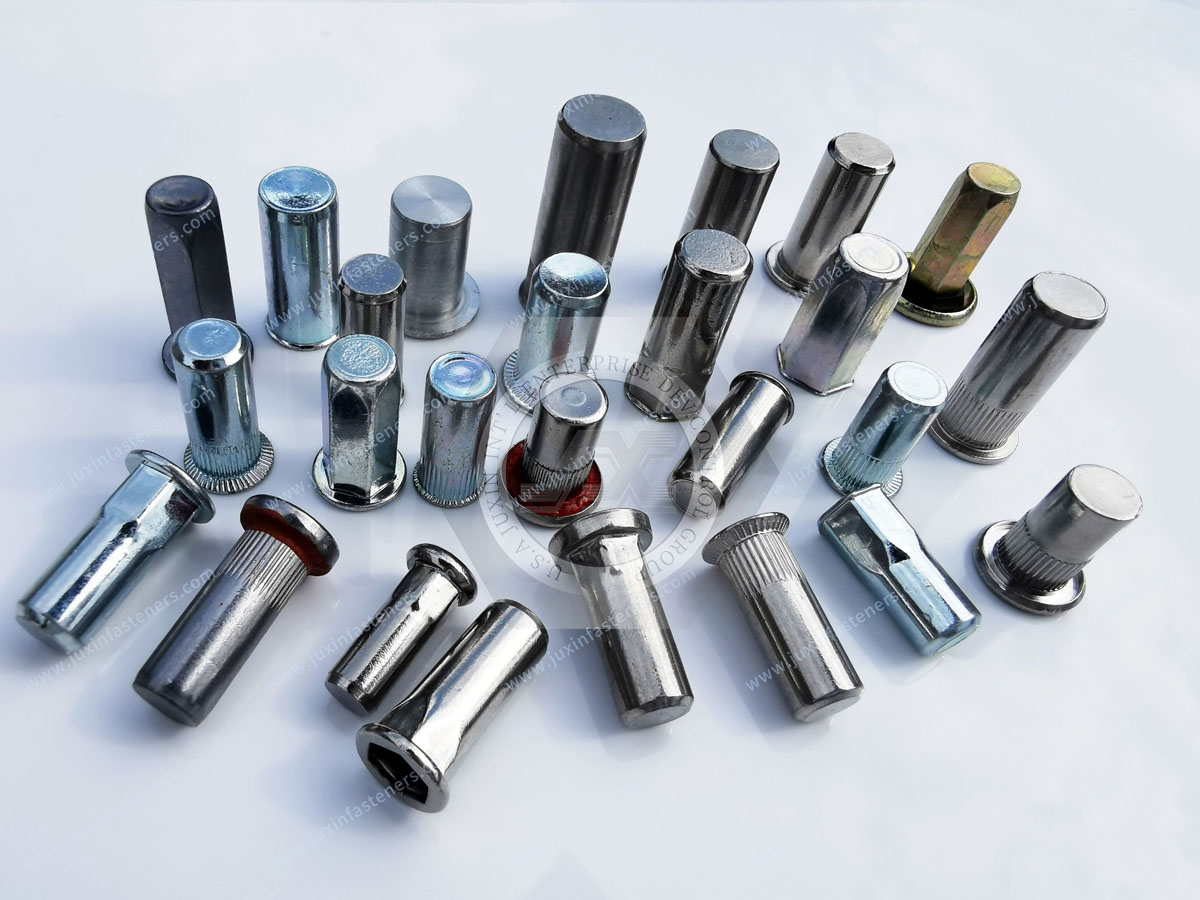

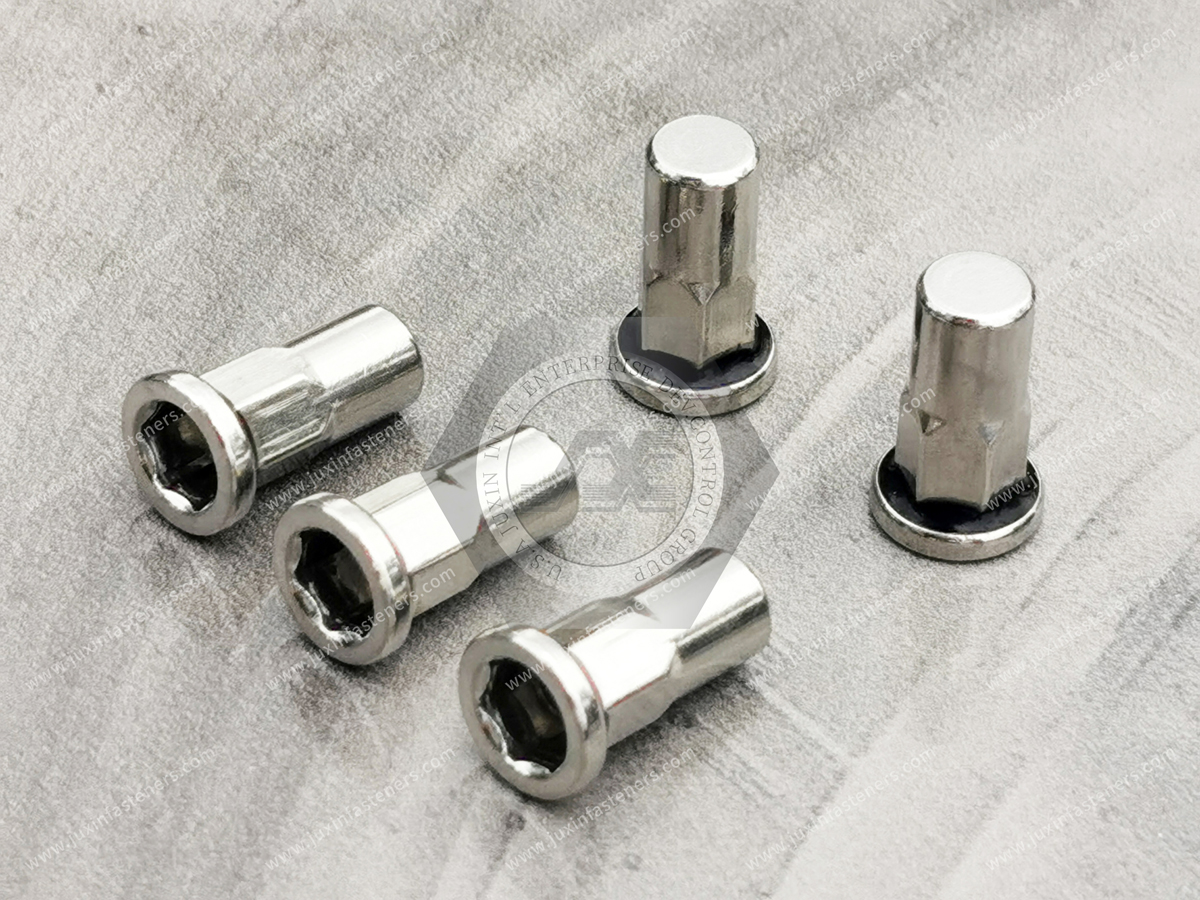

A closed-end sealing rivet nut may use a round, knurled, semi-hex or other body configuration.
A semi-hex body can provide geometric resistance to rotation when installed in a compatible hole.
However, improving anti-rotation performance does not automatically improve sealing.
A change from a round to a semi-hex design may also change:
Hole geometry
Local panel deformation
Installation force
Flange seating behavior
Tooling requirements
These changes can affect the sealing interface.
Therefore, a body-geometry substitution should be evaluated as an engineering change rather than a direct replacement based solely on thread size.
Material selection influences both mechanical performance and long-term environmental reliability.
Closed-end rivet nuts may be specified in carbon steel, stainless steel or aluminum, depending on the application and available product configuration.
The relevant questions are not limited to which material resists corrosion most effectively.
The design must also consider how the fastener material interacts with the enclosure and seal.
Stainless steel may be considered for corrosion-resistant applications.
Grades in the 304 or 316 families may be relevant depending on the specified product and exposure conditions.
However, stainless steel is not automatically the best choice for every aluminum enclosure.
The engineer should evaluate mechanical loading, galvanic compatibility, cost and the actual environment.
Carbon steel may offer a practical balance of strength and cost.
Where corrosion protection is required, the finish should be specified according to the customer drawing and environmental conditions.
Coating thickness and surface condition may influence fit, installation and seal seating.

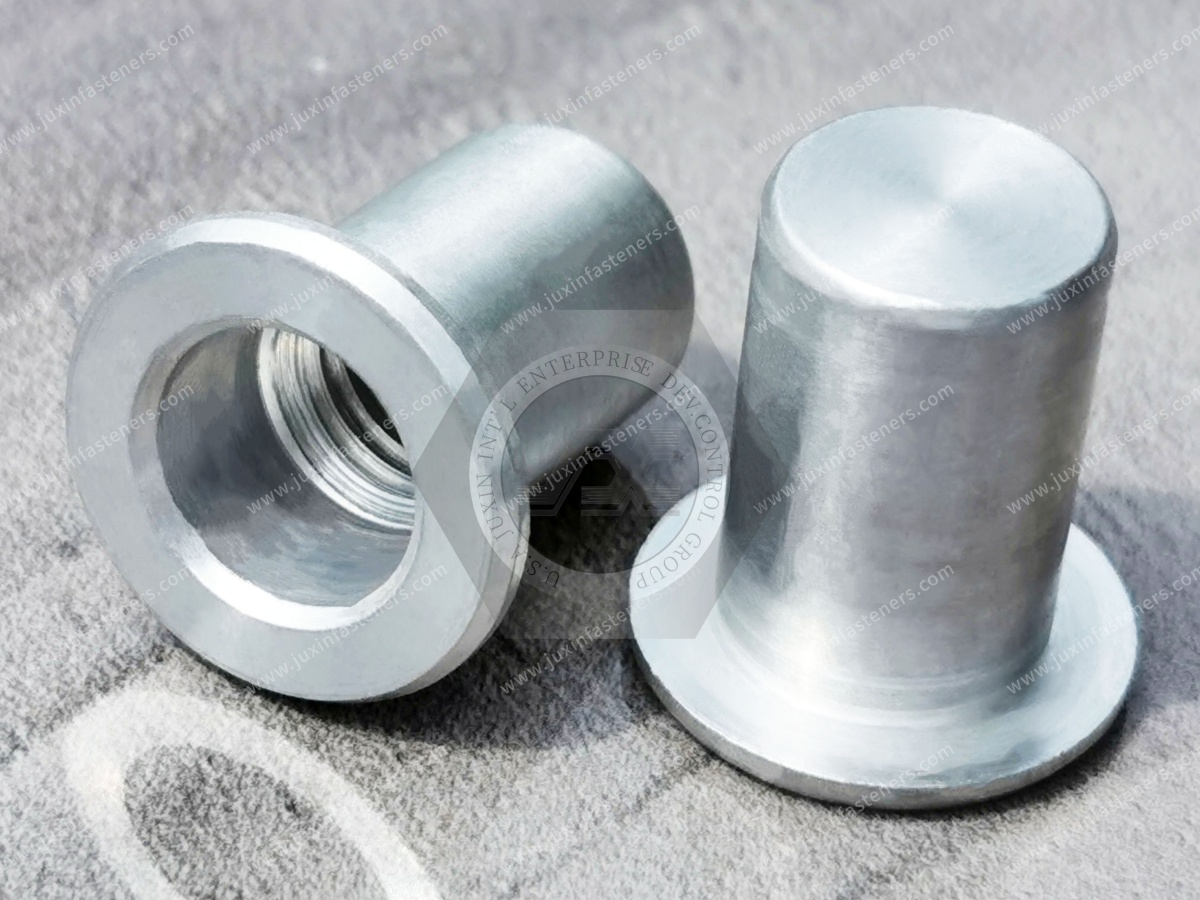

Aluminum inserts may be considered where weight and material compatibility are important.
Their mechanical performance and installation behavior must be evaluated against the actual panel and joint loading.
When dissimilar metals are in electrical contact and an electrolyte is present, galvanic corrosion may occur.
For aluminum battery housings, the review should consider fastener material, panel alloy, coatings, moisture exposure and possible isolation measures.
A closed-end barrel does not automatically eliminate corrosion at the flange or body-to-panel interface.
The under-head seal may be made from an elastomer or another customer-specified material.
The choice should reflect the actual operating environment.
Relevant factors include:
Minimum and maximum temperature
Water and moisture exposure
Chemical and cleaning-fluid compatibility
Potential coolant contact
Compression set
Aging behavior
Required service life
Installation handling
Different elastomer families can have substantially different resistance to fluids and temperature exposure.
A seal material suitable for water exposure may not be suitable for every coolant, oil or cleaning chemical.
Material compatibility should be confirmed against the specified exposure conditions.
EV battery systems experience temperature changes during charging, operation and environmental exposure.
The enclosure, rivet nut, mating screw and sealing element may have different thermal expansion characteristics.
This can alter local contact pressure and seal compression.
Elastomer relaxation or aging may also change the interface over time.
Where the application requires long-term sealing reliability, initial installation testing may need to be supplemented by environmental conditioning and subsequent leakage evaluation.
The appropriate conditioning sequence should come from the customer's validation plan.
In high-volume manufacturing, a sealing rivet nut must be installed consistently.
The objective is not simply to install the component quickly.
It is to achieve repeatable mechanical retention and sealing without damaging the enclosure.
Production controls may address three stages.
Before installation
Verify fastener identification, sealing element condition, panel thickness, hole quality and tool compatibility.
During installation
Control the applicable setting parameters and ensure correct orientation and seating.
After installation
Inspect critical dimensions or functional characteristics according to the approved control plan.
Automated feeding systems may require additional attention to seal handling, fastener orientation and potential damage during transfer.
Two M6 closed-end rivet nuts may have different body lengths, materials, grip ranges and deformation characteristics.
They may therefore require different setting conditions.
Installation settings should be linked to the specific part design, panel condition and installation equipment.
A universal setting-force or stroke value based only on thread size is not a reliable production specification.
A sealing rivet nut has at least two separate functional responsibilities.
Mechanical responsibility
The installed insert must remain retained and support the required screw connection.
Relevant evaluation may include pull-out resistance, torque-out resistance, thread performance and repeated assembly.
Sealing responsibility
The installed interface must contribute to the required environmental barrier.
Relevant evaluation may include leakage measurement, seal condition and enclosure-level ingress testing.
Passing one set of requirements does not establish compliance with the other.
A production control plan should identify the applicable characteristics separately.
The inspection strategy should follow the drawing and agreed quality requirements.
For the rivet nut itself, critical characteristics may include thread dimensions, body geometry, flange dimensions, overall length, material and finish.
For a sealing version, additional characteristics may include seal presence, seal condition, seal dimensions and correct positioning.
For the installed assembly, evaluation may include flange seating, panel deformation, mechanical retention and leakage performance where specified.
Not every characteristic needs to be measured on every part. The inspection frequency and method should be defined according to the application risk and customer requirements.
Once an enclosure design has been validated, changes to a seemingly minor component can affect performance.
For example, replacing a closed-end rivet nut with another M6 version may alter:
Flange diameter
Seal cross-section
Seal material
Body length
Grip range
Installation setting
Screw clearance
Panel deformation
Even if the replacement has the same internal thread, its sealing behavior may differ.
For controlled OEM programs, such substitutions should be reviewed through the applicable engineering change process.
The review should determine whether additional dimensional, installation, mechanical or sealing validation is necessary.
Closed-end sealing rivet nuts are most relevant where a threaded mounting point intersects a boundary that must resist environmental ingress.
A battery pack cover may require removable threaded connections while maintaining a controlled enclosure boundary.
A closed-end sealing insert can be considered where the fastening design and available installation space support its use.
High-voltage junction and electronic enclosures may require retained threaded mounting points with controlled environmental exposure.
The fastener must be evaluated alongside the enclosure's other sealing features.
Electronic control units and related housings may encounter moisture, vibration and temperature cycling.
A sealing rivet nut may be useful where thin-sheet construction and one-sided installation are required.
Battery energy storage systems, inverter cabinets and outdoor electrical equipment may use sealed threaded interfaces where the enclosure design requires them.
The applicable enclosure standards and environmental requirements should be identified from the equipment specification.
Closed-end sealing inserts may also be considered for industrial cabinets, machinery covers and HVAC assemblies where a through-opening is undesirable.
A sealing rivet nut is not always the most economical or appropriate choice.
For a threaded mounting point entirely inside a dry, already sealed enclosure, a conventional blind rivet nut may satisfy the mechanical requirement without an additional sealing element.
For an enclosure boundary with significant structural loading, the joint may require reinforcement or a different fastening architecture.
Where repeated service is required, the effect of disassembly on the surrounding enclosure seals should also be considered.
The design should therefore distinguish between:
An internal mechanical mounting point
A threaded connection crossing the environmental boundary
A structural joint requiring substantial load transfer
A serviceable enclosure joint
These are different engineering problems and should not automatically use the same fastener configuration.
For a closed-end sealing rivet nut project, a useful engineering specification should define the intended installed condition.
Instead of requesting only a "waterproof M6 rivet nut," the customer can identify the panel material, actual thickness, hole geometry, required thread, closed-end depth and sealing interface.
The specification should also describe the environmental exposure, mating screw, installation process and applicable test requirements.
For example, a drawing-based inquiry might describe a closed-end sealing rivet nut for an aluminum battery enclosure panel,
with a defined under-head seal, specified installation hole and enclosure-level IP target.
The relevant sealing acceptance criteria would then be established through the customer's test plan.
This provides a clearer technical basis for supplier quotation and sample evaluation.
Procurement and supplier-development teams evaluating a closed-end sealing rivet nut should confirm that the proposed component matches the approved technical specification.
Important commercial and production considerations include:
Availability of the required body and flange geometry
Material and finish specification
Sealing element requirements
Dimensional and functional inspection
Sample evaluation
Drawing revision control
Packaging and seal protection
Planned order quantity
Required delivery schedule
Customer-specific documentation
A lower unit price does not necessarily reduce total production cost if the component creates installation damage, seal defects or rework.
For production managers, consistent feeding, setting and inspection may be as important as the nominal fastener price.
For procurement managers, supplier comparison should therefore include the agreed technical and quality scope.
A standard catalog configuration may not suit every enclosure.
Customer-specific requirements may involve a modified flange, body length, grip range, internal depth, anti-rotation geometry or sealing interface.
These features should be evaluated together because changing one dimension can influence installation and sealing behavior elsewhere in the joint.
JUXIN FASTENERS can review customer drawings and application requirements for standard or custom closed-end sealing rivet nut sourcing.
Feasibility, tooling, sampling, MOQ, lead time and inspection requirements should be confirmed during quotation.
Does a closed-end rivet nut prevent water from entering an enclosure?
It can restrict direct passage through the insert body. Leakage around the flange and panel interface must still be addressed.
Can a closed-end rivet nut be used without a sealing washer?
Yes, for applications where flange sealing is not required or another validated sealing method is used. Closed-end construction alone does not guarantee an environmental seal.
Is air leak testing sufficient to prove IP67?
Not automatically. Air leak testing and IP testing use different methods and acceptance criteria. Any correlation must be established for the specific application.
Can an M6 sealing rivet nut be replaced with another M6 version?
Only after reviewing the relevant geometry, grip range, seal, installation conditions and validation requirements. Matching threads do not establish functional interchangeability.
Why can a sealed rivet nut leak after thermal cycling?
Changes in seal compression, material relaxation, differential thermal expansion or interface condition may contribute. The actual failure mechanism must be investigated.
Can a closed-end rivet nut be installed in aluminum sheet?
Yes, when the specific insert, hole geometry, grip range and installation process are suitable for the actual aluminum panel.
JUXIN FASTENERS supports OEM and industrial customers evaluating closed-end blind rivet nuts, sealing threaded inserts and related fastening components for thin-sheet enclosures.
If your project involves an EV battery housing, automotive electronics enclosure, energy storage cabinet or industrial electrical assembly, send us the available drawing or application requirements.
For an efficient technical review, please include the panel material and thickness, hole dimensions, thread specification, closed-end depth requirement, sealing interface,
mating screw, operating environment and expected purchasing quantity.
Where sealing validation is required, identify the applicable test method and acceptance criteria so the component can be evaluated against the intended assembly.
JUXIN FASTENERS can review your technical and commercial requirements and discuss appropriate standard or custom sourcing options.
Company: JUXIN FASTENERS
Website: https://www.juxinfasteners.com/
Email: info@juxinfasteners.com
Send your drawing or RFQ to JUXIN FASTENERS for closed-end sealing rivet nut selection, technical review and OEM procurement inquiries.
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
