Sealing Blind Rivet Nuts for EV Battery Enclosures: Sealing, Retention and IP Protection Engineering

Electric vehicle battery enclosures, battery energy storage systems, automotive electronics and industrial electrical equipment increasingly use thin aluminum or steel structures that require reliable threaded fastening points.

In many enclosure designs, conventional tapped holes cannot provide sufficient thread engagement because the sheet material is relatively thin.

Welded nuts may introduce heat, distortion, coating damage or additional manufacturing operations, while the reverse side of the panel may be inaccessible.

Blind rivet nuts provide a practical alternative by creating a retained internal thread through one-sided installation.

Where the enclosure also requires protection against water, dust or environmental contamination, closed-end rivet nuts and flange-sealing configurations may be considered.

However, a sealing blind rivet nut is only one component of the complete enclosure sealing architecture.

The final performance depends on the interaction between the rivet nut, sheet material, prepared hole, sealing element, mating screw, installation process and enclosure design.

JUXIN FASTENERS supports international OEM and industrial customers sourcing blind rivet nuts, sealing threaded inserts and custom fastening components for thin-sheet mechanical assemblies.

Why EV Battery Enclosures Require Specialized Threaded Fasteners

EV battery enclosures combine several mechanical and environmental requirements.

These may include thin-sheet construction, restricted installation access, vibration, thermal cycling, corrosion exposure, repeated servicing and controlled environmental sealing.

The fastening system must support the required mechanical loads while remaining compatible with the enclosure material and production process.

For a battery cover or electronic housing, a retained threaded insert may also simplify assembly by eliminating the need to hold a loose nut behind the panel.

The correct engineering question is not simply which rivet nut matches the nominal thread size.

It is which rivet nut geometry, grip range, material, hole condition, sealing configuration and installation method will satisfy the actual enclosure requirements.

How Blind Rivet Nuts Work

A blind rivet nut generally includes an internally threaded section, a deformable body and a head or flange.

During installation, the rivet nut is inserted through a prepared hole from the accessible side of the panel.

A compatible installation tool applies the required setting action, causing the body to deform behind the sheet.

The resulting deformation creates mechanical retention while the internal thread remains available for a mating screw.

The installed performance depends on several interacting variables:

• Sheet material and thickness

• Hole diameter and geometry

• Rivet nut body design

• Grip range

• Flange dimensions

• Material properties

• Installation force or stroke

• Mating screw specification

• Applied assembly torque

• Joint loading

These variables should be evaluated together rather than selecting a rivet nut solely by nominal thread diameter.

Advantages of Single-Sided Blind Installation

Blind rivet nuts are particularly useful where only one side of the enclosure is accessible.

Potential applications include battery covers, electrical cabinets, automotive brackets, chassis panels, HVAC housings, control enclosures and industrial machinery.

The insert becomes mechanically retained before the mating component is installed.

This can simplify subsequent assembly and maintenance where the design requires a removable screw connection.

For production engineers, the benefit depends on suitable installation access, compatible tooling and repeatable setting conditions.

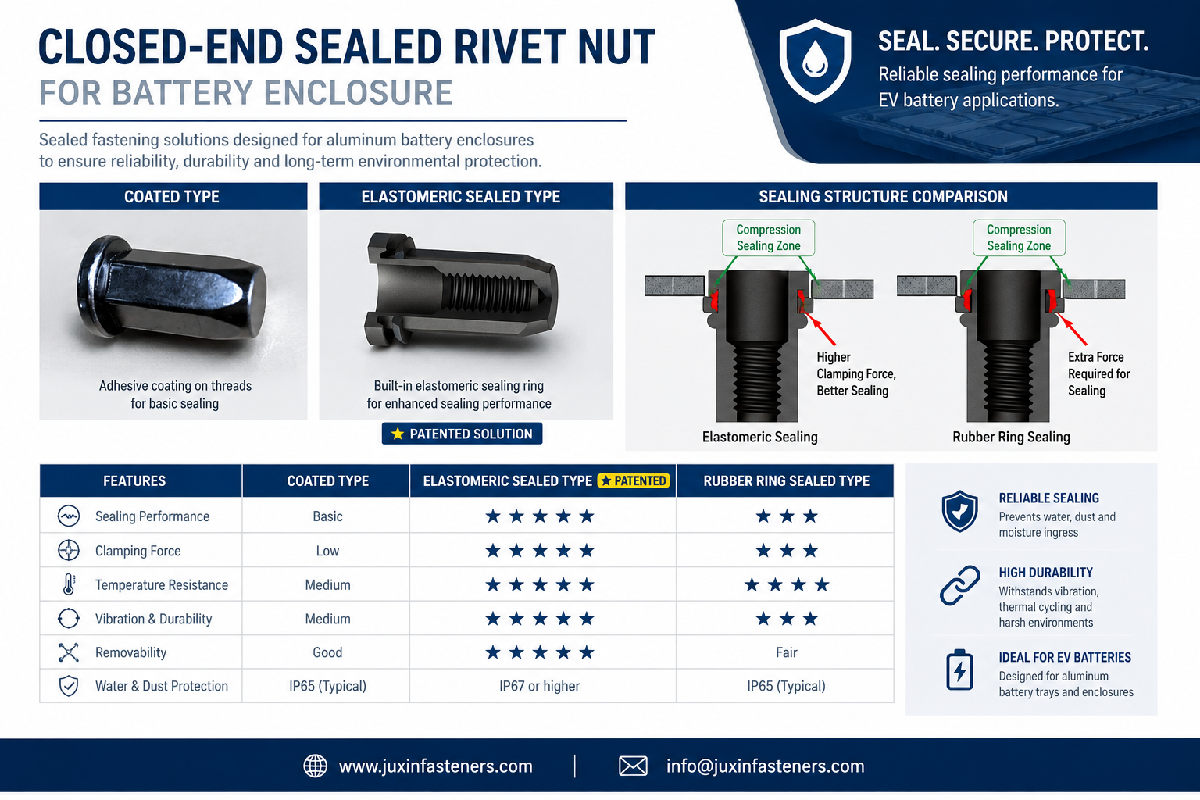

Closed-End vs. Open-End Rivet Nuts

Open-end and closed-end rivet nuts provide different body configurations.

A closed-end rivet nut can reduce a potential leakage path through the threaded body.

It does not automatically seal the interface between the rivet nut flange and the enclosure wall.

Why Closed-End Does Not Automatically Mean Waterproof

A closed-end insert restricts direct passage through the fastener body, but moisture can still enter through other interfaces.

Potential leakage paths include:

• Flange-to-panel contact

• Prepared installation hole

• Sealing washer or gasket

• Mating screw interface

• Adjacent enclosure joints

• Cover seams

• Cable and connector openings

Therefore, closed-end construction should be treated as one part of the sealing architecture rather than a complete waterproofing solution.

Flange Sealing and Interface Protection

A sealing blind rivet nut may incorporate an elastomeric washer, molded seal, integrated sealing feature or other customer-specified sealing element.

During installation, the sealing element is compressed between the fastener flange and the panel surface.

Its performance depends on seal material, geometry, surface flatness, roughness, compression, temperature and chemical exposure.

A properly engineered sealing interface requires controlled compression and suitable surface conditions.

Simply adding a gasket to an otherwise unsuitable joint does not guarantee reliable environmental protection.

IP67 Is an Enclosure-Level Requirement

For EV battery enclosures, it is essential to distinguish between a fastener with a sealing feature and an enclosure that has been validated to an IP protection classification.

ISO 20653:2023 addresses degrees of protection provided by enclosures of electrical equipment in road vehicles.

IEC 60529 establishes the general IP Code classification for electrical enclosures.

The appropriate standard depends on the application and customer specification.

IP67 is commonly associated with dust-tight protection and protection against temporary immersion under defined test conditions.

However, an individual sealing rivet nut does not automatically establish IP67 performance.

The complete enclosure must be designed and tested to the applicable requirements.

Why the Complete Enclosure Must Be Validated

An EV battery enclosure may contain multiple potential ingress paths.

These include cover gaskets, fasteners, threaded inserts, connectors, cable interfaces, vents and service openings.

A change to one component can affect the overall sealing system.

For this reason, the engineering team should evaluate the complete enclosure configuration rather than relying on an isolated fastener description.

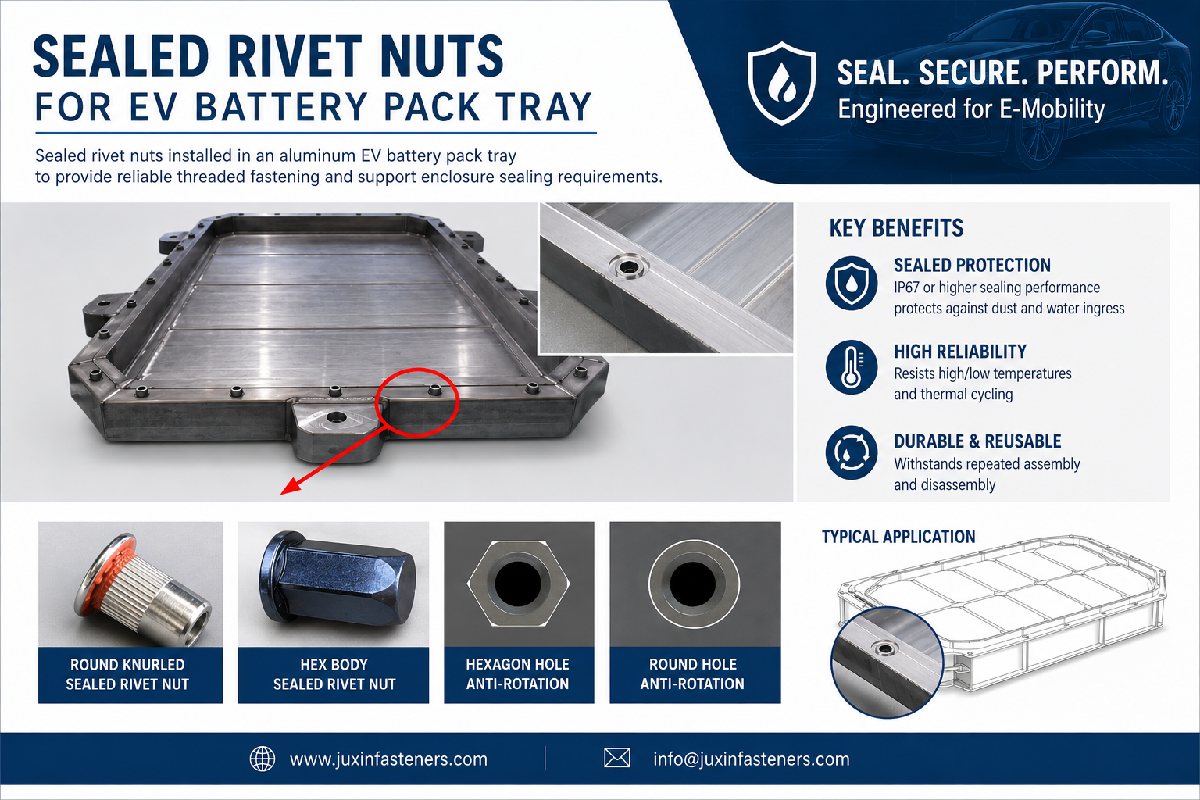

Sealing Blind Rivet Nut Design Options

Actual material, dimensions, grip range and sealing configuration must be selected according to the customer's drawing and application requirements.

Closed-End Flat-Head Rivet Nuts

Closed-end flat-head rivet nuts provide a retained internal thread with a closed body end.

They may be considered for battery enclosures, automotive electronic housings, electrical cabinets, machinery covers and industrial control equipment.

Material options may include carbon steel or stainless steel depending on the required design.

The selected material must satisfy the mechanical, corrosion and installation requirements of the application.

Semi-Hex Rivet Nuts for Anti-Rotation Performance

Semi-hex or half-hex rivet nuts incorporate a non-round body section intended to improve resistance to rotation in a compatible prepared hole.

This can be useful where the mating screw applies significant tightening or removal torque.

The anti-rotation performance depends on the interaction between the insert geometry and the surrounding sheet.

Important variables include:

• Body profile

• Across-flats dimension

• Hole geometry

• Hole tolerance

• Sheet thickness

• Sheet material

• Installation deformation

• Mating screw torque

A semi-hex body may improve resistance to spin-out, but it does not eliminate every possible rotation failure.

Round vs. Semi-Hex Rivet Nuts

Round knurled inserts rely on mechanical engagement between the external knurling and the surrounding sheet material.

Semi-hex and full-hex inserts introduce geometric anti-rotation engagement.

The difference becomes important in relatively soft or thin substrates, including some aluminum enclosure panels.

However, neither design should be selected without considering the hole-making process and actual installation condition.

Aluminum Battery Enclosure Design

Aluminum and aluminum alloys are widely used in lightweight automotive structures.

When a rivet nut is installed in aluminum sheet, the design should consider:

• Alloy and temper

• Sheet thickness

• Hole geometry

• Local reinforcement

• Flange diameter

• Body configuration

• Grip range

• Installation deformation

• Assembly torque

• Corrosion exposure

Thin aluminum may be sensitive to local deformation or hole enlargement under installation and service loads.

Where greater anti-rotation resistance is required, a compatible non-round body may be considered.

The final selection should be validated in the actual sheet material and thickness.

Why Thread Size Alone Is Not Enough

Specifying only an M5 or M6 rivet nut is insufficient for production sourcing.

Two inserts with the same thread designation may differ in body length, grip range, flange dimensions, material and installation behavior.

A production-level specification should identify the required thread, panel thickness, hole geometry, body style, sealing configuration and installation conditions.

This reduces the risk of sourcing a dimensionally similar but functionally unsuitable component.

Grip Range and Effective Sheet Thickness

Grip range defines the sheet thickness or material stack-up for which the rivet nut is intended.

Incorrect grip selection can cause insufficient backside deformation, excessive deformation, poor flange seating, reduced retention or panel damage.

For formed EV battery enclosures, nominal panel thickness may not represent the actual installation condition.

Local features can include reinforcement plates, stepped panels, embossments, coatings and formed sections.

The effective grip should therefore be determined from the actual assembly stack-up at the rivet nut location.

Hole Geometry Controls Retention

The prepared hole is part of the fastening system.

An oversized hole may reduce material engagement and rotational resistance.

An undersized hole may cause insertion difficulty, deformation or coating damage.

Out-of-round or poorly formed holes can also affect installation consistency.

For semi-hex and full-hex inserts, the hole profile must properly engage the selected body geometry.

Flange Seating and Surface Flatness

The rivet nut flange should seat consistently against the enclosure surface.

Potential problems include burrs, local distortion, rough surfaces, forming marks, coating variation and curved panels.

These factors can affect both mechanical retention and sealing performance.

For sealed applications, the flange-to-panel interface should be considered during enclosure design rather than treated as a secondary installation detail.

Seal Compression and Long-Term Performance

An elastomer seal must operate within a suitable compression range.

Insufficient compression may allow leakage.

Excessive compression may damage the seal, accelerate relaxation or deform the surrounding panel.

The correct compression depends on the seal material, geometry and operating environment.

Long-term performance may also be influenced by temperature cycling, chemical exposure, aging and repeated service.

Sealing and Mechanical Retention Are Separate Requirements

A rivet nut may provide adequate mechanical retention without satisfying the environmental sealing requirement.

Conversely, a sealing interface may perform correctly while the insert has insufficient resistance to rotation or axial extraction.

Therefore, the specification should define sealing and mechanical retention independently.

Both functions should be validated where required.

Torque-Out, Spin-Out and Pull-Out

Three related failure concepts are important.

Spin-Out

The installed rivet nut rotates relative to the panel during screw tightening or removal.

Torque-Out

The insert-to-sheet interface loses rotational resistance under applied torque.

Pull-Out

The insert is displaced axially from the sheet under tensile loading.

Spin-out is commonly used to describe the observed rotational failure, while torque-out resistance describes the corresponding performance characteristic.

Pull-out is a separate axial failure mode.

A joint that performs well in one test does not automatically perform equally well in another.

Mating Screw Torque and Joint Design

The rivet nut is part of a bolted joint.

The mating screw specification and tightening process therefore influence insert performance.

Relevant variables include:

• Screw diameter

• Thread pitch

• Screw material

• Property class where applicable

• Coating

• Lubrication

• Thread friction

• Assembly speed

• Target tightening torque

• Repeated service cycles

Increasing screw torque without evaluating the insert-to-sheet interface may create rotation, thread damage or panel deformation.

The correct torque should be established from the complete joint design.

Closed-End Rivet Nuts and Screw-Length Planning

Closed-end rivet nuts impose an internal depth limitation.

If the mating screw is too long, it may contact the closed end before the joint reaches the intended clamping condition.

If the screw is too short, insufficient thread engagement may result.

The engineering specification should consider the available internal thread length, screw length, washer thickness and complete joint stack-up.

Metric and Inch Thread Systems

Metric rivet nuts may use ISO metric threads, with applicable requirements drawn from ISO 261 and ISO 965.

North American applications may specify UNC or UNF threads according to ASME B1.1.

These thread systems are not directly interchangeable merely because nominal diameters appear similar.

The rivet nut and mating screw must use compatible thread specifications.

Automated and Semi-Automated Installation

EV manufacturing may use manual, pneumatic or automated blind rivet nut installation equipment.

The selected fastener must be compatible with the intended installation method.

Important considerations include:

• Tool access

• Installation direction

• Mandrel engagement

• Nosepiece geometry

• Setting force

• Setting stroke

• Fastener presentation

• Part orientation

• Cycle consistency

• Inspection access

Compatibility should be verified using the actual fastener, panel and installation equipment.

Installation Force and Stroke Control

Blind rivet nut installation requires controlled body deformation.

Insufficient setting may produce weak backside formation and inadequate retention.

Excessive setting may damage the panel, coating, thread, flange or sealing element.

Production parameters should therefore be established through process validation rather than relying on visual appearance alone.

Repeated Assembly and Serviceability

Battery enclosure components may require screw removal during inspection, diagnostics, maintenance or repair.

A retained rivet nut can simplify service access compared with a loose nut behind an inaccessible panel.

However, repeated tightening and loosening can impose additional rotational loading on the insert.

Where repeated service is expected, the required number of assembly cycles and acceptance criteria should be considered during validation.

Material Selection for EV Enclosure Rivet Nuts

Potential materials include carbon steel, stainless steel and aluminum.

Selection should reflect:

• Mechanical loading

• Corrosion exposure

• Weight

• Temperature

• Galvanic compatibility

• Electrical requirements

• Coating

• Customer specification

Stainless steel should not automatically be selected solely because the enclosure may encounter moisture.

The complete material combination must be considered.

Stainless Steel Rivet Nuts

Stainless steel rivet nuts may be considered where corrosion resistance is important.

Grades such as 304 and 316 may be relevant depending on the environment and product design.

The ISO 3506 series addresses specified stainless steel fastener categories.

However, a finished blind rivet nut should not automatically be described as compliant with a particular ISO 3506 part unless the standard applies to that product and compliance is verified.

The material specification and finished-component requirements should be identified separately.

Carbon Steel Rivet Nuts

Carbon steel rivet nuts may provide a cost-effective solution for many automotive and industrial assemblies.

Protective coatings can be specified according to the corrosion environment and customer requirements.

Relevant considerations include coating thickness, thread fit, surface condition, environmental restrictions and compatibility with adjacent materials.

The finish should be defined in the drawing or purchasing specification.

Aluminum Rivet Nuts

Aluminum rivet nuts may be considered for lightweight assemblies where their mechanical performance is suitable.

Potential applications include selected automotive body structures, electronics enclosures and lightweight equipment.

However, aluminum inserts may provide different torque-out, pull-out and thread-strength characteristics from steel designs.

The selection must reflect the actual loads and substrate conditions.

Galvanic Compatibility With Aluminum Enclosures

Dissimilar metals in electrical contact may experience galvanic corrosion when an electrolyte is present.

For an aluminum enclosure, the engineering review should consider the rivet nut, mating screw, coating, panel finish and environmental exposure.

Moisture, road salt and retained contaminants may influence corrosion risk.

A sealing feature does not automatically eliminate galvanic interaction at every metal interface.

Sealing Material Selection

Where an elastomer seal is used, the material should be specified according to the actual application.

Relevant factors include:

• Temperature range

• Water exposure

• Chemical compatibility

• Coolant exposure

• Compression set

• Long-term aging

• Surface condition

• Compression geometry

A generic description such as rubber gasket is usually insufficient for a controlled OEM specification.

Thermal Cycling and Seal Relaxation

EV battery systems experience temperature changes during charging, operation and environmental exposure.

Aluminum panels, steel inserts, stainless steel components and elastomer seals may expand or contract differently.

This differential movement can influence seal compression, joint preload and interface stability.

Initial sealing performance should therefore not be assumed to represent lifetime performance.

Environmental Conditions in EV Battery Applications

Potential exposure conditions include:

• Water spray

• Condensation

• Dust

• Road salt

• Cleaning chemicals

• Vibration

• Mechanical shock

• Thermal cycling

• Moisture retention

The selected fastening system should be evaluated according to the actual enclosure environment.

IP Testing and Engineering Change Control

If the vehicle program requires IP67 or another ingress-protection classification, the relevant enclosure should be tested according to the applicable standard and customer requirements.

The test result applies to the validated configuration.

Changing the flange diameter, seal material, grip range, body geometry, coating, mating screw or assembly torque may affect the joint.

Such changes should therefore be reviewed through the customer's engineering change-control process.

EV Battery and Automotive Applications

Sealing blind rivet nuts may be considered for:

• Battery enclosure covers

• Battery tray components

• Electrical junction housings

• High-voltage connector brackets

• Battery management system housings

• Cable routing brackets

• Shielding panels

• Service covers

• Thermal-management equipment

• Automotive electronic housings

The suitability of each application depends on the mechanical and environmental requirements.

Energy Storage Systems and Renewable Energy Equipment

The same fastening principles may apply to stationary battery energy storage systems and renewable energy equipment.

Potential applications include battery cabinets, ESS enclosures, inverter housings, outdoor electrical cabinets and control panels.

The applicable environmental and safety requirements should be established from the customer's equipment specification.

Industrial Electrical and Electronics Enclosures

Blind rivet nuts may also be used in control cabinets, power supply housings, electrical distribution equipment, communication equipment and industrial instrumentation.

Where environmental sealing is required, the insert must be evaluated as part of the complete enclosure.

HVAC and Industrial Equipment

Industrial equipment manufacturers may use blind rivet nuts where thin sheet metal requires a retained internal thread and backside access is limited.

Potential applications include HVAC housings, compressor enclosures, machinery covers and equipment panels.

Selection should reflect the actual loading, corrosion exposure and installation process.

Automotive Electronics and Sensor Housings

Automotive electronics may combine thin panels, vibration, thermal cycling, moisture exposure and restricted assembly space.

The rivet nut configuration should therefore be selected according to both mechanical retention and environmental requirements.

Aerospace and Lightweight Equipment

Blind threaded inserts may be considered for selected lightweight structures.

However, aerospace applications may require specialized material, traceability, qualification and documentation controls.

Any such application should be evaluated against the actual customer drawing and procurement specification rather than assuming compliance with aerospace requirements.

Engineering Selection Matrix

Common Failure Modes and Corrective Engineering Actions

Production Engineering and Total Installed Cost

For manufacturing engineers and production managers, the cost of a rivet nut includes more than its purchase price.

The total installed cost may include hole preparation, installation time, tooling, inspection, rework, scrap and maintenance.

A low-cost insert may increase overall manufacturing cost if it causes inconsistent installation or panel damage.

The preferred design should balance component cost with reliable and repeatable assembly.

Supplier Qualification for OEM Programs

Procurement and supplier-development teams should evaluate technical capability, quality requirements and commercial suitability.

Important questions include:

• Can the supplier produce the specified geometry?

• Can critical dimensions be controlled?

• Is the required material available?

• Can the supplier follow the drawing revision?

• Are inspection records available where required?

• Can sample approval requirements be supported?

• How are engineering changes managed?

• Can packaging and identification requirements be met?

• Can the supplier support the planned purchasing quantities and delivery schedule?

The answers should be confirmed during supplier evaluation rather than assumed from a product description.

Quality Inspection of Sealing Blind Rivet Nuts

Inspection may include:

• Thread dimensions

• Body diameter

• Head diameter

• Head thickness

• Overall length

• Grip-related dimensions

• Surface condition

• Material verification

• Thread gauge inspection

• Seal dimensions and position

• Functional installation testing

The actual inspection plan should follow the drawing, purchase specification and agreed quality requirements.

Thread Inspection and Dimensional Control

Thread quality is important because the installed rivet nut becomes the mating threaded feature.

Inspection may use suitable GO/NO-GO gauges or other methods according to the applicable thread specification.

The drawing should identify the required thread system, size, pitch and tolerance where applicable.

Mechanical Validation

Mechanical validation may include pull-out resistance, torque-out resistance, installation behavior, thread strength, joint deformation and repeated assembly.

Testing should use the actual sheet material, thickness, hole geometry, rivet nut, mating screw and installation process wherever possible.

A catalog test value should not be treated as universal performance data.

Sealing Validation

For environmental protection applications, testing should evaluate the complete assembly.

Relevant variables may include:

• Fastener type

• Seal material

• Seal compression

• Sheet surface

• Cover geometry

• Mating screw

• Assembly torque

• Temperature

• Water exposure

• Test orientation

• Test duration

The applicable IP classification should be established from the relevant enclosure test procedure.

Quality Documentation and Regulatory Requirements

Depending on the customer and market, procurement specifications may include:

• Certificate of Conformance

• Material documentation

• Inspection reports

• Lot traceability

• Restricted-substance declarations

• RoHS requirements where applicable

• REACH-related documentation

• Customer-specific environmental requirements

Documentation should be agreed according to the actual product and application.

From Engineering Drawing to Production Part

A practical OEM development process begins with understanding the enclosure.

The engineering team should establish the panel material, thickness, hole geometry, thread, grip range, body style, flange, sealing requirement and environmental conditions.

The next stage is material selection, installation planning and mating screw specification.

Samples can then be evaluated using the intended panel and tooling.

Where required, mechanical and environmental testing should be completed before production approval.

Repeat production should follow the approved drawing revision, inspection criteria and change-control requirements.

Preparing a Sealing Blind Rivet Nut RFQ

Why Application Information Improves Quotation Accuracy

A request for M6 waterproof rivet nuts does not provide enough information for a reliable engineering quotation.

A more useful RFQ identifies the enclosure material, actual sheet thickness, hole geometry, body configuration, seal requirement, installation process and expected operating environment.

This allows the supplier to evaluate whether the requested insert is technically suitable.

It also reduces clarification cycles and the risk of purchasing an incorrect configuration.

Broader JUXIN FASTENERS OEM Solutions

EV battery enclosures and industrial electrical assemblies often require several fastening technologies.

In addition to sealing blind rivet nuts, JUXIN FASTENERS supports sourcing requirements involving threaded inserts, self-clinching fasteners, weld nuts,

weld studs, custom screws, bolts, high-strength fasteners, machined components and plastic hardware.

Related engineering solutions include:

High-Strength Bolts and Nuts

Stainless Steel CNC Machining Parts

Industrial and Automotive Bolts and Nuts

Automotive Plastic Fasteners

Each fastening technology should be selected according to the actual assembly function rather than treated as a universal substitute.

Frequently Asked Engineering Questions

Are closed-end rivet nuts waterproof?

Not automatically. A closed end restricts direct passage through the body, but sealing around the flange and panel must still be evaluated.

Can a sealing rivet nut guarantee IP67?

No. The applicable IP rating must be validated for the relevant enclosure or assembly.

Why are semi-hex rivet nuts used?

Their non-round geometry can improve resistance to rotation when installed in a compatible hole.

What is the difference between torque-out and pull-out?

Torque-out concerns resistance to rotation, while pull-out concerns axial extraction from the sheet.

Why is grip range important?

The grip range determines whether the insert can form the intended mechanical retention within the actual panel thickness.

Can stainless steel rivet nuts be used in aluminum enclosures?

They may be suitable where the mechanical design and corrosion requirements support the combination. Galvanic compatibility should be evaluated.

Why does screw length matter for closed-end rivet nuts?

An excessively long screw may contact the closed end before the joint is properly clamped.

Can sealing rivet nuts be used in automated assembly?

They may be installed using compatible automated or semi-automated equipment, subject to validation of the selected fastener and process.

What information is required for an OEM quotation?

Provide the drawing, sheet material, thickness, hole geometry, thread, grip range, sealing requirement, environment, quantity and quality requirements.

Engineering Conclusion

Sealing blind rivet nuts provide a practical method of creating retained threaded fastening points in thin-sheet EV battery enclosures and industrial electrical housings.

Their effectiveness depends on the complete joint rather than the nominal fastener designation.

For design engineers, the key requirements are correct geometry, grip range, mechanical retention, sealing and material compatibility.

For manufacturing engineers and production managers, installation consistency, tooling and inspection are essential.

For procurement and supplier-development teams, accurate drawings, supplier qualification, cost control and repeat supply reliability are central to sourcing decisions.

The most reliable fastening solution begins with the enclosure requirements and is confirmed through appropriate application-specific validation.

Request a Sealing Blind Rivet Nut RFQ

JUXIN FASTENERS supports international OEM and industrial customers sourcing sealing blind rivet nuts, closed-end rivet nuts, semi-hex rivet nuts, stainless steel threaded inserts and custom fastening components.

Potential applications include EV battery enclosures, automotive electronics, energy storage cabinets, power-electronics housings, industrial electrical equipment and thin-sheet mechanical assemblies.

For technical evaluation and quotation, please provide your available 2D drawing, 3D model or sample.

Where possible, include the enclosure material, sheet thickness, hole geometry, thread specification, grip range, sealing requirement, operating environment, annual quantity and inspection requirements.

JUXIN FASTENERS can review standard or custom fastening requirements and discuss suitable sourcing options based on the supplied specifications.

Company: JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Contact JUXIN FASTENERS for engineering drawing review, sealing rivet nut selection and OEM bulk RFQ inquiries.
