Copper bonded sealing washers combine a copper metal component with an elastomeric sealing element to create a compact static sealing solution for suitable threaded fittings, plugs,
ports and industrial fluid connections.
They belong to the broader family of metal-bonded sealing washers,
but the use of copper changes the material-selection considerations compared with bonded seals using carbon-steel or stainless-steel carriers.
One important distinction is often missed:
A copper bonded sealing washer is not the same product as a solid copper sealing washer.
A bonded seal primarily uses controlled elastomer compression to create the sealing interface,
while a conventional solid copper sealing washer relies on the behavior and deformation of the metal itself.
Understanding this difference is essential for engineers selecting a sealing technology and for procurement teams sourcing replacement components.

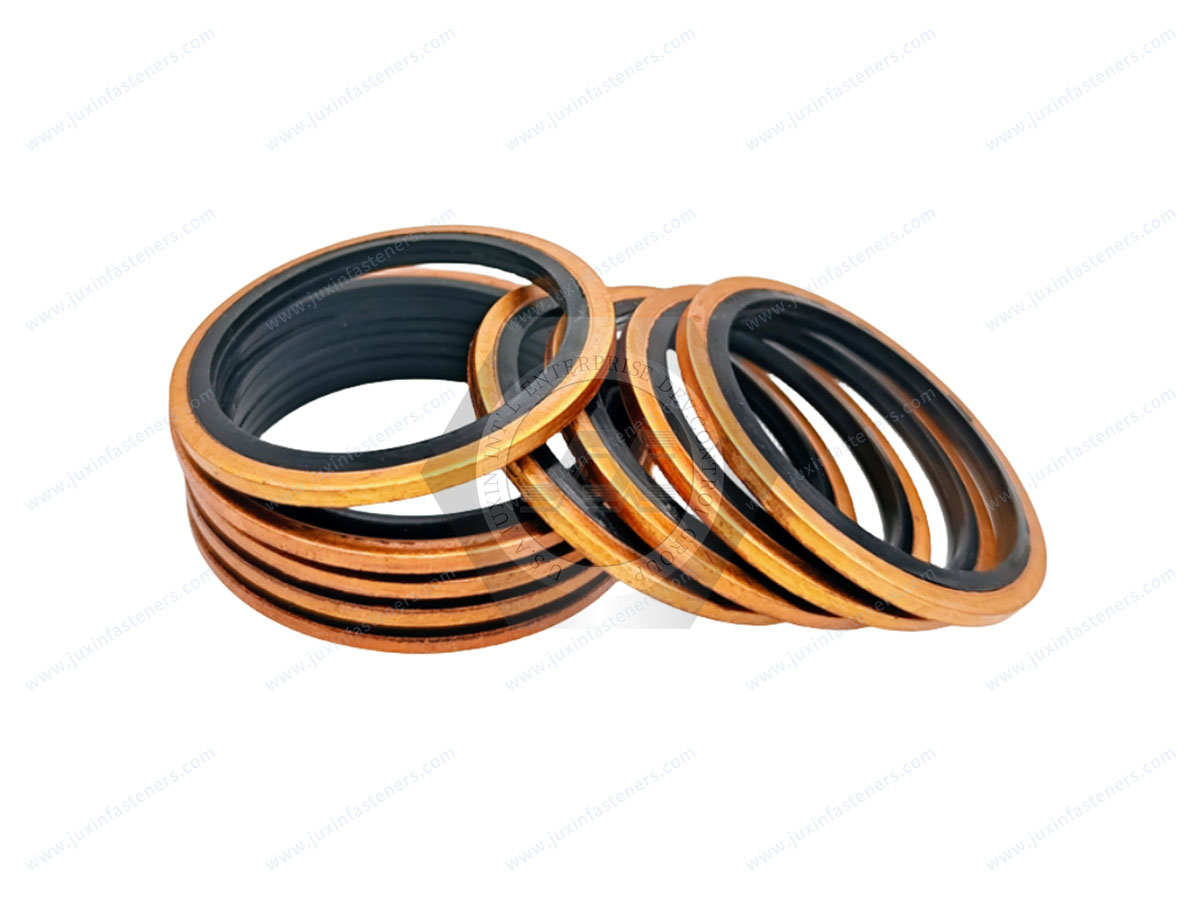

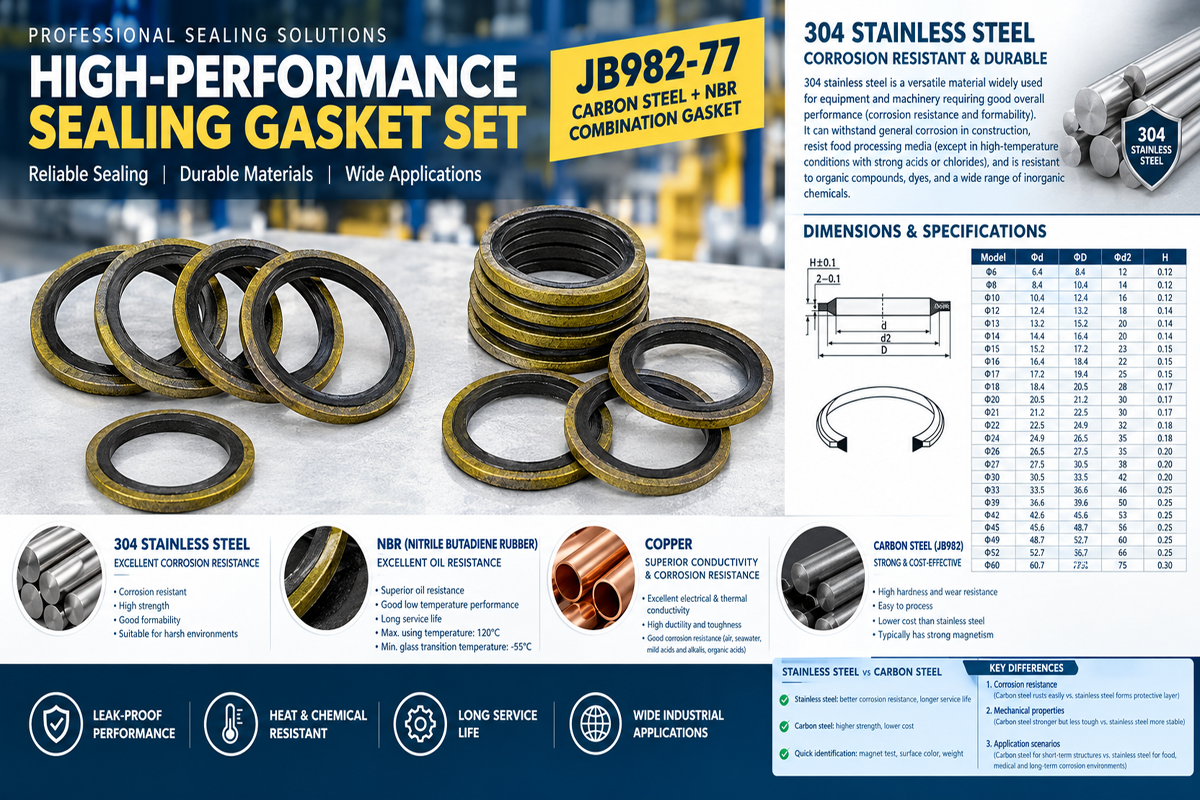

A copper bonded sealing washer is a composite sealing component incorporating:
a copper metal portion or carrier
a bonded elastomeric sealing element
During installation, the elastomer is compressed against the mating interface to create the primary seal,
while the metal portion provides mechanical support and helps define the installed sealing geometry.
Depending on the product design and application requirements, an elastomer such as NBR may be specified.
However, “copper + NBR” should not be treated as a universal material combination for every fluid, pressure or temperature condition.
The complete application must still be evaluated.
The basic mechanism is controlled static sealing.
When the fitting, plug or fastener is tightened, axial load acts on the bonded sealing washer. The elastomer deforms against the mating surfaces while the metal portion supports the component.
The functional relationship can be summarized as:
Copper Component → Mechanical Support and Interface Geometry
Elastomer → Primary Compliant Sealing Interface
Joint Design → Controls How the Complete Seal Is Loaded
This distinction matters because neither material should be evaluated independently.
Selecting copper does not by itself determine sealing performance, and selecting NBR does not automatically establish fluid, pressure or temperature capability.
These two products can appear in similar fluid-system applications, but they use fundamentally different sealing mechanisms.
A copper bonded seal incorporates an elastomeric sealing element.
Its sealing function primarily depends on controlled elastomer compression against the mating surfaces.
Selection therefore requires consideration of:
elastomer type
fluid compatibility
temperature
compression
seal profile
metal geometry
mating surface
installation conditions
A conventional copper sealing washer contains no bonded elastomeric sealing element.
Its sealing mechanism relies on metal contact and controlled deformation within the joint.
Important considerations include:
copper material condition
washer geometry
mating surfaces
installation load
temperature
media compatibility
joint design
A solid copper washer should not automatically replace a copper bonded seal simply because the inside and outside diameters are similar.
Likewise, adding an elastomer to a metal washer changes the sealing mechanism and does not make it equivalent to a conventional copper sealing washer.
The correct choice begins with the joint architecture.
Copper has a combination of material characteristics that can make it useful in selected sealing applications.
Copper can deform under appropriate loading conditions, which is one reason it is widely associated with metallic sealing washers.
In a bonded sealing design, however, the elastomer remains an important part of the sealing mechanism.
Copper has high thermal conductivity compared with many common engineering materials.
This is a material property, but it should not be translated automatically into claims that a copper bonded seal will reduce thermal stress, extend equipment life or improve system efficiency.
Whether thermal conductivity matters depends on the actual assembly.
Copper also has high electrical conductivity.
Again, this characteristic may be relevant in a specific engineered assembly but is not normally the primary reason for selecting a bonded sealing washer.
Electrical performance should not be claimed unless it forms part of the actual component specification.
Copper has useful corrosion resistance in many environments, but it is not universally resistant to all chemicals or service conditions.
Compatibility should be evaluated against:
fluid or media
temperature
surrounding atmosphere
mating metals
potential galvanic interaction
customer material requirements
“Copper” alone is therefore not a complete corrosion specification.
NBR is commonly considered for sealing applications involving many petroleum-based oils and hydraulic fluids.
In a copper-NBR bonded sealing washer, the NBR element provides the compliant sealing interface.
Its function is to deform under controlled compression and establish contact with the mating surfaces.
However, NBR suitability depends on the actual:
fluid
temperature
pressure
exposure duration
compound formulation
hardness
seal geometry
installation conditions
There is no single universal temperature or pressure limit that should be applied to every NBR bonded seal without knowing the specific compound and application.
Industrial buyers often encounter catalog descriptions assigning one temperature range to all NBR seals.
That can be misleading.
“NBR” identifies an elastomer family, not one universal compound.
Different formulations can have different:
acrylonitrile content
hardness
additives
curing systems
low-temperature behavior
heat-aging characteristics
fluid resistance
For an OEM application, the specified compound, drawing and validation requirements should take priority over a generic internet temperature range.
If temperature is critical, communicate the actual operating and peak conditions to the sealing-component supplier.
NBR is not the only elastomer that may be used in bonded sealing systems.
Depending on the application, engineers may evaluate other elastomer families such as FKM or EPDM.
The decision should be driven by the operating environment rather than by the assumption that one material is universally superior.
A practical decision sequence is:
Identify Fluid → Define Temperature → Define Pressure → Review Chemical Exposure → Review Seal Geometry → Select Elastomer → Validate Assembly
Material substitution should be reviewed whenever the original design specifies a particular elastomer.
Different metal materials create different sourcing and engineering considerations.
Copper may be selected where its specific material properties are appropriate to the joint design.
Its behavior should be evaluated together with the elastomer and mating components.
Stainless steel may be considered where corrosion environment, material compatibility or customer specification requires a stainless metal component.
A grade such as 304 stainless steel has different mechanical and corrosion characteristics from copper or coated carbon steel.
However, stainless steel should not automatically be described as corrosion-proof. Chloride-containing, acidic or other aggressive environments require application-specific material review.
Carbon steel is commonly used for metal components where suitable mechanical properties and economical production are required.
Because unprotected carbon steel can corrode in many service environments, an appropriate surface treatment may be specified.
No.
Changing the carrier material can affect:
mechanical behavior
corrosion performance
surface interaction
dimensional response
compatibility with mating materials
customer drawing compliance
Material substitution should therefore be reviewed and approved rather than assumed from dimensional similarity.
Not automatically.
The term “high-pressure bonded seal” is commonly used commercially, particularly in hydraulic applications, but pressure capability belongs to the complete sealing system.
It can depend on:
Elastomer + Pressure + Temperature + Fluid + Seal Geometry + Mating Surface + Compression + Installation
For this reason, JUXIN FASTENERS does not recommend treating one generic pressure value as applicable to every copper bonded sealing washer.
Where pressure performance is critical, the required operating and test conditions should be defined by the customer or applicable engineering specification.
Copper itself can retain useful properties at temperatures beyond the practical limits of many elastomeric sealing materials.
But a copper bonded seal contains more than copper.
The elastomer can become the limiting material in the assembly.
Therefore, the temperature capability of a copper bonded seal should be evaluated according to:
elastomer compound
fluid
continuous operating temperature
peak temperature
exposure duration
pressure
compression
validation requirements
The temperature capability of the metal carrier alone does not establish the service temperature of the complete seal.
Normally, bonded sealing washers are used as static seals.
Typical interfaces include stationary:
fittings
plugs
ports
valves
manifolds
pump connections
bolted sealing points
They should not automatically be specified for rotating shafts, reciprocating rods or continuously moving interfaces.
Dynamic sealing requires technologies designed around motion, friction, lubrication and wear.
Equipment vibration does not convert a static bonded sealing washer into a dynamic seal.
Potential applications depend on the specific component design and material combination.
Possible connection points include:
hydraulic fittings
valve connections
manifolds
pumps
threaded ports
plugs
The actual hydraulic fluid, pressure, temperature and connection geometry should be specified.
Copper bonded sealing washers may be considered for suitable:
lubrication connections
fluid ports
machine-tool systems
equipment housings
pumps and valves
industrial fluid-control assemblies
Selected stationary coolant or fluid connections may use bonded sealing components.
The elastomer must be compatible with the actual coolant and operating-temperature cycle.
Hydraulic and lubrication circuits in mobile equipment contain numerous threaded connections.
Where a copper bonded seal is specified, replacement sourcing should follow the equipment drawing or approved specification.
Bonded sealing washers may be specified in selected vehicle fluid systems subject to OEM material, drawing and validation requirements.
A generic copper bonded seal should not automatically be considered suitable for fuel, braking or other safety-critical systems.
Copper and copper-containing sealing components exist in many engineered systems, but a generic copper bonded sealing washer should not be marketed as an aircraft-engine or spacecraft component merely because copper has useful thermal properties.
Aerospace applications can require specific:
material specifications
traceability
manufacturing controls
inspection
qualification
documentation
approved supplier requirements
Suitability must therefore be established against the specific aerospace drawing and program requirements.
The same principle applies to other safety-critical applications.
The old assumption that a copper-based sealing component is inherently suitable for “corrosive chemicals” is too broad.
Chemical compatibility involves both parts of the component:
Metal Compatibility + Elastomer Compatibility
A fluid that is acceptable for the elastomer may not necessarily be appropriate for the metal, and vice versa.
For chemical or process equipment, identify the actual media rather than simply stating “chemical service.”
Important information may include:
chemical name
concentration
temperature
exposure duration
pressure
cleaning media
environmental conditions
For copper bonded sealing washers, a useful engineering model is:
Seal Performance = Metal + Elastomer + Fluid + Temperature + Pressure + Geometry + Mating Surface + Compression + Installation
This explains why material marketing claims alone are insufficient.
Influences structural behavior, corrosion interaction and the mechanical interface.
Provides the compliant sealing element and must remain compatible with the service environment.
Can affect both elastomer and metal.
Changes elastomer behavior and can influence the entire assembly.
Acts on the sealing interface and must be evaluated together with geometry.
Determines where and how sealing compression develops.
Damage, contamination, flatness and surface condition can influence leakage behavior.
Incorrect assembly can compromise an otherwise correctly specified seal.
Understanding potential failure modes helps both engineering and supplier-quality teams evaluate the component.
Possible when the sealing material is incompatible with the operating fluid.
Can damage or distort the sealing element.
May prevent the required sealing contact from forming.
Can occur when the seal geometry, pressure conditions or installed interface do not adequately control deformation.
The metal carrier may be affected by an unsuitable chemical or environmental condition.
Scratches, burrs, contamination or incorrect geometry can create a leakage path.
Replacing copper with another metal—or NBR with another elastomer—without engineering review can change assembly behavior.
A visually similar seal may have a different ID, OD, thickness or elastomer profile.
Start with the existing joint design.
Choose the technology based on the required sealing mechanism rather than on the metal name.
the connection is designed around an elastomeric sealing interface
controlled elastomer compression is required
the fitting or port geometry is designed for a bonded sealing washer
the OEM drawing specifies a bonded seal
the joint is designed for metal deformation
the operating conditions are incompatible with the proposed elastomer
the original engineering specification requires a metallic sealing interface
This is a design decision, not simply a supplier preference.
Standard bonded seal sizes can be appropriate when an established configuration matches the assembly.
Custom or made-to-drawing components may be required for:
non-standard inside diameter
non-standard outside diameter
special metal thickness
custom elastomer profile
specific copper material
specified elastomer compound
controlled hardness
OEM dimensional tolerances
special mating geometry
For existing OEM components, the original drawing or approved sample provides the strongest starting point for supplier evaluation.
A copper bonded seal RFQ should identify both the metal component and the elastomer.
Where applicable, provide:
customer part number
2D drawing
existing supplier part number
applicable international or customer specification
approved sample, if available
inside diameter
outside diameter
metal thickness
overall profile
elastomer geometry
dimensional tolerances
copper material specification
material condition, where controlled
finish or surface requirements
documentation requirements
elastomer family
compound specification, if controlled
hardness, if specified
customer material requirements
fluid or media
normal temperature
peak temperature
pressure requirements
mating component material
connection geometry
environmental exposure
sample quantity
production quantity
estimated annual usage
inspection requirements
packaging requirements
Providing these details allows suppliers to quote the actual engineering requirement instead of making assumptions from a generic description such as “copper rubber washer.”
For OEM or application-specific copper bonded seals, sample approval may include:
dimensional inspection
metal material verification
elastomer verification
hardness verification where specified
assembly fit
sealing contact
installation behavior
leakage testing under customer-defined conditions
Validation requirements should reflect the actual assembly and application.
A material combination alone does not prove functional performance.
A practical selection path is:
Identify the Joint
↓
Confirm Bonded Seal or Solid Metal Seal
↓
Define ID / OD / Thickness / Seal Profile
↓
Identify Fluid
↓
Define Temperature and Pressure
↓
Select Elastomer
↓
Confirm Copper Material
↓
Review Mating Material and Surface
↓
Review Installation Conditions
↓
Sample and Validate
↓
Production RFQ
This approach reduces the risk of choosing a component based only on appearance or nominal thread size.
JUXIN FASTENERS supports industrial OEMs, equipment manufacturers and supply-chain teams sourcing standard and custom sealing and fastening components.
For copper bonded sealing washer projects, technical review can begin with:
Drawing → Specification → Existing Part Number → Physical Sample → Application Requirements
For new or custom components, provide:
Dimensions → Copper Material → Elastomer → Fluid → Temperature → Pressure → Mating Interface → Quantity → Validation Requirements
For replacement sourcing, send the existing drawing or physical sample together with the known operating conditions.
This helps distinguish between a copper bonded sealing washer, a conventional copper sealing washer and other sealing technologies before quotation.
JUXIN FASTENERS can support standard and made-to-drawing industrial sealing washer requirements based on the customer's technical and commercial specifications.
Email: info@juxinfasteners.com
Website: www.juxinfasteners.com
MORE NEWS
Sep. 27, 2026
Sep. 27, 2026
Sep. 27, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
