Curved Single-Coil Spring Washers for Dynamic Bolted Joints

Curved single-coil spring washers are elastic fastening components used where a bolted assembly requires additional axial compliance within a compact installation space.

Unlike a conventional flat washer, which primarily provides a bearing surface and distributes contact pressure,

a curved single-coil spring washer is designed to deform elastically as the fastener is tightened.

The resulting spring action can help the joint accommodate limited settlement, dimensional variation, thermal movement, or other conditions that may affect clamping force.

For design engineers, however, the important question is not simply whether a washer is described as a "lock washer."

The more useful engineering question is:

What is changing inside the bolted joint, and what function must the washer provide?

Depending on the application, the requirement may involve preload compensation, additional joint elasticity, vibration behavior, surface protection, corrosion resistance, or a dedicated locking mechanism.

These functions should not be treated as interchangeable.

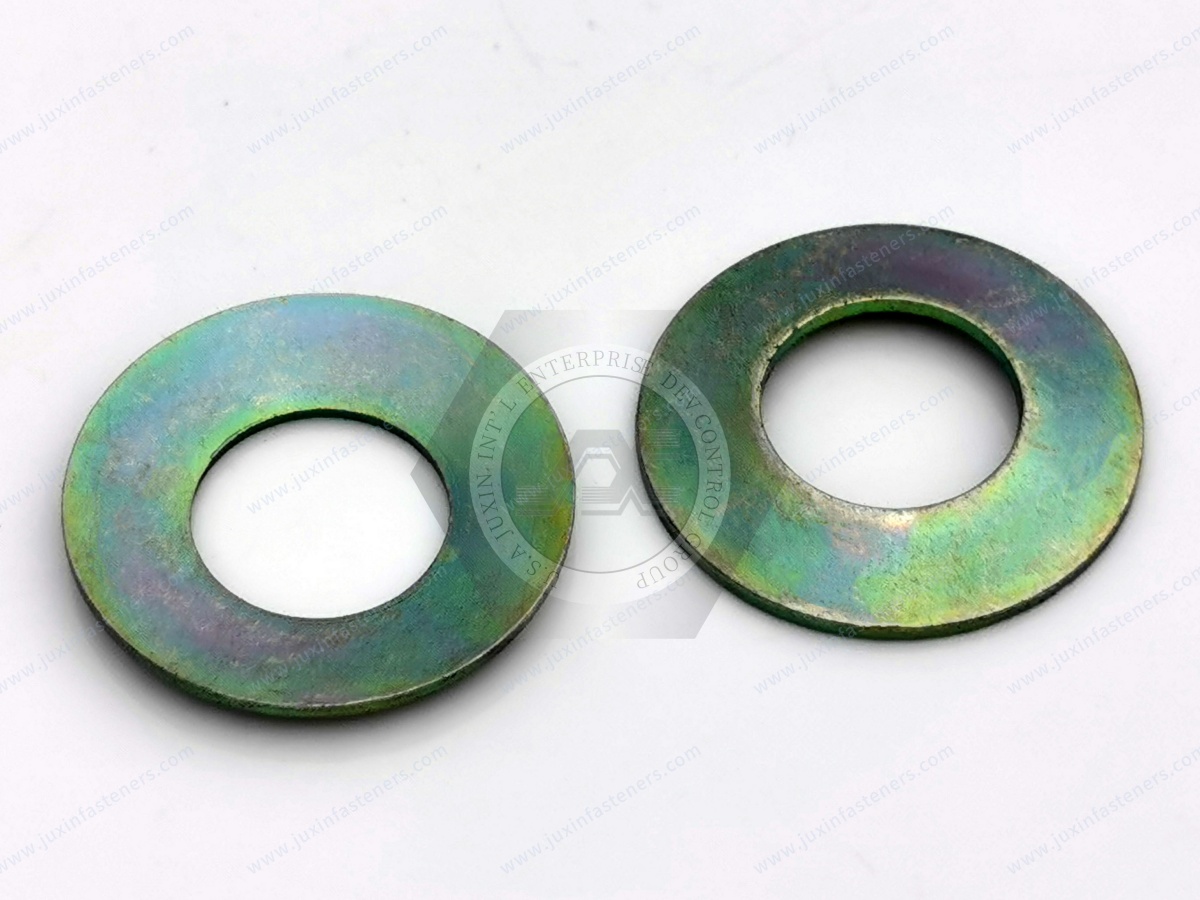

What Is a Curved Single-Coil Spring Washer?

A curved single-coil spring washer is formed from spring material into a continuous curved or arched geometry.

Typical design characteristics include:

• Central clearance for the bolt or screw

• Defined outside diameter

• Controlled material thickness

• Curved spring profile

• Free height before installation

• Elastic deflection under compression

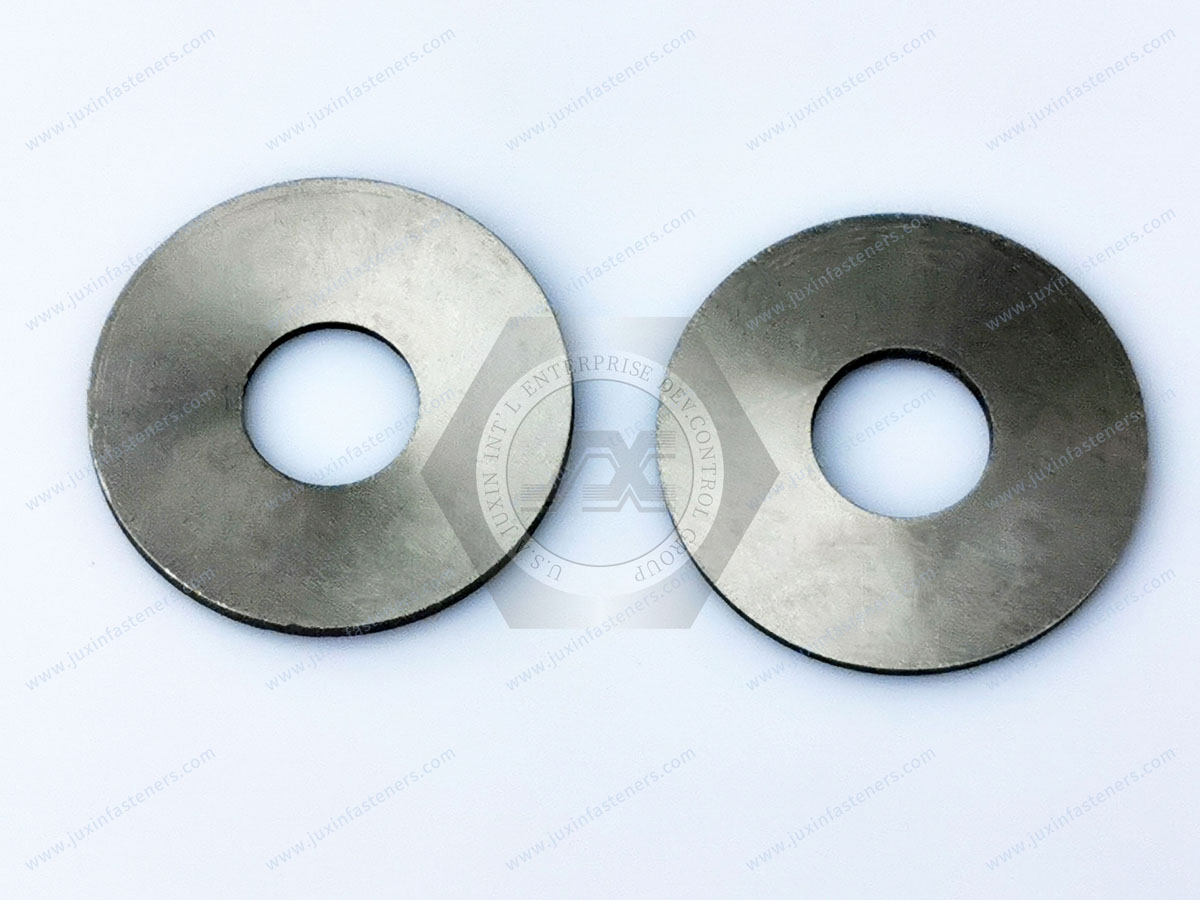

When the fastener is tightened, the washer moves from its free curved condition toward a flatter installed condition.

This deformation produces a restoring force.

The washer therefore behaves as a compact elastic element incorporated into the fastened assembly.

Depending on the design and application, this elasticity may help accommodate small changes in joint thickness while maintaining contact within the assembly.

The Engineering Principle: Deflection Rather Than "Locking"

Curved spring washers are frequently marketed as anti-loosening devices.

That description can be misleading if it implies that the washer alone prevents rotational loosening under all vibration conditions.

The fundamental mechanical behavior of a curved spring washer is elastic deflection.

A simplified load path is:

Fastener Tightening → Washer Compression → Elastic Deflection → Spring Reaction → Joint Compensation

This distinction matters.

The washer does not independently generate the initial bolt preload. Preload is primarily established through fastener tightening.

Instead, the washer changes the elastic characteristics of the assembled joint.

That can be useful where limited changes in joint thickness would otherwise reduce contact force.

Why Preload Can Change After Assembly

A bolted joint is not completely rigid.

After tightening, the effective clamping condition can change because of:

• Surface embedding

• Paint or coating compression

• Gasket relaxation

• Polymer creep

• Thermal expansion

• Differential thermal movement

• Component settlement

• Repeated mechanical loading

For example, if a coated bracket settles slightly after assembly, the distance between the bolt head and nut may effectively change.

A rigid joint has relatively little additional displacement available to compensate for that change.

An elastic washer introduces additional deflection into the system.

Whether that additional elasticity is sufficient for a particular application must be evaluated from the actual washer characteristics and joint design.

Curved Single-Coil Washer vs Flat Washer

The two washer types solve different engineering problems.

Flat Washer

A flat washer is generally selected to:

• Distribute bearing load

• Protect the mating surface

• Increase the effective bearing area

• Provide a controlled interface beneath a bolt head or nut

Its intended function is not significant spring deflection.

Curved Single-Coil Spring Washer

A curved spring washer is selected when elastic behavior is required.

Potential functions include:

• Adding axial compliance

• Accommodating limited settlement

• Maintaining contact as joint dimensions change

• Providing compact spring action

• Supporting an existing engineered fastening system

Where load distribution is also important, the complete washer arrangement and bearing surface should be considered.

Curved Single-Coil Washer vs Split Lock Washer

A conventional split lock washer has a helical split-ring geometry.

A curved single-coil washer uses a continuous curved spring profile.

Although both may appear in searches for "spring lock washer," they should not automatically be substituted for each other.

Important differences may include:

• Geometry

• Deflection

• Contact area

• Free height

• Installed height

• Load-deflection behavior

• Mating-surface interaction

If an OEM drawing specifies a particular washer configuration, substitution should be reviewed before production.

Curved Spring Washer vs Wave Washer

Wave washers use one or more wave forms to provide axial spring action.

They are commonly used where controlled axial take-up is required in assemblies such as:

• Bearings

• Electric motors

• Gear assemblies

• Mechanical housings

• Precision equipment

A curved single-coil washer is generally a simpler fastening component.

The choice depends on required deflection, available axial space, spring force, assembly geometry, and the function of the joint.

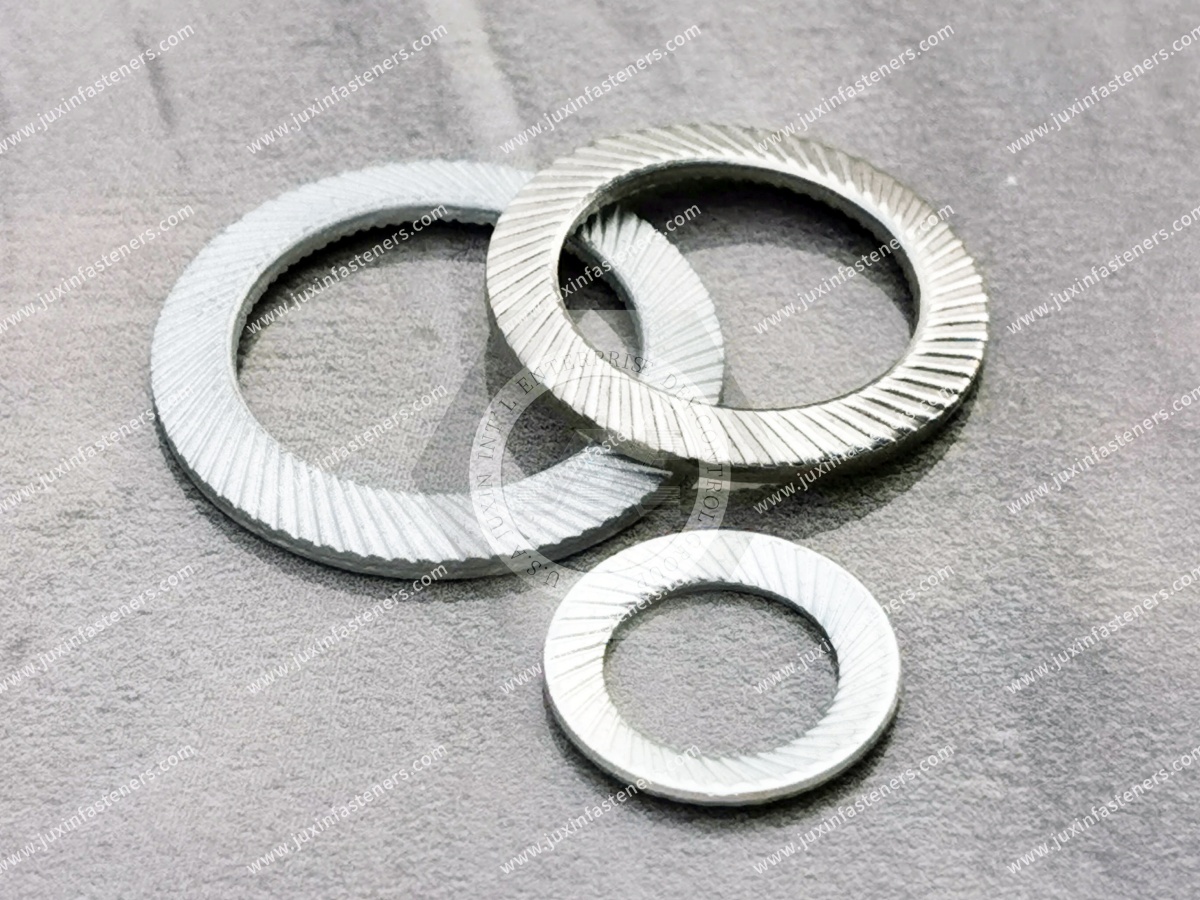

Curved Spring Washer vs Conical Spring Washer

Conical spring washers use a conical geometry rather than a curved profile.

Products such as DIN 6796 conical spring washers are associated with high-loaded bolted connections and should not be assumed to behave like general curved spring washers.

For sourcing purposes, specifying only "spring washer" is therefore insufficient.

The RFQ should identify the required:

• Standard

• Geometry

• Dimensions

• Material

• Mechanical characteristics

• Surface treatment

Curved Spring Washer vs Disc Spring

Disc springs, frequently called Belleville springs or Belleville washers, are engineered spring components designed around defined load-deflection behavior.

They can also be stacked to modify spring characteristics.

A curved single-coil spring washer is generally a much simpler component incorporated directly into a fastening assembly.

A useful engineering distinction is:

Limited Elastic Compensation in a Conventional Bolted Assembly → Evaluate Curved Spring Washer

Defined Spring Force / Significant Load-Deflection Requirement → Evaluate Disc Spring

Selection should follow the required mechanical function rather than product appearance.

Can a Curved Single-Coil Spring Washer Prevent Bolt Loosening?

Not by itself in every application.

Bolt loosening is influenced by the complete joint system, including:

• Initial preload

• Joint stiffness

• Fastener stiffness

• Transverse displacement

• Vibration

• Shock loading

• Temperature

• Surface condition

• Friction

• Coatings

• Bearing surfaces

• Joint geometry

A spring washer may help maintain contact or compensate for limited preload loss in an appropriate design.

That is different from guaranteeing resistance to rotational self-loosening.

Where severe vibration or safety-critical loosening is involved, engineers should evaluate dedicated locking technologies such as:

• Prevailing-torque lock nuts

• All-metal lock nuts

• Nylon-insert lock nuts where suitable

• Wedge-locking systems

• Mechanical locking devices

• Thread-locking compounds

• Application-specific locking fasteners

The locking strategy should be selected from the failure mechanism of the joint.

Where Curved Single-Coil Spring Washers Add Value

These washers may be useful where the assembly requires a combination of:

• Compact axial installation

• Moderate elastic deflection

• Simple component geometry

• Repeatable assembly

• Limited settlement compensation

• Standardized or drawing-controlled dimensions

They can be especially relevant in existing OEM assemblies where the washer is already part of a validated design.

For replacement or second-source projects, reproducing the original washer's mechanical behavior may be as important as matching its nominal diameter.

Critical Design Parameters

A curved spring washer should not be specified by bolt size alone.

Several parameters influence performance.

Inside Diameter

The inside diameter must provide the required clearance around the fastener while maintaining correct positioning.

Outside Diameter

Outside diameter affects available bearing area and interaction with the mating component.

Material Thickness

Thickness influences stiffness and spring behavior.

Even apparently small changes can alter the washer's response under compression.

Free Height

The free height describes the washer geometry before installation.

Together with material and curvature, it affects available deflection.

Installed Height

The washer's operating condition after tightening is important.

A washer that has been compressed beyond its intended elastic working range may not provide the expected spring behavior.

Curvature

Curvature determines how the washer deforms under load.

For custom washers, this geometry should be controlled by drawing rather than visual comparison.

Material Selection

Material selection affects:

• Elasticity

• Fatigue behavior

• Strength

• Corrosion resistance

• Temperature capability

• Manufacturing consistency

Spring Steel

Spring steel is commonly used for curved spring washers where mechanical elasticity is the primary requirement.

Potential applications include:

• General machinery

• Motors

• Pumps

• Gearboxes

• Production equipment

• Mechanical assemblies

Material condition and heat treatment should be controlled according to the applicable specification.

Stainless Steel

Stainless steel may be selected where corrosion resistance is important.

Potential environments include:

• HVAC equipment

• Food-service equipment

• Medical equipment

• Laboratory machinery

• Outdoor equipment

• Electrical enclosures

• Processing equipment

A2 and A4 stainless steels have different corrosion characteristics, so the required grade should be specified rather than simply requesting "stainless steel."

Alloy and Special Materials

Custom applications may require other materials because of:

• Temperature

• Fatigue requirements

• Corrosion environment

• Mechanical properties

• Customer specifications

For non-standard material requirements, procurement should provide the exact material designation or engineering specification.

Surface Treatment Considerations

Carbon and alloy steel washers may require surface protection.

Depending on the project, options may include:

• Blackened and oiled finishes

• Phosphate-based finishes

• Zinc coatings

• Zinc-nickel coatings

• Zinc-flake systems

• Customer-specified coatings

The coating should not be selected solely from appearance.

Engineering considerations can include:

• Corrosion exposure

• Coating thickness

• Dimensional effect

• Friction

• Electrical requirements

• Mating materials

• Process compatibility

For hardened spring components, hydrogen-embrittlement risk should also be considered where relevant to the material, hardness, and coating process.

Dynamic Machinery Applications

Industrial machinery frequently contains joints exposed to vibration, thermal cycling, and repeated loading.

Potential applications for appropriately specified curved spring washers include:

• Motors

• Pumps

• Gearboxes

• Compressors

• Mechanical drives

• Conveyor systems

• Production machinery

The washer should be selected according to the actual joint behavior rather than simply because the equipment vibrates.

Automotive and EV Manufacturing

Automotive production includes many mechanical assemblies with different fastening requirements.

Potential curved spring washer applications may occur in:

• Auxiliary mechanical systems

• Equipment brackets

• Manufacturing fixtures

• Production machinery

• Serviceable assemblies

• Battery manufacturing equipment

Vehicle-level fastening systems should follow the applicable OEM drawing and validated joint specification.

The presence of vibration alone does not establish that a curved spring washer is an appropriate automotive locking solution.

Battery and Energy Storage Equipment

Battery and energy-storage manufacturing requires large quantities of mechanical frames, cabinets, thermal-management equipment, and production machinery.

Potential applications can include:

• Mechanical brackets

• Equipment frames

• Cooling equipment

• Pump assemblies

• Production fixtures

• Serviceable mechanical components

Where a connection is electrically functional, electrical conductivity, contact resistance, grounding, and galvanic compatibility must be evaluated separately.

AI Data Center and Cooling Infrastructure

AI data centers increasingly depend on high-density power and thermal-management equipment.

Mechanical fastening applications occur throughout:

• Liquid-cooling systems

• Pumps

• Chillers

• Heat exchangers

• Power equipment

• UPS systems

• Electrical cabinets

• Mechanical frames

Curved spring washers may be evaluated where a mechanical joint benefits from limited elastic compensation.

They should not be specified solely because the equipment operates in a data center.

Electrical and Power Equipment

Potential applications include:

• Switchgear

• Control cabinets

• Power conversion equipment

• Industrial enclosures

• Equipment frames

• Auxiliary mechanical assemblies

For grounding or bonding connections, the electrical function of the joint must be evaluated separately from the washer's mechanical spring behavior.

HVAC and Liquid-Cooling Equipment

HVAC equipment frequently experiences:

• Mechanical vibration

• Temperature cycling

• Motor operation

• Pump vibration

• Compressor loading

Potential assemblies include:

• Fans

• Pumps

• Compressors

• Chillers

• Air-handling equipment

• Cooling-system frames

A curved spring washer may provide useful elastic compensation in appropriate mechanical joints, but the complete fastening system must still be evaluated.

Robotics and Industrial Automation

Automation equipment combines repeated motion with compact mechanical assemblies.

Potential applications include:

• Robotic fixtures

• Packaging machines

• Conveyor equipment

• Assembly machinery

• Material-handling systems

• Production-line equipment

High-dynamic joints may require dedicated locking systems rather than relying on spring washers alone.

Rail and Transportation Equipment

Rail equipment can experience vibration, outdoor exposure, thermal variation, and long maintenance intervals.

Potential applications may include:

• HVAC equipment

• Electrical cabinets

• Auxiliary machinery

• Maintenance equipment

• Mechanical subassemblies

Project drawings and customer specifications should control final washer selection.

Telecommunications Equipment

Telecommunications infrastructure includes:

• Outdoor cabinets

• Antenna equipment

• Base-station hardware

• Mechanical frames

• Power equipment

• Cooling systems

Material and surface treatment should be selected according to environmental exposure and the customer's corrosion requirements.

Medical and Laboratory Equipment

Curved spring washers may also appear in suitable mechanical locations within:

• Diagnostic equipment

• Laboratory instruments

• Mechanical adjustment systems

• Equipment frames

• Auxiliary machinery

For regulated medical-device applications, material, documentation, cleanliness, and qualification requirements should follow the applicable customer specification.

Food-Service and Processing Equipment

Stainless steel curved spring washers may be considered for mechanical assemblies in:

• Commercial kitchen equipment

• Food-processing machinery

• Refrigeration equipment

• Beverage equipment

• Stainless steel equipment frames

Corrosion resistance should be selected according to cleaning chemicals, temperature, humidity, and environmental exposure.

Stainless steel material alone does not establish food-contact compliance.

How Engineers Should Select the Washer

A practical engineering sequence is:

Joint Function → Required Elasticity → Available Deflection → Load Condition → Environment → Washer Geometry → Material → Finish → Validation

Step 1: Identify the Actual Requirement

Determine whether the joint requires:

• Elastic compensation

• Load distribution

• Vibration control

• Rotational locking

• Sealing

• Electrical bonding

Different requirements may require different products.

Step 2: Identify the Applicable Standard or Drawing

Determine whether the washer is:

• Standardized

• Defined by an OEM drawing

• Based on an existing sample

• Modified from a standard component

• Fully custom

Step 3: Review Joint Geometry

Evaluate:

• Bolt diameter

• Available axial space

• Bearing surface

• Washer clearance

• Joint material

• Installed height

Step 4: Evaluate Operating Conditions

Consider:

• Static load

• Dynamic load

• Vibration

• Shock

• Temperature

• Corrosion

• Maintenance interval

Step 5: Validate the Assembly

For demanding applications, sample evaluation in the actual assembly provides more useful information than nominal washer dimensions alone.

Why Sample-Based Reverse Sourcing Requires Care

OEM procurement teams sometimes send an existing washer sample without a drawing.

A supplier can measure:

• Inside diameter

• Outside diameter

• Thickness

• Free height

• Curvature

• Surface finish

But dimensions alone may not reveal:

• Exact material

• Heat treatment

• Hardness

• Original spring characteristics

• Coating specification

• Required fatigue behavior

For this reason, sample-based sourcing should ideally be supported by the original drawing or specification.

Where those documents are unavailable, the technical assumptions should be clearly identified before production approval.

Second-Source Qualification

When developing an alternative supplier, compare more than unit price.

A practical qualification path is:

Original Drawing / Sample → Dimensional Review → Material → Hardness → Heat Treatment → Finish → Sample Production → Assembly Test → Pilot Lot → Production Approval

Important comparison points can include:

• Inside diameter

• Outside diameter

• Thickness

• Free height

• Curvature

• Material

• Hardness

• Surface treatment

• Coating thickness

• Spring behavior

• Visual condition

This is particularly important where the washer performs a functional spring role rather than acting only as a spacer.

Standard vs Custom Curved Spring Washers

A useful sourcing hierarchy is:

Standard Washer → Material / Finish Variant → Modified Standard Washer → Fully Custom Washer

Custom manufacturing may be appropriate when the project requires:

• Non-standard diameter

• Special thickness

• Special free height

• Modified curvature

• Restricted installation envelope

• Special material

• Customer-defined hardness

• Special surface treatment

• Legacy replacement component

Drawing-controlled manufacturing is recommended for non-standard functional washers.

What Procurement Should Include in an RFQ

A technically complete RFQ reduces quotation cycles and sourcing risk.

Product Definition

Provide:

• Applicable standard

• Customer part number

• Drawing

• Existing sample information if relevant

Dimensions

Specify:

• Inside diameter

• Outside diameter

• Thickness

• Free height

• Curvature or profile where controlled

Material

Specify:

• Material grade

• Heat treatment where applicable

• Hardness requirement where applicable

Surface Treatment

Specify:

• Coating or finish

• Corrosion requirement

• Customer coating specification

Application

Provide:

• Equipment type

• Joint function

• Static or dynamic loading

• Vibration condition

• Operating temperature

• Environmental exposure

Commercial Requirements

Include:

• Sample quantity

• Production quantity

• Estimated annual usage

• Packaging

• Documentation

• Inspection requirements

• Delivery schedule

This information allows engineering and procurement teams to evaluate the same component from both technical and commercial perspectives.

Engineer Search Intent vs Procurement Search Intent

Design and manufacturing engineers may search for:

• curved single coil spring washer

• how curved spring washers work

• spring washer preload compensation

• curved washer vs wave washer

• curved washer vs Belleville washer

• spring washer for dynamic joint

• spring washer deflection

• washer for joint settlement

These searches are primarily about component behavior.

Procurement and supply-chain teams may search for:

• curved spring washer manufacturer

• single coil spring washer supplier

• stainless steel spring washer supplier

• custom curved spring washer

• OEM spring washer manufacturer

• spring washer second source

• drawing-based washer supplier

These searches focus on sourcing feasibility, quality control, cost, documentation, and production continuity.

A strong supplier-development process must connect both search intents.

Related Fastening Solutions

For general curved washer selection and installation, review our Curved Spring Lock Washer Solutions.

For DIN-standard curved spring washers, review our DIN 128A Curved Spring Washer Solutions.

For higher-loaded bolted connections using conical washer geometry, review our DIN 6796 Conical Spring Washer Solutions.

For engineered load-deflection requirements, review our Disc Spring and Belleville Washer Solutions.

For axial take-up in bearing and motor assemblies, review our Wave Washer Solutions.

For load distribution without spring action, review our Flat Washer Solutions.

For angular compensation in bolted joints, review our Spherical Washer Solutions.

These internal product families solve different engineering problems and should not be treated as interchangeable.

Curved Single-Coil Spring Washer Solutions from JUXIN FASTENERS

JUXIN FASTENERS supports industrial sourcing projects involving:

• Curved single-coil spring washers

• Curved spring washers

• Spring steel washers

• Stainless steel spring washers

• Surface-treated spring washers

• Modified standard washers

• Custom spring washers

• Drawing-based washer components

Projects can be evaluated from:

• International standards

• Customer drawings

• Existing samples

• Material specifications

• Surface-treatment specifications

• Application requirements

For OEM, Tier-1, Tier-2, equipment-manufacturing, and industrial supply-chain programs, the objective is not simply to match a washer diameter.

The objective is to reproduce the component characteristics required by the assembly.

From Engineering Requirement to Production RFQ

A reliable sourcing path is:

Joint Requirement → Washer Function → Drawing / Standard → Dimensions → Material → Heat Treatment → Surface Finish → Sample → Assembly Validation → Production

This approach helps engineers avoid inappropriate component substitution and helps procurement teams qualify suppliers against measurable technical requirements.

For standard or custom curved single-coil spring washers, stainless steel spring washers, spring steel components,

replacement parts, second-source programs, or drawing-based washer projects, send the following information:

• Drawing or applicable standard

• Required dimensions

• Material

• Surface treatment

• Quantity

• Annual demand where available

• Application information

• Documentation requirements

Email: info@juxinfasteners.com

JUXIN FASTENERS can review the technical and commercial requirements and evaluate an appropriate standard, modified-standard, or custom washer solution for your project.
