Oct. 13, 2023

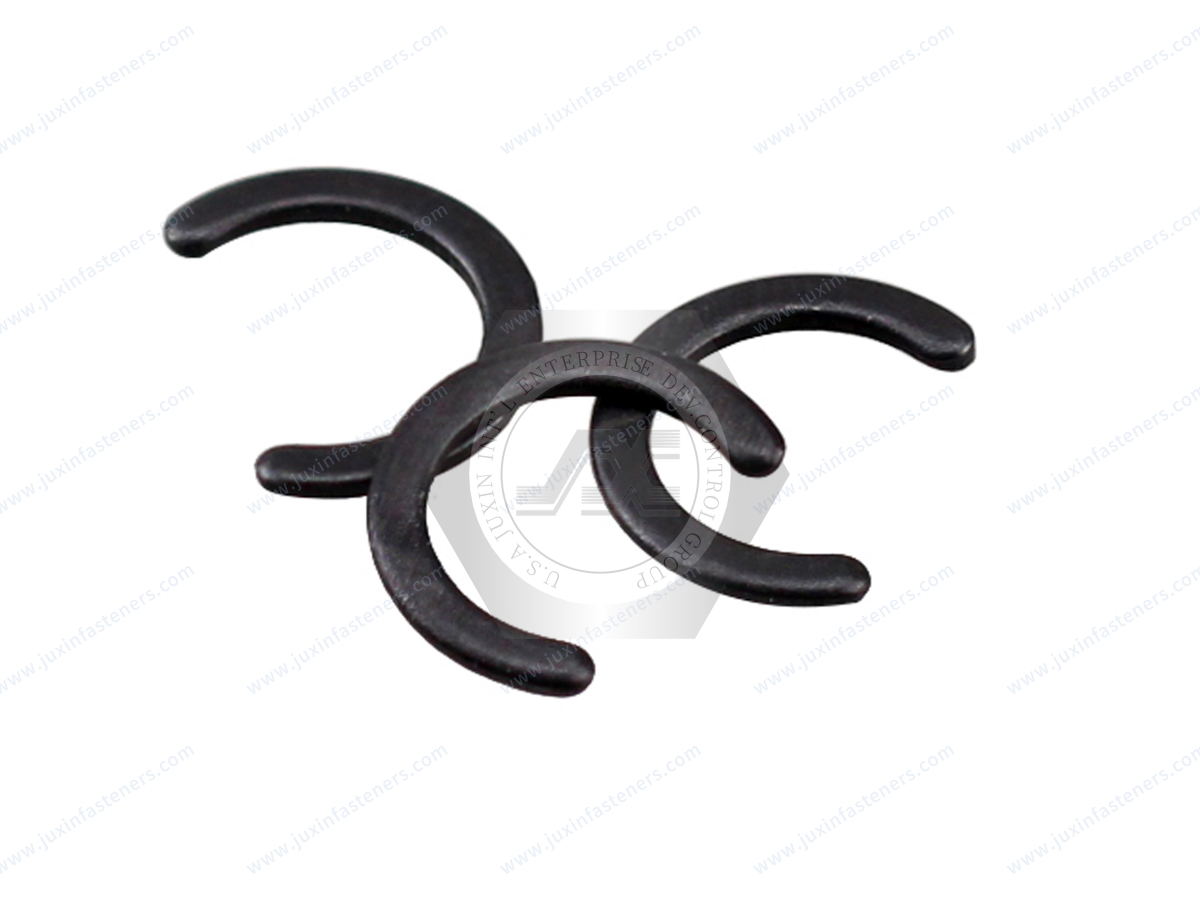

E-clips, also known as E-type retaining rings or E-rings, are compact retaining components designed for axial retention of parts assembled on shafts.
Unlike conventional external retaining rings that may require axial access and dedicated circlip pliers,
an E-clip is typically installed radially into a machined shaft groove. Its open E-shaped geometry allows the clip to engage the groove from the side of the shaft.
This makes E-type retaining rings particularly useful in compact mechanical assemblies where designers need:
Axial component retention
Radial installation
Limited axial assembly space
Low component count
Fast production assembly
Compact shaft-end architecture
Potential compatibility with automated installation
Typical applications can include retaining washers, rollers, gears, levers, bearings, bushings, linkages, pins, shafts and other mechanical components that require controlled axial positioning.
For engineers and sourcing teams, however, selecting an E-clip requires more than matching the clip to the nominal shaft diameter.
The complete retention system should be evaluated as:
E-Clip + Shaft Groove + Retained Component + Shaft Material + Axial Load + Installation Method + Operating Environment
An E-type retaining ring is a radially installed retaining ring designed to engage a circumferential groove in a shaft, pin or similar cylindrical component.
Its characteristic E-shaped profile creates multiple engagement regions around the groove.
During installation, the open side of the clip is pushed radially toward the shaft. The clip elastically deforms as it passes over the shaft surface and then engages the groove.
Once correctly seated, the clip forms an axial stop for the retained component.
The basic load path can be represented as:
Retained Component → E-Clip → Shaft Groove → Shaft
This is fundamentally different from describing the E-clip as a component that simply “clamps” the shaft.
Its primary function is axial retention through engagement with the shaft groove.

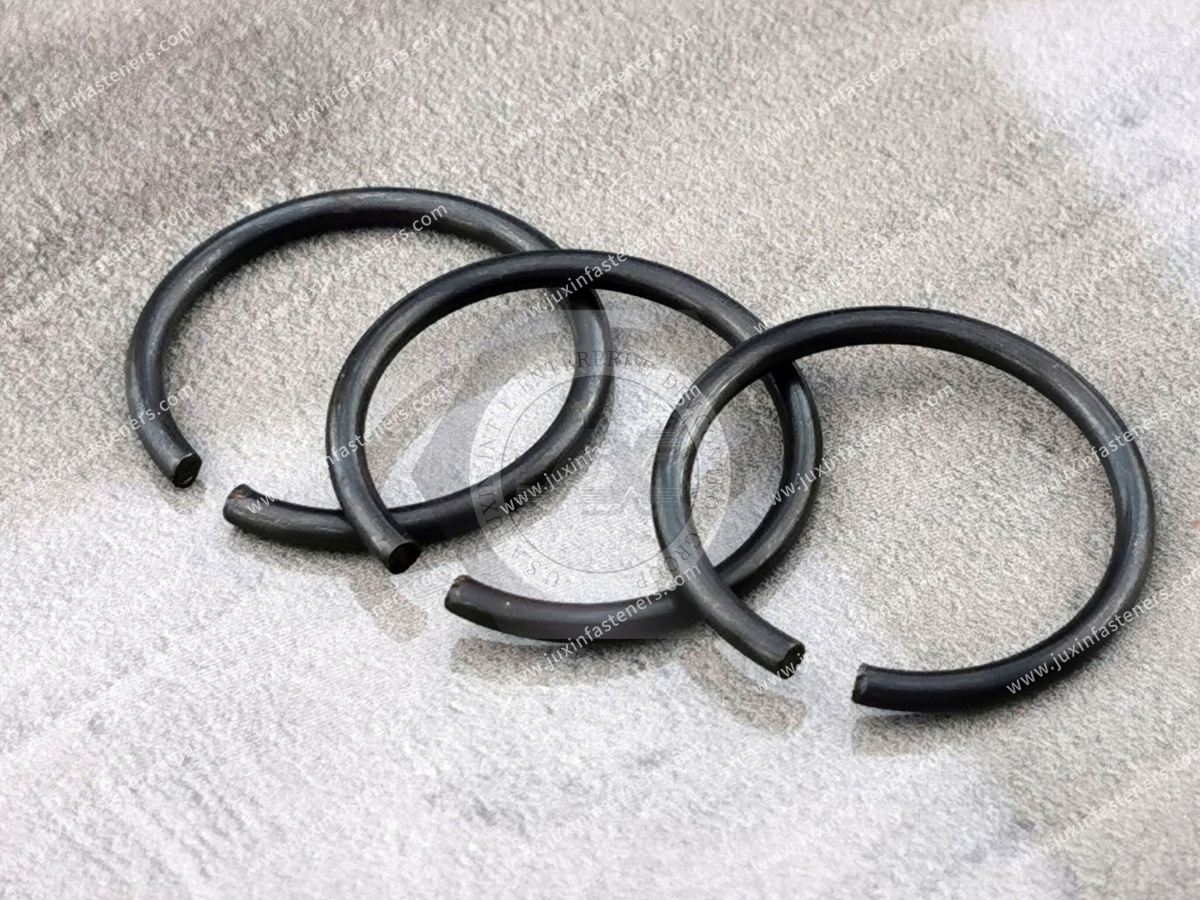

E-clips and conventional external retaining rings can both retain components on shafts, but their assembly architecture is different.
An E-clip is typically:
Installed radially
Pushed from the side of the shaft
Compact in the axial direction
Suitable for many small and medium shaft assemblies
Compatible with suitable manual or automated installation processes

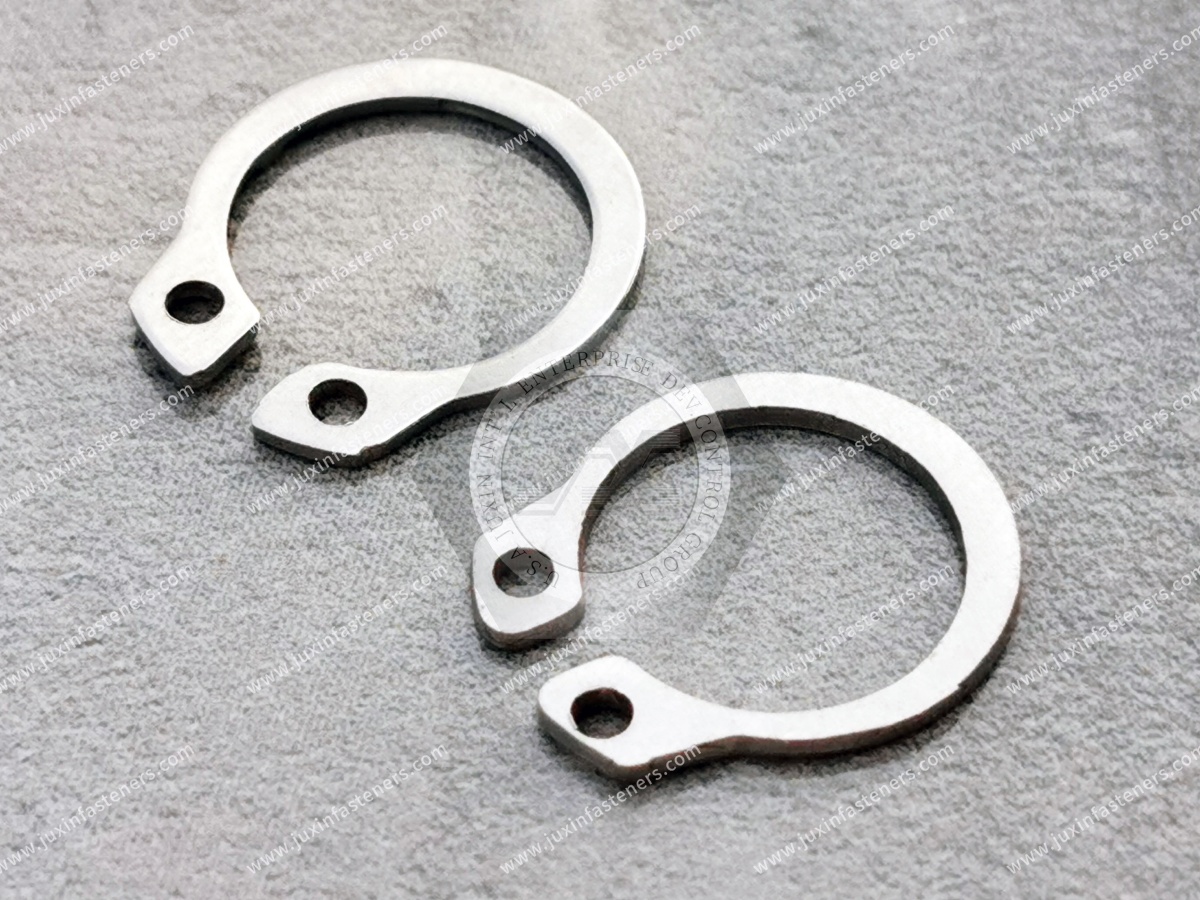

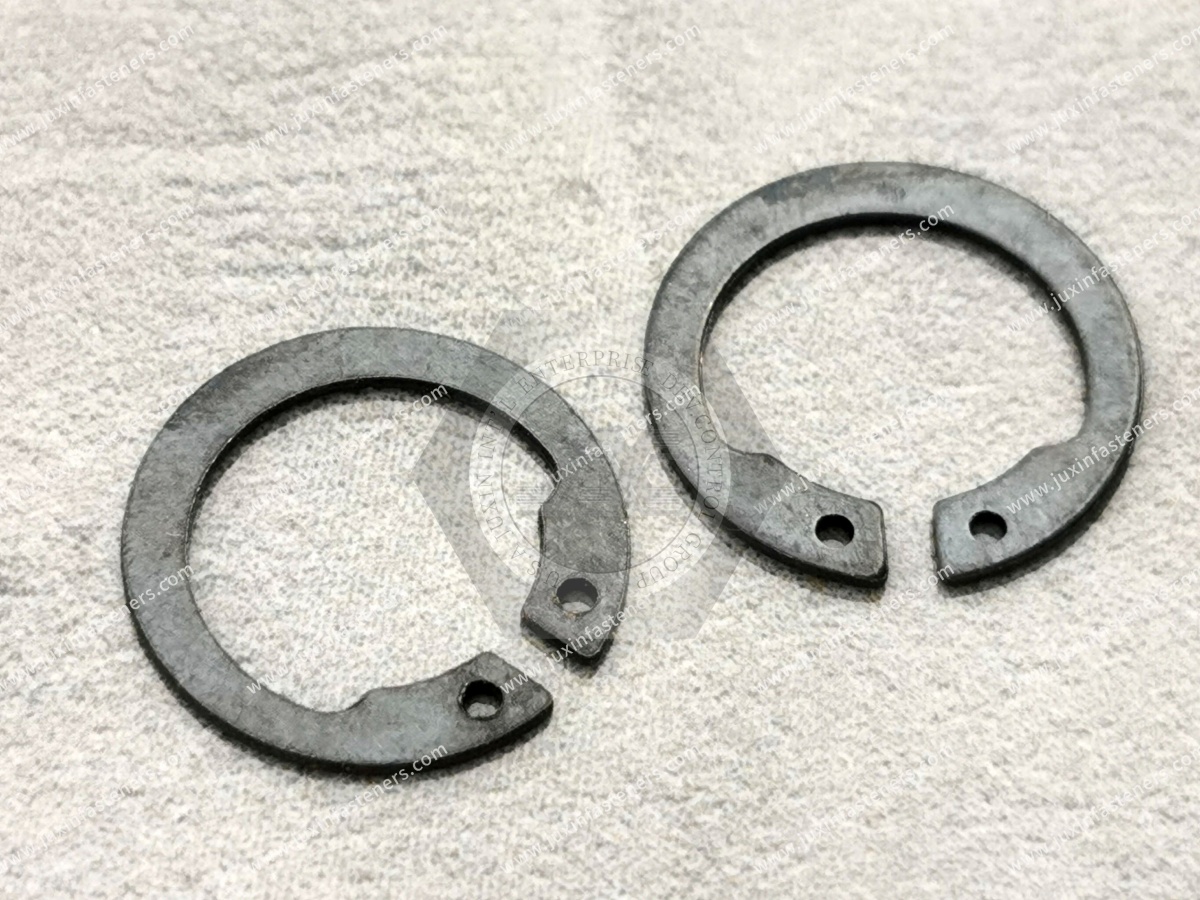

A conventional external retaining ring is generally:
Installed around a shaft
Expanded during installation
Positioned into a circumferential shaft groove
Commonly designed with installation features for retaining-ring pliers
The selection question is therefore not simply:
“Which retaining ring fits this shaft diameter?”
A better question is:
“Which retaining-ring architecture best matches the shaft groove, axial load, available assembly access, retained component and production process?”
Radial installation is one of the most important design advantages of an E-clip.
In some assemblies, access to the end of the shaft may be limited by:
Adjacent components
Housing geometry
Assembly sequence
Production tooling
Space restrictions
Preassembled modules
An E-clip can sometimes be inserted from the side without requiring the same axial installation path as another retaining-ring design.
This can make it attractive for:
High-volume assembly
Compact mechanisms
Automated equipment
Appliance mechanisms
Automotive subassemblies
Actuators
Linkages
Small transmission systems
However, radial access must still be available for both installation and any required servicing.
The E-clip does not work independently.
Its retention performance depends heavily on the groove into which it is installed.
Critical groove-related factors can include:
Groove diameter
Groove width
Groove depth
Groove location
Groove edge geometry
Distance from the shaft end
Shaft material
Shaft hardness
Manufacturing tolerances
This means that a stronger or thicker E-clip cannot automatically compensate for an incorrectly designed groove.
The clip and groove must function as a system.
When the retained component applies an axial force against the E-clip, the clip transfers that force into the shaft groove.
A simplified load path is:
Component → Clip Contact Surface → E-Clip Body → Groove Face → Shaft
Depending on the assembly, possible limiting conditions can include:
Clip deformation
Clip displacement
Groove-edge deformation
Shaft-groove damage
Retained-component deformation
Excessive axial clearance
Installation damage
For this reason, generic catalog load values should not be interpreted as universal ratings for every shaft assembly.
The complete application should be evaluated.
Groove diameter influences how the E-clip engages the shaft.
If groove geometry does not match the intended clip, potential problems can include:
Incomplete seating
Excessive looseness
Installation difficulty
Permanent clip deformation
Reduced axial retention
Unexpected clip displacement
The groove dimensions should follow the applicable drawing, standard or validated design.
Nominal shaft diameter alone is not enough to define the correct E-clip.
Groove width must accommodate the E-clip while maintaining the required relationship between the clip and retained component.
A groove that is too narrow can prevent correct seating.
A groove that is too wide can contribute to increased axial movement or an unsuitable clip-to-groove interface.
Therefore:
Groove Width ≠ Clip Thickness Alone
Tolerance, clip geometry and required axial clearance must also be considered.
The position of the groove controls where the E-clip creates the axial stop.
The final component position may depend on:
Groove location
Clip thickness
Component width
Shaft shoulder position
Washer thickness
Spacer thickness
Manufacturing tolerances
For precision assemblies, engineers should evaluate the complete tolerance stack.
An E-clip should not automatically be expected to eliminate all axial movement.
The geometry of the retained component can influence how axial force is transferred into the clip.
Relevant features may include:
Flat faces
Chamfers
Radii
Recesses
Washer interfaces
Bearing edges
Bushing edges
If the retained component has a large chamfer or radius, the effective contact relationship with the E-clip may differ from that of a square-edged component.
The retained component should therefore be reviewed together with the clip and shaft groove.
E-clips are generally installed by pushing the clip radially into the shaft groove using a suitable installation method.
Depending on clip size, production volume and assembly architecture, installation may use:
Manual installation tools
Dedicated E-clip installation tools
Press-assisted tooling
Assembly fixtures
Automated feeding and installation equipment
Unlike many conventional circlips, an E-clip should not automatically be described as requiring conventional circlip pliers.
The correct installation method depends on the clip geometry and assembly process.
An E-clip is an elastic spring component, but its installation deformation is not unlimited.
Excessive spreading or distortion can contribute to:
Permanent deformation
Reduced groove engagement
Inconsistent seating
Damage to the clip
Reduced retention performance
Installation tooling should therefore guide the clip into the groove without unnecessarily overstressing it.
After installation, the E-clip should be checked to confirm that it has properly engaged the groove.
Depending on the application and production process, inspection may include:
Visual seating confirmation
Position verification
Axial component check
Automated vision inspection
Fixture-based verification
Drawing-based dimensional inspection
A clip positioned near the groove is not necessarily a correctly installed clip.
Partial engagement should be treated as an assembly defect.
E-clips can be attractive for high-volume manufacturing because their radial installation architecture may support automated feeding and insertion.
Potential automation considerations include:
Clip orientation
Feeding consistency
Installation direction
Groove position
Tool access
Insertion force
Seating verification
Part presentation
Cycle time
However, an E-clip should not automatically be described as “automation ready.”
The clip geometry, feeding equipment and assembly design must be evaluated together.
E-clips require materials capable of providing the spring behavior necessary for installation and retention.
Depending on the application, suitable material families may include:
Spring steels
Carbon spring steels
Stainless steels
Other engineered spring materials
The appropriate material depends on:
Clip geometry
Required elastic behavior
Installation deformation
Operating temperature
Corrosion exposure
Fatigue requirements
Customer specifications
Material should be selected from the actual application requirements rather than only from the shaft diameter.
Spring steel is widely used for industrial E-clips because suitable grades can provide the required combination of:
Elasticity
Strength
Formability
Heat-treatment response
Production efficiency
Where corrosion resistance is required, an appropriate surface treatment can be specified.
The exact material grade, heat treatment and hardness should follow the applicable drawing or product specification.
Stainless steel E-clips may be considered where corrosion resistance is important.
Potential applications can include:
Food-service equipment
Medical and diagnostic equipment
Laboratory machinery
HVAC equipment
Outdoor mechanisms
Humid environments
Selected semiconductor equipment
Electrical equipment
However:
Stainless Steel ≠ Corrosion-Proof
The correct alloy depends on environmental exposure, temperature, chlorides, cleaning chemicals and other operating conditions.
Depending on the base material and customer requirements, suitable finishes may include appropriate:
Zinc-based coatings
Zinc-nickel systems
Phosphate/oil systems
Black finishes
Other engineered corrosion-protection systems
Passivation for applicable stainless steel components
Surface finish should be selected according to:
Corrosion requirement
Dimensional tolerance
Environmental exposure
Installation behavior
Customer restricted-substance requirements
A coating should not be specified only by appearance or color.
E-clips are small dimensional spring components.
A coating can influence:
Clip thickness
Surface friction
Groove fit
Installation force
Seating behavior
Corrosion resistance
For small or precision E-clips, coating thickness and dimensional requirements should therefore be evaluated together.
Changing a coating can require engineering review even if the nominal clip dimensions remain unchanged.
“E-clip” and “C-clip” are sometimes used loosely in general conversation, but they should not automatically be treated as the same component.
An E-clip has its characteristic E-shaped radial retaining geometry.
“C-clip” may refer to several different retaining-ring forms depending on the industry and region.
For technical sourcing, use:
Drawing
Standard designation
Dimensions
Application
Sample
rather than relying only on an informal product name.
Push-on retainers and E-clips can both be used for shaft-related retention, but their working principles differ.
An E-clip normally engages a machined shaft groove.
A push-on retainer may use teeth or other features to grip a shaft without the same conventional circumferential groove architecture.
They should not automatically be substituted for one another.
The correct selection depends on:
Shaft design
Required retention
Serviceability
Assembly process
Cost
Installation equipment
Whether removal is required
Spiral retaining rings use a different geometry and installation principle from E-clips.
Potential differences include:
Installation direction
Groove interaction
Radial section
Axial space
Removal method
Load distribution
A spiral ring and E-clip should not be treated as interchangeable simply because both can retain components on shafts.
Miniature E-clips are used where small shaft diameters and compact assemblies require very limited packaging space.
Potential applications include:
Instruments
Small actuators
Office equipment
Electronics mechanisms
Appliances
Small motors
Precision machinery
Sensor assemblies
At small sizes, manufacturing tolerances, coating thickness, burr control and installation tooling can become particularly important.
A dimensional difference that appears small on a drawing may represent a significant percentage of the functional geometry.
E-clips may be used in suitable automotive and EV mechanical assemblies such as:
Linkages
Actuators
Seat mechanisms
Adjustment mechanisms
Pumps
Motor-related assemblies
Gear mechanisms
Control mechanisms
Production equipment
Selection should consider:
Dynamic loading
Corrosion environment
Temperature
Assembly process
Service requirements
Program-specific quality requirements
Automotive application alone does not establish qualification for a specific vehicle program.
The strongest connection between E-clips and EV battery manufacturing is often in production and automation equipment rather than directly in battery-cell electrical connections.
Potential applications can include:
Conveyors
Fixtures
Actuators
Positioning mechanisms
Robotic equipment
Handling systems
Inspection equipment
The actual clip specification should follow the mechanical function of the equipment.
E-clips can be used in machinery for retaining:
Rollers
Levers
Pins
Gears
Bushings
Wheels
Linkages
Actuator components
Their compact radial installation can be useful where fast assembly and limited packaging space are important.
Robotic and automation systems contain many compact mechanical joints and actuators.
Potential E-clip applications include:
Pivot pins
Linkages
Grippers
Rollers
Small gear mechanisms
Actuators
Positioning systems
Conveyor equipment
For high-cycle applications, fatigue, groove condition and dynamic loading should be evaluated.
E-clips can be used in mechanical portions of:
Electrical equipment
Switch mechanisms
Control devices
Circuit-breaker mechanisms
Actuators
Cabinet hardware
Electromechanical assemblies
They should not automatically be described as electrical grounding components unless the specific assembly is designed and validated for that function.
Suitable applications may include mechanical assemblies within:
Telecommunications equipment
Communication equipment
Antenna mechanisms
Base-station hardware
Adjustment mechanisms
Cooling equipment
Outdoor equipment
For outdoor applications, corrosion resistance can become an important material and coating consideration.
Semiconductor manufacturing and handling equipment can contain:
Motion systems
Actuators
Robotics
Wafer-handling mechanisms
Pumps
Automation equipment
Positioning systems
E-clips may be used in suitable mechanical subassemblies.
However, standard industrial E-clips should not automatically be represented as cleanroom-, vacuum-, or semiconductor-process-qualified.
Cleanliness, material, lubricant, particle and vacuum requirements remain application-specific.
HVAC systems contain many mechanical and electromechanical assemblies where E-clips may be used, including:
Fan mechanisms
Blowers
Dampers
Actuators
Motors
Pumps
Linkages
Control mechanisms
Material and coating selection should consider humidity, condensation, temperature and outdoor exposure where applicable.
In AI data center infrastructure, E-clips are more realistically associated with supporting mechanical equipment than directly with computing hardware.
Potential applications include:
Cooling equipment
Pumps
Motors
Fans
Actuators
Valve mechanisms
CDU equipment
Automated infrastructure
The E-clip should be selected according to its actual mechanical retention function rather than the industry label.
Commercial food-service equipment can include:
Mixers
Motors
Pumps
Dispensing mechanisms
Hinges and linkages
Conveyor equipment
Refrigeration equipment
Adjustment mechanisms
E-clips may provide compact axial retention in suitable mechanical assemblies.
Material and finish selection should consider:
Moisture
Cleaning chemicals
Washdown exposure
Corrosion
Temperature
A standard E-clip should not automatically be described as food-contact compliant.
Potential non-implant applications include:
Diagnostic machinery
Laboratory automation
Sample-handling systems
Pumps
Actuators
Adjustment mechanisms
Equipment linkages
For these applications, customers may specify requirements related to:
Material
Corrosion resistance
Cleaning
Dimensional consistency
Traceability
Documentation
A standard E-clip does not itself establish medical-device certification or biocompatibility.
E-clips are particularly relevant to compact mechanical assemblies used in:
Instruments
Measurement equipment
Gauges
Adjustment mechanisms
Sensor systems
Small actuators
For precision equipment, groove location and axial clearance may be as important as the clip itself.
Potential applications can include suitable:
Door mechanisms
Actuators
Linkages
Maintenance equipment
Control mechanisms
Production equipment
Rail-specific vibration, fatigue, fire, documentation and safety requirements remain program-specific.
E-clips may be used in suitable secondary mechanical assemblies involving:
Pins
Levers
Controls
Actuators
Linkages
Machinery mechanisms
However, an E-clip should not automatically be positioned as a universal solution for heavy structural axial loads.
The actual load path and safety requirements must be evaluated.
Suitable applications may include:
Ground-support equipment
Tooling
Test equipment
Laboratory systems
Automation
Non-flight-critical mechanical equipment
where program requirements permit.
Generic industrial E-clips should not be represented as aerospace- or flight-qualified without supporting qualification evidence.
Understanding potential failure modes helps engineers determine whether a problem originates from the clip, groove, component or assembly process.
Possible causes include:
Incorrect installation
Wrong clip size
Incorrect groove geometry
Groove contamination
Insufficient installation force
Poor tool alignment
Possible causes include:
Excessive installation deformation
Incorrect tooling
Wrong clip size
Material or heat-treatment issue
Improper removal and reuse
Potential causes include:
Insufficient groove engagement
Excessive axial load
Groove-edge deformation
Incorrect groove dimensions
Shaft material deformation
Wrong E-clip geometry
Potential causes include:
Groove position
Excessive groove width
Clip thickness
Component tolerance
Spacer or washer tolerance
Assembly tolerance stack
Potential causes include:
Incorrect material
Unsuitable coating
Moisture
Chlorides
Chemical exposure
Coating damage during installation
Failure analysis should evaluate the complete assembly instead of assuming the E-clip itself is the only variable.
A sourcing inquiry may state:
“Need E-clips for 8 mm shaft.”
That does not provide enough information for reliable second-source qualification.
Two E-clips associated with similar shaft sizes may differ in:
Clip thickness
Groove diameter
Groove width
Free geometry
Radial width
Material
Heat treatment
Finish
Installation behavior
Functional load requirements
Therefore:
Same Shaft Diameter ≠ Same E-Clip
The approved drawing, groove dimensions, standard designation or physical sample should be reviewed whenever possible.
For OEM and second-source projects, it is useful to distinguish among different sourcing objectives.
Critical dimensions and interfaces follow the approved drawing.
Some non-critical details may differ while the required assembly function is maintained after engineering review and customer validation.
The design may be intentionally adjusted for:
Material
Finish
Installation
Geometry
Production requirements
with customer approval.
A new retaining solution can be developed around the actual:
Shaft + Groove + Component + Load + Installation + Environment
requirements.
A visually similar clip should never automatically be assumed to be a drop-in replacement.
When the original drawing is unavailable, a physical sample can support reverse-engineering and second-source evaluation.
A practical development path is:
Physical Sample → Dimensional Review → Groove / Application Review → Critical Feature Identification
→ Material / Finish Review → Drawing Confirmation → Manufacturing Feasibility → Prototype → Assembly Validation → Production
A sample can help establish:
Overall geometry
Thickness
Free dimensions
Functional engagement features
Visible finish
However, a sample may not reveal:
Exact material chemistry
Heat-treatment history
Original hardness specification
Coating chemistry
Required axial load
Fatigue requirement
Original manufacturing specification
Application information remains valuable even when a physical sample is available.
Engineering and sourcing teams often approach E-clips differently.
Engineers may search:
E-clip groove dimensions
E-ring shaft groove
E-clip axial load
E-clip installation
E-clip vs circlip
E-clip groove design
E-clip for shaft
miniature E-clip
Their core question is:
Will this E-clip and groove retain the component under the actual assembly conditions?
Procurement and supplier-development teams may search:
E-clip manufacturer
E-ring supplier
custom E-clip manufacturer
stainless steel E-clip supplier
miniature E-clip supplier
E-clip from drawing
E-clip from sample
retaining ring second source
Their core question is:
Can the supplier reproduce the required geometry, material, finish and functional consistency at the required production volume?
The strongest sourcing process connects both perspectives.
For efficient engineering review and quotation, provide as much of the following information as possible.
Drawing
Customer part number
Applicable standard if known
Existing sample
Current product designation
Shaft diameter
Shaft tolerance
Groove diameter
Groove width
Groove location
Shaft material
Shaft hardness where relevant
Component type
Component dimensions
Contact geometry
Required axial clearance
Spacer or washer information
Axial load
Static or dynamic loading
Shock or impact
Operating speed where relevant
Installation frequency
Removal or service requirement
Required material
Hardness requirement where specified
Surface treatment
Corrosion requirement
Restricted-substance requirements
Temperature
Moisture
Chlorides
Cleaning chemicals
Outdoor exposure
Other relevant service conditions
Sample quantity
Pilot quantity
Production quantity
Estimated annual usage
Packaging
Traceability requirements
Delivery schedule
Long-term supply expectations
For OEM and second-source programs, supplier evaluation may include capabilities relevant to the specific project, such as:
Drawing review
Tooling and forming control
Material control
Heat-treatment control where applicable
Dimensional inspection
Surface-treatment control
Prototype development
High-volume production
Automatic optical sorting where applicable
Packaging
Lot identification
Change communication
Long-term supply support
Automatic optical sorting can help inspect compatible externally measurable characteristics in suitable production programs.
It does not replace material verification, mechanical validation, fatigue testing or assembly validation where these are required.
Standard E-clips do not cover every shaft assembly.
Custom E-type retaining rings may be developed where the application requires differences in:
Shaft size
Groove architecture
Clip thickness
Radial geometry
Component clearance
Material
Finish
Installation features
Other drawing-controlled dimensions
Custom development should begin with the mechanical interface rather than simply enlarging or reducing an existing clip.
The better engineering question is:
What retaining geometry is required for this shaft, groove, component, load and assembly process?
JUXIN FASTENERS supports standard, drawing-based and custom industrial fastener projects for OEM manufacturers,
engineering teams, procurement organizations, strategic sourcing teams and supplier-development programs.
E-clip and retaining-ring projects can be reviewed from:
2D drawings
3D models where applicable
Physical samples
Standard references
Shaft and groove dimensions
Material requirements
Surface-finish requirements
Application information
Production quantities
For second-source projects, the first step is identifying whether the requirement is:
Exact dimensional replacement
Functional equivalent
Modified alternative
Custom retaining solution
Prototype or sample evaluation can then be used before volume production so the customer can validate:
Groove fit
Installation
Clip seating
Axial retention
Component clearance
Assembly access
Required mechanical function
A practical engineering and sourcing workflow is:
What component must be retained on the shaft?
→ What axial load must be controlled?
→ Is radial E-clip installation suitable for the assembly?
→ What is the shaft diameter?
→ What groove geometry is available?
→ What is the shaft material and hardness?
→ What component surface contacts the clip?
→ What axial clearance is acceptable?
→ What installation access is available?
→ Will installation be manual or automated?
→ Does the clip need to be removable for service?
→ What material and surface finish are required?
→ What corrosion, temperature, shock or dynamic conditions apply?
→ Is this an exact replacement, functional equivalent or custom design?
→ How will samples be validated in the actual assembly?
→ What are the production quantity and long-term supply requirements?
This changes the sourcing question from:
“Do you have an E-clip for this shaft?”
to:
“What E-clip geometry, groove interface, material and installation method are required to retain this component reliably in the actual assembly?”
That is a more useful question for design engineers, mechanical engineers, manufacturing engineers, procurement managers, supplier-development teams and strategic sourcing professionals.
For E-clips, E-type retaining rings, miniature E-rings, stainless steel E-clips, custom retaining rings, drawing-based parts,
physical-sample development or second-source programs, send your available drawing, sample, shaft and groove information, material, finish, application requirements and quantity to:
JUXIN FASTENERS can review the available information and evaluate an appropriate sample-development and manufacturing path for your application.
MORE NEWS
Sep. 27, 2026
Sep. 27, 2026
Sep. 27, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
