Aug. 23, 2023
Electric vehicle battery boxes and battery enclosures increasingly use thin sheet, aluminum structures, closed profiles, brackets,
service panels, thermal-management components, and electrical enclosures where conventional rear-access fastening may not be practical.
Blind rivet nuts provide a single-sided method for creating a reusable internal thread in these structures.
But selecting an EV blind rivet nut is not simply a matter of choosing an M5, M6, M8, or another thread size.
For a production EV battery assembly, the complete fastening system includes:
Rivet Nut + Mounting Hole + Parent Material + Grip Range + Installation Process + Mating Screw + Surface Treatment + Service Environment + Validation
A correctly manufactured rivet nut can still perform poorly if the mounting hole is oversized, the grip range is incorrect, the panel deforms during setting,
the insert lacks sufficient anti-rotation capability, or the mating screw applies loads beyond what the complete joint can support.
For this reason, engineering and procurement teams should evaluate the blind rivet nut as part of the complete battery enclosure joint rather than as an isolated catalog component.
JUXIN FASTENERS supplies blind rivet nuts and custom fastening components for B2B automotive, EV battery, electrical enclosure, industrial equipment, and OEM manufacturing applications.
This guide explains the engineering principles, product configurations, installation variables, failure modes, material considerations, sealing requirements,
validation methods, and RFQ information that should be considered when sourcing EV blind rivet nuts.

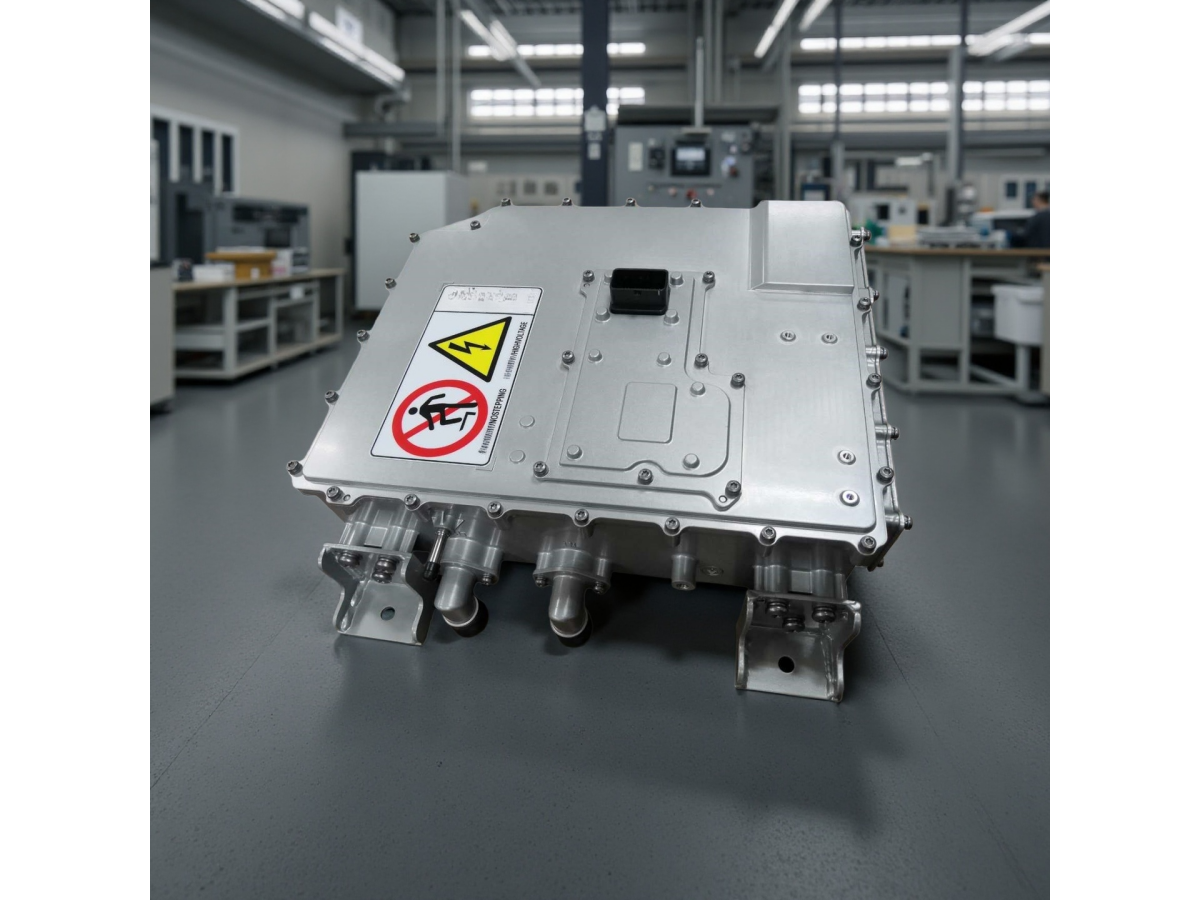

EV battery systems contain many locations where a reusable threaded attachment point is required but access to the rear side of the structure is limited or impossible.
Potential applications include:
Battery housings
Battery trays
Battery enclosure covers
Aluminum battery boxes
Thermal-management components
Cooling-system brackets
Electrical enclosures
Power electronics housings
Cable-management brackets
BMS mounting structures
Service panels
Underbody equipment
A blind rivet nut can be installed from one accessible side of the component.
During installation, the tool engages the internal thread and deforms a controlled section of the rivet nut behind the parent material.
The panel is then captured between the front flange and the deformed rear section.
After installation, a mating screw or bolt can be installed and removed without requiring a conventional nut on the rear side.
This can be particularly useful after a sheet-metal or aluminum component has already been formed into a closed or partially closed structure.
Direct tapping requires enough parent material to create a thread capable of supporting the intended joint.
Thin aluminum or steel sheet may not provide sufficient thread engagement for a particular application.
A blind rivet nut moves the threaded interface from the parent sheet into a dedicated insert.
This can provide a reusable threaded attachment point without increasing the sheet thickness solely to create additional thread engagement.
However, the blind rivet nut does not eliminate the need to evaluate the parent material.
The panel still participates directly in the joint through the mounting hole, bearing area, local stiffness, and the interface created during installation.
Weld nuts and blind rivet nuts can both provide captive internal threads, but they use fundamentally different joining processes.
A weld nut requires a suitable welding process and compatible parent material.
A blind rivet nut is mechanically installed.
The selection can depend on:
Parent material
Sheet thickness
Welding compatibility
Heat sensitivity
Coating condition
Manufacturing sequence
Rear-side access
Installation equipment
Panel geometry
Service requirements
Production volume
In some EV battery structures, avoiding a local welding operation may be advantageous.
In other structures, a weld nut may provide a more appropriate production solution.
The final choice should therefore follow the complete manufacturing process and joint requirement rather than a general assumption that one technology is always superior.
A blind rivet nut is designed to deform in a controlled region during installation.
The installation process should create the intended mechanical interface without unacceptable damage to:
Internal threads
Rivet nut body
Front flange
Parent panel
Surface treatment
Surrounding structure
Installation conditions outside the intended setting window can affect final joint performance.
Important variables can include:
Rivet nut geometry
Rivet nut material
Grip range
Parent material
Panel thickness
Installation stroke
Installation force
Tool condition
Tool alignment
Production variation
The correct setting condition should be established for the specific rivet nut and actual production assembly rather than copied from a different insert.
One of the most important principles in blind rivet nut engineering is:
The mounting hole is part of the joint.
A rivet nut can meet its drawing requirements and still perform poorly if the mounting hole is:
Too large
Too small
Out of tolerance
Out of round
Distorted
Excessively burred
Damaged
Affected by coating build-up
Incorrect for the selected body geometry
This means the mounting-hole specification should be considered during initial fastener selection rather than after the rivet nut has already been sourced.
The mounting-hole diameter should match the selected rivet nut configuration.
An excessively large hole may reduce the intended mechanical interaction between the rivet nut and parent material.
An undersized hole may prevent insertion or damage the rivet nut or panel during installation.
The required hole dimension should therefore follow the approved fastener drawing and application specification.
Nominal hole diameter alone may not be sufficient for a production EV assembly.
Engineering teams should also consider:
Diameter tolerance
Hole roundness
Burr condition
Edge condition
Punching variation
Laser-cut variation
Coating thickness
Hole distortion after forming
A carefully drilled prototype panel may not behave the same way as a high-volume stamped production panel.
Production variation can come from tooling wear, punch condition, coating, material variation, forming operations, and accumulated dimensional tolerances.
Production-intent validation is therefore valuable before releasing a rivet nut into high-volume assembly.
Grip range defines the material-thickness range over which a particular rivet nut configuration is intended to be installed.
It is one of the most important selection parameters.
However:
Grip range should not automatically be treated as identical to nominal sheet thickness.
A battery enclosure joint may contain:
Aluminum panel
Reinforcement
Additional sheet
Coating
Local stack-up features
Engineering should determine the actual material condition at the rivet nut installation location.
Instead of telling a supplier only:
“Panel thickness: 2 mm.”
a more useful specification defines:
Minimum Stack Thickness + Maximum Stack Thickness + Parent Material + Hole Requirement + Thread Requirement
This gives the supplier a more useful basis for evaluating the correct rivet nut configuration.
Blind rivet nuts can be installed in several parent materials, including:
Aluminum alloys
Carbon steel
High-strength steel
Stainless steel
Coated sheet metal
These materials do not respond identically during installation.
The engineer should consider the interaction between the insert and the actual substrate.
Aluminum sheet and extrusions are widely used in lightweight EV battery structures.
When installing a blind rivet nut into aluminum, engineering teams may need to consider:
Aluminum alloy
Temper
Sheet or wall thickness
Hole diameter
Hole quality
Local stiffness
Edge distance
Fastener geometry
Installation condition
Galvanic compatibility
Mating screw
Service environment
The objective is not simply to install the strongest possible insert.
The objective is to create a stable reusable threaded interface without unacceptable deformation or damage to the aluminum structure.
Open-end and closed-end rivet nuts solve different application requirements.
Open-end blind rivet nuts have an open rear passage.
They can be used for general threaded attachment applications where closing the rear end of the insert is not required.
Potential applications include:
Structural brackets
Body panels
Interior structures
Electrical equipment
General automotive components
Closed-end blind rivet nuts incorporate a closed rear section.
They may be considered where the rear opening should not remain exposed.
Potential applications can include:
Battery housings
Electrical enclosures
Equipment housings
Selected environmental-sealing designs
However:
Closed-end construction does not automatically mean waterproof performance.
The complete enclosure and sealing architecture still need to be evaluated and validated.

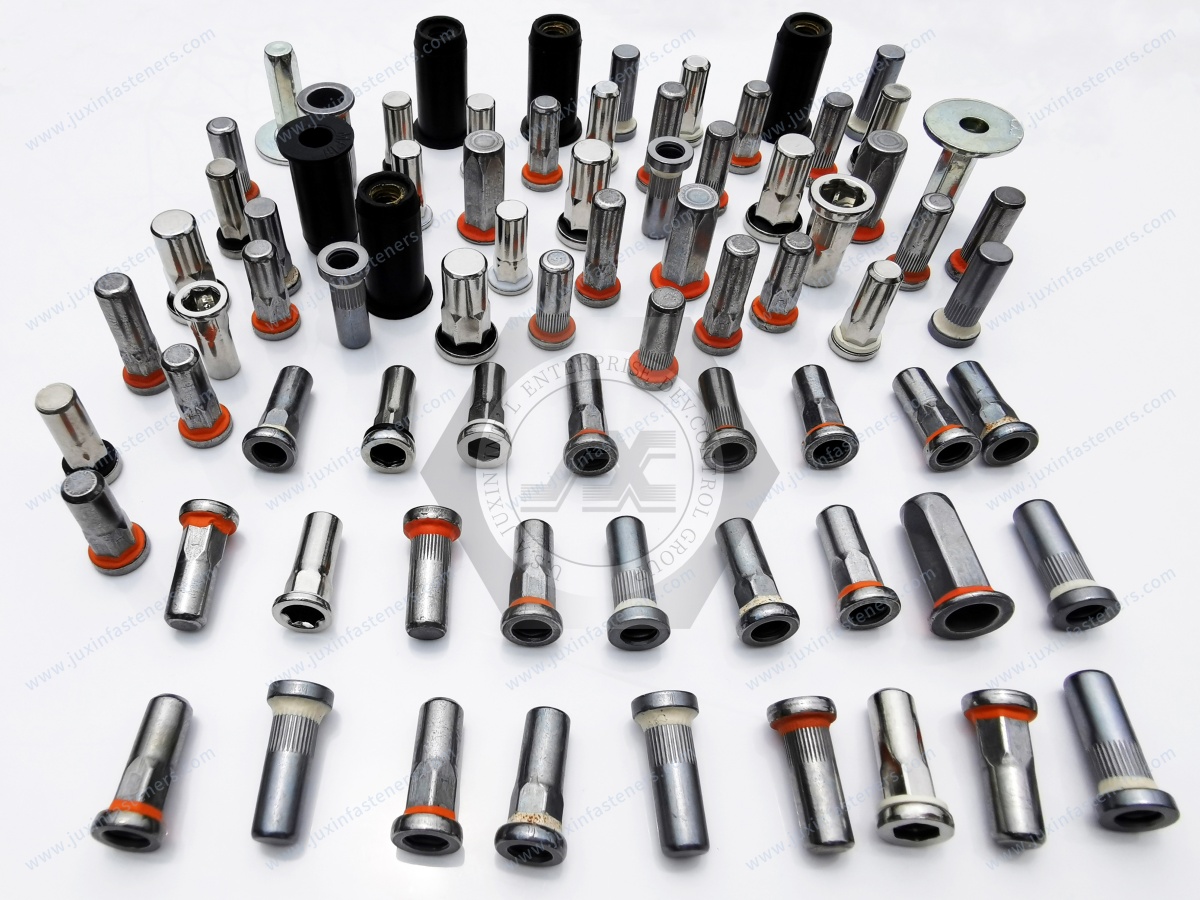

Some battery enclosures require protection against water, dust, road contamination, or other environmental exposure.
A sealing-oriented blind rivet nut may incorporate features such as:
Closed-end geometry
Under-head sealing elements
Elastomeric components
Sealant
Application-specific flange geometry
But the rivet nut is only one element of the sealing system.
The complete sealing interface may involve:
Rivet Nut + Panel + Hole + Flange + Seal + Mating Screw + Washer + Gasket + Cover + Installation Process
If the battery enclosure has an IP classification requirement, the rating applies to the enclosure or equipment assembly rather than automatically to the individual rivet nut.
For road vehicles, ISO 20653 addresses degrees of protection provided by electrical-equipment enclosures against foreign objects, access, and water ingress.
Therefore, procurement teams should avoid treating a request such as:
“We need an IP67 rivet nut.”
as a complete technical specification.
A better RFQ defines:
Parent material
Hole
Panel thickness
Grip range
Fastener configuration
Seal design
Mating screw
Installation process
Required enclosure protection
Assembly-level validation requirement
The final sealing performance should be validated on the completed enclosure or representative production-intent assembly.
When a mating screw is tightened or removed, the rivet nut must resist rotational loading.
Potential anti-rotation body configurations include:
Knurled
Ribbed
Half-hexagonal
Full-hexagonal
Other application-specific geometries
However:
Anti-Rotation Performance = Rivet Nut Geometry + Hole Geometry + Parent Material + Installation Condition
Anti-rotation should therefore not be treated as a fastener-only characteristic.
Knurled external body features can increase mechanical interaction with suitable parent material.
Performance still depends on:
Hole size
Panel material
Panel thickness
Knurl geometry
Installation setting
A knurled body should not automatically be assumed to provide a specific torque-out value without testing.
Non-round rivet nut bodies can provide a positive geometric interface against rotation when installed into a compatible non-round hole.
The hole should be designed for the selected rivet nut body.
Changing from a round hole to a hexagonal or other shaped hole also changes manufacturing requirements, tooling, tolerances, and cost.
The decision should therefore be made at the joint and manufacturing-system level.
These terms describe different failure mechanisms and should not be used interchangeably.
Spin-out occurs when the rivet nut rotates in the mounting hole instead of remaining stationary while the mating screw is tightened or removed.
Possible contributors include:
Oversized hole
Unsuitable body geometry
Incorrect installation
Parent-sheet deformation
Insufficient mechanical interaction
Excessive assembly torque
Mismatch between insert and panel
Torque-out concerns resistance to rotational loading.
It is not the same as axial pull-out.
Pull-out concerns axial separation of the insert from the parent material.
The result can depend on:
Rivet nut geometry
Installation condition
Panel material
Panel thickness
Hole geometry
Load direction
Pull-through is strongly influenced by the interaction between the front flange and parent sheet.
Relevant variables can include:
Flange diameter
Flange thickness
Sheet thickness
Parent material
Hole diameter
Load direction
Local panel stiffness
A rivet nut can therefore perform differently under rotational and axial loading.
The validation program should test the failure modes that actually matter to the intended battery enclosure application.
Large-flange or large-cap blind rivet nuts provide a larger front-side bearing interface.
They may be useful where broader load distribution around the mounting hole is desirable.
However:
A larger flange does not automatically mean a “high-strength rivet nut.”
Flange diameter primarily changes the interface between the insert and parent material.
It does not independently determine:
Thread strength
Rivet nut body strength
Pull-out resistance
Pull-through resistance
Torque-out resistance
Fatigue behavior
Corrosion performance
The complete joint should still be evaluated.
The location of the rivet nut relative to panel edges, bends, ribs, embossments, nearby holes, and other geometric features can influence joint behavior.
Two aluminum panels with the same nominal thickness can behave differently because their local geometry creates different stiffness.
When the mounting hole is close to an edge, the surrounding material may have less capacity to distribute the applied load.
For application validation, engineers should therefore use production-intent panel geometry wherever practical rather than assuming a flat coupon fully represents the final battery enclosure.
EV battery systems and vehicle structures can experience:
Vibration
Dynamic loading
Thermal cycling
Repeated screw installation
Service removal
Road-induced loading
The rivet nut, mating screw, and parent panel should therefore be treated as one fastening system.
Potential concerns include:
Spin-out
Screw loosening
Local panel deformation
Thread damage
Insert movement
Corrosion
Repeated service cycles
If the assembly is expected to be opened repeatedly during maintenance, the design should consider:
Number of expected service cycles
Installation torque
Removal torque
Thread condition
Rivet nut retention
Parent-sheet condition
Corrosion exposure
Repeated assembly performance should be validated where it is relevant to the application.
Battery enclosures can experience temperature changes during charging, vehicle operation, environmental exposure, and thermal-management cycles.
The assembly may contain materials with different thermal expansion characteristics, including:
Aluminum panel
Steel rivet nut
Stainless or steel mating screw
Elastomeric seal
Coating
Gasket
Sealant
Thermal cycling can therefore affect more than the rivet nut itself.
Engineering teams should evaluate the complete joint where thermal movement can influence:
Retention
Preload
Sealing
Corrosion
Panel deformation
Threaded connection performance
Blind rivet nut material should be selected according to the complete mechanical, corrosion, installation, and compatibility requirements.
Potential materials include:
Carbon steel
Stainless steel
Aluminum
No material is universally best.
Steel blind rivet nuts can provide a practical combination of strength, formability, and cost for many applications.
Where corrosion protection is required, surface treatment should be defined by the applicable drawing or customer specification.
Stainless steel blind rivet nuts may be considered where corrosion resistance or material compatibility is important.
The appropriate stainless grade should be selected according to the service environment and application requirements.
Where applicable, stainless-steel fastener standards such as ISO 3506 should be used according to their specific product scope rather than treated as a blanket specification for every blind rivet nut.
Aluminum rivet nuts may be considered where low mass, installation characteristics, or material compatibility support their use.
However:
Lower density does not automatically mean better joint performance.
The engineer should still evaluate:
Thread requirement
Parent material
Mechanical loading
Corrosion
Installation
Mating screw
Service environment
EV battery and underbody fasteners can encounter:
Moisture
Condensation
Road salt
Dirt
Humidity
Chemical exposure
Temperature variation
Potential surface-treatment systems may include:
Zinc-based plating
Zinc-nickel coating systems
Zinc-flake systems
Customer-specific automotive coatings
Application-specific topcoats
The exact system should be defined according to the project specification.
A coating requirement may include:
Coating type
Thickness
Appearance
Corrosion test
Acceptance criteria
Adhesion
Post-treatment
Lubrication
Friction requirement where relevant
A phrase such as “automotive-grade zinc-nickel” is not a complete technical specification.
ASTM B117 provides a controlled salt-spray environment used for evaluating relative corrosion behavior of metals and coated components.
It should not be interpreted as a direct prediction of real-world vehicle service life.
Where salt-spray testing is specified, the RFQ should define:
Test method
Exposure duration
Specimen condition
Acceptance criteria
Coating system
Evaluation method
A statement such as:
“720 hours salt spray = 720 hours of vehicle life”
is not technically justified.
Real vehicle corrosion can depend on:
Road salt
Humidity
Temperature
Water retention
Coating damage
Material combinations
Joint geometry
Service environment
Salt-spray results should therefore be treated as defined laboratory test data rather than a direct lifetime prediction.
EV battery structures often combine different metals.
For example:
Aluminum Enclosure + Steel Rivet Nut + Stainless or Steel Screw
When dissimilar metals are electrically connected and exposed to a suitable electrolyte, galvanic corrosion can become an engineering consideration.
The design should evaluate:
Material combination
Surface treatment
Isolation strategy
Environmental exposure
Water retention
Coating condition
Drainage
Seal design
When a steel rivet nut is installed in an aluminum battery panel, the engineering objective should not simply be to select the strongest insert.
The decision should balance:
Mechanical Requirement + Corrosion Compatibility + Manufacturing Process + Service Environment
The blind rivet nut and mating screw form one threaded joint.
The mating hardware should therefore be defined together with the insert.
Relevant parameters include:
Screw diameter
Thread pitch
Screw length
Screw material
Strength requirement
Head type
Washer
Surface treatment
Installation torque
A high-strength screw does not automatically create a high-strength rivet nut joint.
The load path may include:
Screw → Internal Thread → Rivet Nut Body → Mounting Hole → Parent Panel → Surrounding Structure
The weakest interface can govern the performance of the complete joint.
Increasing screw strength alone may provide little benefit if the limiting failure mode is panel pull-through, rivet nut spin-out, thread failure, or local parent-material deformation.
Blind rivet nuts can support selected battery enclosure attachment points such as:
Battery cover attachments
Service panels
Cable-management brackets
Thermal-management components
Electrical interfaces
Sensor brackets
Internal equipment brackets
Cooling-system supports
Power-electronics mounting
Underbody components
Not every battery enclosure joint should use a rivet nut.
Structural loads, sealing, serviceability, parent material, accessibility, and manufacturing sequence should determine whether a blind rivet nut is appropriate.
The same technology can also support other EV and automotive assemblies, including:
Body panels
Door structures
Instrument-panel structures
Interior brackets
Underbody components
Charging-system components
Electrical enclosures
Sensor brackets
Service panels
Industrial applications may include:
Industrial machinery
Robotics
Automation
Telecommunications equipment
HVAC equipment
Electrical cabinets
Renewable-energy equipment
Transportation equipment
Commercial equipment
The engineering principles remain similar:
Define the Parent Material + Hole + Grip Range + Thread + Body Geometry + Installation Process + Service Environment
A production drawing or technical specification for an EV blind rivet nut should define the characteristics critical to the joint.
Depending on the application, these can include:
Thread
Thread tolerance
Overall length
Head diameter
Head thickness
Body diameter
Body geometry
Grip range
Mounting-hole requirement
Material
Surface treatment
Sealing requirement
Anti-rotation requirement
Inspection requirements
A product name such as:
“M6 EV blind rivet nut”
is not sufficient for production sourcing.
Two M6 blind rivet nuts can have different:
Head diameters
Body diameters
Grip ranges
Materials
Finishes
Hole requirements
Anti-rotation geometries
Setting characteristics
The approved drawing or technical specification should therefore control the actual purchase.
Testing a rivet nut in a generic steel coupon may not represent its behavior in an actual aluminum EV battery enclosure.
For meaningful application validation, engineers should consider using:
Actual panel material
Actual material thickness
Actual mounting hole
Actual coating
Actual stack-up
Actual installation process
Actual mating screw
Production-intent tooling where practical
This provides more useful engineering information than evaluating the insert alone.
A rivet nut that performs correctly at nominal conditions may not behave identically at the extremes of the production window.
If manufacturing allows variation in:
Panel thickness
Material stack-up
Hole diameter
Hole tolerance
Material condition
Coating thickness
then the relevant minimum and maximum conditions should be considered during validation.
This is particularly important when one rivet nut is expected to cover a defined grip range rather than a single material thickness.
Depending on the application, validation may include:
Installation evaluation
Spin-out testing
Torque-out testing
Pull-out testing
Pull-through evaluation
Panel deformation
Thread performance
Corrosion testing
Vibration
Thermal cycling
Sealing
Service-cycle testing
Not every application requires every test.
The validation plan should follow the actual joint function, customer specification, and credible failure modes.
Terms such as “high reliability” are useful only when the factors that create reliability are understood.
For an EV blind rivet nut joint, a more useful model is:
Material + Geometry + Hole + Grip + Installation + Mating Hardware + Environment + Validation
If one of these elements is poorly controlled, the complete joint may not perform as intended even if the rivet nut itself meets its dimensional drawing.
This is one reason engineering and procurement should evaluate the application rather than selecting a product based only on a catalog description.
Prototype installation and mass-production installation are not always equivalent.
For production EV programs, engineers and manufacturing teams should consider:
Installation equipment
Tool access
Tool alignment
Mandrel condition
Setting control
Stroke or force monitoring where applicable
Operator variation
Automated installation
Cycle time
Hole variation
Insert feeding
Error detection
Inspection strategy
The installation tool mandrel is part of the installation system; it is not a structural component of the blind rivet nut itself.
Production validation should therefore consider the interaction between the insert, panel, hole, tooling, and setting process.
For an automotive or EV battery blind rivet nut RFQ, procurement should ideally provide the available technical information rather than only thread size and quantity.
Useful information includes:
Part number
Drawing revision
Application
Parent material
Panel thickness
Minimum and maximum stack-up
Hole diameter
Hole tolerance
Thread
Grip range
Head geometry
Body geometry
Open-end or closed-end construction
Sealing requirement
Anti-rotation requirement
Rivet nut material
Surface treatment
Mating screw
Prototype quantity
Annual production volume
Packaging requirements
Inspection requirements
Documentation requirements
This allows the supplier to evaluate whether the proposed configuration matches the actual assembly.
For high-volume EV and automotive programs, supplier evaluation should extend beyond unit price.
Supplier-development and sourcing teams may evaluate:
Drawing interpretation
Manufacturing capability
Material control
Surface-treatment control
Dimensional inspection
Thread inspection
Functional testing capability
Traceability
Change control
Production capacity
Packaging control
Supply continuity
The exact supplier requirements should follow the customer program and component criticality.
Depending on the drawing and purchasing specification, inspection may include:
Thread dimensions
Head diameter
Head thickness
Overall length
Body dimensions
Grip-related dimensions
Surface condition
Material verification
Coating requirements
Visual inspection
Functional testing should be selected according to the actual application risk and customer specification.
A practical sourcing path for EV blind rivet nuts is:
Application → Parent Material → Stack-Up → Hole → Thread → Grip Range → Head Geometry → Body Geometry → Anti-Rotation → Open/Closed-End Requirement → Sealing → Material → Surface Treatment → Installation → Validation → Quantity → Documentation → RFQ
This sequence connects engineering requirements directly with procurement requirements.
It also reduces one of the most common sourcing problems: requesting quotations for parts that are not sufficiently defined for meaningful comparison.
Before sending an RFQ, engineering and procurement teams should be able to answer as many of the following questions as possible:
What is being fastened?
What is the parent material?
What is the minimum and maximum material stack?
What mounting hole is available?
What thread is required?
What head geometry is required?
Does the insert require additional anti-rotation capability?
Is an open-end or closed-end design required?
Is sealing part of the application?
What environmental conditions will the joint experience?
What mating screw will be used?
How will the rivet nut be installed?
Which failure modes need to be validated?
What prototype and production quantities are expected?
What inspection and documentation requirements apply?
These questions provide a much stronger sourcing package than a request based only on product name and thread size.
JUXIN FASTENERS supplies blind rivet nuts and related fastening components for B2B automotive, electric vehicle, battery enclosure, electrical equipment, industrial machinery, and OEM applications.

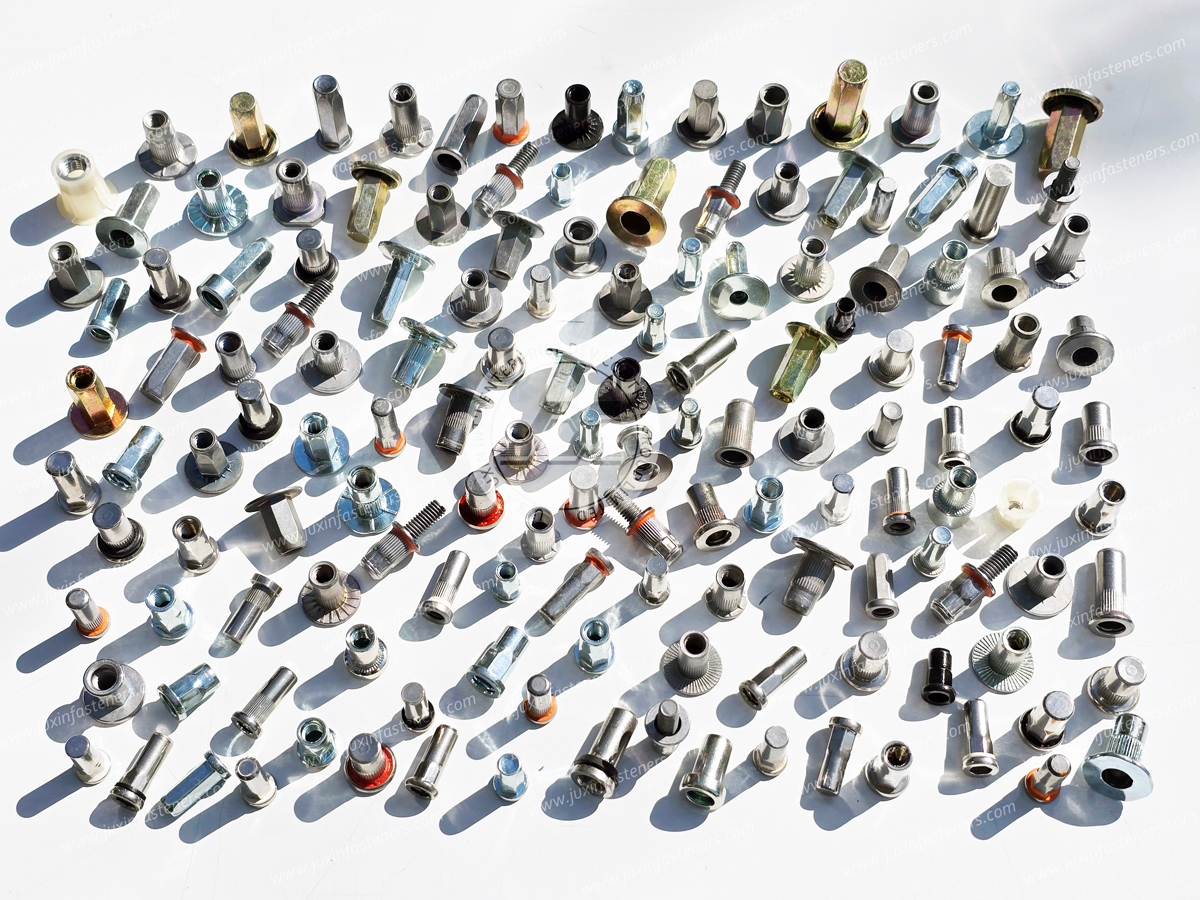

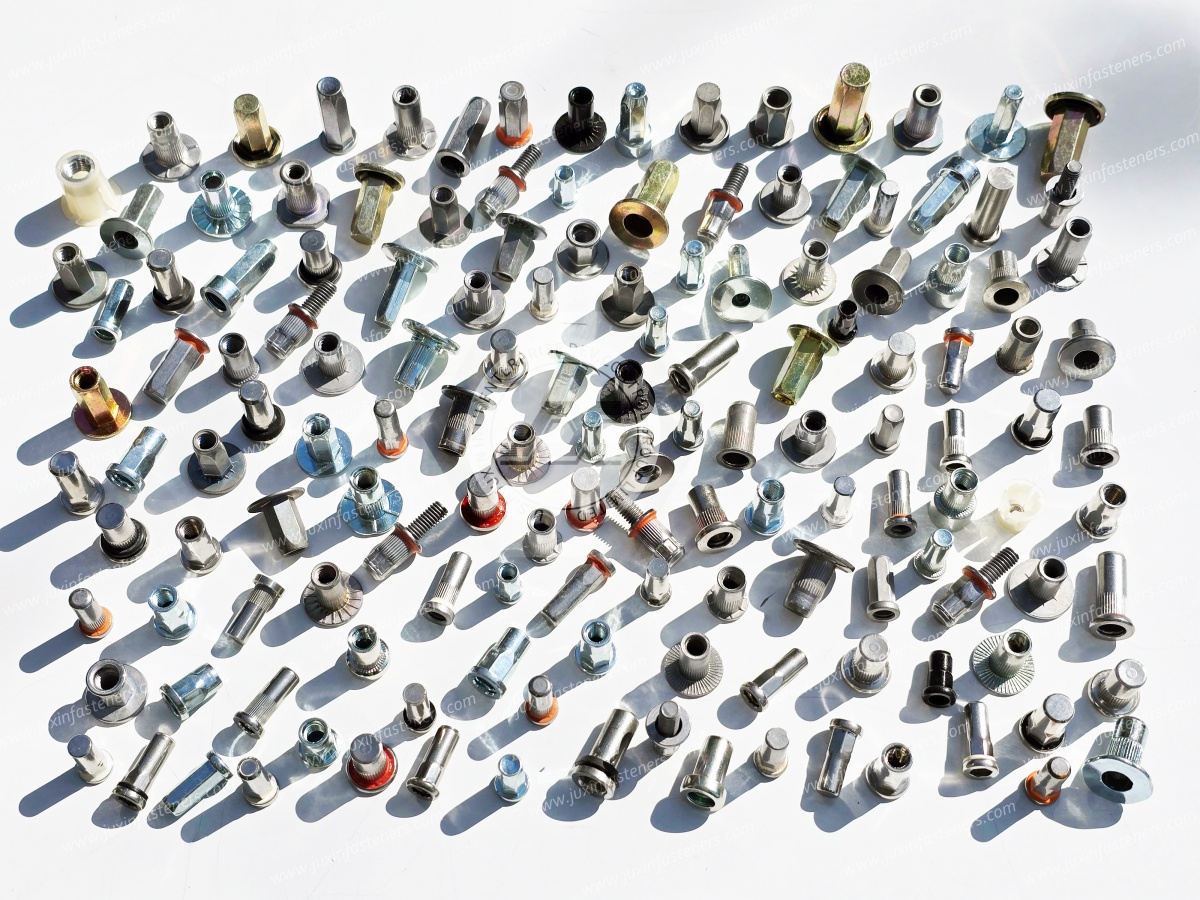

Available blind rivet nut configurations can include:
Round-body blind rivet nuts
Knurled-body blind rivet nuts
Half-hexagonal blind rivet nuts
Full-hexagonal blind rivet nuts
Open-end blind rivet nuts
Closed-end blind rivet nuts
Flat-head designs
Reduced-head designs
Large-flange designs
Application-specific sealing configurations
Custom drawing-based blind rivet nuts
Materials and surface treatments can be evaluated according to the customer drawing, application, environment, quantity, and manufacturing feasibility.
JUXIN FASTENERS can also support related fastening categories including:
Blind rivets
Blind threaded studs
Weld nuts
Weld studs and weld screws
Self-clinching fasteners
Threaded inserts
High-strength bolts and nuts
Locking fasteners
Stainless steel fasteners
Plastic and nylon fasteners
CNC machined components
Custom drawing-based fastening parts
The objective is not to force every EV assembly into one fastening technology.
Different attachment points should use the fastening method appropriate to the joint function, material, accessibility, production process, and service requirement.
Prototype development should first establish whether the selected blind rivet nut configuration fits the intended application.
Production development may additionally address:
Dimensional consistency
Installation consistency
Material control
Surface treatment
Inspection
Functional validation
Packaging
Documentation
Production volume
Traceability
Supply continuity
The exact production controls should follow the customer program.
A prototype that installs successfully in a manually prepared hole should not automatically be assumed to represent high-volume production.
Production-intent material, holes, tooling, and assembly conditions should be evaluated where required.
Reliable EV battery box blind rivet nut joints are created by controlling the complete fastening system rather than selecting an insert from a product name alone.
The most important engineering principles are:
Select the rivet nut according to the joint, not only the thread size.
Treat the mounting hole as part of the fastening system.
Define the actual minimum and maximum grip conditions.
Separate spin-out, torque-out, pull-out, and pull-through as different failure modes.
Treat anti-rotation as the interaction between insert geometry, hole geometry, parent material, and installation.
Do not equate closed-end construction with waterproof performance.
Treat IP protection as an enclosure-level requirement.
Evaluate galvanic compatibility when joining dissimilar metals.
Specify surface treatment according to the actual environmental and customer requirements.
Validate the fastener using production-intent parent material, hole conditions, and installation processes where appropriate.
For engineering evaluation, JUXIN FASTENERS recommends providing a 2D drawing or available technical specification together with:
Thread
Parent material
Panel thickness
Minimum and maximum stack-up
Hole diameter and tolerance
Grip range
Head geometry
Body geometry
Anti-rotation requirement
Open-end or closed-end requirement
Sealing requirement
Rivet nut material
Surface treatment
Mating screw
Application environment
Validation requirements
Prototype quantity
Annual production volume
This information allows the proposed blind rivet nut configuration to be evaluated against the actual EV battery box or enclosure joint rather than against a generic catalog description.
For EV battery enclosure projects, automotive sourcing, OEM development, sample evaluation, or custom blind rivet nut RFQs, contact:
Email: info@juxinfasteners.com
JUXIN FASTENERS
www.juxinfasteners.com
MORE NEWS
Sep. 25, 2026
Sep. 25, 2026
Sep. 25, 2026
Contact Us
Tel.:
+86 020 8621 0320
+86 020 3121 6067
E-mail:
Technical Support:
Navigation
SEND INQUIREY
