Advantages of Hex Head Bolts: OEM Assembly Efficiency, Joint Design and Industrial Applications

Advantages of Hex Head Bolts: OEM Assembly Efficiency, Joint Design and Industrial Applications

Hex head bolts are among the most widely used removable mechanical fasteners in industrial equipment, machinery and OEM manufacturing.

Their external six-sided heads allow tightening and removal using common wrenches and sockets.

This makes them practical for many assemblies requiring accessible installation, controlled tightening and periodic maintenance.

However, the advantages of hex head bolts extend beyond their familiar shape.

For design engineers, a hex head bolt can provide a standardized fastening interface that supports predictable assembly geometry and maintenance access.

For manufacturing engineers and production managers, it can simplify tooling selection, installation procedures and replacement-part management.

For purchasing managers and supplier development teams, standardized hex head bolts may offer sourcing flexibility when the complete dimensions,

mechanical properties and surface requirements are properly specified.

These benefits are not automatic. A hex head bolt does not inherently provide greater strength, preload retention or fatigue resistance than other fastener designs.

The actual performance depends on material, property class, thread engagement, joint stiffness, loading conditions, tightening procedure and environmental exposure.

JUXIN FASTENERS supplies industrial threaded fasteners and drawing-based custom fastening components for international OEM applications.

This guide examines the practical advantages, engineering limitations and procurement considerations of hex head bolts, with particular attention to production efficiency and total installed cost.

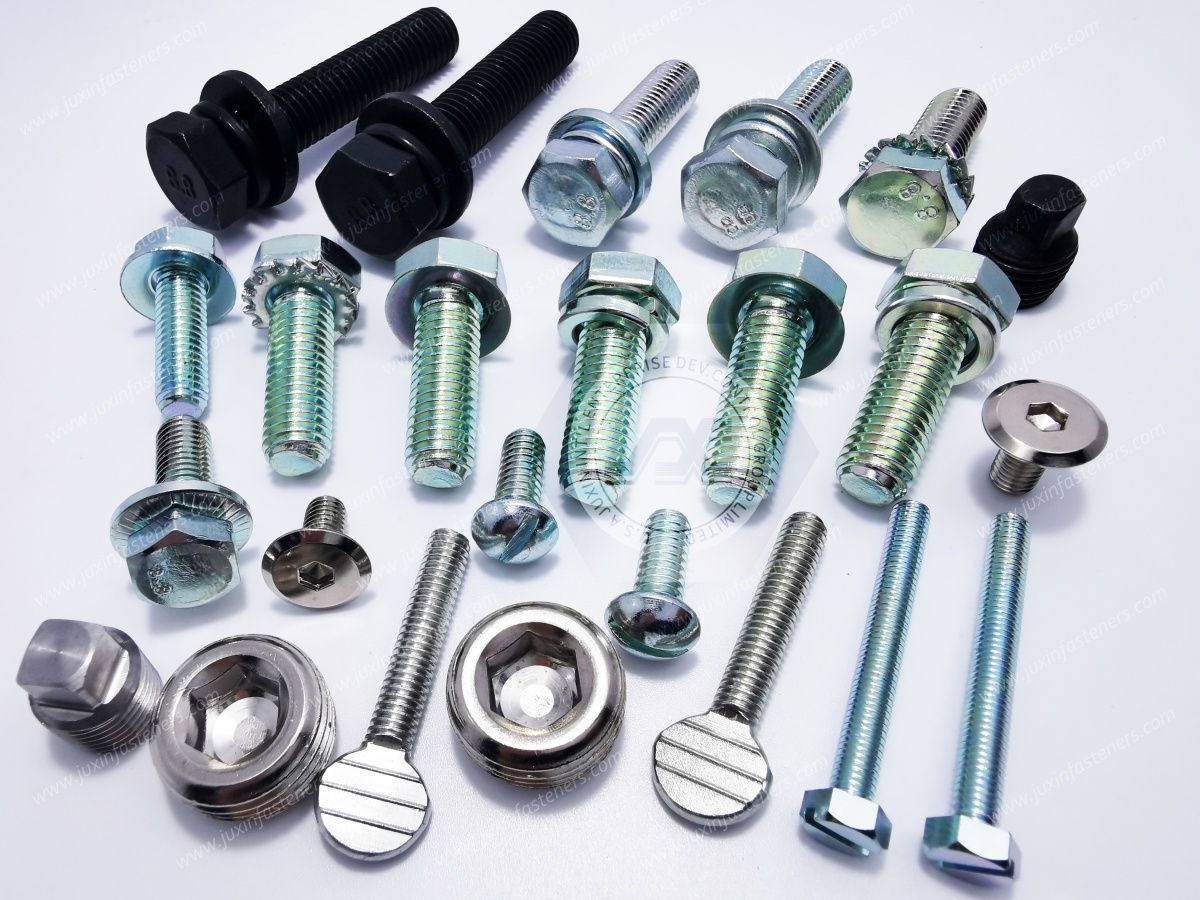

What Is a Hex Head Bolt?

A hex head bolt is an externally threaded fastener with a six-sided head designed for engagement by an appropriate wrench or socket.

It may be installed with a compatible nut or into a tapped component, depending on the joint design.

Typical features include:

• Six-sided external wrenching head

• Bearing surface beneath the head

• Threaded shank

• Optional unthreaded grip section

• Defined thread end

• Standardized or drawing-specific dimensions

Hex head bolts may be supplied in fully threaded or partially threaded configurations.

The appropriate configuration depends on the applicable dimensional standard and assembly requirements.

Why Are Hex Head Bolts So Common in Industrial Manufacturing?

Hex head bolts offer a practical combination of standardized geometry, tool availability and service access.

Their widespread use also means that engineers and maintenance personnel are familiar with the installation methods.

However, familiarity should not replace proper joint design.

The following advantages are most valuable when the hex head geometry matches the application.

Advantage 1: External Wrenching and Tool Accessibility

One of the principal advantages of a hex head bolt is its external wrenching surface.

A suitable socket or wrench can engage the head without requiring an internal drive recess.

This can be beneficial in machinery assemblies where:

• The bolt head is externally accessible

• Standard tooling is preferred

• Maintenance is performed with conventional hand tools

• Tooling compatibility across equipment models is important

External Hex vs. Internal Hex Drive

An internal hex socket head cap screw may be preferable where radial clearance is limited.

Conversely, an external hex head may be convenient where sufficient space exists for a socket or wrench.

Neither design is universally superior.

Engineering Decision

Before specifying a hex head bolt, verify:

• Radial clearance around the head

• Axial clearance above the head

• Socket outside diameter

• Wrench swing clearance

• Access for tightening and removal

• Clearance from nearby components

A bolt can meet every dimensional and strength requirement yet still be unsuitable if the production tool cannot reach it.

Advantage 2: Compatibility with Common Assembly Tools

Hex head bolts are compatible with many conventional industrial tools.

Depending on the application, these may include:

• Open-end and ring wrenches

• Hand sockets

• Torque wrenches

• Powered nutrunners

• Suitable automated fastening equipment

This can simplify equipment standardization across production lines.

However, the bolt head must match the selected tool and applicable dimensional requirements.

Tool Engagement Matters

Incorrect socket sizing, excessive tool wear or insufficient engagement may damage the bolt head.

For automated assembly, head dimensional consistency and suitable presentation of the fastener are important.

Advantage 3: Practical Installation and Maintenance

Hex head bolts are often selected for removable joints.

They can be useful where equipment requires periodic access for inspection, servicing or replacement.

Examples include:

• Gearbox covers

• Industrial machinery guards

• Equipment mounting brackets

• Electrical cabinet assemblies

• Pump and compressor components

• Mechanical equipment frames

Maintenance Benefits

A removable bolted joint may allow components to be serviced without destroying the connection.

However, repeated disassembly can introduce thread wear, galling or damage if the procedure is unsuitable.

The maintenance strategy should define whether bolts, nuts, washers or locking components may be reused.

Advantage 4: Standardized Dimensions and Sourcing Flexibility

Standardized hex head bolts can simplify engineering documentation and international purchasing.

Common metric dimensional references include ISO 4014 and ISO 4017.

Applicable inch-series hex bolt and screw dimensions may be specified under ASME B18.2.1.

ISO 4014

Covers specified partially threaded metric hexagon head bolts.

ISO 4017

Covers specified fully threaded metric hexagon head screws.

Why This Helps OEM Procurement

When the drawing clearly specifies a recognized standard, purchasing teams may be able to evaluate multiple qualified sources.

However, the standard alone may not define every purchasing requirement.

The complete specification must also identify the relevant material, mechanical property class, coating and customer-specific requirements.

Standardization Does Not Mean Automatic Interchangeability

Metric and inch-series fasteners may have different:

• Thread geometry

• Thread pitch

• Head dimensions

• Mechanical property specifications

• Tolerances

Metric, UNC, UNF, BSW and BSF threads must not be treated as interchangeable.

Advantage 5: Flexibility Across Different Joint Designs

Hex head bolts can be used in a wide variety of mechanical connections.

Their versatility comes from the availability of different sizes, lengths, materials and thread configurations.

The head geometry itself does not determine whether a joint is suitable for tensile, shear or dynamic loading.

Bolted Joints Under Tension

The bolt may be required to maintain a specified clamping force while resisting externally applied loads.

Bolted Joints Under Transverse Loading

The joint may transfer transverse load through friction between clamped members or through bearing and shear, depending on the design.

Combined Loading

Many industrial joints experience combinations of tension, shear, bending and vibration.

The complete connection must be evaluated for the actual load path.

Why the Complete Joint Matters More Than the Bolt Head

A high-strength hex bolt may still fail to provide a reliable connection if the mating threads strip, the clamped material deforms or the preload is insufficient.

The correct design must consider all connected components.

Hex Head Bolts vs. Other Industrial Fasteners

Selecting a fastening system requires comparison with alternative product designs.

The best choice depends on the manufacturing process, service requirements and joint loading.

When Is a Hex Flange Bolt Preferable?

A hex flange bolt incorporates a flange beneath the head.

The flange can provide a defined bearing surface.

However, it should not automatically be treated as equivalent to a conventional hex bolt with a separate washer.

Differences in bearing geometry, friction and tightening behavior may affect the joint.

When Is a Stud Preferable to a Hex Bolt?

A stud may be useful where the base component contains tapped holes and repeated maintenance is expected.

It can remain installed while a nut is removed.

This may reduce repeated disturbance of the base threads, depending on the maintenance procedure.

When Are Self-Clinching or Welded Fasteners Preferable?

Sheet metal assemblies may benefit from self-clinching studs, weld studs or other permanently attached fastening elements.

These designs can provide captive threaded attachment points where conventional bolts and nuts are less convenient.

Their suitability depends on material, panel thickness, installation access and the required retention performance.

Full Thread vs. Partial Thread Hex Head Bolts

The threaded length influences assembly geometry and should be selected deliberately.

Partially Threaded Bolts

These include a defined unthreaded section, depending on size and length.

They may be useful where the joint design requires an unthreaded grip section.

Fully Threaded Bolts

These provide threading along the specified shank length.

They may be useful where longer threaded engagement or greater length flexibility is required.

Engineering Considerations

The selection should account for:

• Total grip thickness

• Thread engagement

• Position of threads relative to loaded interfaces

• Nut engagement

• Blind-hole depth

• Joint stiffness

• Fatigue loading

A partially threaded bolt is not automatically stronger in every application.

Likewise, a fully threaded bolt is not automatically more suitable simply because it provides more thread length.

Hex Head Bolt Length Selection

Bolt length should be based on the actual assembly stack.

For a bolt-and-nut connection, the stack may include:

• Connected components

• Washers

• Spacers

• Nut height

• Required thread projection

For a tapped-hole connection, the design must consider:

• Effective thread engagement

• Blind-hole clearance

• Thread runout

• Base material strength

Avoid Bottoming in Blind Holes

A bolt that bottoms out in a blind hole may produce a misleading tightening condition.

The bolt may reach the specified torque without generating the intended clamp load.

This can lead to assembly defects that are not obvious from a torque reading alone.

Hex Head Bolt Preload and Tightening

A principal function of many bolted joints is to generate and maintain clamping force.

However, the amount of preload is not determined by the hexagonal head alone.

It depends on the fastener, joint geometry and tightening process.

Torque Is Not Equal to Clamp Load

A substantial portion of applied tightening torque is consumed by friction.

The relationship between torque and clamp load depends on:

• Thread friction

• Bearing-surface friction

• Coating

• Lubrication

• Joint geometry

• Installation conditions

Two otherwise similar bolts may produce different clamp loads at the same torque if their surface conditions differ.

Why This Matters in Production

A change in coating or lubrication can affect tightening consistency.

Production managers should therefore treat such changes as potential process modifications requiring evaluation.

Do Hex Head Bolts Automatically Resist Vibration?

No.

A hex head does not inherently prevent self-loosening.

Vibration resistance depends on the joint design, preload, stiffness, external loading and any specified locking method.

Where appropriate, the design may use:

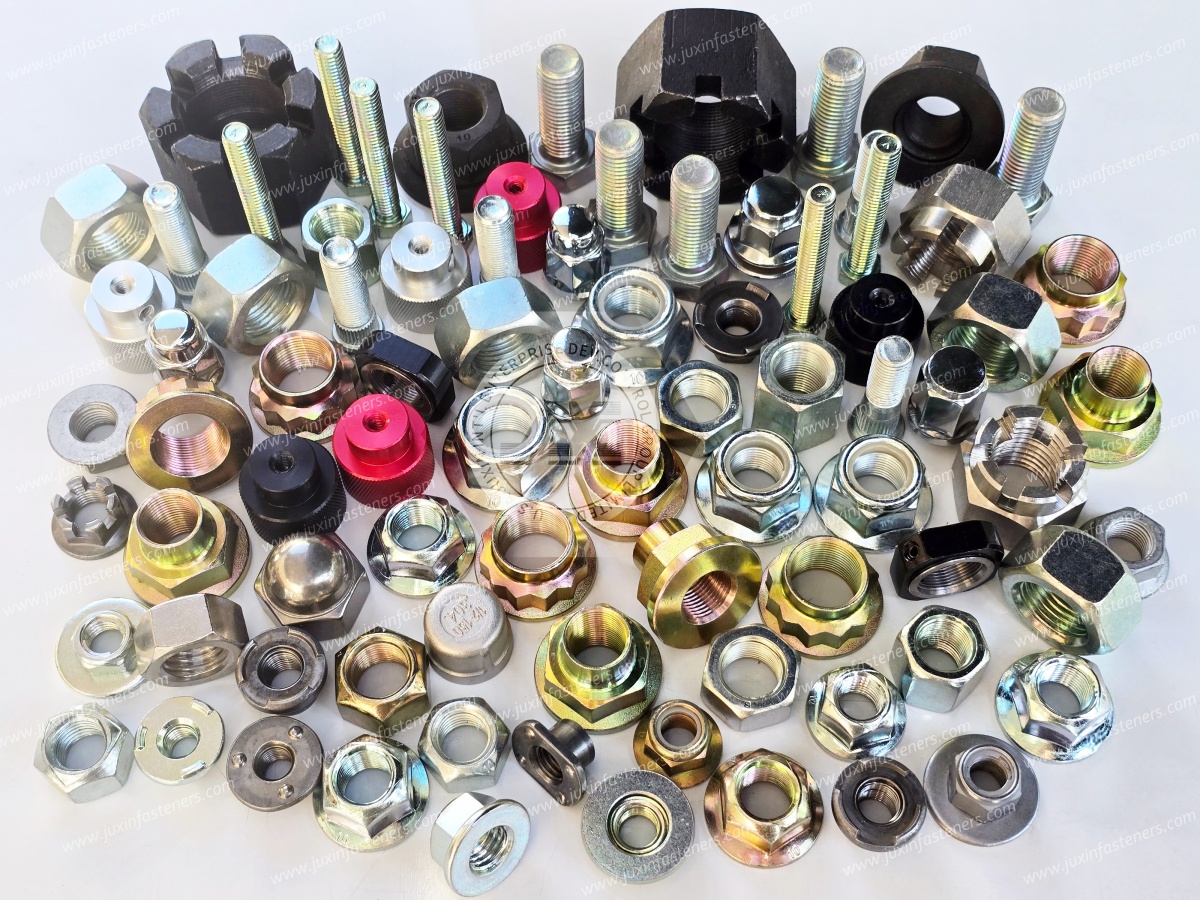

• Compatible prevailing-torque nuts

• Approved threadlocking systems

• Mechanical locking arrangements

• Other engineered retention methods

The locking method must match the application.

Hex Head Bolt Strength and Mechanical Properties

The mechanical performance of a hex head bolt depends on its material and specified property class or grade.

For applicable metric carbon steel and alloy steel fasteners, ISO 898-1 defines relevant mechanical property requirements.

Common classes include:

• Property class 8.8

• Property class 10.9

• Property class 12.9

For applicable stainless steel fasteners, ISO 3506-1 provides a different mechanical property classification system.

For certain inch-series fasteners, SAE J429 may be relevant.

Important Distinction

A metric property class 8.8 bolt is not equivalent to an SAE Grade 8 bolt.

The designations belong to different systems.

Does Higher Strength Always Improve Reliability?

No.

A stronger bolt may not improve the connection if the limiting factor is:

• Internal thread stripping

• Bearing-surface deformation

• Joint separation

• Fatigue loading

• Corrosion

• Incorrect tightening

The correct property class should be selected according to the complete joint design.

Material Selection for Hex Head Bolts

Material selection affects mechanical performance, corrosion resistance, manufacturing feasibility and cost.

Carbon Steel

Carbon steel is commonly used for general industrial fastening.

Its suitability depends on the required mechanical properties and manufacturing process.

Alloy Steel

Suitable alloy steels may be selected for higher-strength fasteners.

Material selection and heat treatment should be matched to the specified property class and bolt dimensions.

Stainless Steel

Stainless steel may be selected for corrosion-resistant applications.

A2 and A4 are common stainless fastener material groups.

The actual material and property class should be specified.

Brass

Brass may be considered for selected electrical, instrumentation and specialized equipment applications.

Its mechanical properties must be evaluated before use in load-bearing joints.

Titanium

Selected titanium alloys may be considered where weight and corrosion performance justify their use.

Manufacturing feasibility, thread behavior and application requirements must be confirmed.

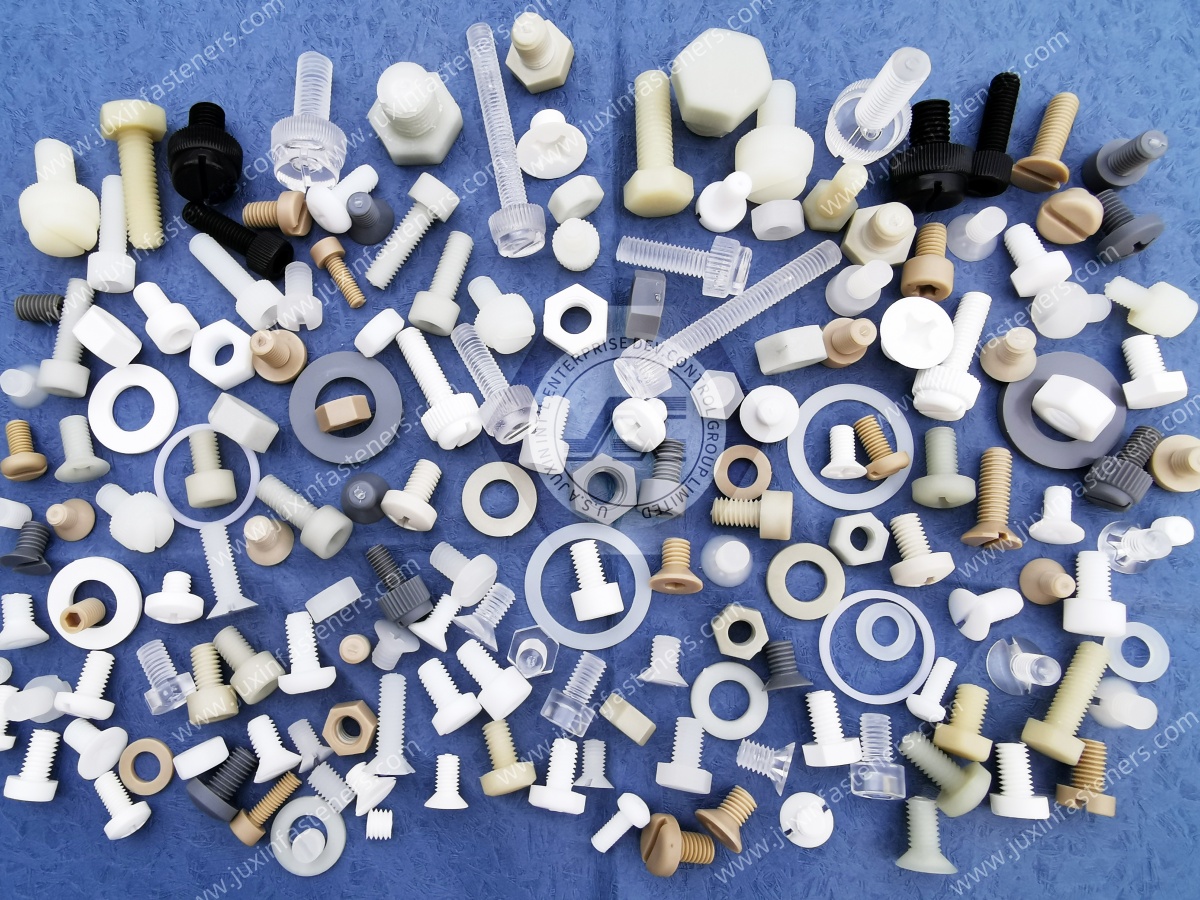

Engineering Plastics

Plastic threaded fasteners, including suitable nylon or PEEK designs, may be useful where electrical insulation, low weight or chemical compatibility is required.

However, plastic fasteners have different strength, stiffness, creep and temperature characteristics from steel bolts.

They should not be substituted for high-strength metal fasteners without engineering validation.

Material Selection Framework

Corrosion Protection and Surface Finishes

Surface treatment should be selected according to the actual operating environment and customer specification.

Possible systems include:

• Zinc plating

• Zinc-nickel plating

• Zinc-flake coatings

• Black oxide

• Phosphate-based treatments

• Plain finish

Other finishes may be considered where technically justified and available.

Coating Selection Is an Engineering Decision

A coating may affect:

• Corrosion protection

• Thread fit

• Tightening friction

• Appearance

• Hydrogen embrittlement risk

• Compatibility with mating components

ISO 4042 may be relevant to electroplated fasteners.

ISO 10683 may be relevant to non-electrolytically applied zinc-flake coatings.

Why Coating Substitution Requires Review

A purchasing change from one coating system to another may alter both corrosion performance and tightening behavior.

Even when the bolt dimensions and property class remain unchanged, assembly validation may be necessary.

Hex Head Bolts in Industrial Machinery

Industrial machinery is one of the most practical application areas for hex head bolts.

Examples include:

• CNC machining equipment

• Packaging machinery

• Injection molding machines

• Industrial automation systems

• Processing equipment

• Mechanical equipment frames

Engineering Benefits

Hex head bolts may provide accessible assembly and service connections.

Their standardized geometry can also support replacement-part management.

Production Considerations

Engineers should verify tool access, tightening requirements, inspection points and maintenance procedures.

Automotive and EV Equipment

Hex head bolts are used in suitable automotive and EV equipment assemblies.

Applications may include:

• Equipment mounting brackets

• Engine and transmission-related components

• Electrical equipment enclosures

• EV battery equipment

• Auxiliary mechanical assemblies

Safety-critical automotive joints require application-specific engineering validation.

Heavy Equipment and Construction Machinery

Applications may include:

• Excavators

• Loaders

• Conveyors

• Industrial gearboxes

• Hydraulic machinery

• Processing equipment

These assemblies may experience shock loads, vibration, contamination and repeated maintenance.

The selection should reflect the actual operating conditions.

Structural Steel Applications

Structural steel projects may require dedicated high-strength bolting assemblies and specified installation procedures.

The presence of a hexagonal head does not establish structural qualification.

For applicable structural projects, standards such as ASTM F3125/F3125M may be relevant to the specified bolting system.

Ordinary industrial hex head bolts should not automatically be substituted for approved structural fasteners.

Aerospace-Related Equipment

Hex head fasteners may be used in suitable ground support equipment and other noncritical machinery.

However, use in aircraft primary structures, engines, flight controls or landing gear requires the applicable approved fastener specification and qualification.

Renewable Energy Equipment

Potential applications include:

• Solar equipment

• Energy storage enclosures

• Industrial power equipment

• Wind-related machinery

• Equipment mounting structures

The correct fastener depends on loading, corrosion exposure and project requirements.

Safety-critical wind turbine and structural connections require additional engineering controls.

Marine Equipment

Marine applications require attention to salt exposure, moisture, temperature and galvanic corrosion.

Stainless steel is not automatically suitable for every marine environment.

The specific material and joint design should be evaluated.

Electrical Equipment, Data Centers and Telecommunications

Hex head bolts may be used in:

• Electrical cabinets

• Equipment support frames

• Power distribution enclosures

• UPS equipment

• Server infrastructure supports

• Telecommunications equipment

For electrical assemblies, mechanical fastening requirements may coexist with electrical clearance, grounding and thermal considerations.

A conventional metal hex bolt does not provide electrical insulation.

Where insulation is required, a suitable insulating fastener or engineered isolation arrangement may be necessary.

Furniture and Commercial Equipment

Hex head bolts may also be used in equipment frames, commercial furniture and other removable assemblies.

For high-volume products, ease of assembly and replacement-part standardization may influence the selection.

Production Manager's Guide: Evaluating Assembly Efficiency

For production managers, the most useful measure is not whether a bolt is easy to tighten in isolation.

It is whether the complete fastening process is repeatable, efficient and compatible with the production line.

Tool Access

The assembly must provide enough clearance for the selected tool.

Fastener Presentation

Bolts should be packaged and handled in a way that supports the production process.

Thread Engagement

The joint should provide sufficient engagement without interference or bottoming.

Tightening Control

The tightening method should be matched to the joint's required preload.

Inspection

The inspection plan should identify the characteristics necessary for product acceptance.

Rework

The process should define how damaged threads, incorrect tightening and nonconforming fasteners are handled.

Production Decision Matrix

Total Installed Cost: Why Unit Price Is Not Enough

For OEM procurement, the lowest unit price is not necessarily the lowest overall cost.

The complete installed cost may include:

• Bolt purchase price

• Nuts and washers

• Installation labor

• Tooling

• Inspection

• Scrap and rework

• Maintenance

• Replacement parts

• Production downtime

Example: External Hex vs. Internal Hex

An external hex bolt may have a lower purchase price for a particular specification.

However, if the assembly provides insufficient radial clearance, installation may require redesign or special tooling.

In that case, an internal hex fastener may offer a lower total installed cost despite a different unit price.

The correct comparison should be based on the actual assembly.

Example: Standard Bolt vs. Custom Bolt

A standard bolt may simplify purchasing and replacement.

A custom bolt may reduce the number of components or address a specific assembly constraint.

However, custom geometry can introduce tooling, inspection and inventory requirements.

The decision should consider annual volume, service life and supply continuity.

Common Hex Head Bolt Problems and Engineering Responses

Head Rounding

Possible causes include incorrect tools, damaged wrenching surfaces or excessive installation loads.

Thread Stripping

Possible causes include insufficient engagement, unsuitable mating material or incorrect thread specifications.

Bolt Fatigue

Possible causes include cyclic loading, joint separation, bending or unfavorable stress concentrations.

Preload Loss

Possible causes include joint settlement, relaxation, thermal effects or unsuitable tightening.

Corrosion

Corrosion may affect mechanical capacity, maintenance and disassembly.

Galling

Certain material combinations, particularly some stainless threaded assemblies, may be susceptible to galling.

Assembly Interference

The bolt may be dimensionally correct but inaccessible to the installation tool.

Key Engineering Principle

A fastening failure should be investigated at the joint level.

Replacing a failed bolt with a higher-strength bolt does not automatically correct the underlying problem.

OEM Supplier Qualification for Hex Head Bolts

Purchasing and supplier development teams should provide a complete technical specification.

A generic description such as “M10 hex bolt” may not be sufficient for production purchasing.

Recommended RFQ Information

• Approved 2D drawing or applicable dimensional standard

• Thread designation and pitch

• Nominal diameter

• Overall length

• Full or partial thread requirement

• Material specification

• Mechanical property class or grade

• Surface treatment

• Required inspection and documentation

• Packaging requirements

• Sample quantity

• Annual purchasing volume

• Delivery schedule

Evaluating an Alternative Supplier

A proposed alternative must be reviewed against the complete specification.

Similar appearance does not establish interchangeability.

Differences in mechanical properties, head dimensions, thread tolerances or coatings may affect production.

Supply-Chain Considerations

Procurement teams should also evaluate:

• Manufacturing feasibility

• MOQ

• Lead time

• Sample approval requirements

• Production consistency

• Packaging and identification

• Long-term supply planning

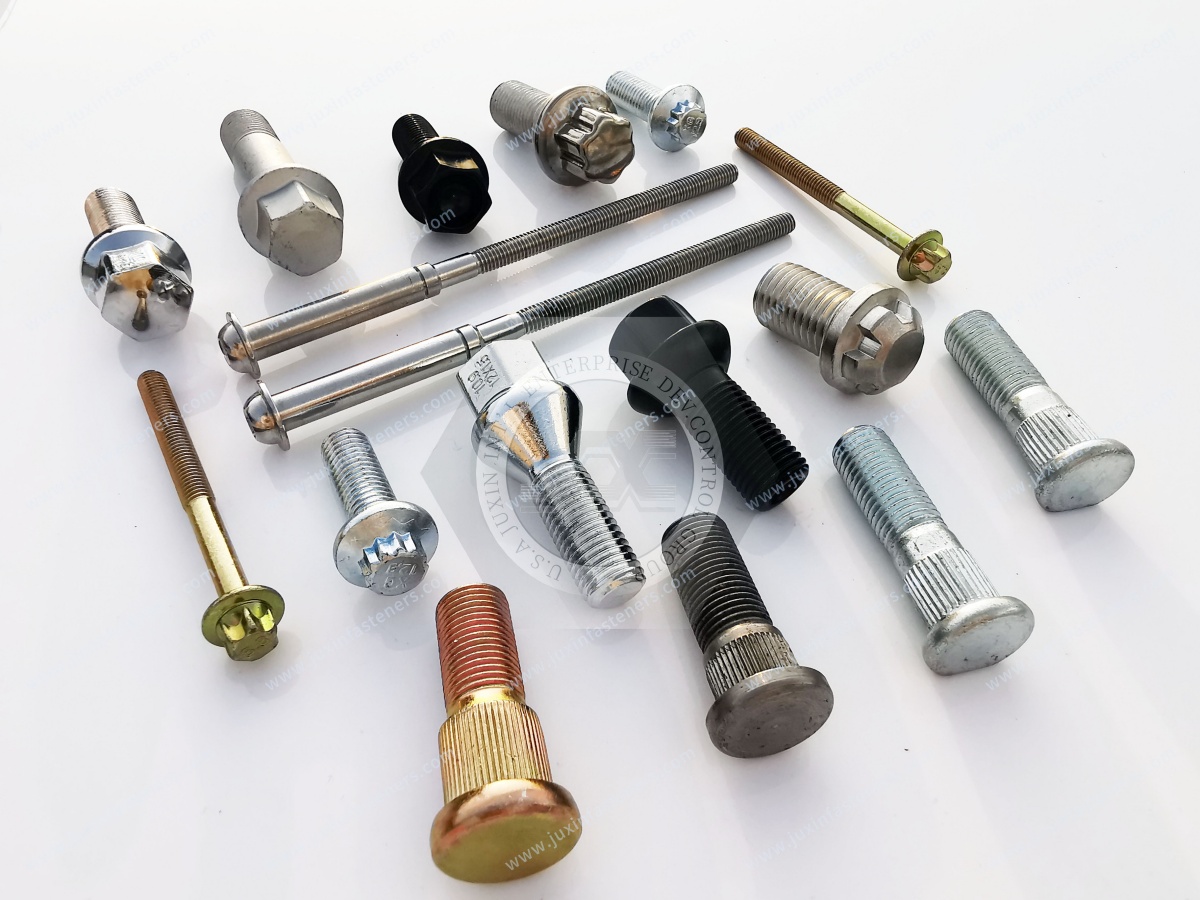

Custom Hex Head Bolts for OEM Applications

JUXIN FASTENERS supports inquiries for standard industrial bolts and drawing-based custom fastening components.

Possible project requirements include:

• Special bolt lengths

• Nonstandard shank dimensions

• Custom thread lengths

• Special head geometry

• Metric or specified inch threads

• Selected material requirements

• Heat-treatment requirements

• Drawing-defined surface finishes

• Custom packaging

Manufacturing feasibility, tooling, MOQ and lead time depend on the drawing and purchasing requirements.

When Should an OEM Choose a Custom Hex Bolt?

A custom design may be appropriate where a standard bolt cannot satisfy:

• Installation clearance

• Grip length

• Thread engagement

• Component geometry

• Assembly requirements

• Special material needs

Custom design should solve a defined engineering problem rather than introduce unnecessary complexity.

Frequently Asked Questions

What are the main advantages of hex head bolts?

Their principal advantages include accessible external wrenching, compatibility with common tools,

standardized dimensions and practical maintenance in suitable assemblies.

Are hex head bolts stronger than socket head cap screws?

Not automatically. Strength depends on the material, property class, dimensions and applicable specification.

Do hex head bolts provide better clamping force?

Not inherently. Clamp load depends on the joint design and tightening conditions.

Are hex head bolts suitable for automated assembly?

They may be suitable where head geometry, tooling access, feeding and tightening requirements are compatible with the production process.

What is the difference between fully threaded and partially threaded hex bolts?

Partially threaded bolts have a defined unthreaded section, while fully threaded designs provide threading along the specified shank length.

Are hex flange bolts interchangeable with conventional hex bolts?

Not automatically. Bearing geometry, friction and joint requirements may differ.

Can hex head bolts be used in stainless steel or plastic materials?

Suitable fasteners may be made from different materials, but each material has different mechanical and environmental limitations.

Are metric and UNC hex bolts interchangeable?

No. Metric and Unified inch threads use different specifications.

Do hex head bolts prevent vibration loosening?

No. Vibration resistance depends on the complete joint and any specified locking method.

What should OEM buyers check before changing suppliers?

The approved drawing, dimensions, thread, material, property class, coating, inspection requirements and production approval process.

Can JUXIN FASTENERS review custom hex head bolt drawings?

Yes. Drawing-based inquiries can be reviewed for product selection, material requirements, manufacturing feasibility and quotation.

JUXIN FASTENERS: Industrial Hex Head Bolts and OEM Fastening Solutions

JUXIN FASTENERS supplies industrial threaded fasteners and drawing-based custom components for international OEM customers.

Relevant product categories include:

• Metric hex head bolts

• High-strength industrial bolts

• Fully threaded and partially threaded hex bolts

• Custom hex head bolts

• CNC-machined threaded components

• Industrial locking nuts

• Weld studs

• Self-clinching studs

• Other drawing-based fastening components

Specific dimensions, materials, mechanical properties, coatings and manufacturing requirements are reviewed during quotation.

Request an OEM Hex Head Bolt RFQ

Are you designing a new machinery assembly, improving production efficiency, replacing an existing fastener or qualifying an alternative supplier?

JUXIN FASTENERS welcomes inquiries from mechanical engineers, structural engineers, design engineers, manufacturing engineers, production managers,

procurement specialists, purchasing managers and supplier development teams.

Please provide:

2D drawing or standard + thread designation + diameter + length + full/partial thread requirement + material + property class

+ surface finish + installation requirements + sample quantity + annual purchasing volume + target delivery date

Our team can review suitable product options, drawing requirements, sample arrangements, MOQ, lead time and quotation details.

Company: JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your hex head bolt drawings and RFQ to JUXIN FASTENERS for technical evaluation and quotation.
