Hex head bolts are among the most widely used mechanical fasteners in industrial equipment, automotive assemblies, machinery and engineered structures.

Their six-sided heads provide convenient wrench and socket engagement,

 while the threaded shank creates a removable mechanical connection when used with a compatible nut or tapped component.

However, selecting a reliable hex head bolt requires more than matching its nominal diameter and length.

Engineers must consider the applicable dimensional standard, thread system, mechanical property class, grip length, joint loading,

corrosion exposure, installation method and required preload.

For OEM production, manufacturing consistency and supplier qualification are also important.

JUXIN FASTENERS supplies industrial bolts and drawing-based custom fastening components for international OEM applications,

 including high-strength carbon and alloy steel fasteners and selected specialty materials.

This guide explains how to select hex head bolts for industrial applications,

compare major international standards and evaluate fastening performance from design through production and procurement.

What Is a Hex Head Bolt?

A hex head bolt is an externally threaded fastener with a six-sided head designed for installation using a suitable wrench or socket.

Depending on the specification, it may be fully threaded or partially threaded.

A typical hex head bolt includes:

• Hexagonal head

• Bearing surface beneath the head

• Threaded shank

• Optional unthreaded shank

• Thread end and chamfer

The exact dimensions depend on the applicable standard.

The head shape alone does not determine the fastener's strength, material or suitability for structural applications.

Hex Head Bolts vs. Hex Cap Screws

In industrial purchasing, the terms hex head bolt and hex cap screw are sometimes used interchangeably.

However, applicable dimensional specifications may distinguish particular product forms and requirements.

ASME B18.2.1 covers specified square and hex bolts and screws in inch series.

A hex cap screw should be specified according to the applicable standard rather than assumed to be interchangeable with every product described commercially as a hex bolt.

What Matters in Practice?

For engineering and procurement, the critical requirements include:

• Head dimensions

• Thread designation

• Length and grip geometry

• Dimensional tolerances

• Material and mechanical properties

• Surface finish

• Intended joint design

The approved drawing or standard should control the product specification.

ISO 4014 vs. ISO 4017 Hex Head Bolts

ISO 4014 and ISO 4017 are important dimensional standards for metric hexagon head fasteners.

ISO 4014: Partially Threaded Hex Head Bolts

ISO 4014 specifies hexagon head bolts with a partially threaded shank.

The unthreaded portion may be useful where the joint design requires a defined grip section.

However, the actual grip length depends on the bolt size and specified length.

ISO 4017: Fully Threaded Hex Head Screws

ISO 4017 specifies hexagon head screws with threading extending along the defined shank length.

Fully threaded designs provide flexibility where a longer threaded portion is required.

They are not automatically stronger or weaker than partially threaded designs.

DIN 931 and DIN 933

DIN 931 and DIN 933 are familiar designations in industrial fastener purchasing.

DIN 931 is commonly associated with partially threaded hexagon head bolts.

DIN 933 is commonly associated with fully threaded hexagon head screws.

Where a current ISO specification is required, the applicable dimensional and technical differences should be reviewed.

ISO 4014 vs. ISO 4017 Comparison

The correct choice depends on the complete joint design.

Full Thread vs. Partial Thread: Why Grip Length Matters

A partially threaded bolt may position an unthreaded shank within the clamped components.

A fully threaded bolt places threads along more of the grip region.

This can affect the joint's geometry, local bearing behavior, stiffness and fatigue considerations.

However, the best configuration depends on the loading and assembly.

Shear Loading

Where transverse loading is important, engineers should determine whether the joint is intended to transfer load through friction between clamped parts or through direct bearing and shear.

The presence of an unthreaded shank does not automatically make a joint suitable for all shear applications.

Fatigue Loading

Threads introduce stress concentrations.

The position of the first engaged thread and the joint's stiffness can influence fatigue behavior.

The actual joint should be evaluated rather than assuming one thread configuration always provides superior fatigue performance.

Assembly Clearance

A partially threaded bolt may be unsuitable if the unthreaded section interferes with the required nut engagement.

Conversely, a fully threaded bolt may not be the preferred choice for a joint designed around a specific grip section.

Hex Head Bolt Strength Grades

Mechanical property classes and grades are fundamental to bolt selection.

Metric Property Class 8.8

Property class 8.8 is commonly used for industrial steel bolts where its specified mechanical properties are appropriate.

Metric Property Class 10.9

Property class 10.9 is commonly selected for higher-strength industrial and automotive applications.

Metric Property Class 12.9

Property class 12.9 provides higher specified strength, but its suitability depends on the joint design, environment, surface treatment and applicable requirements.

Higher strength does not automatically mean longer fatigue life or greater resistance to every failure mode.

SAE Grade 5 and Grade 8

SAE J429 defines mechanical requirements for certain inch-series fasteners.

Grade 5 and Grade 8 are familiar classifications in North American industrial applications.

Metric and SAE Grades Are Not Interchangeable

SAE Grade 8 is not equivalent to metric property class 8.8.

The designations belong to different specification systems.

They must not be substituted based on similar names.

Strength Grade Selection Matrix

The strongest available bolt is not automatically the best engineering choice.

International Hex Bolt Standards

Relevant standards depend on the product and intended application.

ISO 4014

Metric partially threaded hexagon head bolts.

ISO 4017

Metric fully threaded hexagon head screws.

ISO 898-1

Mechanical properties for specified carbon steel and alloy steel bolts, screws and studs within its scope.

ISO 3506-1

Mechanical properties for specified corrosion-resistant stainless steel bolts, screws and studs within its scope.

ASME B18.2.1

Dimensional requirements for specified inch-series square and hex bolts and screws.

ASME B1.1

Unified inch screw threads.

SAE J429

Mechanical and material requirements for certain inch-series bolts, screws and studs.

ASTM F3125/F3125M

A consolidated specification covering certain high-strength structural bolting assemblies and grades used in structural steel applications.

Structural bolting must be specified according to the applicable project requirements.

Important Standards Clarification

A bolt manufactured to a dimensional standard does not automatically meet every material, coating, mechanical or structural requirement.

The full purchasing specification must identify all applicable requirements.

Heavy Hex Bolts and Structural Bolting

Heavy hex bolts have a different head geometry from ordinary hex head bolts.

They are often used in applications requiring a specified heavy-hex product form.

However, a heavy hex head alone does not establish structural qualification.

Structural Steel Connections

Steel buildings, bridges and other structural applications may require specific bolting assemblies, material grades, installation procedures and inspection requirements.

An ordinary industrial hex bolt should not automatically be substituted for an approved structural bolting assembly.

Why ASTM A325 Requires Careful Interpretation

ASTM A325 is a familiar historical designation in structural bolting.

For current projects, the applicable ASTM F3125/F3125M requirements and specified grade should be checked.

Legacy drawing references should be reviewed before procurement.

High-Strength Hex Bolts for Automotive Applications

Automotive assemblies may use property class 8.8, 10.9 or other specified fasteners depending on the application.

Examples include:

• Engine and transmission equipment

• Chassis-related assemblies

• Automotive brackets

• Suspension-related components

• EV equipment enclosures

• Industrial vehicle machinery

Safety-critical joints require application-specific engineering validation.

Why Preload Matters

A properly designed preloaded joint relies on adequate clamping force to maintain joint integrity.

Insufficient preload may allow joint separation, slip or loosening.

Excessive preload may damage the bolt or connected components.

The required preload must be established for the actual joint.

Torque Is Not the Same as Clamp Load

The tightening torque applied during assembly is influenced by friction at the threads and bearing surfaces.

Different coatings or lubrication conditions can produce different clamp loads at the same applied torque.

Therefore, a universal torque value should not be assigned solely from the bolt diameter and strength class.

Fine Threads, Coarse Threads and Left-Hand Threads

Metric Coarse Threads

Metric coarse threads are widely used in general industrial equipment.

Metric Fine Threads

Metric fine threads may be selected where the design requires a particular pitch, adjustment characteristic or thread engagement arrangement.

Fine threads are not automatically vibration-proof.

UNC and UNF Threads

Unified Coarse and Unified Fine threads are common in North American industrial equipment.

They must be specified according to the applicable inch-thread requirements.

Left-Hand Threads

Left-hand threads may be used where the equipment design specifically requires them.

However, a left-hand thread does not universally prevent loosening in rotating equipment.

The correct thread direction depends on the loading and operating conditions.

Thread Compatibility

Metric, UNC, UNF, BSW and BSF threads must not be treated as interchangeable.

Nominal diameter similarity does not establish compatibility.

Hex Bolt Materials

Carbon Steel and Alloy Steel

These materials are commonly used for general and high-strength industrial hex bolts.

Mechanical properties depend on the specified material and processing.

Stainless Steel

Stainless steel may be selected where corrosion resistance is important.

A2 and A4 are common stainless fastener material families, but the actual grade and property class must be specified.

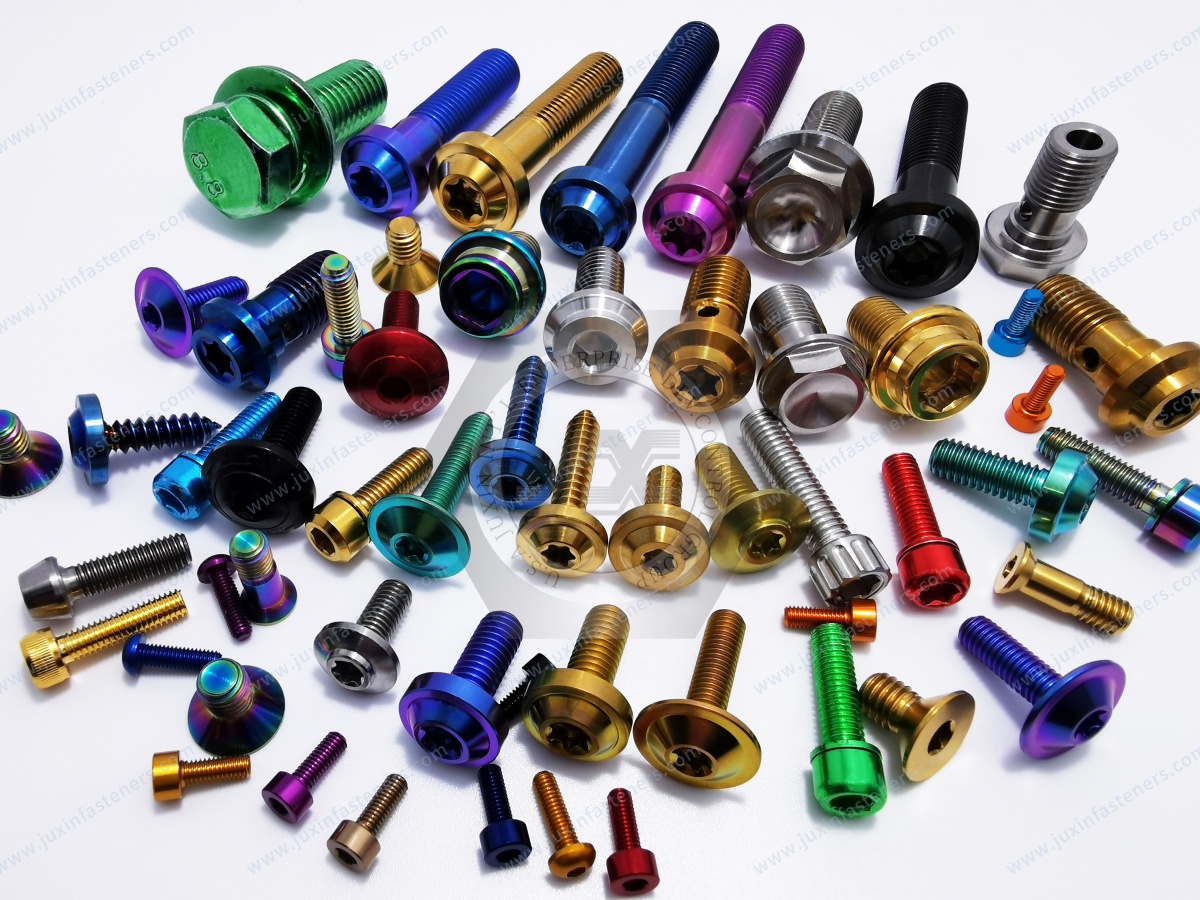

Aluminum and Titanium

Selected aluminum or titanium fasteners may be considered for specialized lightweight applications.

The design must account for the actual material properties, galvanic compatibility and loading.

Brass and Specialty Alloys

Specialty materials may be appropriate for specific electrical, corrosion or equipment requirements.

Availability and manufacturing feasibility must be confirmed for each drawing.

Material Selection Matrix

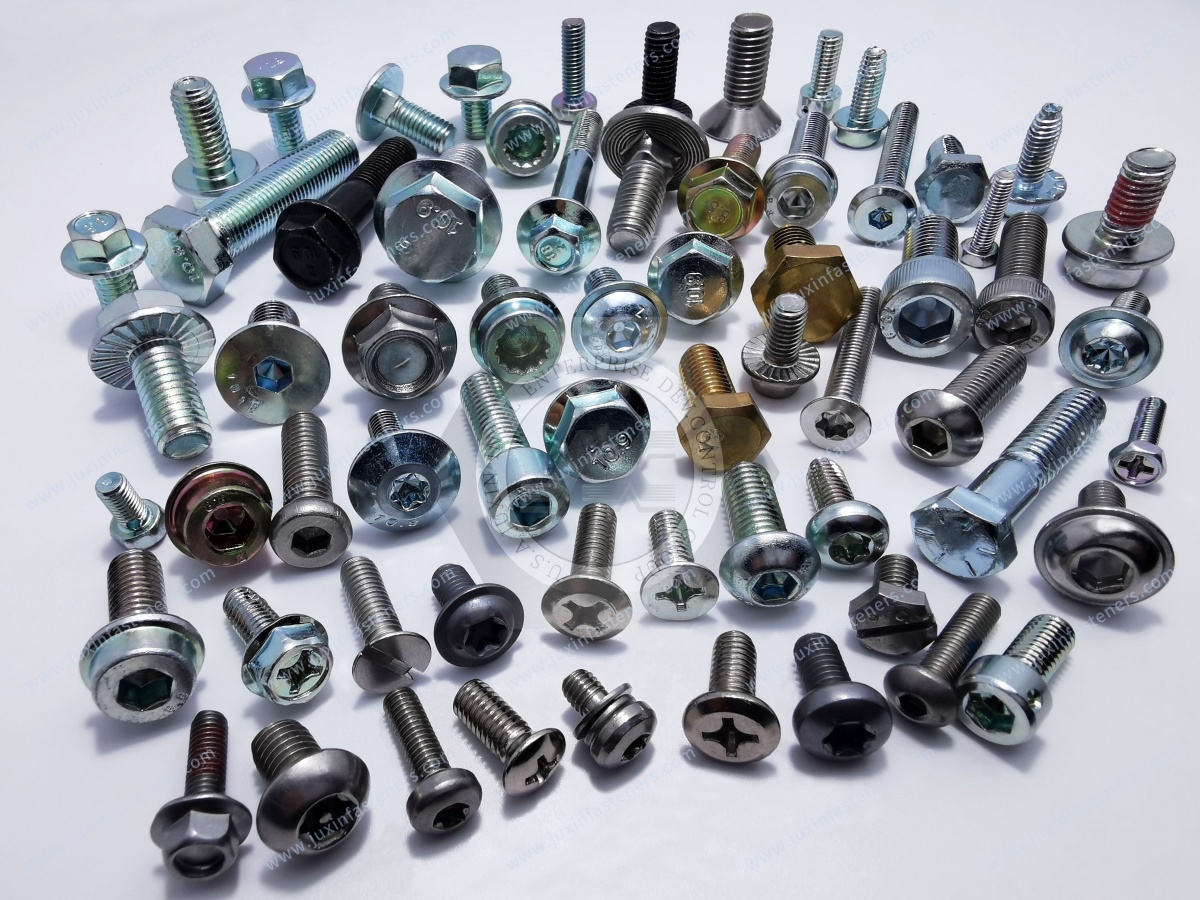

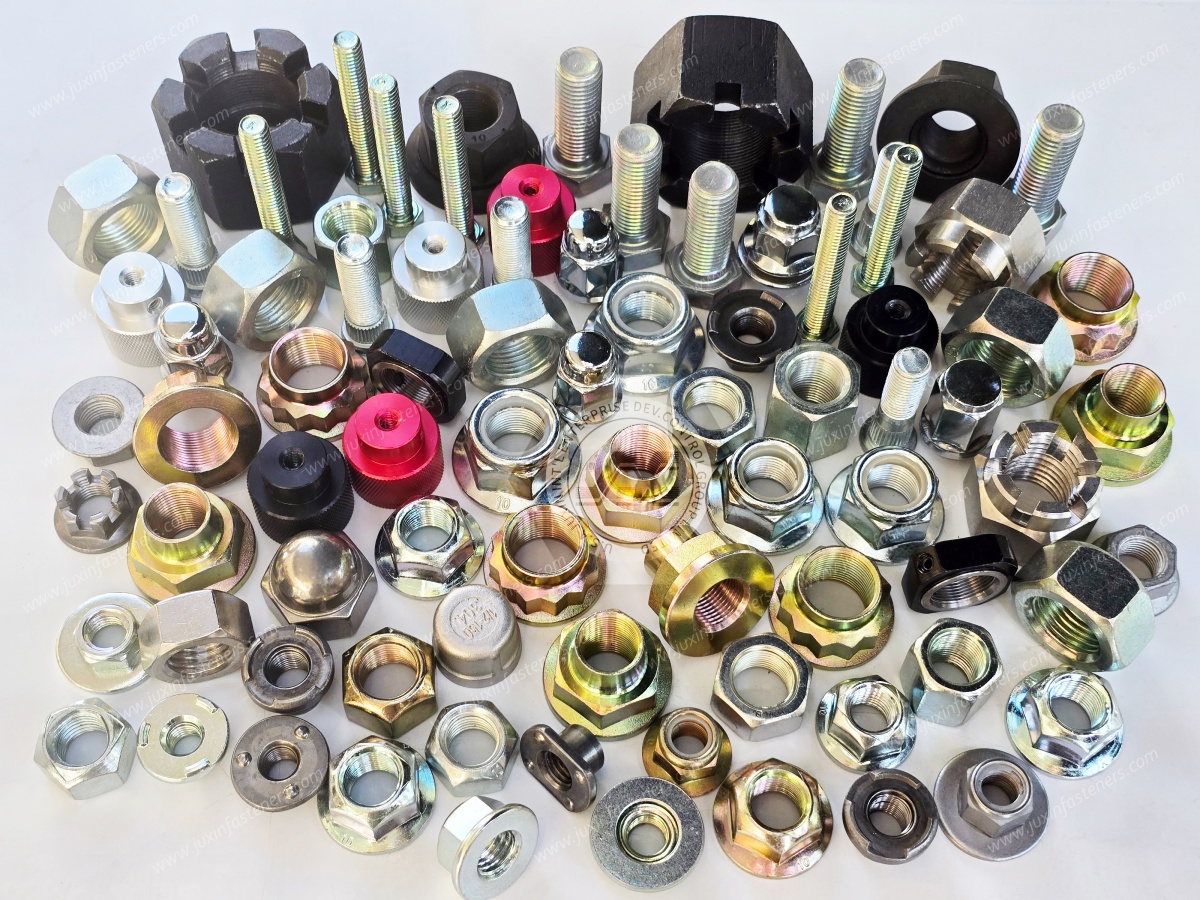

Surface Coatings for Hex Head Bolts

Surface treatments can improve corrosion protection and may influence assembly friction.

Possible specifications include:

• Zinc plating

• Zinc-nickel plating

• Zinc-flake coating

• Black oxide

• Phosphate and oil

• Plain finish

Other coatings may be evaluated where technically justified and available.

Zinc Plating

Zinc plating may be suitable for specified indoor or moderately corrosive applications, depending on the coating system and exposure.

Zinc-Nickel Plating

Zinc-nickel coatings may be considered where the design requires a particular corrosion protection system.

Zinc-Flake Coating

Zinc-flake systems are used in various industrial and automotive applications.

Their performance depends on the specific coating specification, thickness, application process and test requirements.

Black Oxide

Black oxide may be used for appearance or specified surface requirements, but it should not be treated as a substitute for a high-performance corrosion protection system.

Hot-Dip Galvanizing

Hot-dip galvanizing may be relevant to suitable fastener systems, particularly in certain outdoor or structural applications.

Thread allowances, coating thickness and nut compatibility must be considered.

Coating Standards

ISO 4042 may be relevant to electroplated fasteners.

ISO 10683 may be relevant to non-electrolytically applied zinc-flake coatings.

The appropriate standard depends on the actual coating process.

Hydrogen Embrittlement

High-strength steel bolts require attention to hydrogen embrittlement risks associated with certain manufacturing and coating processes.

The selected surface treatment should be compatible with the bolt's strength and the applicable specification.

Coating and Torque-Preload Relationship

A coating that improves corrosion resistance does not automatically provide the desired tightening friction.

Where preload is important, the specified surface finish and lubrication condition should be included in assembly validation.

Common Hex Bolt Failure Modes

Bolt Tensile Failure

Potential causes include excessive axial load, incorrect material or over-tightening.

Thread Stripping

Potential causes include insufficient engagement, weak mating material or incompatible threads.

Fatigue Cracking

Potential causes include cyclic loading, joint separation, bending or stress concentration.

Vibration Loosening

Potential causes include insufficient preload, joint slip or unsuitable locking design.

Corrosion Damage

Corrosion may reduce effective cross-section or interfere with assembly and maintenance.

Hydrogen Embrittlement

Certain high-strength fasteners may be susceptible to delayed brittle failure under unfavorable material, processing and stress conditions.

Joint Failure Analysis

A failed bolt should not be evaluated solely by examining the broken fastener.

The complete joint, tightening history, mating threads, loading and environment should be reviewed.

Industrial Applications

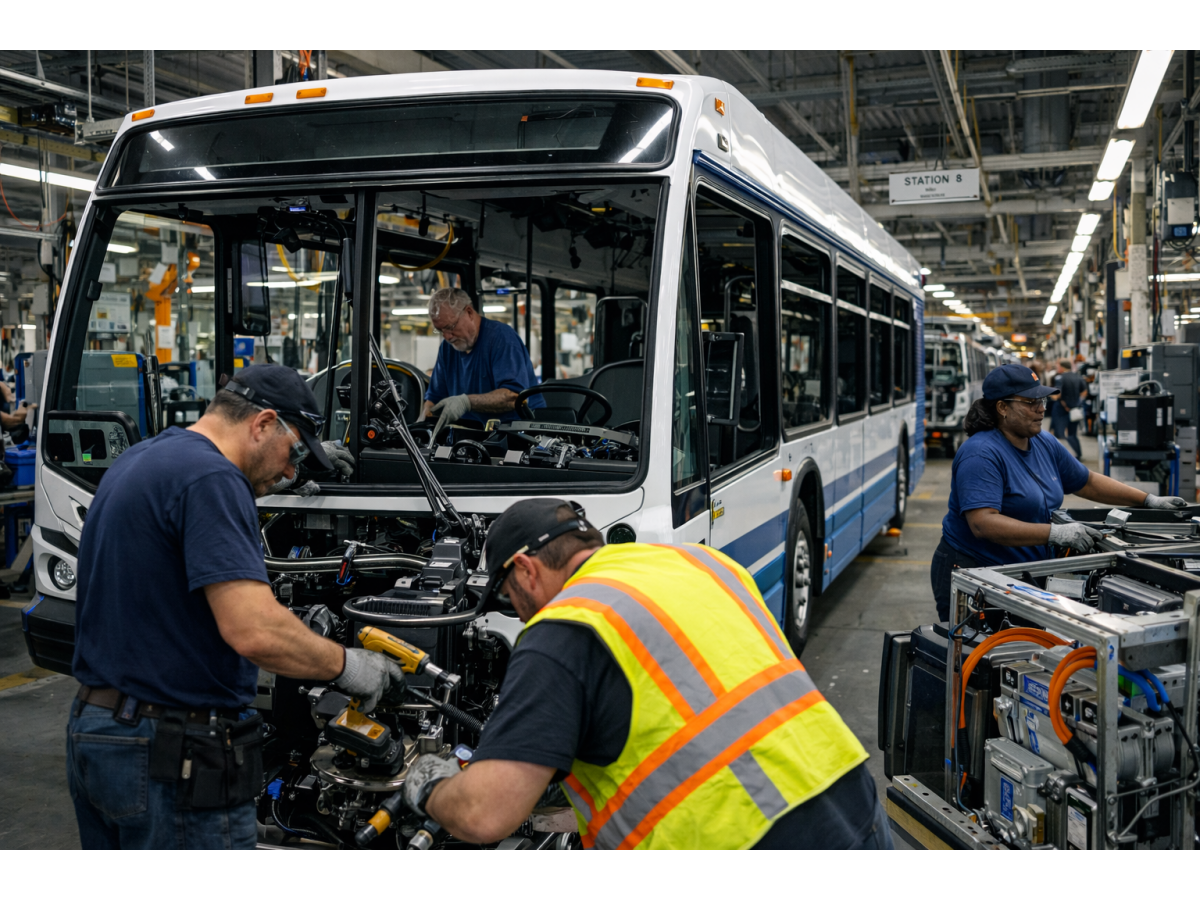

Automotive and EV Manufacturing

Hex bolts are used in engine, transmission, chassis-related and equipment mounting applications.

The correct fastener depends on the approved design and loading requirements.

Heavy Equipment and Mining Machinery

Applications may include:

• Excavators

• Loaders

• Gearboxes

• Hydraulic machinery

• Crushers

• Industrial equipment frames

Vibration, shock loading and maintenance requirements influence the selection.

Industrial Machinery

Applications include CNC equipment, automation systems, packaging machinery and processing equipment.

Manufacturing engineers should consider tool access, installation consistency and service requirements.

Electrical and Power Equipment

Hex bolts may be used in electrical equipment frames, enclosures, support structures and machinery assemblies.

Electrical clearance, thermal expansion and material compatibility may be relevant.

Renewable Energy Equipment

Applications may include solar equipment, wind-related machinery and industrial power systems.

Safety-critical structural applications require the applicable project standards and qualification.

Oil and Gas Equipment

Specialized bolting systems may be used in pressure equipment and elevated-temperature service.

However, such applications may require dedicated ASTM material specifications, traceability and testing.

Ordinary industrial hex bolts should not automatically be represented as suitable for pressure-containing service.

Marine and Outdoor Equipment

Corrosion protection should be selected according to salt exposure, temperature, moisture and galvanic conditions.

Stainless steel alone does not guarantee suitability for every marine environment.

Production Engineering: Improving Assembly Reliability

For production managers, bolt selection affects installation speed, tooling, inspection and rework.

Assembly Tool Access

The hex head must provide sufficient clearance for the intended wrench or socket.

A bolt with the correct thread may still be unsuitable if installation access is restricted.

Bolt Length and Thread Engagement

The bolt must provide adequate engagement without bottoming in a blind hole or interfering with nearby components.

Fastener Feeding and Handling

High-volume production may require consistent head geometry, thread condition and packaging suitable for the assembly process.

Tightening Process Control

The tightening method should match the joint's required preload and production conditions.

Quality Verification

Depending on the application, verification may include:

• Dimensional conformity

• Thread gauge inspection

• Material identification

• Mechanical property requirements

• Coating specification

• Surface condition

• Packaging and labeling

Testing methods, acceptance criteria and documentation should be agreed before production.

Total Installed Cost

The cost of a hex bolt connection includes more than the fastener unit price.

It may include:

• Installation labor

• Tooling

• Inspection

• Rework

• Maintenance

• Replacement parts

• Production downtime

The best purchasing decision should consider the complete assembly cost.

OEM Procurement and Supplier Qualification

For purchasing managers and supplier development teams, sourcing hex head bolts requires a complete specification.

A generic description such as “M10 high-strength hex bolt” is usually insufficient.

Important Purchasing Requirements

• Applicable dimensional standard

• Thread designation

• Nominal diameter

• Overall length

• Full or partial thread configuration

• Material

• Mechanical property class or grade

• Surface coating

• Required inspection

• Packaging

• Annual purchasing volume

• Delivery schedule

Alternative Supplier Qualification

A replacement bolt should be checked against the approved drawing and all applicable standards.

Products with similar dimensions may differ in material, mechanical properties, coating, tolerances and installation behavior.

Custom Hex Head Bolts

JUXIN FASTENERS supports drawing-based inquiries for industrial and custom threaded fastening components.

Possible custom requirements include:

• Special bolt lengths

• Nonstandard thread lengths

• Custom head geometry

• Special shank dimensions

• Metric or specified inch threads

• Material requirements

• Heat treatment

• Surface finishes

• Drawing-defined tolerances

Manufacturing feasibility, MOQ, tooling and lead time depend on the specific drawing and order requirements.

Frequently Asked Questions

What is the difference between ISO 4014 and ISO 4017?

ISO 4014 covers partially threaded metric hexagon head bolts, while ISO 4017 covers fully threaded metric hexagon head screws.

Is SAE Grade 8 the same as metric property class 8.8?

No. They belong to different grading systems and are not interchangeable.

Are hex cap screws stronger than ordinary hex bolts?

Not automatically. Strength depends on the specified material and mechanical properties.

Are fine-thread bolts vibration-proof?

No. Vibration resistance depends on the complete joint and any specified locking method.

Are heavy hex bolts suitable for structural steel connections?

Only when the complete bolting assembly meets the applicable structural specifications and project requirements.

Can metric bolts replace UNC or UNF bolts?

Not without an engineered change. The thread systems are different and should not be treated as interchangeable.

Does zinc-flake coating always outperform zinc plating?

Not universally. Corrosion performance depends on the actual coating systems and test conditions.

Can JUXIN FASTENERS supply custom hex head bolts?

Drawing-based inquiries can be reviewed for dimensions, material, manufacturing feasibility and commercial quotation.

What information is needed for a hex bolt RFQ?

Provide the drawing or applicable standard, thread, size, length, property class, coating, quantity and delivery requirements.

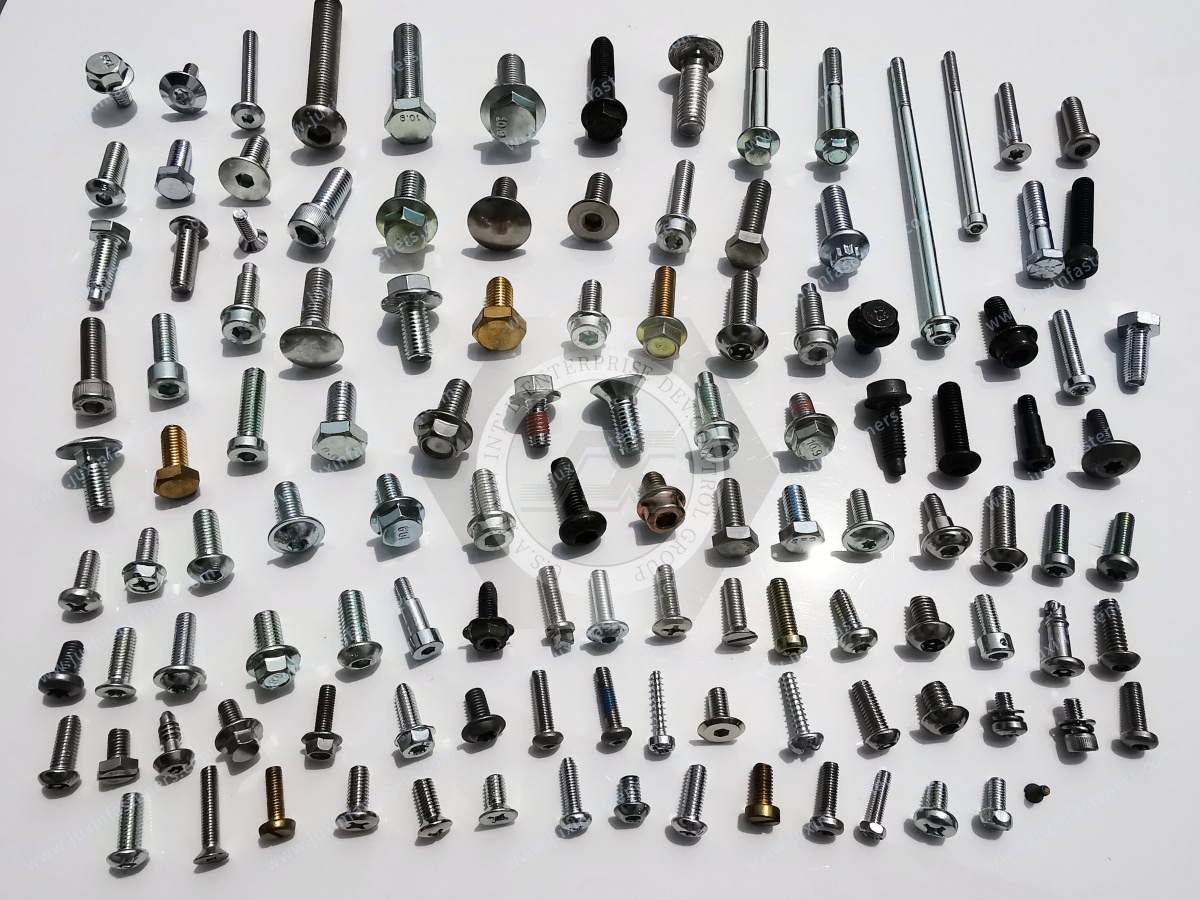

JUXIN FASTENERS: Hex Head Bolts and Custom Industrial Fasteners

JUXIN FASTENERS supplies industrial threaded fasteners and drawing-based custom components for international OEM customers.

Relevant products include:

• Metric hex head bolts

• High-strength carbon and alloy steel bolts

• Property class 8.8, 10.9 and 12.9 fasteners

• Custom hex head bolts

• CNC-machined threaded components

• Selected stainless steel and specialty-material fasteners

• Compatible industrial nuts and locking fasteners

Product availability, applicable standards, coatings, inspection requirements and manufacturing feasibility are confirmed during quotation.

Request a Hex Head Bolt RFQ

Are you selecting bolts for a new industrial assembly, reviewing a high-strength fastening specification or qualifying an alternative OEM supplier?

JUXIN FASTENERS welcomes inquiries from mechanical engineers, structural engineers, design engineers, manufacturing engineers,

production managers, purchasing managers and supplier development teams.

Please provide:

2D drawing or standard + thread designation + diameter + length + full/partial thread requirement + material + property class or grade + coating

+ assembly requirements + sample quantity + annual purchasing volume + target delivery date

Our team can review product options, drawing requirements, sample arrangements, MOQ, lead time and quotation details.

Company: JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your hex head bolt drawings and RFQ to JUXIN FASTENERS for technical evaluation and quotation.
