Socket head cap screws, also known as hexagon socket head cap screws, hex socket cap screws or Allen head screws,

are widely used in industrial machinery, precision equipment and compact mechanical assemblies.

Their cylindrical heads and internal hexagonal drive sockets allow tightening from above the fastener head without requiring

 the external wrench clearance normally associated with conventional hexagon head bolts.

This makes socket head cap screws particularly useful in machinery where installation space, tool accessibility and component packaging are important.

However, selecting the correct socket head cap screw requires more than identifying the nominal thread diameter.

Engineers must evaluate head dimensions, internal drive engagement, material properties, thread engagement, tightening conditions, operating loads and the surrounding joint geometry.

Manufacturing engineers and production managers must also consider tool wear, assembly repeatability, installation speed and inspection requirements.

For procurement specialists and supplier development teams, complete technical specifications help prevent incorrect substitutions and support reliable OEM sourcing.

JUXIN FASTENERS supplies industrial socket head cap screws, alloy steel screws, stainless steel fasteners and drawing-based custom threaded components for international OEM applications.

This guide explains the principal engineering and purchasing considerations.

What Is a Socket Head Cap Screw?

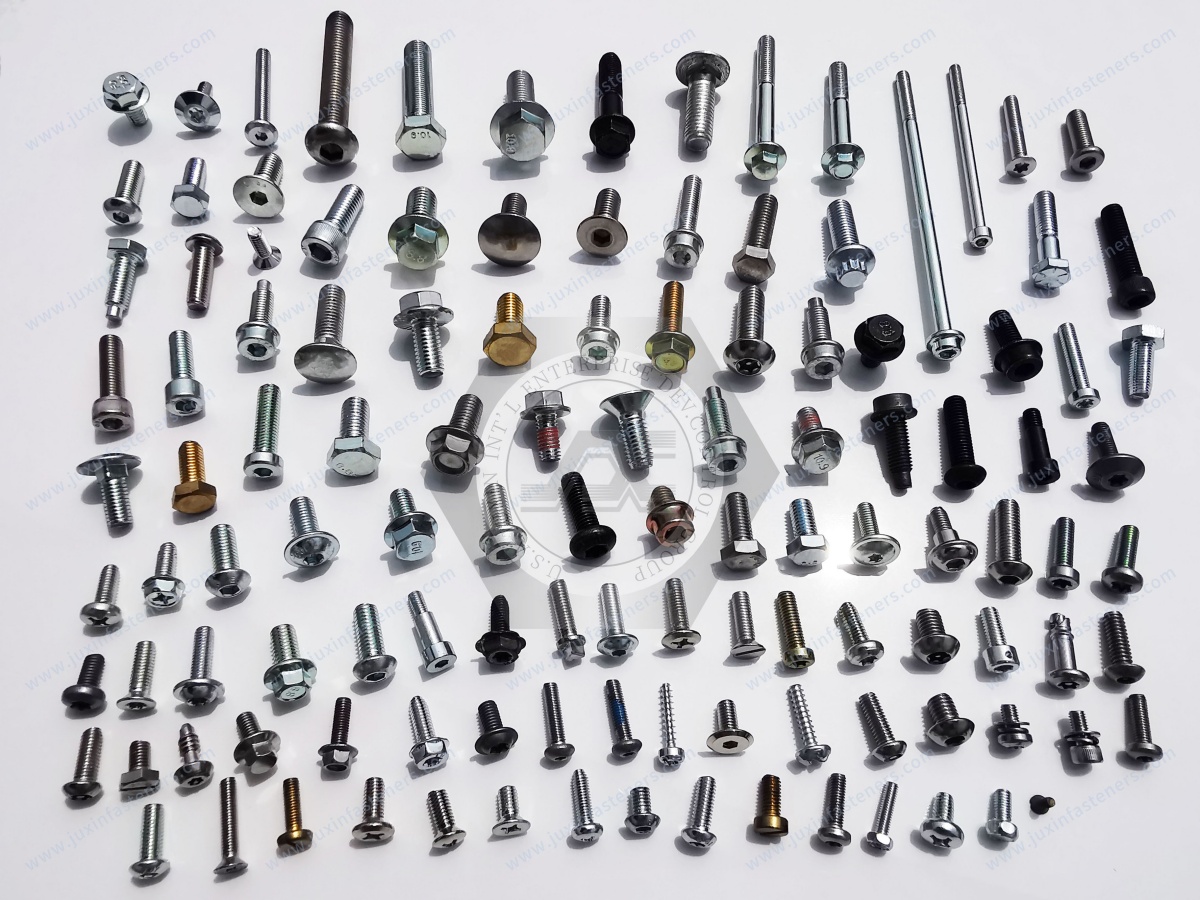

A socket head cap screw is an externally threaded fastener with a generally cylindrical head and an internal hexagonal drive recess.

The screw is installed using a suitable hex key, hex bit or powered tool.

Main Features

• Cylindrical head

• Internal hexagonal drive

• Externally threaded shank

• Defined underhead bearing surface

• Specified thread length and screw length

Depending on the application, the screw may engage a tapped hole or a suitable mating nut.

Why Engineers Choose Socket Head Cap Screws

Socket head cap screws are frequently considered when:

• Side clearance around the head is limited

• A compact tool-access arrangement is required

• A recessed head is desirable

• A removable threaded connection is needed

• The assembly requires defined mechanical properties

Important Engineering Distinction

The internal hex drive provides a different installation interface from an external hex head.

It does not automatically make the fastener stronger or more resistant to loosening.

Socket Head Cap Screw Standards

International product standards define dimensions, geometry and other requirements for specified socket head cap screws.

ISO 4762

ISO 4762 specifies metric hexagon socket head cap screws within its defined scope.

DIN 912

DIN 912 is a traditional designation commonly associated with metric socket head cap screws.

However, replacement of an existing DIN 912 product with an ISO 4762 product should be based on the actual applicable dimensional requirements.

ASME B18.3

ASME B18.3 covers specified inch-series socket cap, shoulder and set screws.

For an inch-series socket head cap screw, the applicable product requirements must be identified.

ASME B18.3.1M

This designation may appear in legacy metric socket screw specifications.

The drawing revision and applicable standard edition should be checked before procurement.

ASTM A574 and ASTM A574M

These specifications address alloy steel socket-head cap screws within their respective scopes.

They should not be treated as universal replacements for ISO 4762 dimensional or mechanical requirements.

Engineering Recommendation

Specify the complete product standard and required mechanical properties rather than combining standard designations without verification.

Socket Head Cap Screw Dimensions

Critical dimensions include:

• Nominal thread diameter

• Thread pitch

• Screw length

• Head diameter

• Head height

• Internal hex socket size

• Socket depth

• Thread length

• Underhead geometry

Why Head Diameter Matters

The cylindrical head requires sufficient surrounding clearance.

A screw may fit the threaded hole but still interfere with adjacent components.

Why Head Height Matters

Head height influences:

• Available installation space

• Recess depth

• Tool engagement

• Mechanical packaging

Why Socket Depth Matters

The internal hex socket must provide suitable engagement with the installation tool.

Insufficient engagement may increase the risk of drive damage.

Metric Socket Head Cap Screw Sizes

Common metric thread designations include:

• M3

• M4

• M5

• M6

• M8

• M10

• M12

• M16

• M20

These are representative thread sizes rather than a guarantee of availability in every length, material or property class.

Example: M8 × 1.25 × 30

This designation identifies:

• M8 nominal metric thread

• 1.25 mm thread pitch

• 30 mm nominal screw length

It does not independently define the material, mechanical property class or surface treatment.

Metric and Inch-Series Socket Screws

Metric socket head cap screws and UNC/UNF socket head cap screws use different thread systems.

Important Compatibility Rule

Metric, UNC, UNF, BSW and BSF threads are not directly interchangeable.

For reference, 1 inch equals 25.4 mm, but dimensional conversion does not establish thread compatibility.

Internal Hex Drive Design and Tool Engagement

The internal hexagonal recess is a defining feature of socket head cap screws.

Potential Advantages

• Tool access from above the head

• Reduced need for side wrench clearance

• Suitability for compact equipment

• Compatibility with suitable manual and powered tools

Drive Engagement Requirements

Reliable installation depends on:

• Correct hex bit size

• Suitable socket depth

• Proper tool alignment

• Acceptable tool wear

• Compatible tightening conditions

Common Drive Failure: Socket Rounding

A damaged or rounded internal hex recess may result from:

• Incorrect tool size

• Inadequate engagement

• Excessive applied torque

• Worn tooling

• Misalignment

• Inappropriate screw or tool quality

Production Recommendation

Establish tool selection and replacement criteria for repeated assembly operations.

Socket Head Cap Screws vs. Hexagon Head Bolts

Both products can provide threaded mechanical connections, but their installation geometry differs.

Engineering Principle

Neither head style is universally superior.

Selection should be based on the actual installation envelope, joint loading and maintenance requirements.

Counterbore Design for Socket Head Cap Screws

Socket head cap screws are often used with counterbored holes.

A counterbore provides a cylindrical recess that can accommodate the screw head.

Critical Design Factors

• Counterbore diameter

• Counterbore depth

• Head diameter tolerance

• Head height tolerance

• Tool clearance

• Underhead bearing support

Counterbore Diameter

The recess must provide suitable clearance for the screw head.

Counterbore Depth

The depth must accommodate the required head position without compromising the connected component.

Tool Access

The installation tool must be able to reach and engage the socket.

Bearing Surface

The screw head must bear against a suitable surface.

Common Design Error

A counterbore may be dimensionally large enough for the screw head but too restrictive for the actual installation tool.

Engineering Recommendation

Verify the screw, counterbore and tooling together before approving the drawing.

Material Selection for Socket Head Cap Screws

Material selection influences mechanical performance, corrosion resistance, temperature suitability and manufacturing requirements.

Alloy Steel Socket Head Cap Screws

Alloy steel socket head cap screws are frequently used where specified mechanical properties are required.

Potential Advantages

• Suitability for selected high-strength applications

• Established industrial use

• Compatibility with suitable heat-treatment processes

Typical Applications

• CNC machinery

• Mold and die equipment

• Industrial automation

• Mechanical fixtures

• Heavy equipment accessories

Mechanical Properties

For metric steel screws, applicable mechanical property requirements may be defined under ISO 898-1.

The required property class must be specified.

Important Limitation

Not every alloy steel socket screw has the same tensile strength, hardness or fatigue behavior.

Carbon Steel Socket Screws

Carbon steel may be suitable for selected general industrial applications.

Potential Applications

• Equipment assembly

• Mechanical brackets

• General machinery

• Industrial housings

Engineering Considerations

• Required mechanical properties

• Corrosion protection

• Thread engagement

• Loading conditions

Stainless Steel Socket Head Cap Screws

Stainless steel socket screws may be selected where suitable corrosion resistance is required.

Common categories include A2 and A4 stainless steel fasteners.

A2 Stainless Steel

Often considered for general industrial corrosion-resistant applications.

A4 Stainless Steel

May be considered for environments requiring additional resistance to certain corrosive conditions.

Important Limitation

A2 and A4 fasteners are not universally suitable for every marine, chemical or elevated-temperature environment.

Mechanical Properties

Where applicable, stainless steel fastener properties should be specified according to ISO 3506-1.

Galling Risk

Certain stainless steel threaded combinations may experience galling.

Thread condition, installation speed, surface finish and suitable lubrication should be evaluated.

Material Comparison

Strength Classes and Mechanical Properties

The strength of a socket head cap screw depends on the applicable product specification.

Metric Steel Screws

Property classes such as 8.8, 10.9 and 12.9 may be relevant depending on the product.

Important Limitation

A socket head cap screw should not automatically be assumed to meet class 12.9 merely because it has a cylindrical head and internal hex socket.

Inch-Series Alloy Steel Screws

ASTM A574 may apply to specified alloy steel socket-head cap screws.

The mechanical requirements should be taken from the applicable specification.

Metric vs. Inch-Series Properties

Metric property classes and inch-series material specifications use different requirements.

They must not be treated as directly interchangeable.

High Strength Does Not Guarantee Better Fatigue Life

Fatigue performance depends on:

• Joint loading

• Preload

• Thread geometry

• Surface condition

• Manufacturing quality

• Joint stiffness

A higher tensile strength alone does not establish superior fatigue performance.

Thread Selection: Coarse vs. Fine

Socket head cap screws may be specified with coarse or fine threads where suitable products are available.

Coarse Threads

Potential advantages include:

• Familiar industrial use

• Practical installation

• Suitability for many general assemblies

Fine Threads

Potential advantages may include:

• Different adjustment characteristics

• Different tensile stress area at the same nominal diameter

• Suitability for selected engineering requirements

Important Engineering Limitation

Fine threads do not automatically prevent vibration loosening.

Thread pitch is only one factor in the complete joint.

Thread Engagement

Thread engagement must be sufficient for the mating material and joint loading.

Potential Problems

• Insufficient thread engagement

• Thread stripping

• Screw bottoming

• Incorrect thread pitch

• Damaged mating threads

Blind Tapped Holes

A screw may bottom in a blind hole before achieving the required clamping force.

Engineering Recommendation

Check usable thread depth, screw length and hole geometry.

Socket Head Cap Screw Preload and Tightening Torque

Preload is the tensile force developed in the screw during tightening.

The relationship between applied torque and achieved preload depends heavily on friction.

Simplified Torque Relationship

T ≈ K × F × d

Where:

• T = applied tightening torque

• K = simplified torque coefficient

• F = bolt preload

• d = nominal diameter

This relationship is an approximation and not a universal tightening specification.

Factors Affecting Preload

• Thread friction

• Underhead friction

• Coating

• Lubrication

• Tooling

• Joint stiffness

• Tightening method

Engineering Principle

Two screws with the same nominal size and mechanical property class may develop different preload at the same applied torque when friction conditions differ.

Production Recommendation

Validate tightening conditions using the actual screw, coating and mating components.

Surface Treatment Options

Surface treatments may be selected for corrosion protection, appearance, friction control or other specified requirements.

Black Oxide

Black oxide is commonly associated with a dark surface appearance.

Its corrosion protection depends on the complete treatment system.

It should not automatically be considered suitable for prolonged outdoor exposure.

Zinc Plating

Zinc plating may provide suitable corrosion protection in selected industrial environments.

Zinc-Nickel Plating

Zinc-nickel coating may be considered for specified corrosion protection requirements.

Zinc-Flake Coating

Zinc-flake systems may be suitable for certain fasteners, depending on the specified process.

Important Limitation

Coating performance must be evaluated using the actual coating specification and test requirements.

A universal ranking of corrosion resistance cannot be established from coating names alone.

Relevant International Standards

ISO 4042 may apply to electroplated fasteners.

ISO 10683 may apply to specified non-electrolytically applied zinc-flake coating systems.

Hydrogen Embrittlement Considerations

Certain high-strength steel screws may be susceptible to hydrogen embrittlement under particular processing and service conditions.

Coating selection must consider the fastener's mechanical properties and applicable process requirements.

Coating and Torque Control

A coating change may alter friction and tightening behavior.

Therefore, coating substitutions should be reviewed before production approval.

Socket Head Cap Screw Applications in CNC Machinery

CNC machinery frequently uses socket head cap screws because of their compact installation geometry.

Potential Applications

• Machine guards

• Mechanical brackets

• Fixtures

• Equipment housings

• Tooling accessories

Engineering Considerations

• Head clearance

• Tool access

• Vibration

• Thread engagement

• Maintenance

Mold and Die Equipment

Mold and die assemblies may require compact threaded connections.

Potential Applications

• Mold plates

• Tooling fixtures

• Die assemblies

• Precision mechanical components

Engineering Priorities

• Screw length

• Counterbore dimensions

• Mechanical properties

• Thermal conditions

• Repeated maintenance

Industrial Automation and Robotics

Automation equipment may require compact fastening systems with repeatable assembly characteristics.

Potential Applications

• Robot accessory brackets

• Sensor mounts

• Linear motion equipment

• Industrial motors

• Production fixtures

Production Considerations

• Automated tool access

• Screw feeding

• Tightening repeatability

• Drive wear

• Inspection

Automotive and EV Equipment

Socket head cap screws may be used in suitable automotive and EV mechanical assemblies.

Potential Applications

• Auxiliary equipment

• Mechanical brackets

• EV equipment supports

• Charging equipment

• Production tooling

Engineering Considerations

• Vibration

• Temperature

• Corrosion

• Preload

• Assembly repeatability

Safety-Critical Limitation

General industrial socket head cap screws are not automatically qualified for braking, steering, suspension or other safety-critical vehicle systems.

Heavy Machinery and Construction Equipment

Socket head cap screws may be used in selected machinery components where their installation geometry is appropriate.

Potential Applications

• Equipment housings

• Hydraulic equipment accessories

• Industrial gearboxes

• Maintenance assemblies

Engineering Considerations

• Mechanical loading

• Vibration

• Corrosion

• Maintenance access

Aerospace-Related Equipment

Specialized socket head screws may be used in approved aerospace-related assemblies.

Potential Applications

• Ground support equipment

• Precision instruments

• Approved auxiliary equipment

Important Qualification Limitation

A general ISO 4762 or ASTM A574 screw is not automatically qualified for flight-critical aerospace applications.

The applicable approved specification and traceability requirements must govern selection.

Electrical Cabinets and Power Equipment

Potential applications include:

• Electrical cabinets

• Control panels

• UPS equipment

• Power conversion equipment

• Industrial enclosures

Engineering Considerations

• Electrical clearance

• Sheet metal thickness

• Thread engagement

• Tool access

• Corrosion

Alternative Fastening Components

Depending on the joint design, alternatives may include:

• Self-clinching nuts

• Blind rivet nuts

• Weld nuts

• Cage nuts

• Threaded standoffs

JUXIN FASTENERS supplies these industrial fastening categories.

HVAC and Cooling Equipment

Socket head cap screws may be used in suitable HVAC mechanical assemblies.

Potential Applications

• Fan equipment

• Compressor accessories

• Cooling equipment brackets

• Mechanical housings

Engineering Considerations

• Vibration

• Moisture

• Temperature

• Corrosion

• Maintenance

Energy and Power Equipment

Potential applications include:

• Industrial motors

• Power generation equipment

• Mechanical supports

• Renewable energy equipment

• Electrical infrastructure

Engineering Considerations

• Dynamic loading

• Temperature

• Corrosion

• Maintenance requirements

Precision Instruments and Laboratory Equipment

Compact screw heads may be useful in precision equipment.

Potential Applications

• Instrument housings

• Optical equipment supports

• Laboratory machinery

• Measurement equipment

Engineering Considerations

• Tightening force

• Material compatibility

• Tool access

• Surface protection

• Repeated assembly

Industry Selection Matrix

Common Socket Head Cap Screw Failure Risks

Socket Rounding

May result from incorrect tooling, poor engagement or excessive torque.

Thread Stripping

May result from inadequate engagement or unsuitable mating material.

Screw Bottoming

May prevent proper joint clamping in blind holes.

Insufficient Preload

May result from incorrect tightening or friction variation.

Fatigue Failure

May occur under repeated loading when the joint design is unsuitable.

Corrosion Damage

May result from an inappropriate material or coating.

Galling

May occur with certain threaded material combinations.

Engineering Recommendation

Failure analysis should consider the complete assembly rather than the screw alone.

Manufacturing Engineering and Production Control

For production managers, socket head cap screws should be evaluated as part of the assembly process.

Tool Selection

Select suitable hex bits and tightening equipment.

Tool Wear

Define replacement criteria for worn bits.

Assembly Access

Verify that the tool can reach the screw without interference.

Tightening Repeatability

Establish an approved tightening procedure.

Fastener Feeding

Confirm compatibility with the assembly equipment.

Inspection

Relevant characteristics may include:

• Head dimensions

• Internal socket dimensions

• Thread fit

• Screw length

• Material

• Mechanical properties

• Coating

• Surface condition

Rework

Define when screws must be replaced after removal.

Production Decision Matrix

OEM Procurement and Supplier Qualification

Procurement teams should provide a complete specification rather than requesting a quotation based only on a generic screw name.

Recommended RFQ Information

Supplier Substitution Review

Before approving a replacement, confirm:

• Thread compatibility

• Head dimensions

• Socket dimensions

• Material

• Mechanical properties

• Coating

• Tightening requirements

• Application approval

Total Installed Cost

Purchasing managers should consider:

• Unit price

• Assembly time

• Tooling

• Inspection

• Rework

• Maintenance

• Inventory

• Supplier qualification

A lower fastener price does not necessarily produce a lower installed cost.

Frequently Asked Questions

What is a socket head cap screw?

It is a threaded fastener with a cylindrical head and an internal hexagonal drive socket.

What is the difference between DIN 912 and ISO 4762?

They are related metric socket head cap screw designations, but actual dimensional and technical requirements should be checked before substitution.

What is the difference between ISO 4762 and ASME B18.3?

They apply to different product specifications and dimensional systems. The complete requirements must be reviewed.

Are all socket head cap screws class 12.9?

No. Mechanical properties depend on the actual product specification.

Are socket head cap screws stronger than hex head bolts?

Not automatically. Strength depends on material, geometry, mechanical properties and the joint.

Do fine-thread socket screws resist vibration loosening?

Not automatically. Vibration resistance depends on the complete assembly.

Can socket head cap screws be used in counterbored holes?

Yes, when the counterbore dimensions, bearing surface and tool clearance are suitable.

Can stainless steel socket screws experience galling?

Yes. Certain material combinations and installation conditions may increase galling risk.

Can metric socket head screws replace UNC or UNF screws?

No. These thread systems are not directly interchangeable.

Can JUXIN FASTENERS review custom socket head cap screw drawings?

Yes. Drawing-based inquiries can be reviewed for dimensions, materials, mechanical properties, coatings and quotation requirements.

JUXIN FASTENERS: Socket Head Cap Screws and OEM Fastening Solutions

JUXIN FASTENERS supplies industrial fastening products and supports drawing-based OEM inquiries for international manufacturers.

Relevant product categories include:

• Hexagon socket head cap screws

• ISO 4762 socket head cap screws

• DIN 912 socket head cap screws

• Alloy steel socket screws

• Stainless steel socket screws

• Carbon steel socket screws

• High-strength industrial screws

• Drawing-specific threaded components

• CNC-machined fastening parts

Specific dimensions, materials, mechanical property classes, coatings, inspection requirements, MOQ and lead time are confirmed during project review.

Request a Socket Head Cap Screw Engineering Review and OEM RFQ

Are you sourcing metric socket head cap screws, alloy steel socket screws, stainless steel socket screws or customized industrial fastening components for CNC machinery,

mold and die equipment, robotics, automotive equipment, electrical cabinets, HVAC or precision instruments?

JUXIN FASTENERS welcomes inquiries from design engineers, mechanical engineers, structural engineers, manufacturing engineers, production managers,

 procurement specialists, purchasing managers, supplier development teams and supply chain managers.

For an efficient technical and commercial review, please provide:

2D drawing or applicable standard + thread designation + screw length + head dimensions + socket requirements + material + mechanical property class

 + coating + application + inspection requirements + sample quantity + annual purchasing volume + target delivery schedule

Our team can review your requirements, discuss suitable fastening options, confirm sample arrangements and provide quotation information.

Company: JUXIN FASTENERS

Website: https://www.juxinfasteners.com/

Email: info@juxinfasteners.com

Send your socket head cap screw drawings and RFQ to JUXIN FASTENERS for technical evaluation and quotation.
